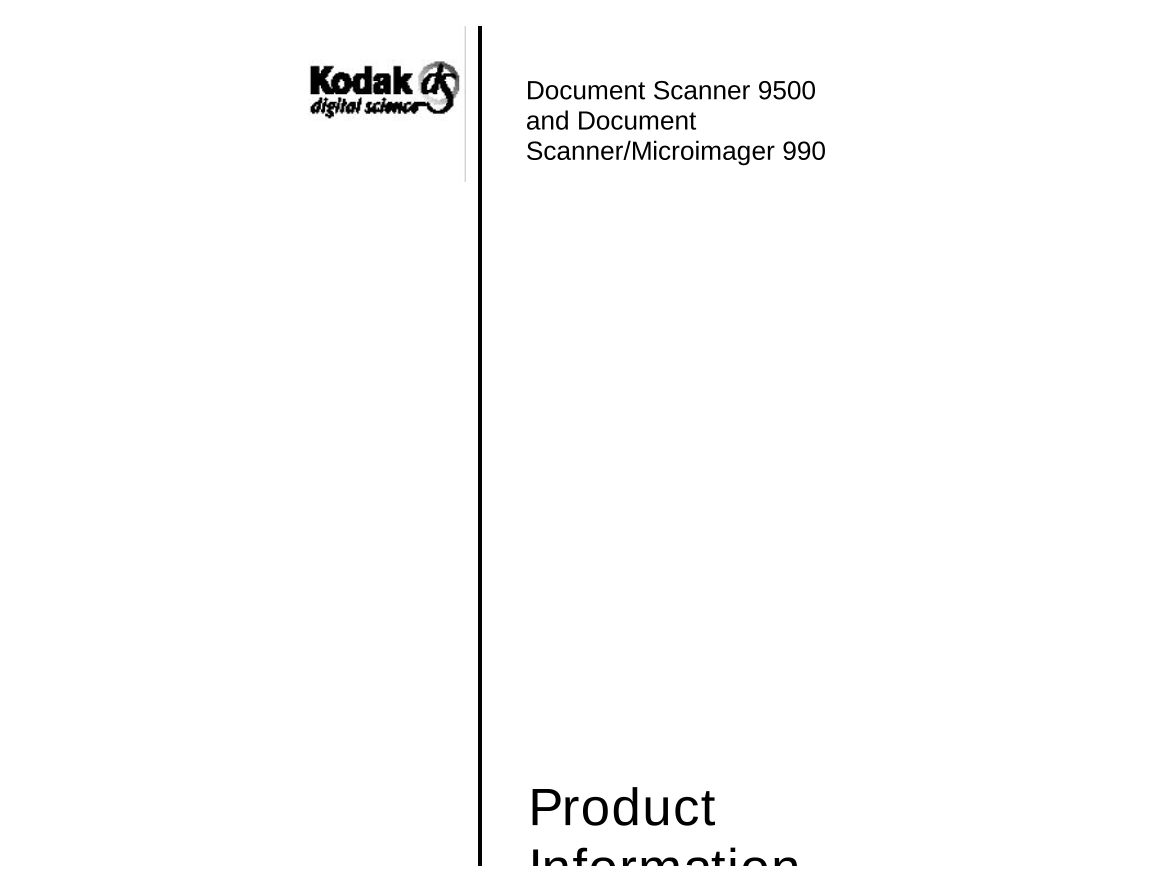

Document Scanner 9500 and Document Scanner/Microimager 990 Product Information

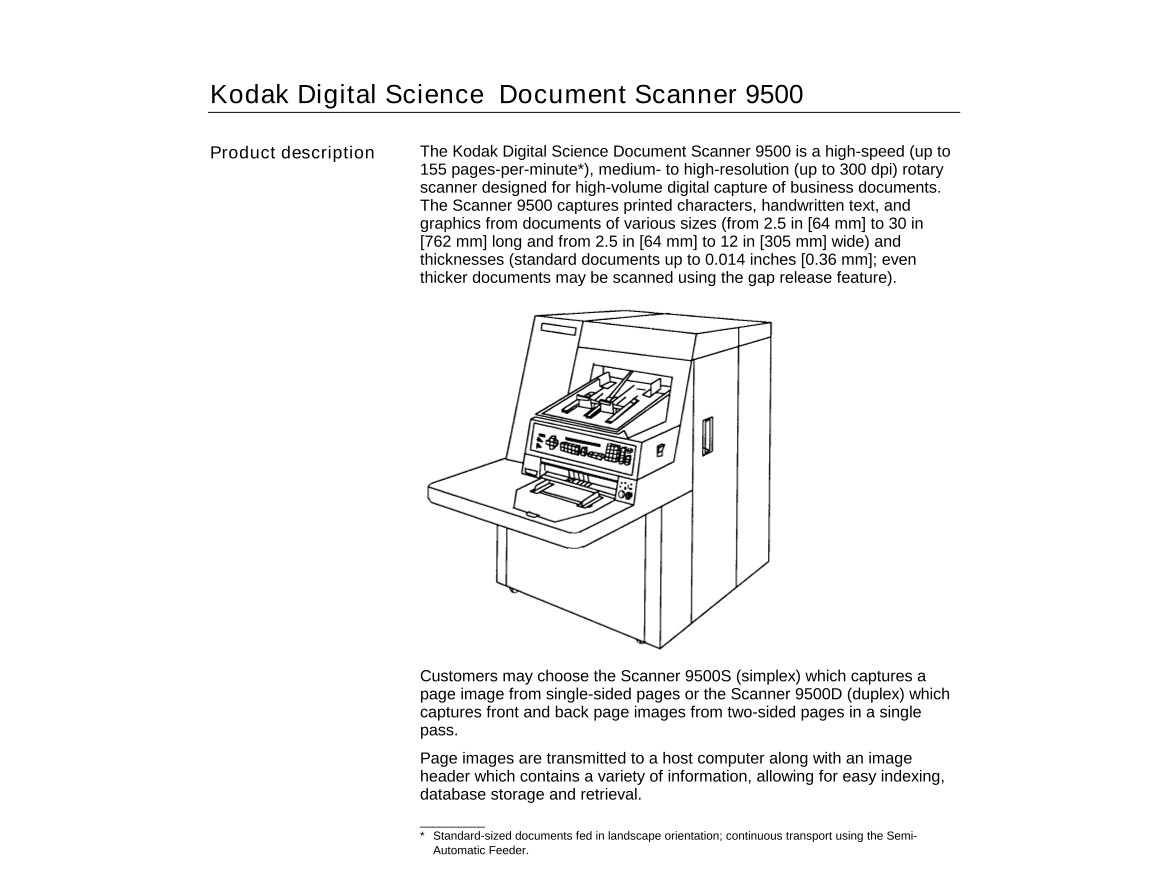

Kodak Digital Science Document Scanner 9500 Product description The Kodak Digital Science Document Scanner 9500 is a high-speed (up to 155 pages-per-minute*), medium- to high-resolution (up to 300 dpi) rotary scanner designed for high-volume digital capture of business documents. The Scanner 9500 captures printed characters, handwritten text, and graphics from documents of various sizes (from 2.5 in [64 mm] to 30 in [762 mm] long and from 2.5 in [64 mm] to 12 in [305 mm] wide) and thicknesses (standard documents up to 0.014 inches [0.36 mm]; even thicker documents may be scanned using the gap release feature). Customers may choose the Scanner 9500S (simplex) which captures a page image from single-sided pages or the Scanner 9500D (duplex) which captures front and back page images from two-sided pages in a single pass. Page images are transmitted to a host computer along with an image header which contains a variety of information, allowing for easy indexing, database storage and retrieval. __________ * Standard-sized documents fed in landscape orientation; continuous transport using the Semi- Automatic Feeder.

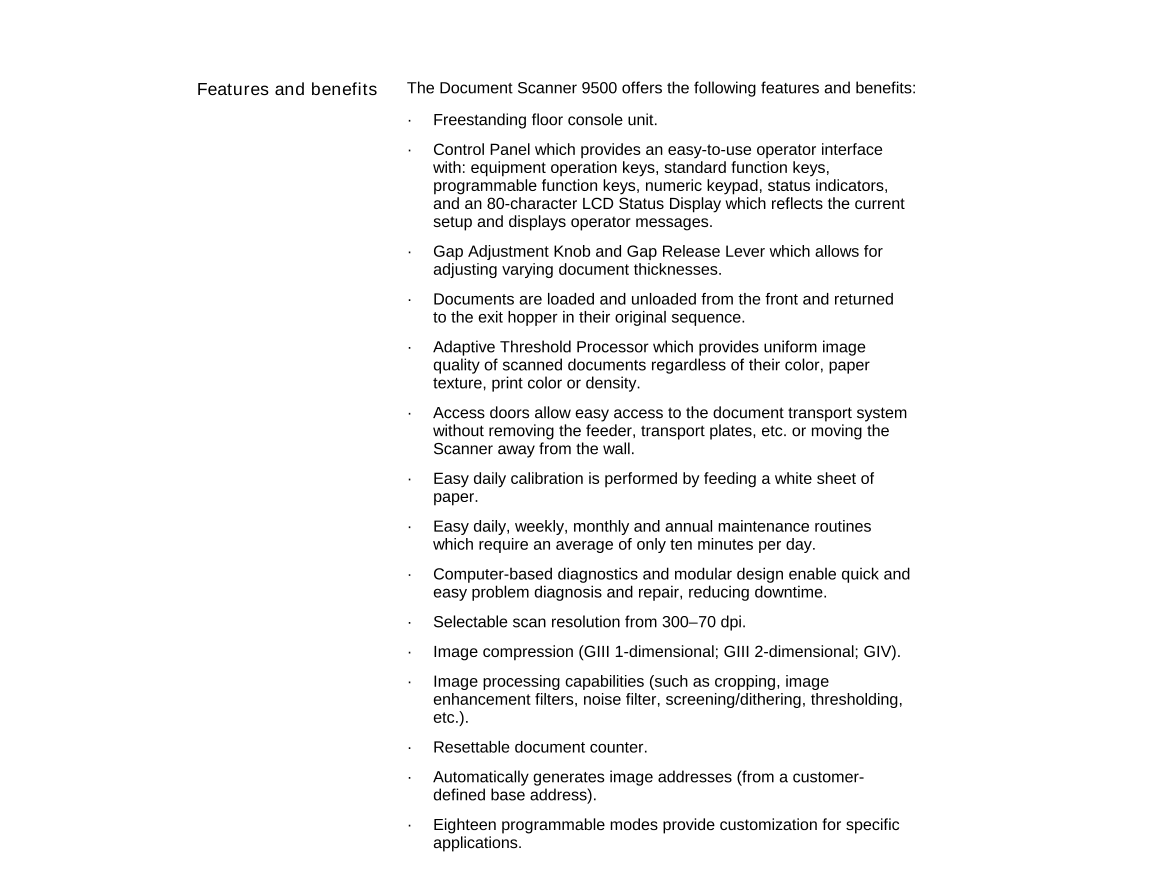

Features and benefits The Document Scanner 9500 offers the following features and benefits: • Freestanding floor console unit. • Control Panel which provides an easy-to-use operator interface with: equipment operation keys, standard function keys, programmable function keys, numeric keypad, status indicators, and an 80-character LCD Status Display which reflects the current setup and displays operator messages. • Gap Adjustment Knob and Gap Release Lever which allows for adjusting varying document thicknesses. • Documents are loaded and unloaded from the front and returned to the exit hopper in their original sequence. • Adaptive Threshold Processor which provides uniform image quality of scanned documents regardless of their color, paper texture, print color or density. • Access doors allow easy access to the document transport system without removing the feeder, transport plates, etc. or moving the Scanner away from the wall. • Easy daily calibration is performed by feeding a white sheet of paper. • Easy daily, weekly, monthly and annual maintenance routines which require an average of only ten minutes per day. • Computer-based diagnostics and modular design enable quick and easy problem diagnosis and repair, reducing downtime. • Selectable scan resolution from 300–70 dpi. • Image compression (GIII 1-dimensional; GIII 2-dimensional; GIV). • Image processing capabilities (such as cropping, image enhancement filters, noise filter, screening/dithering, thresholding, etc.). • Resettable document counter. • Automatically generates image addresses (from a customer- defined base address). • Eighteen programmable modes provide customization for specific applications. • Event confirmation tones/lights.

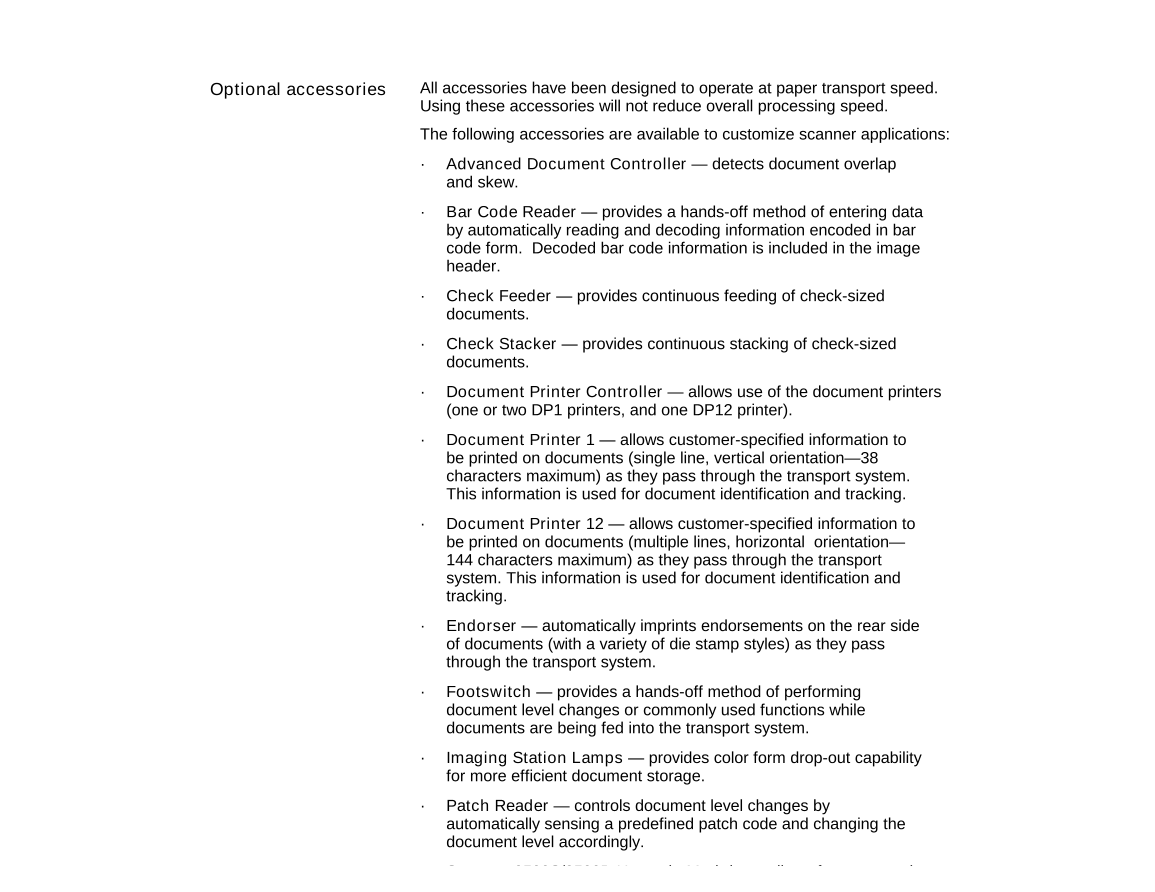

Optional accessories All accessories have been designed to operate at paper transport speed. Using these accessories will not reduce overall processing speed. The following accessories are available to customize scanner applications: • Advanced Document Controller — detects document overlap and skew. • Bar Code Reader — provides a hands-off method of entering data by automatically reading and decoding information encoded in bar code form. Decoded bar code information is included in the image header. • Check Feeder — provides continuous feeding of check-sized documents. • Check Stacker — provides continuous stacking of check-sized documents. • Document Printer Controller — allows use of the document printers (one or two DP1 printers, and one DP12 printer). • Document Printer 1 — allows customer-specified information to be printed on documents (single line, vertical orientation— 38 characters maximum) as they pass through the transport system. This information is used for document identification and tracking. • Document Printer 12 — allows customer-specified information to be printed on documents (multiple lines, horizontal orientation— 144 characters maximum) as they pass through the transport system. This information is used for document identification and tracking. • Endorser — automatically imprints endorsements on the rear side of documents (with a variety of die stamp styles) as they pass through the transport system. • Footswitch — provides a hands-off method of performing document level changes or commonly used functions while documents are being fed into the transport system. • Imaging Station Lamps — provides color form drop-out capability for more efficient document storage. • Patch Reader — controls document level changes by automatically sensing a predefined patch code and changing the document level accordingly. • Scanner 9500S/9500D Upgrade Module — allows for an upgrade

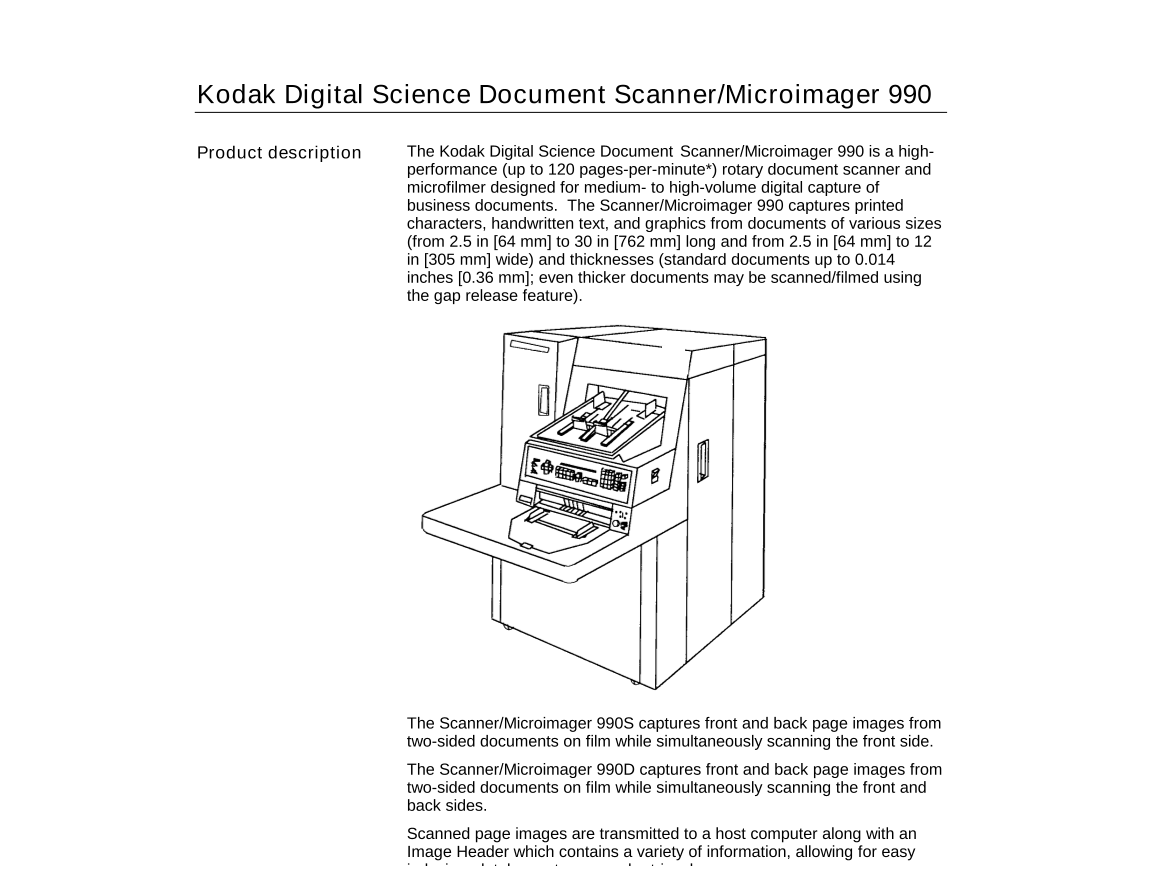

Kodak Digital Science Document Scanner/Microimager 990 Product description The Kodak Digital Science Document Scanner/Microimager 990 is a high- performance (up to 120 pages-per-minute*) rotary document scanner and microfilmer designed for medium- to high-volume digital capture of business documents. The Scanner/Microimager 990 captures printed characters, handwritten text, and graphics from documents of various sizes (from 2.5 in [64 mm] to 30 in [762 mm] long and from 2.5 in [64 mm] to 12 in [305 mm] wide) and thicknesses (standard documents up to 0.014 inches [0.36 mm]; even thicker documents may be scanned/filmed using the gap release feature). The Scanner/Microimager 990S captures front and back page images from two-sided documents on film while simultaneously scanning the front side. The Scanner/Microimager 990D captures front and back page images from two-sided documents on film while simultaneously scanning the front and back sides. Scanned page images are transmitted to a host computer along with an Image Header which contains a variety of information, allowing for easy indexing, database storage and retrieval.

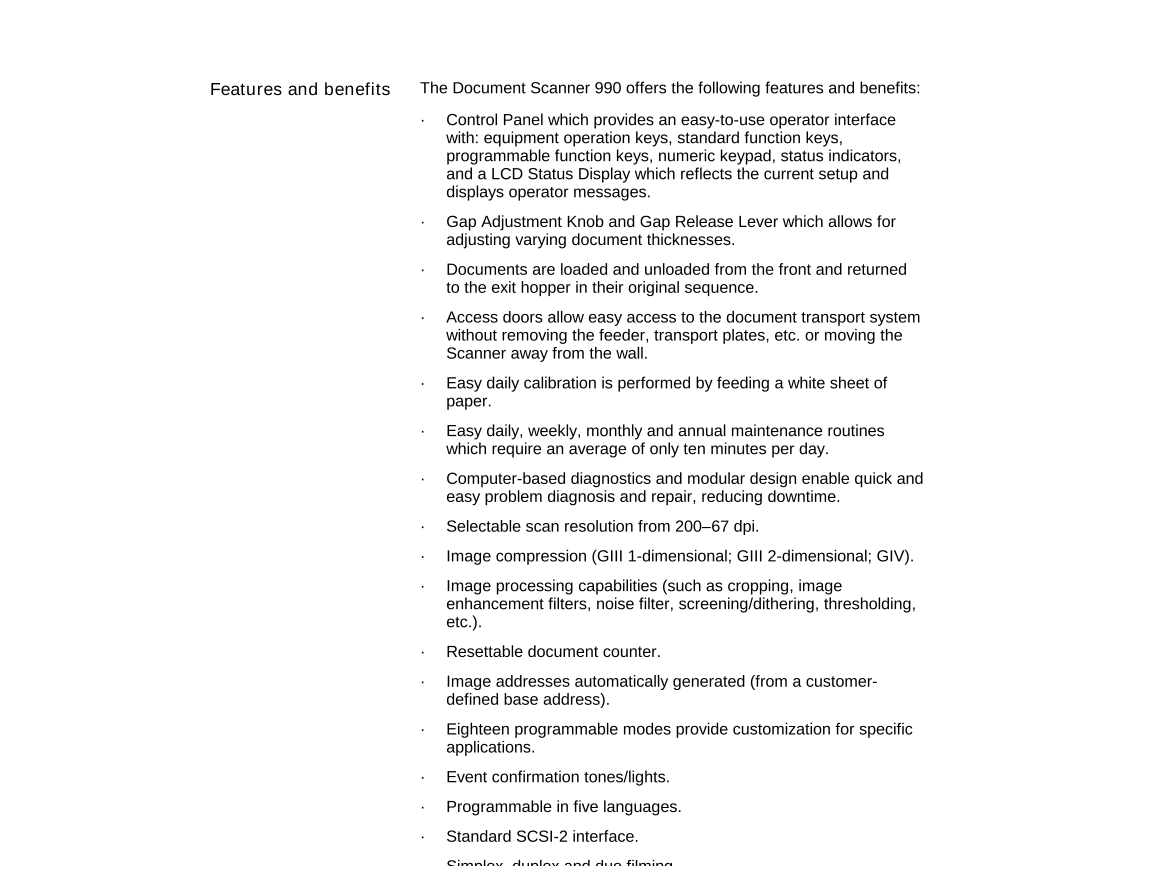

Features and benefits The Document Scanner 990 offers the following features and benefits: • Control Panel which provides an easy-to-use operator interface with: equipment operation keys, standard function keys, programmable function keys, numeric keypad, status indicators, and a LCD Status Display which reflects the current setup and displays operator messages. • Gap Adjustment Knob and Gap Release Lever which allows for adjusting varying document thicknesses. • Documents are loaded and unloaded from the front and returned to the exit hopper in their original sequence. • Access doors allow easy access to the document transport system without removing the feeder, transport plates, etc. or moving the Scanner away from the wall. • Easy daily calibration is performed by feeding a white sheet of paper. • Easy daily, weekly, monthly and annual maintenance routines which require an average of only ten minutes per day. • Computer-based diagnostics and modular design enable quick and easy problem diagnosis and repair, reducing downtime. • Selectable scan resolution from 200–67 dpi. • Image compression (GIII 1-dimensional; GIII 2-dimensional; GIV). • Image processing capabilities (such as cropping, image enhancement filters, noise filter, screening/dithering, thresholding, etc.). • Resettable document counter. • Image addresses automatically generated (from a customer- defined base address). • Eighteen programmable modes provide customization for specific applications. • Event confirmation tones/lights. • Programmable in five languages. • Standard SCSI-2 interface. • Simplex, duplex and duo filming.

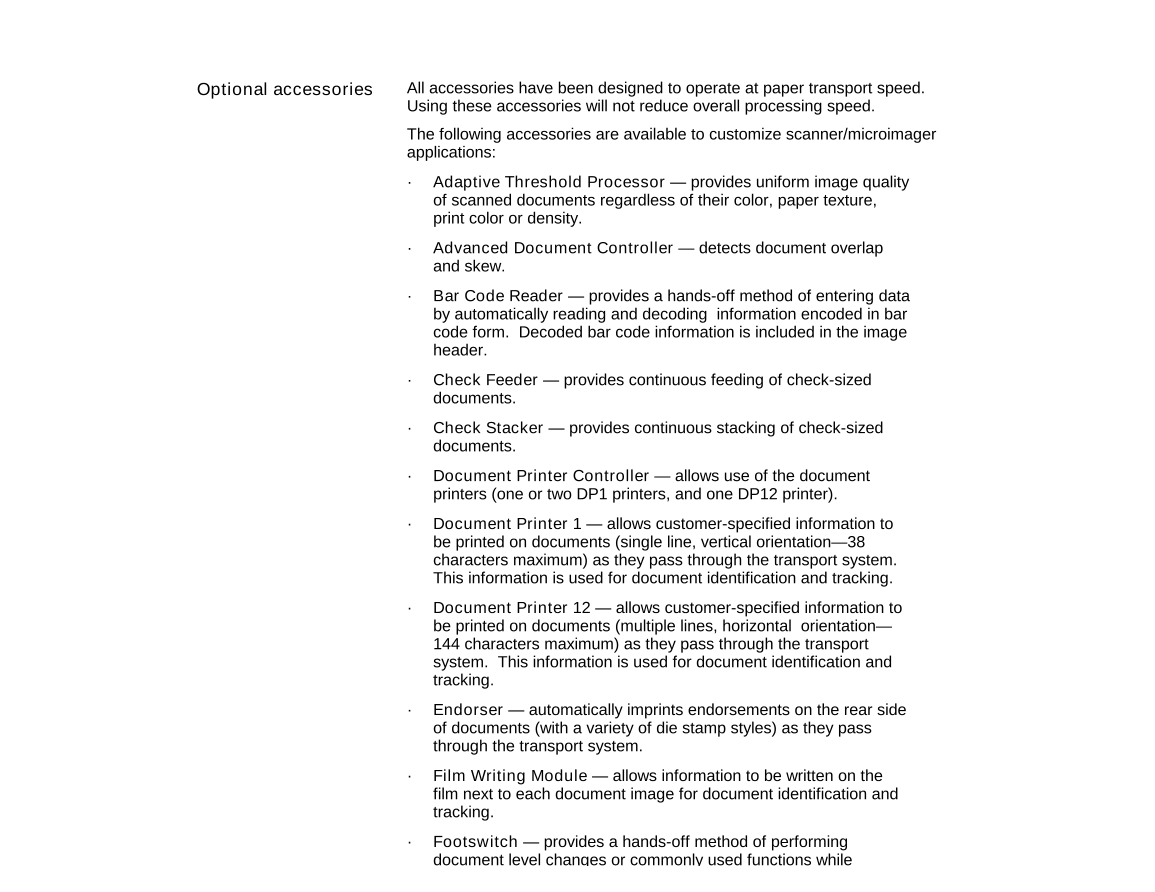

Optional accessories All accessories have been designed to operate at paper transport speed. Using these accessories will not reduce overall processing speed. The following accessories are available to customize scanner/microimager applications: • Adaptive Threshold Processor — provides uniform image quality of scanned documents regardless of their color, paper texture, print color or density. • Advanced Document Controller — detects document overlap and skew. • Bar Code Reader — provides a hands-off method of entering data by automatically reading and decoding information encoded in bar code form. Decoded bar code information is included in the image header. • Check Feeder — provides continuous feeding of check-sized documents. • Check Stacker — provides continuous stacking of check-sized documents. • Document Printer Controller — allows use of the document printers (one or two DP1 printers, and one DP12 printer). • Document Printer 1 — allows customer-specified information to be printed on documents (single line, vertical orientation— 38 characters maximum) as they pass through the transport system. This information is used for document identification and tracking. • Document Printer 12 — allows customer-specified information to be printed on documents (multiple lines, horizontal orientation— 144 characters maximum) as they pass through the transport system. This information is used for document identification and tracking. • Endorser — automatically imprints endorsements on the rear side of documents (with a variety of die stamp styles) as they pass through the transport system. • Film Writing Module — allows information to be written on the film next to each document image for document identification and tracking. • Footswitch — provides a hands-off method of performing document level changes or commonly used functions while

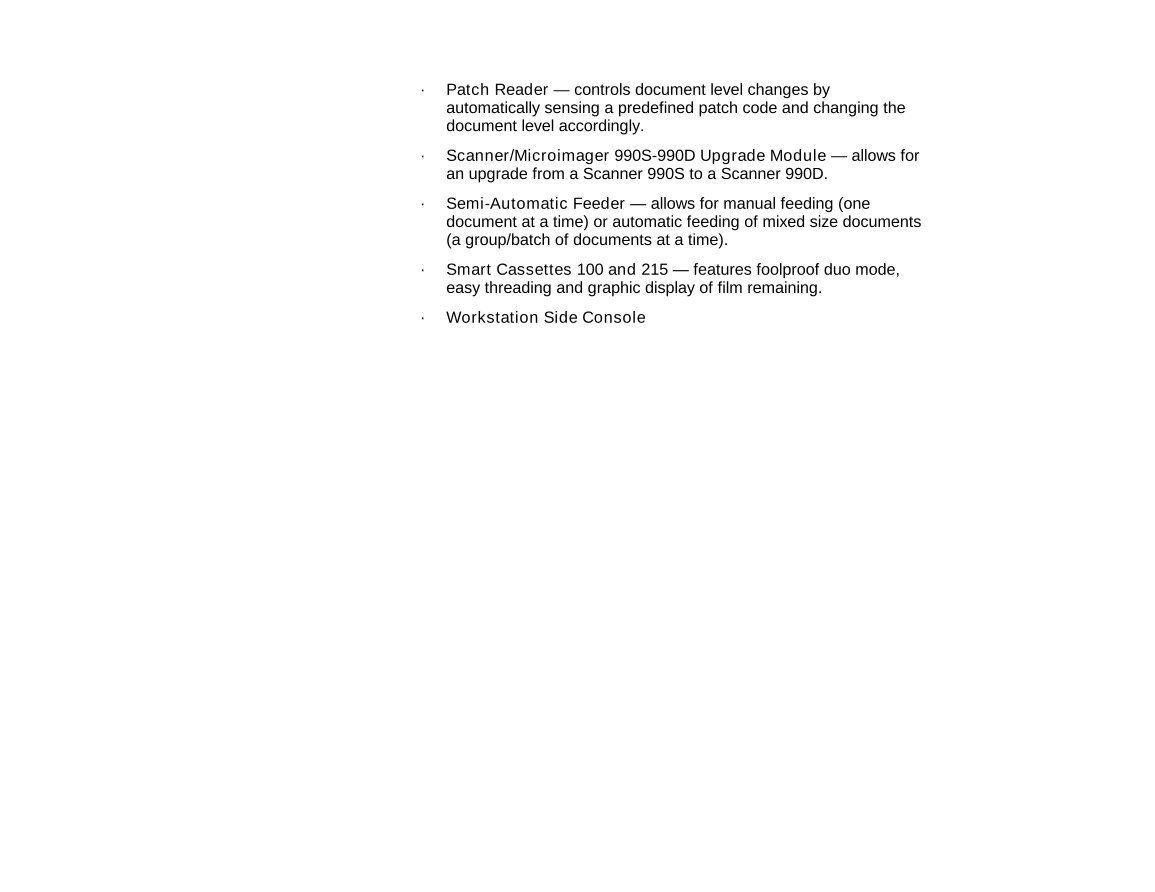

• Patch Reader — controls document level changes by automatically sensing a predefined patch code and changing the document level accordingly. • Scanner/Microimager 990S-990D Upgrade Module — allows for an upgrade from a Scanner 990S to a Scanner 990D. • Semi-Automatic Feeder — allows for manual feeding (one document at a time) or automatic feeding of mixed size documents (a group/batch of documents at a time). • Smart Cassettes 100 and 215 — features foolproof duo mode, easy threading and graphic display of film remaining. • Workstation Side Console
