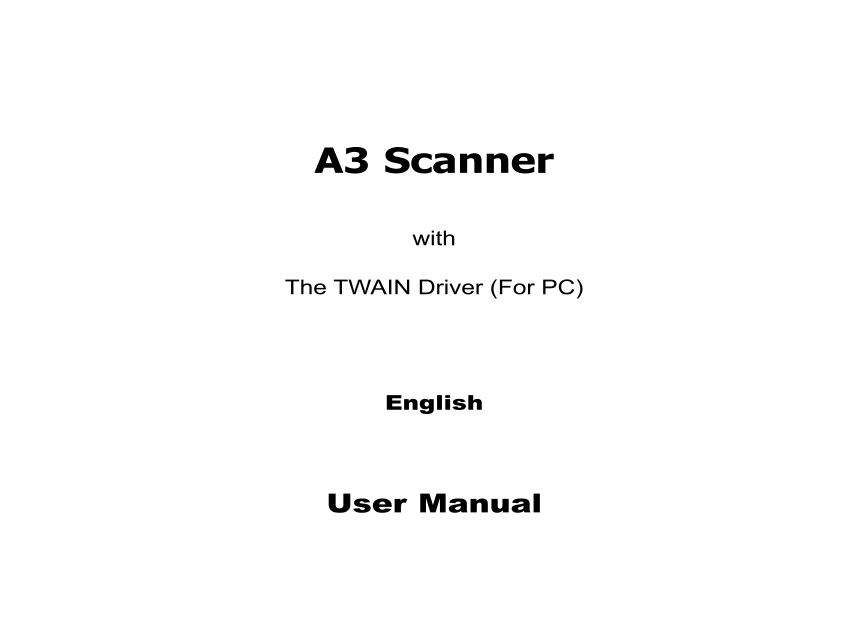

A3 Scanner with The TWAIN Driver (For PC) English User Manual

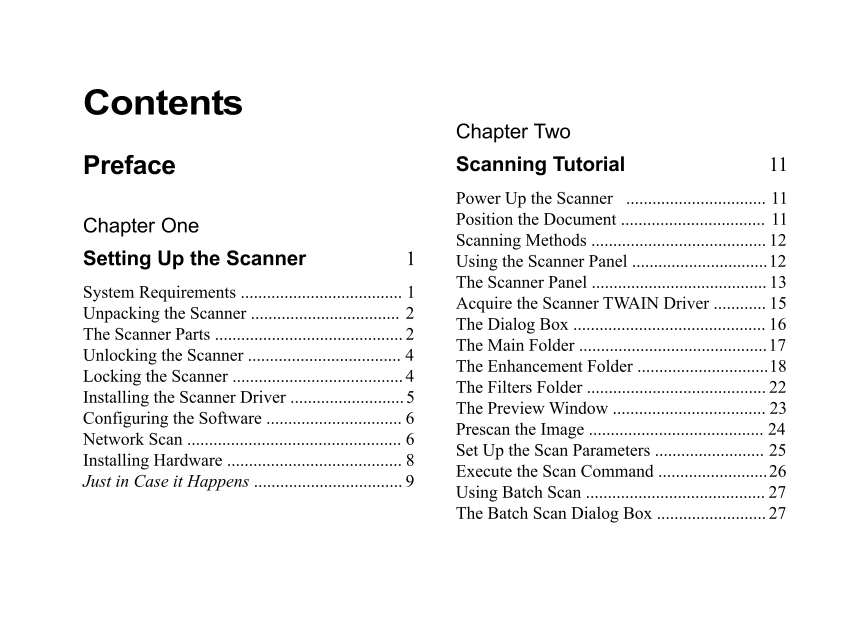

Contents Chapter Two Preface Scanning Tutorial 11 Power Up the Scanner ................................ 11 Chapter One Position the Document ................................. 11 Scanning Methods ........................................ 12 Setting Up the Scanner 1 Using the Scanner Panel ............................... 12 System Requirements ..................................... 1 The Scanner Panel ........................................ 13 Unpacking the Scanner .................................. 2 Acquire the Scanner TWAIN Driver ............ 15 The Scanner Parts ........................................... 2 The Dialog Box ............................................ 16 Unlocking the Scanner ................................... 4 The Main Folder ........................................... 17 Locking the Scanner ....................................... 4 The Enhancement Folder .............................. 18 Installing the Scanner Driver .......................... 5 The Filters Folder ......................................... 22 Configuring the Software ............................... 6 The Preview Window ................................... 23 Network Scan ................................................. 6 Prescan the Image ........................................ 24 Installing Hardware ........................................ 8 Set Up the Scan Parameters ......................... 25 Just in Case it Happens .................................. 9 Execute the Scan Command ......................... 26 Using Batch Scan ......................................... 27 The Batch Scan Dialog Box ......................... 27

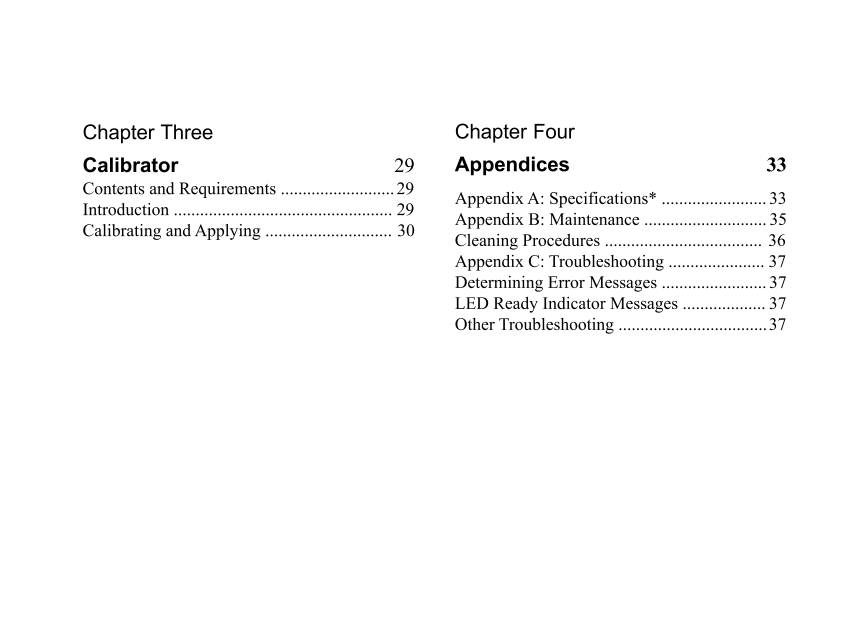

Chapter Three Chapter Four Calibrator 29 Appendices 33 Contents and Requirements .......................... 29 Introduction .................................................. 29 Appendix A: Specifications* ........................ 33 Calibrating and Applying ............................. 30 Appendix B: Maintenance ............................ 35 Cleaning Procedures .................................... 36 Appendix C: Troubleshooting ...................... 37 Determining Error Messages ........................ 37 LED Ready Indicator Messages ................... 37 Other Troubleshooting .................................. 37

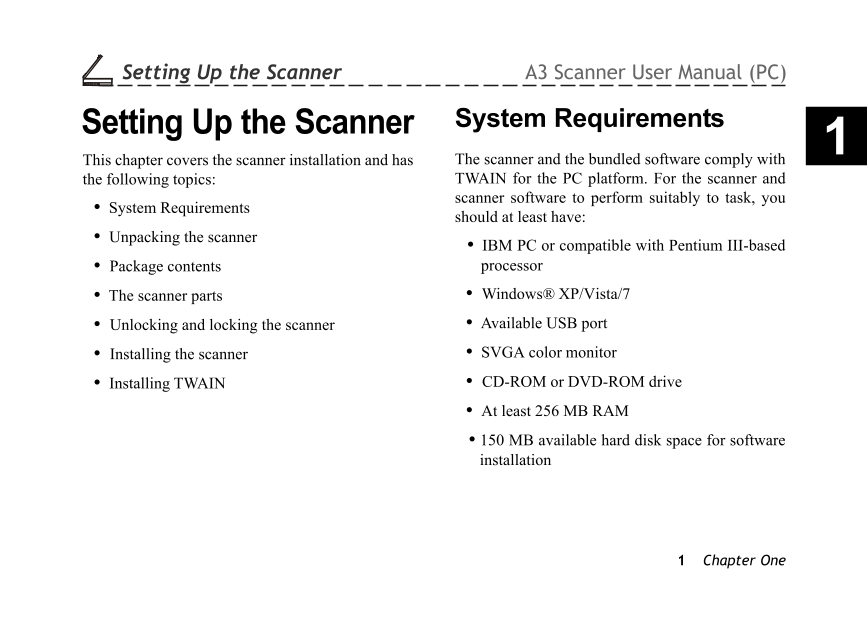

Setting Up the Scanner A3 Scanner User Manual (PC) Setting Up the Scanner System Requirements 1 This chapter covers the scanner installation and has The scanner and the bundled software comply with the following topics: TWAIN for the PC platform. For the scanner and System Requirements scanner software to perform suitably to task, you should at least have: Unpacking the scanner IBM PC or compatible with Pentium III-based Package contents processor The scanner parts Windows® XP/Vista/7 Unlocking and locking the scanner Available USB port Installing the scanner SVGA color monitor Installing TWAIN CD-ROM or DVD-ROM drive At least 256 MB RAM 150 MB available hard disk space for software installation 1 Chapter One

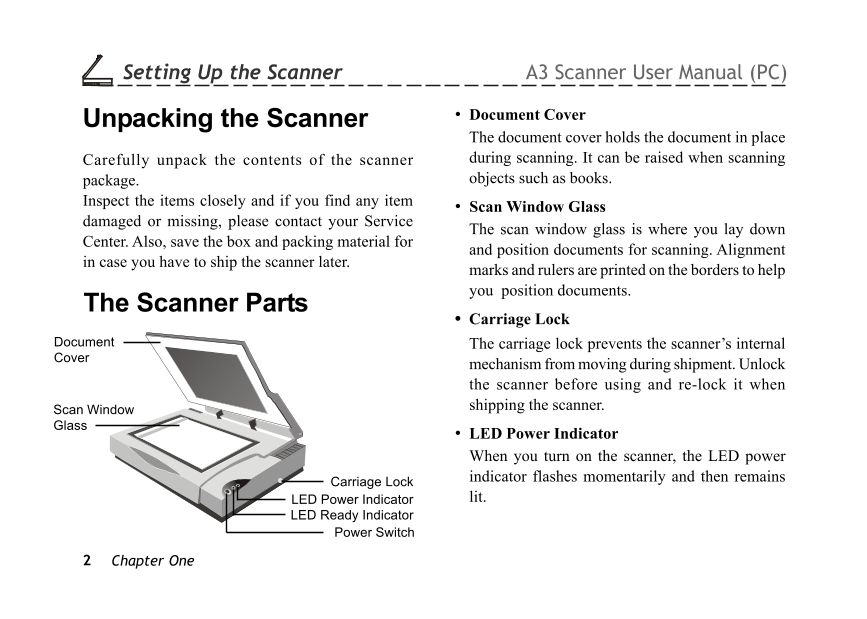

Setting Up the Scanner A3 Scanner User Manual (PC) Unpacking the Scanner • Document Cover The document cover holds the document in place Carefully unpack the contents of the scanner during scanning. It can be raised when scanning package. objects such as books. Inspect the items closely and if you find any item • Scan Window Glass damaged or missing, please contact your Service The scan window glass is where you lay down Center. Also, save the box and packing material for and position documents for scanning. Alignment in case you have to ship the scanner later. marks and rulers are printed on the borders to help The Scanner Parts you position documents. • Carriage Lock Document The carriage lock prevents the scanner’s internal Cover mechanism from moving during shipment. Unlock the scanner before using and re-lock it when Scan Window shipping the scanner. Glass • LED Power Indicator When you turn on the scanner, the LED power Carriage Lock indicator flashes momentarily and then remains LED Power Indicator lit. LED Ready Indicator Power Switch 2 Chapter One

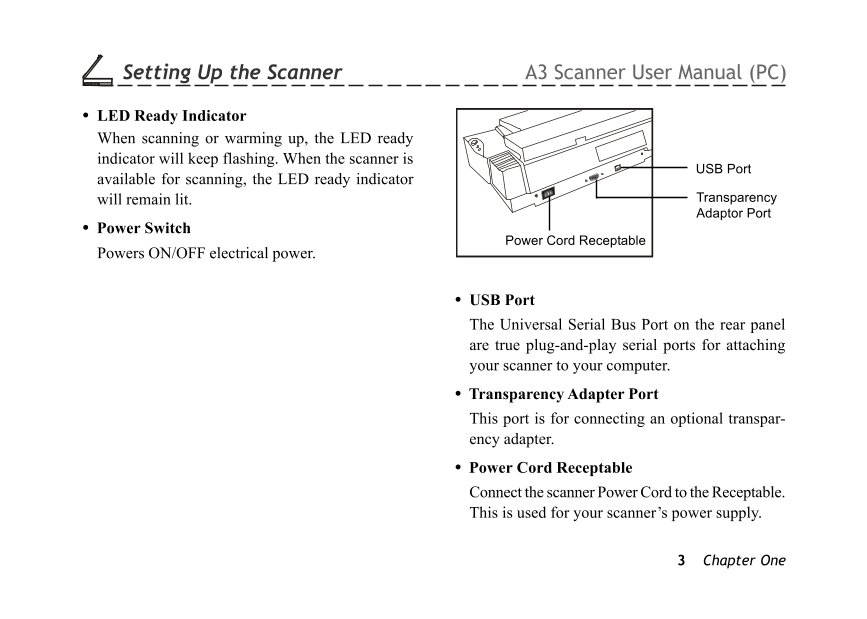

Setting Up the Scanner A3 Scanner User Manual (PC) • LED Ready Indicator When scanning or warming up, the LED ready indicator will keep flashing. When the scanner is USB Port available for scanning, the LED ready indicator will remain lit. Transparency Adaptor Port • Power Switch Power Cord Receptable Powers ON/OFF electrical power. • USB Port The Universal Serial Bus Port on the rear panel are true plug-and-play serial ports for attaching your scanner to your computer. • Transparency Adapter Port This port is for connecting an optional transpar- ency adapter. • Power Cord Receptable Connect the scanner Power Cord to the Receptable. This is used for your scanner’s power supply. 3 Chapter One

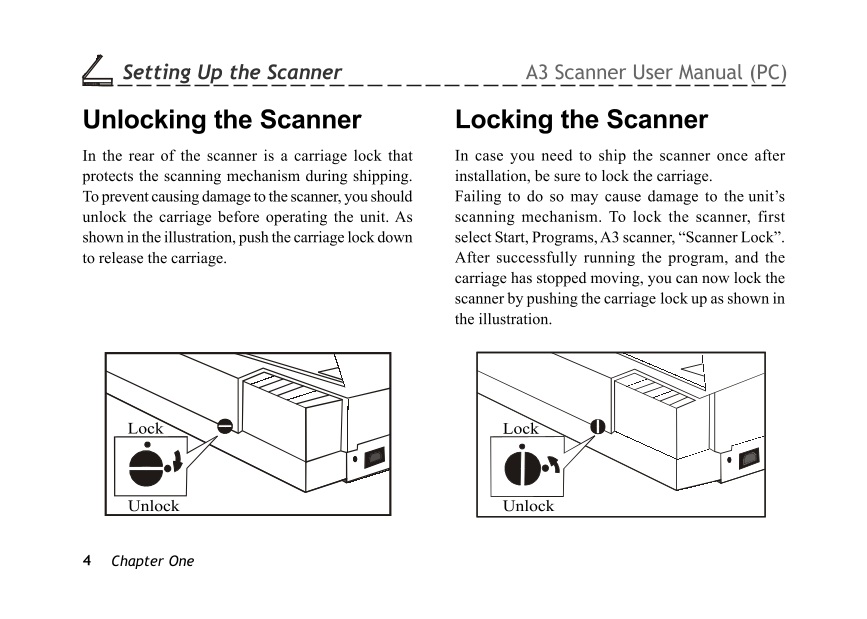

Setting Up the Scanner A3 Scanner User Manual (PC) Unlocking the Scanner Locking the Scanner In the rear of the scanner is a carriage lock that In case you need to ship the scanner once after protects the scanning mechanism during shipping. installation, be sure to lock the carriage. To prevent causing damage to the scanner, you should Failing to do so may cause damage to the unit’s unlock the carriage before operating the unit. As scanning mechanism. To lock the scanner, first shown in the illustration, push the carriage lock down select Start, Programs, A3 scanner, “Scanner Lock”. to release the carriage. After successfully running the program, and the carriage has stopped moving, you can now lock the scanner by pushing the carriage lock up as shown in the illustration. Lock Lock Unlock Unlock 4 Chapter One
