    Document reference: Company: STMicroelectronics PCB reference: X-NUCLEO-IDS01A4 (SPSGRF-868_Nucleo_Expansion board) Item Quantity Reference Part / Value Voltage / Ampere/Ohm Type / Additional Tolerance Package Manufacturer Notes Manufacturer’s ordering code / Orderable Part Number 1 1 CN5 Arduino Connector CN5 10 pins 2 2 CN6,CN9 Arduino Connectors CN6 and CN9 8pins 3 2 CN7,CN10 MORPHO Connectors CN7 and CN10 38pins NOT MOUNTED Pass-Through: Male on Bottom, Female on Top. SAMTEC SSQ-110-03-F-S 10x1 2.54mm pitch Pass-Through: Male on Bottom, Female on Top. 8x1 2.54mm pitch Pass-Through: Female on Bottom, Male on Top. 19x2 2.54mm pitch Pass-Through: Male on Bottom, Female on Top. 6x1 2.54mm pitch SAMTEC SSQ-108-03-F-S SAMTEC SSQ-106-03-G-S 4 5 6 7 8 1 1 1 12 1 CN8 C1 J1 Arduino Connector CN8 6 pins 100nF Jumper R1,R2,R3,R4, R5,R6,R7,R8, R9,R10,R14,R 0 15 R12 100k 16V Ceramic X7R ±10% SMD 0402 Murata GRM155R71C104KA88 Through Hole 2x1 2.54mm pitch ANY ANY R3,R5,R6,R7,R 8,R9,R10,R15 NOT MOUNTED ±1% SMD 0805 ANY ANY ±1% SMD 0805 ANY ANY

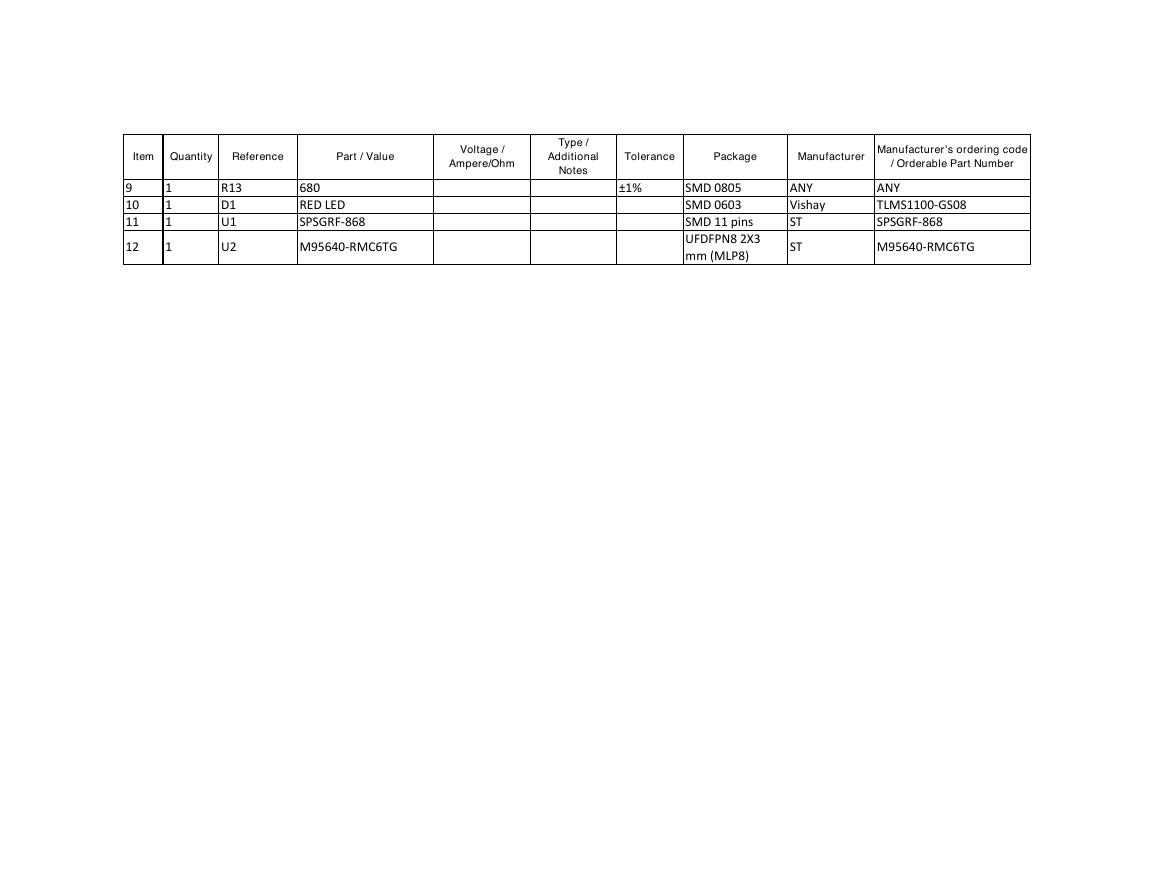

    Item Quantity Reference Part / Value Voltage / Ampere/Ohm 9 10 11 12 1 1 1 1 R13 D1 U1 U2 680 RED LED SPSGRF-868 M95640-RMC6TG Notes ±1% Type / Additional Tolerance Package Manufacturer Manufacturer’s ordering code / Orderable Part Number SMD 0805 SMD 0603 SMD 11 pins UFDFPN8 2X3 mm (MLP8) ANY Vishay ST ST ANY TLMS1100-GS08 SPSGRF-868 M95640-RMC6TG
