XC6219/6211 Series ETR0307-005 High Speed LDO Regulators, Low ESR Cap. Compatible, ON/OFF Switch ■APPLICATIONS ●Mobile phones ●Cordless phones, radio communication equipment ●Portable games ●Cameras, Video cameras ●Reference voltage sources ●Battery powered equipment ■FEATURES Maximum Output Current Dropout Voltage Operating Voltage Range Output Voltage Range Highly Accuracy Low Power Consumption Standby Current High Ripple Rejection Operating Temperature Range Low ESR Capacitor Ultra Small Packages ■GENERAL DESCRIPTION The XC6219/XC6211 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the XC6219/6211 series is ideal for today’s cutting edge mobile phone. Internally the XC6219/6211 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The XC6219/6211’s current limiters' foldback circuit also operates as a short protect for the output current limiter and. the output pin. The output voltage is set by laser trimming. Voltages are selectable in 50mV steps within a range of 0.9V to 5.0V. The XC6219/6211 series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. : 150mA (VOUT<1.75V, A~D type) : 240mA (VOUT>1.8V, A~D type) : 300mA (VOUT>1.3V, E~H type) : 200mV @ IOUT=100mA : 2.0V ~ 6.0V : 0.9V ~ 5.0V (50mV steps) : +2% (VOUT>1.5V) : +30mV (VOUT≦1.5V) : +1% (VOUT≧3.0V) : 25μA (TYP.) : Less than 0.1μA (TYP.) : 65dB @10kHz : Ceramic capacitor compatible : SOT-25 (SOT-23-5) : SOT-89-5 (for XC6219 only) : USP-6B (for XC6219 only) ■TYPICAL APPLICATION CIRCUIT ■TYPICAL PERFORMANCE CHARACTERISTICS ●Ripple Rejection Rate ●XC6219 series 1 2 3 VIN VOUT 5 VSS CE NC 4 CL 1µF CIN 1µF SOT-25 (SOT-23-5) 1/23

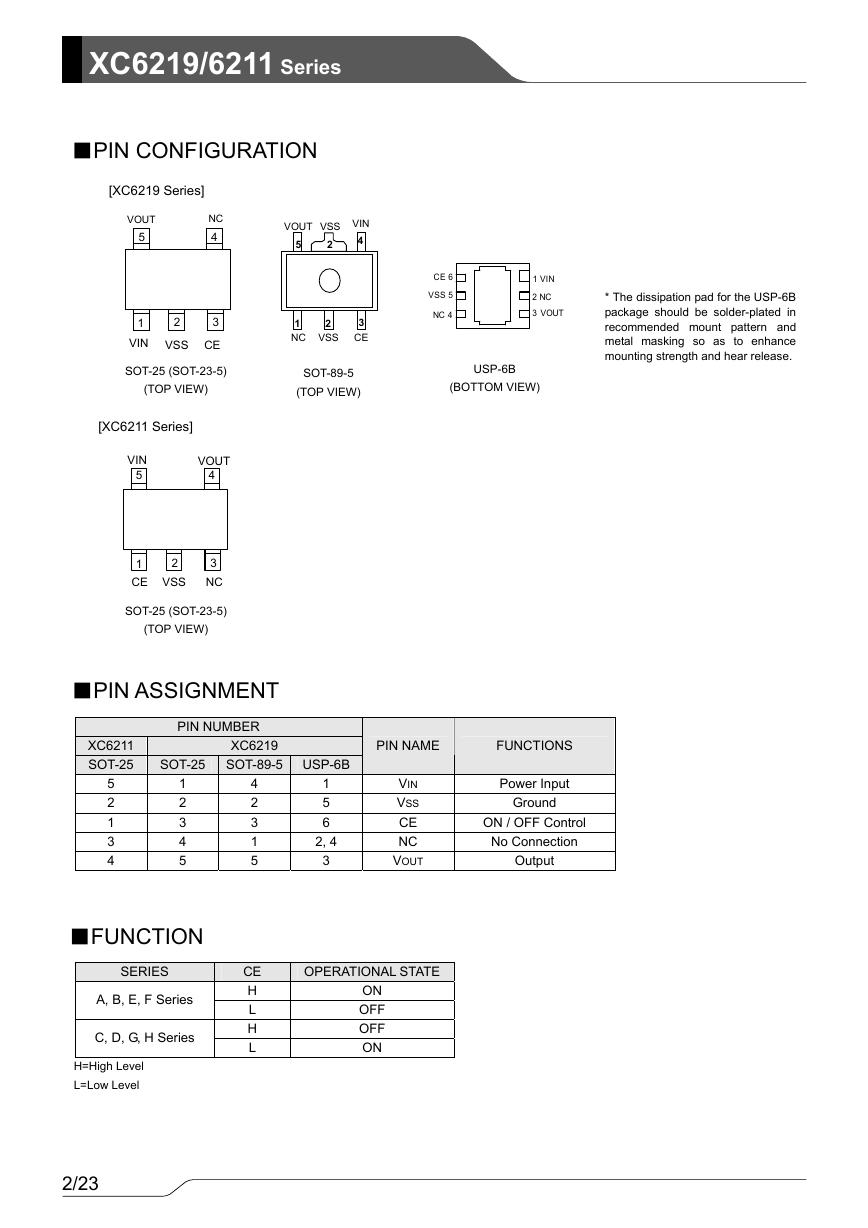

XC6219/6211 Series ■PIN CONFIGURATION VOUT 5 VSS 2 VIN 4 1 NC 2 VSS 3 CE SOT-89-5 (TOP VIEW) CE 6 VSS 5 NC 4 1 VIN 2 NC 3 VOUT USP-6B (BOTTOM VIEW) * The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and hear release. [XC6219 Series] VOUT 5 NC 4 1 VIN 2 VSS 3 CE SOT-25 (SOT-23-5) (TOP VIEW) [XC6211 Series] VIN 5 VOUT 4 1 CE 2 VSS 3 NC SOT-25 (SOT-23-5) (TOP VIEW) ■PIN ASSIGNMENT XC6211 SOT-25 PIN NUMBER XC6219 SOT-25 SOT-89-5 USP-6B PIN NAME FUNCTIONS 5 2 1 3 4 1 2 3 4 5 ■FUNCTION SERIES A, B, E, F Series C, D, G, H Series 4 2 3 1 5 CE H L H L 1 5 6 2, 4 3 VIN VSS CE NC VOUT Power Input Ground ON / OFF Control No Connection Output OPERATIONAL STATE ON OFF OFF ON H=High Level L=Low Level 2/23

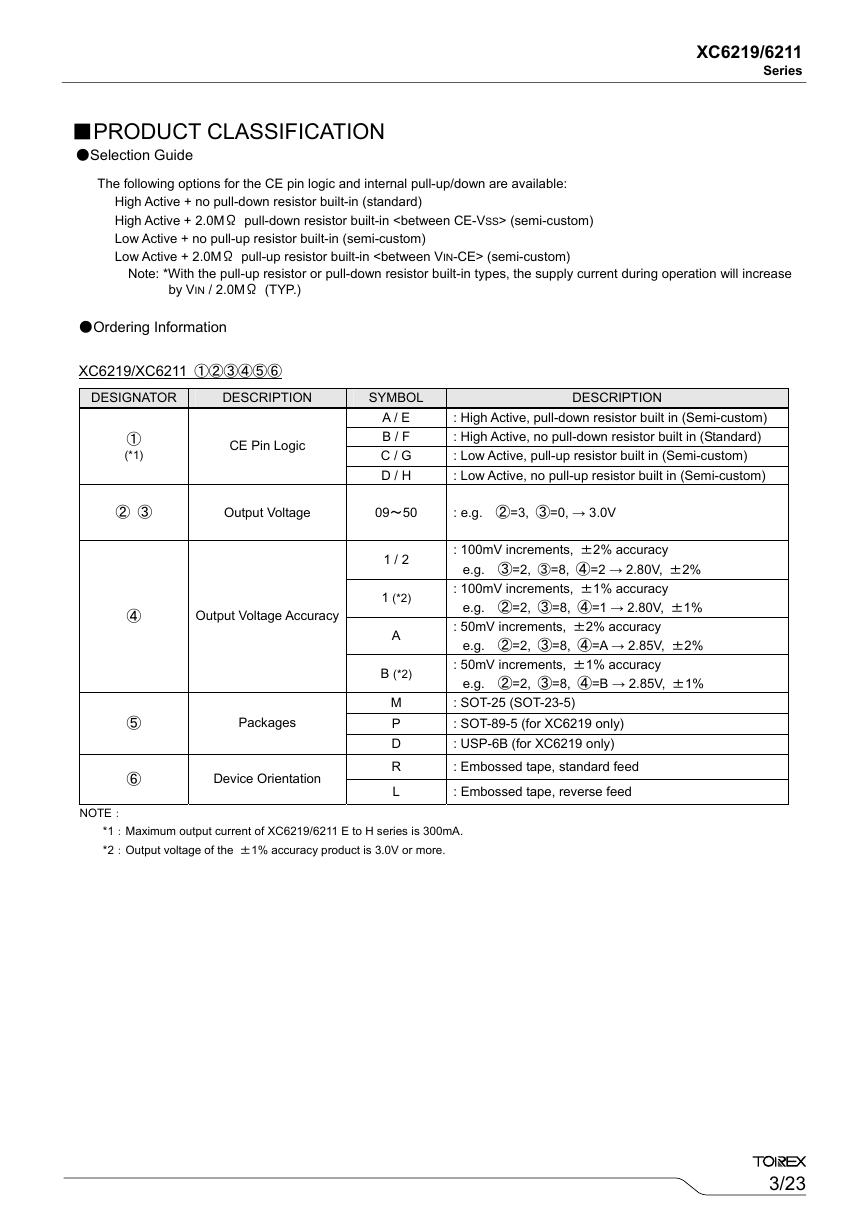

XC6219/6211 Series The following options for the CE pin logic and internal pull-up/down are available: High Active + no pull-down resistor built-in (standard) High Active + 2.0MΩ pull-down resistor built-in (semi-custom) Low Active + no pull-up resistor built-in (semi-custom) Low Active + 2.0MΩ pull-up resistor built-in (semi-custom) Note: *With the pull-up resistor or pull-down resistor built-in types, the supply current during operation will increase ■PRODUCT CLASSIFICATION ●Selection Guide ●Ordering Information XC6219/XC6211 ①②③④⑤⑥ by VIN / 2.0MΩ (TYP.) DESIGNATOR DESCRIPTION SYMBOL DESCRIPTION ① (*1) CE Pin Logic A / E B / F C / G D / H : High Active, pull-down resistor built in (Semi-custom) : High Active, no pull-down resistor built in (Standard) : Low Active, pull-up resistor built in (Semi-custom) : Low Active, no pull-up resistor built in (Semi-custom) ② ③ Output Voltage 09～50 : e.g. ②=3, ③=0, → 3.0V ④ Output Voltage Accuracy ⑤ ⑥ Packages Device Orientation 1 / 2 1 (*2) A B (*2) M P D R L : 100mV increments, ±2% accuracy e.g. ③=2, ③=8, ④=2 → 2.80V, ±2% : 100mV increments, ±1% accuracy e.g. ②=2, ③=8, ④=1 → 2.80V, ±1% : 50mV increments, ±2% accuracy e.g. ②=2, ③=8, ④=A → 2.85V, ±2% : 50mV increments, ±1% accuracy e.g. ②=2, ③=8, ④=B → 2.85V, ±1% : SOT-25 (SOT-23-5) : SOT-89-5 (for XC6219 only) : USP-6B (for XC6219 only) : Embossed tape, standard feed : Embossed tape, reverse feed NOTE： *1：Maximum output current of XC6219/6211 E to H series is 300mA. *2：Output voltage of the ±1% accuracy product is 3.0V or more. 3/23

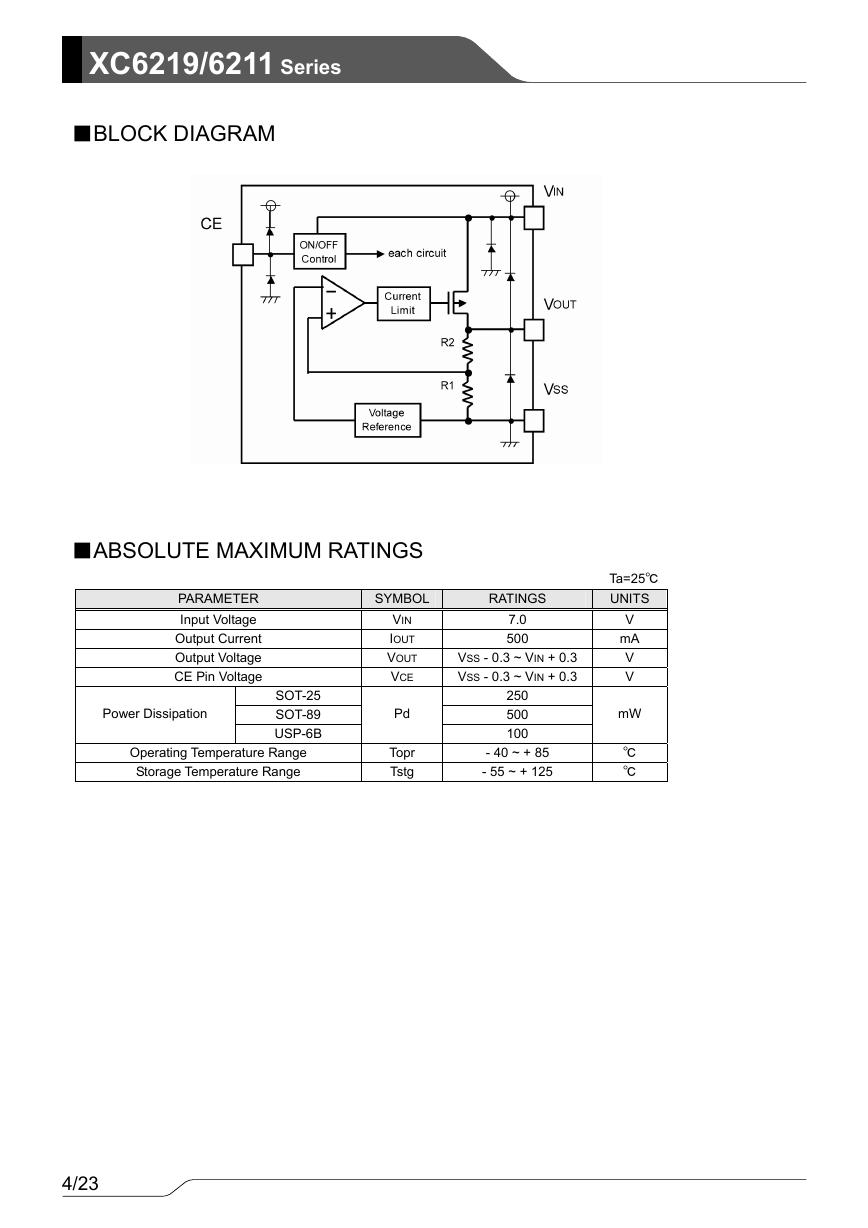

XC6219/6211 Series ■BLOCK DIAGRAM ■ABSOLUTE MAXIMUM RATINGS PARAMETER Input Voltage Output Current Output Voltage CE Pin Voltage Power Dissipation SOT-25 SOT-89 USP-6B Operating Temperature Range Storage Temperature Range SYMBOL RATINGS VIN IOUT VOUT VCE Pd Topr Tstg 7.0 500 VSS - 0.3 ~ VIN + 0.3 VSS - 0.3 ~ VIN + 0.3 250 500 100 - 40 ~ + 85 - 55 ~ + 125 Ta=25℃ UNITS V mA V V mW ℃ ℃ 4/23

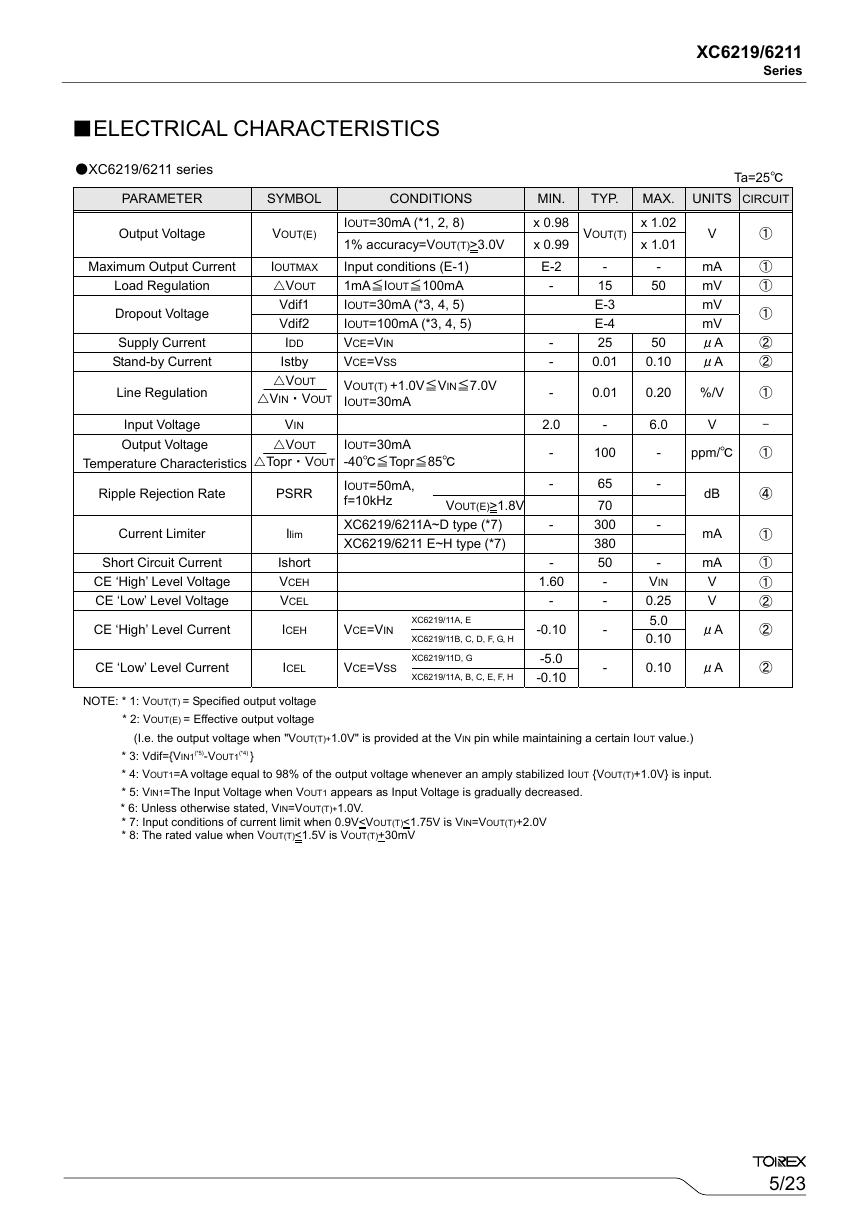

■ELECTRICAL CHARACTERISTICS XC6219/6211 Series Ta=25℃ TYP. MAX. UNITS CIRCUIT VOUT(T) - 15 E-3 E-4 25 0.01 0.01 - 100 65 70 300 380 50 - - - - x 1.02 x 1.01 - 50 50 0.10 0.20 6.0 V mA mV mV mV μA μA %/V V ① ① ① ① ② ② ① - - ppm/℃ ① - - - VIN 0.25 5.0 0.10 0.10 dB mA mA V V μA μA ④ ① ① ① ② ② ② MIN. x 0.98 x 0.99 E-2 - - - - 2.0 - - - - 1.60 - -0.10 -5.0 -0.10 CONDITIONS IOUT=30mA (*1, 2, 8) 1% accuracy=VOUT(T)>3.0V Input conditions (E-1) 1mA≦IOUT≦100mA IOUT=30mA (*3, 4, 5) IOUT=100mA (*3, 4, 5) VCE=VIN VCE=VSS VOUT(T) +1.0V≦VIN≦7.0V IOUT=30mA IOUT=30mA -40℃≦Topr≦85℃ IOUT=50mA, f=10kHz XC6219/6211A~D type (*7) XC6219/6211 E~H type (*7) VOUT(E)>1.8V XC6219/11A, E XC6219/11B, C, D, F, G, H XC6219/11D, G XC6219/11A, B, C, E, F, H ●XC6219/6211 series PARAMETER SYMBOL Output Voltage Maximum Output Current Load Regulation Dropout Voltage Supply Current Stand-by Current Line Regulation Input Voltage Output Voltage Temperature Characteristics VOUT(E) IOUTMAX VOUT Vdif1 Vdif2 IDD Istby VOUT VIN・VOUT VIN VOUT Topr・VOUT Ripple Rejection Rate PSRR Current Limiter Short Circuit Current CE ‘High’ Level Voltage CE ‘Low’ Level Voltage CE ‘High’ Level Current Ilim Ishort VCEH VCEL ICEH VCE=VIN CE ‘Low’ Level Current ICEL VCE=VSS NOTE: * 1: VOUT(T) = Specified output voltage * 2: VOUT(E) = Effective output voltage (I.e. the output voltage when "VOUT(T)+1.0V" is provided at the VIN pin while maintaining a certain IOUT value.) * 3: Vdif={VIN1(*5)-VOUT1(*4) } * 4: VOUT1=A voltage equal to 98% of the output voltage whenever an amply stabilized IOUT {VOUT(T)+1.0V} is input. * 5: VIN1=The Input Voltage when VOUT1 appears as Input Voltage is gradually decreased. * 6: Unless otherwise stated, VIN=VOUT(T)+1.0V. * 7: Input conditions of current limit when 0.9V

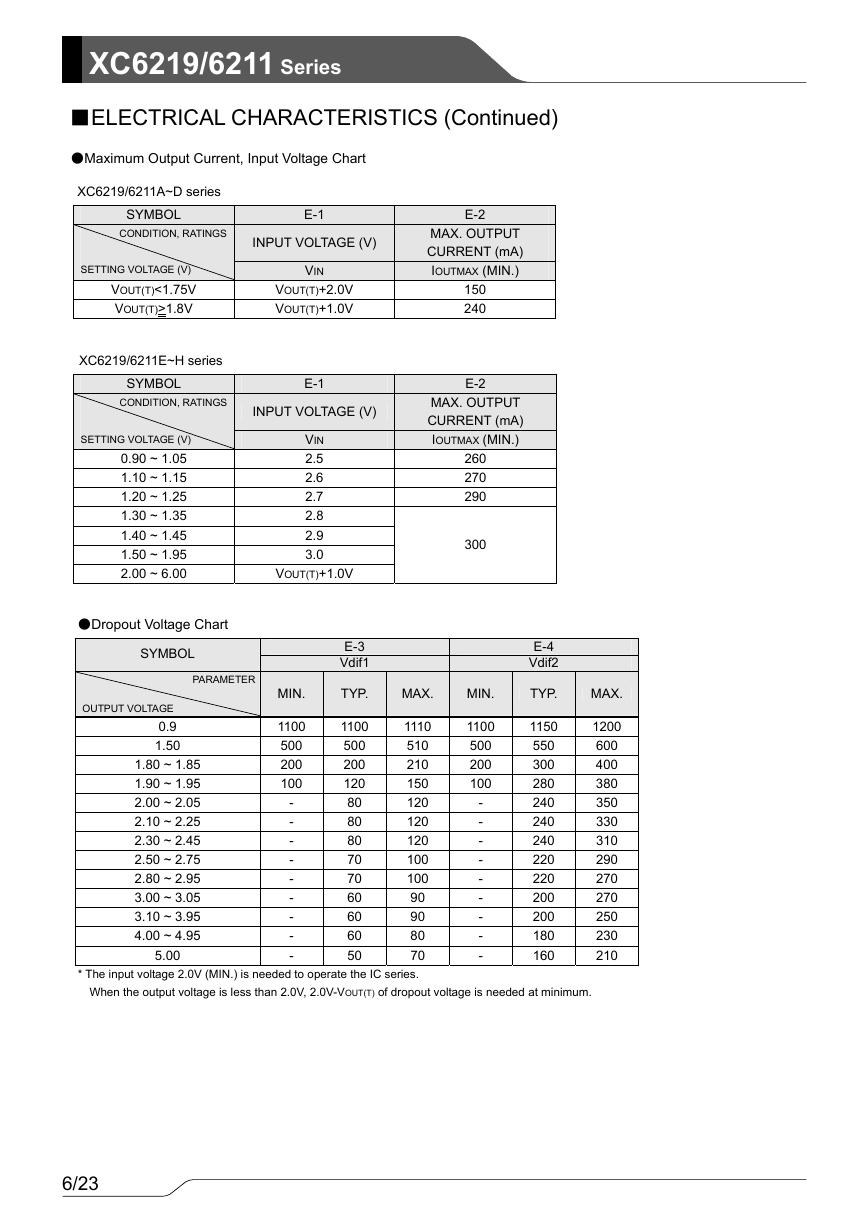

XC6219/6211 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Maximum Output Current, Input Voltage Chart E-1 INPUT VOLTAGE (V) VIN VOUT(T)+2.0V VOUT(T)+1.0V E-1 INPUT VOLTAGE (V) VIN 2.5 2.6 2.7 2.8 2.9 3.0 VOUT(T)+1.0V E-2 MAX. OUTPUT CURRENT (mA) IOUTMAX (MIN.) 150 240 E-2 MAX. OUTPUT CURRENT (mA) IOUTMAX (MIN.) 260 270 290 300 XC6219/6211A~D series SYMBOL CONDITION, RATINGS SETTING VOLTAGE (V) VOUT(T)<1.75V VOUT(T)>1.8V XC6219/6211E~H series SYMBOL CONDITION, RATINGS SETTING VOLTAGE (V) 0.90 ~ 1.05 1.10 ~ 1.15 1.20 ~ 1.25 1.30 ~ 1.35 1.40 ~ 1.45 1.50 ~ 1.95 2.00 ~ 6.00 ●Dropout Voltage Chart SYMBOL OUTPUT VOLTAGE 0.9 1.50 6/23 PARAMETER MIN. E-3 Vdif1 TYP. MAX. MIN. 1110 510 210 150 120 120 120 100 100 90 90 80 70 * The input voltage 2.0V (MIN.) is needed to operate the IC series. 1.80 ~ 1.85 1.90 ~ 1.95 2.00 ~ 2.05 2.10 ~ 2.25 2.30 ~ 2.45 2.50 ~ 2.75 2.80 ~ 2.95 3.00 ~ 3.05 3.10 ~ 3.95 4.00 ~ 4.95 1100 500 200 100 - - - - - - - - - 1100 500 200 120 80 80 80 70 70 60 60 60 50 5.00 E-4 Vdif2 TYP. 1150 550 300 280 240 240 240 220 220 200 200 180 160 MAX. 1200 600 400 380 350 330 310 290 270 270 250 230 210 1100 500 200 100 - - - - - - - - - When the output voltage is less than 2.0V, 2.0V-VOUT(T) of dropout voltage is needed at minimum.

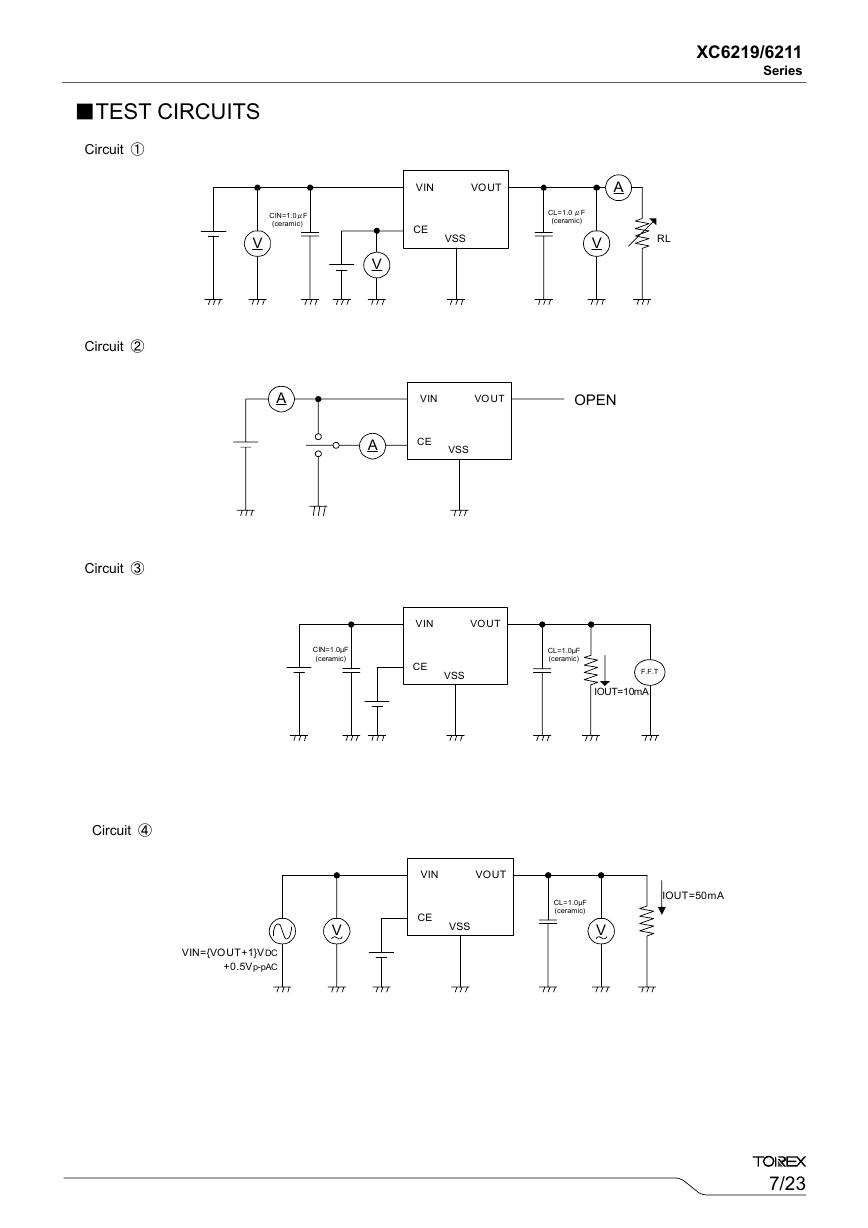

■TEST CIRCUITS Circuit ① XC6219/6211 Series VIN VOUT A CIN=1.0μF (ceramic) V CE VSS V CL=1.0 μF (ceramic) V RL A VIN VOUT OPEN A CE VSS CIN=1.0µF (ceramic) VIN VOUT CE VSS CL=1.0µF (ceramic) F.F.T IOUT=10mA Circuit ② Circuit ③ Circuit ④ VIN VOUT V CE VSS CL=1.0µF (ceramic) V IOUT=50mA VIN={VOUT+1}VDC +0.5Vp-pAC 7/23

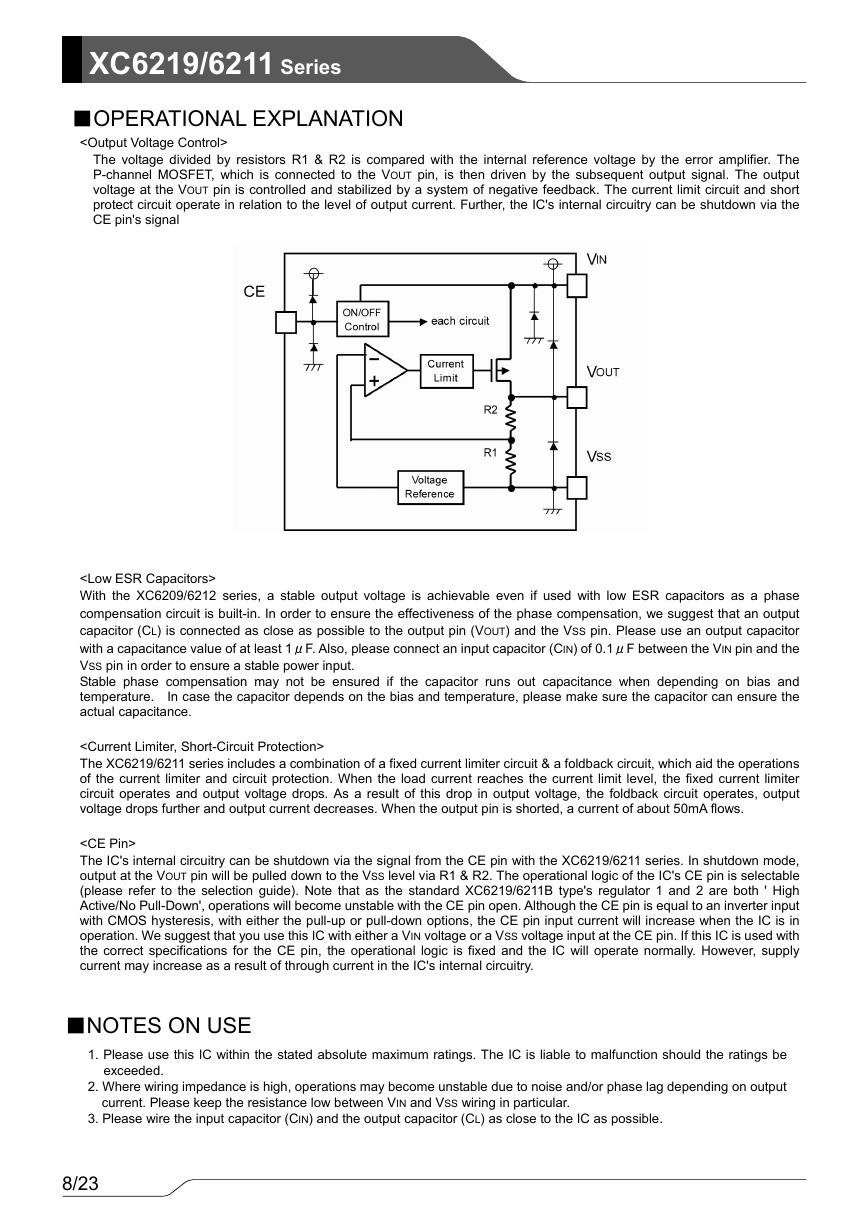

XC6219/6211 Series ■OPERATIONAL EXPLANATION The voltage divided by resistors R1 & R2 is compared with the internal reference voltage by the error amplifier. The P-channel MOSFET, which is connected to the VOUT pin, is then driven by the subsequent output signal. The output voltage at the VOUT pin is controlled and stabilized by a system of negative feedback. The current limit circuit and short protect circuit operate in relation to the level of output current. Further, the IC's internal circuitry can be shutdown via the CE pin's signal With the XC6209/6212 series, a stable output voltage is achievable even if used with low ESR capacitors as a phase compensation circuit is built-in. In order to ensure the effectiveness of the phase compensation, we suggest that an output capacitor (CL) is connected as close as possible to the output pin (VOUT) and the VSS pin. Please use an output capacitor with a capacitance value of at least 1μF. Also, please connect an input capacitor (CIN) of 0.1μF between the VIN pin and the VSS pin in order to ensure a stable power input. Stable phase compensation may not be ensured if the capacitor runs out capacitance when depending on bias and temperature. In case the capacitor depends on the bias and temperature, please make sure the capacitor can ensure the actual capacitance. The XC6219/6211 series includes a combination of a fixed current limiter circuit & a foldback circuit, which aid the operations of the current limiter and circuit protection. When the load current reaches the current limit level, the fixed current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit operates, output voltage drops further and output current decreases. When the output pin is shorted, a current of about 50mA flows. The IC's internal circuitry can be shutdown via the signal from the CE pin with the XC6219/6211 series. In shutdown mode, output at the VOUT pin will be pulled down to the VSS level via R1 & R2. The operational logic of the IC's CE pin is selectable (please refer to the selection guide). Note that as the standard XC6219/6211B type's regulator 1 and 2 are both ' High Active/No Pull-Down', operations will become unstable with the CE pin open. Although the CE pin is equal to an inverter input with CMOS hysteresis, with either the pull-up or pull-down options, the CE pin input current will increase when the IC is in operation. We suggest that you use this IC with either a VIN voltage or a VSS voltage input at the CE pin. If this IC is used with the correct specifications for the CE pin, the operational logic is fixed and the IC will operate normally. However, supply current may increase as a result of through current in the IC's internal circuitry. ■NOTES ON USE 1. Please use this IC within the stated absolute maximum ratings. The IC is liable to malfunction should the ratings be exceeded. 2. Where wiring impedance is high, operations may become unstable due to noise and/or phase lag depending on output current. Please keep the resistance low between VIN and VSS wiring in particular. 3. Please wire the input capacitor (CIN) and the output capacitor (CL) as close to the IC as possible. 8/23
