1.1 Over View
1.2 Features
页面提取自－
Horizontal
Product Specifications
Customer
Description
Model Name
Date
Revision
Standard
5.83” E-PAPER DISPLAY
5.83inch e-Paper
2020/05/12
1.1
5.83inch e-Paper1/55

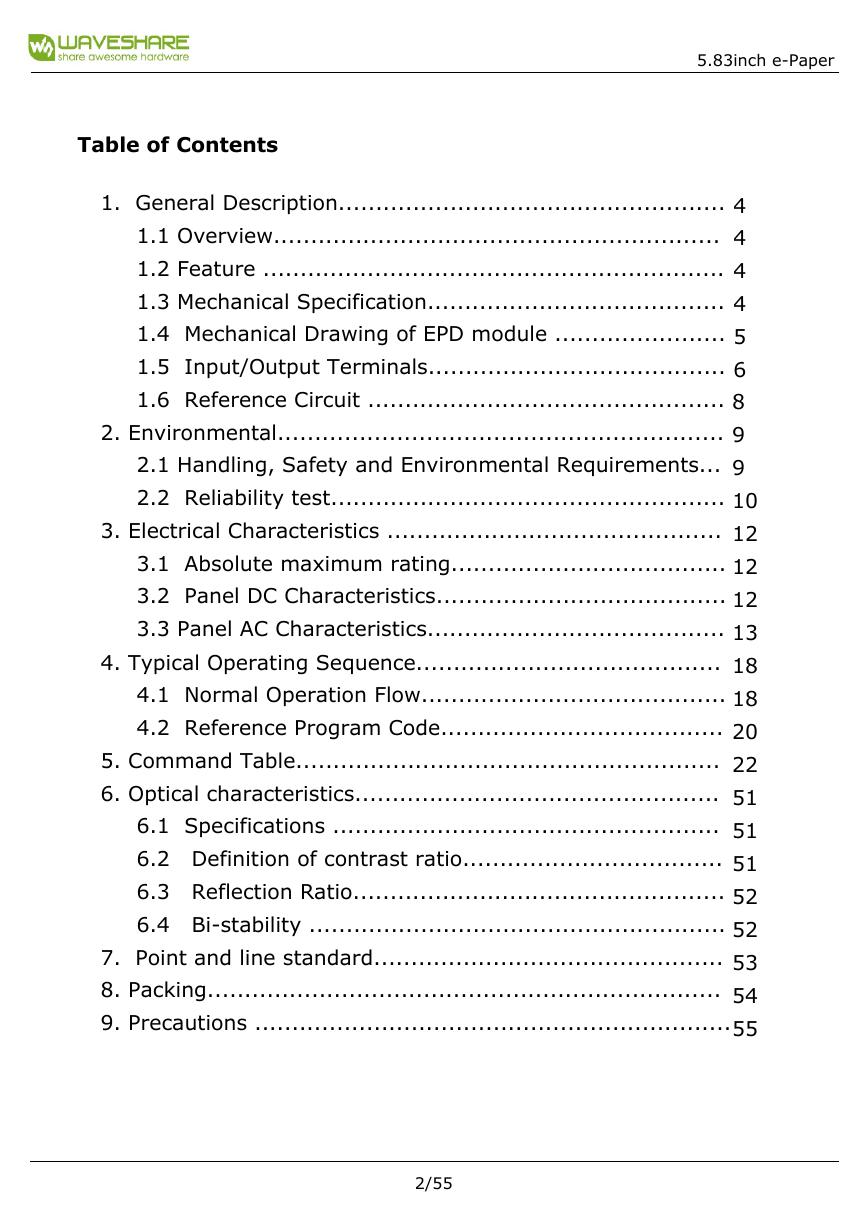

Table of Contents
1. General Description....................................................
1.1 Overview............................................................
1.2 Feature ..............................................................
1.3 Mechanical Specification........................................
1.4 Mechanical Drawing of EPD module .......................
1.5 Input/Output Terminals........................................
1.6 Reference Circuit ................................................
2. Environmental............................................................
2.1 Handling, Safety and Environmental Requirements...
2.2 Reliability test.....................................................
3. Electrical Characteristics .............................................
3.1 Absolute maximum rating.....................................
3.2 Panel DC Characteristics.......................................
3.3 Panel AC Characteristics........................................
4. Typical Operating Sequence.........................................
4.1 Normal Operation Flow.........................................
4.2 Reference Program Code......................................
5. Command Table.........................................................
6. Optical characteristics.................................................
6.1 Specifications ....................................................
6.2 Definition of contrast ratio...................................
6.3 Reflection Ratio..................................................
6.4 Bi-stability ........................................................
7. Point and line standard...............................................
8. Packing.....................................................................
9. Precautions ................................................................
4
4
4
4
5
6
8
9
9
10
12
12
12
13
18
18
20
22
51
51
51
52
52
53
54
55
5.83inch e-Paper2/55
Revision History
Rev.
1.0
1.1
Issued Date
May.02.2018
May.12.2020
1. Preliminary
1. Updating
Revised Contents
5.83inch e-Paper3/55

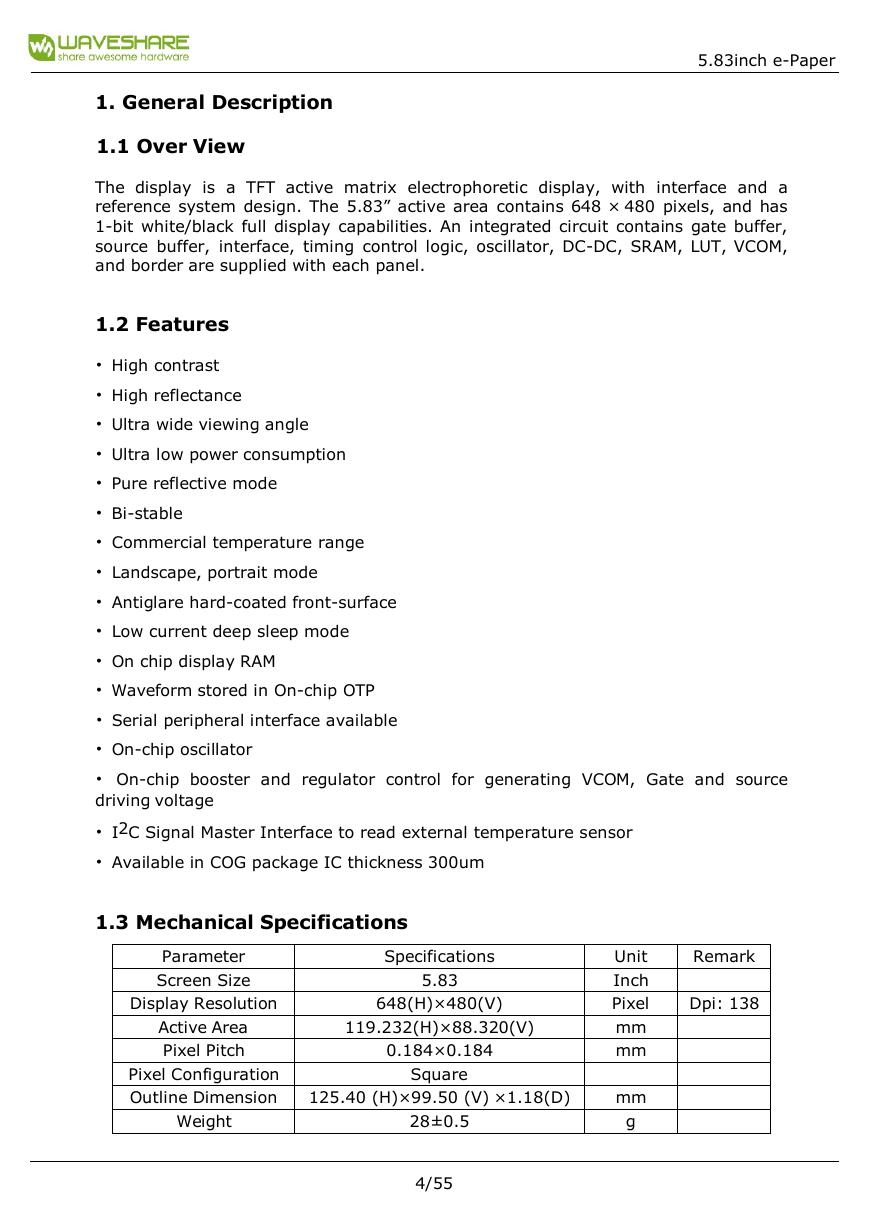

1. General Description
1.1 Over View
The display is a TFT active matrix electrophoretic display, with interface and a
reference system design. The 5.83” active area contains 648 × 480 pixels, and has
1-bit white/black full display capabilities. An integrated circuit contains gate buffer,
source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM,
and border are supplied with each panel.
1.2 Features
• High contrast
• High reflectance
• Ultra wide viewing angle
• Ultra low power consumption
• Pure reflective mode
• Bi-stable
• Commercial temperature range
• Landscape, portrait mode
• Antiglare hard-coated front-surface
• Low current deep sleep mode
• On chip display RAM
• Waveform stored in On-chip OTP
• Serial peripheral interface available
• On-chip oscillator
• On-chip booster and regulator control for generating VCOM, Gate and source
driving voltage
• I2C Signal Master Interface to read external temperature sensor
• Available in COG package IC thickness 300um
1.3 Mechanical Specifications
Parameter
Screen Size
Display Resolution
Active Area
Pixel Pitch
Pixel Configuration
Outline Dimension
Weight
Specifications
5.83
648(H)×480(V)
119.232(H)×88.320(V)
0.184×0.184
Square
125.40 (H)×99.50 (V) ×1.18(D)
28±0.5
Unit
Inch
Pixel
mm
mm
mm
g
Remark
Dpi: 138
5.83inch e-Paper4/55
1.4 Mechanical Drawing of EPD module
1
F
O
1
T
E
E
H
S
1
:
1
:
E
L
A
C
S
m
m
:
E
Z
I
S
9
7
1
8
C
U
:
e
t
o
N
:
e
t
a
D
h
s
i
l
b
u
P
:
N
/
P
:
N
W
A
R
D
:
D
E
K
C
E
H
C
E
T
A
D
S
L
A
V
O
R
P
P
A
1
4
2
4
2
1
5.83inch e-Paper5/55
1.5 Input/Output Terminals
1.5-1 Pin out List
Pin # Type Single
Description
Remark
NC
No connection and do not connect with other NC pins Keep Open
GDR
RESE
This pin is N-MOS gate control
Current sense input for control loop
NC
No connection and do not connect with other NC pins Keep Open
O
P
P
O
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
VSHR
TSCL
I/O
TSDA
Positive source voltage for Red
I2C clock for external temperature sensor
I2C data for external temperature sensor
I
O
I
I
I
I
I/O
P
P
P
BS
Input interface setting. Select 3 wire/ 4 wire SPI interface Note 1.5-5
BUSY_N
RST_N
DC
CSB
SCL
SDA
VDDIO
VDD
VSS
This pin indicates the driver status
Global reset pin. Low reset
Note 1.5-4
Note 1.5-3
Serial communication Command/Data input
Note 1.5-2
Serial communication chip select
Note 1.5-1
Serial communication clock input
Serial communication data input
IO voltage supply
Digital/Analog power
Digital ground
P VDD_18V
1.8V voltage input &output
P
P
P
P
P
VOTP
VSH
VGH
VSL
VGL
OTP program power (7.5V)
Positive source voltage
Positive gate voltage
Negative source voltage
Negative gate voltage
O
VCOM
VCOM output
5.83inch e-Paper6/55
Note 5-1: This pin (CSB) is the chip select input connecting to the MCU. The chip is
enabled for MCU communication only when CSB is pulled Low.
Note 5-2: This pin (DC) is Data/Command control pin connecting to the MCU. When
the pin is pulled HIGH, the data will be interpreted as data. When the pin is
pulled Low, the data will be interpreted as command.
Note 5-3: This pin (RST_N) is reset signal input. The Reset is active Low.
Note 5-4: This pin (BUSY_N) is BUSY_N state output pin. When BUSY_N is low, the
operation of chip should not be interrupted and any commands should not
be issued to the module. The driver IC will put BUSY_N pin low when the
driver IC is working such as:
- Outputting display waveform; or
- Programming with OTP
- Communicating with digital temperature sensor
Note 5-5: This pin (BS) is for 3-line SPI or 4-line SPI selection. When it is “Low”, 4-line
SPI is selected. When it is “High”, 3-line SPI (9 bits SPI) is selected. Please
refer to below Table.
Table: Bus interface selection
MPU Interface
4-lines serial peripheral interface (SPI)
3-lines serial peripheral interface (SPI) – 9 bits SPI
BS
L
H
5.83inch e-Paper7/55
1.6 Reference Circuit
5.83inch e-Paper8/55
