    Quectel RM500U-CN 5 2 . 0 m m 采用 M.2 封装 专为 IoT/eMBB 应用而设计的 5G Sub-6 GHz 模块 30.0 mm 2.3 mm 移远通信RM500U-CN 是一款专为 IoT/eMBB 应用而设计的 5G Sub-6 GHz 模块。采用 3GPP Release 15 技术，同 时支持 5G NSA 和 SA 模式。RM500U-CN 采用 M.2 封装，与移远通信RM500Q系列模块兼容。 RM500U-CN 支持国内四大运营商。 RM500U-CN为工规级模块，仅适用于工业级和商业级应用。 RM500U-CN 内置丰富的网络协议，集成多个工业标准接口，并支持多种驱动和软件功能（如 Windows、Linux、 Android 等操作系统下的 USB/PCIe 驱动等），极大地拓展了其在 IoT 和 eMBB 领域的应用范围，如工业级路由 器、家庭网关、机顶盒、工业级 PDA、加固型工业平板电脑、视频监控和数字标牌等。 主要优势 专为 IoT/M2M 应用而设计，同时支持 5G/4G/3G 的 M.2 模块 5G NR Sub-6 GHz 频段 LTE Cat 12 下行：最大 600 Mbps 上行：最大 150 Mbps 下行：最大 42.2 Mbps 上行：最大 11 Mbps 支持 5G 和 LTE-A 多种网络制式的全面覆盖 支持 NSA 和 SA 模式 支持多种功能：DFOTA和 VoLTE（可选） 内置多种网络协议 M.2 封装 Quectel 增强型 AT 命令集 USB 3.0/PCIe 2.0 高速接口 VoLTE （可选） VoNR（可选） EMAIL US: info@quectel.com 版本：1.1 状态：受控文件 VISIT US: www.quectel.com

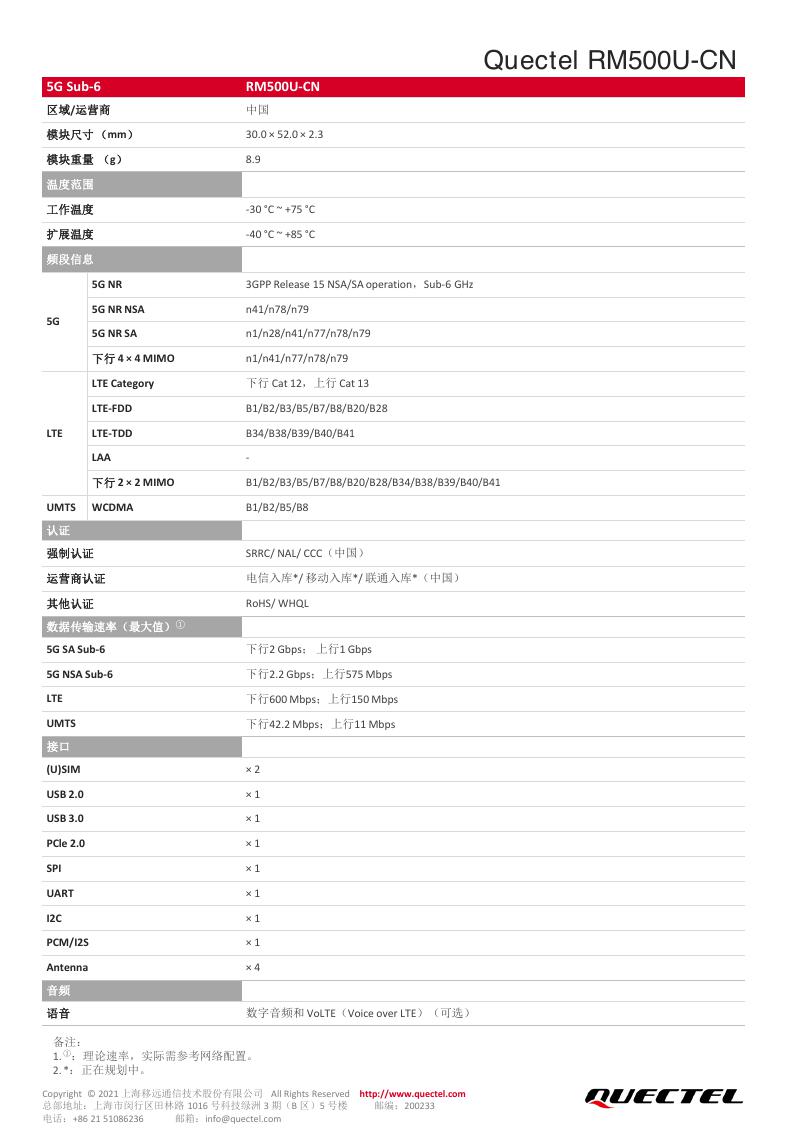

    Quectel RM500U-CN 5G Sub-6 区域/运营商 模块尺寸 （mm） 模块重量 （g） 温度范围 工作温度 扩展温度 频段信息 5G NR 5G NR NSA 5G NR SA 5G RM500U-CN 中国 30.0 × 52.0 × 2.3 8.9 -30 °C ~ +75 °C -40 °C ~ +85 °C 3GPP Release 15 NSA/SA operation，Sub-6 GHz n41/n78/n79 n1/n28/n41/n77/n78/n79 下行 4 × 4 MIMO n1/n41/n77/n78/n79 LTE Category LTE-FDD 下行 Cat 12，上行 Cat 13 B1/B2/B3/B5/B7/B8/B20/B28 LTE LTE-TDD B34/B38/B39/B40/B41 LAA - 下行 2 × 2 MIMO B1/B2/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41 UMTS WCDMA B1/B2/B5/B8 认证 强制认证 运营商认证 其他认证 数据传输速率（最大值）① 5G SA Sub-6 5G NSA Sub-6 LTE UMTS 接口 (U)SIM USB 2.0 USB 3.0 PCle 2.0 SPI UART I2C PCM/I2S Antenna 音频 语音 SRRC/ NAL/ CCC（中国） 电信入库*/ 移动入库*/ 联通入库*（中国） RoHS/ WHQL 下行2 Gbps； 上行1 Gbps 下行2.2 Gbps；上行575 Mbps 下行600 Mbps；上行150 Mbps 下行42.2 Mbps；上行11 Mbps × 2 × 1 × 1 × 1 × 1 × 1 × 1 × 1 × 4 数字音频和 VoLTE（Voice over LTE）（可选） 备注： 1. ①：理论速率，实际需参考网络配置。 2. *：正在规划中。 Copyright © 2021 上海移远通信技术股份有限公司 All Rights Reserved http://www.quectel.com 总部地址：上海市闵行区田林路 1016 号科技绿洲 3 期（B 区）5 号楼 电话：+86 21 51086236 邮箱：info@quectel.com 邮编：200233

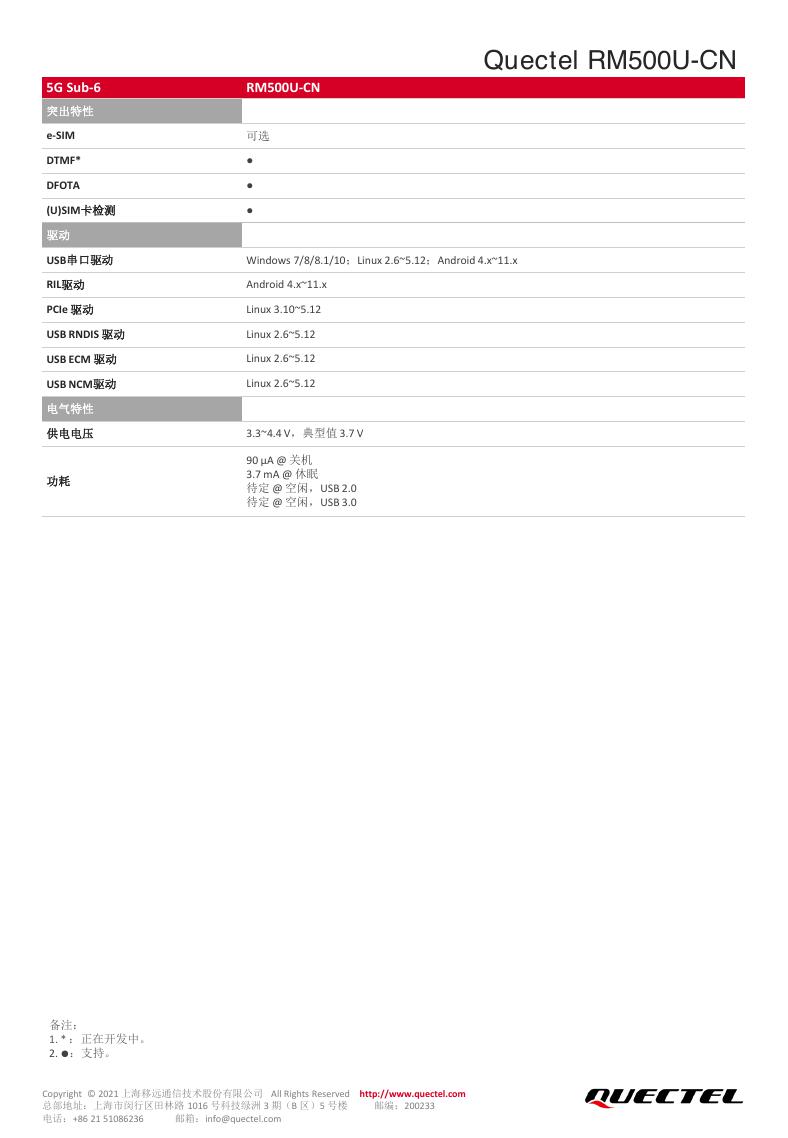

    Quectel RM500U-CN 5G Sub-6 突出特性 e-SIM DTMF* DFOTA (U)SIM卡检测 驱动 USB串口驱动 RIL驱动 PCIe 驱动 USB RNDIS 驱动 USB ECM 驱动 USB NCM驱动 电气特性 供电电压 功耗 RM500U-CN 可选 ● ● ● Windows 7/8/8.1/10；Linux 2.6~5.12；Android 4.x~11.x Android 4.x~11.x Linux 3.10~5.12 Linux 2.6~5.12 Linux 2.6~5.12 Linux 2.6~5.12 3.3~4.4 V，典型值 3.7 V 90 μA @ 关机 3.7 mA @ 休眠 待定 @ 空闲，USB 2.0 待定 @ 空闲，USB 3.0 备注： 1. * ：正在开发中。 2. ●：支持。 Copyright © 2021 上海移远通信技术股份有限公司 All Rights Reserved http://www.quectel.com 总部地址：上海市闵行区田林路 1016 号科技绿洲 3 期（B 区）5 号楼 电话：+86 21 51086236 邮箱：info@quectel.com 邮编：200233
