快速入门(X-nucleo-ids01a4_quick_start_guide).pdf
Quick Start Guide
Sub-1 GHz RF expansion board based on SPSGRF modules
for STM32 Nucleo
X-NUCLEO-IDS01A4 (based on SPSGRF-868)
X-NUCLEO-IDS01A5 (based on SPSGRF-915)
Version 1.0 (June 15, 2015)

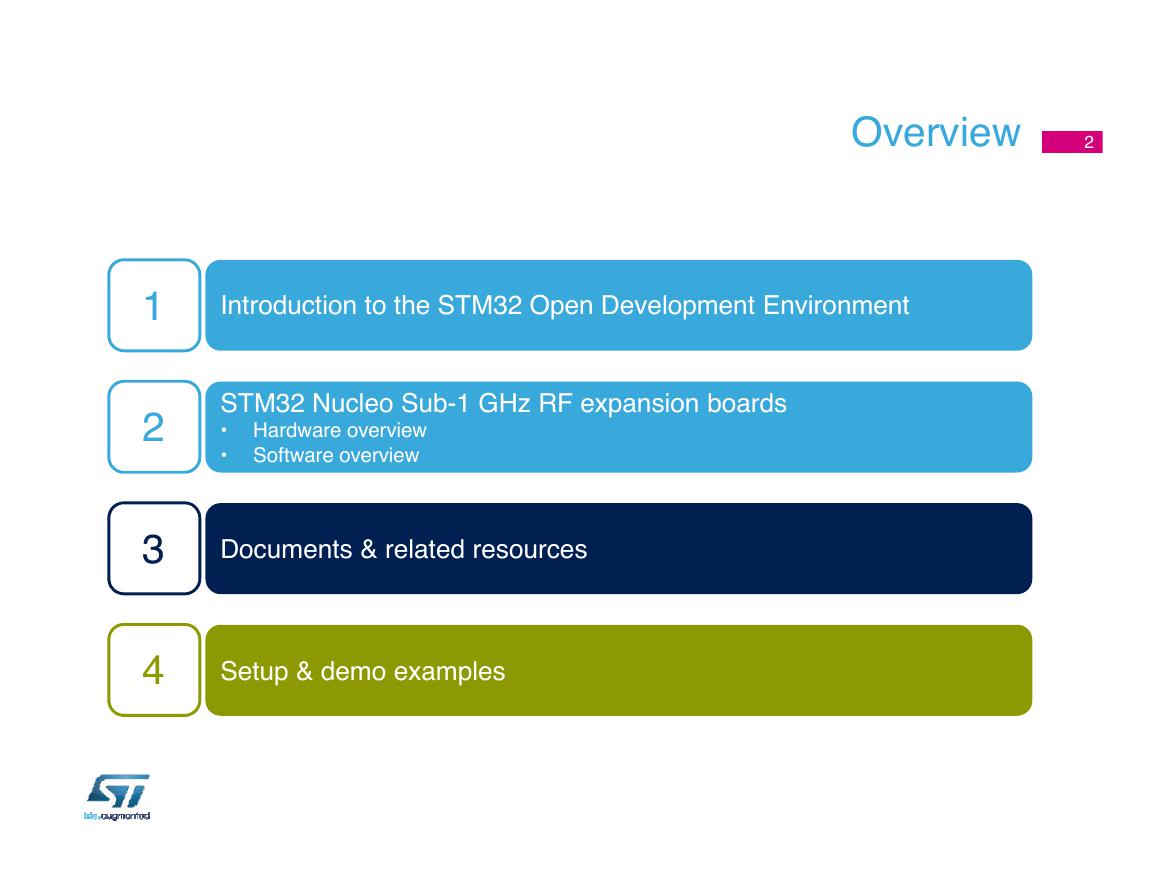

Overview
2
1
2
3
4
Introduction to the STM32 Open Development Environment
STM32 Nucleo Sub-1 GHz RF expansion boards
• Hardware overview
• Software overview
Documents & related resources
Setup & demo examples
Overview
3
1
2
3
4
Introduction to the STM32 Open Development Environment
STM32 Nucleo Sub-1 GHz RF expansion boards
• Hardware overview
• Software overview
Documents & related resources
Setup & demo examples

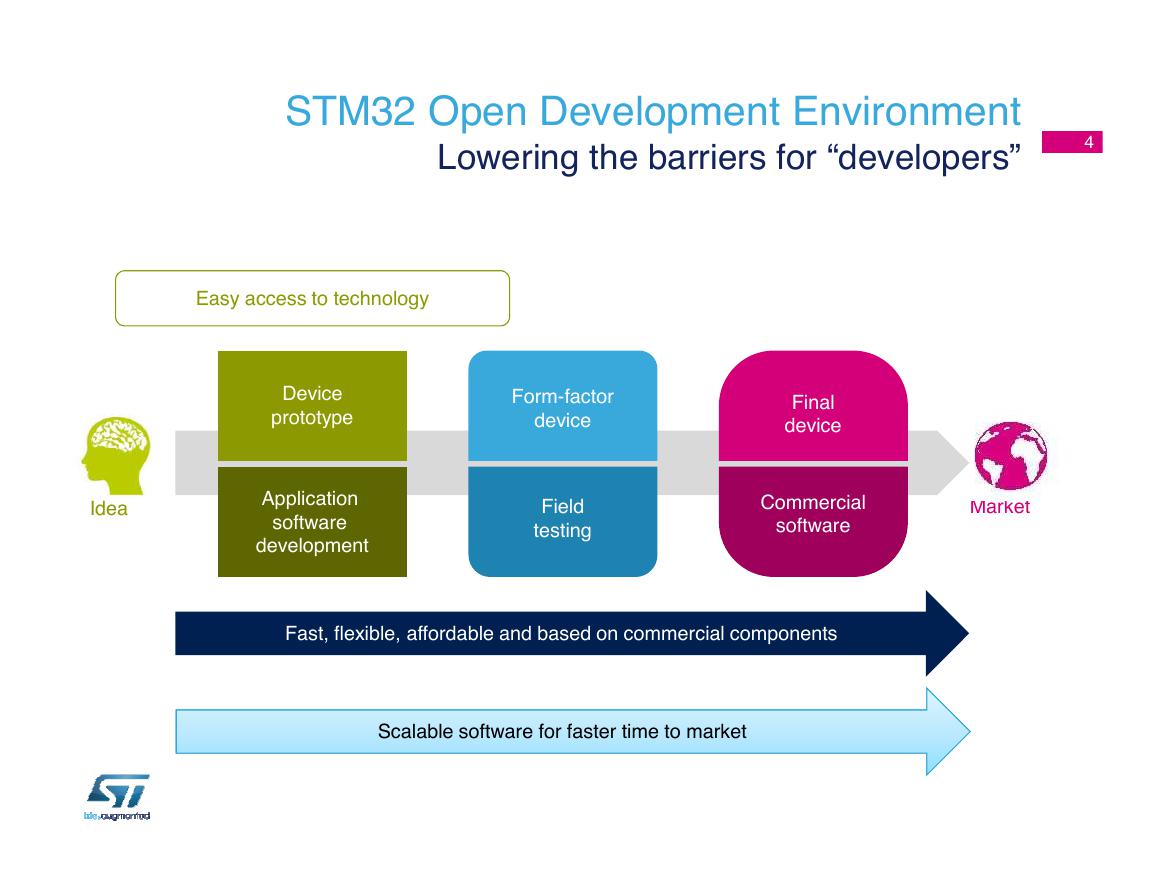

STM32 Open Development Environment
Lowering the barriers for “developers”
4
Easy access to technology
Device
prototype
Application
software
development
Idea
Form-factor
device
Field
testing
Final
device
Commercial
software
Market
Fast, flexible, affordable and based on commercial components
Scalable software for faster time to market

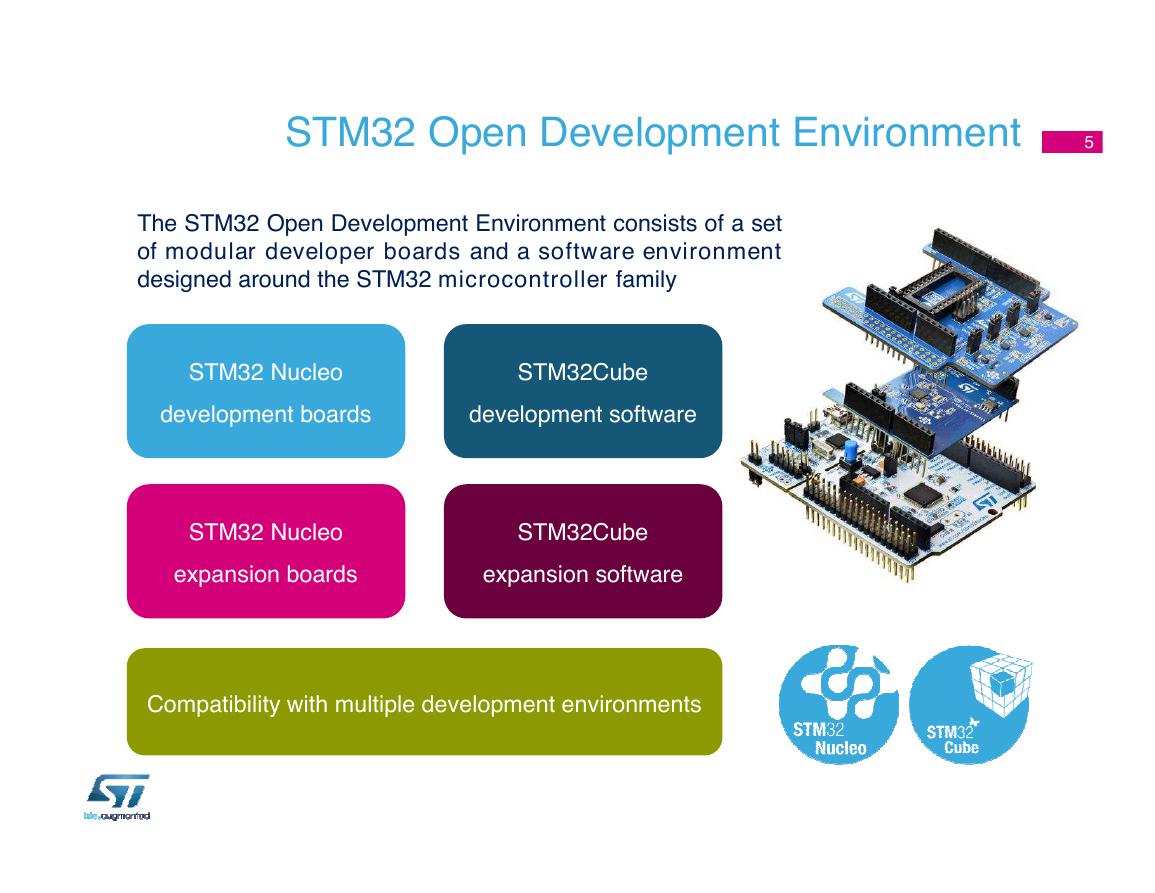

STM32 Open Development Environment
5
The STM32 Open Development Environment consists of a set
of modular developer boards and a software environment
designed around the STM32 microcontroller family
STM32 Nucleo
STM32Cube
development boards
development software
STM32 Nucleo
STM32Cube
expansion boards
expansion software
Compatibility with multiple development environments
###E###

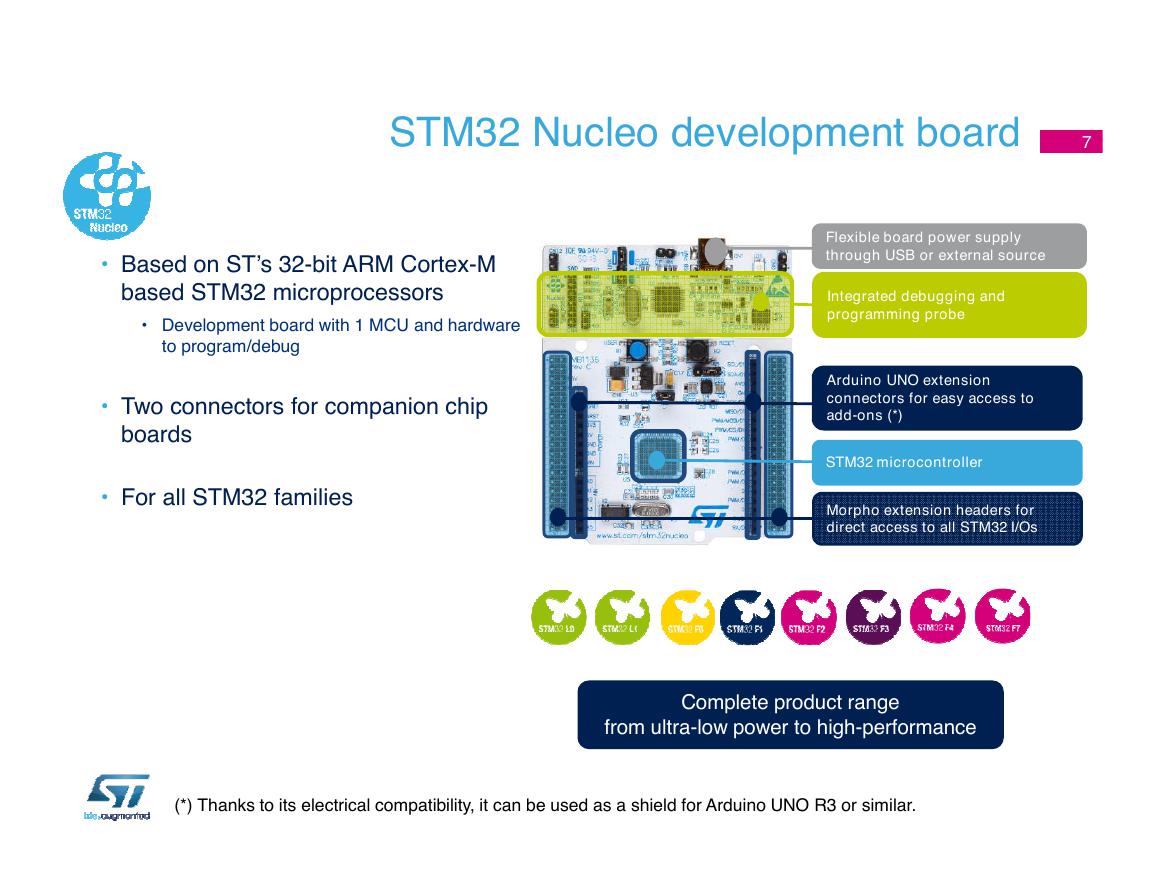

STM32 Nucleo development board
7
• Based on ST’s 32-bit ARM Cortex-M
based STM32 microprocessors
• Development board with 1 MCU and hardware
to program/debug
• Two connectors for companion chip
boards
• For all STM32 families
Flexible board power supply
through USB or external source
Integrated debugging and
programming probe
Arduino UNO extension
connectors for easy access to
add-ons (*)
STM32 microcontroller
Morpho extension headers for
direct access to all STM32 I/Os
Complete product range
from ultra-low power to high-performance
(*) Thanks to its electrical compatibility, it can be used as a shield for Arduino UNO R3 or similar.

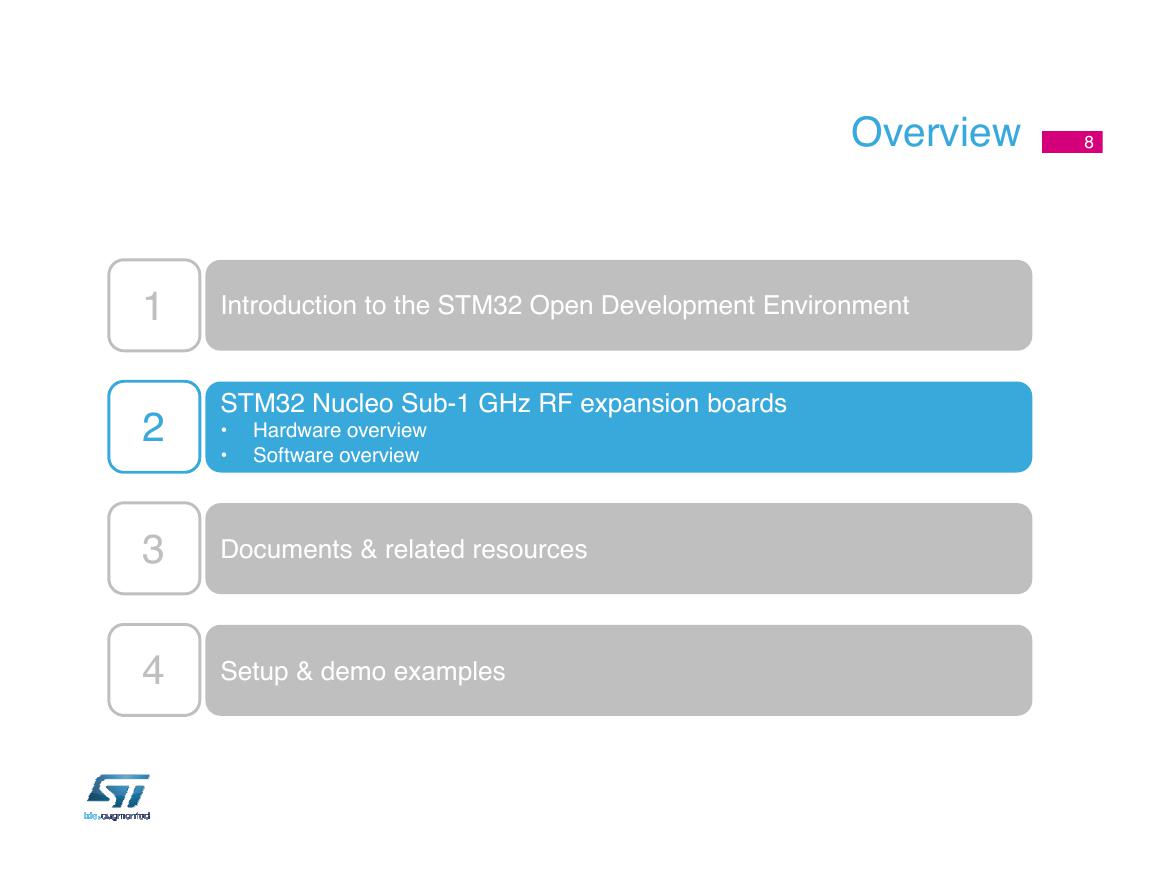

Overview
8
1
2
3
4
Introduction to the STM32 Open Development Environment
STM32 Nucleo Sub-1 GHz RF expansion boards
• Hardware overview
• Software overview
Documents & related resources
Setup & demo examples
