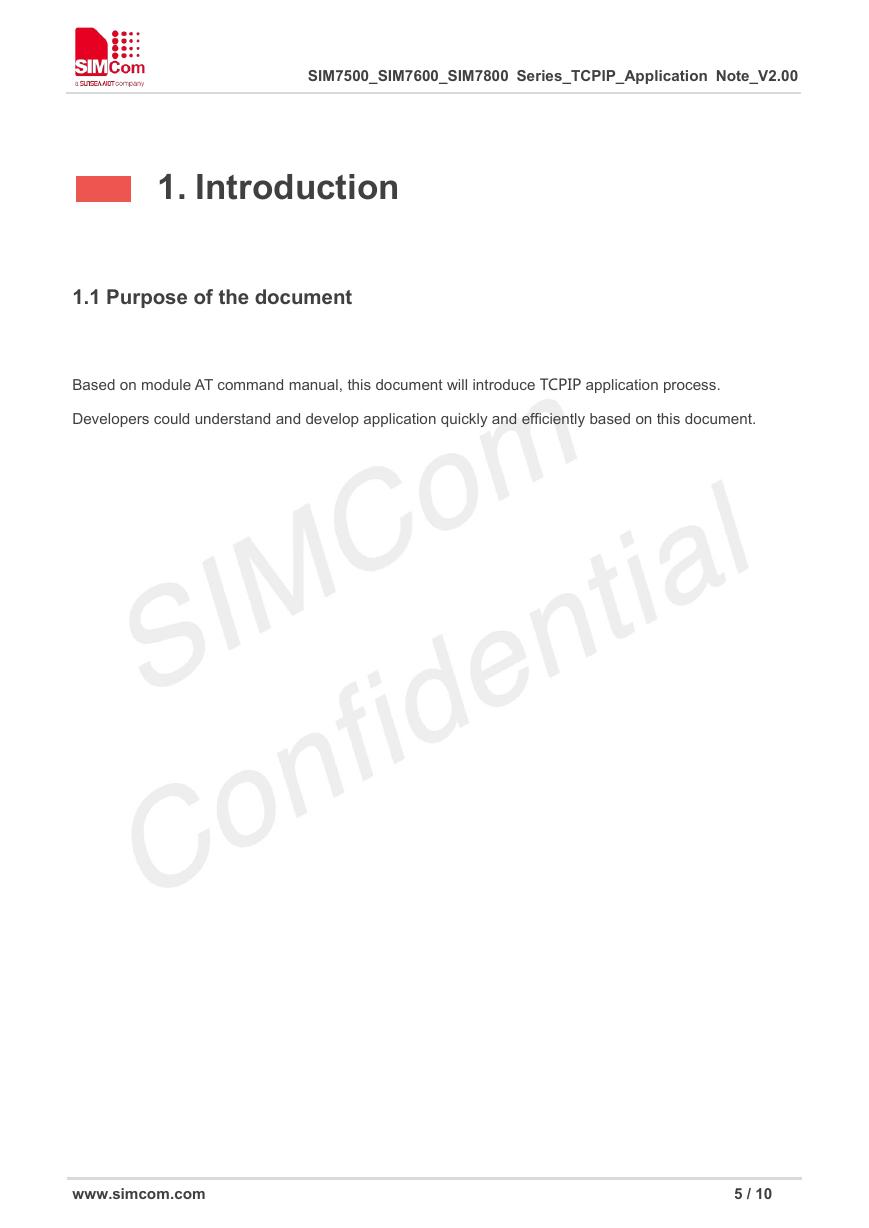

1. Introduction
1.1 Purpose of the document
Based on module AT command manual, this document will introduce TCPIP application process.
Developers could understand and develop application quickly and efficiently based on this document.
www.simcom.com
5 / 10
SIM7500_SIM7600_SIM7800 Series_TCPIP_Application Note_V2.00
2. TCPIP Introduction
TCPIP is used to setup connections between clients and servers, which are used for TCP/UDP clients
communicating with servers.
2.1 Characteristic
Support connecting TCP/UDP servers;
TCP connections
Module works as TCP clients. It communicates with TCP servers by TCP connections.
UDP connections
Module works as UDP clients. It communicates with UDP servers.
Support accepting TCP clients;
TCP servers
Module works as TCP servers. It listens TCP clients accept request and communicates with TCP
clients.
Support multiple data transmission mode;
Direct Push Mode
Host data will be sent to internal protocol stack and forwarded to air interface. Data received from
air interface will be transmitted to internal protocol stack and forwarded to COM ports.
Buffer Access Mode
Host data will be sent to internal protocol stack and forwarded to air interface. Data received from
air interface will be saved into local buffers. Host could retrieve buffer data by AT commands.
Transparent Access Mode
Host data will be directly sent to air interface. Data received from air interface will be directly sent to
COM ports.
www.simcom.com
6 / 10
SIM7500_SIM7600_SIM7800 Series_TCPIP_Application Note_V2.00
2.2 TCPIP Commands Process

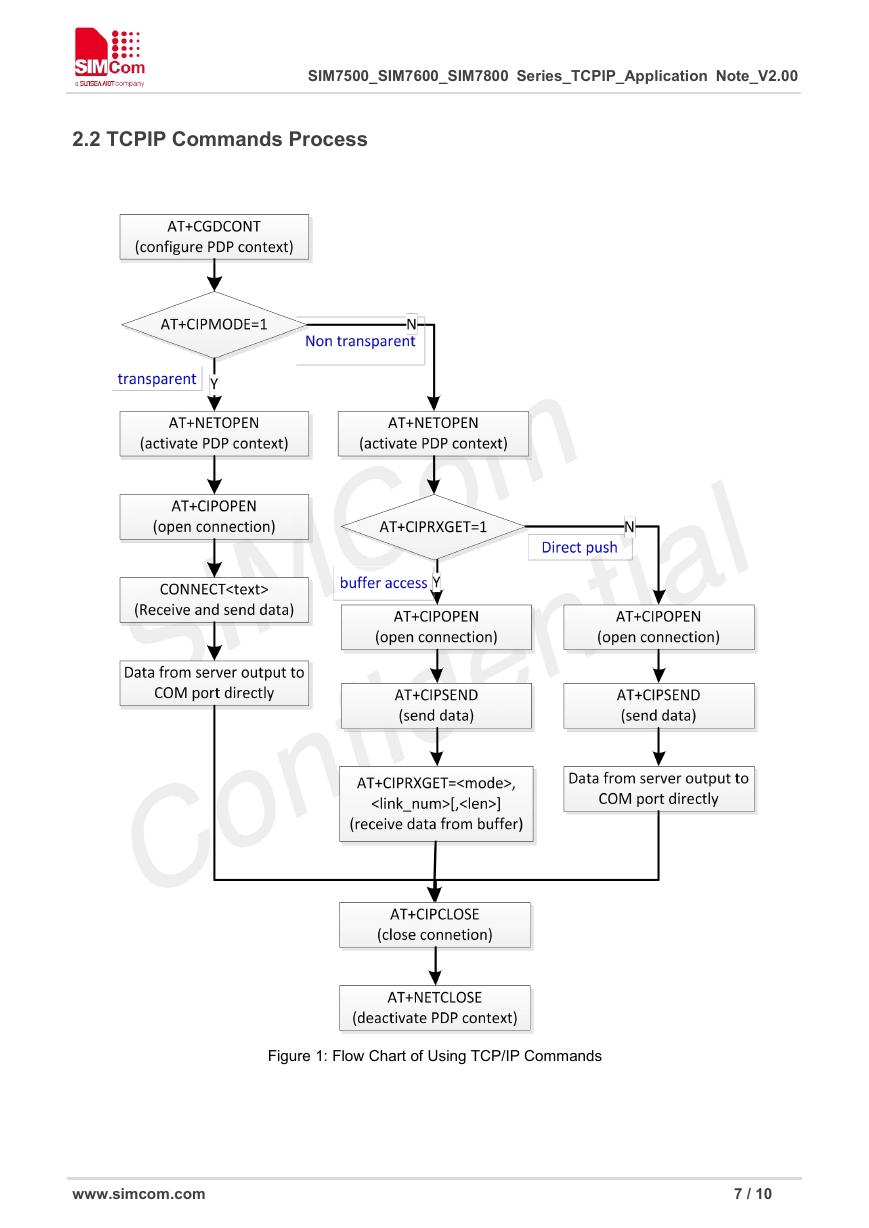

Figure 1: Flow Chart of Using TCP/IP Commands
www.simcom.com
7 / 10
SIM7500_SIM7600_SIM7800 Series_TCPIP_Application Note_V2.00
3. AT Commands for TCPIP
Command
AT+NETOPEN
AT+NETCLOSE
AT+CIPOPEN
AT+CIPCLOSE
AT+CIPSEND
AT+CIPRXGET
AT+IPADDR
AT+CIPHEAD
AT+CIPSRIP
AT+CIPMODE
AT+CIPSENDMODE
AT+CIPTIMEOUT
AT+CIPCCFG
AT+SERVERSTART
AT+SERVERSTOP
AT+CIPACK
AT+CDNSGIP
AT+CDNSGHNAME
AT+CIPDNSSET
Description
Start TCPIP Service
Stop TCPIP Service
Setup TCP/UDP Client Socket Connections
Destroy TCP/UDP Client Socket Connections
Send TCP/UDP Data
Retrieve TCP/UDP Buffer Data
Get IP Address of PDP Context
Set Length Domain of Reporting Head of Data
Set IP Domain of Reporting Head of Data
Enable/Disable Transparent Access Mode
Set Reporting Mode of CIPSEND result
Set Timeout Value of NETOPEN, CIPOPEN and CIPSEND
Configure Socket Context
Setup TCP Server Socket Connections
Destroy TCP Server Socket Connections
Get Statistics Information of Data Communication
Analysis IP Address from Domain Name
Analysis Domain Name from IP Address
Configure DNS Context
For detail information, please refer to “SIM7080 Series_AT Command Manual_V1.00”.
