    Note: * it is LPS25H in all the boards indicating 1439 near the CN10 connector. Bill of material Quantity Designator Value Part number Comment X-NUCLEO-IKS01 bill of material Package reference 0603 0805 0603 0805 Female side mounted to the top Female side mounted to the top HDR1X10 HDR1X8 Not mounted HDR2X19 5 2 1 1 1 2 2 1 1 5 1 2 1 C1, C2, C4, C7, C8 100nF C3, C5 C6 C9 10uF 10nF 4.7uF CN5 Header 10x1 CN6, CN9 Header 8x1 CN7, CN10 Header 19x2 CAP CER 0603 100nF 25V X7R 10% CAP CER 0805 10uF 10V X7R 10% CAP CER 0603 10nF 25V X7R 10% CAP CER 0805 4.7uF 16V X7R 10% Extra-long 10 pins female-male strip Extra-long 8 pins female-male strip Header, 19-Pin, Dual row CN8 J1 Header 6x1 Extra-long 6 pins female-male strip Female side mounted to the top DIL24 Socket DIL24 Socket JP1, JP2, JP3, JP4, JP5 Header 2x1 JP6 Header 4x2 R1, R2 R3 4k7 2k2 Header 1x2 pins, 2.54mm, straight Header 2x4 pins, 2.54mm, straight RES 0603 4k7 1% 1/16W RES 0603 2k2 1% 1/16W HDR1X6 DIL24 HDR1x2 HDR2x4 0603 0603

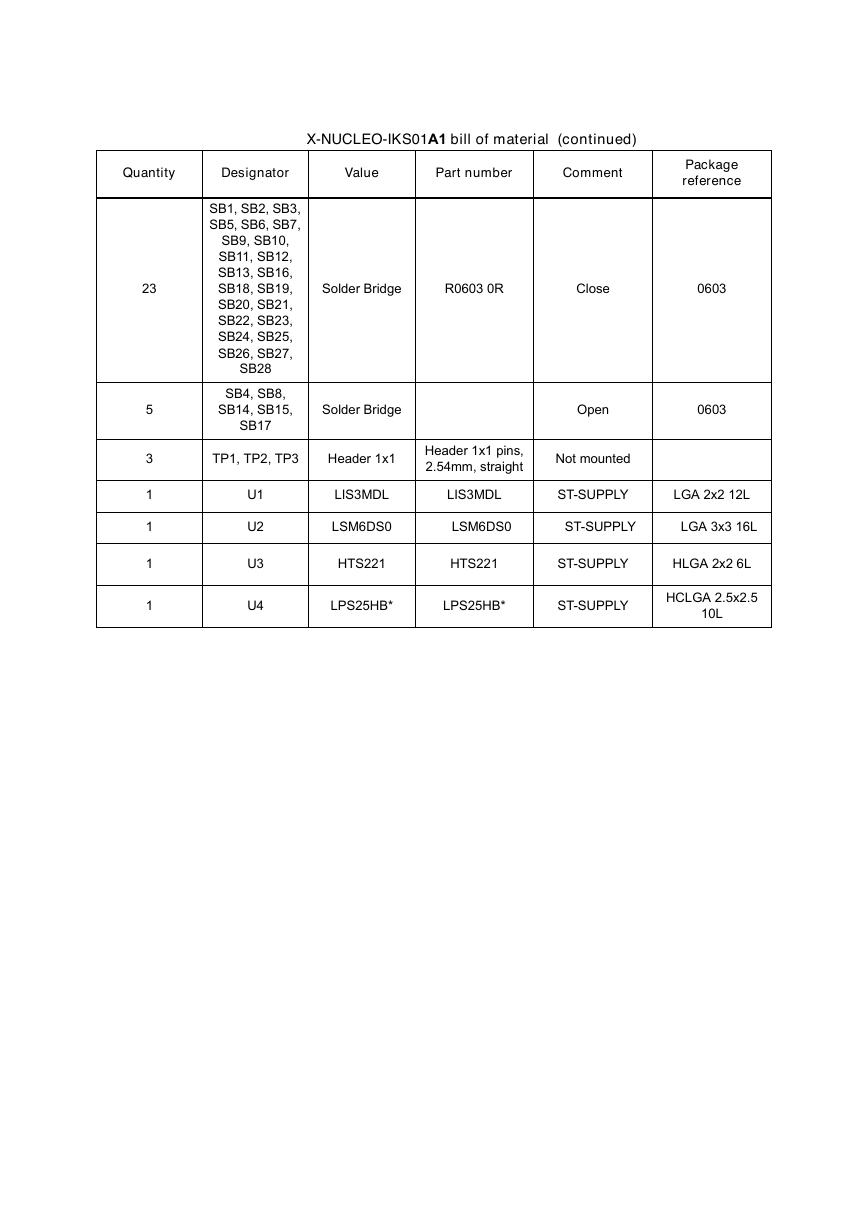

    X-NUCLEO-IKS01 bill of material (continued) Quantity Designator Value Part number Comment Package reference SB1, SB2, SB3, SB5, SB6, SB7, SB9, SB10, SB11, SB12, SB13, SB16, SB18, SB19, SB20, SB21, SB22, SB23, SB24, SB25, SB26, SB27, SB28 Solder Bridge R0603 0R Close 0603 SB4, SB8, SB14, SB15, SB17 Solder Bridge Open 0603 TP1, TP2, TP3 Header 1x1 Header 1x1 pins, 2.54mm, straight Not mounted U1 U2 U3 U4 LIS3MDL LSM6DS0 LIS3MDL ST-SUPPLY LGA 2x2 12L LSM6DS0 ST-SUPPLY LGA 3x3 16L HTS221 HTS221 ST-SUPPLY HLGA 2x2 6L LPS25HB* LPS25HB* ST-SUPPLY HCLGA 2.5x2.5 10L 23 5 3 1 1 1 1
