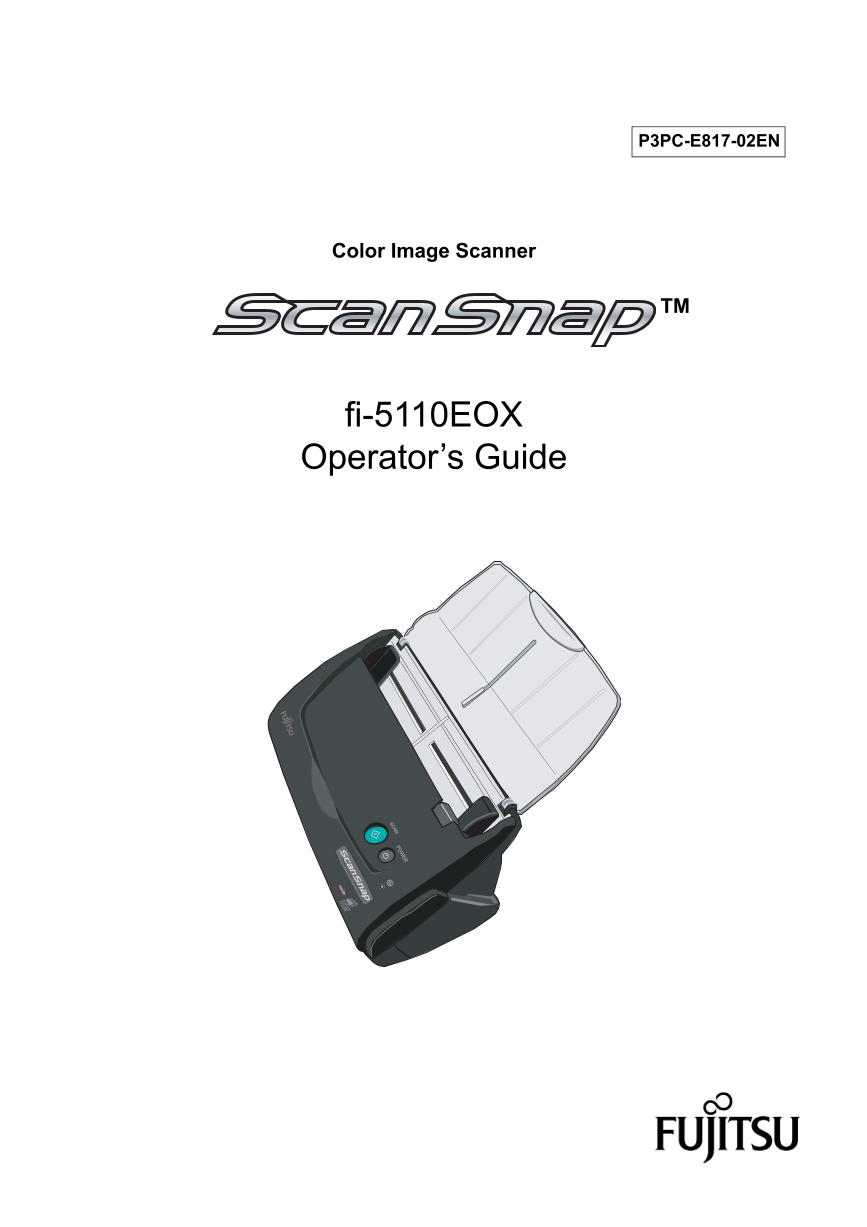

P3PC-E817-02ENColor Image ScannerTMfi-5110EOX Operator’s Guide ER PO W N SC A EXL DU P LO R CO

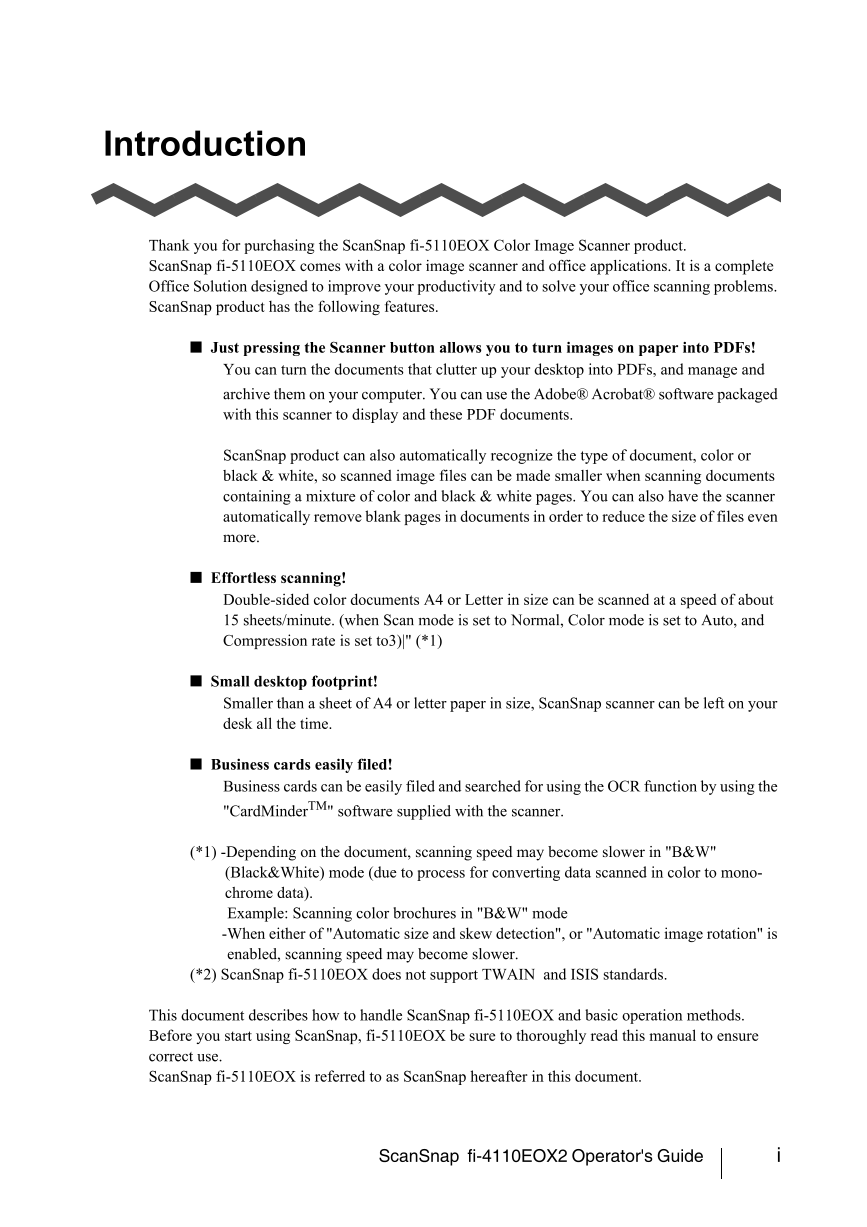

IntroductionThank you for purchasing the ScanSnap fi-5110EOX Color Image Scanner product. ScanSnap fi-5110EOX comes with a color image scanner and office applications. It is a complete Office Solution designed to improve your productivity and to solve your office scanning problems. ScanSnap product has the following features. ■ Just pressing the Scanner button allows you to turn images on paper into PDFs! You can turn the documents that clutter up your desktop into PDFs, and manage and archive them on your computer. You can use the Adobe® Acrobat® software packaged with this scanner to display and these PDF documents. ScanSnap product can also automatically recognize the type of document, color or black & white, so scanned image files can be made smaller when scanning documents containing a mixture of color and black & white pages. You can also have the scanner automatically remove blank pages in documents in order to reduce the size of files even more. ■ Effortless scanning! Double-sided color documents A4 or Letter in size can be scanned at a speed of about 15 sheets/minute. (when Scan mode is set to Normal, Color mode is set to Auto, and Compression rate is set to3)|" (*1) ■ Small desktop footprint! Smaller than a sheet of A4 or letter paper in size, ScanSnap scanner can be left on your desk all the time. ■ Business cards easily filed! Business cards can be easily filed and searched for using the OCR function by using the "CardMinderTM" software supplied with the scanner. (*1) -Depending on the document, scanning speed may become slower in "B&W" (Black&White) mode (due to process for converting data scanned in color to mono- chrome data). Example: Scanning color brochures in "B&W" mode -When either of "Automatic size and skew detection", or "Automatic image rotation" is enabled, scanning speed may become slower. (*2) ScanSnap fi-5110EOX does not support TWAIN and ISIS standards. This document describes how to handle ScanSnap fi-5110EOX and basic operation methods. Before you start using ScanSnap, fi-5110EOX be sure to thoroughly read this manual to ensure correct use. ScanSnap fi-5110EOX is referred to as ScanSnap hereafter in this document. ScanSnap fi-4110EOX2 Operator's Guide i

i CONTENTS■ Regulatory Information ......................................................... v ■ Note, Liability ...................................................................... viii ■ Preface ................................................................................ viii ■ Safety Precautions ............................................................... xi Chapter 1 Before You Start Using Your Scanner................... 1 1.1 Checking the Contents of the Scanner Package............. 2 1.2 Names and Functions of Parts .......................................... 3 Front Side ............................................................................................. 3 Operation Button................................................................................... 4 Rear Side.............................................................................................. 4 Chapter 2 Connecting ScanSnap ............................................ 5 2.1 Installing ScanSnap............................................................ 6 Before Installing ScanSnap................................................................... 6 Installing Adobe Acrobat ....................................................................... 8 Installing Supplied Programs .............................................................. 11 2.2 Connecting ScanSnap to your PC .................................. 17 Connecting the AC Adapter ................................................................ 17 Connecting the USB Cable ................................................................. 18 Chapter 3 Basic Scanner Operations.................................... 23 3.1 Flow of Operations ........................................................... 24 Preparation ......................................................................................... 24 Scanning documents .......................................................................... 25 Turning the Scanner ON/OFF............................................................. 28 End of Operation................................................................................. 29i

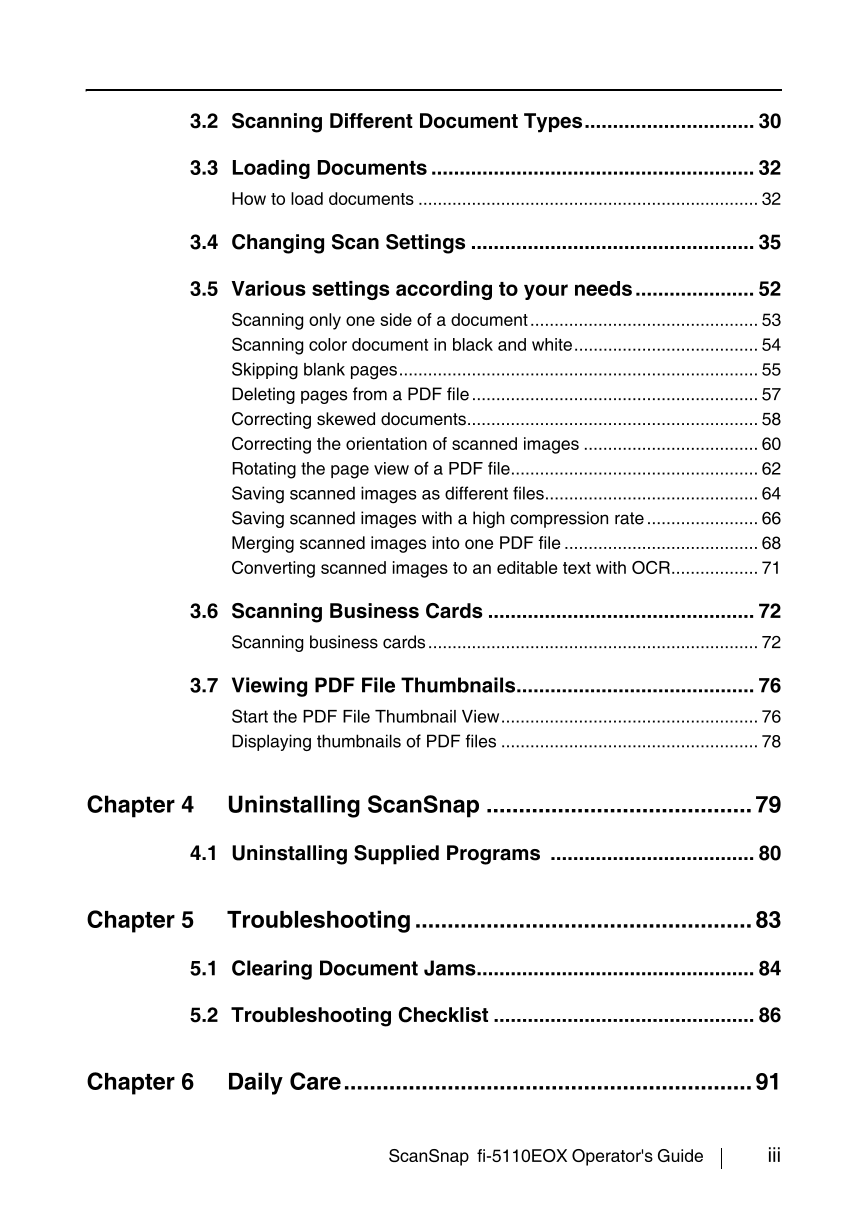

3.2 Scanning Different Document Types.............................. 30 3.3 Loading Documents ......................................................... 32 How to load documents ...................................................................... 32 3.4 Changing Scan Settings .................................................. 35 3.5 Various settings according to your needs..................... 52 Scanning only one side of a document ............................................... 53 Scanning color document in black and white...................................... 54 Skipping blank pages.......................................................................... 55 Deleting pages from a PDF file ........................................................... 57 Correcting skewed documents............................................................ 58 Correcting the orientation of scanned images .................................... 60 Rotating the page view of a PDF file................................................... 62 Saving scanned images as different files............................................ 64 Saving scanned images with a high compression rate ....................... 66 Merging scanned images into one PDF file ........................................ 68 Converting scanned images to an editable text with OCR.................. 71 3.6 Scanning Business Cards ............................................... 72 Scanning business cards.................................................................... 72 3.7 Viewing PDF File Thumbnails.......................................... 76 Start the PDF File Thumbnail View..................................................... 76 Displaying thumbnails of PDF files ..................................................... 78 Chapter 4 Uninstalling ScanSnap ......................................... 79 4.1 Uninstalling Supplied Programs .................................... 80 Chapter 5 Troubleshooting .................................................... 83 5.1 Clearing Document Jams................................................. 84 5.2 Troubleshooting Checklist .............................................. 86 Chapter 6 Daily Care............................................................... 91ScanSnap fi-5110EOX Operator's Guide iii

6.1 Cleaning Materials ............................................................ 92 6.2 Cleaning the Scanner Exterior ........................................ 93 6.3 Cleaning the Inside of the Scanner................................. 94 Chapter 7 Replacing Consumables....................................... 99 7.1 Replacing Consumables ................................................ 100 Part Nos. and Replacement Cycle of Consumables......................... 100 7.2 Replacing the Pad ASSY................................................ 102 7.3 Replacing the Pick Roller............................................... 105 Appendix A Installation Specifications ................................. 111 Index........................................................................................... 113 Repairs ....................................................................................... 117iv

■ Regulatory Information FCC declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is located. •Consult your dealer or an experienced radio/TV technician. FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications not expressly approved by the party responsi- CAUTION ble for compliance could void the user’s authority to operate the equip- ment. • The use of a shielded interface cable is required to comply with the Class B ATTENTION limits of Part 15 of FCC rules. • The length of the AC cable must be 3 meters (10 feet) or less. Canadian DOC Regulations This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Le pésent appareil numérique n’ément pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescridtes dans le Réglesment sur le brouillage radioélectrique dicté par le ministere des Communications du Canada. Cet appareil numérique de la classe B est conformme à la norme NMB-003 du Canada.ScanSnap fi-5110EOX Operator's Guide v

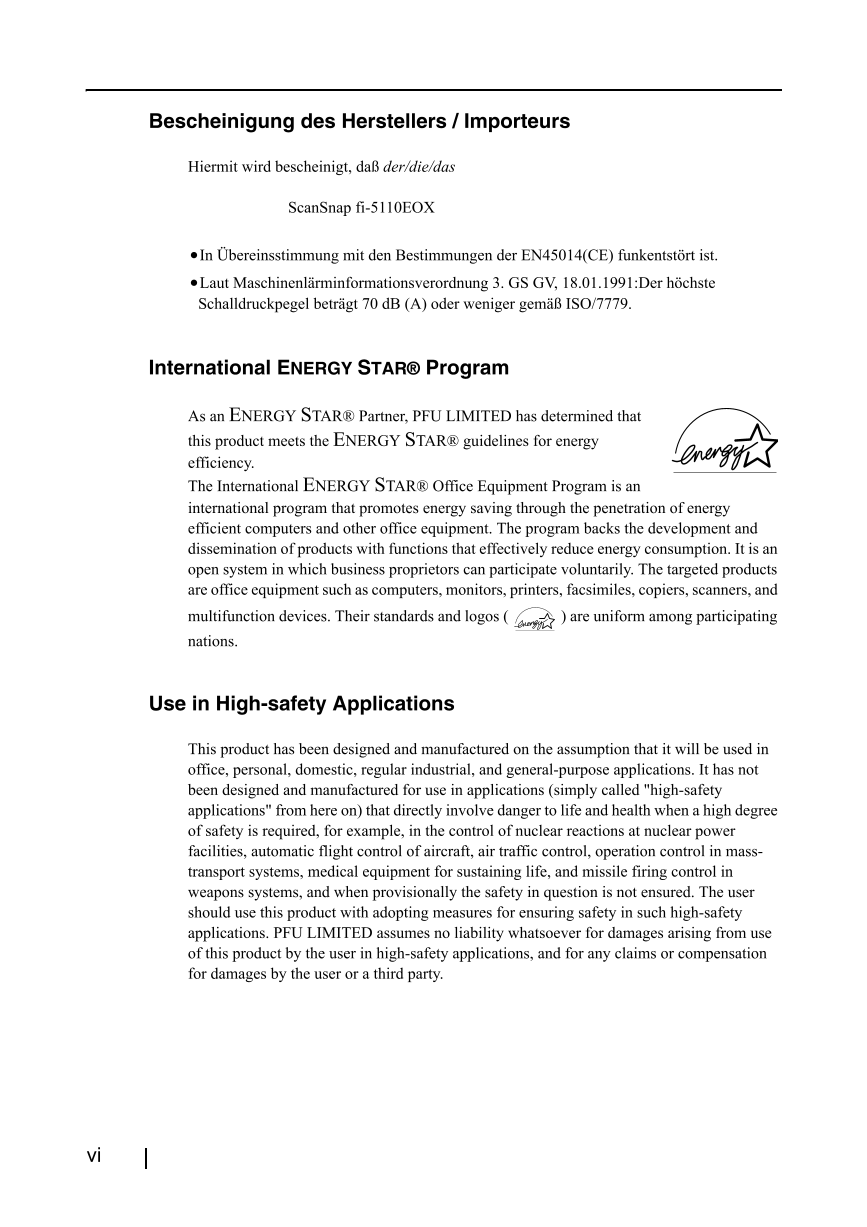

Bescheinigung des Herstellers / Importeurs Hiermit wird bescheinigt, daß der/die/das ScanSnap fi-5110EOX •In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört ist. •Laut Maschinenlärminformationsverordnung 3. GS GV, 18.01.1991:Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß ISO/7779. International ENERGY STAR® Program As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos ( ) are uniform among participating nations. Use in High-safety Applications This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve danger to life and health when a high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass- transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high-safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party.vi
