Contents

Cautions

Federal Communications Commission (FCC) Radio Frequency Interference Statement

Notice for customers in Canada

Notice for customers in European countries

Safety Precautions

If You Notice Anything Abnormal

Storage and Operating Locations

Precautions When Inserting the Film Holder

When Taking the Unit Out of The Country

Notice concerning prohibition of copying or reproduction

1. Overview

1.1 Features

1.2 Operating Environment

2. Before Operation

2.1 Inspection

2.2 Accessories

2.3 Cleaning the Unit

3. Parts Identification

3.1 Main Unit

Front panel

Rear panel

3.2 Film Holder FH-45

3.3 Film Holder FH-351

3.4 Film Holder FH-356

4. Connecting the LS-4500AF

4.1 Before Connection

4.2 Connecting the Power Cord

4.3 Connecting the SCSI Cable

SCSI Chain Connection with Other Devices

4.4 Setting the SCSI ID

5. Operation

5.1 Turning on the Power

5.2 Inserting and Ejecting the Film Holder

Inserting the Film Holder

Ejecting the Film Holder

6. Using the Film Holder

6.1 Usable Film

6.2 Using the FH-45 for Sheet Film

6.3 Using the FH-351 for Mounted Film

6.4 Using the FH-356 for Strip Film

7. Replacing the Lamp

8. Transportation

Procedure for Locking before Transportation

9. Technical Tips on the LS-4500AF

12-bit A/D and LUT (Look Up Table)

Prescanning and absolute light energy

Sharpness

Three scanning modes

Three functions of the Eject button

ASCII commands

10. Troubleshooting

Appendix: Specifications

Index

Nikon Film Scanner LS-4500AF User’s Manual Nikon Corporation Electronic Imaging Division 4-25, Nishi-Ohi 1-chome, 6ME 54000 Shinagawa-ku, Tokyo 140, Japan Printed in Japan (95 06) LS-4500AF

Nikon Film Scanner LS-4500AF User’s Manual Nikon Corporation Electronic Imaging Division 4-25, Nishi-Ohi 1-chome, 6ME 54000 Shinagawa-ku, Tokyo 140, Japan Printed in Japan (95 06)LS-4500AF

1. E2 Browser Functions Film Scanner LS-4500AF User’s Manual Nikon Film Scanner LS-4500AF User’s Manual i

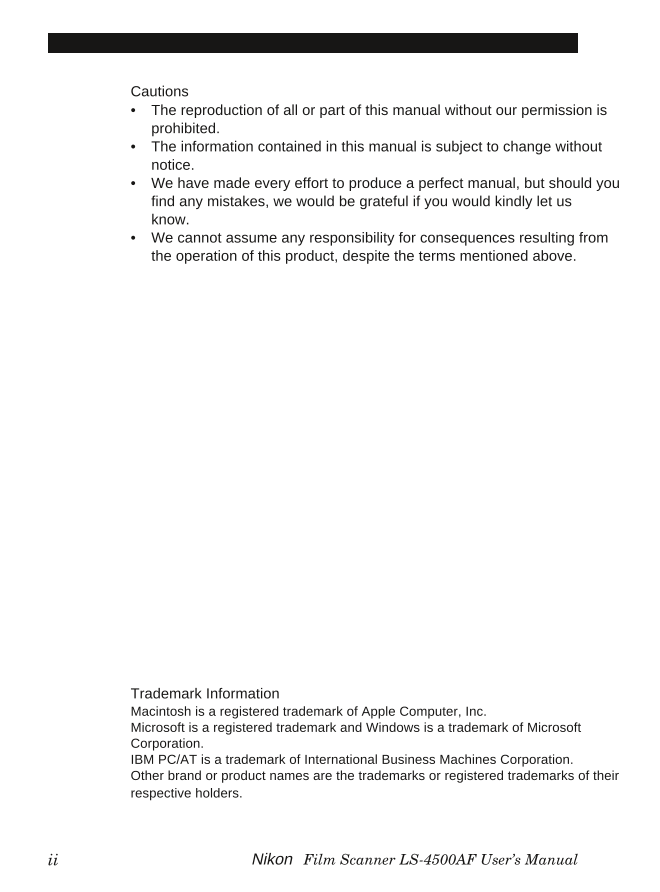

Cautions • The reproduction of all or part of this manual without our permission is prohibited. • The information contained in this manual is subject to change without notice. • We have made every effort to produce a perfect manual, but should you find any mistakes, we would be grateful if you would kindly let us know. • We cannot assume any responsibility for consequences resulting from the operation of this product, despite the terms mentioned above. Trademark Information Macintosh is a registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. IBM PC/AT is a trademark of International Business Machines Corporation. Other brand or product names are the trademarks or registered trademarks of their respective holders. ii Nikon Film Scanner LS-4500AF User’s Manual

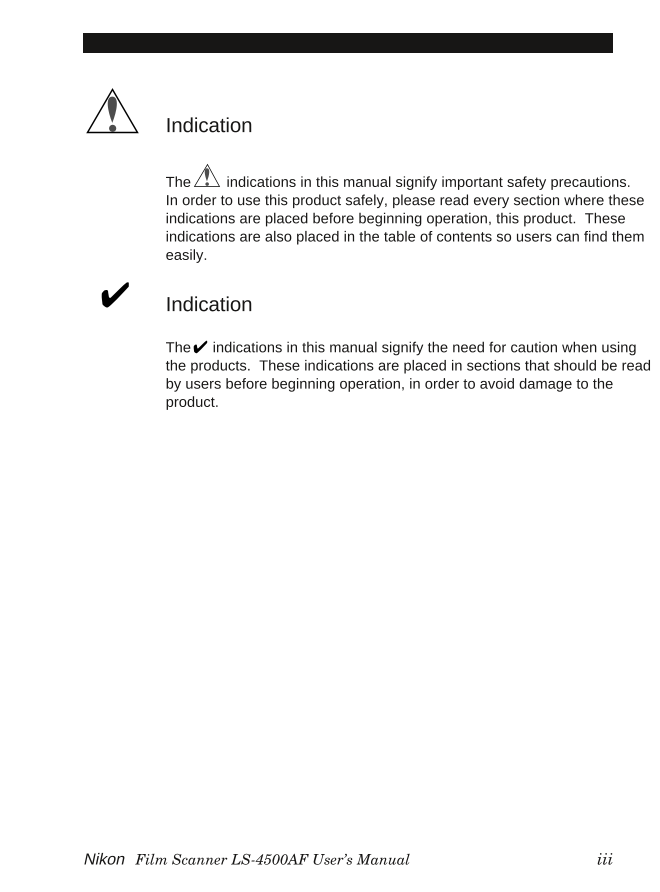

Indication The indications in this manual signify important safety precautions. In order to use this product safely, please read every section where these indications are placed before beginning operation, this product. These indications are also placed in the table of contents so users can find them easily. Indication The indications in this manual signify the need for caution when using the products. These indications are placed in sections that should be read by users before beginning operation, in order to avoid damage to the product. Nikon Film Scanner LS-4500AF User’s Manual iii

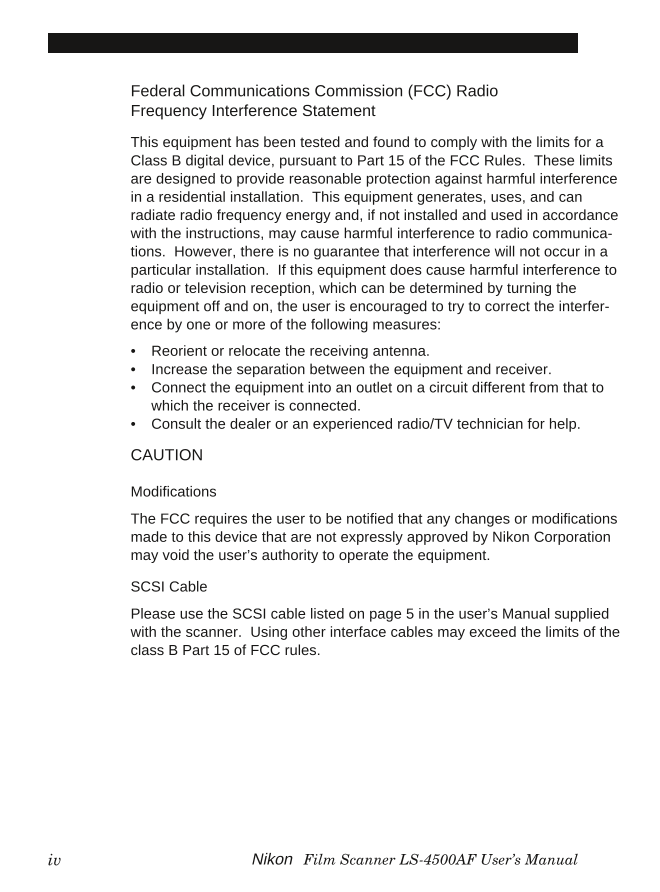

Federal Communications Commission (FCC) Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment. SCSI Cable Please use the SCSI cable listed on page 5 in the user’s Manual supplied with the scanner. Using other interface cables may exceed the limits of the class B Part 15 of FCC rules. iv Nikon Film Scanner LS-4500AF User’s Manual

Notice for customers in Canada This class B digital apparatus meets all requirements of the Canadian interference Causing Equipment Regulations. ATTENTION Cet appareil numérique de la class B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Notice for customers in European countries ACHTUNG Dieses Gerät entspricht den Bestimmungen der EG-Direktive 87/308/EEC zur Störungsunterdrückung. Lärmemission kleiner 70 dBA Nikon Film Scanner LS-4500AF User’s Manual v

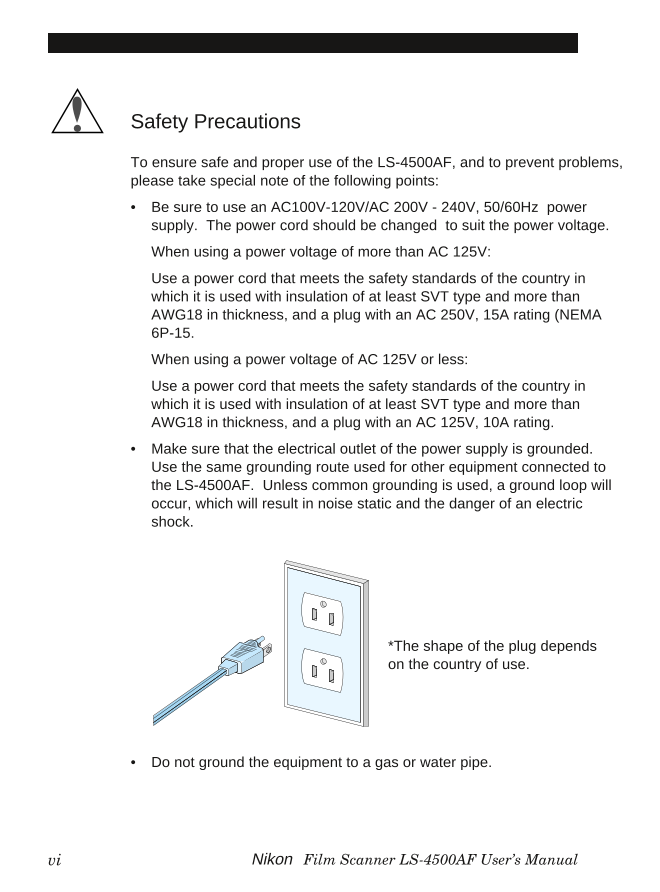

Safety Precautions To ensure safe and proper use of the LS-4500AF, and to prevent problems, please take special note of the following points: • Be sure to use an AC100V-120V/AC 200V - 240V, 50/60Hz power supply. The power cord should be changed to suit the power voltage. When using a power voltage of more than AC 125V: Use a power cord that meets the safety standards of the country in which it is used with insulation of at least SVT type and more than AWG18 in thickness, and a plug with an AC 250V, 15A rating (NEMA 6P-15. When using a power voltage of AC 125V or less: Use a power cord that meets the safety standards of the country in which it is used with insulation of at least SVT type and more than AWG18 in thickness, and a plug with an AC 125V, 10A rating. • Make sure that the electrical outlet of the power supply is grounded. Use the same grounding route used for other equipment connected to the LS-4500AF. Unless common grounding is used, a ground loop will occur, which will result in noise static and the danger of an electric shock. *The shape of the plug depends on the country of use. • Do not ground the equipment to a gas or water pipe. vi Nikon Film Scanner LS-4500AF User’s Manual
