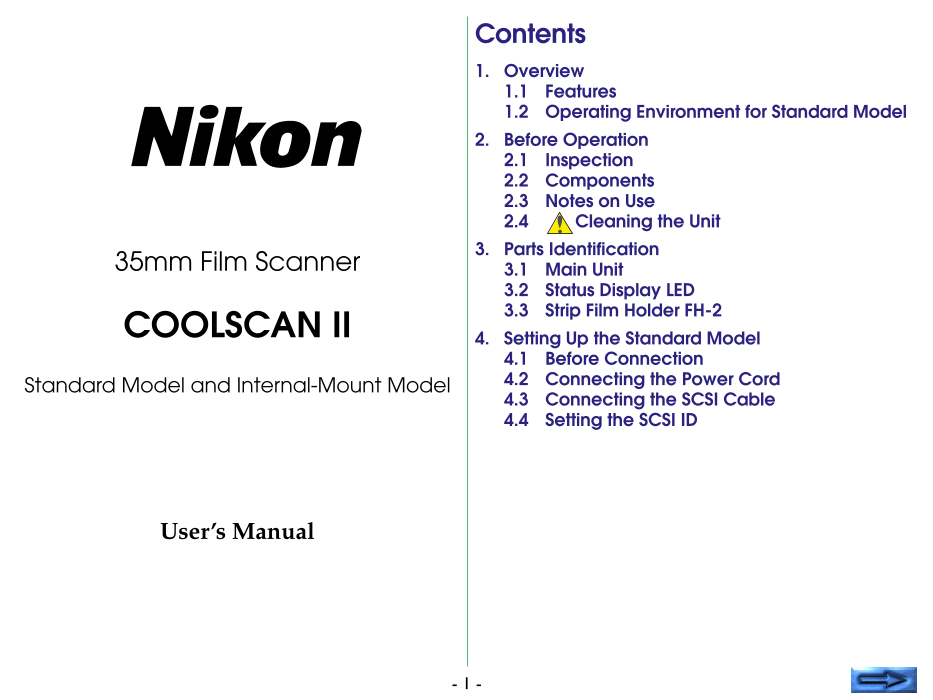

35mm Film Scanner COOLSCAN II Standard Model and Internal-Mount Model User’s Manual - 1Contents 1. Overview 1.1 Features 1.2 Operating Environment for Standard Model 2. Before Operation 2.1 Inspection 2.2 Components 2.3 Notes on Use 2.4 Cleaning the Unit 3. Parts Identification 3.1 Main Unit 3.2 Status Display LED 3.3 Strip Film Holder FH-2 4. Setting Up the Standard Model 4.1 Before Connection 4.2 Connecting the Power Cord 4.3 Connecting the SCSI Cable 4.4 Setting the SCSI ID -

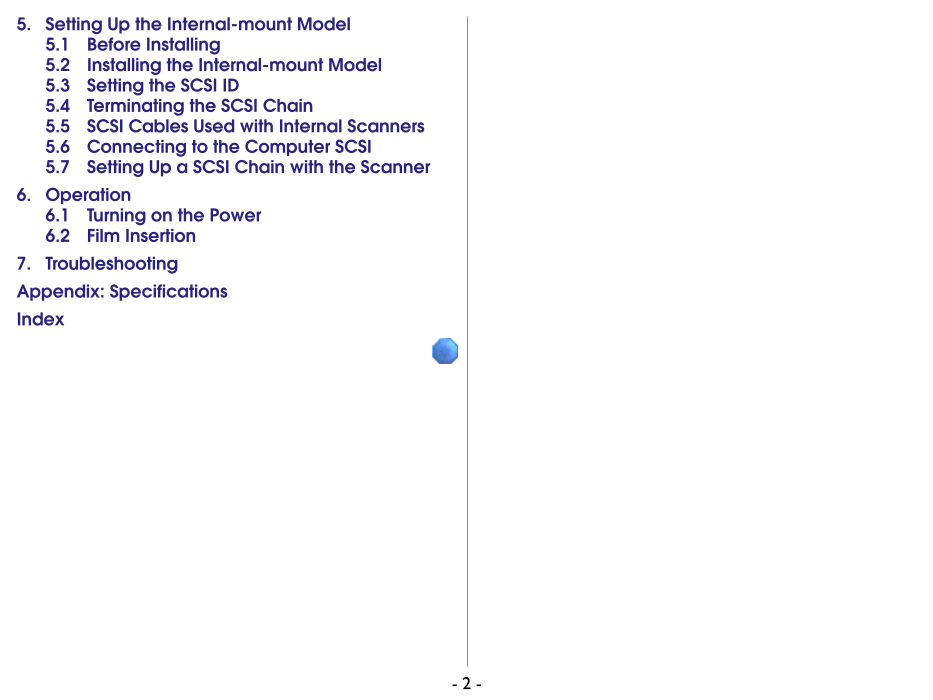

5. Setting Up the Internal-mount Model 5.1 Before Installing 5.2 Installing the Internal-mount Model 5.3 Setting the SCSI ID 5.4 Terminating the SCSI Chain 5.5 SCSI Cables Used with Internal Scanners 5.6 Connecting to the Computer SCSI 5.7 Setting Up a SCSI Chain with the Scanner 6. Operation 6.1 Turning on the Power 6.2 Film Insertion 7. Troubleshooting Appendix: Specifications Index- 2 -

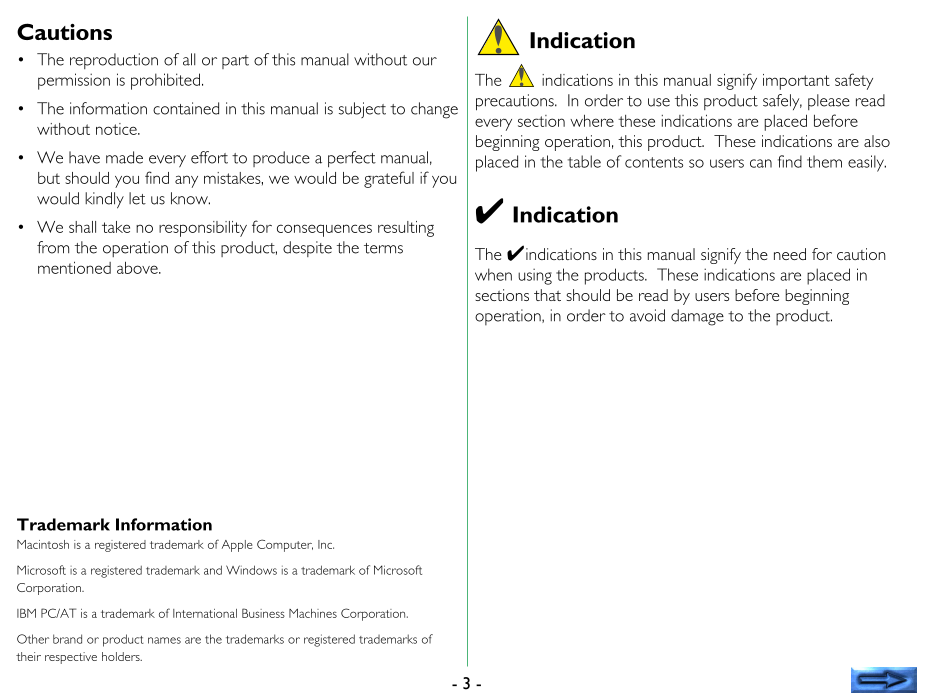

Cautions • The reproduction of all or part of this manual without our permission is prohibited. • The information contained in this manual is subject to change without notice. • We have made every effort to produce a perfect manual, but should you find any mistakes, we would be grateful if you would kindly let us know. • We shall take no responsibility for consequences resulting from the operation of this product, despite the terms mentioned above.Trademark Information Macintosh is a registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. IBM PC/AT is a trademark of International Business Machines Corporation. Other brand or product names are the trademarks or registered trademarks of their respective holders.- 3Indication The indications in this manual signify important safety precautions. In order to use this product safely, please read every section where these indications are placed before beginning operation, this product. These indications are also placed in the table of contents so users can find them easily. Indication The indications in this manual signify the need for caution when using the products. These indications are placed in sections that should be read by users before beginning operation, in order to avoid damage to the product. -

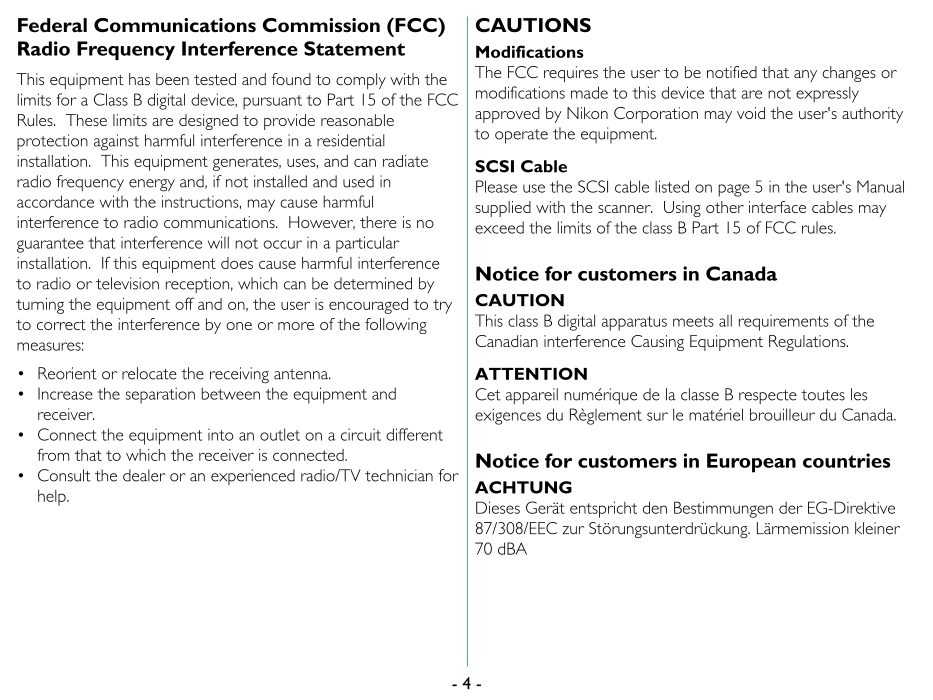

Federal Communications Commission (FCC) Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.- 4CAUTIONS Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user's authority to operate the equipment. SCSI Cable Please use the SCSI cable listed on page 5 in the user's Manual supplied with the scanner. Using other interface cables may exceed the limits of the class B Part 15 of FCC rules. Notice for customers in Canada CAUTION This class B digital apparatus meets all requirements of the Canadian interference Causing Equipment Regulations. ATTENTION Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Notice for customers in European countries ACHTUNG Dieses Gerät entspricht den Bestimmungen der EG-Direktive 87/308/EEC zur Störungsunterdrückung. Lärmemission kleiner 70 dBA -

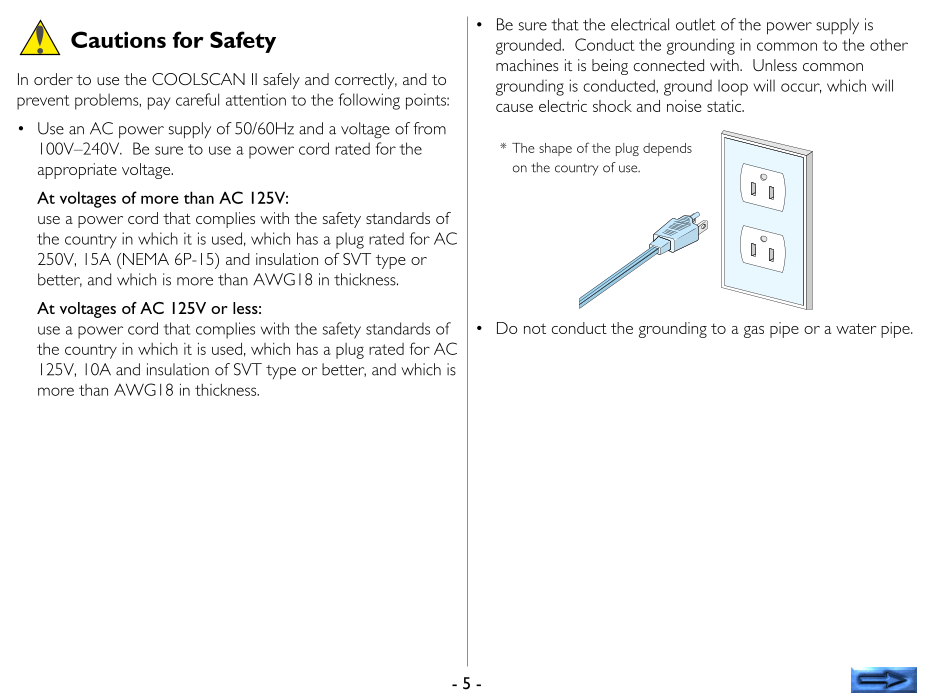

Cautions for Safety In order to use the COOLSCAN II safely and correctly, and to prevent problems, pay careful attention to the following points: • Use an AC power supply of 50/60Hz and a voltage of from 100V–240V. Be sure to use a power cord rated for the appropriate voltage. At voltages of more than AC 125V: use a power cord that complies with the safety standards of the country in which it is used, which has a plug rated for AC 250V, 15A (NEMA 6P-15) and insulation of SVT type or better, and which is more than AWG18 in thickness. At voltages of AC 125V or less: use a power cord that complies with the safety standards of the country in which it is used, which has a plug rated for AC 125V, 10A and insulation of SVT type or better, and which is more than AWG18 in thickness.- 5• Be sure that the electrical outlet of the power supply is grounded. Conduct the grounding in common to the other machines it is being connected with. Unless common grounding is conducted, ground loop will occur, which will cause electric shock and noise static. * The shape of the plug depends on the country of use. • Do not conduct the grounding to a gas pipe or a water pipe. -

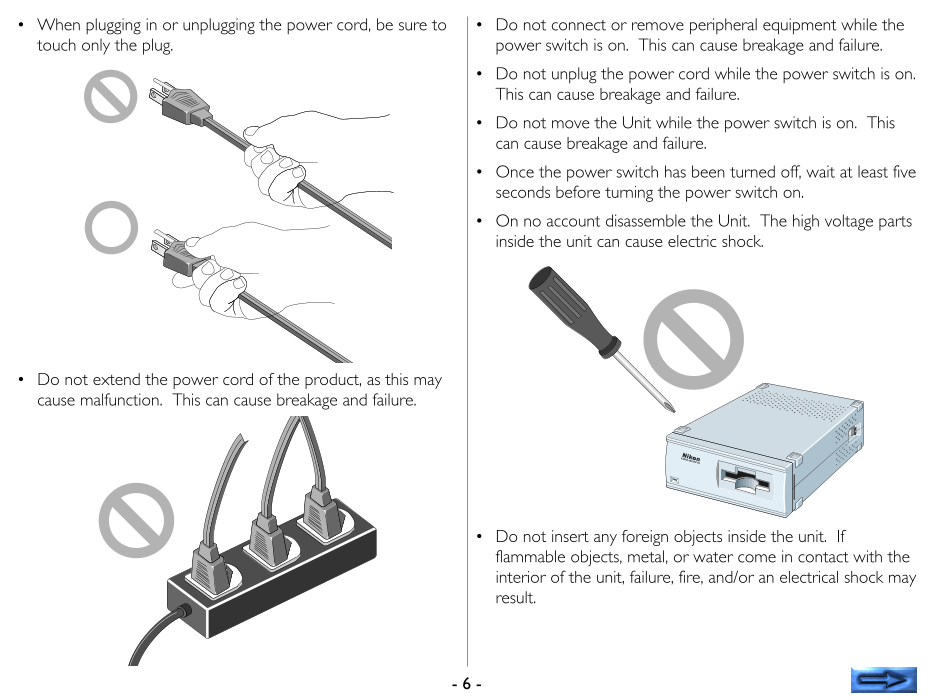

• When plugging in or unplugging the power cord, be sure to touch only the plug. • Do not extend the power cord of the product, as this may cause malfunction. This can cause breakage and failure.- 6• Do not connect or remove peripheral equipment while the power switch is on. This can cause breakage and failure. • Do not unplug the power cord while the power switch is on. This can cause breakage and failure. • Do not move the Unit while the power switch is on. This can cause breakage and failure. • Once the power switch has been turned off, wait at least five seconds before turning the power switch on. • On no account disassemble the Unit. The high voltage parts inside the unit can cause electric shock. • Do not insert any foreign objects inside the unit. If flammable objects, metal, or water come in contact with the interior of the unit, failure, fire, and/or an electrical shock may result. -

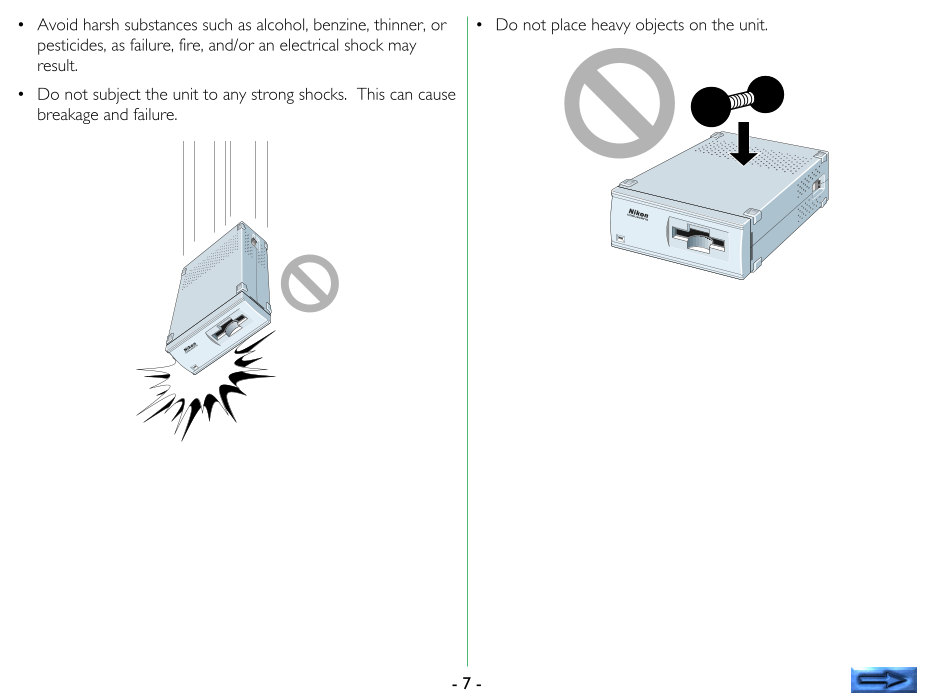

• Avoid harsh substances such as alcohol, benzine, thinner, or pesticides, as failure, fire, and/or an electrical shock may result. • Do not subject the unit to any strong shocks. This can cause breakage and failure.- 7• Do not place heavy objects on the unit. -

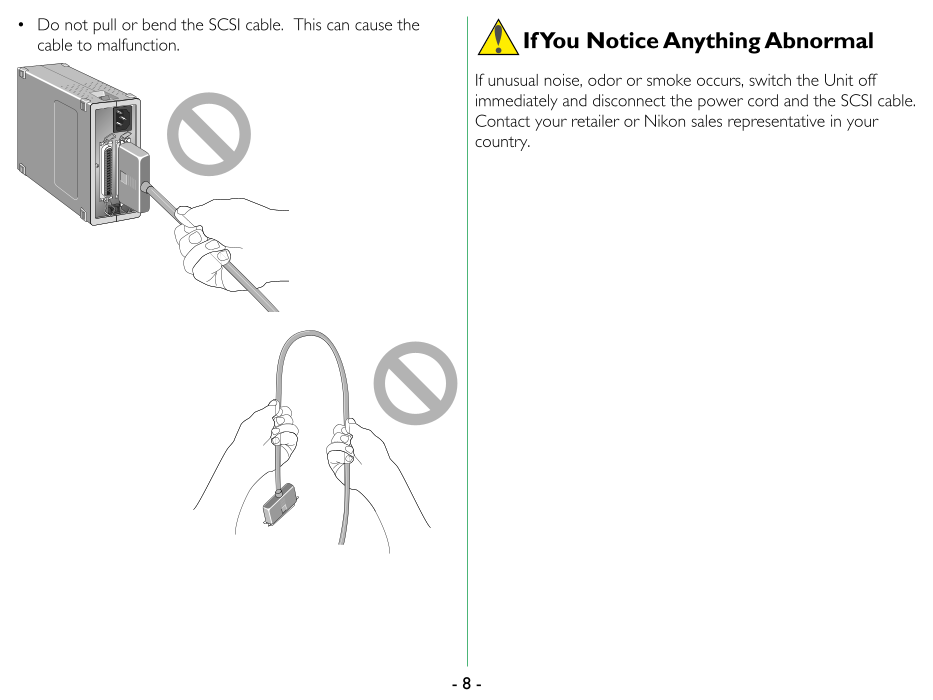

• Do not pull or bend the SCSI cable. This can cause the cable to malfunction. 5 - 8If You Notice Anything Abnormal If unusual noise, odor or smoke occurs, switch the Unit off immediately and disconnect the power cord and the SCSI cable. Contact your retailer or Nikon sales representative in your country. -
