Fi-4530C(Fi-4530C_User).pdf
fi4530C.pdf
Chapter1 Chapter1 BASIC SCANNER OPERATIONS
1.1 Turning the Scanner ON
1.2 Loading Documents on the ADF for Scanning
1.3 Scanning Documents
1.4 How to use the Scanner Driver
Chapter2 Chapter2 SCANNING VARIOUS TYPES OF DOCUMENTS
2.1 Scanning double sided Documents
2.2 Scanning Documents with different Widths
2.3 Scanning thin Documents
2.4 Scanning Documents longer than A3 size
2.5 Saving scanned Images in PDF Format
2.6 Excluding a Color from the Image (dropout color)
2.7 Skipping blank Pages
2.8 Detecting Double-Feeds
2.9 Correcting the skewed Documents
Chapter3 Chapter3 DAILY CARE
3.1 Cleaning Materials and Locations requiring Cleaning
3.2 Cleaning the ADF
Chapter4 Chapter4 REPLACING CONSUMABLES
4.1 Consumable and Replacement Cycle
4.2 Replacing the Pad ASSY
4.3 Replacing the Pick Roller
Chapter5 Chapter5 TROUBLESHOOTING
5.1 Removing Jammed Documents
5.2 Remedying Common Troubles
5.3 Items to check before contacting the agent where you bought the scanner
5.4 Checking Labels on the Scanner
Chapter6 Chapter6 DOCUMENT SPECIFICATIONS FOR THE ADF
6.1 Document Size
6.2 Document Quality
6.3 Maximum ADF Capacity
6.4 Area not to be perforated
6.5 Double-feed Detection Conditions
Chapter7 Chapter7 SCANNER SPECIFICATIONS
7.1 Basic Specifications
7.2 Installation Specifications
7.3 External Dimensions
APPENDIX APPENDIX Before using the [Scan] or the [Send to] button
GLOSSARY GLOSSARY OF TERMS
INDEX
P3PC-E577-01EN
fi-4530C Image Scanner
Operator's Guide

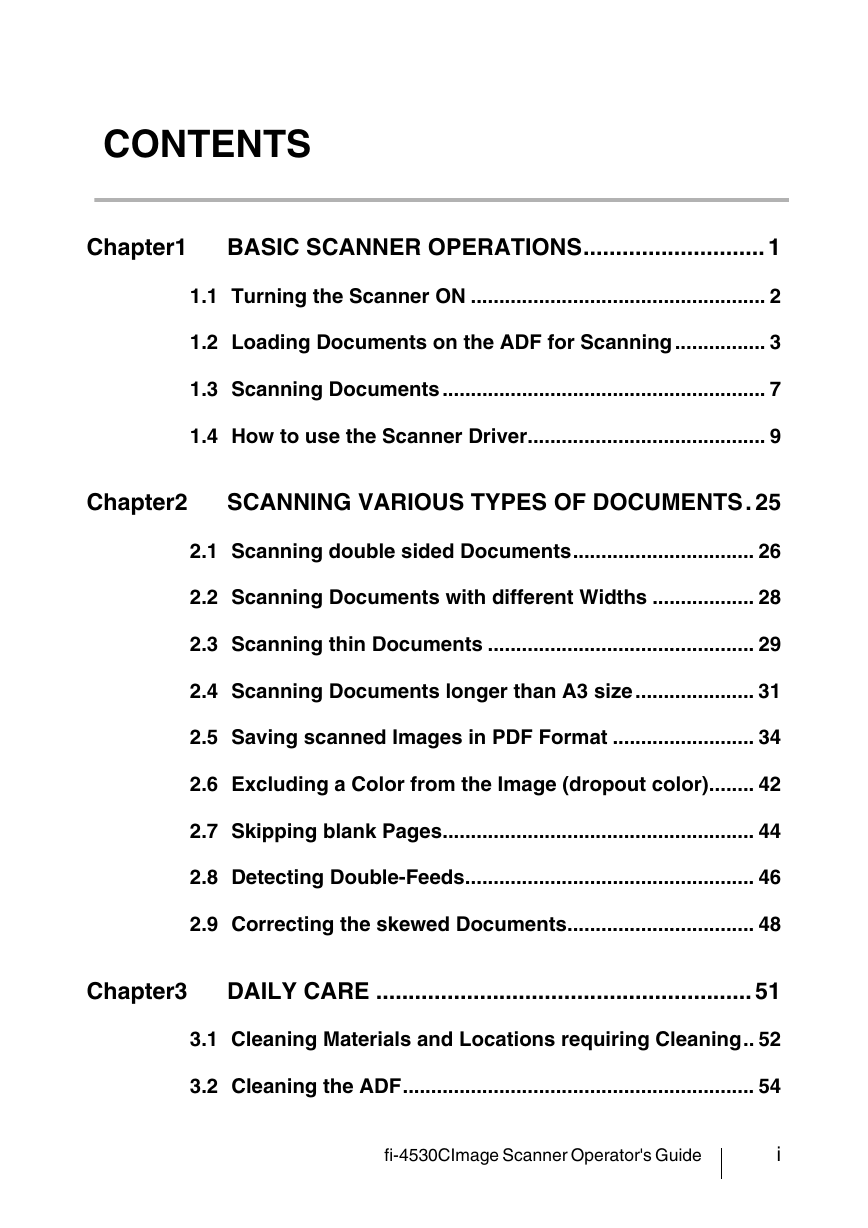

CONTENTS
Chapter1 BASIC SCANNER OPERATIONS............................ 1
1.1 Turning the Scanner ON .................................................... 2
1.2 Loading Documents on the ADF for Scanning ................ 3
1.3 Scanning Documents ......................................................... 7
1.4 How to use the Scanner Driver.......................................... 9
Chapter2
SCANNING VARIOUS TYPES OF DOCUMENTS. 25
2.1 Scanning double sided Documents................................ 26
2.2 Scanning Documents with different Widths .................. 28
2.3 Scanning thin Documents ............................................... 29
2.4 Scanning Documents longer than A3 size ..................... 31
2.5 Saving scanned Images in PDF Format ......................... 34
2.6 Excluding a Color from the Image (dropout color)........ 42
2.7 Skipping blank Pages....................................................... 44
2.8 Detecting Double-Feeds................................................... 46
2.9 Correcting the skewed Documents................................. 48
Chapter3 DAILY CARE .......................................................... 51
3.1 Cleaning Materials and Locations requiring Cleaning.. 52
3.2 Cleaning the ADF.............................................................. 54
fi-4530CImage Scanner Operator's Guide
i

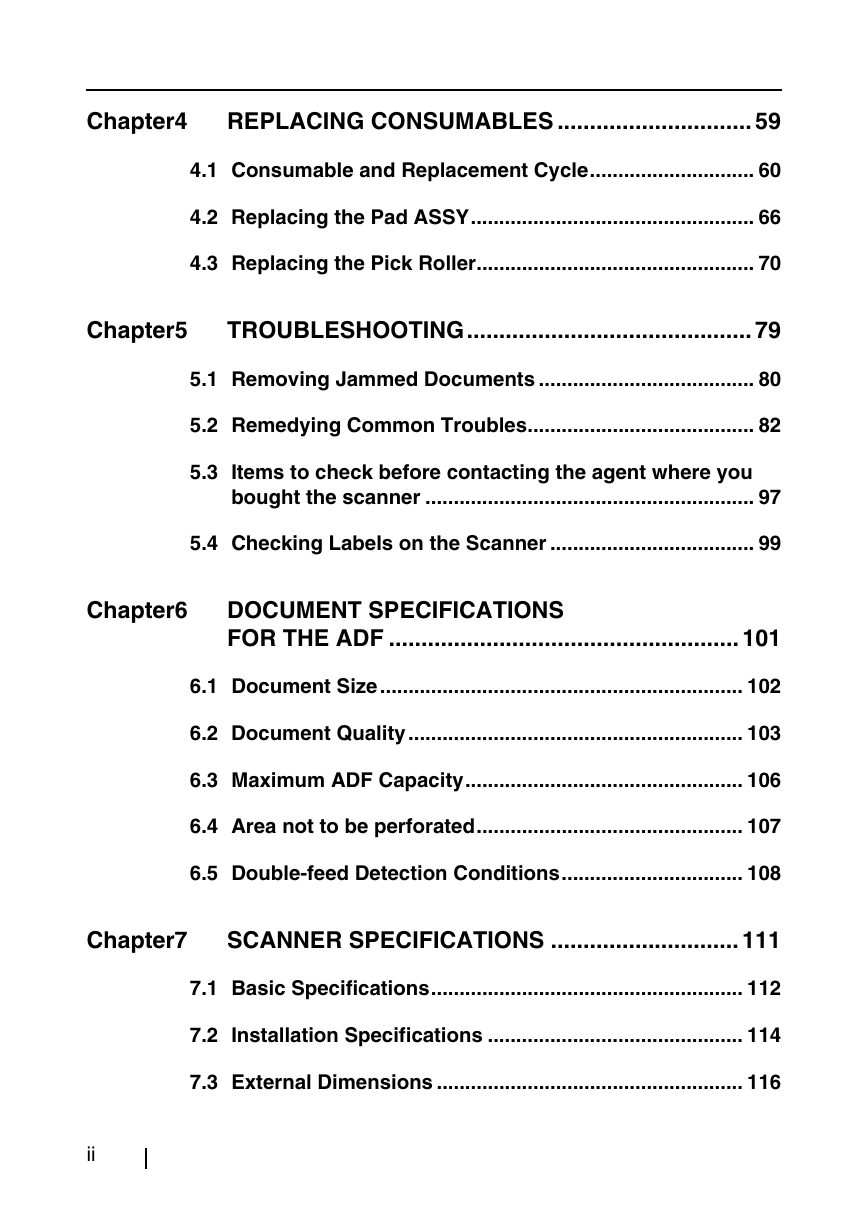

Chapter4 REPLACING CONSUMABLES .............................. 59
4.1 Consumable and Replacement Cycle............................. 60
4.2 Replacing the Pad ASSY.................................................. 66
4.3 Replacing the Pick Roller................................................. 70
Chapter5
TROUBLESHOOTING............................................ 79
5.1 Removing Jammed Documents ...................................... 80
5.2 Remedying Common Troubles........................................ 82
5.3 Items to check before contacting the agent where you
bought the scanner .......................................................... 97
5.4 Checking Labels on the Scanner .................................... 99
Chapter6 DOCUMENT SPECIFICATIONS
FOR THE ADF ...................................................... 101
6.1 Document Size................................................................ 102
6.2 Document Quality ........................................................... 103
6.3 Maximum ADF Capacity................................................. 106
6.4 Area not to be perforated............................................... 107
6.5 Double-feed Detection Conditions................................ 108
Chapter7
SCANNER SPECIFICATIONS ............................. 111
7.1 Basic Specifications....................................................... 112
7.2 Installation Specifications ............................................. 114
7.3 External Dimensions ...................................................... 116
ii

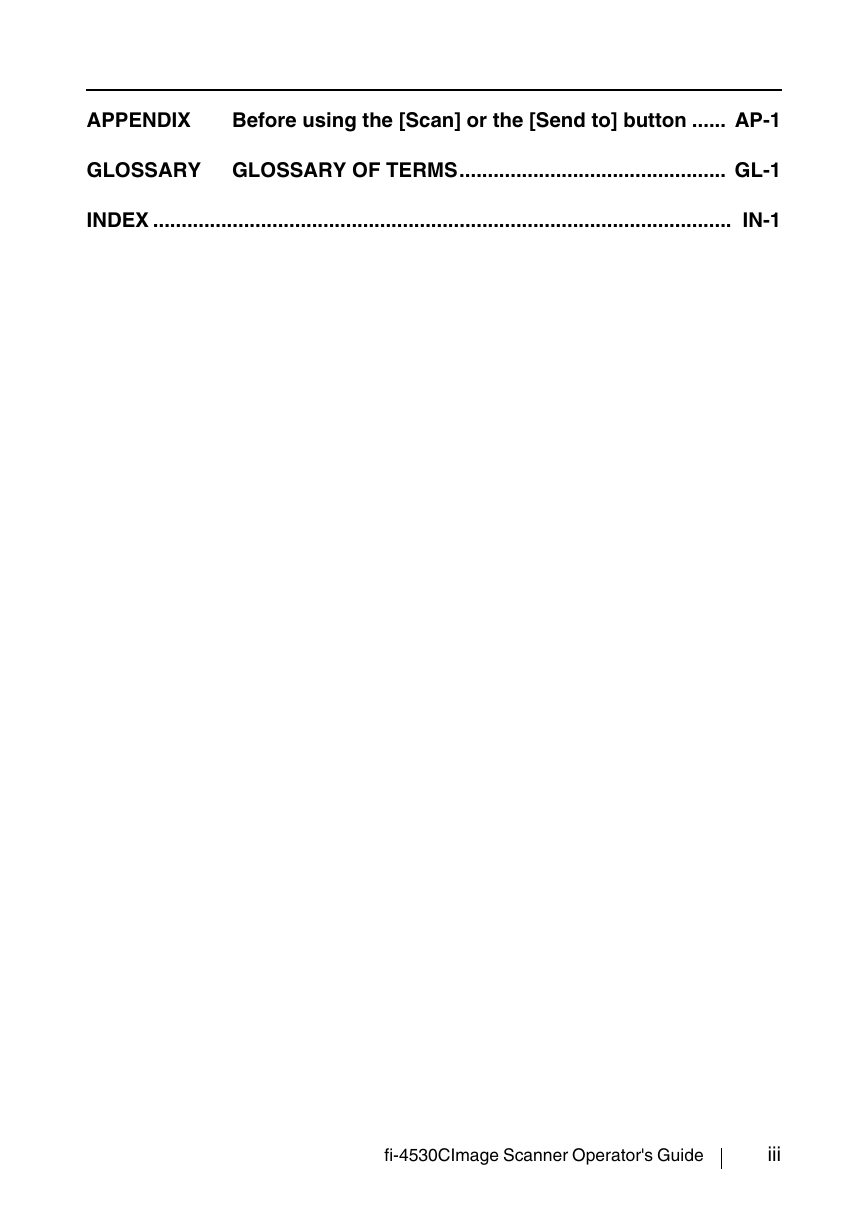

APPENDIX
Before using the [Scan] or the [Send to] button ...... AP-1
GLOSSARY GLOSSARY OF TERMS............................................... GL-1
INDEX ...................................................................................................... IN-1
fi-4530CImage Scanner Operator's Guide
iii
iv

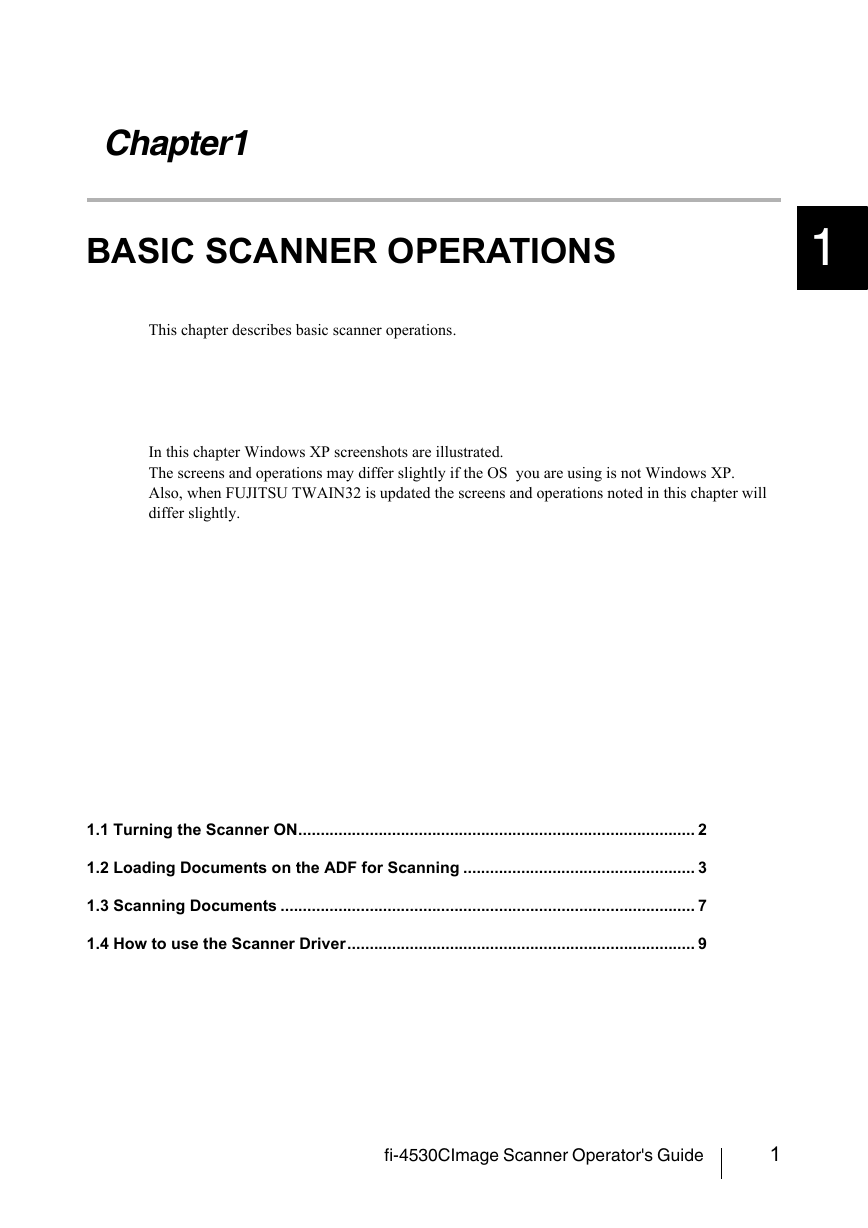

Chapter1
BASIC SCANNER OPERATIONS
1
This chapter describes basic scanner operations.
In this chapter Windows XP screenshots are illustrated.
The screens and operations may differ slightly if the OS you are using is not Windows XP.
Also, when FUJITSU TWAIN32 is updated the screens and operations noted in this chapter will
differ slightly.
1.1 Turning the Scanner ON......................................................................................... 2
1.2 Loading Documents on the ADF for Scanning .................................................... 3
1.3 Scanning Documents ............................................................................................. 7
1.4 How to use the Scanner Driver.............................................................................. 9
fi-4530CImage Scanner Operator's Guide
1

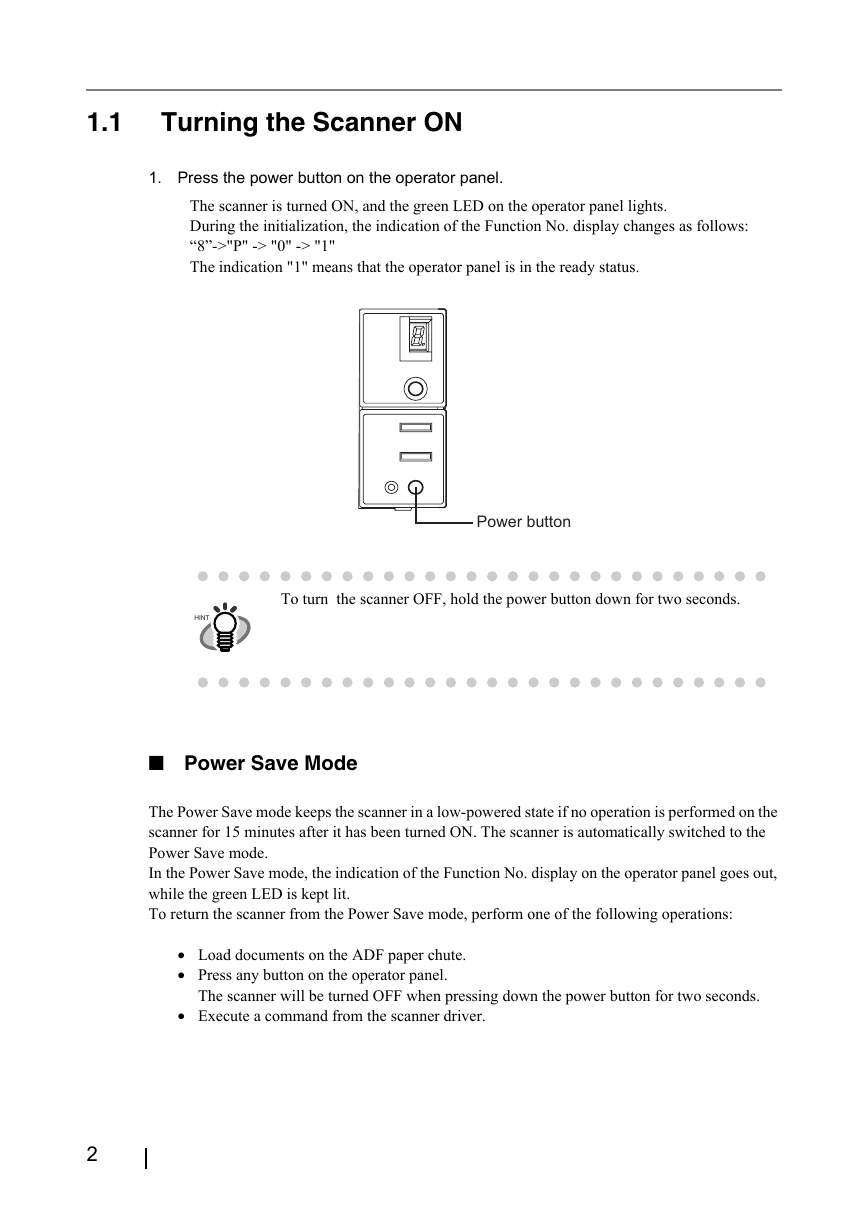

1.1
Turning the Scanner ON
1. Press the power button on the operator panel.
The scanner is turned ON, and the green LED on the operator panel lights.
During the initialization, the indication of the Function No. display changes as follows:
“8”->"P" -> "0" -> "1"
The indication "1" means that the operator panel is in the ready status.
Power button
To turn the scanner OFF, hold the power button down for two seconds.
HINT
■ Power Save Mode
The Power Save mode keeps the scanner in a low-powered state if no operation is performed on the
scanner for 15 minutes after it has been turned ON. The scanner is automatically switched to the
Power Save mode.
In the Power Save mode, the indication of the Function No. display on the operator panel goes out,
while the green LED is kept lit.
To return the scanner from the Power Save mode, perform one of the following operations:
• Load documents on the ADF paper chute.
• Press any button on the operator panel.
The scanner will be turned OFF when pressing down the power button for two seconds.
• Execute a command from the scanner driver.
2
1
I
B
A
S
C
S
C
A
N
N
E
R
O
P
E
R
A
T
O
N
S
I

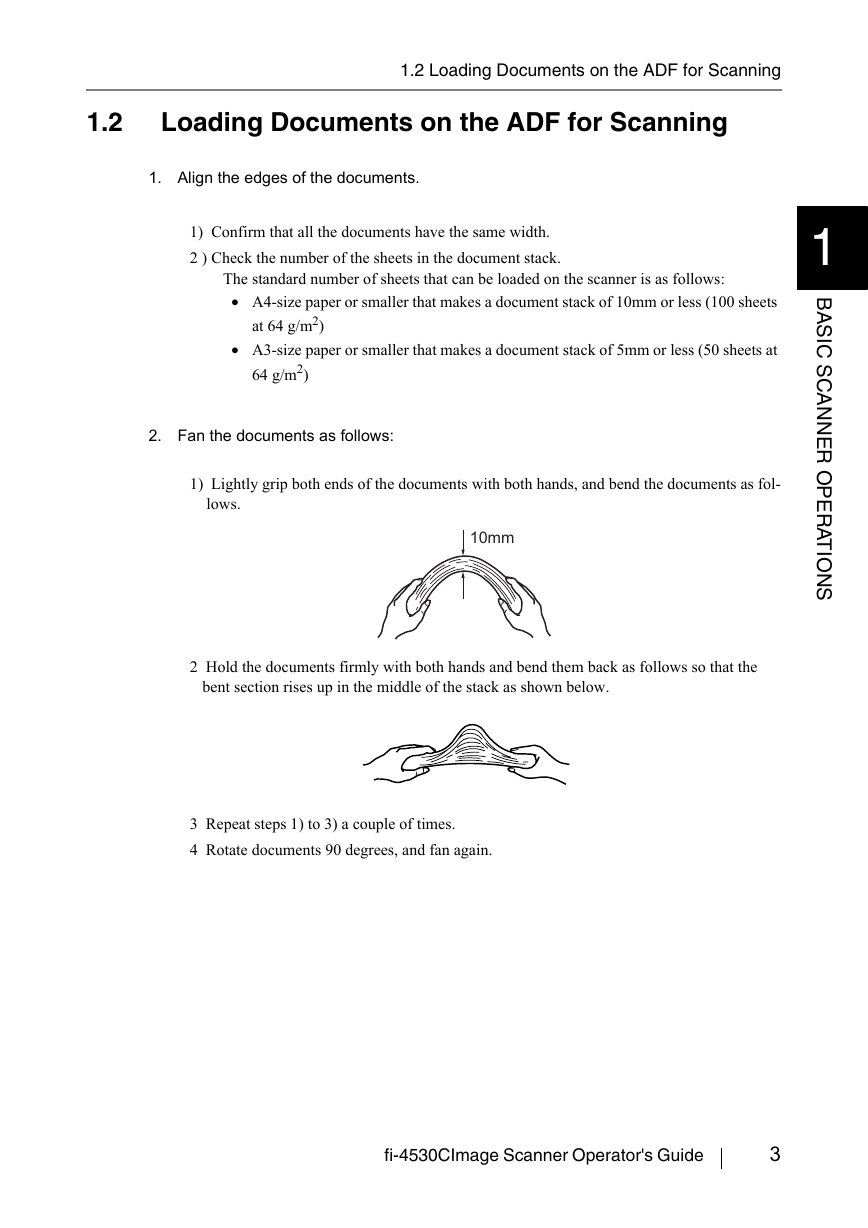

1.2 Loading Documents on the ADF for Scanning
1.2
Loading Documents on the ADF for Scanning
1. Align the edges of the documents.
1) Confirm that all the documents have the same width.
2 ) Check the number of the sheets in the document stack.
The standard number of sheets that can be loaded on the scanner is as follows:
• A4-size paper or smaller that makes a document stack of 10mm or less (100 sheets
at 64 g/m2)
• A3-size paper or smaller that makes a document stack of 5mm or less (50 sheets at
64 g/m2)
2. Fan the documents as follows:
1) Lightly grip both ends of the documents with both hands, and bend the documents as fol-
lows.
10mm
2 Hold the documents firmly with both hands and bend them back as follows so that the
bent section rises up in the middle of the stack as shown below.
3 Repeat steps 1) to 3) a couple of times.
4 Rotate documents 90 degrees, and fan again.
fi-4530CImage Scanner Operator's Guide
