2.23inch SSD1305 OLED数据手册(2.23inch-OLED-HAT-Datasheet

Forfuture Electron Technology Co.Limited http://www.fetcn.com Specification for Approval PRODUCT NUMBER: P25710 PRODUCT DESCRIPTION: RGS22128032WR004 CUSTOMER APPROVED BY DATE: Forfuture Electron Technology CO.,Limited http://www.fetcn.com Forfuture Electron Technology CO.,Limited http://www.fetcn.com Tell:0755-88352085 Fax:0755-82704731 Tell:0755-88352085 Fax:0755-82704731 - 1 - REV.: A01 2018/01/15

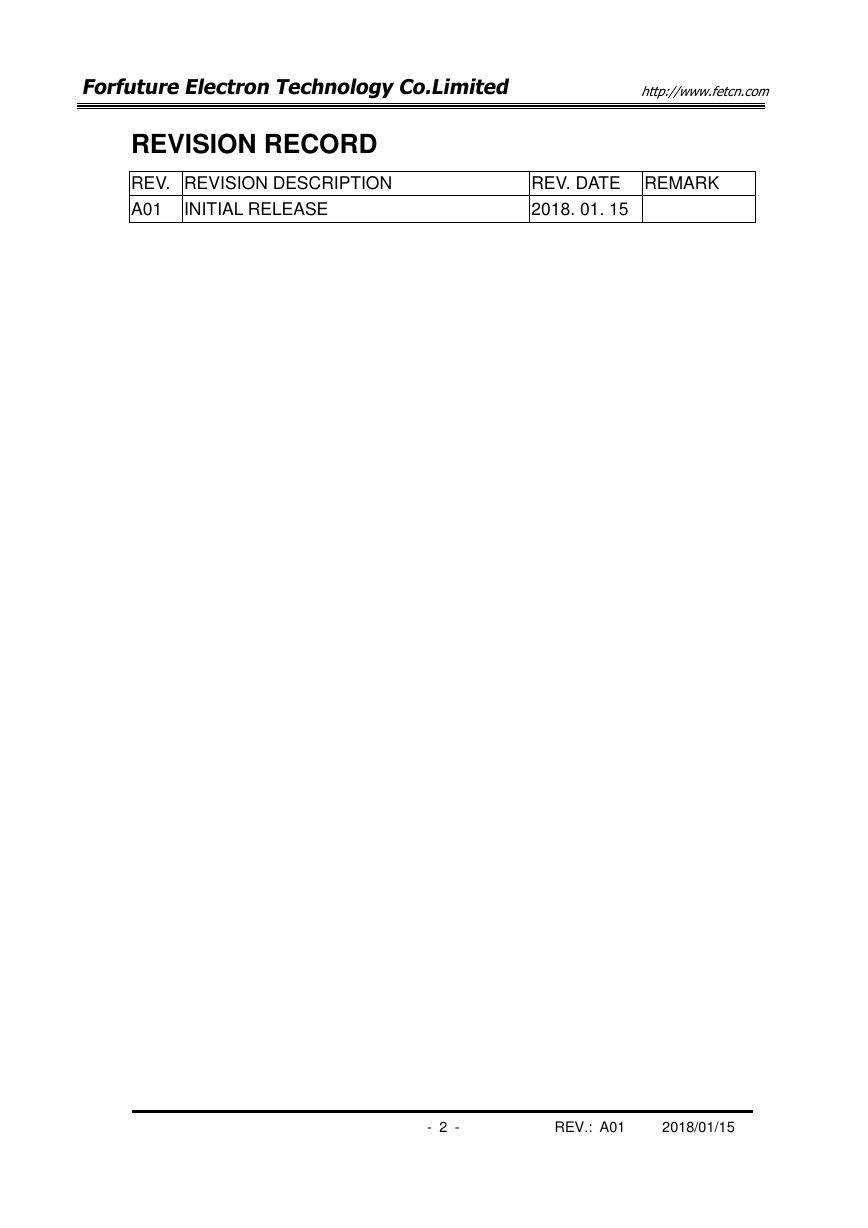

Forfuture Electron Technology Co.Limited http://www.fetcn.com REVISION RECORD REV. REVISION DESCRIPTION REV. DATE REMARK A01 INITIAL RELEASE 2018. 01. 15 - 2 - REV.: A01 2018/01/15

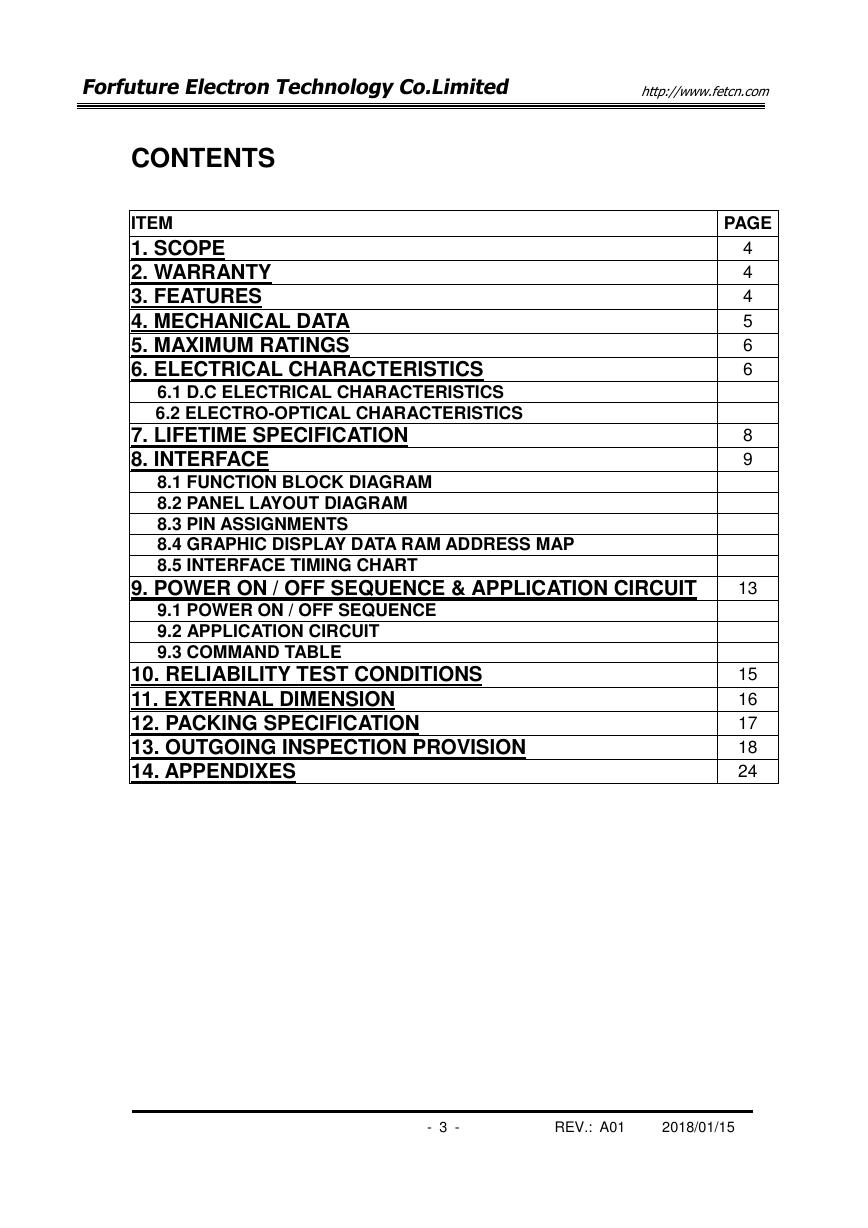

Forfuture Electron Technology Co.Limited http://www.fetcn.com CONTENTS ITEM 1. SCOPE 2. WARRANTY 3. FEATURES 4. MECHANICAL DATA 5. MAXIMUM RATINGS 6. ELECTRICAL CHARACTERISTICS 6.1 D.C ELECTRICAL CHARACTERISTICS 6.2 ELECTRO-OPTICAL CHARACTERISTICS 7. LIFETIME SPECIFICATION 8. INTERFACE 8.1 FUNCTION BLOCK DIAGRAM 8.2 PANEL LAYOUT DIAGRAM 8.3 PIN ASSIGNMENTS 8.4 GRAPHIC DISPLAY DATA RAM ADDRESS MAP 8.5 INTERFACE TIMING CHART 9. POWER ON / OFF SEQUENCE & APPLICATION CIRCUIT 9.1 POWER ON / OFF SEQUENCE 9.2 APPLICATION CIRCUIT 9.3 COMMAND TABLE 10. RELIABILITY TEST CONDITIONS 11. EXTERNAL DIMENSION 12. PACKING SPECIFICATION 13. OUTGOING INSPECTION PROVISION 14. APPENDIXES PAGE 4 4 4 5 6 6 8 9 13 15 16 17 18 24 - 3 - REV.: A01 2018/01/15

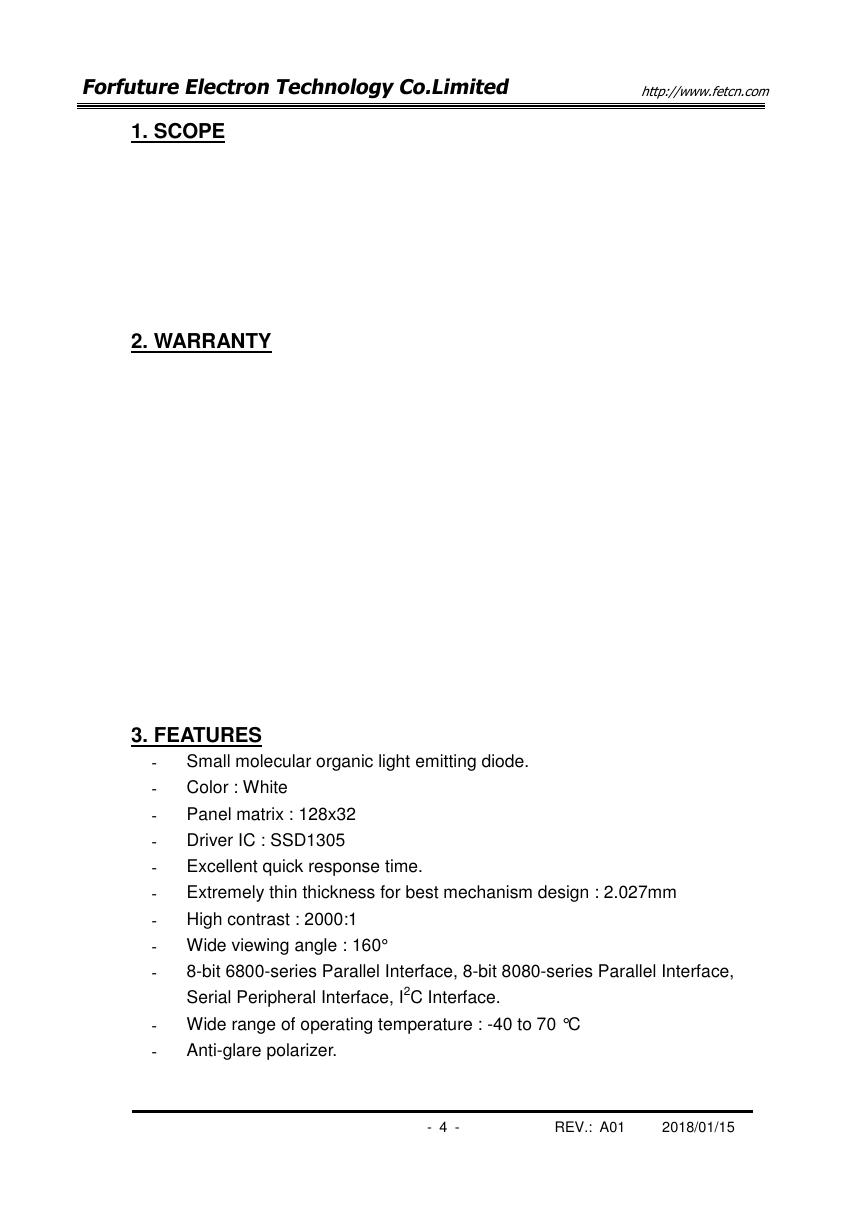

Forfuture Electron Technology Co.Limited http://www.fetcn.com 1. SCOPE 2. WARRANTY 3. FEATURES Small molecular organic light emitting diode. Color : White Panel matrix : 128x32 Driver IC : SSD1305 Excellent quick response time. Extremely thin thickness for best mechanism design : 2.027mm High contrast : 2000:1 Wide viewing angle : 160° 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface, Serial Peripheral Interface, I2C Interface. Wide range of operating temperature : -40 to 70 °C Anti-glare polarizer. ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐ - 4 - REV.: A01 2018/01/15

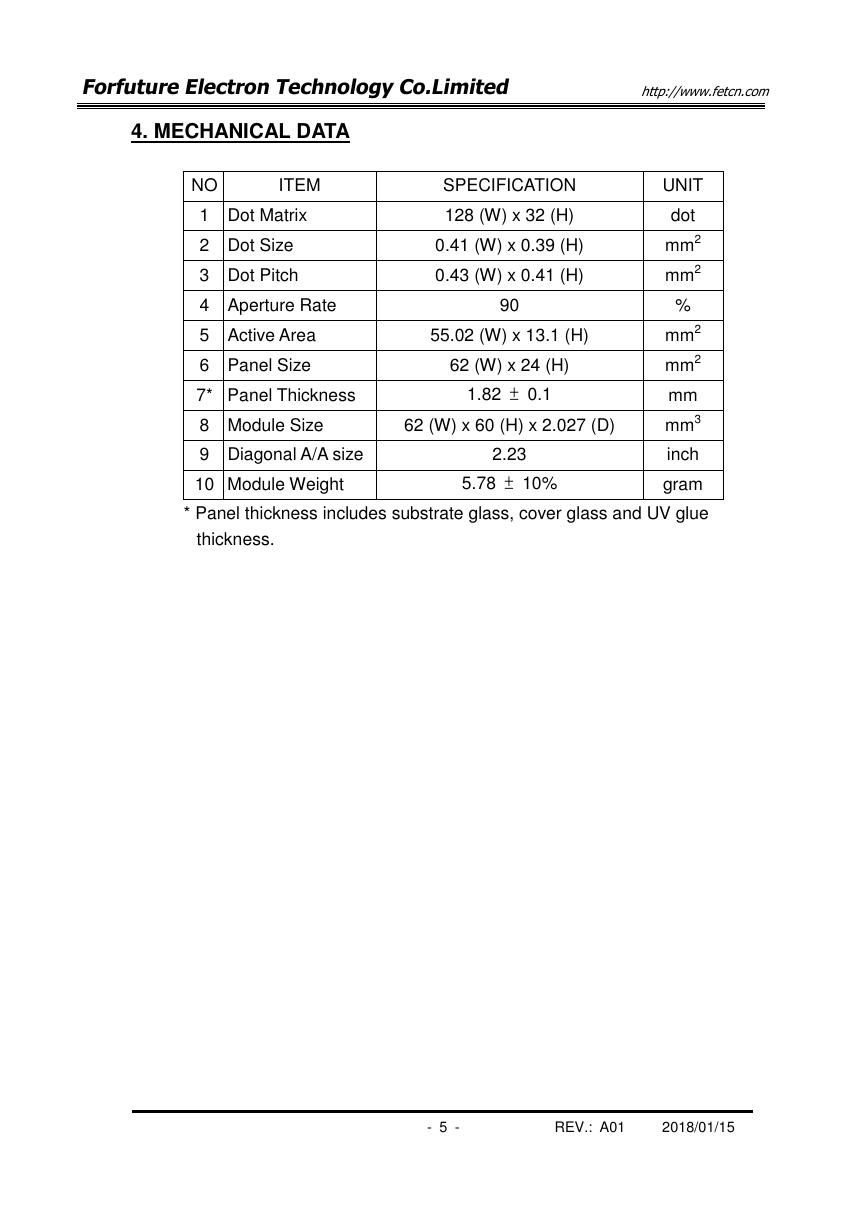

Forfuture Electron Technology Co.Limited http://www.fetcn.com 4. MECHANICAL DATA NO ITEM SPECIFICATION UNIT 1 Dot Matrix 2 Dot Size 3 Dot Pitch 128 (W) x 32 (H) 0.41 (W) x 0.39 (H) 0.43 (W) x 0.41 (H) 4 Aperture Rate 90 5 Active Area 6 Panel Size 7* Panel Thickness 55.02 (W) x 13.1 (H) 62 (W) x 24 (H) 1.82 ± 0.1 8 Module Size 62 (W) x 60 (H) x 2.027 (D) 9 Diagonal A/A size 2.23 10 Module Weight 5.78 ± 10% dot mm2 mm2 % mm2 mm2 mm mm3 inch gram * Panel thickness includes substrate glass, cover glass and UV glue thickness. - 5 - REV.: A01 2018/01/15

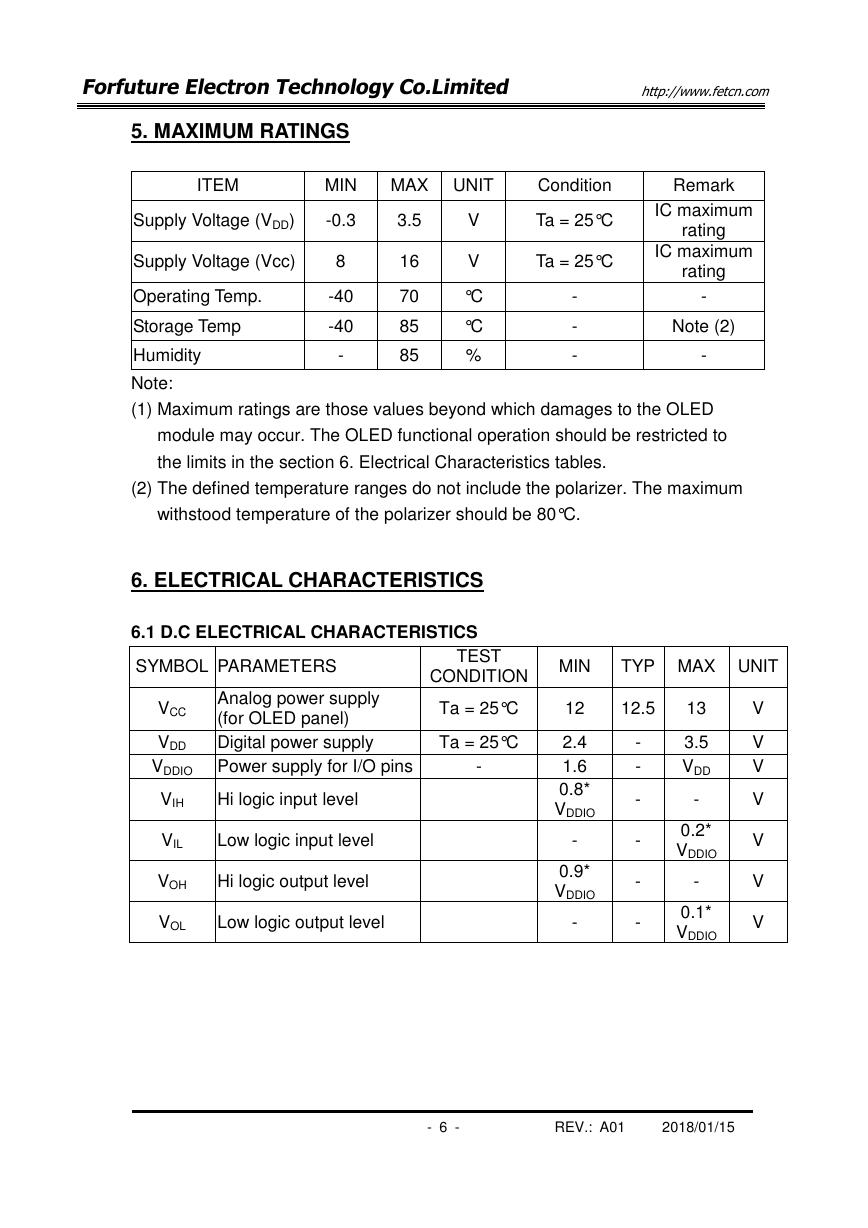

Forfuture Electron Technology Co.Limited http://www.fetcn.com 5. MAXIMUM RATINGS ITEM MIN MAX UNIT Condition Remark Supply Voltage (VDD) -0.3 3.5 Supply Voltage (Vcc) 8 Operating Temp. Storage Temp Humidity Note: -40 -40 - 16 70 85 85 V V °C °C % Ta = 25°C Ta = 25°C - - - IC maximum rating IC maximum rating - Note (2) - (1) Maximum ratings are those values beyond which damages to the OLED module may occur. The OLED functional operation should be restricted to the limits in the section 6. Electrical Characteristics tables. (2) The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80°C. 6. ELECTRICAL CHARACTERISTICS 6.1 D.C ELECTRICAL CHARACTERISTICS SYMBOL PARAMETERS TEST CONDITION MIN TYP MAX UNIT VCC Analog power supply (for OLED panel) Digital power supply VDD VDDIO Power supply for I/O pins VIH Hi logic input level VIL Low logic input level VOH Hi logic output level VOL Low logic output level Ta = 25°C 12 12.5 13 Ta = 25°C - 2.4 1.6 0.8* VDDIO - 0.9* VDDIO - - - - - - - 3.5 VDD - 0.2* VDDIO - 0.1* VDDIO V V V V V V V - 6 - REV.: A01 2018/01/15

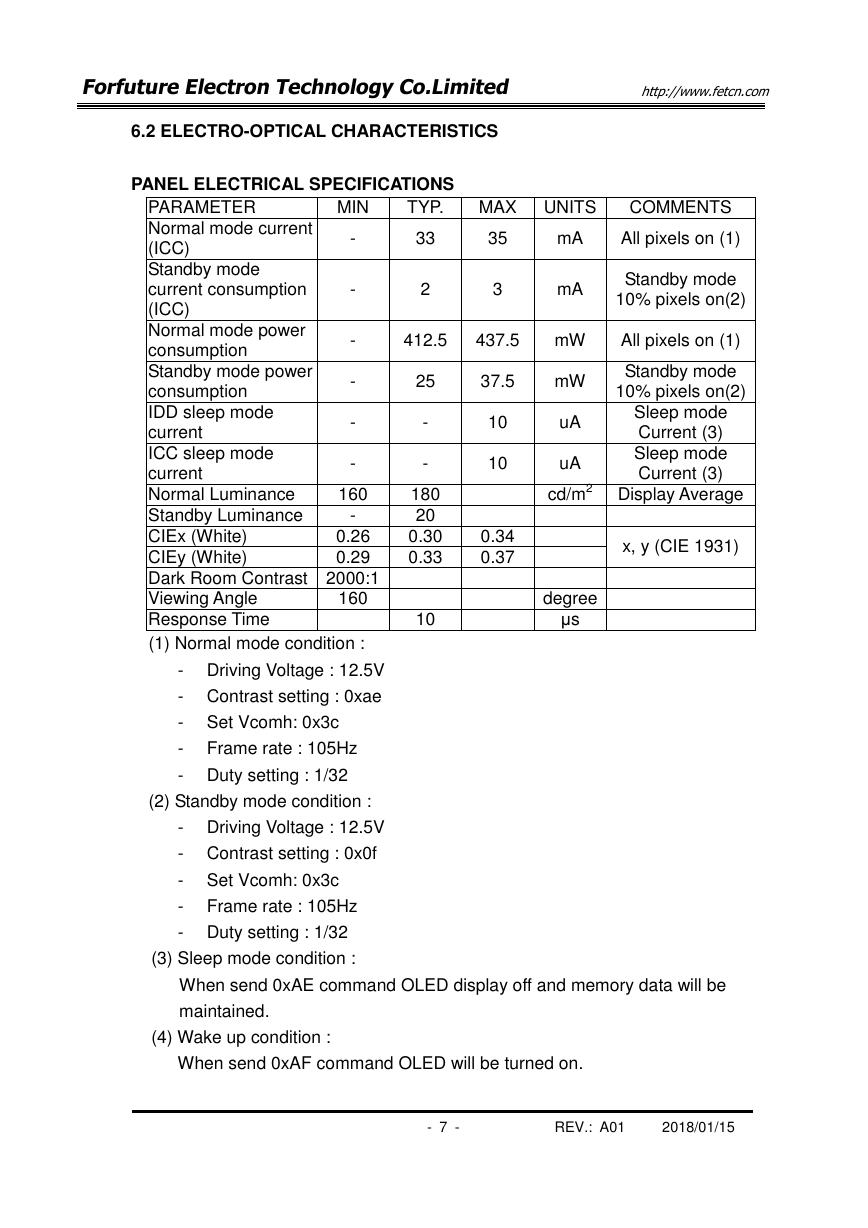

Forfuture Electron Technology Co.Limited http://www.fetcn.com 6.2 ELECTRO-OPTICAL CHARACTERISTICS PANEL ELECTRICAL SPECIFICATIONS - - - - MIN PARAMETER Normal mode current (ICC) Standby mode current consumption (ICC) Normal mode power consumption Standby mode power consumption IDD sleep mode current ICC sleep mode current Normal Luminance Standby Luminance CIEx (White) CIEy (White) Dark Room Contrast 2000:1 Viewing Angle Response Time 0.26 0.29 - - 160 - 160 - - 180 20 0.30 0.33 10 10 10 0.34 0.37 TYP. MAX UNITS COMMENTS 33 35 mA All pixels on (1) 2 3 mA Standby mode 10% pixels on(2) 412.5 437.5 mW All pixels on (1) 25 37.5 mW Standby mode 10% pixels on(2) Sleep mode Current (3) Sleep mode Current (3) uA uA cd/m2 Display Average degree µs x, y (CIE 1931) (1) Normal mode condition : - Driving Voltage : 12.5V - Contrast setting : 0xae - Set Vcomh: 0x3c - Frame rate : 105Hz - Duty setting : 1/32 (2) Standby mode condition : - Driving Voltage : 12.5V - Contrast setting : 0x0f - Set Vcomh: 0x3c - Frame rate : 105Hz - Duty setting : 1/32 (3) Sleep mode condition : When send 0xAE command OLED display off and memory data will be maintained. (4) Wake up condition : When send 0xAF command OLED will be turned on. - 7 - REV.: A01 2018/01/15

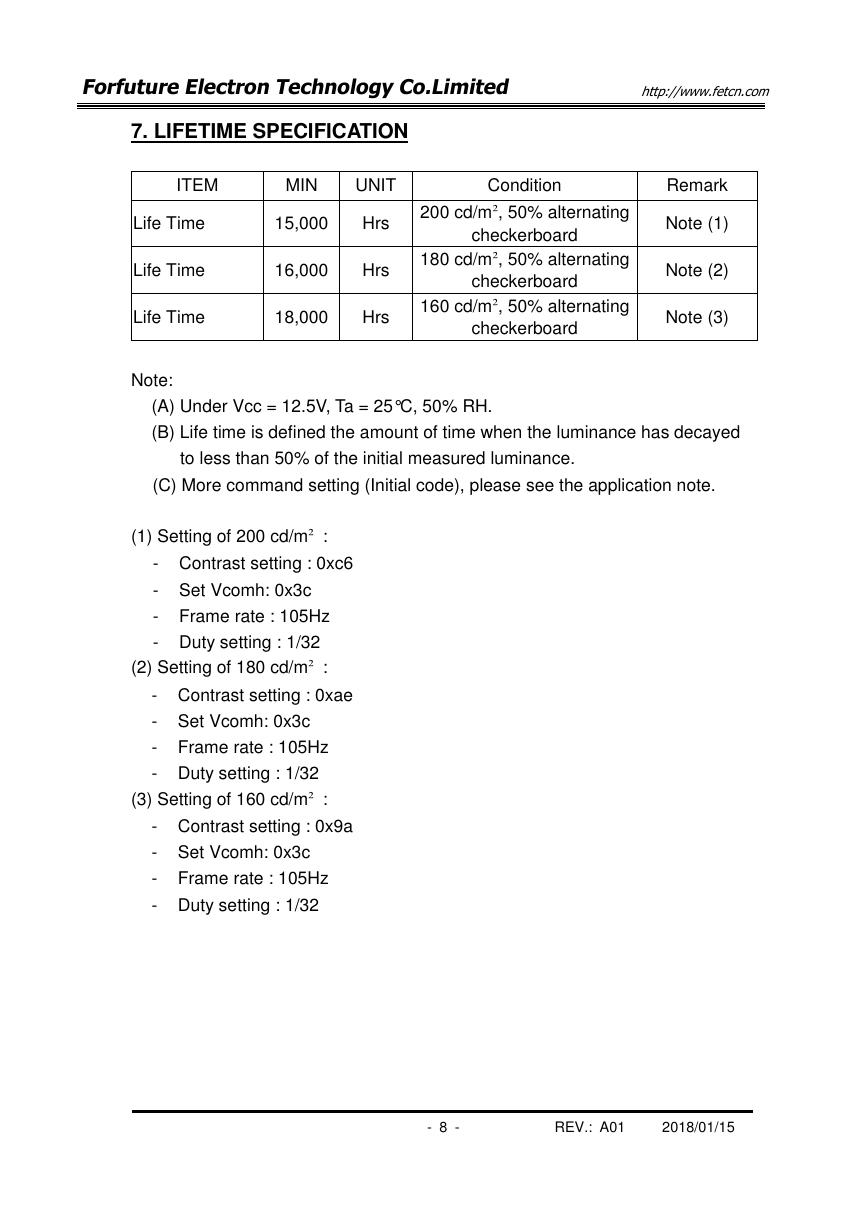

Forfuture Electron Technology Co.Limited http://www.fetcn.com 7. LIFETIME SPECIFICATION ITEM MIN UNIT Condition Life Time 15,000 Hrs Life Time 16,000 Hrs Life Time 18,000 Hrs 200 cd/m², 50% alternating checkerboard 180 cd/m², 50% alternating checkerboard 160 cd/m², 50% alternating checkerboard Remark Note (1) Note (2) Note (3) Note: (A) Under Vcc = 12.5V, Ta = 25°C, 50% RH. (B) Life time is defined the amount of time when the luminance has decayed to less than 50% of the initial measured luminance. (C) More command setting (Initial code), please see the application note. (1) Setting of 200 cd/m² : - Contrast setting : 0xc6 - Set Vcomh: 0x3c - Frame rate : 105Hz - Duty setting : 1/32 (2) Setting of 180 cd/m² : - Contrast setting : 0xae - Set Vcomh: 0x3c - Frame rate : 105Hz - Duty setting : 1/32 (3) Setting of 160 cd/m² : - Contrast setting : 0x9a - Set Vcomh: 0x3c - Frame rate : 105Hz - Duty setting : 1/32 - 8 - REV.: A01 2018/01/15
