A7600 Series_Audio_Application Note_V1.00
1 Introduction
1.1 Purpose of the document
Based on module AT command manual, this document will introduce Audio application process.
Developers could understand and develop application quickly and efficiently based on this document.This
document gives the usage of A7600 TTS functions , Audio file playback functions and record functions.
User can get useful information about these functions quickly through this document.
The functions are provided in AT command format, and they are designed for customers to design their
audio applications easily. User can access these Audio AT commands through UART/ USB interface which
communicates with A7600 module. Now Chinese and English languages can be supported in TTS funciotns.
And Audio file playback support to play WAV and AMR files. On the other hand, the record file are saved as
WAV files.
1.2 Related documents
[1] A7600 Series_AT Command Manual
1.3 Conventions and abbreviations
In this document, the GSM engines are referred to as following term:
AMR (Adaptive Multi-Rate);
TTS (Text to Speech);
1.4 The process of Using Audio AT Commands
www.simcom.com 4 / 15
1.4.1
The process of TTS function
A7600 Series_Audio_Application Note_V1.00
Power on the module
AT+CTTSPARAM=1,3,0,1,1
(set TTS parameters)
Save wav file with 3td to show path and
filename , do not save with just tow
parameters.
TTS data write file or not
Y
Mode 1 means UCS2 text, mode 2 means
ASCII text.
AT+CTTS=1,”6B228FCE4F7F”
（play UCS2 text）
AT+CTTS=1,”6B228FCE4F7F”,”C
:/123”
（play UCS2 text and save to
C:/123.wav）
N
Stop actively by AT+CTTS=0
AT+CTTS=0
(stop TTS playing)
URC:”+CTTS: 0”
(TTS play end)
1.4.2
The process of audio file playback function
www.simcom.com 5 / 15
A7600 Series_Audio_Application Note_V1.00
Power on the module
Audio file playback function
Support file type : AMR,WAV; Support file
storage :C:(file system),D:(SD card).2th
paramter is playing mode(0:local
1:remote). Last parameter is the number
of cycles.
AT+CCMXPLAY=”C:/
3034.amr”,0,1（play AMR
file）
Stop actively by AT+CCMXPLAY
AT+CCMXSTOP
(stop audio file playing)
URC:”+AUDIOSTATE: audio play
stop”
(audio file play end)

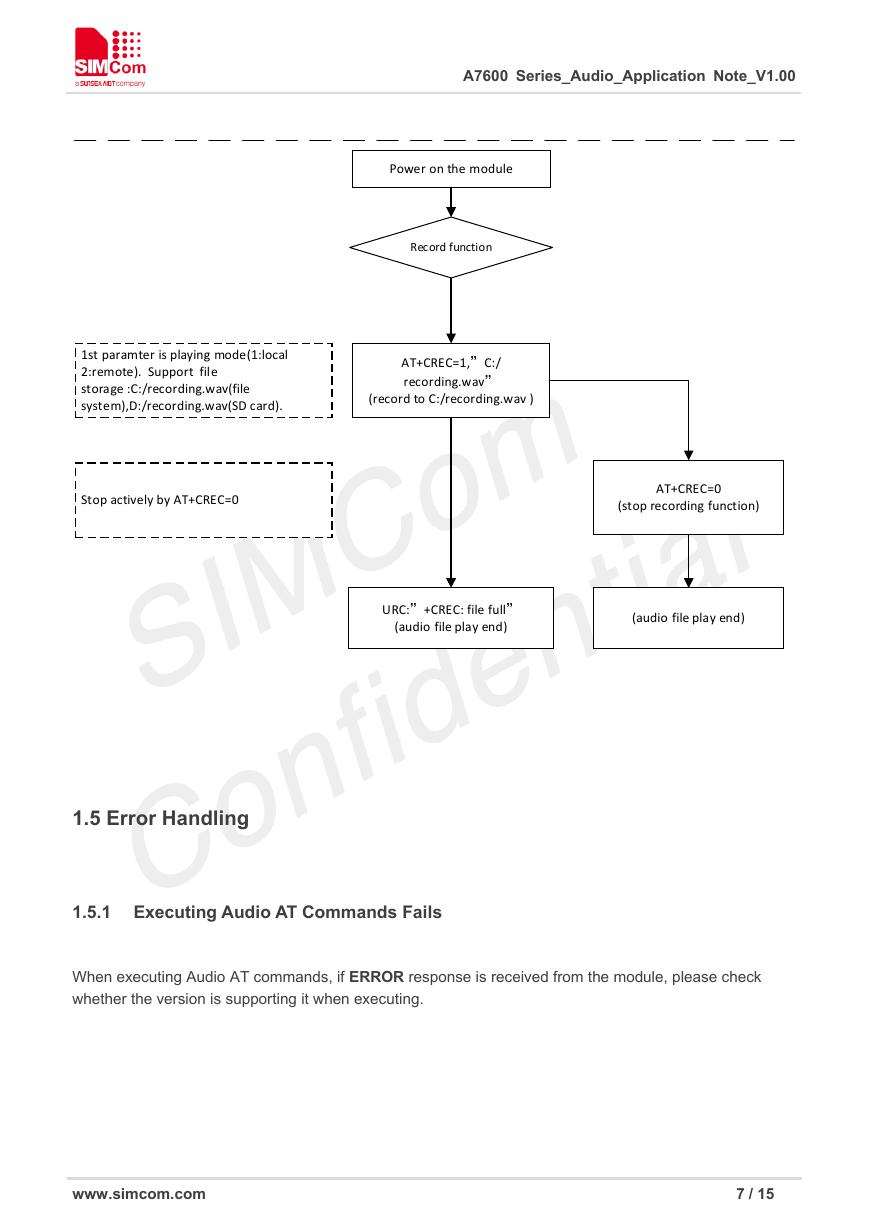

1.4.3
The process of record function
www.simcom.com 6 / 15
A7600 Series_Audio_Application Note_V1.00
Power on the module
Record function
1st paramter is playing mode(1:local
2:remote). Support file
storage :C:/recording.wav(file
system),D:/recording.wav(SD card).
AT+CREC=1,”C:/
recording.wav”
(record to C:/recording.wav )
Stop actively by AT+CREC=0
AT+CREC=0
(stop recording function)
URC:”+CREC: file full”
(audio file play end)
(audio file play end)
1.5 Error Handling
1.5.1
Executing Audio AT Commands Fails
When executing Audio AT commands, if ERROR response is received from the module, please check
whether the version is supporting it when executing.
www.simcom.com 7 / 15
