SPECIFICATIONS
FOR
LCD MODULE
Customer:
Model name: HW101F-0D-0E(IVO101_40PIN)
Description: LIQUID CRYSTAL DISPLAY MODULE
Date: 2013-09-27
CUSTOMER APPROVAL
□ Accept
□ Reject
comment:
Customer
Approval
Approved by:
SUPPLIER APPROVAL
APPROVED
CHECKED
ORGANIZED
1、OTHERS:
APPROVAL FOR SPECIFICATIONS ONLY
APPROVAL FOR SPECIFICATIONS AND SAMPLE
NOTE: VERSION OF SPECIFICATIONS: 00
1
2、 OTHERS:

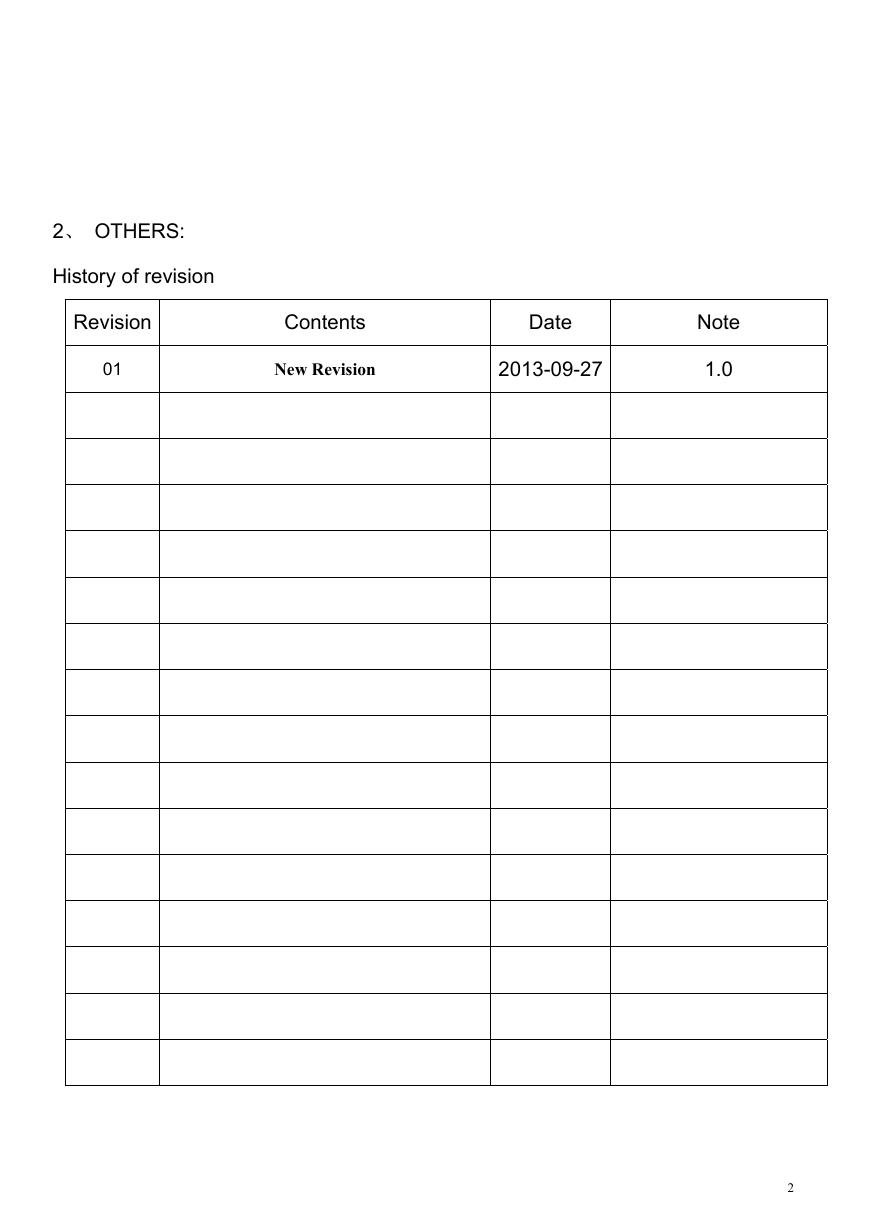

History of revision
Revision
01
Contents
New Revision
Date
2013-09-27
Note
1.0
2

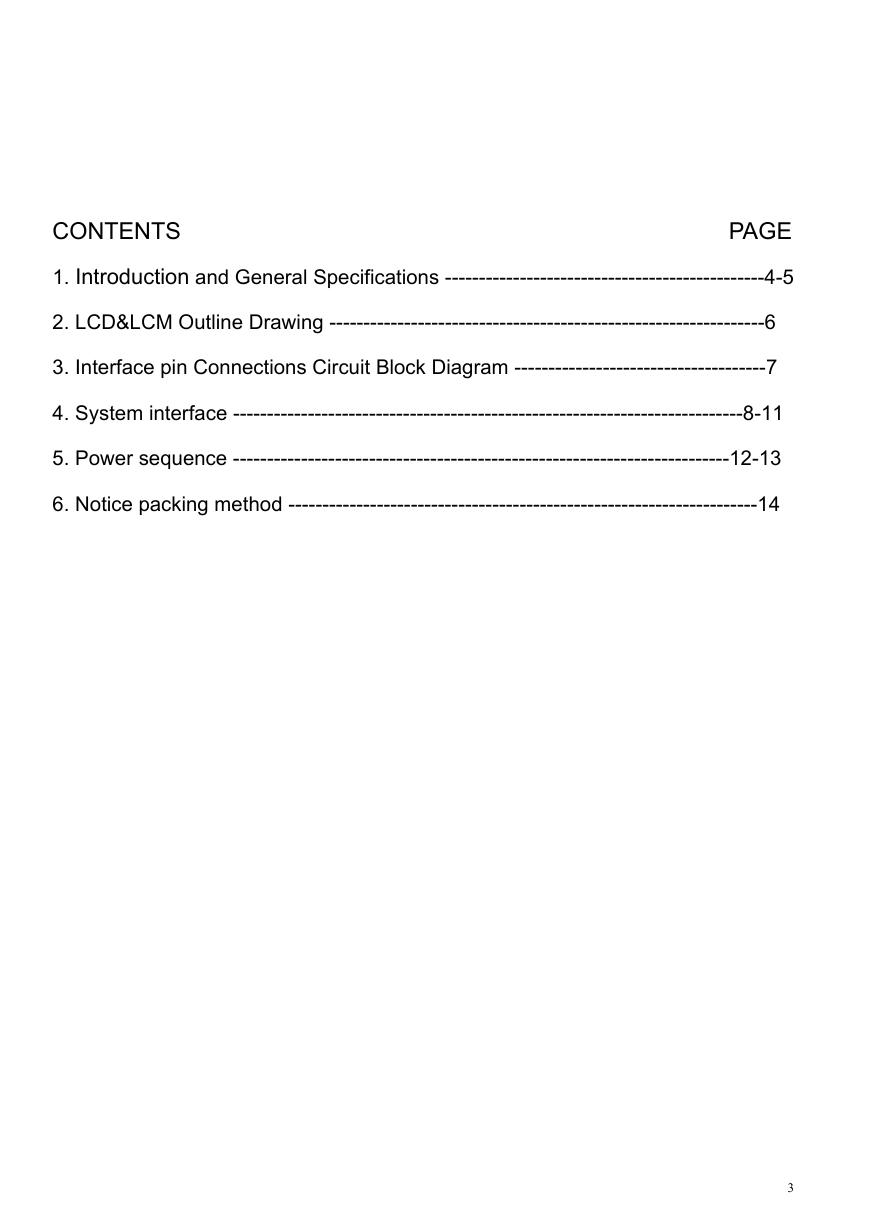

CONTENTS PAGE
1. Introduction and General Specifications -----------------------------------------------4-5
2. LCD&LCM Outline Drawing ----------------------------------------------------------------6
3. Interface pin Connections Circuit Block Diagram -------------------------------------7
4. System interface ---------------------------------------------------------------------------8-11
5. Power sequence -------------------------------------------------------------------------12-13
6. Notice packing method ---------------------------------------------------------------------14
3

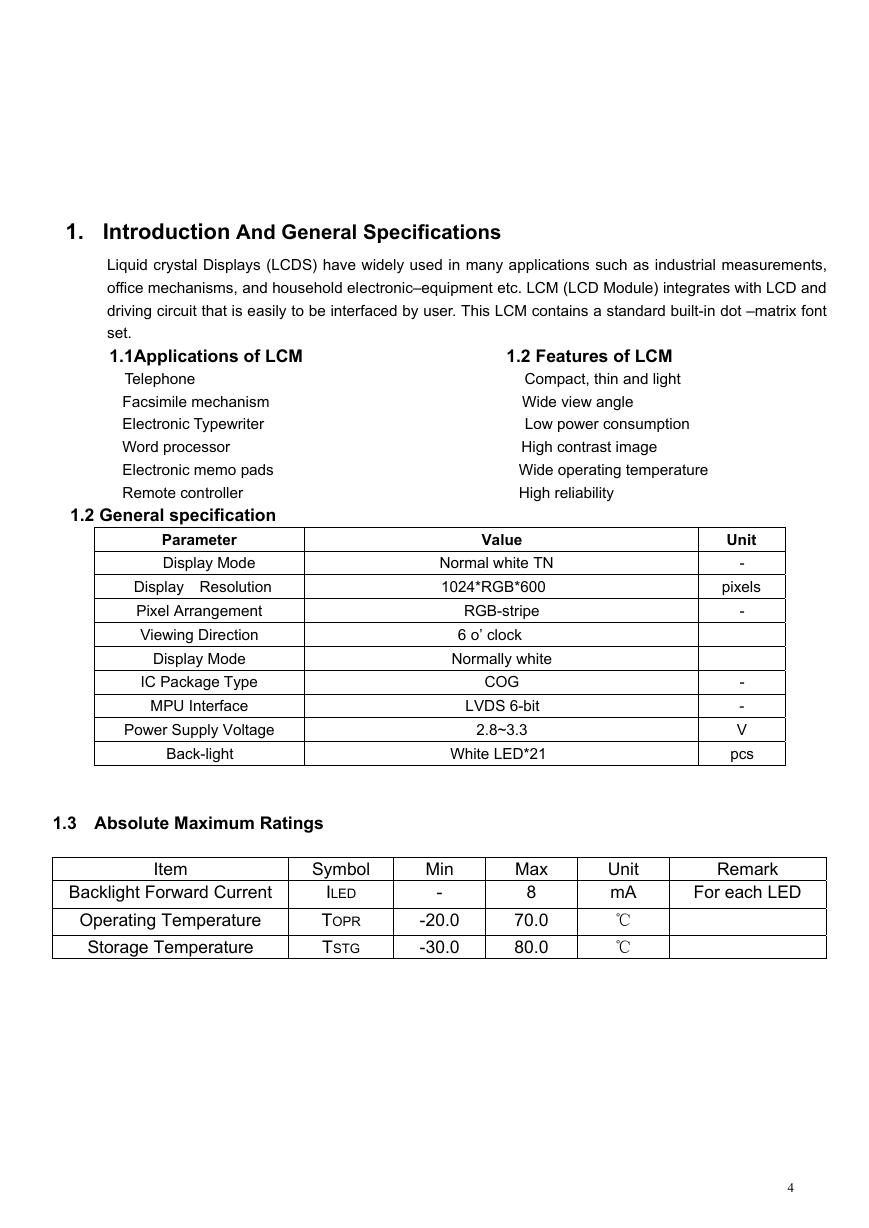

1. Introduction And General Specifications
Liquid crystal Displays (LCDS) have widely used in many applications such as industrial measurements,
office mechanisms, and household electronic–equipment etc. LCM (LCD Module) integrates with LCD and
driving circuit that is easily to be interfaced by user. This LCM contains a standard built-in dot –matrix font
set.
1.1Applications of LCM 1.2 Features of LCM
Telephone Compact, thin and light
Facsimile mechanism Wide view angle
Electronic Typewriter Low power consumption
Word processor High contrast image
Electronic memo pads Wide operating temperature
Remote controller High reliability
1.2 General specification
Parameter
Display Mode
Display Resolution
Pixel Arrangement
Viewing Direction
Display Mode
IC Package Type
MPU Interface
Power Supply Voltage
Back-light
Value
Normal white TN
1024*RGB*600
RGB-stripe
6 o’ clock
Normally white
COG
LVDS 6-bit
2.8~3.3
White LED*21
Unit
-
pixels
-
-
-
V
pcs
1.3 Absolute Maximum Ratings
Item
Symbol
Backlight Forward Current
Operating Temperature
Storage Temperature
ILED
TOPR
TSTG
Min
-
-20.0
-30.0
Max
8
70.0
80.0
Unit
mA
℃
℃
Remark
For each LED
4
1.4 Electrical Characteristics
Item
Digital supply voltage
Analog supply Voltage
Gate On Voltage
Gate Off voltage
Common Electrode
Driving Signal
Symbol
DVDD
AVDD
VGH
VGL
VCOM
Min.
--
7.2
18
-9
2.2
Specification
Typ.
3.2
8.2
19
-8.0
3.2
Max.
--
9.2
20
-7
4.2
Unit
V
V
V
V
V
1.5 LCM And Backlight Driving Conditions
Item
Symbol
LED forward voltage
LED forward current
LCM Luminance
VL
IL
Lv
Values
Typ.
9.0
140
200
Min.
-
-
Max.
9.9
-
Unit
Remark
V
mA
cd/㎡
I=140mA U=9.6V
5

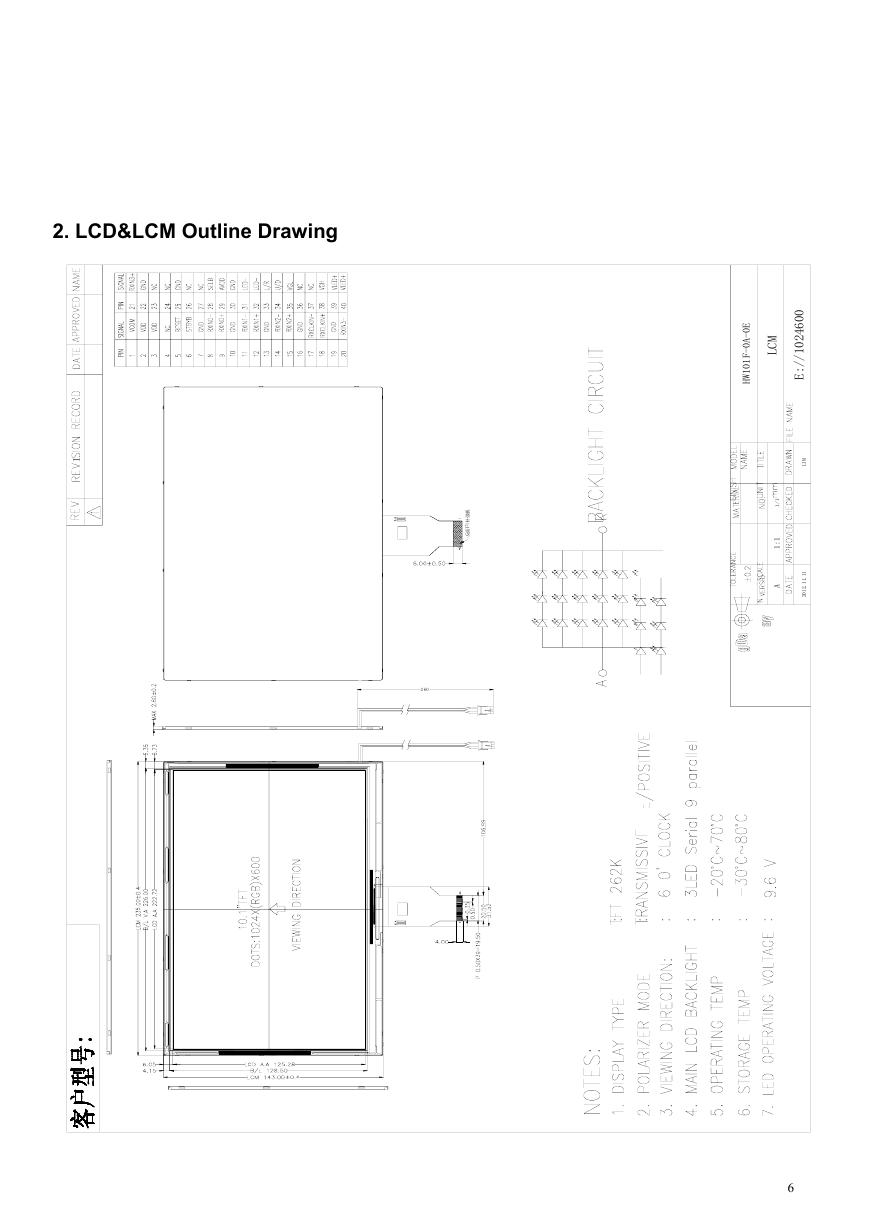

2. LCD&LCM Outline Drawing
I
板
强
补
面
反
2 60
M
C
L
E
0
-
A
0
-
F
1
0
1
W
H
0
0
6
4
2
0
1
/
/
:
E
M
I
L
1
1
.
1
1
.
2
1
0
2
1
/
1
1
:
1
A
6

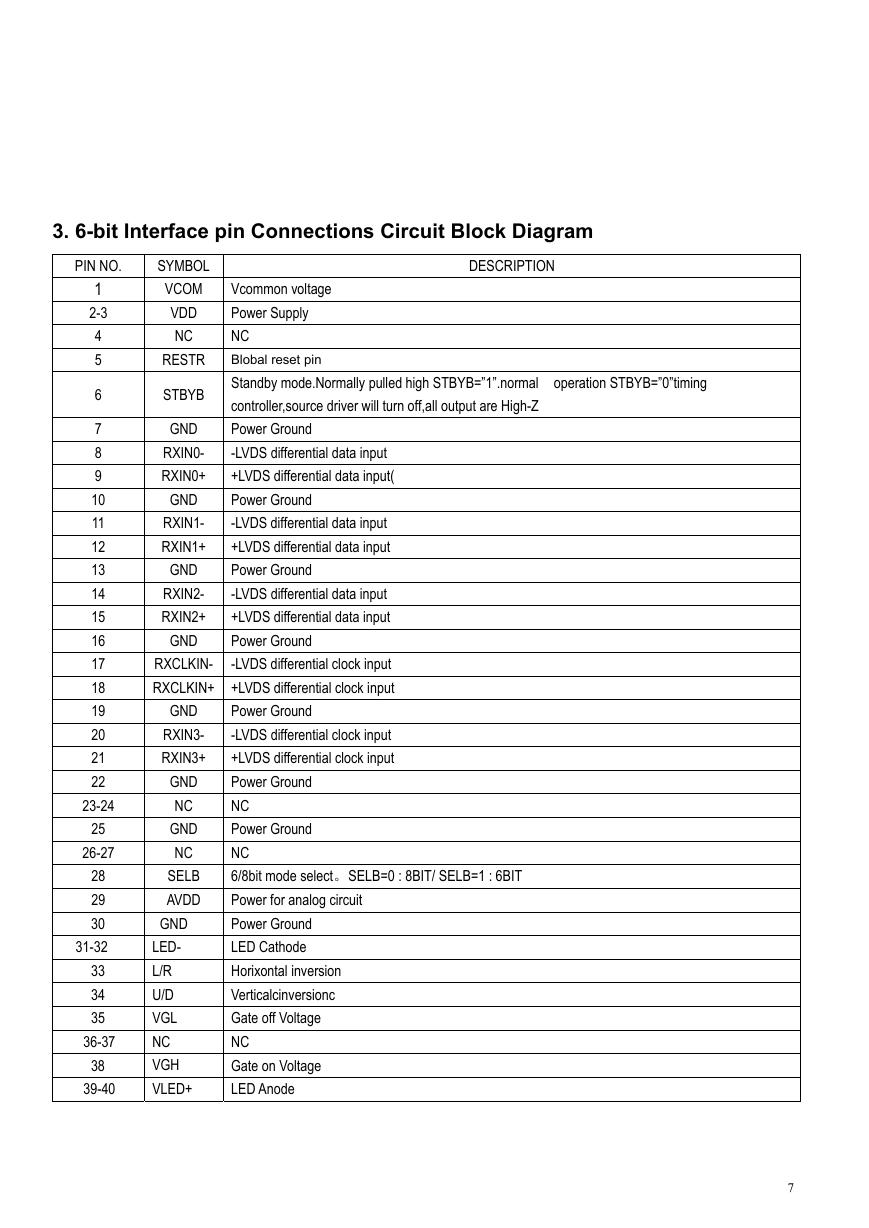

3. 6-bit Interface pin Connections Circuit Block Diagram
DESCRIPTION
SYMBOL
VCOM
VDD
NC
RESTR
STBYB
Vcommon voltage
Power Supply
NC
Blobal reset pin
Standby mode.Normally pulled high STBYB=”1”.normal operation STBYB=”0”timing
controller,source driver will turn off,all output are High-Z
Power Ground
-LVDS differential data input
+LVDS differential data input(
Power Ground
-LVDS differential data input
+LVDS differential data input
Power Ground
-LVDS differential data input
+LVDS differential data input
Power Ground
RXCLKIN-
-LVDS differential clock input
RXCLKIN+ +LVDS differential clock input
GND
RXIN0-
RXIN0+
GND
RXIN1-
RXIN1+
GND
RXIN2-
RXIN2+
GND
PIN NO.
1
2-3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23-24
25
26-27
28
29
30
31-32
33
34
35
36-37
38
39-40
GND
RXIN3-
RXIN3+
GND
NC
GND
NC
SELB
AVDD
GND
LED-
L/R
U/D
VGL
NC
VGH
VLED+
Power Ground
-LVDS differential clock input
+LVDS differential clock input
Power Ground
NC
Power Ground
NC
6/8bit mode select。SELB=0 : 8BIT/ SELB=1 : 6BIT
Power for analog circuit
Power Ground
LED Cathode
Horixontal inversion
Verticalcinversionc
Gate off Voltage
NC
Gate on Voltage
LED Anode
7
4. Resolution:1024x600
