INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: • The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications • The IC06 74HC/HCT/HCU/HCMOS Logic Package Information • The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines 74HC/HCT373 Octal D-type transparent latch; 3-state Product speciﬁcation File under Integrated Circuits, IC06 September 1993

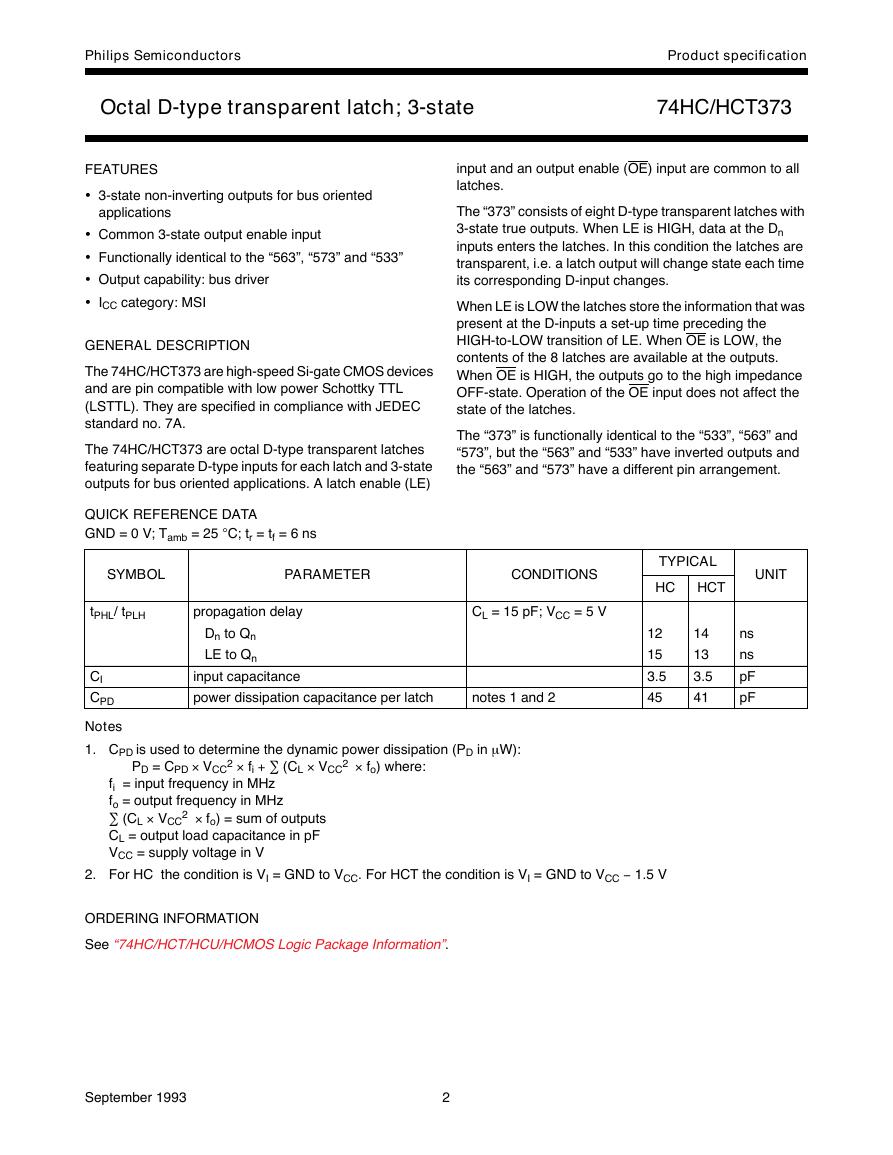

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 FEATURES • 3-state non-inverting outputs for bus oriented applications • Common 3-state output enable input • Functionally identical to the “563”, “573” and “533” • Output capability: bus driver • ICC category: MSI GENERAL DESCRIPTION The 74HC/HCT373 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT373 are octal D-type transparent latches featuring separate D-type inputs for each latch and 3-state outputs for bus oriented applications. A latch enable (LE) QUICK REFERENCE DATA GND = 0 V; Tamb = 25 C; tr = tf = 6 ns input and an output enable (OE) input are common to all latches. The “373” consists of eight D-type transparent latches with 3-state true outputs. When LE is HIGH, data at the Dn inputs enters the latches. In this condition the latches are transparent, i.e. a latch output will change state each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the D-inputs a set-up time preceding the HIGH-to-LOW transition of LE. When OE is LOW, the contents of the 8 latches are available at the outputs. When OE is HIGH, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the latches. The “373” is functionally identical to the “533”, “563” and “573”, but the “563” and “533” have inverted outputs and the “563” and “573” have a different pin arrangement. SYMBOL PARAMETER CONDITIONS tPHL/ tPLH propagation delay CL = 15 pF; VCC = 5 V Dn to Qn LE to Qn CI CPD input capacitance power dissipation capacitance per latch notes 1 and 2 TYPICAL HC HCT UNIT 12 15 3.5 45 14 13 3.5 41 ns ns pF pF Notes 1. CPD is used to determine the dynamic power dissipation (PD in m W): (CL · VCC 2 · fo) where: PD = CPD · VCC fi + fi = input frequency in MHz fo = output frequency in MHz 2 · 2 · (CL · VCC fo) = sum of outputs CL = output load capacitance in pF VCC = supply voltage in V 2. For HC the condition is VI = GND to VCC. For HCT the condition is VI = GND to VCC - 1.5 V ORDERING INFORMATION See “74HC/HCT/HCU/HCMOS Logic Package Information”. September 1993 2

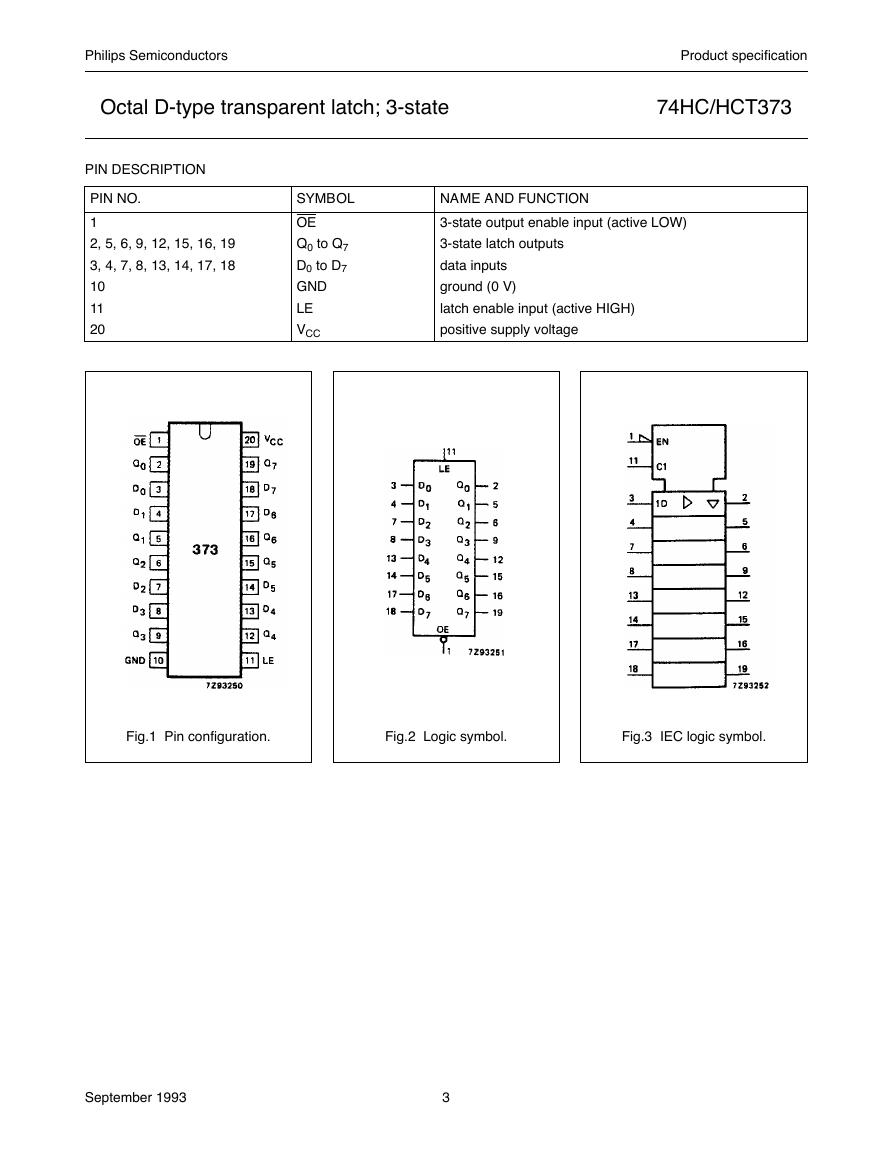

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 PIN DESCRIPTION PIN NO. 1 2, 5, 6, 9, 12, 15, 16, 19 3, 4, 7, 8, 13, 14, 17, 18 10 11 20 SYMBOL OE Q0 to Q7 D0 to D7 GND LE VCC NAME AND FUNCTION 3-state output enable input (active LOW) 3-state latch outputs data inputs ground (0 V) latch enable input (active HIGH) positive supply voltage Fig.1 Pin configuration. Fig.2 Logic symbol. Fig.3 IEC logic symbol. September 1993 3

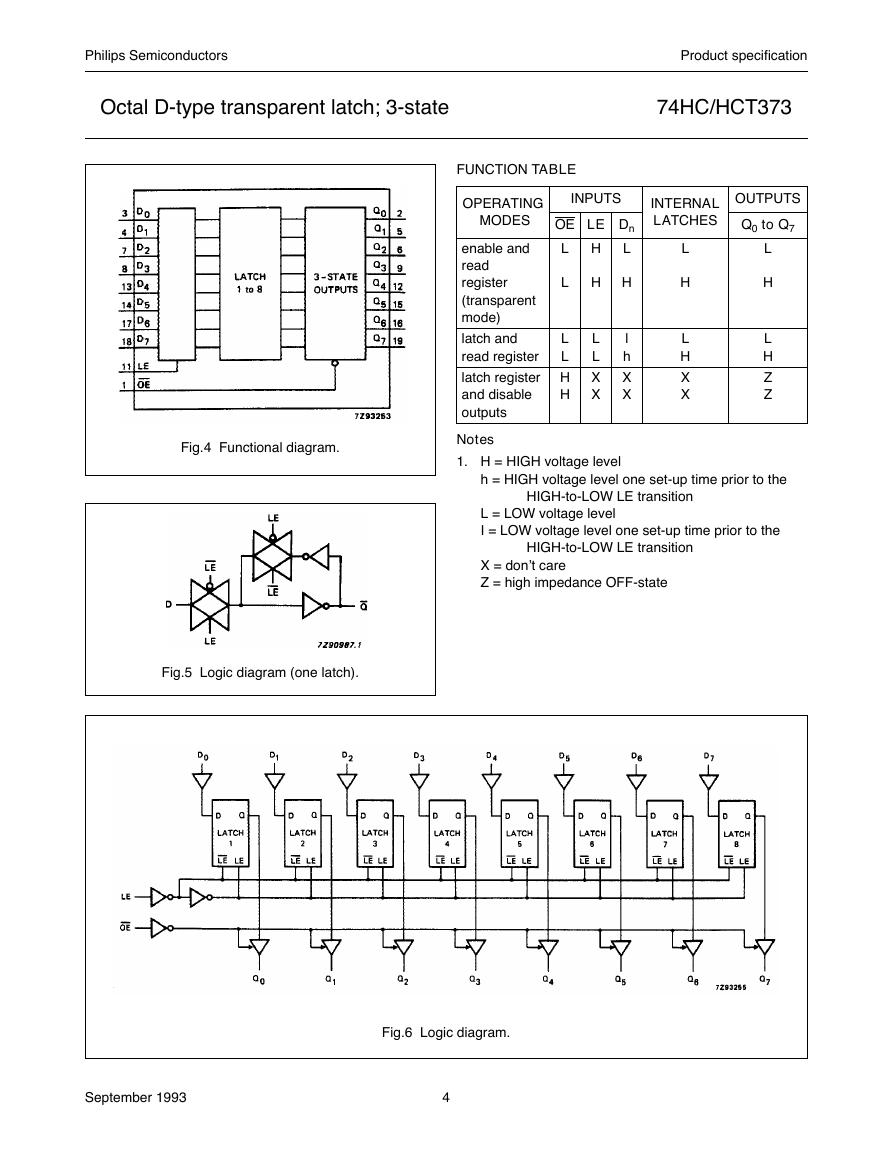

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 FUNCTION TABLE OPERATING MODES enable and read register (transparent mode) latch and read register latch register and disable outputs INPUTS OE LE Dn L L H L H H L L H H L L X X l h X X Notes 1. H = HIGH voltage level INTERNAL LATCHES OUTPUTS Q0 to Q7 L H L H X X L H L H Z Z h = HIGH voltage level one set-up time prior to the HIGH-to-LOW LE transition L = LOW voltage level I = LOW voltage level one set-up time prior to the HIGH-to-LOW LE transition X = don’t care Z = high impedance OFF-state Fig.4 Functional diagram. Fig.5 Logic diagram (one latch). Fig.6 Logic diagram. September 1993 4

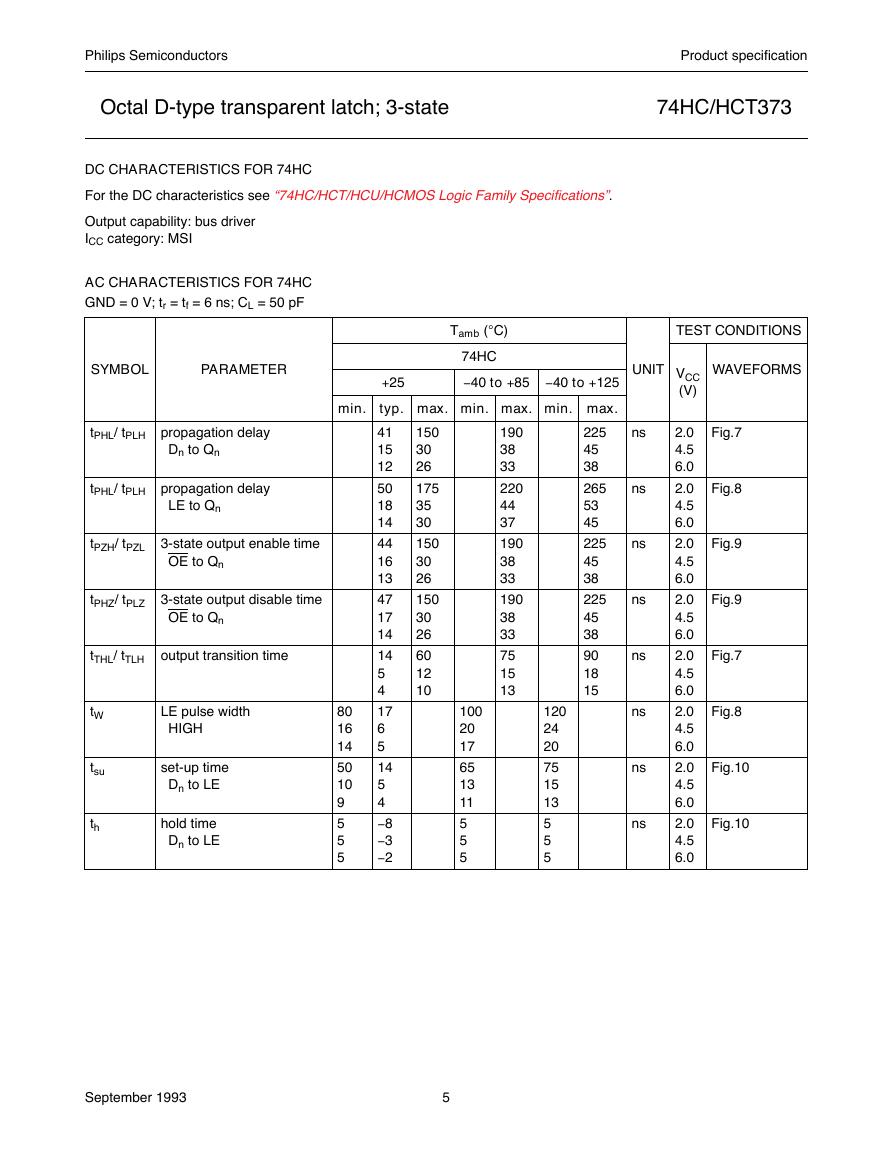

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 DC CHARACTERISTICS FOR 74HC For the DC characteristics see “74HC/HCT/HCU/HCMOS Logic Family Specifications”. Output capability: bus driver ICC category: MSI AC CHARACTERISTICS FOR 74HC GND = 0 V; tr = tf = 6 ns; CL = 50 pF SYMBOL PARAMETER tPHL/ tPLH propagation delay Dn to Qn tPHL/ tPLH propagation delay LE to Qn tPZH/ tPZL 3-state output enable time OE to Qn tPHZ/ tPLZ 3-state output disable time OE to Qn tTHL/ tTLH output transition time tW tsu th LE pulse width HIGH set-up time Dn to LE hold time Dn to LE min. 80 16 14 50 10 9 5 5 5 190 38 33 220 44 37 190 38 33 190 38 33 75 15 13 150 30 26 175 35 30 150 30 26 150 30 26 60 12 10 - 40 to +125 +25 typ. max. min. max. min. max. 41 15 12 50 18 14 44 16 13 47 17 14 14 5 4 17 6 5 14 5 4 - 8 - 3 - 2 100 20 17 65 13 11 5 5 5 120 24 20 75 15 13 5 5 5 Tamb ( C) TEST CONDITIONS 74HC - 40 to +85 225 45 38 265 53 45 225 45 38 225 45 38 90 18 15 UNIT VCC (V) WAVEFORMS ns ns ns ns ns ns ns ns Fig.7 Fig.8 Fig.9 Fig.9 Fig.7 Fig.8 Fig.10 Fig.10 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 2.0 4.5 6.0 September 1993 5

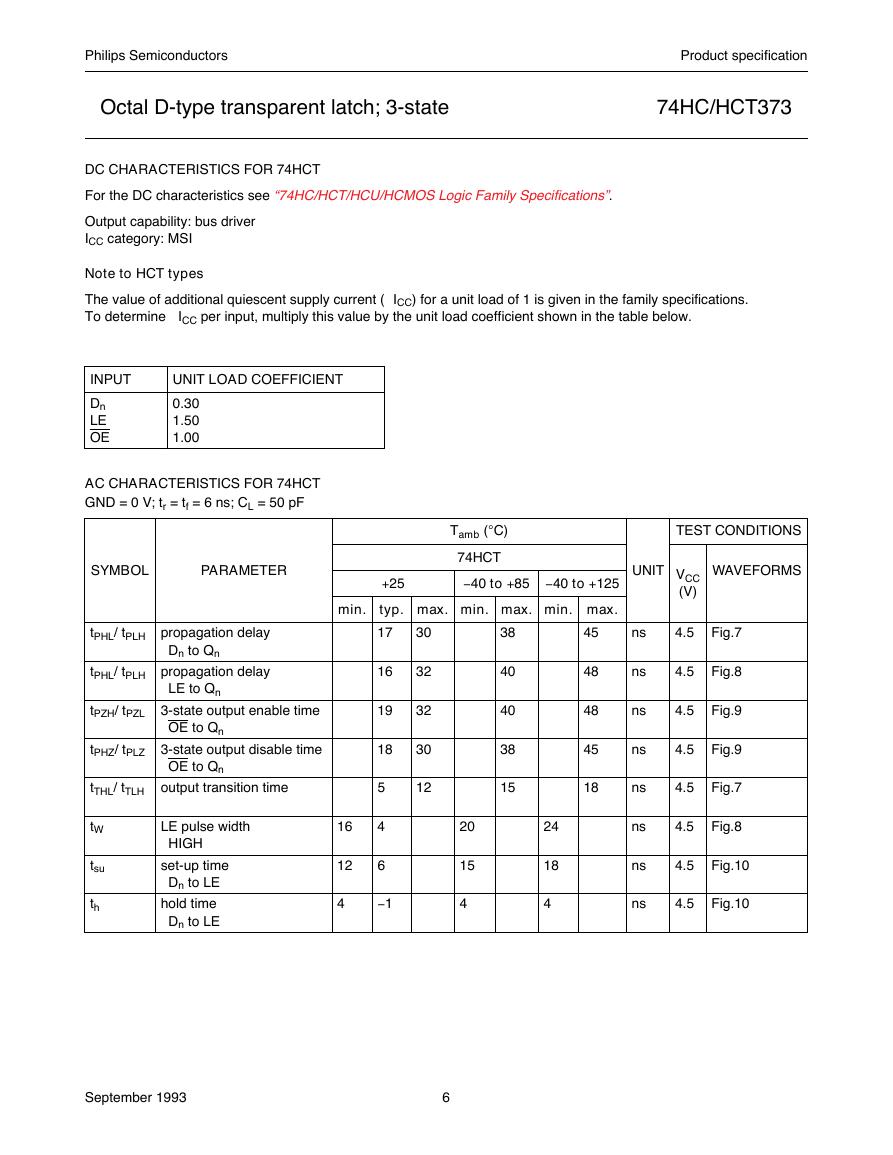

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 DC CHARACTERISTICS FOR 74HCT For the DC characteristics see “74HC/HCT/HCU/HCMOS Logic Family Specifications”. Output capability: bus driver ICC category: MSI Note to HCT types The value of additional quiescent supply current (D To determine D ICC per input, multiply this value by the unit load coefficient shown in the table below. ICC) for a unit load of 1 is given in the family specifications. INPUT Dn LE OE UNIT LOAD COEFFICIENT 0.30 1.50 1.00 AC CHARACTERISTICS FOR 74HCT GND = 0 V; tr = tf = 6 ns; CL = 50 pF SYMBOL PARAMETER tPHL/ tPLH tPHL/ tPLH tPZH/ tPZL tPHZ/ tPLZ tTHL/ tTLH propagation delay Dn to Qn propagation delay LE to Qn 3-state output enable time OE to Qn 3-state output disable time OE to Qn output transition time tW tsu th LE pulse width HIGH set-up time Dn to LE hold time Dn to LE min. 16 12 4 Tamb ( C) 74HCT - 40 to +85 - 40 to +125 +25 typ. max. min. max. min. max. 17 30 38 45 32 32 30 12 16 19 18 5 4 6 - 1 40 40 38 15 48 48 45 18 20 15 4 24 18 4 TEST CONDITIONS UNIT VCC (V) WAVEFORMS ns ns ns ns ns ns ns ns 4.5 Fig.7 4.5 Fig.8 4.5 Fig.9 4.5 Fig.9 4.5 Fig.7 4.5 Fig.8 4.5 Fig.10 4.5 Fig.10 September 1993 6

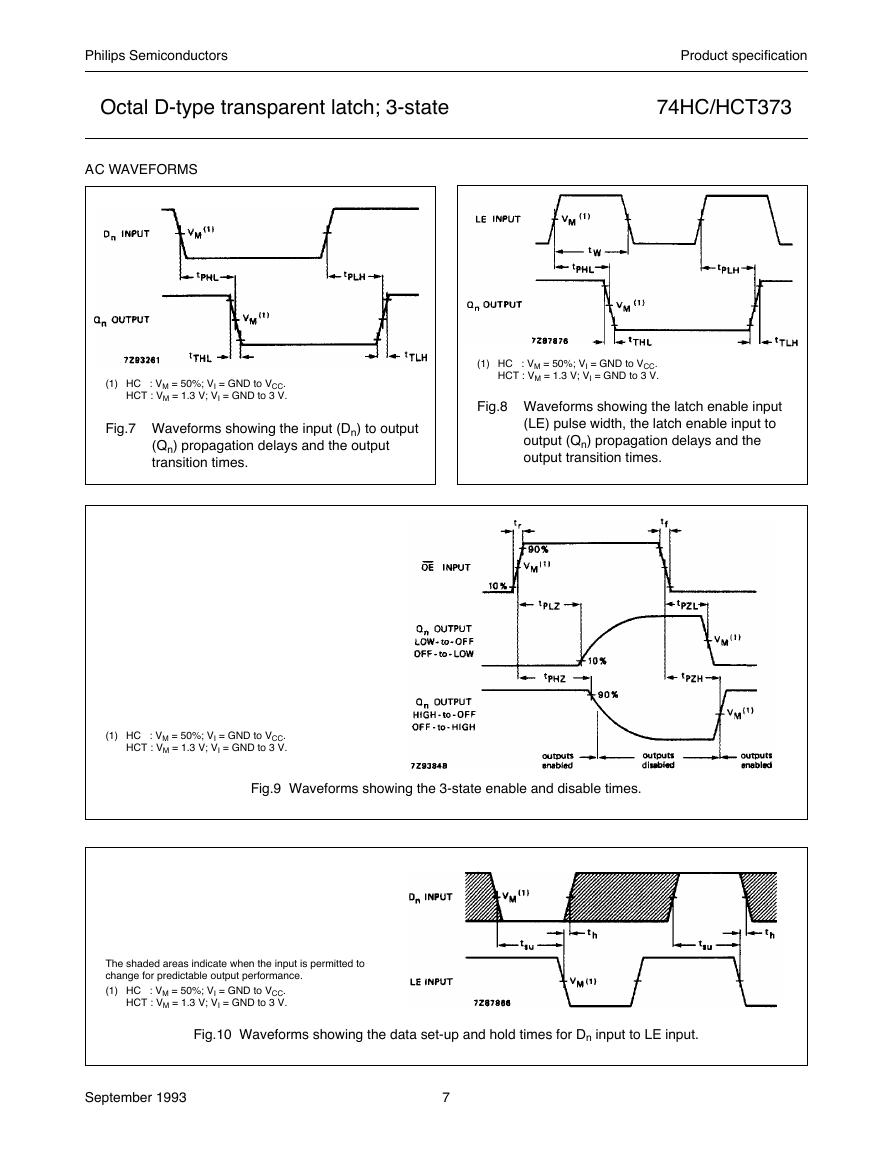

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 AC WAVEFORMS (1) HC : VM = 50%; VI = GND to VCC. HCT : VM = 1.3 V; VI = GND to 3 V. Fig.7 Waveforms showing the input (Dn) to output (Qn) propagation delays and the output transition times. (1) HC : VM = 50%; VI = GND to VCC. HCT : VM = 1.3 V; VI = GND to 3 V. Fig.8 Waveforms showing the latch enable input (LE) pulse width, the latch enable input to output (Qn) propagation delays and the output transition times. (1) HC : VM = 50%; VI = GND to VCC. HCT : VM = 1.3 V; VI = GND to 3 V. Fig.9 Waveforms showing the 3-state enable and disable times. The shaded areas indicate when the input is permitted to change for predictable output performance. (1) HC : VM = 50%; VI = GND to VCC. HCT : VM = 1.3 V; VI = GND to 3 V. Fig.10 Waveforms showing the data set-up and hold times for Dn input to LE input. September 1993 7

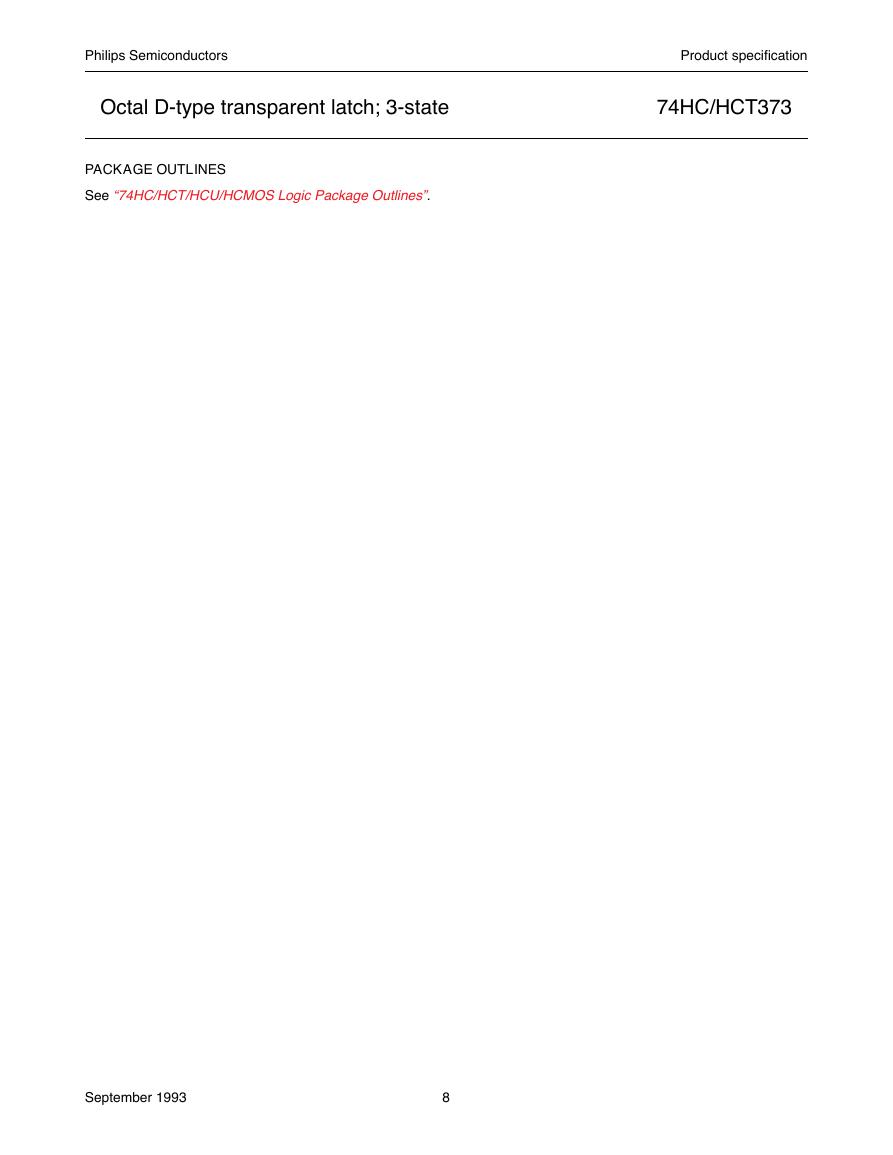

Philips Semiconductors Product speciﬁcation Octal D-type transparent latch; 3-state 74HC/HCT373 PACKAGE OUTLINES See “74HC/HCT/HCU/HCMOS Logic Package Outlines”. September 1993 8
