Raspberry Pi Build HAT
Published October 2021
Raspberry Pi (Trading) Ltd

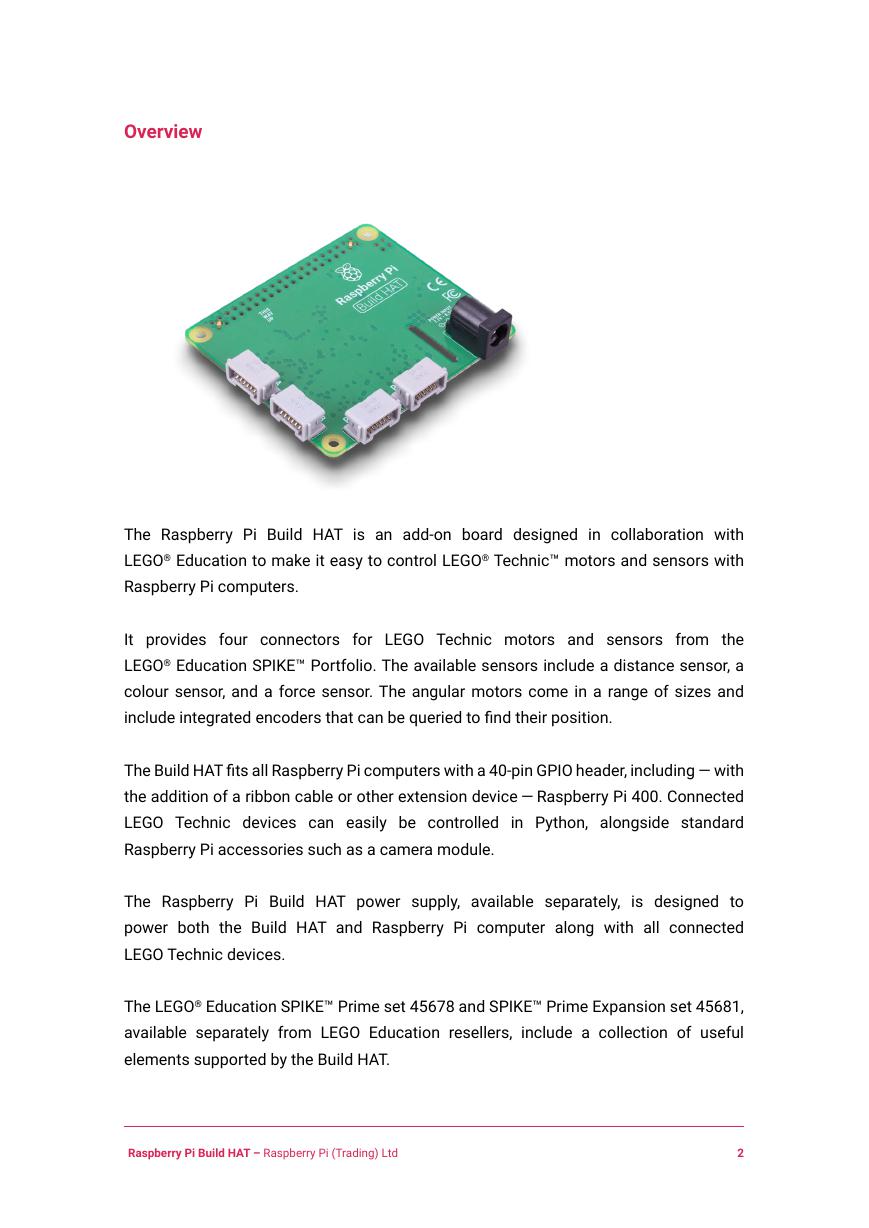

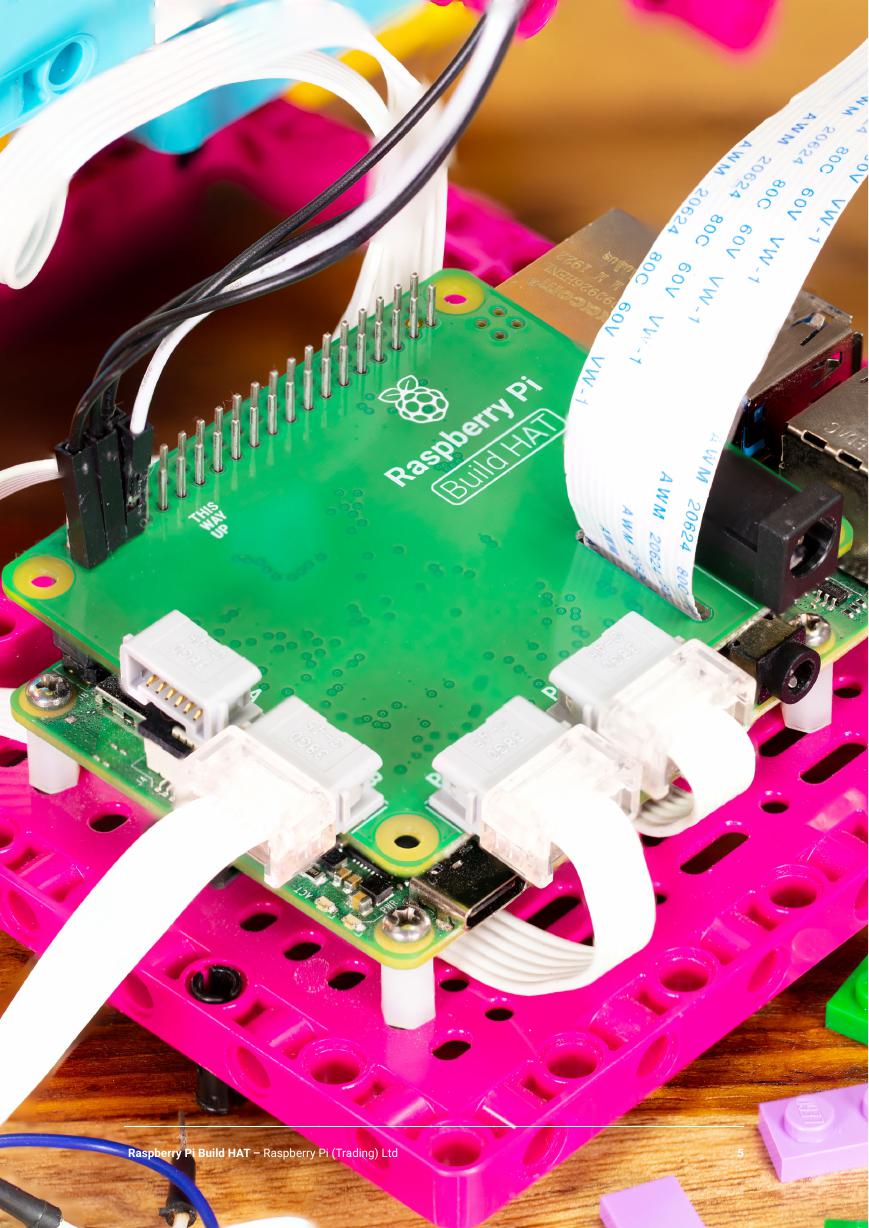

Overview
The Raspberry Pi Build HAT is an add-on board designed in collaboration with
LEGO® Education to make it easy to control LEGO® Technic™ motors and sensors with
Raspberry Pi computers.
It provides four connectors for LEGO Technic motors and sensors from the
LEGO® Education SPIKE™ Portfolio. The available sensors include a distance sensor, a
colour sensor, and a force sensor. The angular motors come in a range of sizes and
include integrated encoders that can be queried to find their position.
The Build HAT fits all Raspberry Pi computers with a 40-pin GPIO header, including — with
the addition of a ribbon cable or other extension device — Raspberry Pi 400. Connected
LEGO Technic devices can easily be controlled in Python, alongside standard
Raspberry Pi accessories such as a camera module.
The Raspberry Pi Build HAT power supply, available separately, is designed to
power both the Build HAT and Raspberry Pi computer along with all connected
LEGO Technic devices.
The LEGO® Education SPIKE™ Prime set 45678 and SPIKE™ Prime Expansion set 45681,
available separately from LEGO Education resellers, include a collection of useful
elements supported by the Build HAT.
2
Raspberry Pi Build HAT – Raspberry Pi (Trading) Ltd

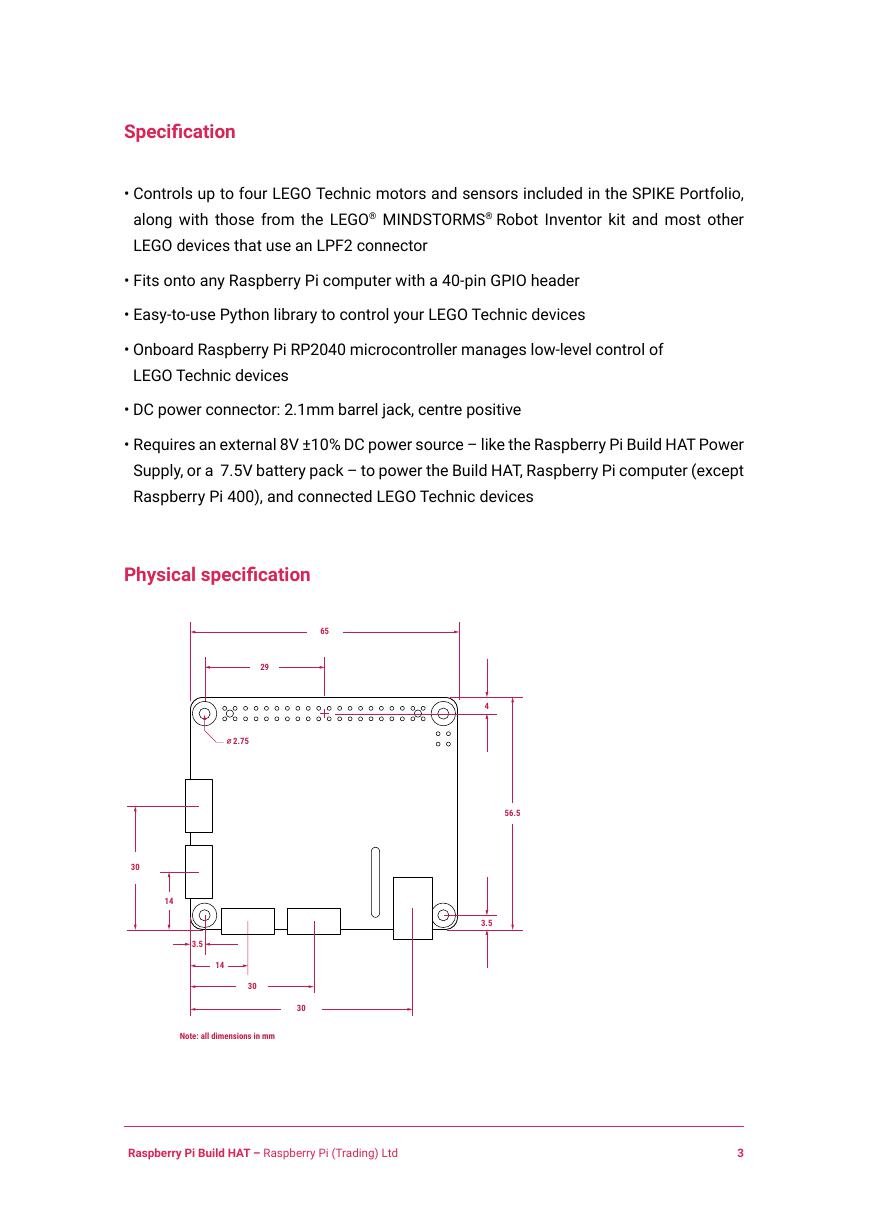

Specification
• Controls up to four LEGO Technic motors and sensors included in the SPIKE Portfolio,
along with those from the LEGO® MINDSTORMS® Robot Inventor kit and most other
LEGO devices that use an LPF2 connector
• Fits onto any Raspberry Pi computer with a 40-pin GPIO header
• Easy-to-use Python library to control your LEGO Technic devices
• Onboard Raspberry Pi RP2040 microcontroller manages low-level control of
LEGO Technic devices
• DC power connector: 2.1mm barrel jack, centre positive
• Requires an external 8V ±10% DC power source – like the Raspberry Pi Build HAT Power
Supply, or a 7.5V battery pack – to power the Build HAT, Raspberry Pi computer (except
Raspberry Pi 400), and connected LEGO Technic devices
Physical specification
65
29
2.75
30
14
3.5
14
30
30
Note: all dimensions in mm
4
3.5
56.5
3
Raspberry Pi Build HAT – Raspberry Pi (Trading) Ltd
WARNINGS
•
•
This product shall only be connected to a Raspberry Pi via the GPIO header.
Any external power supply used with the Raspberry Pi Build HAT shall comply with relevant regulations and standards
applicable in the country of intended use.
This product should be operated in a well-ventilated environment, and if used inside a case, the case should not
be covered.
Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by
conductive items.
The connection of incompatible devices to the Raspberry Pi Build HAT may affect compliance, result in damage to the
unit, and invalidate the warranty.
The connection of incompatible devices to the GPIO connection of a Raspberry Pi computer may affect compliance
and result in damage to the unit and invalidate the warranty.
All peripherals used with this product should comply with relevant standards for the country of use and be marked
accordingly to ensure that safety and performance requirements are met.
The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant
safety requirements are met.
•
•
•
•
•
•
• Operation of this device requires adult supervision.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
•
•
Do not expose to water or moisture, or place on a conductive surface whilst in operation.
Do not expose to heat from any source; Raspberry Pi computers and the Raspberry Pi Build HAT are designed for
reliable operation at normal ambient temperatures.
Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
Whilst it is powered, avoid handling the printed circuit board, or only handle it by the corners to minimise the risk of
electrostatic discharge damage.
•
•
4
Raspberry Pi Build HAT – Raspberry Pi (Trading) Ltd
5
Raspberry Pi Build HAT – Raspberry Pi (Trading) Ltd
Raspberry Pi is a trademark of Raspberry Pi (Trading) Ltd
