    Flame Sensor 用户手册 微雪电子 Flame Sensor 用户手册 1. 产品特性 电压比较器芯片 检测波长 工作电压 探测角度 工作温度 产品尺寸 固定孔尺寸 宽电压 LM393 760nm-1100nm 3.3V-5.3V 0 度-60 度 -25℃-85℃ 29.2mm*11.2mm 2.0mm 表1. 产品特性 2. 主要用途 火源探测、灭火机器人和火焰警报器等。 3. 接口说明 引脚号 1 2 3 4 4. 操作与现象 标识 DOUT AOUT GND VCC 描述 数字量输出 模拟量输出 电源地 电源正(3.3V-5.3V) 表2. 接口说明 下面，以接入我们的开发板为例。 ① 将配套程序下载到相应的开发板中。 ② 将串口线和模块接入开发板，给开发板上电，打开串口调试软件。 模块与开发板连接如下表所示： 端口 STM32 单片机引脚 GPIOA.4 GPIOA.6 DOUT AOUT GND VCC GND 3.3V 表3. 模块接入 STM32 开发板 1

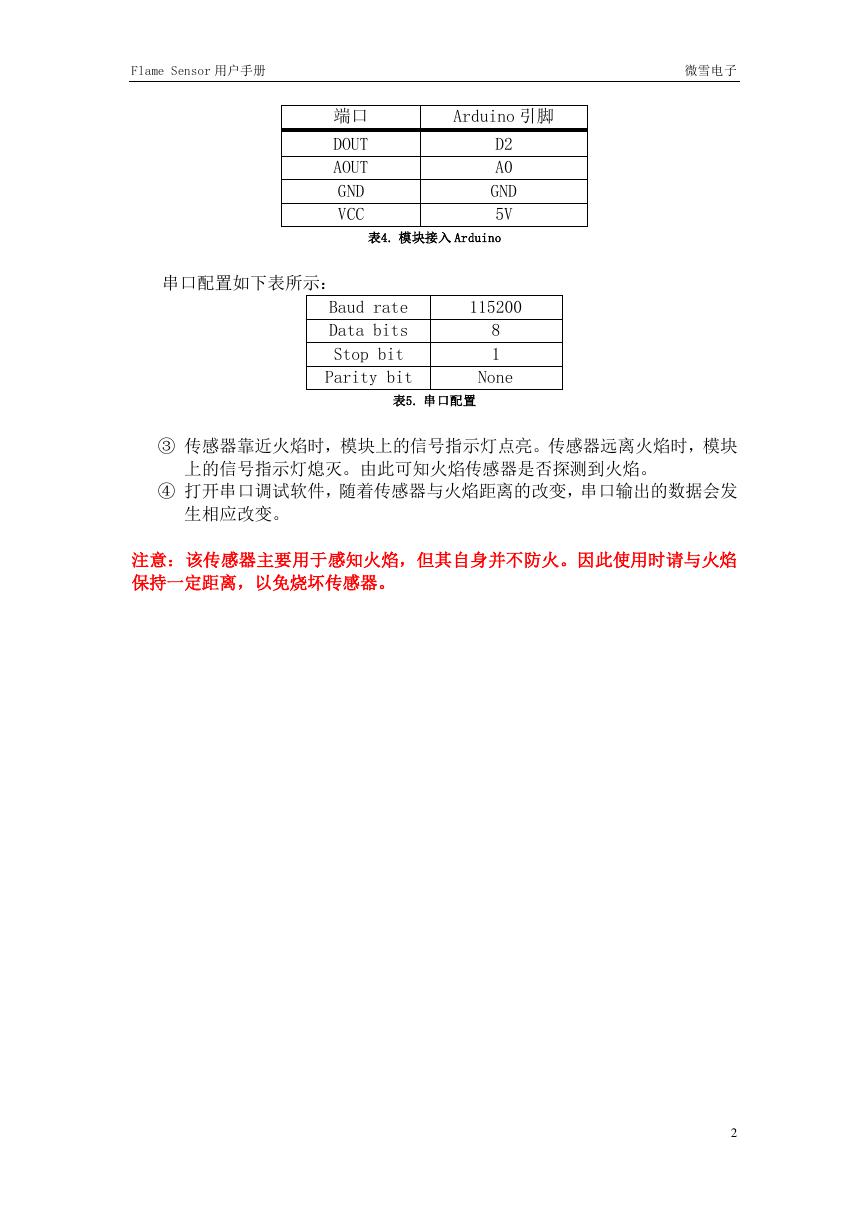

    Flame Sensor 用户手册 微雪电子 端口 DOUT AOUT GND VCC Arduino 引脚 D2 A0 GND 5V 表4. 模块接入 Arduino 串口配置如下表所示： Baud rate Data bits Stop bit 115200 8 1 Parity bit None 表5. 串口配置 ③ 传感器靠近火焰时，模块上的信号指示灯点亮。传感器远离火焰时，模块 上的信号指示灯熄灭。由此可知火焰传感器是否探测到火焰。 ④ 打开串口调试软件，随着传感器与火焰距离的改变，串口输出的数据会发 生相应改变。 注意：该传感器主要用于感知火焰，但其自身并不防火。因此使用时请与火焰 保持一定距离，以免烧坏传感器。 2
