    ETH USB HUB HAT 用户手册 ETH USB HUB HAT 用户手册 产 品 概 述 简 介 Raspberry Pi Zero / Zero W 当模块插在 Raspberry Pi Zero / Zero W 上时，上电之后 PWR 指示灯亮起； 当有网络的网线插入 RJ45 端口时，ACT 灯会闪烁；当设备接入每个 USB 端口后 相对应的指示灯将会亮起。 规 格 参数： 接口说明： 工作电压 标准 产品尺寸 固定孔尺寸 标识 USB USB1-USB3 ETH 版本：V1.0，日期：2019 年 05 月 24 日 5V USB 2.0 和 1.1 兼容性 65mm×30.2mm 3.0mm 管脚描述 USB 接口,接到树莓派的 USB 口 为 USB 扩展端口，可以接 USB 设备 为 RJ45 网络接口，可接入网线 1

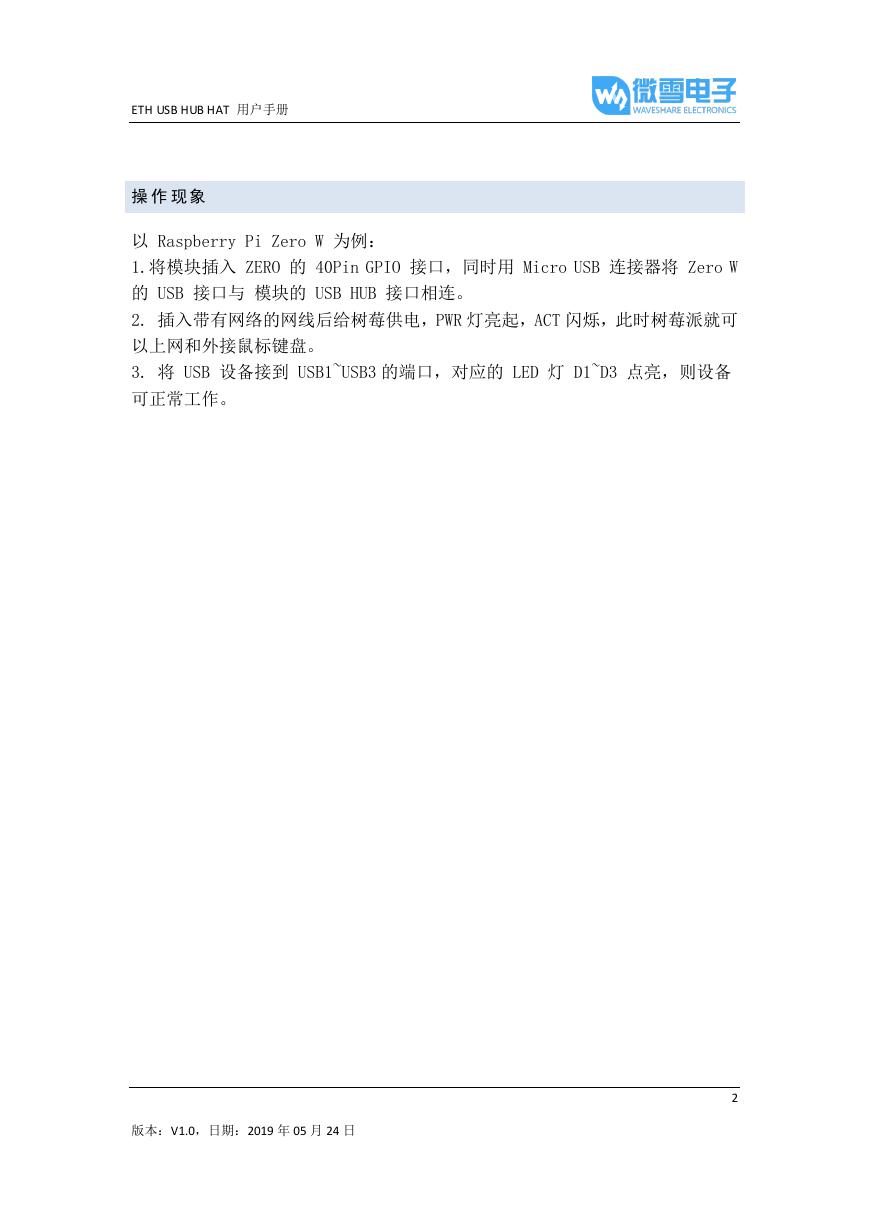

    ETH USB HUB HAT 用户手册 操 作 现 象 以 Raspberry Pi Zero W 为例： 1.将模块插入 ZERO 的 40Pin GPIO 接口，同时用 Micro USB 连接器将 Zero W 的 USB 接口与 模块的 USB HUB 接口相连。 2. 插入带有网络的网线后给树莓供电，PWR 灯亮起，ACT 闪烁，此时树莓派就可 以上网和外接鼠标键盘。 3. 将 USB 设备接到 USB1~USB3 的端口，对应的 LED 灯 D1~D3 点亮，则设备 可正常工作。 版本：V1.0，日期：2019 年 05 月 24 日 2
