A7600 Series_MQTT(S)_Application Note

A7600 Series_ MQTT(S)_Application Note LTE Module SIMCom Wireless Solutions Limited Building B, SIM Technology Building, No.633, Jinzhong Road Changning District, Shanghai P.R. China Tel: 86-21-31575100 support@simcom.com www.simcom.com

A7600 Series_MQTT(S)_Application Note_V1.00 A7600 Series_MQTT(S)_Application Note 1.00 2020.6.19 Released Document Title: Version: Date: Status: GENERAL NOTES SIMCOM OFFERS THIS INFORMATION AS A SERVICE TO ITS CUSTOMERS, TO SUPPORT APPLICATION AND ENGINEERING EFFORTS THAT USE THE PRODUCTS DESIGNED BY SIMCOM. THE INFORMATION PROVIDED IS BASED UPON REQUIREMENTS SPECIFICALLY PROVIDED TO SIMCOM BY THE CUSTOMERS. SIMCOM HAS NOT UNDERTAKEN ANY INDEPENDENT SEARCH FOR ADDITIONAL RELEVANT INFORMATION, INCLUDING ANY INFORMATION THAT MAY BE IN THE CUSTOMER’S POSSESSION. FURTHERMORE, SYSTEM VALIDATION OF THIS PRODUCT DESIGNED BY SIMCOM WITHIN A LARGER ELECTRONIC SYSTEM REMAINS THE RESPONSIBILITY OF THE CUSTOMER OR THE CUSTOMER’S SYSTEM INTEGRATOR. ALL SPECIFICATIONS SUPPLIED HEREIN ARE SUBJECT TO CHANGE. COPYRIGHT THIS DOCUMENT CONTAINS PROPRIETARY TECHNICAL INFORMATION WHICH IS THE PROPERTY OF SIMCOM LIMITED., COPYING OF THIS DOCUMENT AND GIVING IT TO OTHERS AND THE USING OR COMMUNICATION OF THE CONTENTS THEREOF, ARE FORBIDDEN WITHOUT EXPRESS AUTHORITY. OFFENDERS ARE LIABLE TO THE PAYMENT OF DAMAGES. ALL RIGHTS RESERVED IN THE EVENT OF GRANT OF A PATENT OR THE REGISTRATION OF A UTILITY MODEL OR DESIGN. ALL SPECIFICATION SUPPLIED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SIMCom Wireless Solutions Limited Building B, SIM Technology Building, No.633 Jinzhong Road, Changning District, Shanghai P.R.China Tel: +86 21 31575100 Email: simcom@simcom.com For more information, please visit: https://www.simcom.com/download/list-863-en.html For technical support, or to report documentation errors, please visit: https://www.simcom.com/ask/ Or email to: support@simcom.com Copyright © 2020 SIMCom Wireless Solutions Limited All Rights Reserved. www.simcom.com 1 /21

A7600 Series_MQTT(S)_Application Note_V1.00 About Document Version History Revision Date V1.00 2020-06-19 Scope Chapter All Description New version This document applies to the following products Name A7600XX-XXXX A7620 A7670X A5360E Type LTE CAT1/LTE CAT1/LTE CAT4/WCDMA Size(mm) 30.0*30.0*2.5 24.0*24.0*2.5 24.0*24.0*2.5 30.0*30.0*2.5 Comments N/A N/A N/A N/A www.simcom.com 1 /21

A7600 Series_MQTT(S)_Application Note_V1.00 Contents About Document .................................................................................................................... 1 Version History ...................................................................................................................................... 1 Scope .................................................................................................................................................... 1 Contents ................................................................................................................................. 2 1 Introduction ......................................................................................................................... 3 1.1 Purpose of the document ................................................................................................................. 3 1.2 Related documents .......................................................................................................................... 3 1.3 Conventions and abbreviations ....................................................................................................... 3 1.4 The process of Using MQTT(S) AT Command ................................................................................ 4 1.5 Error Handling.................................................................................................................................. 5 2 AT Commands for MQTT(S) ............................................................................................... 6 2.1 Overview of AT Commands for MQTT(S) ........................................................................................ 6 3 MQTT Examples .................................................................................................................. 7 3.1 Access to MQTT server not SSL/TLS .............................................................................................. 7 3.2 Connect to SSL/TLS MQTT server (not verify server) ................................................................... 10 3.3 Access to SSL/TLS MQTT server (only verify the server) .............................................................. 11 3.4 Access to SSL/TLS MQTT server (verify server and client) ........................................................... 14 3.5 Access to MQTT server without checking UTF8 coding ................................................................ 16 4 Appendix ............................................................................................................................ 18 4.1 Summary of Error Codes ............................................................................................................... 18 www.simcom.com 1 /21

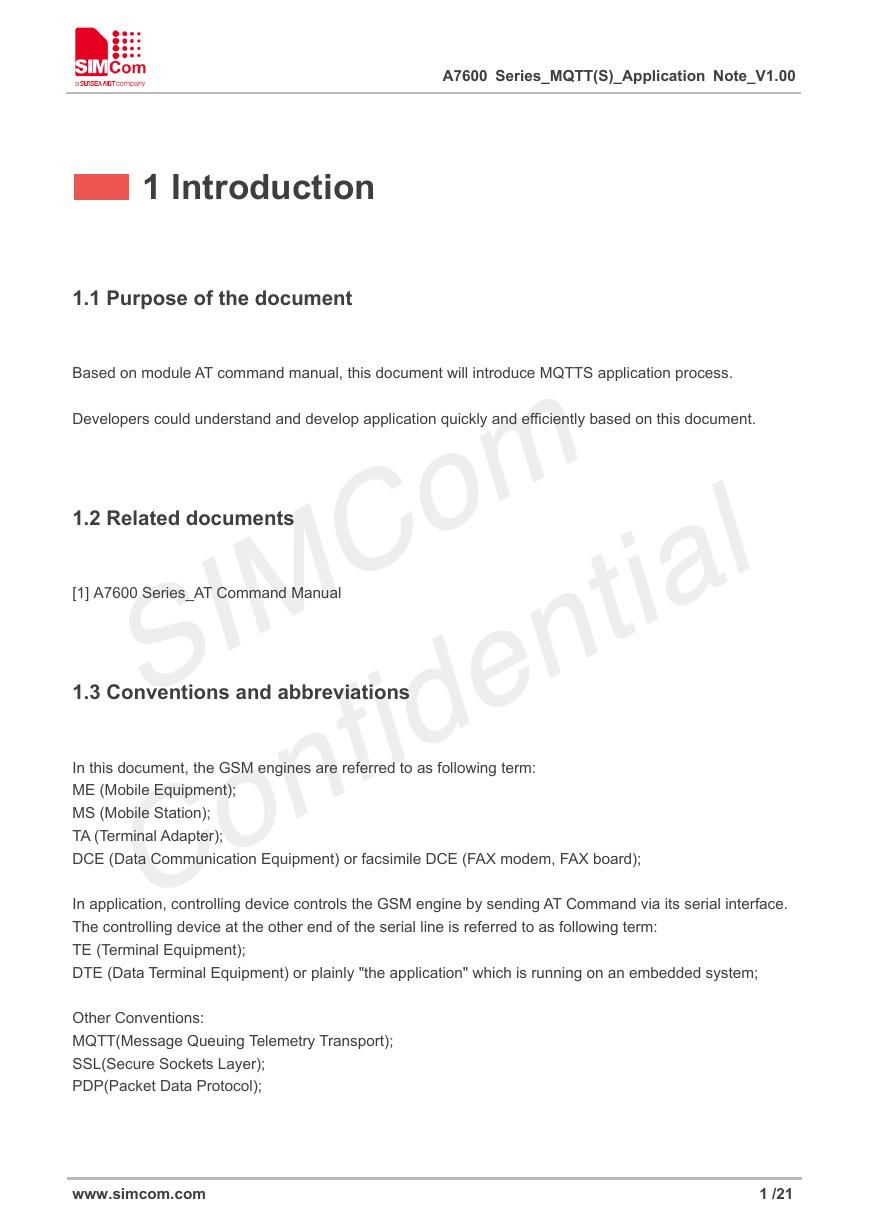

A7600 Series_MQTT(S)_Application Note_V1.00 1 Introduction 1.1 Purpose of the document Based on module AT command manual, this document will introduce MQTTS application process. Developers could understand and develop application quickly and efficiently based on this document. 1.2 Related documents [1] A7600 Series_AT Command Manual 1.3 Conventions and abbreviations In this document, the GSM engines are referred to as following term: ME (Mobile Equipment); MS (Mobile Station); TA (Terminal Adapter); DCE (Data Communication Equipment) or facsimile DCE (FAX modem, FAX board); In application, controlling device controls the GSM engine by sending AT Command via its serial interface. The controlling device at the other end of the serial line is referred to as following term: TE (Terminal Equipment); DTE (Data Terminal Equipment) or plainly "the application" which is running on an embedded system; Other Conventions: MQTT(Message Queuing Telemetry Transport); SSL(Secure Sockets Layer); PDP(Packet Data Protocol); www.simcom.com 1 /21

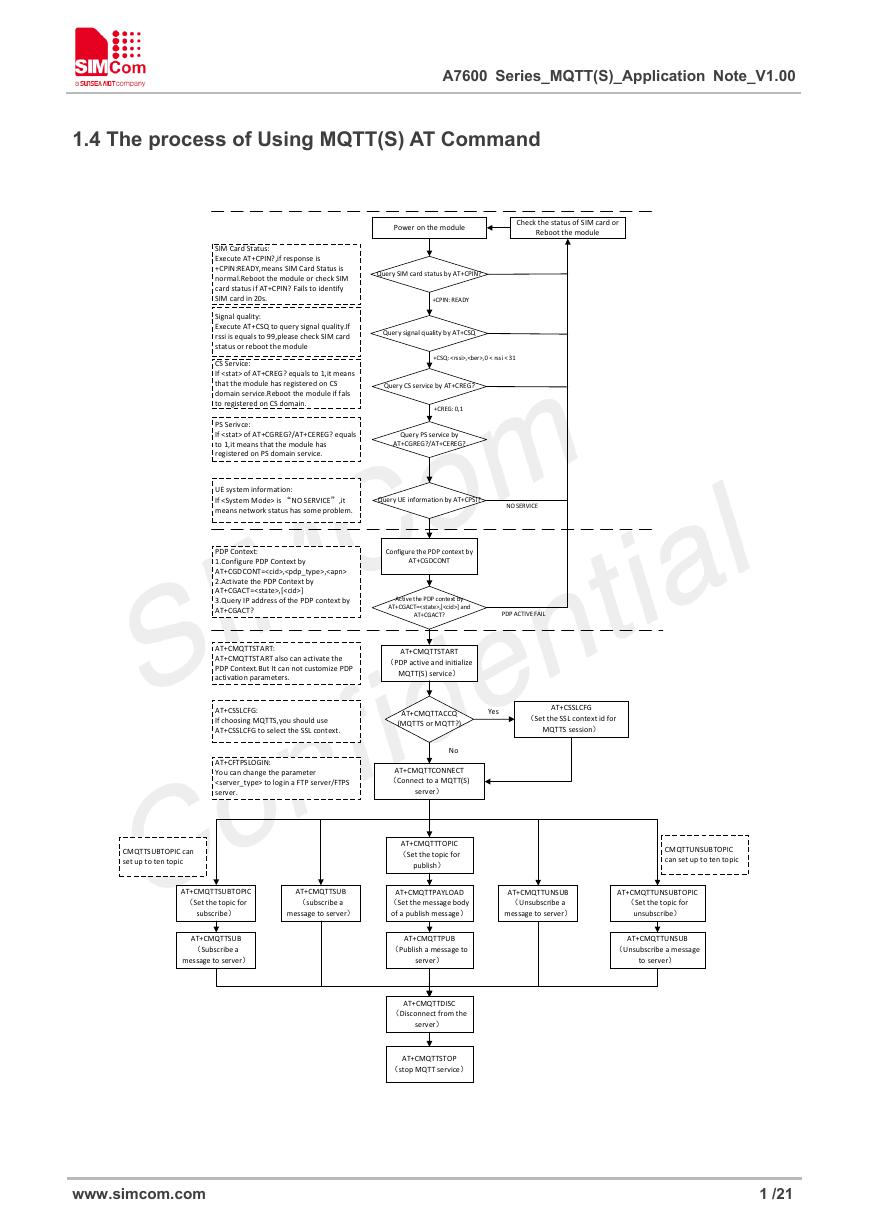

A7600 Series_MQTT(S)_Application Note_V1.00 1.4 The process of Using MQTT(S) AT Command Power on the module Check the status of SIM card or Reboot the module SIM Card Status: Execute AT+CPIN?,if response is +CPIN:READY,means SIM Card Status is normal.Reboot the module or check SIM card status if AT+CPIN? Fails to identify SIM card in 20s. Signal quality: Execute AT+CSQ to query signal quality.If rssi is equals to 99,please check SIM card status or reboot the module CS Service: If of AT+CREG? equals to 1,it means that the module has registered on CS domain service.Reboot the module if fals to registered on CS domain. PS Serivce: If of AT+CGREG?/AT+CEREG? equals to 1,it means that the module has registered on PS domain service. Query SIM card status by AT+CPIN? +CPIN: READY Query signal quality by AT+CSQ +CSQ: ,,0 < rssi < 31 Query CS service by AT+CREG? +CREG: 0,1 Query PS service by AT+CGREG?/AT+CEREG? UE system information: If is “NO SERVICE”,it means network status has some problem. Query UE information by AT+CPSI? NO SERVICE PDP Context: 1.Configure PDP Context by AT+CGDCONT=,, 2.Activate the PDP Context by AT+CGACT=,[] 3.Query IP address of the PDP context by AT+CGACT? Configure the PDP context by AT+CGDCONT Active the PDP context by AT+CGACT=,[] and AT+CGACT? PDP ACTIVE FAIL AT+CMQTTSTART: AT+CMQTTSTART also can activate the PDP Context.But It can not customize PDP activation parameters. AT+CMQTTSTART （PDP active and initialize MQTT(S) service） AT+CSSLCFG: If choosing MQTTS,you should use AT+CSSLCFG to select the SSL context. AT+CMQTTACCQ (MQTTS or MQTT?) Yes AT+CSSLCFG （Set the SSL context id for MQTTS session） AT+CFTPSLOGIN: You can change the parameter to login a FTP server/FTPS server. No AT+CMQTTCONNECT （Connect to a MQTT(S) server） CMQTTSUBTOPIC can set up to ten topic AT+CMQTTTOPIC （Set the topic for publish） AT+CMQTTSUBTOPIC （Set the topic for subscribe） AT+CMQTTSUB （subscribe a message to server） AT+CMQTTPAYLOAD （Set the message body of a publish message） AT+CMQTTUNSUB （Unsubscribe a message to server） AT+CMQTTSUB （Subscribe a message to server） AT+CMQTTPUB （Publish a message to server） AT+CMQTTDISC （Disconnect from the server） AT+CMQTTSTOP （stop MQTT service） CMQTTUNSUBTOPIC can set up to ten topic AT+CMQTTUNSUBTOPIC （Set the topic for unsubscribe） AT+CMQTTUNSUB （Unsubscribe a message to server） www.simcom.com 1 /21

A7600 Series_MQTT(S)_Application Note_V1.00 1.5 Error Handling For more details, please refer to A7600 Series_AT Command Manual. www.simcom.com 1 /21

A7600 Series_MQTT(S)_Application Note_V1.00 2 AT Commands for MQTT(S) 2.1 Overview of AT Commands for MQTT(S) Command AT+CMQTTSTART AT+CMQTTSTOP AT+CMQTTACCQ AT+CMQTTREL AT+CMQTTSSLCFG AT+CMQTTWILLTOPIC AT+CMQTTWILLMSG AT+CMQTTCONNECT AT+CMQTTDISC AT+CMQTTTOPIC AT+CMQTTPAYLOAD AT+CMQTTPUB AT+CMQTTSUBTOPIC AT+CMQTTSUB AT+CMQTTUNSUBTOPIC AT+CMQTTUNSUB AT+CMQTTCFG For detail information, please refer to “A7600 Series_AT Command Manual”. Description Start MQTT service Stop MQTT service Acquire a client Release a client Set the SSL context (only for SSL/TLS MQTT) Input the topic of will message Input the will message Connect to MQTT server Disconnect from server Input the topic of publish message Input the publish message Publish a message to server Input the topic of subscribe message Subscribe a message to server Input the topic of unsubscribe message Unsubscribe a message to server Configure the MQTT Context www.simcom.com 1 /21
