Product Specifications Customer Description Model Name Date Revision Standard 2.13”E-PAPER DISPLAY 2.13V3 2020 3.0 10F, International Science & Technology Building, Fuhong Rd, Futian District, Shenzhen, China Email: sales@waveshare.com Website: www.waveshare.com 2.13inch e-Paper (B)Rev: 3.01/51

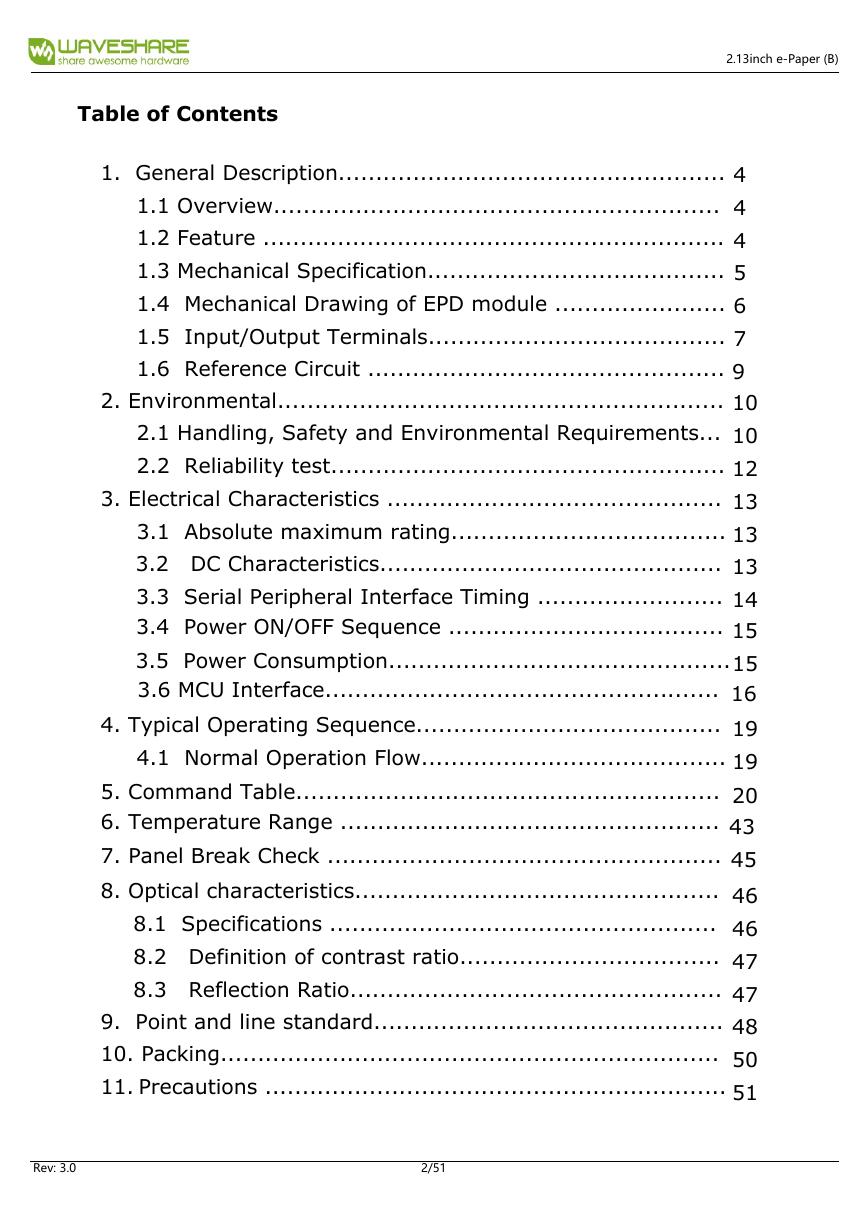

Table of Contents 1. General Description.................................................... 4 1.1 Overview............................................................ 4 1.2 Feature .............................................................. 4 1.3 Mechanical Specification........................................ 5 1.4 Mechanical Drawing of EPD module ....................... 6 1.5 Input/Output Terminals........................................ 7 1.6 Reference Circuit ................................................ 9 2. Environmental............................................................ 10 2.1 Handling, Safety and Environmental Requirements... 10 2.2 Reliability test..................................................... 12 3. Electrical Characteristics ............................................. 13 3.1 Absolute maximum rating..................................... 13 3.2 DC Characteristics.............................................. 13 3.3 Serial Peripheral Interface Timing ......................... 14 3.4 Power ON/OFF Sequence ..................................... 15 15 3.6 MCU Interface..................................................... 16 4. Typical Operating Sequence......................................... 19 4.1 Normal Operation Flow......................................... 19 5. Command Table......................................................... 20 6. Temperature Range ................................................... 43 7. Panel Break Check ..................................................... 45 8. Optical characteristics................................................. 46 8.1 Specifications .................................................... 46 8.2 Definition of contrast ratio................................... 47 8.3 Reflection Ratio.................................................. 47 9. Point and line standard............................................... 48 10. Packing................................................................... 50 11. Precautions .............................................................. 51 3.5 Power Consumption.............................................. 2.13inch e-Paper (B)Rev: 3.02/51

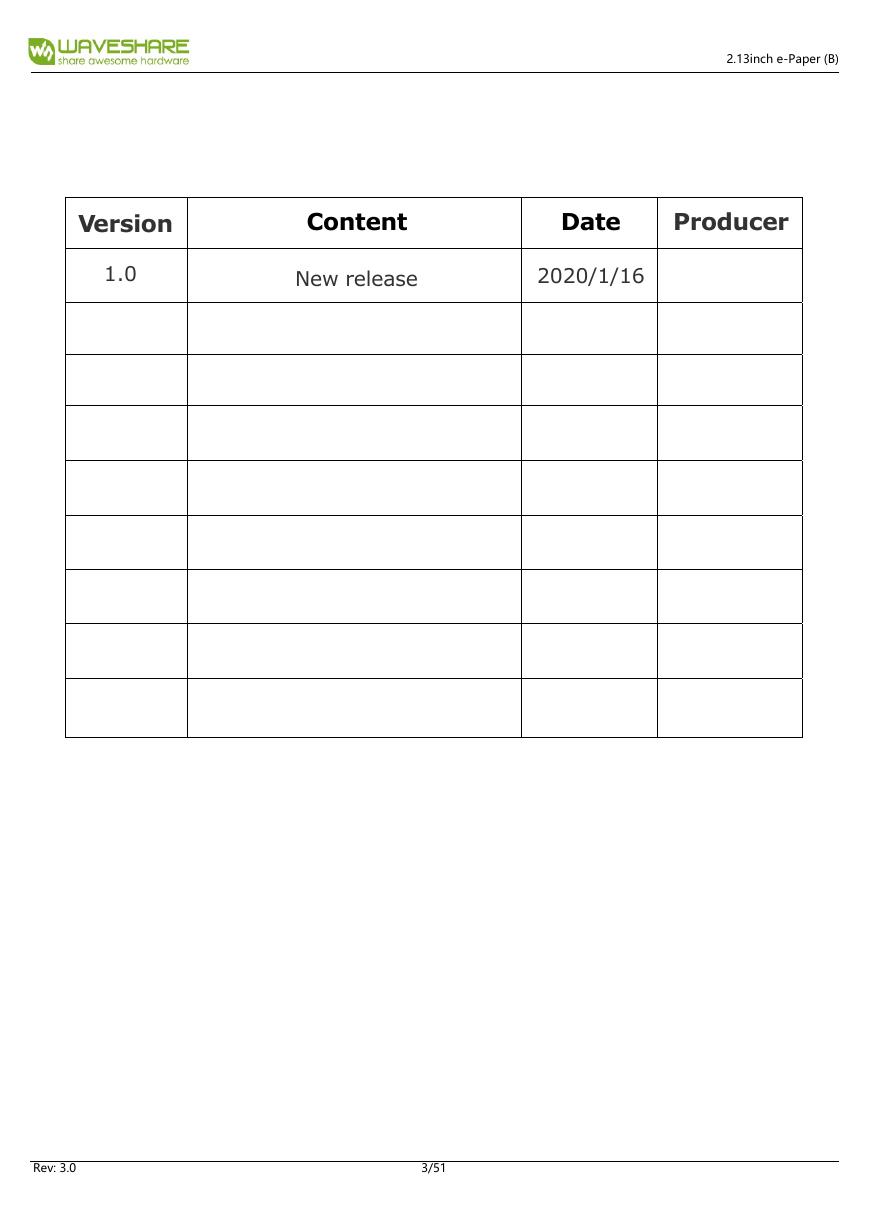

Version 1.0 Content New release Date Producer 2020/1/16 2.13inch e-Paper (B)Rev: 3.03/51
1. General Description 1.1 Overview 2.13inch e-Paper (B) is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 2.13” active area contains 104×212 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are supplied with each panel. 1.2 Features • 104×212pixels display • High contrast • High reflectance • Ultra wide viewing angle • Ultra low power consumption • Pure reflective mode • Bi-stable display • Commercial temperature range • Landscape, portrait modes • Hard-coat antiglare display surface • Ultra Low current deep sleep mode • On chip display RAM • Waveform stored in On-chip OTP • Serial peripheral interface available • On-chip oscillator • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage • I2C signal master interface to read external temperature sensor/built-in temperature sensor 2.13inch e-Paper (B)Rev: 3.04/51

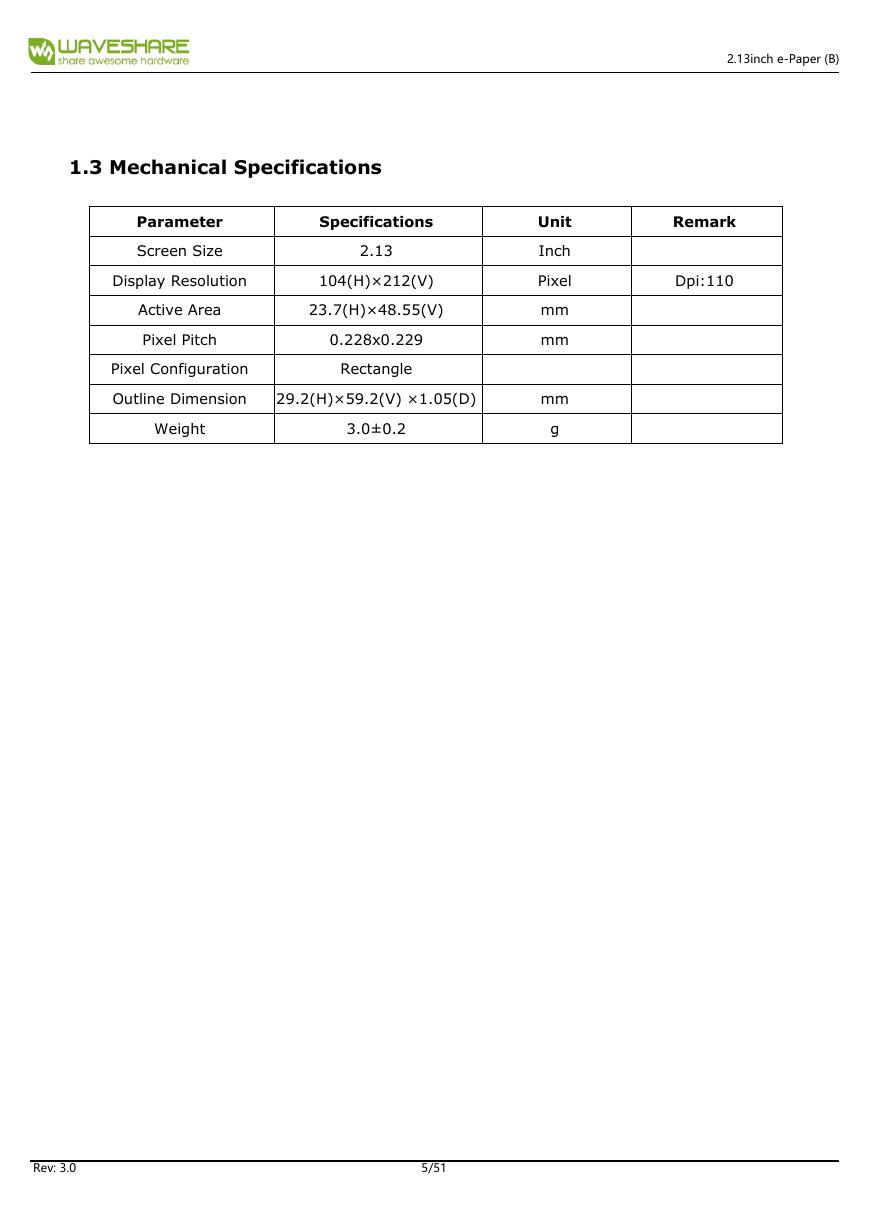

1.3 Mechanical Specifications Parameter Screen Size Specifications 2.13 Display Resolution 104(H)×212(V) Active Area Pixel Pitch 23.7(H)×48.55(V) 0.228x0.229 Pixel Configuration Rectangle Outline Dimension 29.2(H)×59.2(V) ×1.05(D) Weight 3.0±0.2 Unit Inch Pixel mm mm mm g Remark Dpi:110 2.13inch e-Paper (B)Rev: 3.05/51

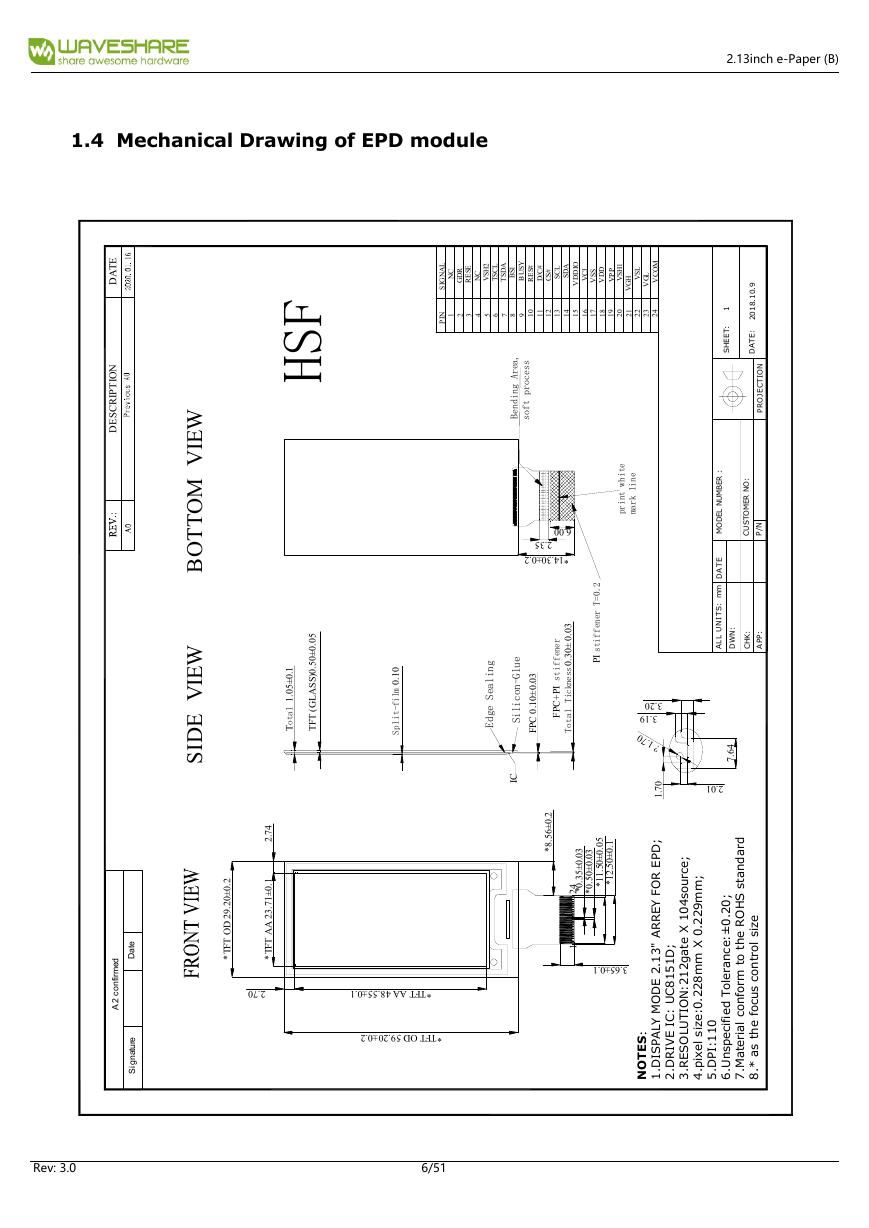

1.4 Mechanical Drawing of EPD module W E I V M O T T O B W E I V E D I S E T A D N O I T P I R C S E D : d e m r i f n o c 2 A t e a D e r u t a n g S i F S H 5 0 . 0 ± 0 5 . 0 ) S S A L G ( T F T 1 . 0 ± 5 0 . 1 l a t o T 4 7 . 2 2 . 1 . 0 1 . 0 m l i f - t i l p S . 0 ± 0 2 9 2 D O T F T * . 0 ± 1 7 3 2 A A T F T * 2.70 *TFT AA 48.55±0.1 *TFT OD 59.20±0.2 C N R D G E S E R C N 2 H S V L C S T A D S T 1 S B Y S U B # S E R # C D / # S C L C S A D S L A N G I S I O D D V I C V S S V D D V P P V 1 H S HV G V L S V L G V M O C V 0 1234567891 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 1 0 2 1 2 2 2 3 2 4 2 N I P 1 : T E E H S 9 . 0 1 . 8 1 0 2 : E T A D N O I T C E J O R P : O N R E M O T S U C N / P : N W D : K H C : P P A 4 6 . 7 , a e r A g n i d n e B s s e c o r p t f o s 6.00 2.35 *14.30±0.2 r e n e f f i t s I P + C P F . . 3 0 0 ± 0 3 0 s s e n k c i T l a t o T g n i l a e S e g d E e u l G - n o c i l i S . 3 0 0 ± 0 1 . 0 C P F C I e t i h w t n i r p e n i l k r a m 2 . 0 = T r e n e f f i t s I P : R E B M U N L E D O M E T A D m m : S T I N U L L A 3.20 3.19 ?1.70 0 7 . 1 2.01 2 . 0 ± 6 5 . 8 * . 5 0 0 ± 0 5 1 . 0 ± 0 5 . . 2 1 * 1 1 * 3 0 . 0 ± 5 3 . . 3 0 0 ± 0 5 0 * . 0 * 4 2 1 3.65±0.1 ; D P E R O F Y E R R A " 3 1 . 2 E D O M Y L A P S I D . 1 ; ; e c r u o s 4 0 1 X e t a g 2 1 2 : N O I T U L O S E R . 3 m m 9 2 2 . 0 X m m 8 2 2 . 0 : e z i s l e x p . 4 i ; D 1 5 1 8 C U : C I E V I R D . 2 : S E T O N d r a d n a t s S H O R e h t o t m r o f n o c l a i r e t a M . 7 l ; 0 2 . 0 ± : e c n a r e o T d e i f i c e p s n U . 6 e z i s l o r t n o c s u c o f e h t s a * . 8 0 1 1 : I P D . 5 2.13inch e-Paper (B)Rev: 3.06/51

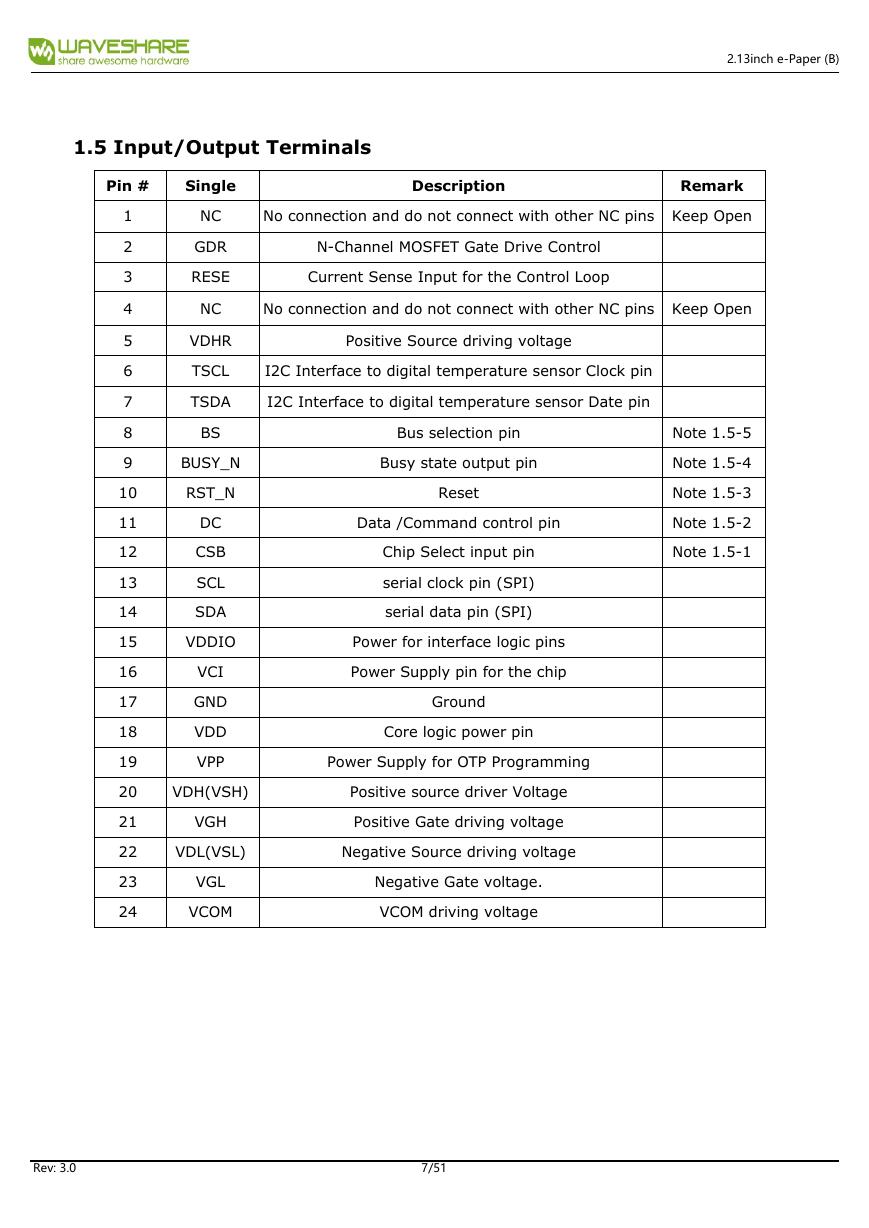

1.5 Input/Output Terminals Pin # Single Description Remark 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 NC No connection and do not connect with other NC pins Keep Open GDR RESE N-Channel MOSFET Gate Drive Control Current Sense Input for the Control Loop NC No connection and do not connect with other NC pins Keep Open VDHR Positive Source driving voltage TSCL I2C Interface to digital temperature sensor Clock pin TSDA I2C Interface to digital temperature sensor Date pin Note 1.5-5 Note 1.5-4 Note 1.5-3 Note 1.5-2 Note 1.5-1 BS BUSY_N RST_N DC CSB SCL SDA Bus selection pin Busy state output pin Reset Data /Command control pin Chip Select input pin serial clock pin (SPI) serial data pin (SPI) VDDIO Power for interface logic pins VCI GND VDD VPP Power Supply pin for the chip Ground Core logic power pin Power Supply for OTP Programming VDH(VSH) Positive source driver Voltage VGH Positive Gate driving voltage VDL(VSL) Negative Source driving voltage VGL VCOM Negative Gate voltage. VCOM driving voltage 2.13inch e-Paper (B)Rev: 3.07/51

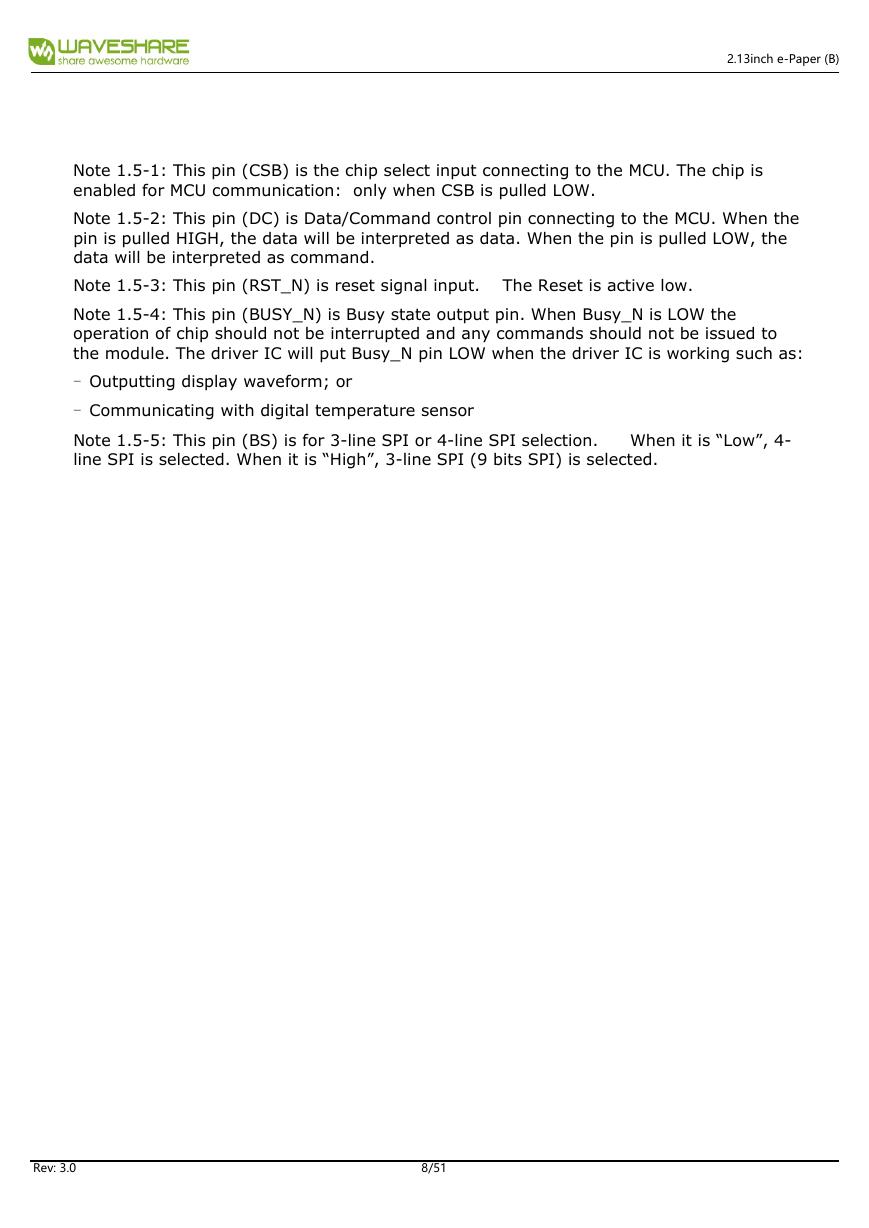

Note 1.5-1: This pin (CSB) is the chip select input connecting to the MCU. The chip is enabled for MCU communication: only when CSB is pulled LOW. Note 1.5-2: This pin (DC) is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data will be interpreted as data. When the pin is pulled LOW, the data will be interpreted as command. Note 1.5-3: This pin (RST_N) is reset signal input. The Reset is active low. Note 1.5-4: This pin (BUSY_N) is Busy state output pin. When Busy_N is LOW the operation of chip should not be interrupted and any commands should not be issued to the module. The driver IC will put Busy_N pin LOW when the driver IC is working such as: - Outputting display waveform; or - Communicating with digital temperature sensor Note 1.5-5: This pin (BS) is for 3-line SPI or 4-line SPI selection. When it is “Low”, 4- line SPI is selected. When it is “High”, 3-line SPI (9 bits SPI) is selected. 2.13inch e-Paper (B)Rev: 3.08/51
