2.9inch e-Paper V2 数据手册(2.9inch-e-paper-v2-specification).pdf
页面提取自－
1. General Description
1.1 Over View
1.2 Features
1.3 Mechanical Specifications
GDEH0154D67 V1.0 Specification 7.pdf
1.5 Input/Output Terminals
页面提取自－
2.1 HANDLING,SAFETYAND ENVIROMENTAL REQUIREMENTS
2.2 Reliability test
页面提取自－
3. Electrical Characteristics
3.1 ABSOLUTE MAXIMUM RATING
Table 3.1-1: Maximum Ratings
3.2 DC CHARACTERISTICS
Table 3.2-1: DC Characteristics
3.3 Serial Peripheral Interface Timing
Write mode
Figure 3.3-1 : Serial peripheral interface characteristics
页面提取自－
3.5-1) MCU interface selection
Table 3.5-1: MCU interface selection
Table 3.5-2 : Control pins status of 4-wire SPI
Figure 3.5-1: Write procedure in 4-wire SPI mode
Table 3.5-3 : Control pins status of 3-wire SPI
Figure 3.5-3: Write procedure in 3-wire SPI mode
Figure 3.5-4: Read procedure in 3-wire SPI mode
Product Specifications
Customer
Description
Model Name
Date
Revision
Standard
2.9” E-PAPER DISPLAY
2.9inch e-Paper
2020/02/10
2.1
2.9inch e-Paper V2Rev2.11/29

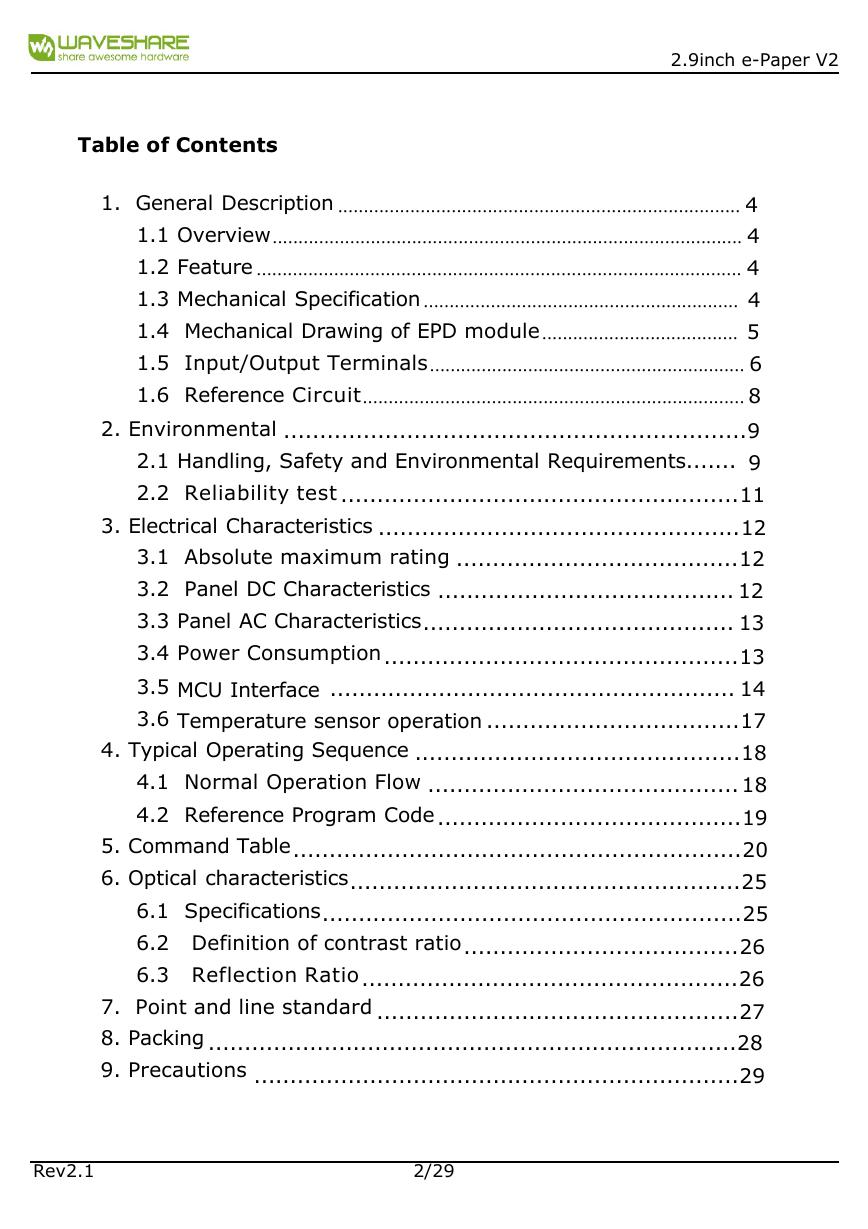

Table of Contents
1. General Description .............................................................................. 4
1.1 Overview ........................................................................................... 4
1.2 Feature .............................................................................................. 4
1.3 Mechanical Specification ............................................................. 4
1.4 Mechanical Drawing of EPD module ...................................... 5
1.5 Input/Output Terminals ............................................................. 6
1.6 Reference Circuit .......................................................................... 8
2. Environmental ................................................................ 9
2.1 Handling, Safety and Environmental Requirements....... 9
2.2 Reliability test ....................................................... 11
3. Electrical Characteristics .................................................. 12
3.1 Absolute maximum rating ....................................... 12
3.2 Panel DC Characteristics ......................................... 12
3.3 Panel AC Characteristics ........................................... 13
3.4 Power Consumption ................................................. 13
3.5 MCU Interface ........................................................ 14
3.6 Temperature sensor operation ................................... 17
4. Typical Operating Sequence ............................................. 18
4.1 Normal Operation Flow ........................................... 18
4.2 Reference Program Code .......................................... 19
5. Command Table .............................................................. 20
6. Optical characteristics ...................................................... 25
6.1 Specifications .......................................................... 25
6.2 Definition of contrast ratio ...................................... 26
6.3 Reflection Ratio .................................................... 26
7. Point and line standard .................................................. 27
8. Packing ......................................................................... 28
9. Precautions ................................................................... 29
2.9inch e-Paper V2Rev2.12/29
Revision History
Rev. Issued Date
2.1 Apr.15.2020 Preliminary
Revised Contents
2.9inch e-Paper V2Rev2.13/29

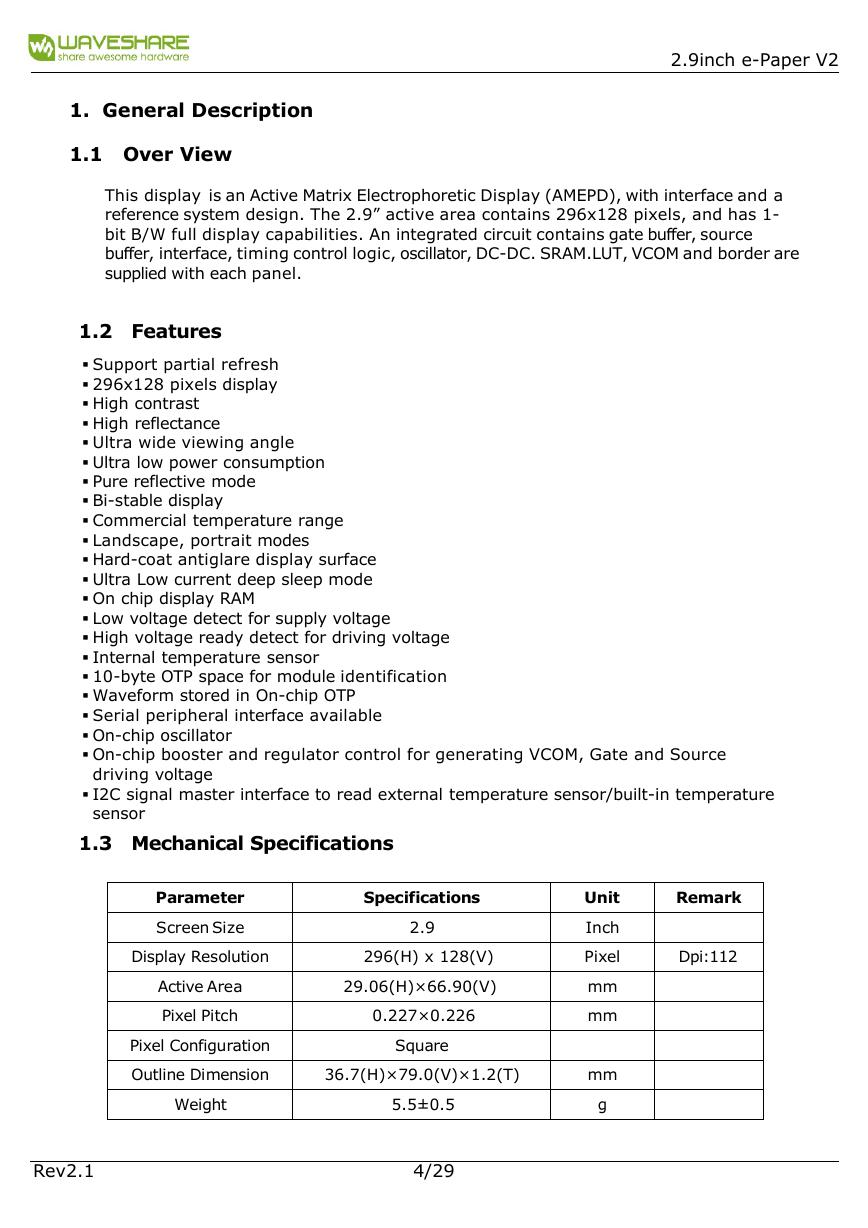

1. General Description
1.1 Over View
This display is an Active Matrix Electrophoretic Display (AMEPD), with interface and a
reference system design. The 2.9” active area contains 296x128 pixels, and has 1-
bit B/W full display capabilities. An integrated circuit contains gate buffer, source
buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are
supplied with each panel.
1.2 Features
Support partial refresh
296x128 pixels display
High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape, portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Low voltage detect for supply voltage
High voltage ready detect for driving voltage
Internal temperature sensor
10-byte OTP space for module identification
Waveform stored in On-chip OTP
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source
driving voltage
I2C signal master interface to read external temperature sensor/built-in temperature
sensor
1.3 Mechanical Specifications
Parameter
Screen Size
Display Resolution
Active Area
Pixel Pitch
Pixel Configuration
Outline Dimension
Weight
Specifications
2.9
296(H) x 128(V)
29.06(H)×66.90(V)
0.227×0.226
Square
36.7(H)×79.0(V)×1.2(T)
5.5±0.5
Unit
Inch
Pixel
mm
mm
mm
g
Remark
Dpi:112
2.9inch e-Paper V2Rev2.14/29

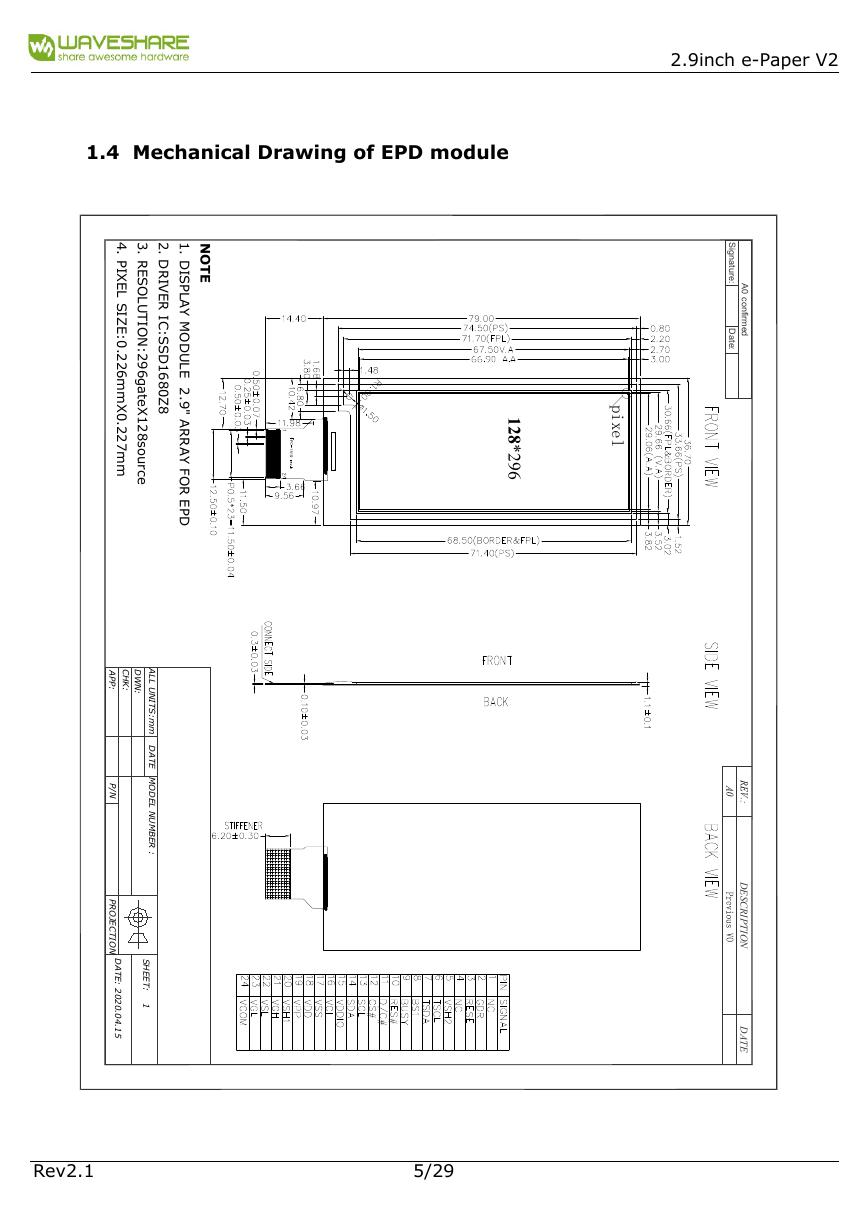

1.4 Mechanical Drawing of EPD module
N
O
T
E
4
.
3
.
2
.
1
.
D
R
I
V
E
R
I
C
:
S
S
D
1
6
8
0
Z
8
P
I
X
E
L
S
I
Z
E
:
0
.
2
2
6
m
m
X
0
.
2
2
7
m
m
R
E
S
O
L
U
T
I
O
N
:
2
9
6
g
a
t
e
X
1
2
8
s
o
u
r
c
e
D
I
S
P
L
A
Y
M
O
D
U
L
E
2
.
9
"
A
R
R
A
Y
F
O
R
E
P
D
p
i
x
e
l
1
2
8
*
2
9
6
S
H
E
E
T
:
1
D
A
T
E
:
2
0
2
0
.
0
4
.
1
5
i
S
g
n
a
t
u
r
e
:
D
a
t
e
:
A
0
c
o
n
f
i
r
m
e
d
:
D
E
S
C
R
I
P
T
I
O
N
D
A
T
E
2.9inch e-Paper V2Rev2.15/29

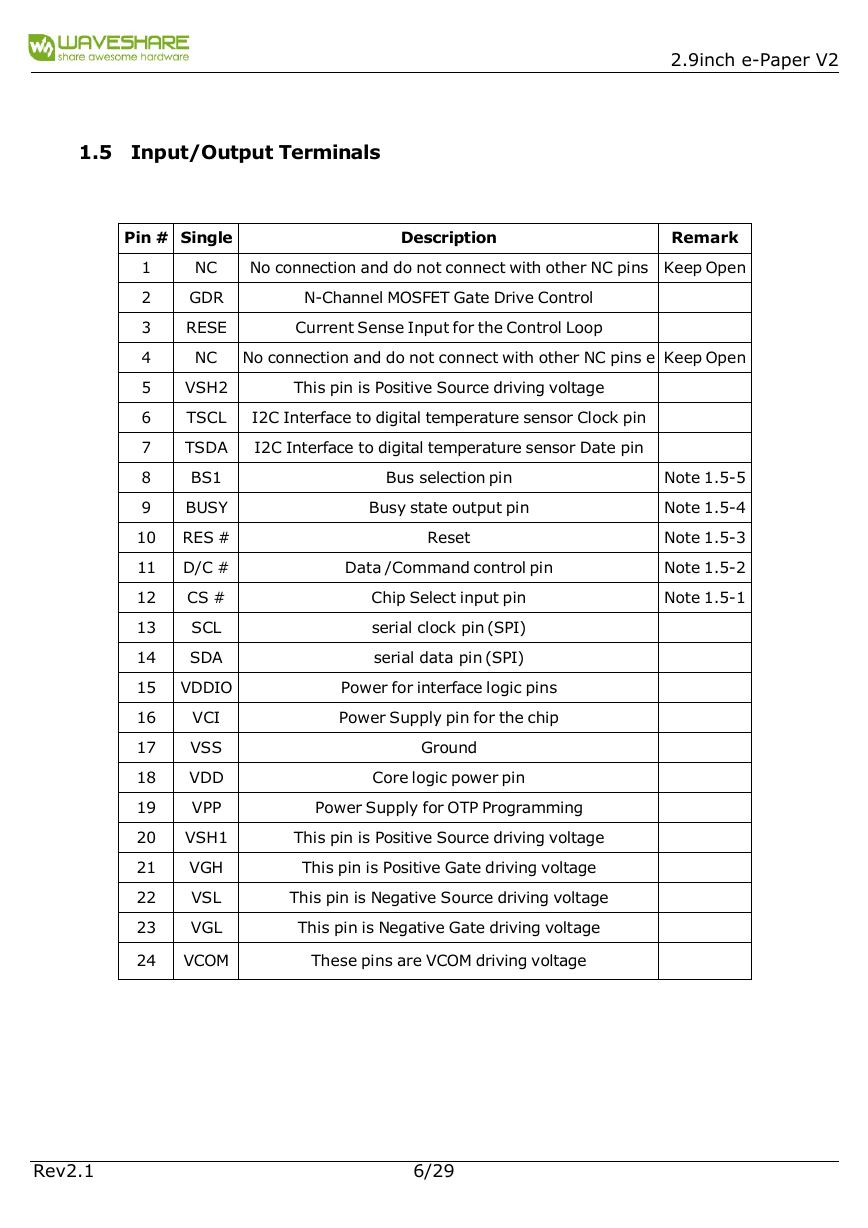

1.5 Input/Output Terminals
Pin # Single
Remark
No connection and do not connect with other NC pins Keep Open
Description
This pin is Positive Source driving voltage
Bus selection pin
Busy state output pin
Reset
N-Channel MOSFET Gate Drive Control
Current Sense Input for the Control Loop
I2C Interface to digital temperature sensor Clock pin
I2C Interface to digital temperature sensor Date pin
NC
1
GDR
2
RESE
3
NC No connection and do not connect with other NC pins e Keep Open
4
VSH2
5
TSCL
6
TSDA
7
BS1
8
9
BUSY
10 RES #
11 D/C #
CS #
12
13
SCL
14
SDA
15 VDDIO
16
17
18
19
20
21
22
23
This pin is Negative Source driving voltage
This pin is Negative Gate driving voltage
This pin is Positive Source driving voltage
This pin is Positive Gate driving voltage
Chip Select input pin
serial clock pin (SPI)
serial data pin (SPI)
Note 1.5-5
Note 1.5-4
Note 1.5-3
Note 1.5-2
Note 1.5-1
VCI
VSS
VDD
VPP
VSH1
VGH
VSL
VGL
Data /Command control pin
Power for interface logic pins
Power Supply pin for the chip
Ground
Core logic power pin
Power Supply for OTP Programming
24
VCOM
These pins are VCOM driving voltage
2.9inch e-Paper V2Rev2.16/29

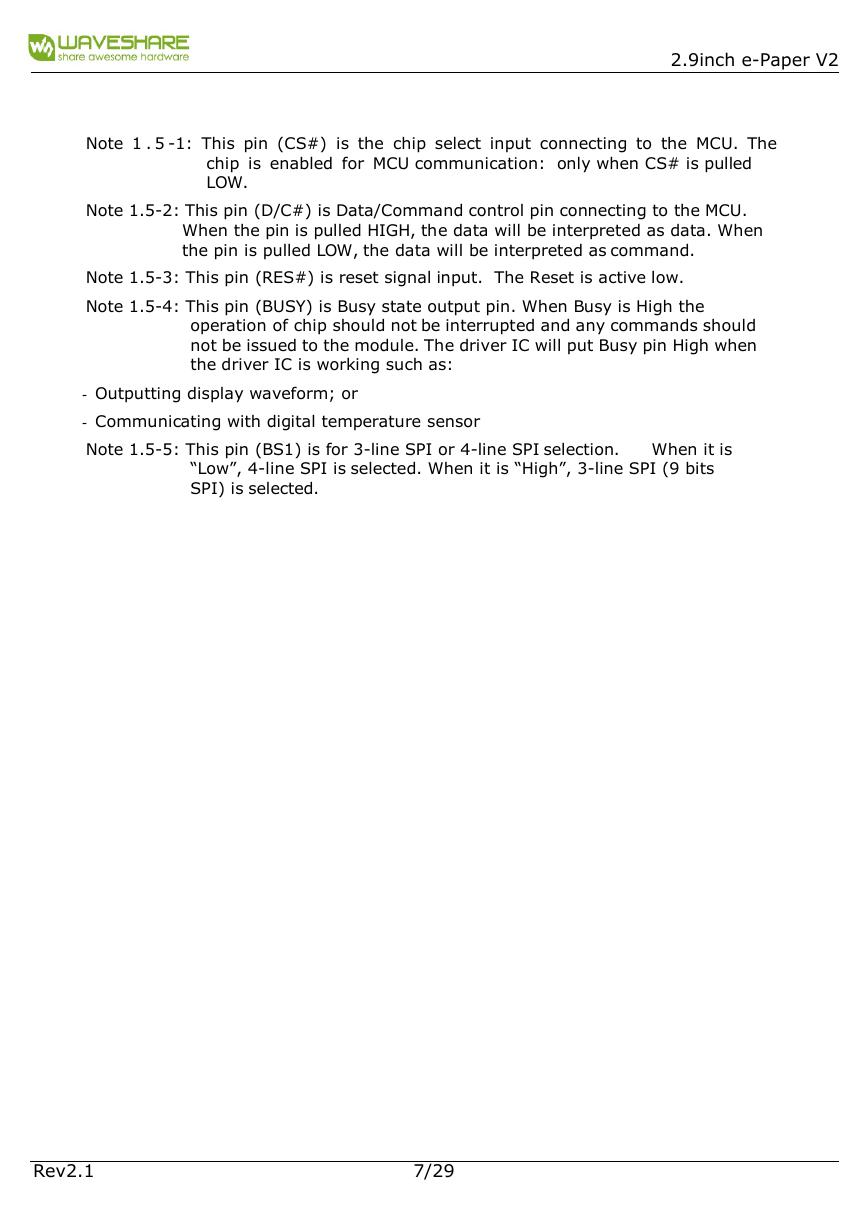

Note 1 . 5 -1: This pin (CS#) is the chip select input connecting to the MCU. The
chip is enabled for MCU communication: only when CS# is pulled
LOW.
Note 1.5-2: This pin (D/C#) is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data will be interpreted as data. When
the pin is pulled LOW, the data will be interpreted as command.
Note 1.5-3: This pin (RES#) is reset signal input. The Reset is active low.
Note 1.5-4: This pin (BUSY) is Busy state output pin. When Busy is High the
operation of chip should not be interrupted and any commands should
not be issued to the module. The driver IC will put Busy pin High when
the driver IC is working such as:
- Outputting display waveform; or
- Communicating with digital temperature sensor
Note 1.5-5: This pin (BS1) is for 3-line SPI or 4-line SPI selection. When it is
“Low”, 4-line SPI is selected. When it is “High”, 3-line SPI (9 bits
SPI) is selected.
2.9inch e-Paper V2Rev2.17/29

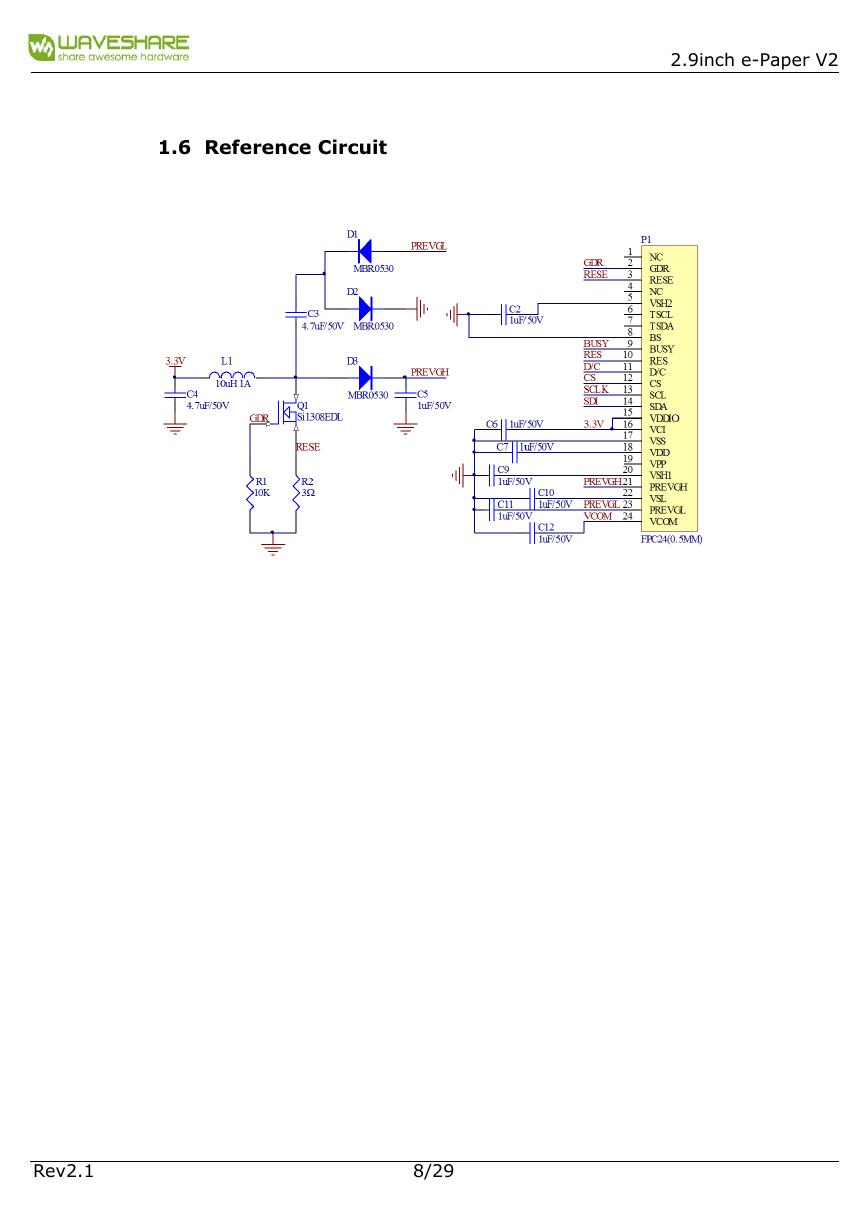

1.6 Reference Circuit
2.9inch e-Paper V2Rev2.18/29
