6inch HD e-Paper datasheet(6inch_HD_e-Paper_Specification).pdf
Version: 1.0
TECHNICAL SPECIFICATION
MODEL NO: 6inch HD e-Paper
The content of this information is subject to be changed without
notice. Please contact Waveshare for further information.
Customer’s Confirmation
Customer
Date
By
6inch HD e-Paper1/26
Rev.
1.0
Issued Date
May , 27,2014
Revised
NEW
Contents

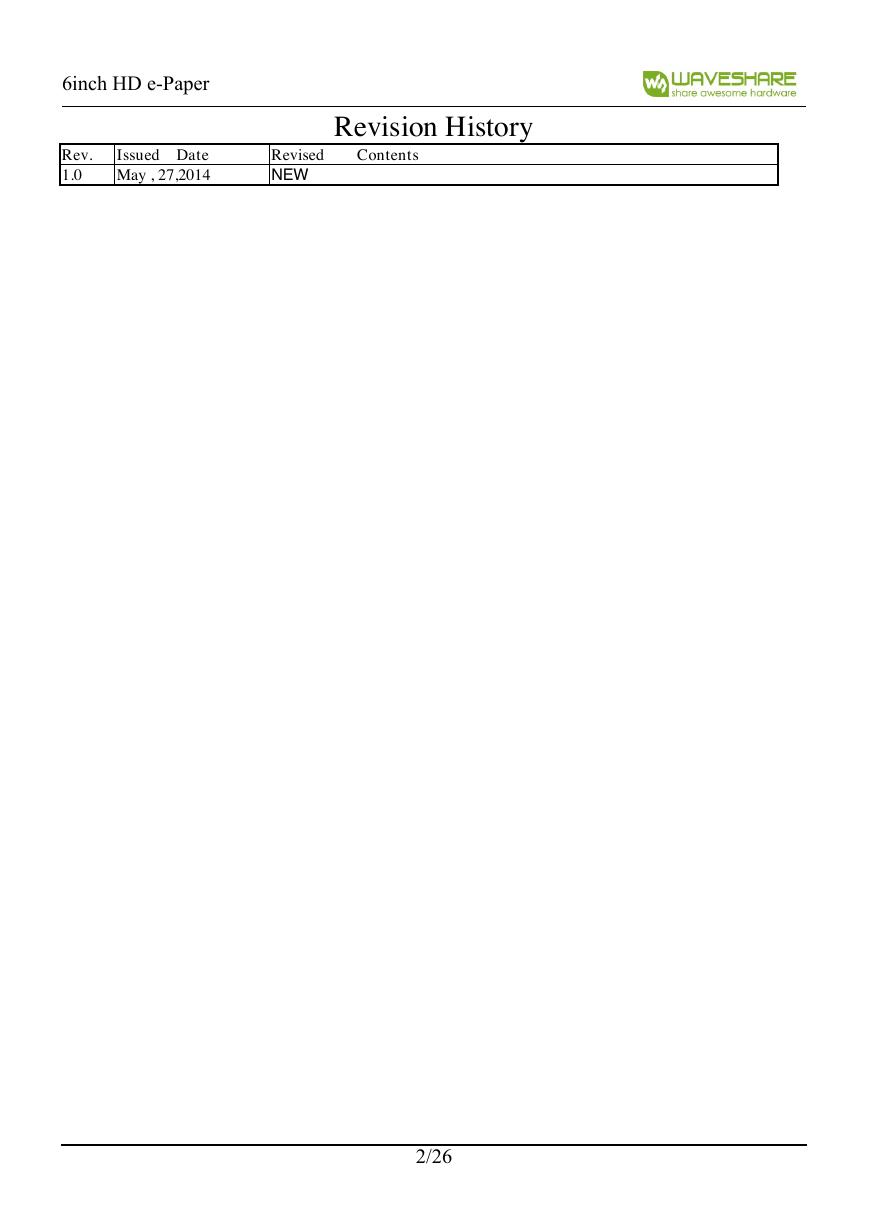

Revision History
6inch HD e-Paper2/26
TECHNICAL SPECIFICATION
CONTENTS
ITEM
Cover
Revision History
Contents
General Description
Features
Mechanical Specifications
Mechanical Drawing of EPD module
Input/Output Terminals
Electrical Characteristics
Power on Sequence
Refresh Rate
Optical Characteristics
Handling, Safety and Environment Requirements
And Remark
Reliability test
Bar Code definition
Border definition
Block Diagram
Packing
PAGE
1
2
3
4
4
4
5
7
9
15
17
18
20
22
23
24
25
26
NO.
-
-
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
6inch HD e-Paper3/26

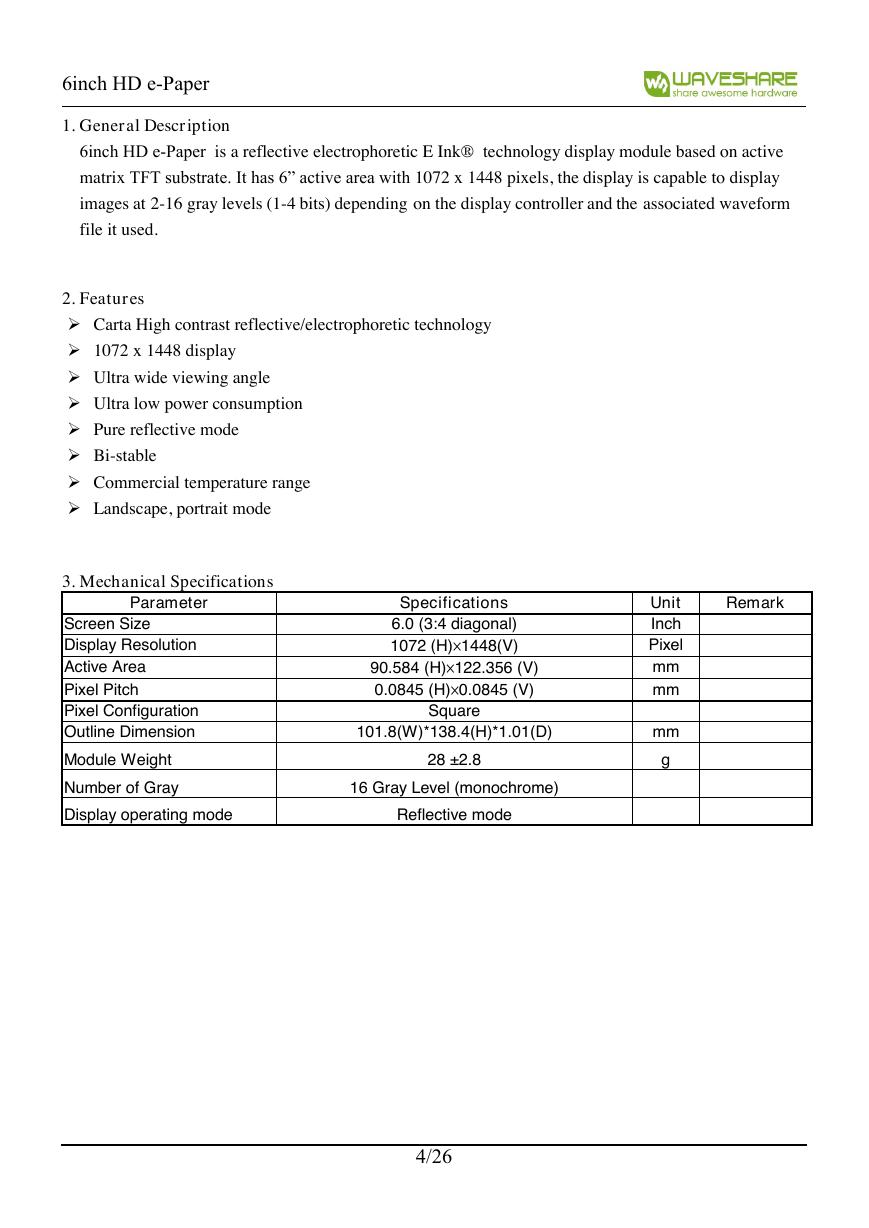

1. General Description
6inch HD e-Paper is a reflective electrophoretic E Ink® technology display module based on active
matrix TFT substrate. It has 6” active area with 1072 x 1448 pixels, the display is capable to display
images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform
file it used.
2. Features
Carta High contrast reflective/electrophoretic technology
1072 x 1448 display
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
3. Mechanical Specifications
Parameter
Screen Size
Display Resolution
Active Area
Pixel Pitch
Pixel Configuration
Outline Dimension
Module Weight
Number of Gray
Specifications
6.0 (3:4 diagonal)
1072 (H)×1448(V)
90.584 (H)×122.356 (V)
0.0845 (H)×0.0845 (V)
Square
101.8(W)*138.4(H)*1.01(D)
28 ±2.8
16 Gray Level (monochrome)
Remark
Unit
Inch
Pixel
mm
mm
mm
g
Display operating mode
Reflective mode
6inch HD e-Paper4/26

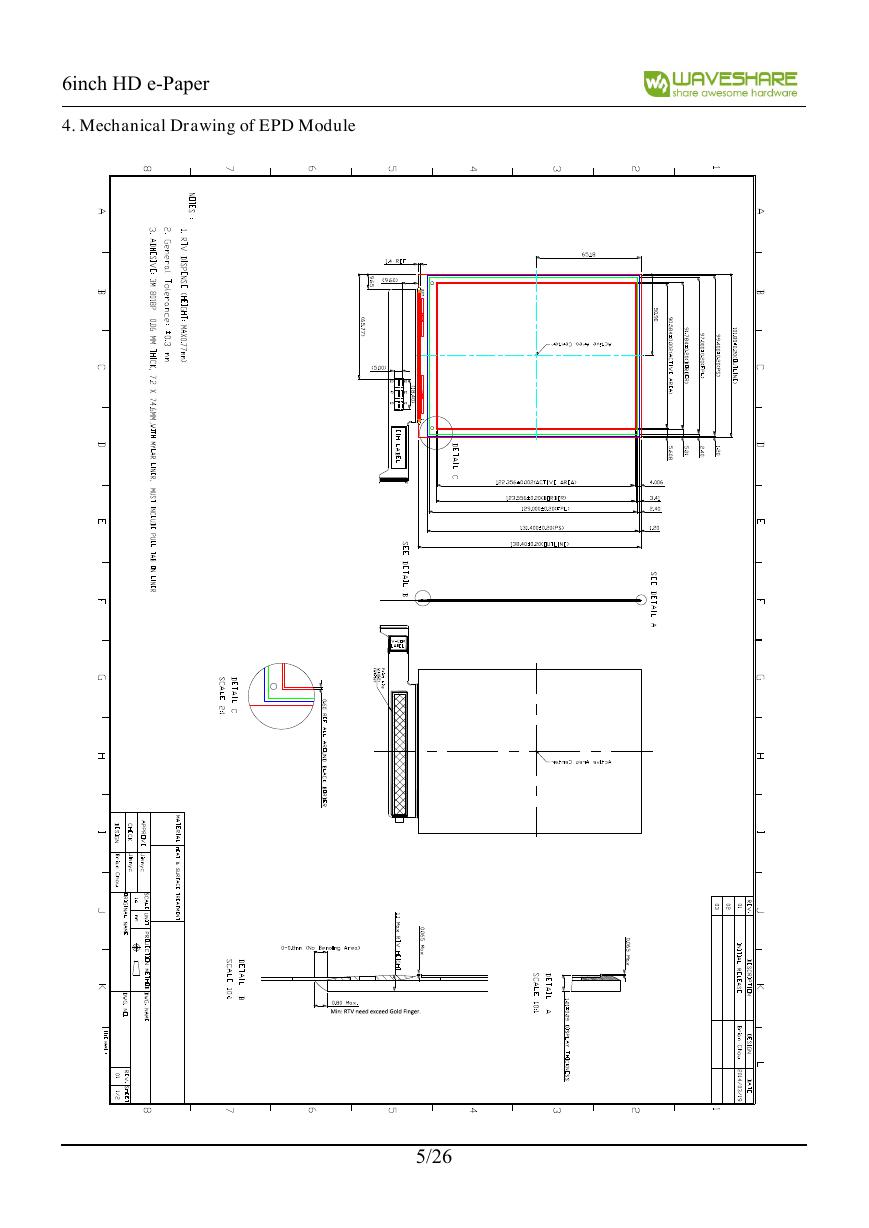

4. Mechanical Drawing of EPD Module
6inch HD e-Paper5/26
6inch HD e-Paper6/26
5. Input/Output Interface
5-1) Connector type: FH34S-34S-0.5SH(50)-Hirose
Pin Assignment
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Signal
VNEG
VEE
VSS
NC
NC
VDD
VSS
XCL
VSS
XLE
XOE
XSTL
D0
D1
D2
D3
D4
D5
D6
D7
Description
Remark
Negative power supply source driver
Negative power supply gate driver
Ground
NC
NC
Digital power supply drivers (1.8V)
Ground
Clock source driver
Ground
Latch enable source driver
Output enable source driver
Start pulse source driver
Data signal source driver
Data signal source driver
Data signal source driver
Data signal source driver
Data signal source driver
Data signal source driver
Data signal source driver
Data signal source driver
VCOM
Common connection
NC
NC
NC
NC
VSS
NC
NC
NC
NC
Ground
MODE 1
Output mode selection gate driver
CKV
SPV
NC
Border
VSS
VPOS
VGG
Clock gate driver
Start pulse gate driver
NC
Border connection
Ground
Positive power supply source driver
Positive power supply gate driver
6inch HD e-Paper7/26

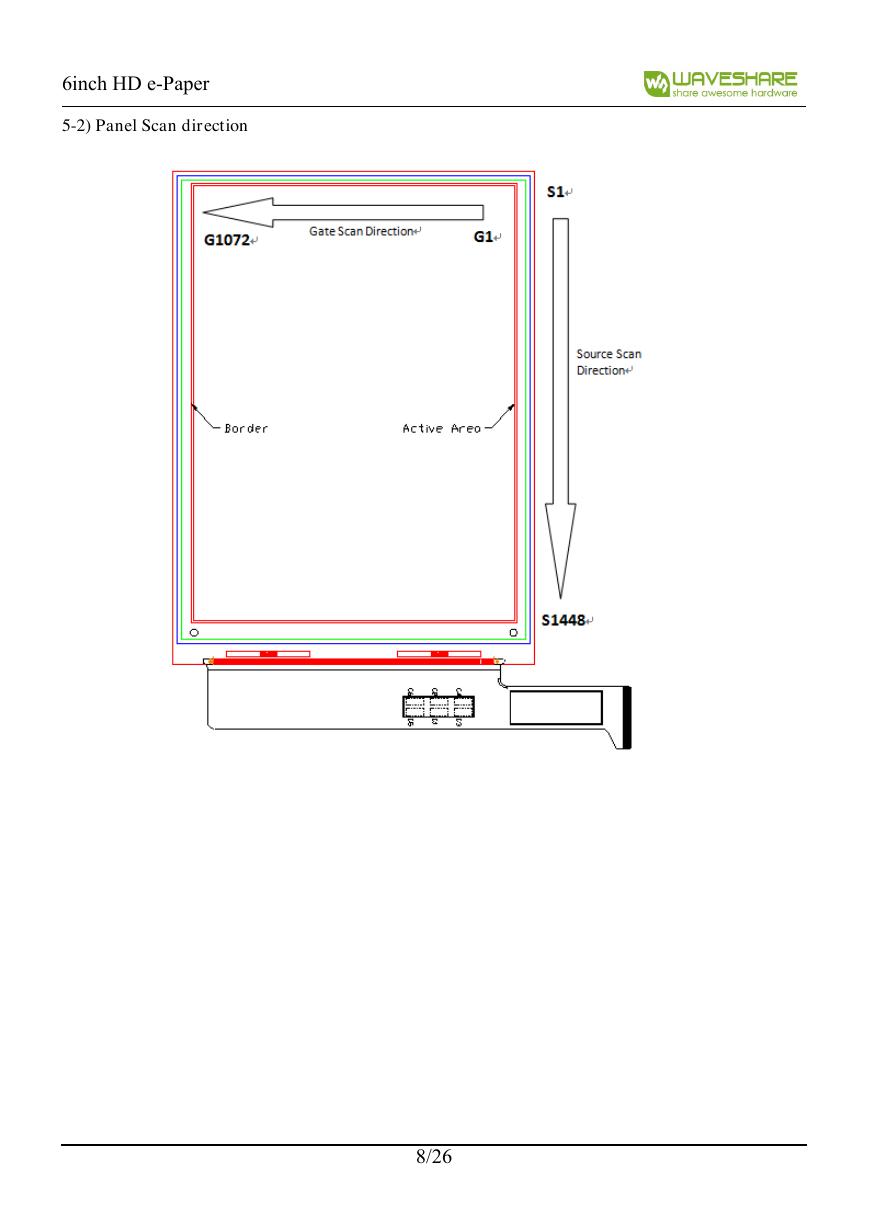

5-2) Panel Scan direction
6inch HD e-Paper8/26
