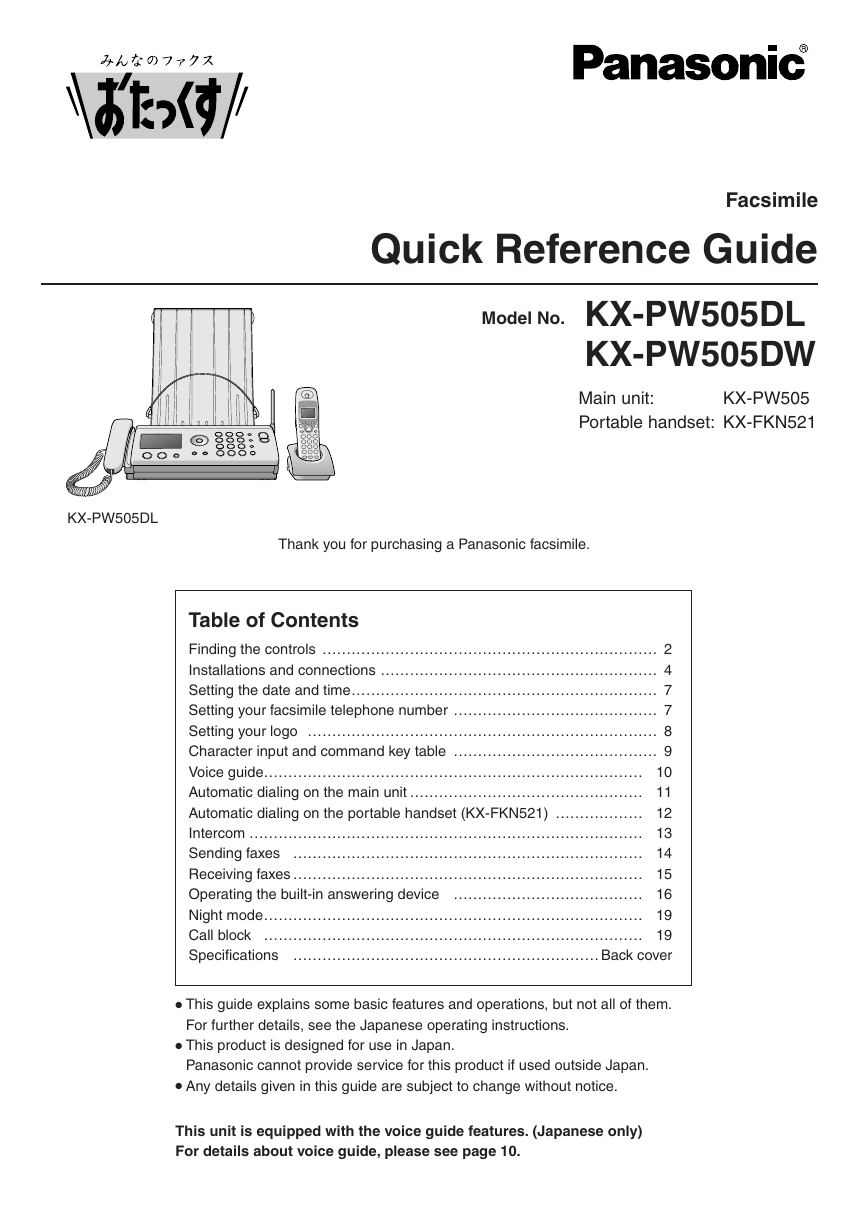

Facsimile Quick Reference Guide Model No. KX-PW505DL KX-PW505DW Main unit: Portable handset: KX-PW505 KX-FKN521 KX-PW505DL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls …………………………………………………………… 2 Installations and connections ………………………………………………… 4 Setting the date and time……………………………………………………… 7 Setting your facsimile telephone number …………………………………… 7 Setting your logo ……………………………………………………………… 8 Character input and command key table …………………………………… 9 Voice guide…………………………………………………………………… 10 Automatic dialing on the main unit ………………………………………… 11 Automatic dialing on the portable handset (KX-FKN521) ……………… 12 Intercom ……………………………………………………………………… 13 Sending faxes ……………………………………………………………… 14 Receiving faxes ……………………………………………………………… 15 Operating the built-in answering device ………………………………… 16 Night mode…………………………………………………………………… 19 Call block …………………………………………………………………… 19 Specifications ……………………………………………………… Back cover l This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. l This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. l Any details given in this guide are subject to change without notice. This unit is equipped with the voice guide features. (Japanese only) For details about voice guide, please see page 10.

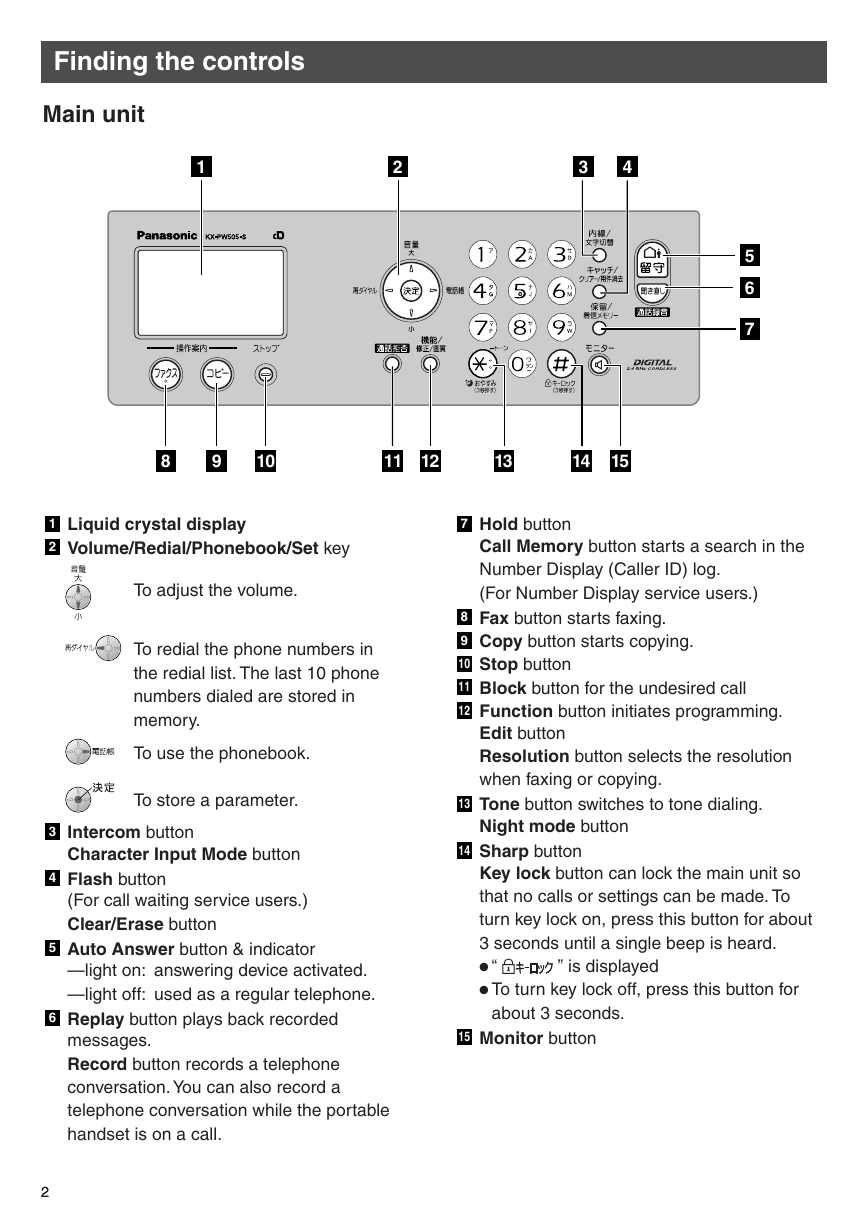

Finding the controls Main unit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 7 Hold button Call Memory button starts a search in the Number Display (Caller ID) log. (For Number Display service users.) 8 Fax button starts faxing. 9 Copy button starts copying. 10 Stop button 11 Block button for the undesired call 12 Function button initiates programming. Edit button Resolution button selects the resolution when faxing or copying. 13 Tone button switches to tone dialing. Night mode button 14 Sharp button Key lock button can lock the main unit so that no calls or settings can be made. To turn key lock on, press this button for about 3 seconds until a single beep is heard. l “ l To turn key lock off, press this button for ” is displayed about 3 seconds. 15 Monitor button 1 Liquid crystal display 2 Volume/Redial/Phonebook/Set key To adjust the volume. To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. To use the phonebook. To store a parameter. 3 Intercom button Character Input Mode button 4 Flash button (For call waiting service users.) Clear/Erase button 5 Auto Answer button & indicator —light on: answering device activated. —light off: used as a regular telephone. 6 Replay button plays back recorded messages. Record button records a telephone conversation. You can also record a telephone conversation while the portable handset is on a call. 22

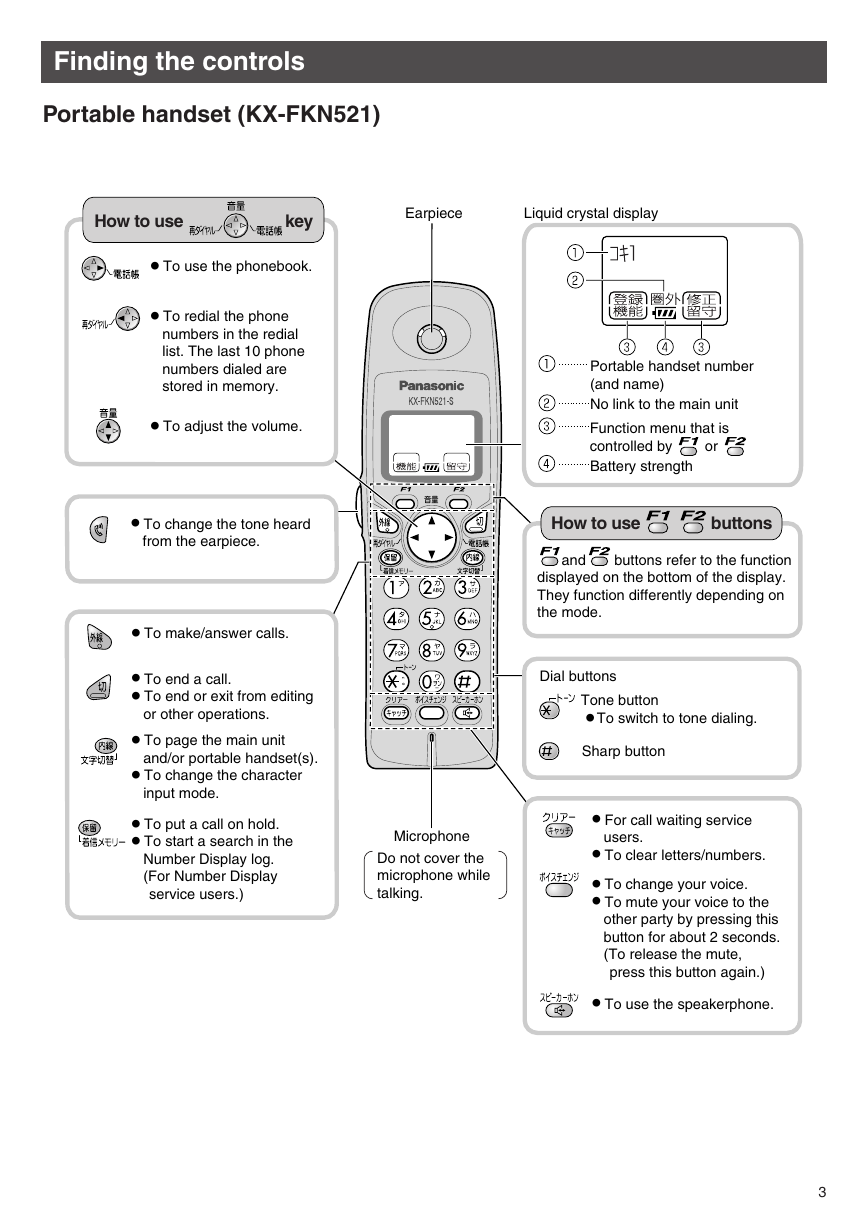

Finding the controls Portable handset (KX-FKN521) How to use key Earpiece Liquid crystal display ● To use the phonebook. ● To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. ● To adjust the volume. ● To change the tone heard from the earpiece. ● To make/answer calls. ● To end a call. ● To end or exit from editing or other operations. ● To page the main unit and/or portable handset(s). ● To change the character input mode. ● To put a call on hold. ● To start a search in the Number Display log. (For Number Display service users.) Microphone Do not cover the microphone while talking. Portable handset number (and name) No link to the main unit Function menu that is controlled by or Battery strength How to use buttons and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. Dial buttons Tone button ● To switch to tone dialing. Sharp button ● For call waiting service users. ● To clear letters/numbers. ● To change your voice. ● To mute your voice to the other party by pressing this button for about 2 seconds. (To release the mute, press this button again.) ● To use the speakerphone. 3

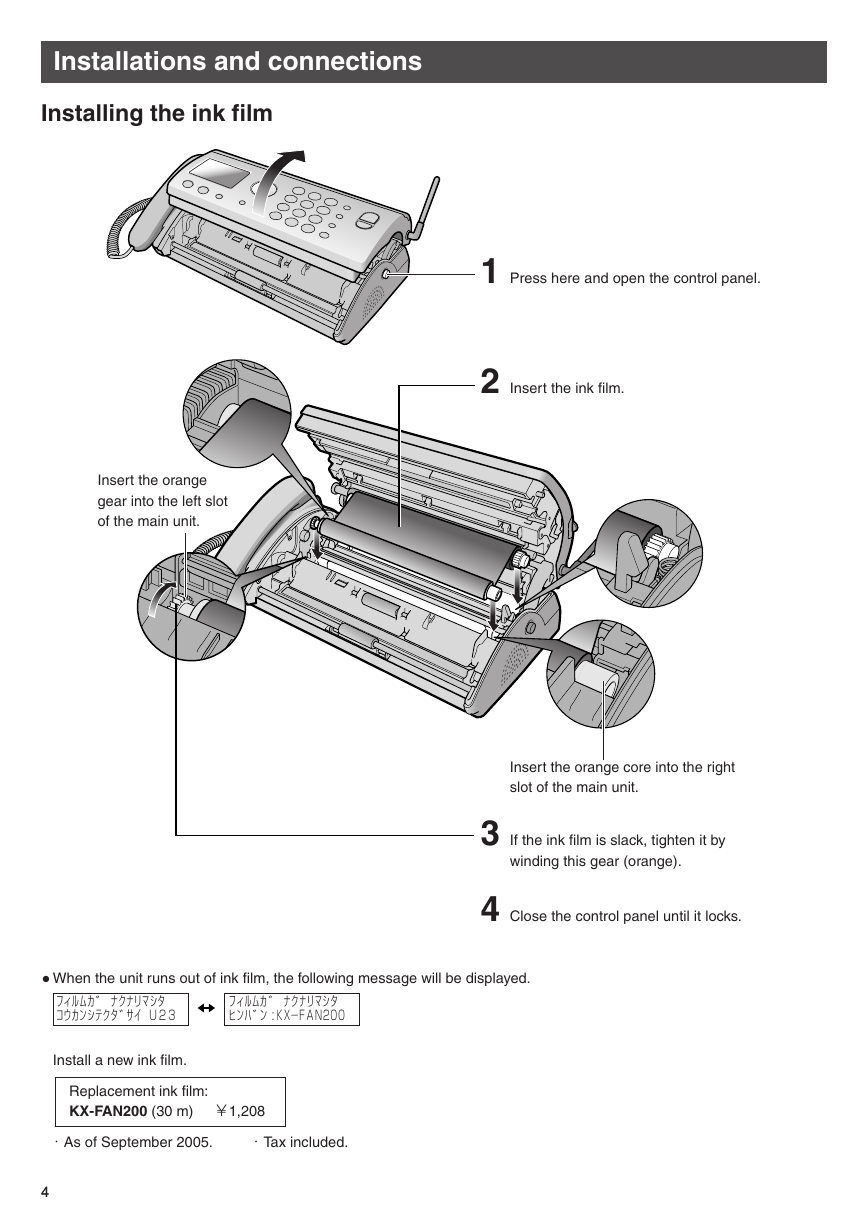

Installations and connections Installing the ink film Insert the orange gear into the left slot of the main unit. 1 Press here and open the control panel. 2 Insert the ink film. Insert the orange core into the right slot of the main unit. 3 If the ink film is slack, tighten it by winding this gear (orange). 4 Close the control panel until it locks. l When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU23 ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾋﾝﾊﾞﾝ : KX̶FAN200 Install a new ink film. Replacement ink film: KX-FAN200 (30 m) ￥1,208 ・As of September 2005. ・Tax included. 44

Installations and connections Installing recording paper (A4 size) 1 Open the recording paper insertion cover. 2 Install the recording paper cover/tray. 3 Open the recording paper cover. 4 Insert the recording paper into the recording paper tray. (Up to 20 sheets) ● Fan the stack of recording paper. 5 Close the recording paper cover. 5 Recording paper ● Printing side is on the back.

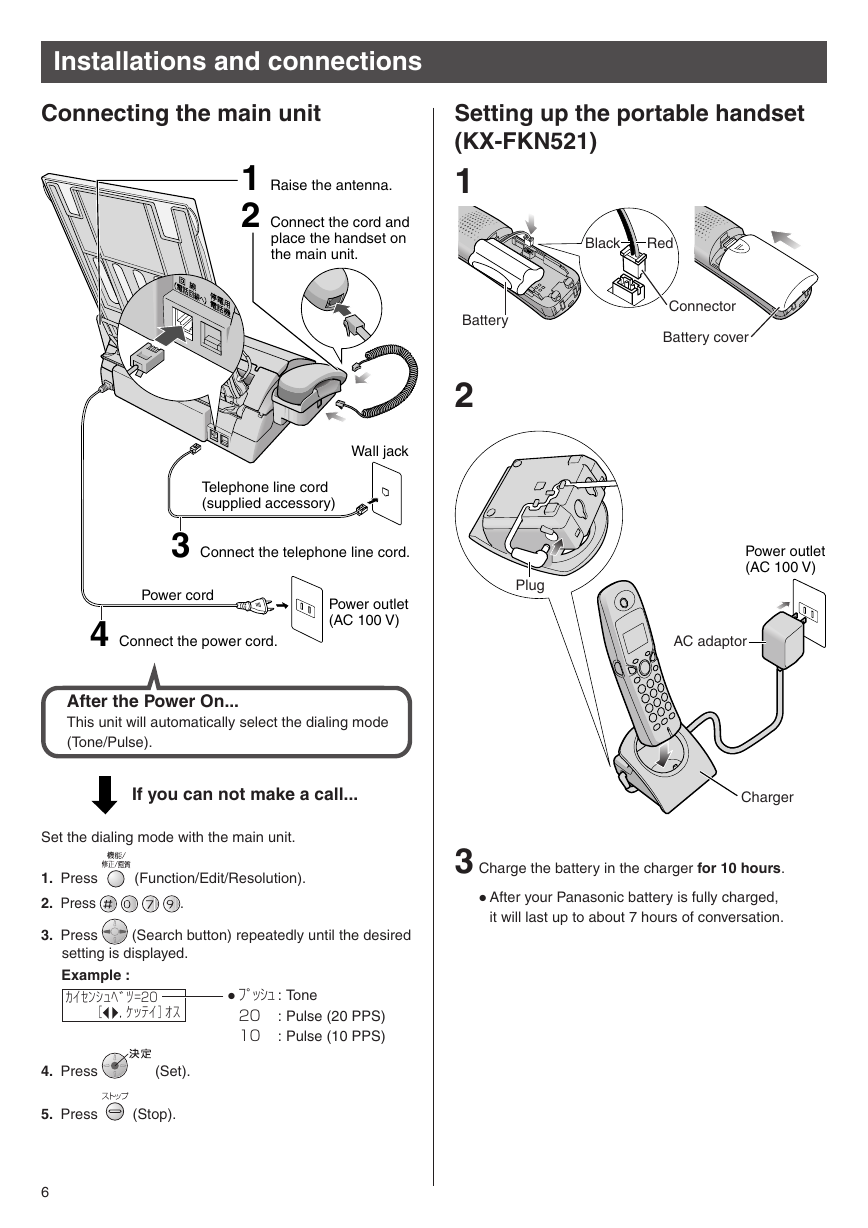

Installations and connections Connecting the main unit 1 Raise the antenna. 2 Connect the cord and place the handset on the main unit. Setting up the portable handset (KX-FKN521) 1 Black Red Connector Battery cover Battery 2 Wall jack Telephone line cord (supplied accessory) 3 Connect the telephone line cord. Power cord 4 Connect the power cord. Power outlet (AC 100 V) Plug After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). Power outlet (AC 100 V) AC adaptor If you can not make a call... Charger Set the dialing mode with the main unit. 1. Press 2. Press (Function/Edit/Resolution). . 3. Press (Search button) repeatedly until the desired 3 Charge the battery in the charger for 10 hours. l After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. l ﾌﾟｯｼｭ : Tone 20 10 : Pulse (20 PPS) : Pulse (10 PPS) setting is displayed. Example : ｶｲｾﾝｼｭﾍﾞﾂ＝20 ［ , ｹｯﾃｲ］ｵｽ 4. Press (Set). 5. Press (Stop). 6

Setting the date and time Setting your facsimile telephone number 1 Press (Function/Edit/Resolution). 1 Press (Function/Edit/Resolution). 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽ Example : 2005年09月30日 2 15 : 00 Cursor 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=．．．．．．．．．．． . Cursor 3 Enter the correct year/month/day. Example: October 1, 2005 Press . 2005年10月01日 1 25 :00 4 Enter the correct hour/minute in a 24-hour clock entry. Example: 15:45 (3:45 PM) Press . 3 Enter your facsimile telephone number, up to 20 digits. Example: +098 7654·· ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=+09807654 ．． l The (Tone) button replaces the digit with “+”. 5 Press (Set). 2005年10月01日 2 15 :45 ﾄｳﾛｸｼﾏｼﾀ 2 2005年10月01日 15 : 45 l The (Hold/Call memory) button replaces the digit with a space. 4 Press (Set). ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=0098 7654 ．． + 6 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 5 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 7

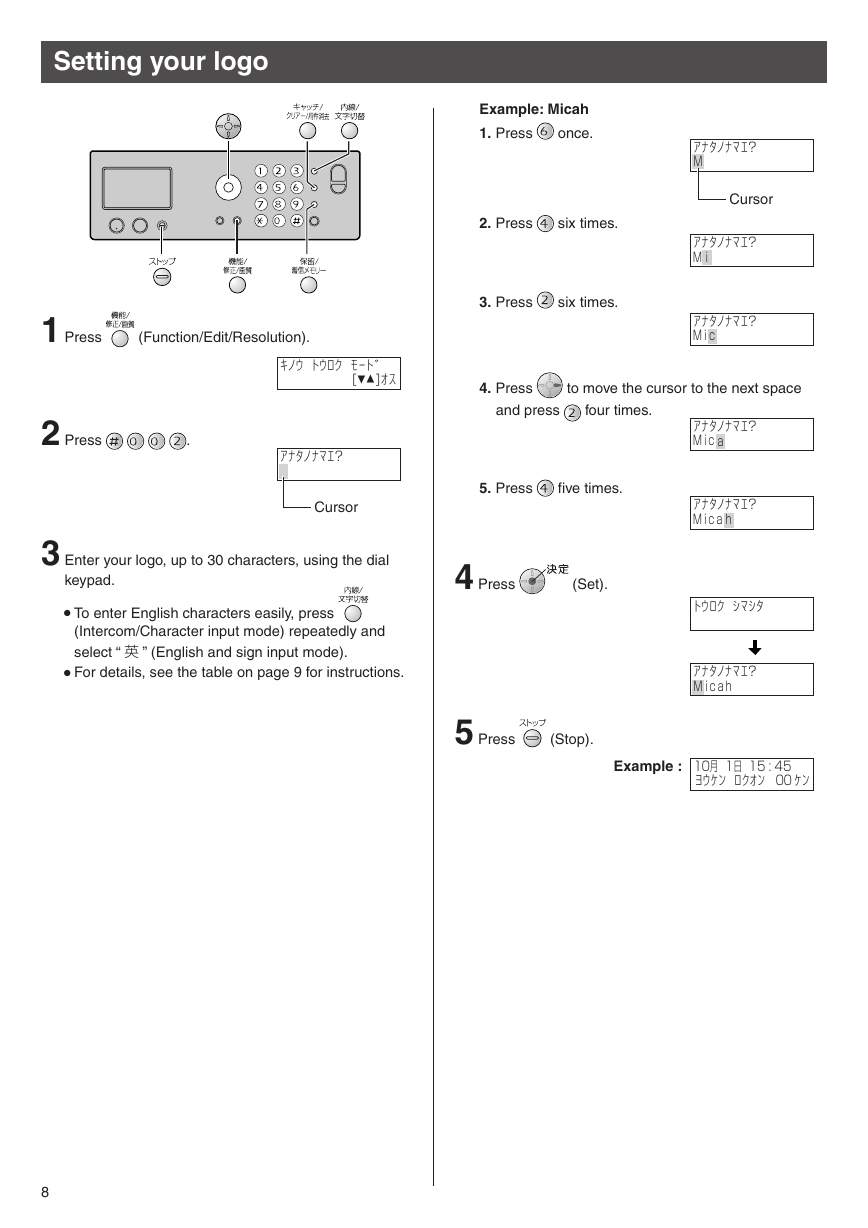

Setting your logo 1 Press (Function/Edit/Resolution). 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽｱﾅﾀﾉﾅﾏｴ? Cursor 3 Enter your logo, up to 30 characters, using the dial keypad. l To enter English characters easily, press (Intercom/Character input mode) repeatedly and select “ 英 ” (English and sign input mode). l For details, see the table on page 9 for instructions. Example: Micah 1. Press once. 2. Press six times. 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? MM Cursor ｱﾅﾀﾉﾅﾏｴ? Mii ｱﾅﾀﾉﾅﾏｴ? Micc 4. Press to move the cursor to the next space and press four times. 5. Press five times. 4 Press (Set). ｱﾅﾀﾉﾅﾏｴ? Micaa ｱﾅﾀﾉﾅﾏｴ? Micahh ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾅﾏｴ? Micah M 5 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 8
