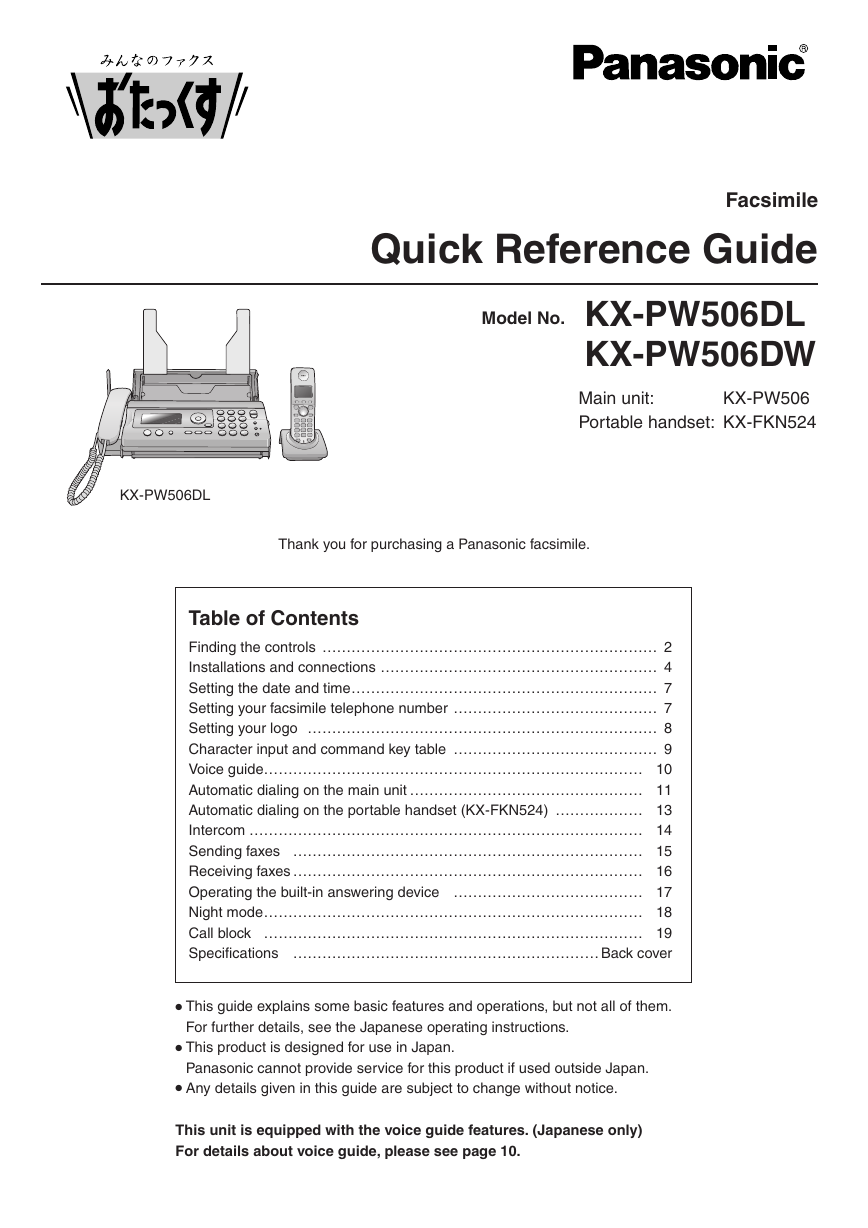

Facsimile Quick Reference Guide Model No. KX-PW506DL KX-PW506DW Main unit: Portable handset: KX-PW506 KX-FKN524 KX-PW506DL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls …………………………………………………………… 2 Installations and connections ………………………………………………… 4 Setting the date and time ……………………………………………………… 7 Setting your facsimile telephone number …………………………………… 7 Setting your logo ……………………………………………………………… 8 Character input and command key table …………………………………… 9 Voice guide …………………………………………………………………… 10 Automatic dialing on the main unit ………………………………………… 11 Automatic dialing on the portable handset (KX-FKN524) ……………… 13 Intercom ……………………………………………………………………… 14 Sending faxes ……………………………………………………………… 15 Receiving faxes ……………………………………………………………… 16 Operating the built-in answering device ………………………………… 17 Night mode …………………………………………………………………… 18 Call block …………………………………………………………………… 19 Specifications ……………………………………………………… Back cover  This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions.  This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan.  Any details given in this guide are subject to change without notice. This unit is equipped with the voice guide features. (Japanese only) For details about voice guide, please see page 10.

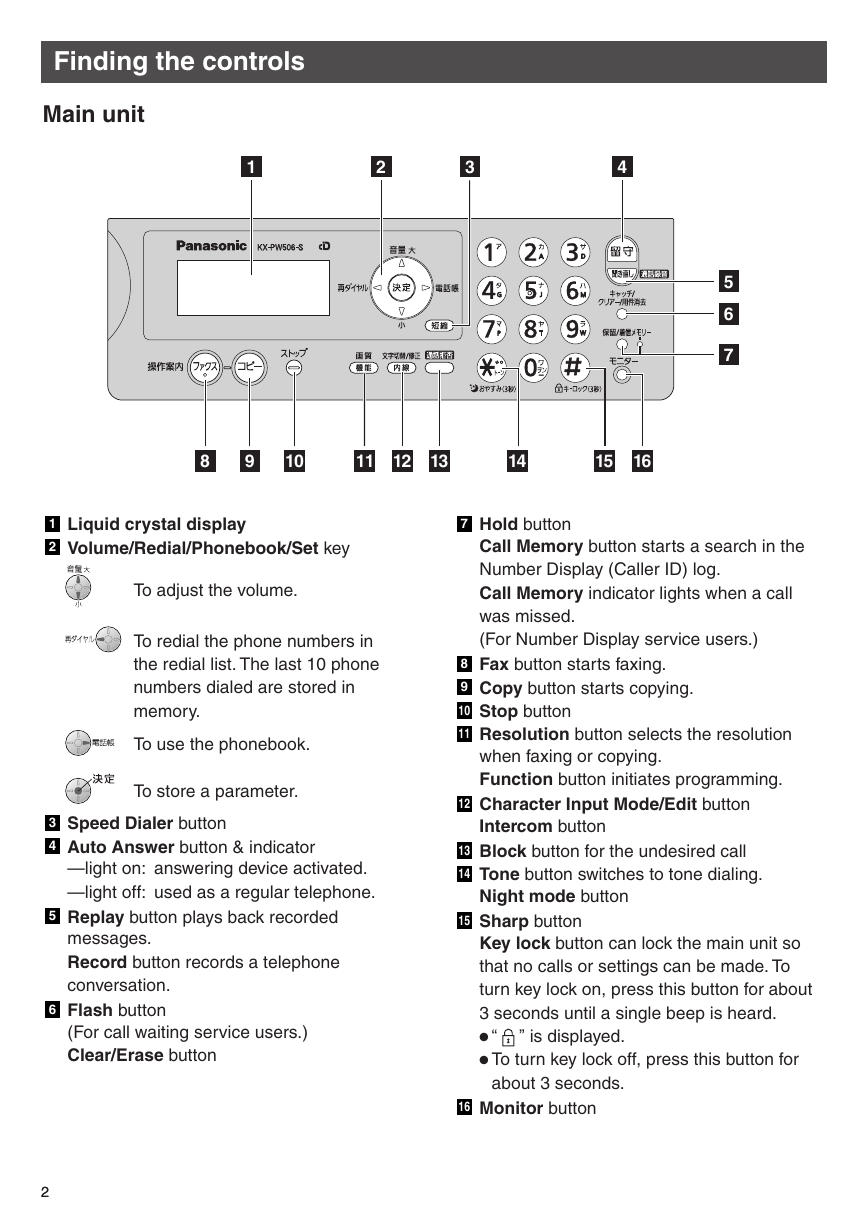

Finding the controls Main unit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 Liquid crystal display 2 Volume/Redial/Phonebook/Set key To adjust the volume. To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. To use the phonebook. To store a parameter. 3 Speed Dialer button 4 Auto Answer button & indicator —light on: answering device activated. —light off: used as a regular telephone. 5 Replay button plays back recorded messages. Record button records a telephone conversation. 6 Flash button (For call waiting service users.) Clear/Erase button 22 7 Hold button Call Memory button starts a search in the Number Display (Caller ID) log. Call Memory indicator lights when a call was missed. (For Number Display service users.) 8 Fax button starts faxing. 9 Copy button starts copying. 10 Stop button 11 Resolution button selects the resolution when faxing or copying. Function button initiates programming. 12 Character Input Mode/Edit button Intercom button 13 Block button for the undesired call 14 Tone button switches to tone dialing. Night mode button 15 Sharp button Key lock button can lock the main unit so that no calls or settings can be made. To turn key lock on, press this button for about 3 seconds until a single beep is heard.  “  To turn key lock off, press this button for ” is displayed. about 3 seconds. 16 Monitor button

Finding the controls Portable handset (KX-FKN524) Ringer indicator flashes when you are receiving an incoming call or a call is put on hold. Liquid crystal display How to use key Earpiece ● To use the phonebook. ● To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. ● To adjust the volume. ● To make/answer calls. ● To end a call. ● To end or exit from editing or other operations. ● To put a call on hold. ● To start a search in the Number Display log. (For Number Display service users.) ● To use the speakerphone. Dial buttons Tone button ● To switch to tone dialing. Sharp button Key lock button ● To lock the portable handset so that no calls or setings can be made. To turn key lock on, press this button for about 3 seconds until a single beep is heard. ● “ ” is displayed. ● To turn key lock off, press this button for about 3 seconds. Portable handset number (and name) No link to the main unit Function menu that is controlled by or Battery strength How to use buttons and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. ● To change your voice. ● To mute your voice to the other party by pressing this button for about 2 seconds. (To release the mute, press this button again.) ● For call waiting service users. ● To clear letters/numbers. ● To page the main unit and/or portable handset(s). ● To change the character input mode. 33 Microphone Do not cover the microphone while talking.

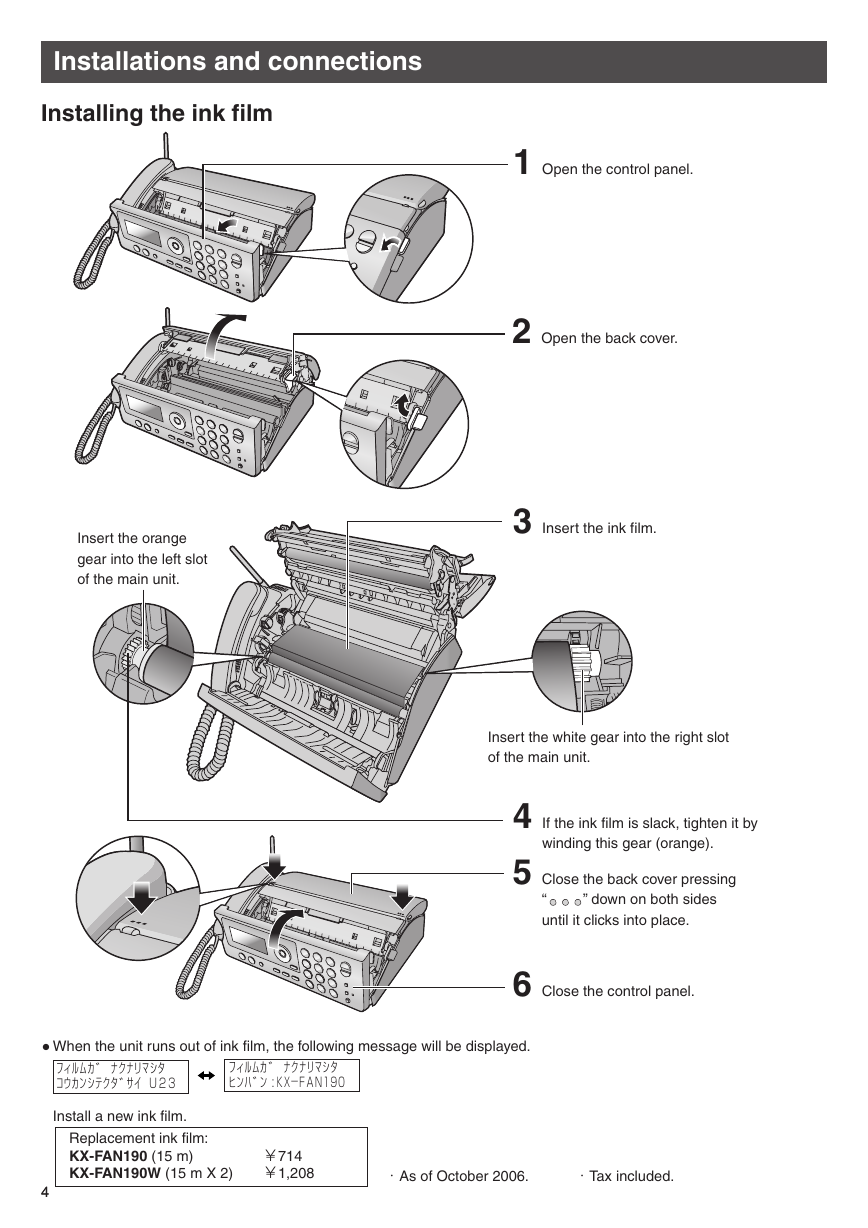

Installations and connections Installing the ink film Insert the orange gear into the left slot of the main unit. 1 Open the control panel. 2 Open the back cover. 3 Insert the ink film. Insert the white gear into the right slot of the main unit. 4 If the ink film is slack, tighten it by 5 Close the back cover pressing winding this gear (orange). “ ” down on both sides until it clicks into place. 6 Close the control panel.  When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU23 ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾋﾝﾊﾞﾝ : KX̶FAN190 Install a new ink film. Replacement ink film: KX-FAN190 (15 m) KX-FAN190W (15 m X 2) ￥1,208 ￥714 44 ・As of October 2006. ・Tax included.

Installations and connections Installing recording paper (A4 size) 1 Open the recording paper tray. 2 Set up the recording paper stands. Pull out the front stand first. Recording paper ● Printing side is on the back. 3 Insert the recording paper into the recording paper tray. (Up to 15 sheets) ● Fan the stack of recording paper. Folding the recording paper tray 1 Remove the recording paper and fold the recording 2 Close the recording paper tray. paper stands in. 55

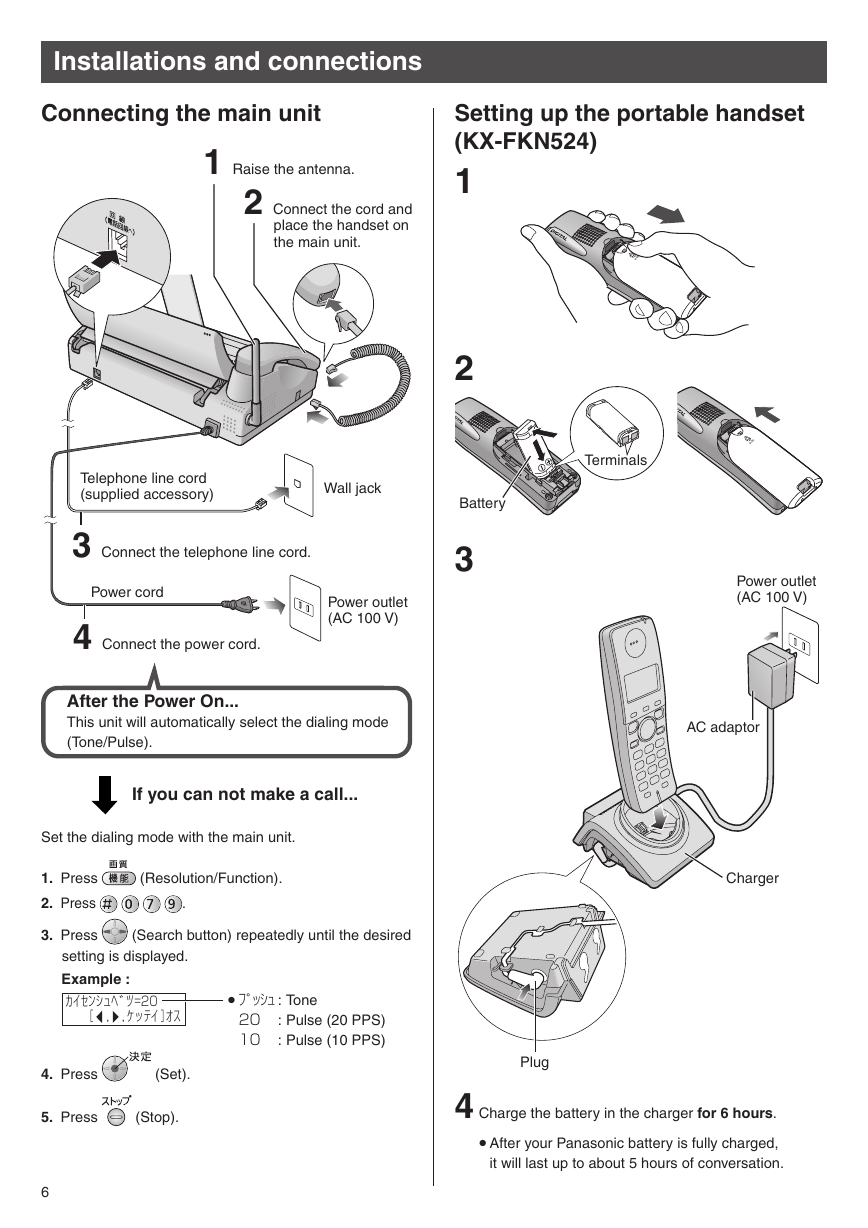

Installations and connections Connecting the main unit 1 Raise the antenna. 2 Connect the cord and place the handset on the main unit. Telephone line cord (supplied accessory) Wall jack 3 Connect the telephone line cord. Power cord 4 Connect the power cord. Power outlet (AC 100 V) After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). If you can not make a call... Set the dialing mode with the main unit. 1. Press 2. Press (Resolution/Function). . 3. Press (Search button) repeatedly until the desired Setting up the portable handset (KX-FKN524) 1 Ni-MH 2 Battery 3 Terminals Ni-MH Power outlet (AC 100 V) AC adaptor Charger setting is displayed. Example : ｶｲｾﾝｼｭﾍﾞﾂ＝20 ［ , , ｹｯﾃｲ］ｵｽ  ﾌﾟｯｼｭ : Tone 20 10 : Pulse (20 PPS) : Pulse (10 PPS) 4. Press (Set). 5. Press (Stop). 6 Plug 4 Charge the battery in the charger for 6 hours.  After your Panasonic battery is fully charged, it will last up to about 5 hours of conversation.

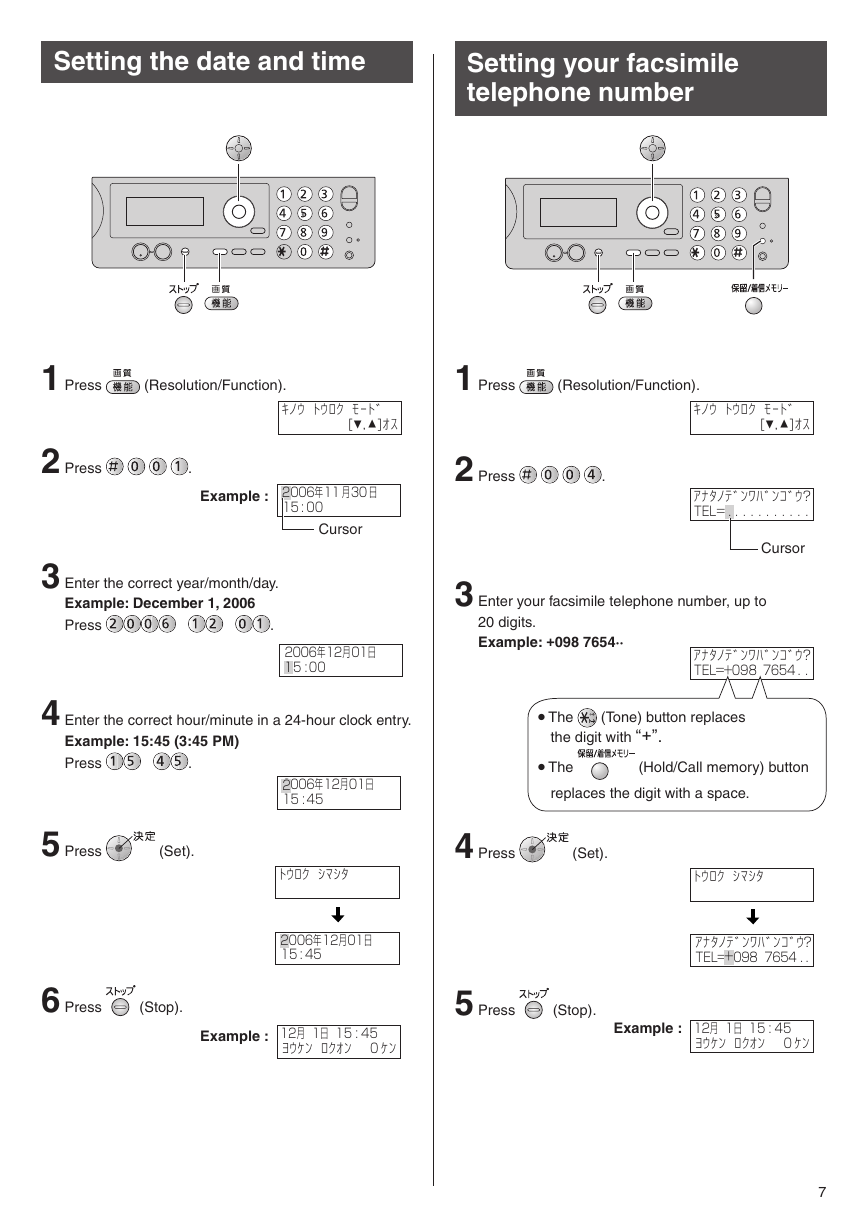

Setting the date and time Setting your facsimile telephone number 1 Press (Resolution/Function). 1 Press (Resolution/Function). 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ [▼, ▲]ｵｽ Example : 2006年11月30日 2 15 : 00 Cursor 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ [▼, ▲]ｵｽｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=．．．．．．．．．．． . Cursor 3 Enter the correct year/month/day. Example: December 1, 2006 Press . 2006年12月01日 1 25 :00 4 Enter the correct hour/minute in a 24-hour clock entry. Example: 15:45 (3:45 PM) Press . 3 Enter your facsimile telephone number, up to 20 digits. Example: +098 7654·· ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=+09807654 ．．  The (Tone) button replaces the digit with “+”. 5 Press (Set). 2006年12月01日 2 15 :45 ﾄｳﾛｸｼﾏｼﾀ 2 2006年12月01日 15 : 45  The (Hold/Call memory) button replaces the digit with a space. 4 Press (Set). ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=0098 7654 ．． + 6 Press (Stop). Example : 12月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 0 ｹﾝ 5 Press (Stop). Example : 12月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 0 ｹﾝ 7

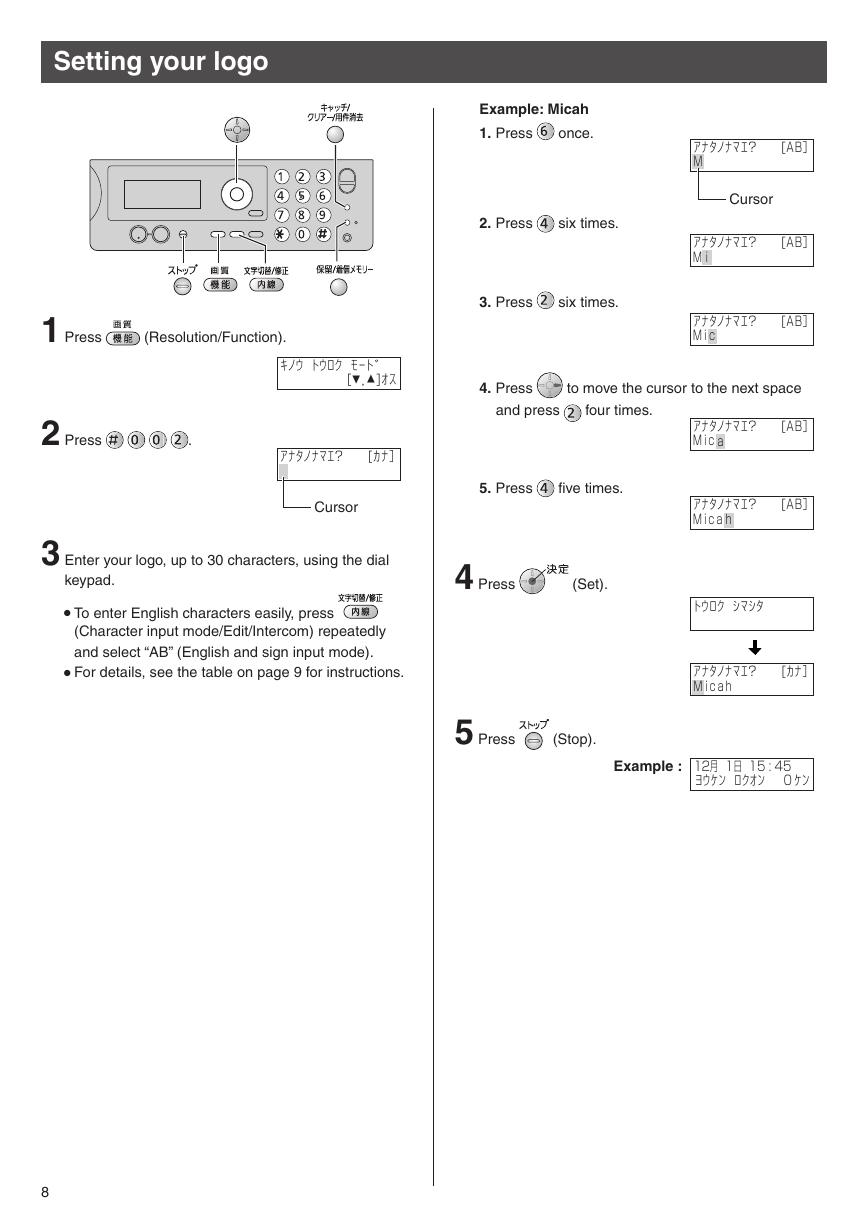

Setting your logo 1 Press (Resolution/Function). 2 Press . ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ [▼, ▲]ｵｽｱﾅﾀﾉﾅﾏｴ? [ｶﾅ］ Cursor 3 Enter your logo, up to 30 characters, using the dial keypad.  To enter English characters easily, press (Character input mode/Edit/Intercom) repeatedly and select “AB” (English and sign input mode).  For details, see the table on page 9 for instructions. Example: Micah 1. Press once. 2. Press six times. 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? [AB］ MM Cursor ｱﾅﾀﾉﾅﾏｴ? [AB］ Mii ｱﾅﾀﾉﾅﾏｴ? [AB］ Micc 4. Press to move the cursor to the next space and press four times. 5. Press five times. 4 Press (Set). ｱﾅﾀﾉﾅﾏｴ? [AB］ Micaa ｱﾅﾀﾉﾅﾏｴ? [AB］ Micahh ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾅﾏｴ? [ｶﾅ］ Micah M 5 Press (Stop). Example : 12月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 0 ｹﾝ 8
