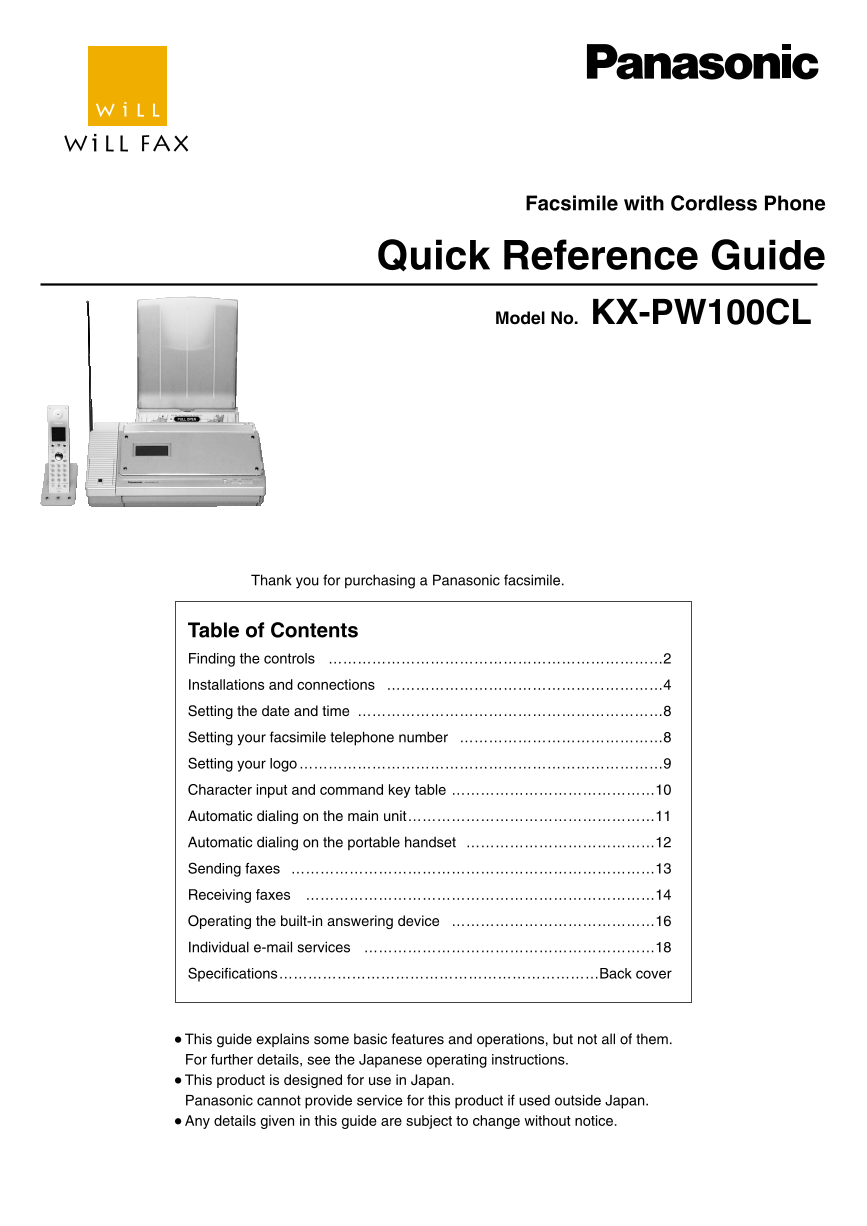

Facsimile with Cordless Phone Quick Reference Guide Model No. KX-PW100CL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections …………………………………………………4 Setting the date and time ………………………………………………………8 Setting your facsimile telephone number ……………………………………8 Setting your logo…………………………………………………………………9 Character input and command key table ……………………………………10 Automatic dialing on the main unit……………………………………………11 Automatic dialing on the portable handset …………………………………12 Sending faxes …………………………………………………………………13 Receiving faxes ………………………………………………………………14 Operating the built-in answering device ……………………………………16 Individual e-mail services ……………………………………………………18 Specifications…………………………………………………………Back cover This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. Any details given in this guide are subject to change without notice.

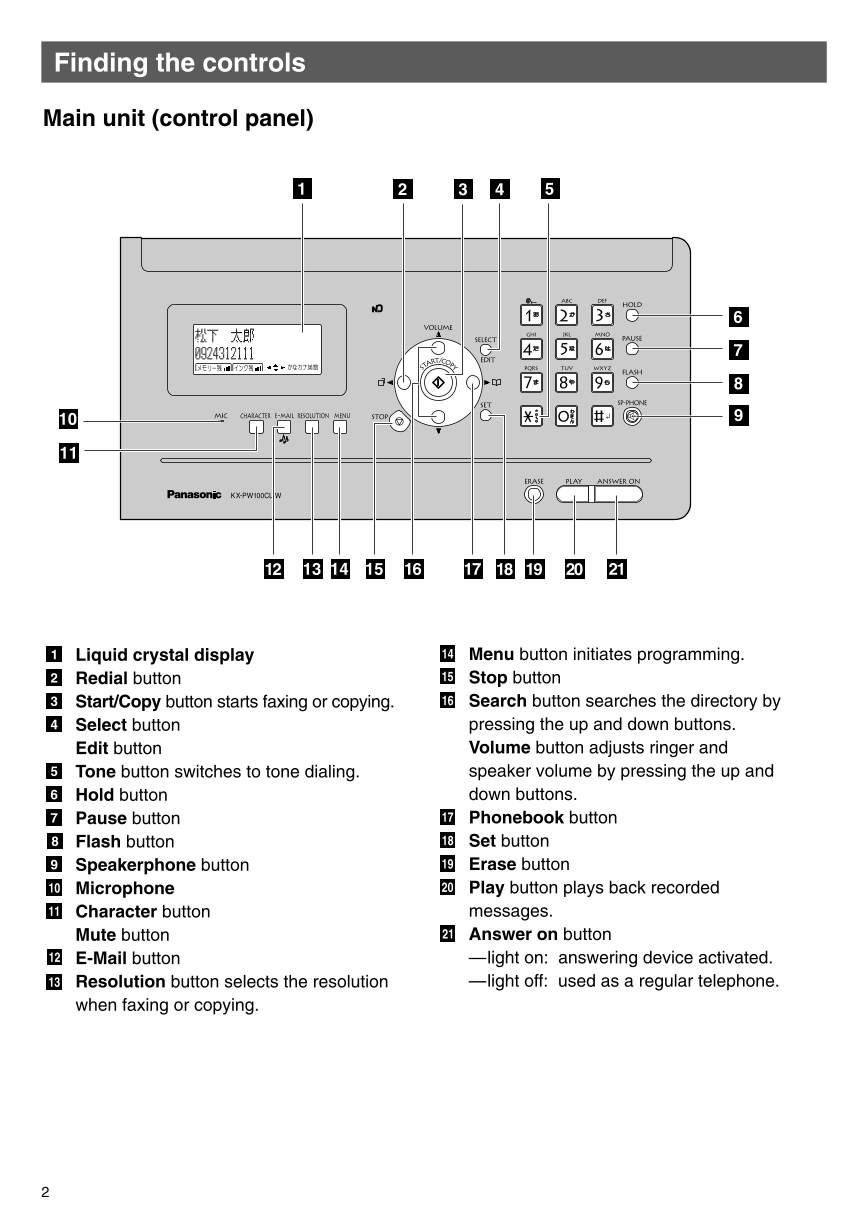

Finding the controls Main unit (control panel) 1 2 3 4 5 6 7 8 10 9 11 KX-PW100CL-W 12 13 14 15 16 17 18 19 20 21 1 Liquid crystal display 14 Menu button initiates programming. 2 Redial button 15 Stop button 3 Start/Copy button starts faxing or copying. 16 Search button searches the directory by 4 Select button pressing the up and down buttons. Edit button Volume button adjusts ringer and 5 Tone button switches to tone dialing. speaker volume by pressing the up and 6 Hold button down buttons. 7 Pause button 17 Phonebook button 8 Flash button 18 Set button 9 Speakerphone button 19 Erase button 10 Microphone 20 Play button plays back recorded 11 Character button messages. Mute button 21 Answer on button 12 E-Mail button —light on: answering device activated. 13 Resolution button selects the resolution —light off: used as a regular telephone. when faxing or copying. 2

Finding the controls Portable handset � How to use key How to use function buttons Function bu�ttons refer to the function ● To use the phonebook. Speaker displayed on the bottom of the display. They function differently depending on ● To redial the last number the mode. dialed. LCD (with back light) ● To adjust the volume. ● To change Hiragana into ● Displays battery strength, telephone Kanji. numbers etc. 1 2 3 KX-FKN100-W 子機1 ● To make/answer calls. ● To end a call. � メニュー� 留守� ● To end or exit from editing or other operations. メニュー留守 4 1 Portable handset number ● To put a call on hold. 2 Indicates which directions the key can be tilted. ● To clear letters/numbers. up and down left 3 Battery strength ● For call waiting service 4 Function menu that is users. controlled by function buttons. ● To receive faxes. � Charge indicator ● To use the speakerphone. When placed on a charger Charging Lights on Full Lights off Microphone Dial butt�ons Do not cover the Tone button� microphone while ● To switch to Tone dialing mode. talking. Sharp button Battery charger Switch ON : The environs of lights on OFF : The environs of lights off 3

Installations and connections Installing the ink film 1 4 Insert the white core into the slots shown in the Open the control panel. picture below. White core 1 Press here. Control panel 2 Open the control panel until it locks. 5 If the ink film is slack, tighten it by winding the “T” shaped gear. “T” shaped gear (blue) Do not be 2 slacken. Insert the ink film. 1 Find the “T” shaped gear (blue). Ink film 2 Insert the blue core into the right slot of the main unit. 3 Close the control panel until it locks. 3 Insert the “T” shaped gear (blue) into the left slot of the main unit. “T” shaped gear (blue) Right slot 3 2 Blue core 4

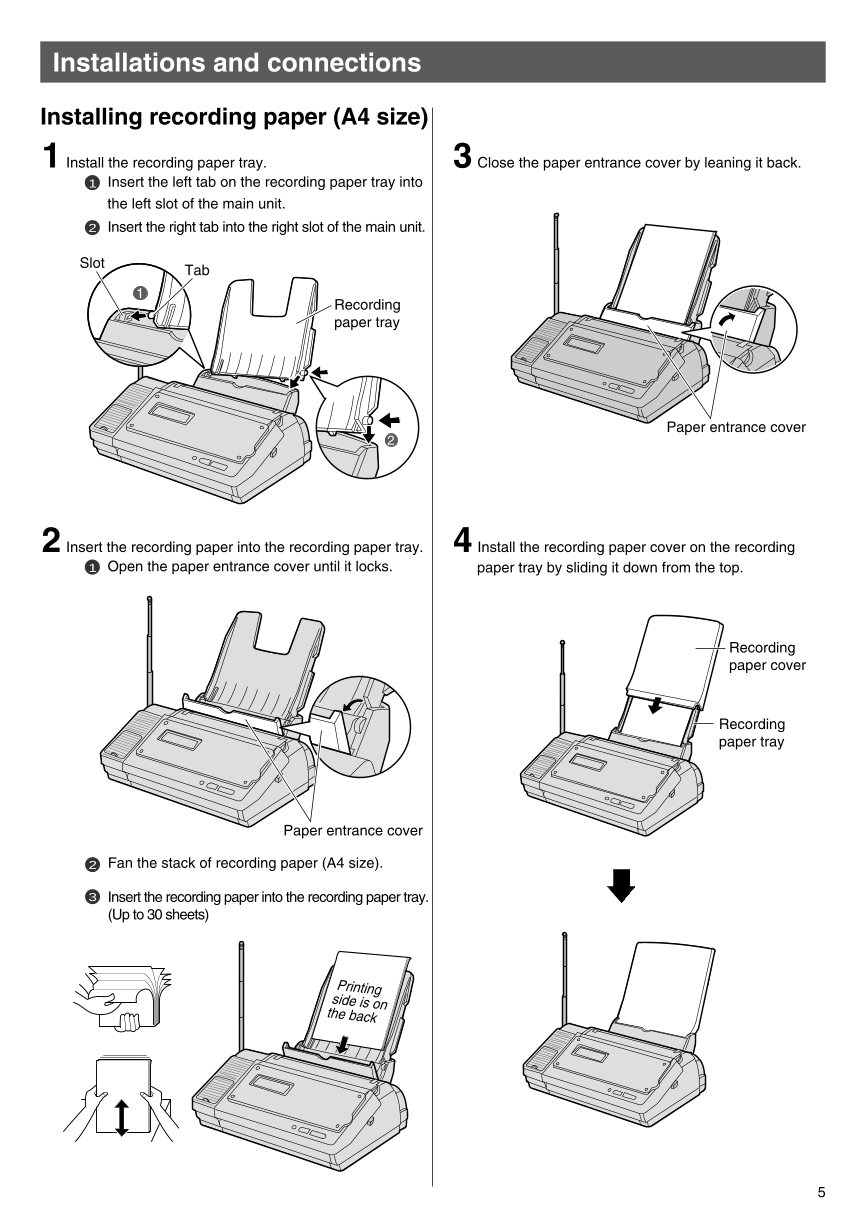

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper tray. 3 Close the paper entrance cover by leaning it back. 1 Insert the left tab on the recording paper tray into the left slot of the main unit. 2 Insert the right tab into the right slot of the main unit. Slot Tab 1 Recording paper tray Paper entrance cover 2 2 Insert the recording paper into the recording paper tray. 4 Install the recording paper cover on the recording 1 Open the paper entrance cover until it locks. paper tray by sliding it down from the top. Recording paper cover Recording paper tray Paper entrance cover 2 Fan the stack of recording paper (A4 size). 3 Insert the recording paper into the recording paper tray. (Up to 30 sheets) Printing side is o t n h e back 5

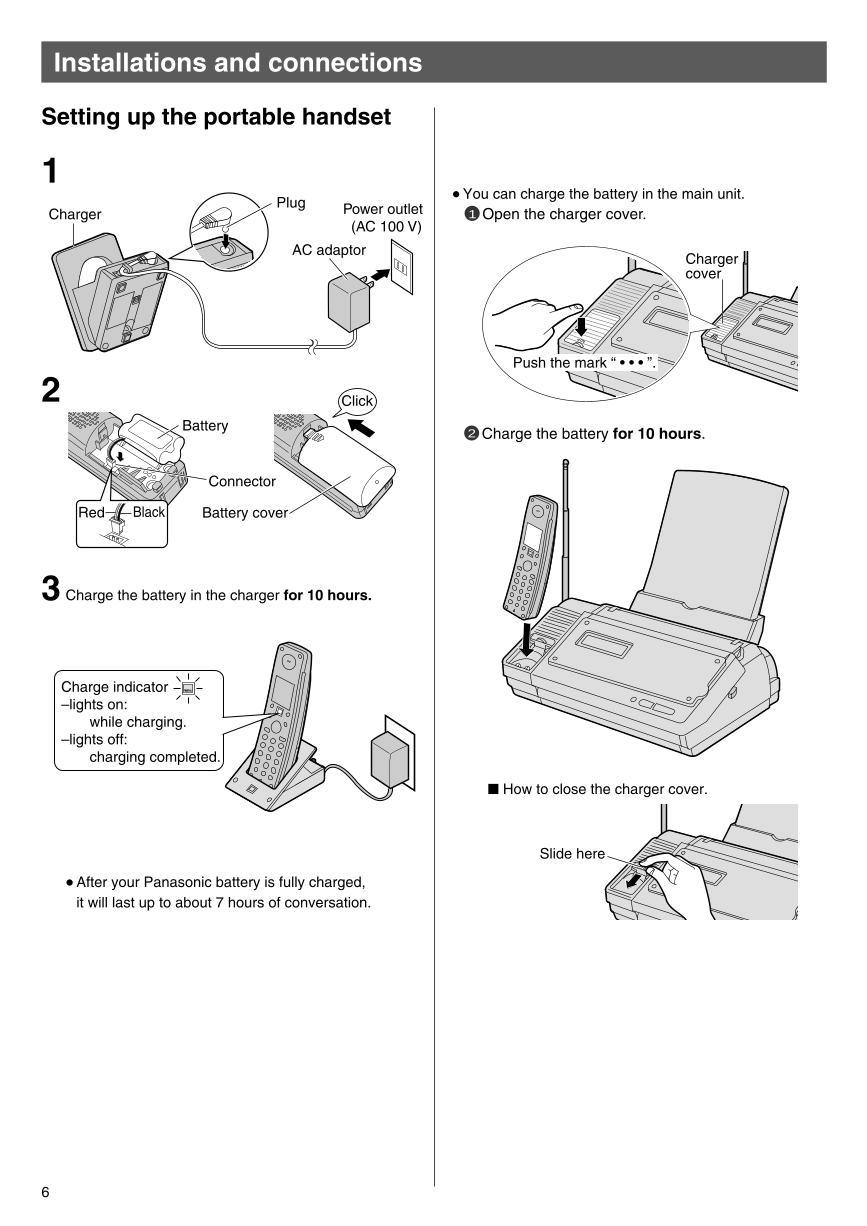

Installations and connections Setting up the portable handset 1 You can charge the battery in the main unit. Plug Charger Power outlet 1 Open the charger cover. (AC 100 V) AC adaptor Charger cover Push the mark “ • • • ”. 2 Click Battery 2 Charge the battery for 10 hours. Connector Red Black Battery cover 3 Charge the battery in the charger for 10 hours. Charge indicator –lights on: while charging. –lights off: charging completed. How to close the charger cover. Slide here After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. 6

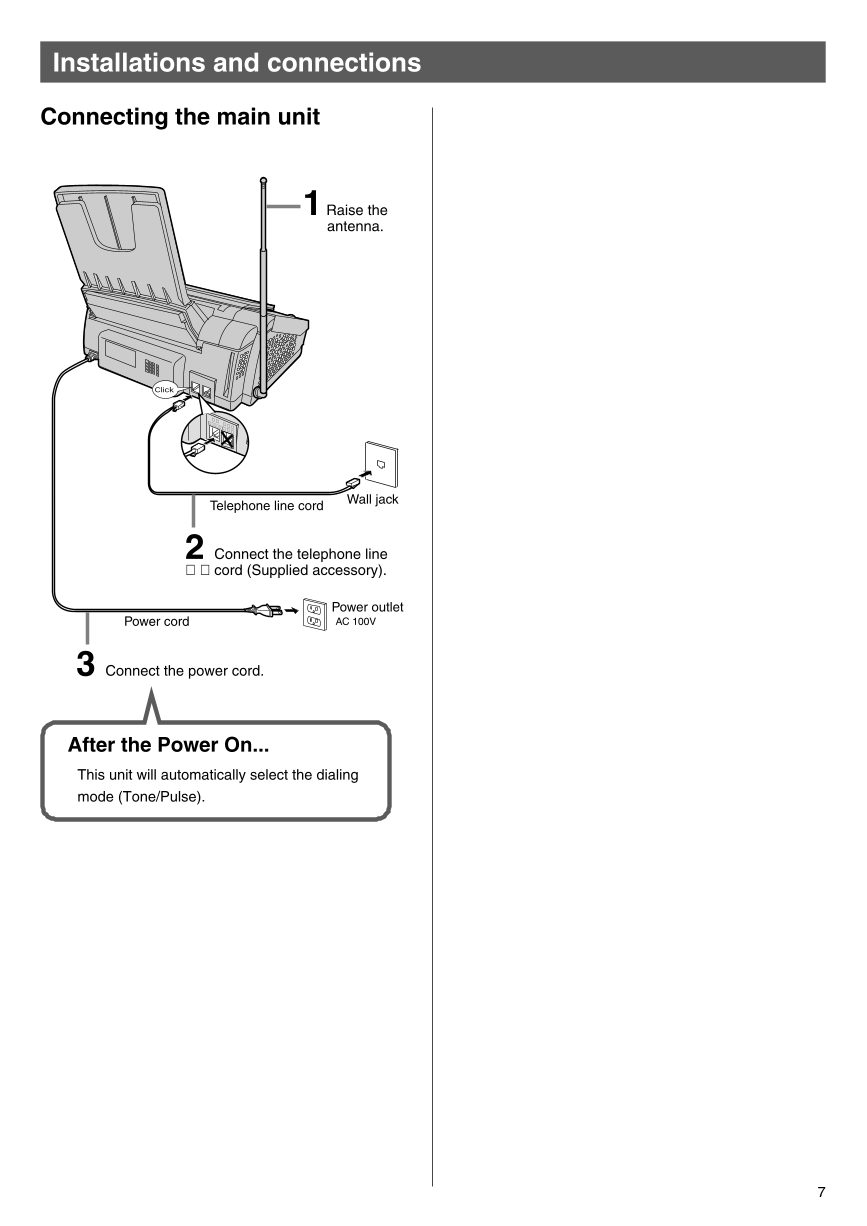

Installations and connections Connecting the main unit 1 Raise the antenna. Click 回 (電線話回線停へ)電電話用機 Telephone line cord Wall jack 2 Connect the telephone line 　　cord (Supplied accessory). Power outlet Power cord AC 100V 3 Connect the power cord. After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). 7

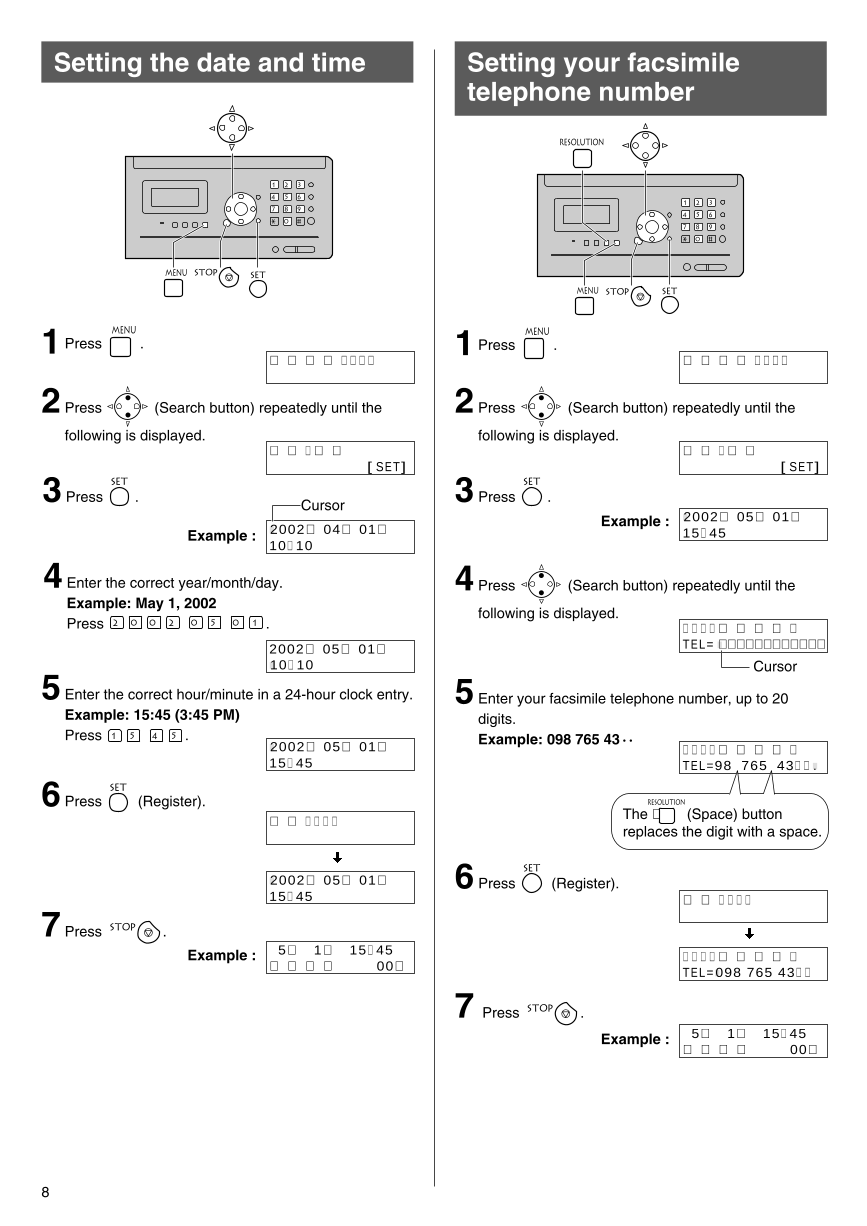

Setting the date and time Setting your facsimile telephone number 1 Press . 1 Press . 機能登録ﾓｰﾄﾞ機能登録ﾓｰﾄﾞ 2 Press (Search button) repeatedly until the 2 Press (Search button) repeatedly until the following is displayed. following is displayed. 最初の設定最初の設定 AAAAAAAAAAA[ SET] AAAAAAAAAAA[ SET] 3 Press . Cursor 3 Press . ■2002年 04月 01日 Example : ■2002年 05月 01日 Example : 15：45 10：10 4 Enter the correct year/month/day. 4 Press (Search button) repeatedly until the Example: May 1, 2002 following is displayed. Press . あなたの電話番号？ 2002年 05月 01日 TEL= ■．．．．．．．．．．．． ■10：10 Cursor 5 Enter the correct hour/minute in a 24-hour clock entry. 5 Enter your facsimile telephone number, up to 20 Example: 15:45 (3:45 PM) digits. Press . ■2002年 05月 01日 Example: 098 765 43 · · あなたの電話番号？ 15：45 TEL=987765743・・■. 6 Press (Register). 登録しました The 　 (Space) button replaces the digit with a space. ■2002年 05月 01日 6 Press (Register). 15：45 登録しました 7 Press . Example : 05月 01日 015：45 あなたの電話番号？用件録音ｱｱｱｱ 00件 TEL=■098 765 43・・ 7 Press . Example : 05月 01日 015：45 用件録音ｱｱｱｱ 00件 8
