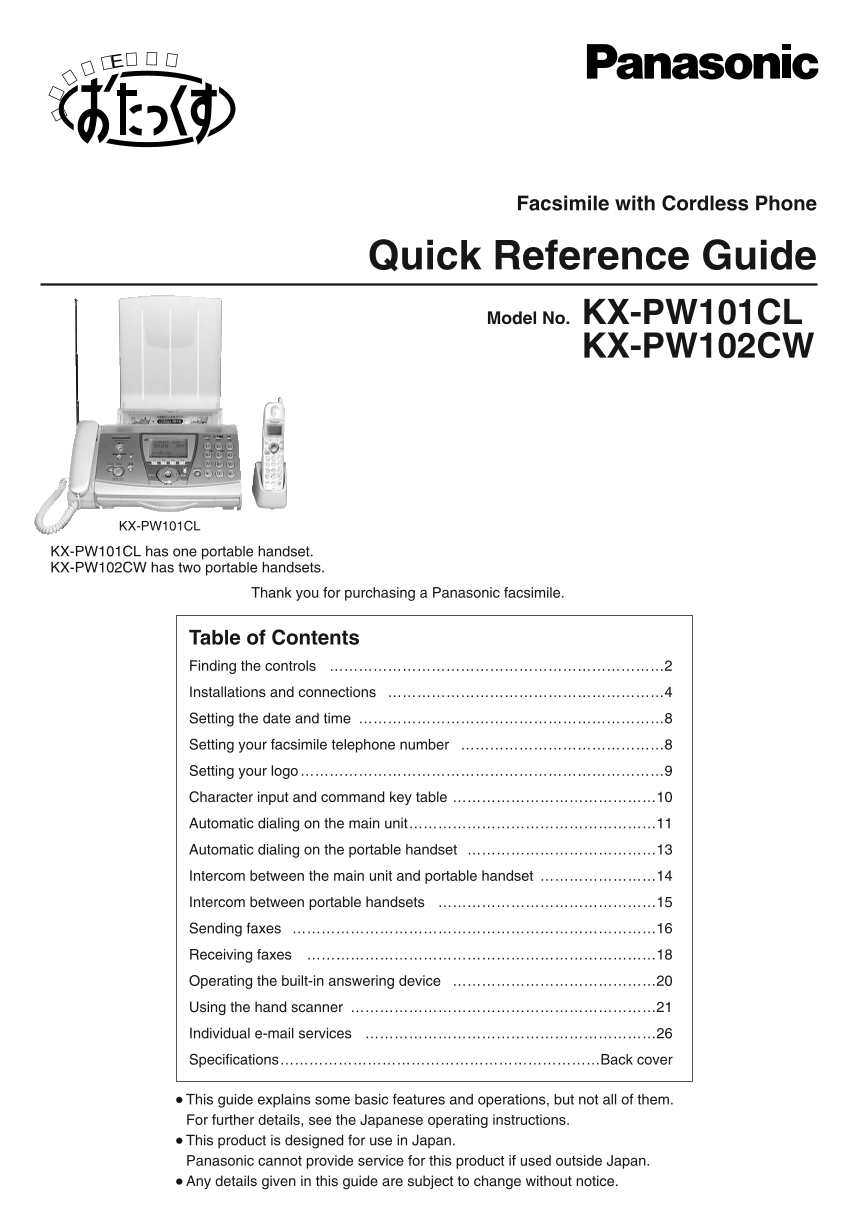

　Eメール　　 Facsimile with Cordless Phone Quick Reference Guide Model No. KX-PW101CL KX-PW102CW KX-PW101CL KX-PW101CL has one portable handset. KX-PW102CW has two portable handsets. Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections …………………………………………………4 Setting the date and time ………………………………………………………8 Setting your facsimile telephone number ……………………………………8 Setting your logo…………………………………………………………………9 Character input and command key table ……………………………………10 Automatic dialing on the main unit……………………………………………11 Automatic dialing on the portable handset …………………………………13 Intercom between the main unit and portable handset ……………………14 Intercom between portable handsets ………………………………………15 Sending faxes …………………………………………………………………16 Receiving faxes ………………………………………………………………18 Operating the built-in answering device ……………………………………20 Using the hand scanner ………………………………………………………21 Individual e-mail services ……………………………………………………26 Specifications…………………………………………………………Back cover This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. Any details given in this guide are subject to change without notice. 　　

Finding the controls Main unit (control panel) 1 2 3 4 5 6 � 7 8 9 (KX-PW101CL is shown.) 10 11 12 13 14 15 16 17 18 1 Microphone 11 Multi-operation buttons refer to the 2 Liquid crystal display function displayed on the display panel. 3 Memo Message button & indicator 12 Redial button records/plays back a voice memo. 13 Function button initiates programming. Mute button 14 Search button searches the directory by 4 E-Mail button & indicator pressing the up and down buttons. Pause button Volume button adjusts ringer, speaker 5 Speed Dial button and handset volume by pressing the up 6 Auto Answer button and down buttons. —light on: answering device activated. 15 Phonebook button. —light off: used as a regular telephone. 16 Portable Handset button 7 Replay button plays back recorded 17 Speakerphone button messages. / Record button records 18 Tone button switches to tone dialing. telephone calls. 8 Stop button 9 Start/Fax/Copy button starts faxing or copying. 10 Resolution button selects the resolution when faxing or copying. 2

Finding the controls Portable handset How to use 再ダイヤル電話帳 key Call/Charge indicator 音量/変換 ● when receiving a call, the indicator will blink. ● 電話帳 To use the phonebook. Speaker ● when placed on a charger Charging Apricot (Red) ● To redial the last number 再ダイヤル Full Off dialed. LCD (with back light) ● To adjust the volume. ● To change Hiragana into ● 音量/変換 Displays battery strength, telephone Kanji. numbers etc. 1 2 3 子機1 外線 ● To make/answer calls. クリアー ● To page the main� unit or 内線 another portable handset. 機能� 留守電� 機能留守電 ● To clear letters/numbers. 4 ● To end a call. 1 Portable handset number 切 ● To end or exit from editing 2 Indicates which directions the or other operations. 再ダイヤル電話帳 key can be tilted. 着信メモリー ● To put a call on hold. 音量/変換保留 ● To start a search in the up an down Number Display log. left ト ● To talk to another portable ー 3 Battery strength ク handset. 4 Function menu that is controlled by or . キャッチ ● For call waiting service � How to use buttons users. � ファクス � ● To receive faxes. and buttons refer to the function displayed on the bottom of the display. めざまし They function differently depending on スピーカーホン ● To use the speakerphone. the mode. � Dial bu�ttons ● Used when installing Microphone Tone button� 増設 additional portable Do not cover the トーン ● To switch to Tone dialing mode. handsets. microphone while Sharp button talking. Hand scanner Memory indicator (Shows the amount of memory being used) � Battery indicator (Shows the amount of battery power left) To start or stop scanning Operation indicator Scanning width button (Shows the condition of the Resolution button scanner) Delete button (To delete the last page of scanned content, press for 2 seconds.) 3

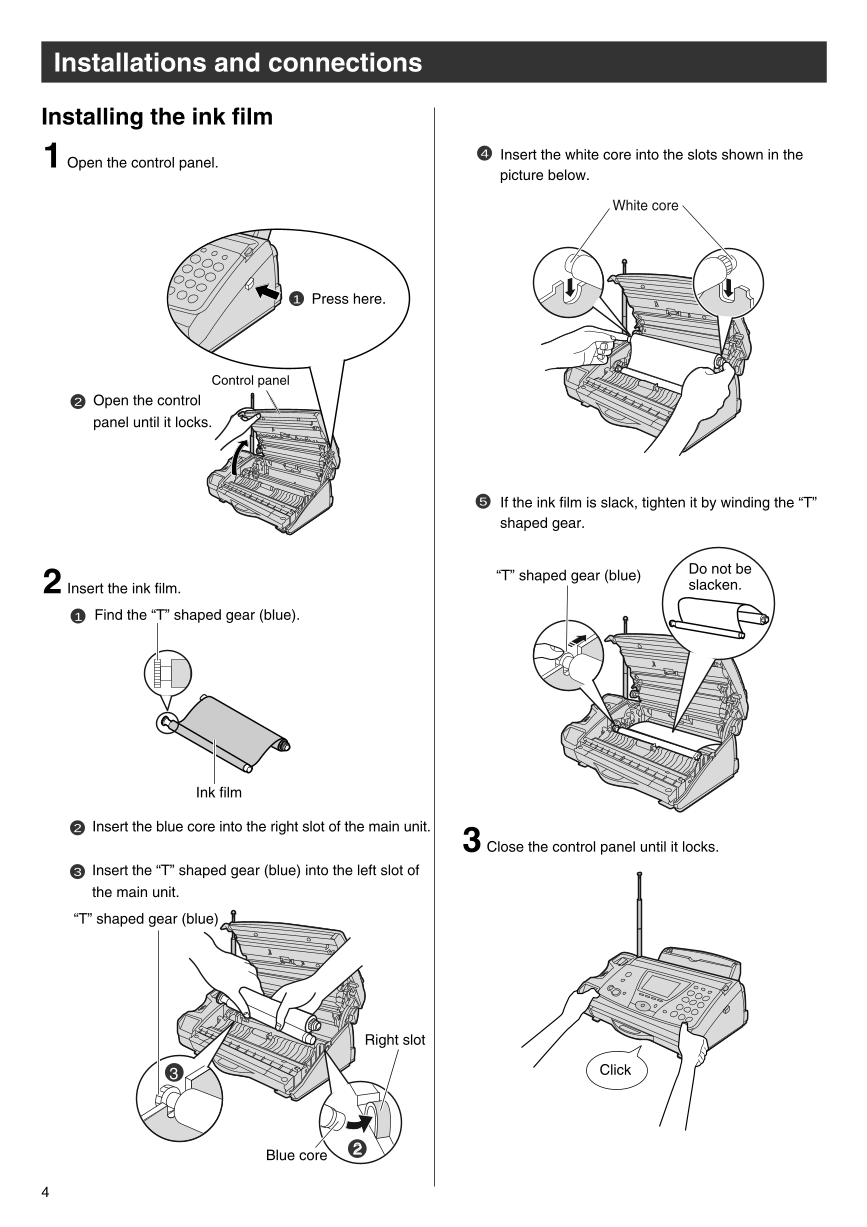

Installations and connections Installing the ink film 1 4 Open the control panel. Insert the white core into the slots shown in the picture below. White core 1 Press here. Control panel 2 Open the control panel until it locks. 2 5 If the ink film is slack, tighten it by winding the “T” shaped gear. 2 “T” shaped gear (blue) Do not be Insert the ink film. slacken. 1 Find the “T” shaped gear (blue). Ink film 2 Insert the blue core into the right slot of the main unit. 3 Close the control panel until it locks. 3 Insert the “T” shaped gear (blue) into the left slot of the main unit. “T” shaped gear (blue) Right slot 33 Blue core 2 4

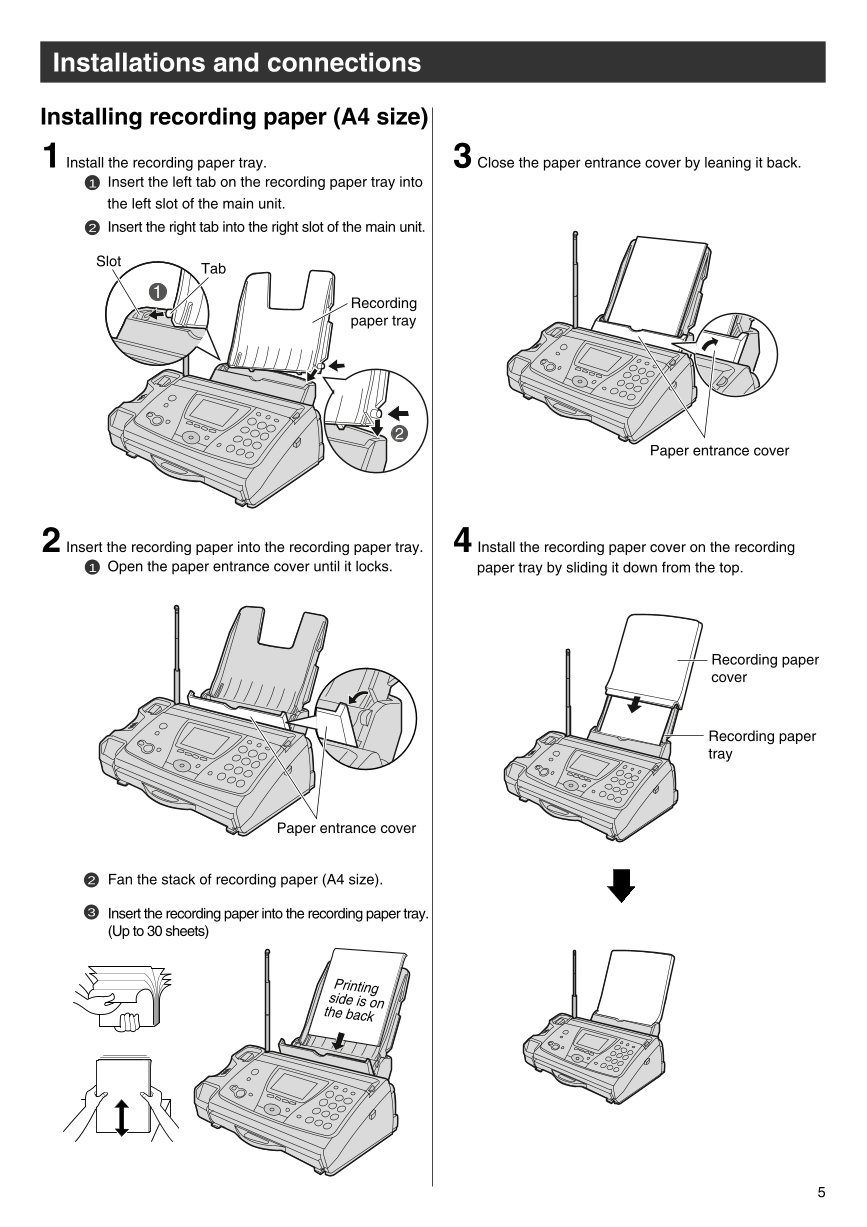

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper tray. 3 Close the paper entrance cover by leaning it back. 1 Insert the left tab on the recording paper tray into the left slot of the main unit. 2 Insert the right tab into the right slot of the main unit. Slot Tab 1 Recording paper tray 2 Paper entrance cover 2 Insert the recording paper into the recording paper tray. 4 Install the recording paper cover on the recording 1 Open the paper entrance cover until it locks. paper tray by sliding it down from the top. Recording paper cover Recording paper tray Paper entrance cover 2 Fan the stack of recording paper (A4 size). 3 Insert the recording paper into the recording paper tray. (Up to 30 sheets) Printing side is o t n h e back 5

Installations and connections Setting up the hand scanner Setting up the portable handset 1 Press down the knob of the hand scanner, and pull 1 out the hand scanner from the main unit. Power outlet (AC 100 V) Charger AC adaptor Plug 2 2 Battery Slide and open the battery cover by slightly pushing Click part. Imaging sensor Connector Black Red Battery cover Battery cover 3 Charge the battery in the charger for 10 hours. 3 Charge indicator Connect the battery to the hand scanner, and close –lights apricot (red): the battery cover. while charging. –lights off: Cord(Red) Connector charging completed. Cord(Black) 4 Insert the hand scanner into the main unit. Charge the battery for 10 hours after connecting After your Panasonic battery is fully charged, the power cord to the power outlet. it will last up to about 7 hours of conversation. Display ｽｷｬﾅｰ設定中� 読取枚数　　 0枚 � � Bottom side The hand scanner battery is charged when the hand scanner is inserted into the main unit. 6

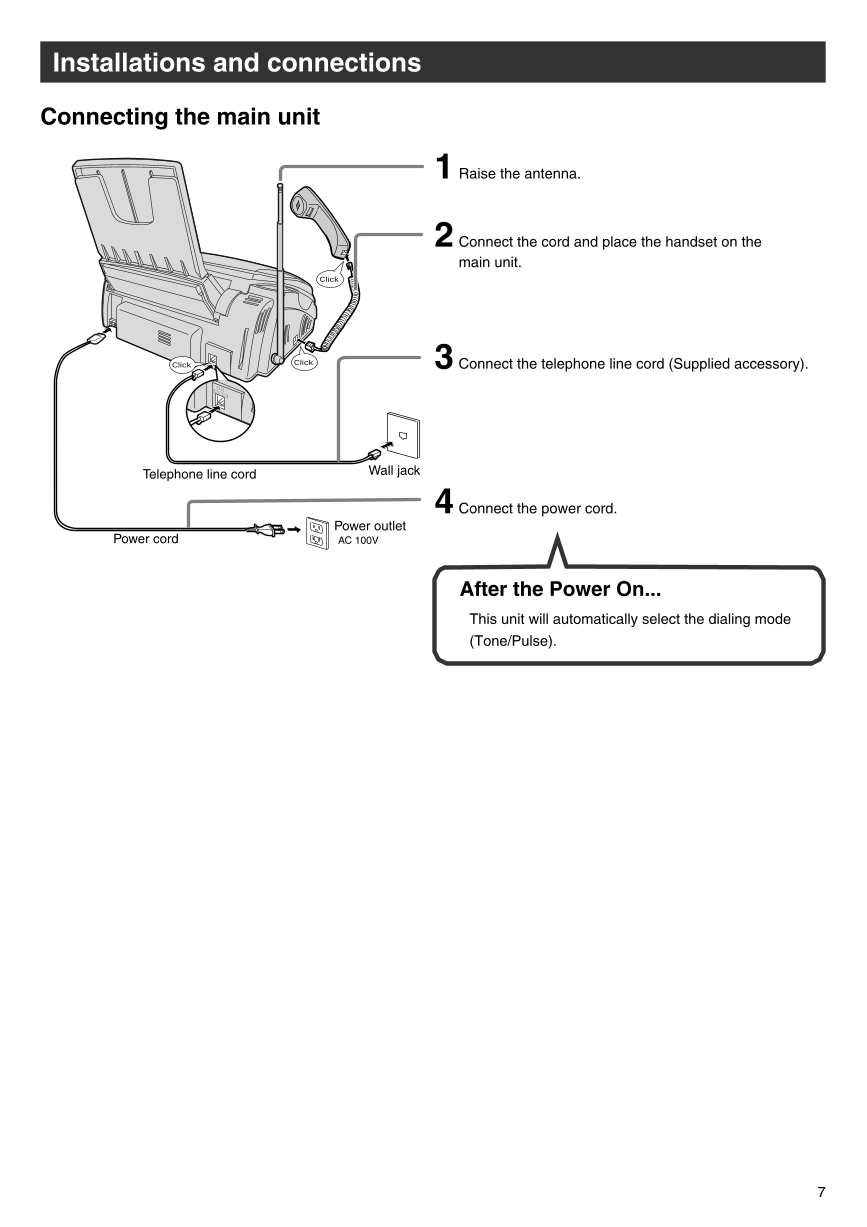

Installations and connections Connecting the main unit 1 Raise the antenna. 2 Connect the cord and place the handset on the main unit. Click Click Click 3 Connect the telephone line cord (Supplied accessory). 回 (電線話回線へ) Telephone line cord Wall jack 4 Connect the power cord. Power outlet Power cord AC 100V After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). 7

Setting the date and time Setting your facsimile telephone number F3 画質� F3 ストップ� ストップ� 機能� 機能� 1 Press 機能� (Function). 1 Press 機能� (Function). 機能登録ﾓｰﾄﾞ機能登録ﾓｰﾄﾞ 2 Press (Search button) repeatedly until the 2 Press (Search button) repeatedly until the following is displayed. following is displayed. ◆最初の設定 ◆最初の設定 ◆呼出音とﾍﾞﾙ回数 ◆呼出音とﾍﾞﾙ回数ｱｱｱ決定は[ F3] を押すｱｱｱ決定は[ F3] を押す 3 決定決定 Press F3 (Set). 3 Press F3 (Set). 日付時刻日付時刻 Example : 2002年 01月 01日 Example : 2002年 02月 01日 00：00 15：45 Cursor 4 Enter the correct year/month/day. 4 Press (Search button) repeatedly until the Example: February 1, 2002 following is displayed. あなたの電話番号 ? Press . TEL=1 .．．．．．．．．．．．日付時刻 2002年 02月 01日 00：00 Cursor 5 5 Enter your facsimile telephone number, up to 20 Enter the correct hour/minute in a 24-hour clock entry. digits. Example: 15:45 (3:45 PM) Example: 098 765 43 · · Press . あなたの電話番号 ? 日付時刻 TEL=98 765 43・・ . 2002年 02月 01日 15：45 画質� 6 登録 The 　 (Space) button Press F3 (Register). replaces the digit with a space. 登録しました 6 登録 Press F3 (Register). 登録しました日付時刻 2002年 02月 01日 15：45 あなたの電話番号 ? 7 ストップ� TEL=9098 765 43・・ Press (Stop). 02月 01日 115：45 Example : 用件録音ｱｱｱｱ00件 7 ストップ� Press (Stop). 02月 01日 115：45 Example : 用件録音ｱｱｱｱ00件 8
