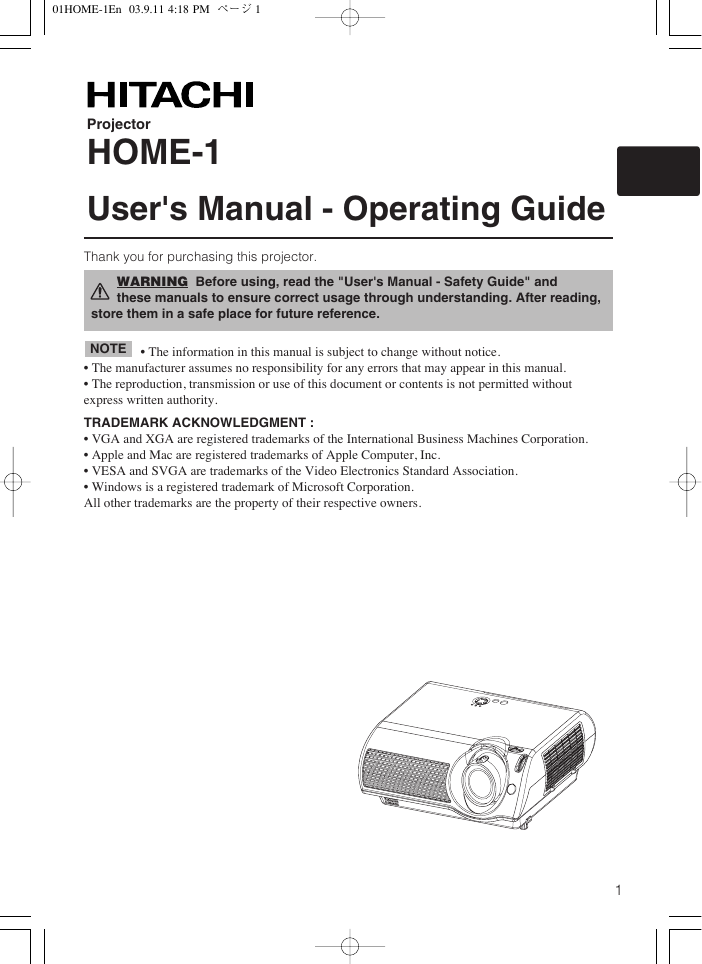

01HOME-1En 03.9.11 4:18 PM ページ 1 Projector HOME-1 User's Manual - Operating Guide Thank you for purchasing this projector. WARNING Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : • VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple and Mac are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. 1

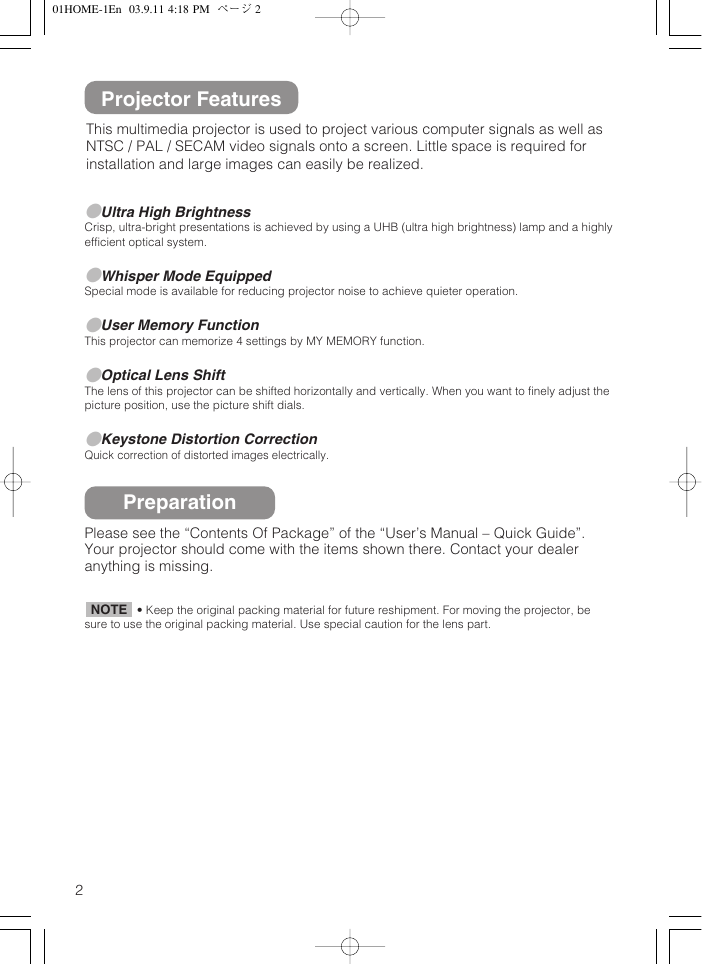

01HOME-1En 03.9.11 4:18 PM ページ 2 Projector Features This multimedia projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. GUltra High Brightness Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system. GWhisper Mode Equipped Special mode is available for reducing projector noise to achieve quieter operation. GUser Memory Function This projector can memorize 4 settings by MY MEMORY function. GOptical Lens Shift The lens of this projector can be shifted horizontally and vertically. When you want to finely adjust the picture position, use the picture shift dials. GKeystone Distortion Correction Quick correction of distorted images electrically. Preparation Please see the “Contents Of Package” of the “User’s Manual – Quick Guide”. Your projector should come with the items shown there. Contact your dealer anything is missing. NOTE sure to use the original packing material. Use special caution for the lens part. • Keep the original packing material for future reshipment. For moving the projector, be 2

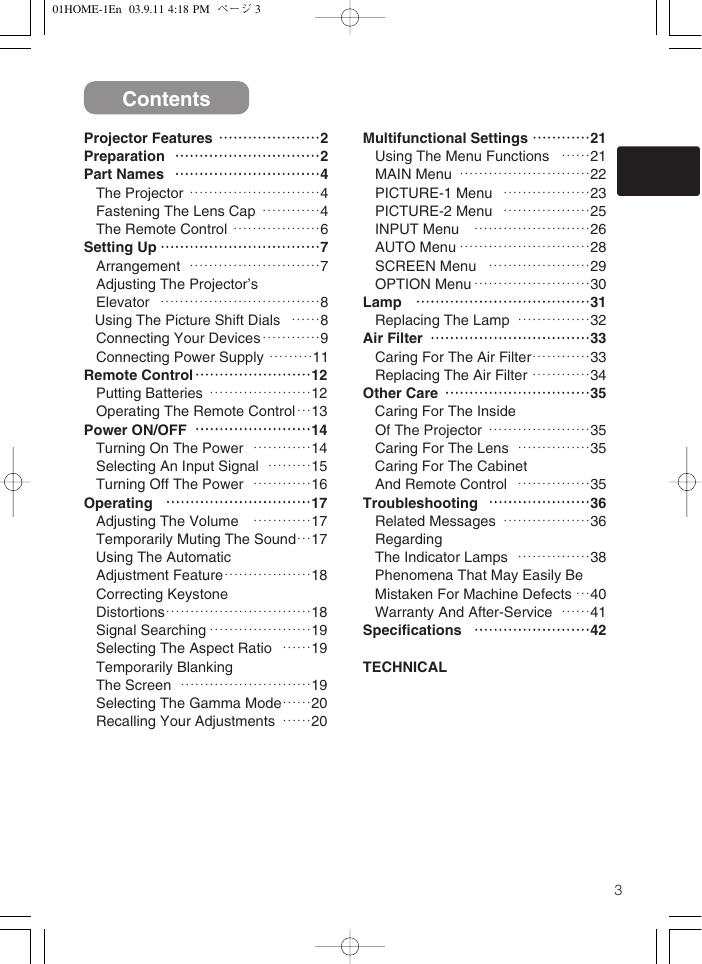

01HOME-1En 03.9.11 4:18 PM ページ 3 Contents Projector Features ……………………………………2 Preparation ……………………………………………………2 Part Names ……………………………………………………4 The Projector ………………………4 Fastening The Lens Cap …………4 The Remote Control ………………6 Setting Up …………………………………………………………7 Arrangement ………………………7 Adjusting The Projector’s Elevator ……………………………8 Using The Picture Shift Dials ……8 Connecting Your Devices…………9 Connecting Power Supply ………11 Remote Control…………………………………………12 Putting Batteries …………………12 Operating The Remote Control…13 Power ON/OFF …………………………………………14 Turning On The Power …………14 Selecting An Input Signal ………15 Turning Off The Power …………16 Operating ……………………………………………………17 Adjusting The Volume …………17 Temporarily Muting The Sound…17 Using The Automatic Adjustment Feature………………18 Correcting Keystone Distortions…………………………18 Signal Searching …………………19 Selecting The Aspect Ratio ……19 Temporarily Blanking The Screen ………………………19 Selecting The Gamma Mode……20 Recalling Your Adjustments ……20 Multifunctional Settings ……………………21 Using The Menu Functions ……21 MAIN Menu ………………………22 PICTURE-1 Menu ………………23 PICTURE-2 Menu ………………25 INPUT Menu ……………………26 AUTO Menu ………………………28 SCREEN Menu …………………29 OPTION Menu ……………………30 Lamp ………………………………………………………………31 Replacing The Lamp ……………32 Air Filter …………………………………………………………33 Caring For The Air Filter…………33 Replacing The Air Filter …………34 Other Care ……………………………………………………35 Caring For The Inside Of The Projector …………………35 Caring For The Lens ……………35 Caring For The Cabinet And Remote Control ……………35 Troubleshooting ……………………………………36 Related Messages ………………36 Regarding The Indicator Lamps ……………38 Phenomena That May Easily Be Mistaken For Machine Defects …40 Warranty And After-Service ……41 Specifications …………………………………………42 TECHNICAL 3

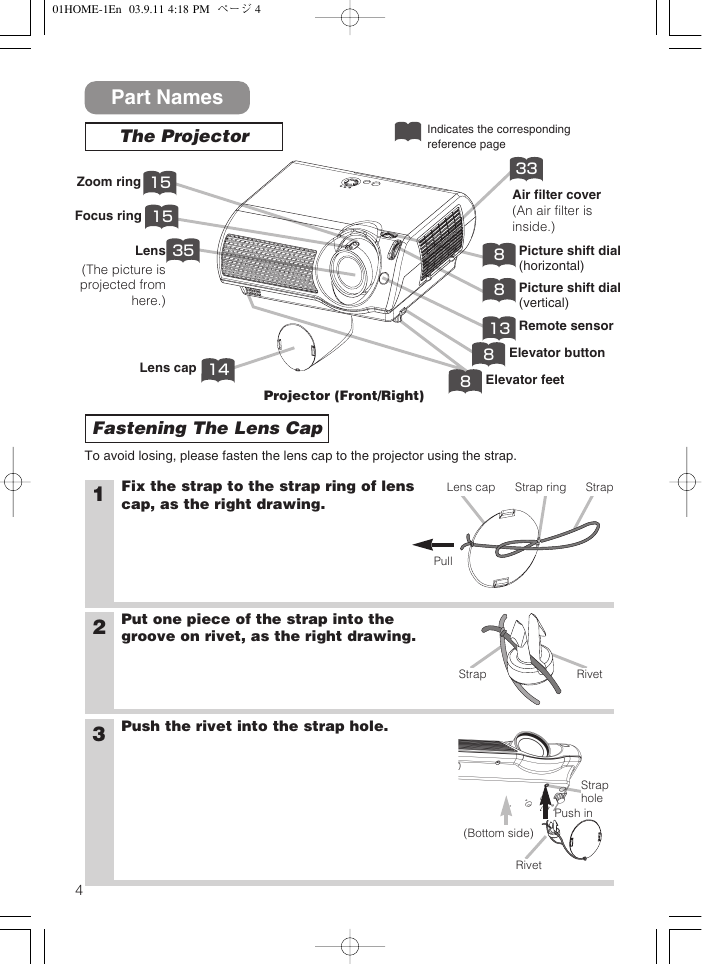

Indicates the corresponding reference page 33 Air filter cover (An air filter is inside.) 8 8 Picture shift dial (horizontal) Picture shift dial (vertical) Remote sensor 13 8 Elevator feet Elevator button 01HOME-1En 03.9.11 4:18 PM ページ 4 Part Names The Projector Zoom ring 15 Focus ring 15 35 Lens (The picture is projected from here.) Lens cap 14 Projector (Front/Right) 8 Fastening The Lens Cap To avoid losing, please fasten the lens cap to the projector using the strap. 1 Fix the strap to the strap ring of lens cap, as the right drawing. Lens cap Strap ring Strap Pull 2 Put one piece of the strap into the groove on rivet, as the right drawing. 3 Push the rivet into the strap hole. 4 Strap Rivet Strap hole Push in (Bottom side) Rivet

01HOME-1En 03.9.11 4:18 PM ページ 5 Part Names (continued) The Projector (continued) 15 INPUT button toggles between the signal ports. COMPUTER VIDEO S-VIDEO COMPONENT VIDEO 14 STANDBY/ON button prepares for turning the power on/off. Refer to the section “Power ON/OFF”. 14 POWER indicator tells the state of power supply. Refer to the section “Power ON/OFF”. 38 TEMP indicator lights or blinks when any problem about internal temperature has happened. TEMP POWER LAMP STANDBY/ON INPUT MENU 38 LAMP indicator lights or blinks when any problem about the lamp has happened. MENU buttons 21 operate the menu function. AUDIO R port L port (from a video equipment) 10 10 AUDIO port (from a computer) 10 S-VIDEO port 10 VIDEO port 10 Ports cover 10 COMPONENT VIDEO - Y 10 COMPONENT VIDEO - CB/PB 10 COMPONENT VIDEO - CR/PR 10 10 CONTROL port COMPUTER port 10 Power switch 14 11 AC inlet Projector (Rear/Left) 5

01HOME-1En 03.9.11 4:18 PM ページ 6 Part Names (continued) The Remote Control S-VIDEO button selects the input signal of S-VIDEO port. 15 19 SEARCH button searches for an input signal between the following signal ports of COMPUTER, VIDEO, S-VIDEO and COMPONENT VIDEO. VIDEO button selects the input signal of VIDEO port. 15 COMPUTER button selects the input signal of COMPUTER port. 15 WIDE button 19 toggles between the modes for aspect ratio. AUTO button executes automatic adjustment. 18 CINEMA, DYNAMIC, NORMAL, CUSTOM buttons select each of gamma mode. 20 18 KEYSTONE button turns on/off the KEYSTONE mode. In the KEYSTONE mode, To adjust the keystone, use the cursor buttons. / 21 ESC button returns to the previous display at the menu functions. 6 OFF button 16 prepares for turning the power off. ON button 14 prepares for turning the power on. 15 COMPONENT button selects the input signal of COMPONENT port. VOLUME button 17 turns on/off the VOLUME mode. In the VOLUME mode, To adjust the volume, use the cursor buttons. / BLANK button 19 blanks the screen temporarily. MUTE button 17 mutes/restores the sound. 20 M1, M2, M3, M4 buttons call the setting data on each memory. MENU button 21 opens/closes the menu. RESET button 21 cancels the adjustment in progress. * The adjustments of the volume etc. are not reset. SEARCH SRC ON OFF VIDEO S-VIDEO COMPONENT V SV C COMPUTER PC VOLUME AUTO WIDE BLANK MUTE AT WID CINEMA DYNAMIC NORMAL CUSTOM CIN DYN NOR CUS MYMEMORY M1 M2 M3 M4 KEYSTONE MENU ENTER ENT ESC E RESET ENTER button 21 proceeds to the next operation at the menu functions. , , , 21 (Cursor) buttons works for adjusting or menu controlling.

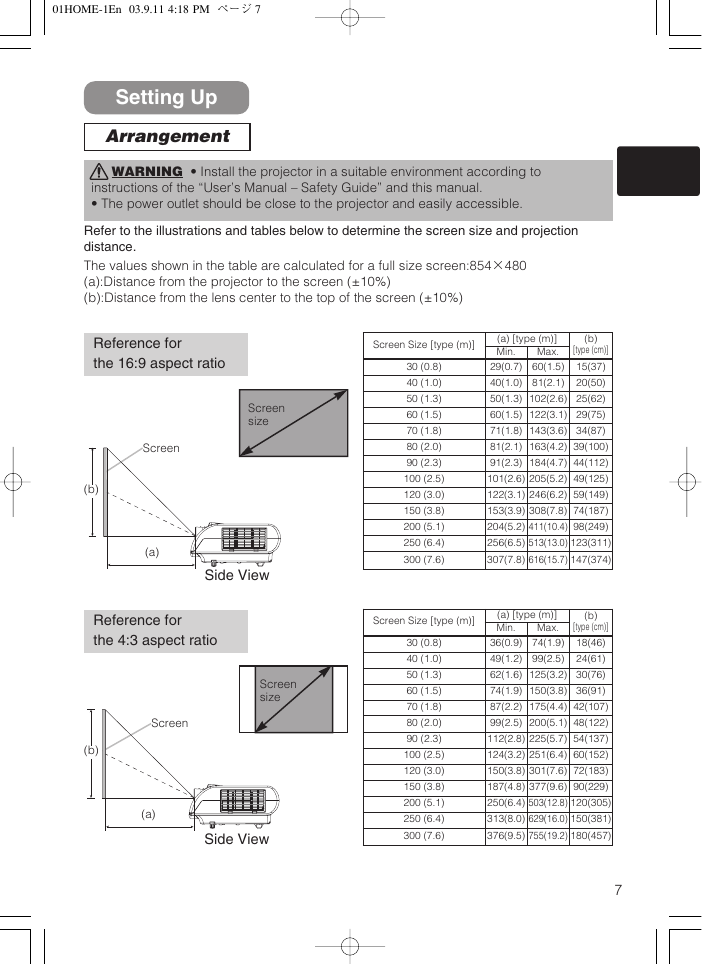

01HOME-1En 03.9.11 4:18 PM ページ 7 Setting Up Arrangement WARNING • Install the projector in a suitable environment according to instructions of the “User’s Manual – Safety Guide” and this manual. • The power outlet should be close to the projector and easily accessible. Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen:854×480 (a):Distance from the projector to the screen (±10%) (b):Distance from the lens center to the top of the screen (±10%) Reference for the 16:9 aspect ratio Screen size Screen (b) (a) Side View Reference for the 4:3 aspect ratio Screen size Screen (b) (a) Side View Screen Size [type (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.1) 250 (6.4) 300 (7.6) Screen Size [type (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.1) 250 (6.4) 300 (7.6) (b) (a) [type (m)] Min. Max. [type (cm)] 29(0.7) 60(1.5) 15(37) 40(1.0) 81(2.1) 20(50) 50(1.3) 102(2.6) 25(62) 60(1.5) 122(3.1) 29(75) 71(1.8) 143(3.6) 34(87) 81(2.1) 163(4.2) 39(100) 91(2.3) 184(4.7) 44(112) 101(2.6) 205(5.2) 49(125) 122(3.1) 246(6.2) 59(149) 153(3.9) 308(7.8) 74(187) 204(5.2) 411(10.4) 98(249) 256(6.5) 513(13.0) 123(311) 307(7.8) 616(15.7) 147(374) (b) (a) [type (m)] [type (cm)] Min. Max. 18(46) 36(0.9) 74(1.9) 24(61) 49(1.2) 99(2.5) 62(1.6) 125(3.2) 30(76) 74(1.9) 150(3.8) 36(91) 87(2.2) 175(4.4) 42(107) 99(2.5) 200(5.1) 48(122) 112(2.8) 225(5.7) 54(137) 124(3.2) 251(6.4) 60(152) 150(3.8) 301(7.6) 72(183) 187(4.8) 377(9.6) 90(229) 250(6.4) 503(12.8) 120(305) 313(8.0) 629(16.0) 150(381) 376(9.5) 755(19.2) 180(457) 7

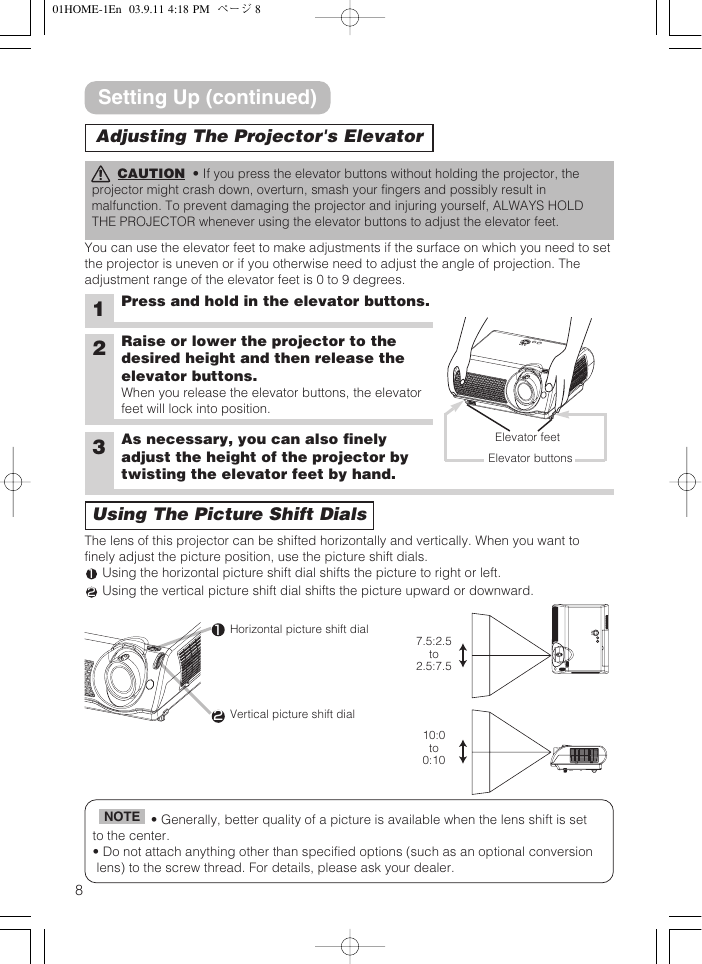

01HOME-1En 03.9.11 4:18 PM ページ 8 Setting Up (continued) Adjusting The Projector's Elevator CAUTION • If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet. You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. 1 Press and hold in the elevator buttons. 2 Raise or lower the projector to the desired height and then release the elevator buttons. When you release the elevator buttons, the elevator feet will lock into position. 3 As necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand. Elevator feet Elevator buttons Using The Picture Shift Dials The lens of this projector can be shifted horizontally and vertically. When you want to finely adjust the picture position, use the picture shift dials. 1 2 Using the horizontal picture shift dial shifts the picture to right or left. Using the vertical picture shift dial shifts the picture upward or downward. 1 Horizontal picture shift dial 7.5:2.5 to 2.5:7.5 2 Vertical picture shift dial 10:0 to 0:10 NOTE • Generally, better quality of a picture is available when the lens shift is set to the center. • Do not attach anything other than specified options (such as an optional conversion lens) to the screw thread. For details, please ask your dealer. 8
