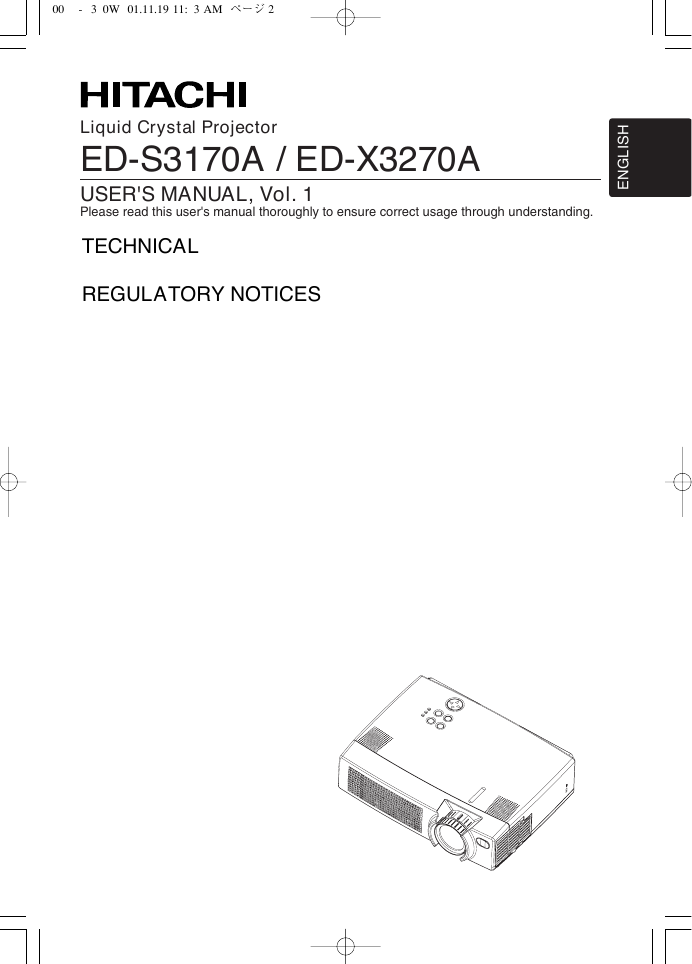

00CP-X380W 01.11.19 11:53 AM ページ 2 Liquid Crystal Projector ED-S3170A / ED-X3270A USER'S MANUAL, Vol. 1 Please read this user's manual thoroughly to ensure correct usage through understanding. I H S L G N E

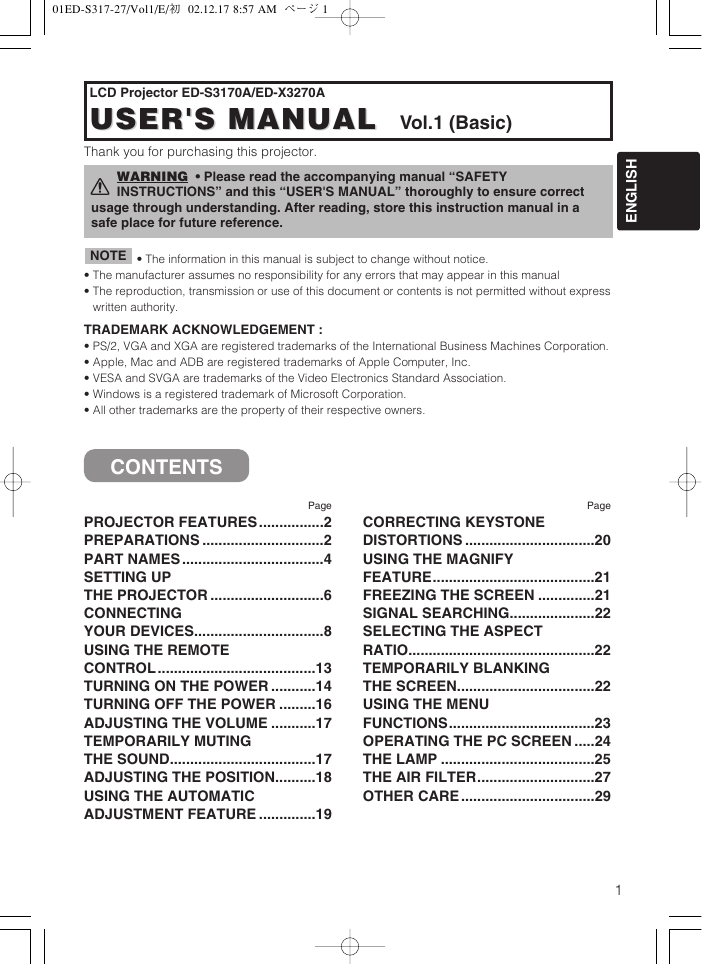

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 1 LCD Projector ED-S3170A/ED-X3270A USER'S MANUAL Vol.1 (Basic) USER'S MANUAL Thank you for purchasing this projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. I H S L G N E • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGEMENT : • PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. • All other trademarks are the property of their respective owners. CONTENTS Page PROJECTOR FEATURES................2 PREPARATIONS ..............................2 PART NAMES...................................4 SETTING UP THE PROJECTOR ............................6 CONNECTING YOUR DEVICES................................8 USING THE REMOTE CONTROL.......................................13 TURNING ON THE POWER ...........14 TURNING OFF THE POWER .........16 ADJUSTING THE VOLUME ...........17 TEMPORARILY MUTING THE SOUND....................................17 ADJUSTING THE POSITION..........18 USING THE AUTOMATIC ADJUSTMENT FEATURE ..............19 Page CORRECTING KEYSTONE DISTORTIONS ................................20 USING THE MAGNIFY FEATURE........................................21 FREEZING THE SCREEN ..............21 SIGNAL SEARCHING.....................22 SELECTING THE ASPECT RATIO..............................................22 TEMPORARILY BLANKING THE SCREEN..................................22 USING THE MENU FUNCTIONS....................................23 OPERATING THE PC SCREEN .....24 THE LAMP ......................................25 THE AIR FILTER.............................27 OTHER CARE.................................29 1

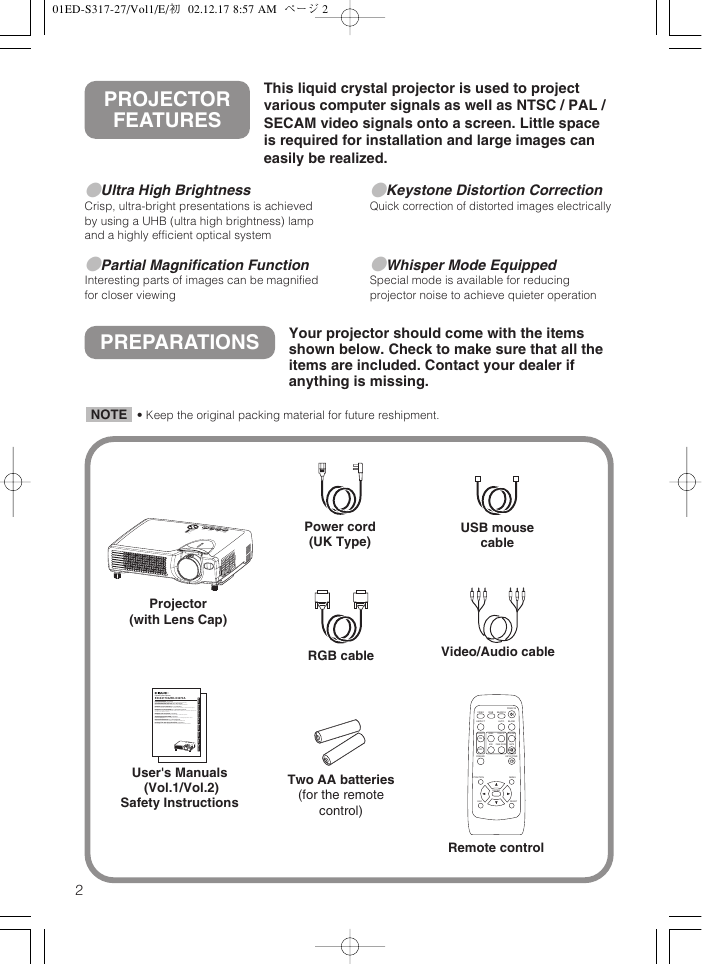

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 2 PROJECTOR FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. GUltra High Brightness Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system GPartial Magnification Function Interesting parts of images can be magnified for closer viewing GKeystone Distortion Correction Quick correction of distorted images electrically GWhisper Mode Equipped Special mode is available for reducing projector noise to achieve quieter operation PREPARATIONS Your projector should come with the items shown below. Check to make sure that all the items are included. Contact your dealer if anything is missing. NOTE • Keep the original packing material for future reshipment. POWER TENP LANP STANDBY/ONINPUTKEYSTONERESET Power cord (UK Type) USB mouse cable Projector (with Lens Cap) Liquid Crystal Projector ED-S3170A/ED-X3270A USER'S MANUAL Vol.1 Basic Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Teil 1 Grundlagen Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Vol.1 Fondements Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vol.1 Informazioni di base Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Vol.1 Básico Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJZING Vol.1 Basis Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vol.1 Grunnleggende Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador. I H S L G N E H C S T U E D I S A Ç N A R F O N A L A T I I L O Ñ A P S E S D N A L R E D E N K S R O N S Ê G T R O P STANDBY/ONINPUTKEYSTONERESET POWER TENP LANP User's Manuals (Vol.1/Vol.2) Safety Instructions 2 RGB cable Video/Audio cable Two AA batteries (for the remote control) VIDEO RGB SEARCH STANDBY/ON ASPECT AUTO BLANK MAGNIFY HOME PAGE UP VOLUME ON OFF FREEZE END PAGE DOWN MUTE KEYSTONE POSITION MENU ENTER ESC RESET Remote control

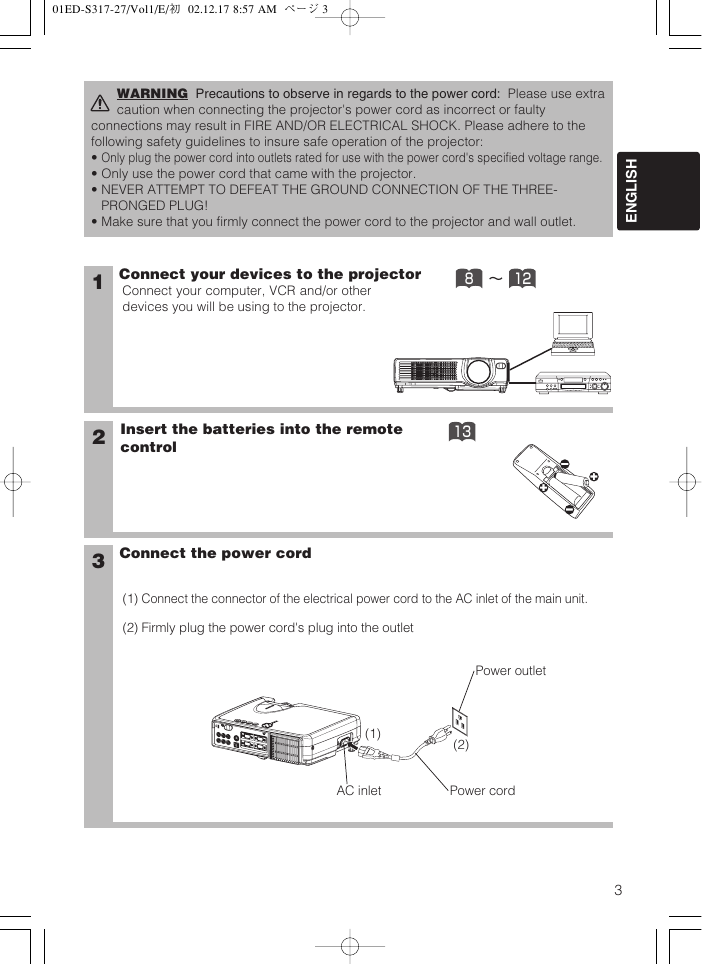

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 3 WARNING Precautions to observe in regards to the power cord: Please use extra caution when connecting the projector's power cord as incorrect or faulty connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the following safety guidelines to insure safe operation of the projector: • Only plug the power cord into outlets rated for use with the power cord's specified voltage range. • Only use the power cord that came with the projector. • NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE- PRONGED PLUG! • Make sure that you firmly connect the power cord to the projector and wall outlet. I H S L G N E 1 Connect your devices to the projector Connect your computer, VCR and/or other devices you will be using to the projector. 〜8 12 2 Insert the batteries into the remote control 13 3 Connect the power cord (1) Connect the connector of the electrical power cord to the AC inlet of the main unit. (2) Firmly plug the power cord's plug into the outlet Power outlet (1) (2) AC inlet Power cord 3

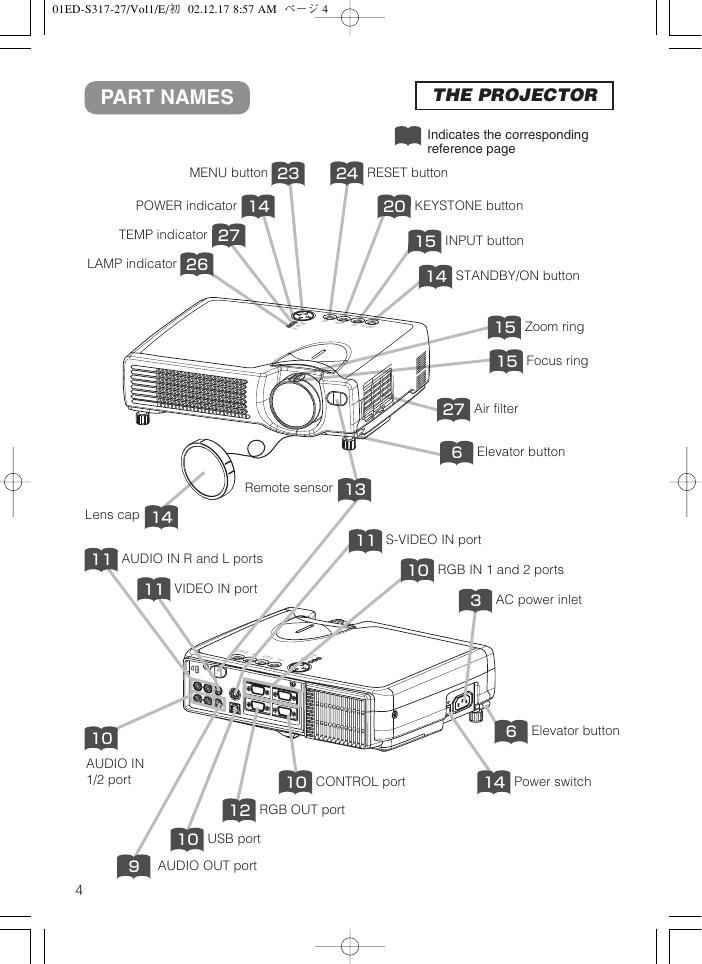

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 4 PART NAMES THE PROJECTOR Indicates the corresponding reference page MENU button 23 24 RESET button POWER indicator 14 20 KEYSTONE button TEMP indicator 27 LAMP indicator 26 15 INPUT button 14 STANDBY/ON button POWER TENP LANP STANDBY/ONINPUTKEYSTONERESET 15 Zoom ring 15 Focus ring 27 Air filter 6 Elevator button Remote sensor 13 Lens cap 14 11 AUDIO IN R and L ports 11 VIDEO IN port 11 S-VIDEO IN port 10 RGB IN 1 and 2 ports 3 AC power inlet STANDBY/ONINPUT KEYSTONE RESET LANP TENPPOWER 10 AUDIO IN 1/2 port 6 Elevator button 10 CONTROL port 14 Power switch 12 RGB OUT port 10 USB port 9 AUDIO OUT port 4

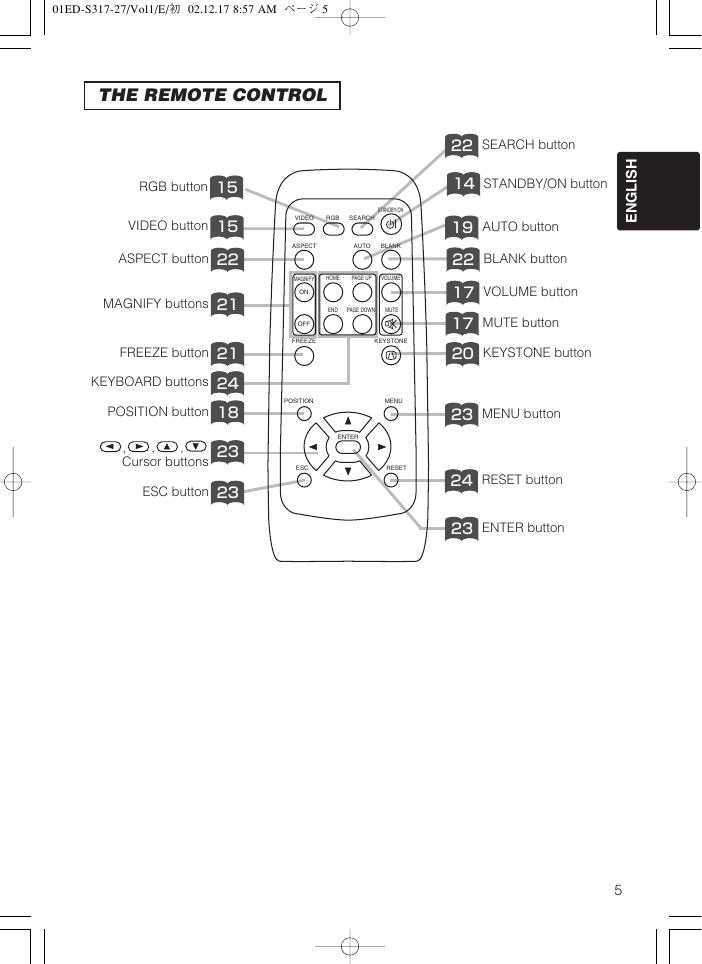

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 5 THE REMOTE CONTROL RGB button 15 VIDEO button 15 ASPECT button 22 MAGNIFY buttons 21 FREEZE button 21 KEYBOARD buttons 24 POSITION button 18 VIDEO RGB SEARCH STANDBY/ON ASPECT AUTO BLANK MAGNIFY HOME PAGE UP VOLUME ON OFF FREEZE END PAGE DOWN MUTE KEYSTONE I H S L G N E 22 SEARCH button 14 STANDBY/ON button 19 AUTO button 22 17 17 20 BLANK button VOLUME button MUTE button KEYSTONE button POSITION MENU 23 MENU button , , Cursor buttons , 23 ENTER ESC RESET ESC button 23 24 RESET button 23 ENTER button 5

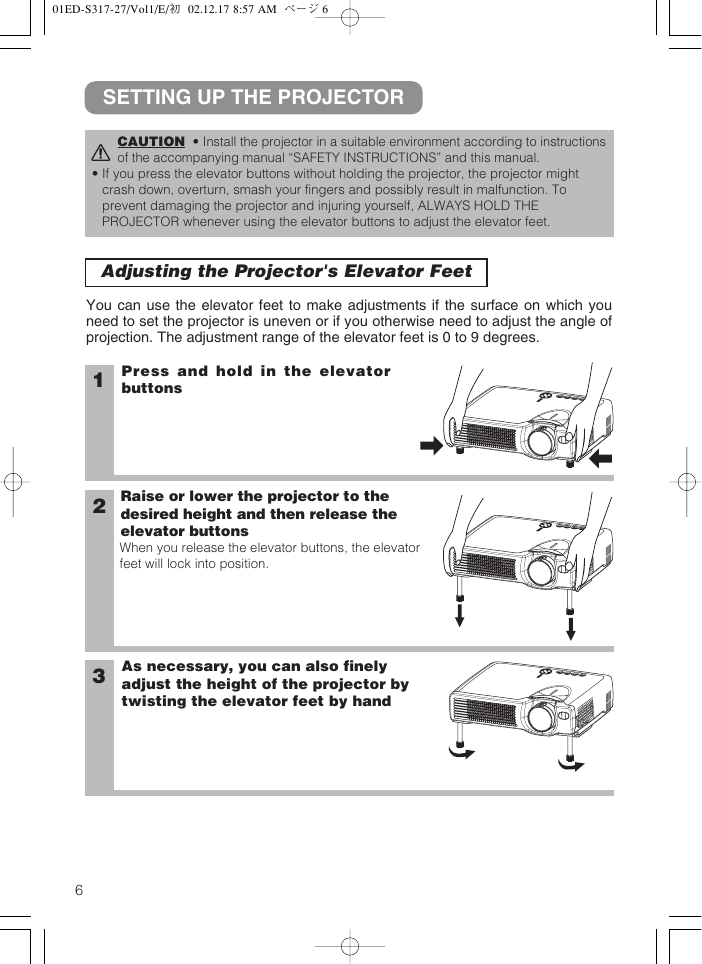

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 6 SETTING UP THE PROJECTOR CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. • If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet. Adjusting the Projector's Elevator Feet You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. 1 Press and hold in the elevator buttons 2 Raise or lower the projector to the desired height and then release the elevator buttons When you release the elevator buttons, the elevator feet will lock into position. 3 As necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand 6

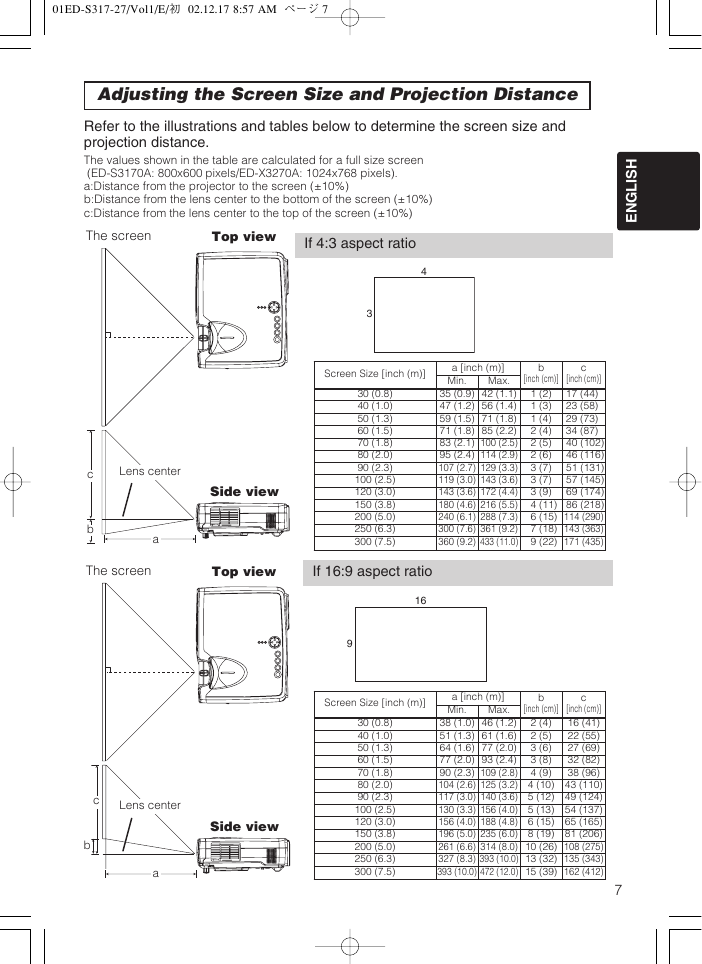

01ED-S317-27/Vol1/E/初 02.12.17 8:57 AM ページ 7 Adjusting the Screen Size and Projection Distance Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen (ED-S3170A: 800x600 pixels/ED-X3270A: 1024x768 pixels). a:Distance from the projector to the screen (±10%) b:Distance from the lens center to the bottom of the screen (±10%) c:Distance from the lens center to the top of the screen (±10%) The screen Top view If 4:3 aspect ratio I H S L G N E 4 3 Screen Size [inch (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) 250 (6.3) 300 (7.5) a [inch (m)] Max. Min. 35 (0.9) 42 (1.1) 47 (1.2) 56 (1.4) 59 (1.5) 71 (1.8) 71 (1.8) 85 (2.2) 83 (2.1) 100 (2.5) 95 (2.4) 114 (2.9) 107 (2.7) 129 (3.3) 119 (3.0) 143 (3.6) 143 (3.6) 172 (4.4) 180 (4.6) 216 (5.5) 240 (6.1) 288 (7.3) 300 (7.6) 361 (9.2) 360 (9.2) 433 (11.0) c b Lens center Side view a The screen Top view If 16:9 aspect ratio b [inch (cm)] c [inch (cm)] 17 (44) 1 (2) 23 (58) 1 (3) 29 (73) 1 (4) 34 (87) 2 (4) 40 (102) 2 (5) 46 (116) 2 (6) 51 (131) 3 (7) 57 (145) 3 (7) 3 (9) 69 (174) 4 (11) 86 (218) 6 (15) 114 (290) 7 (18) 143 (363) 9 (22) 171 (435) 16 9 Screen Size [inch (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) 250 (6.3) 300 (7.5) c Lens center b a Side view b c a [inch (m)] Min. Max. [inch (cm)] 2 (4) 2 (5) 3 (6) 3 (8) 4 (9) [inch (cm)] 16 (41) 38 (1.0) 46 (1.2) 22 (55) 51 (1.3) 61 (1.6) 27 (69) 64 (1.6) 77 (2.0) 32 (82) 77 (2.0) 93 (2.4) 90 (2.3) 109 (2.8) 38 (96) 104 (2.6) 125 (3.2) 4 (10) 43 (110) 117 (3.0) 140 (3.6) 5 (12) 49 (124) 130 (3.3) 156 (4.0) 5 (13) 54 (137) 156 (4.0) 188 (4.8) 6 (15) 65 (165) 196 (5.0) 235 (6.0) 8 (19) 81 (206) 261 (6.6) 314 (8.0) 10 (26) 108 (275) 327 (8.3) 393 (10.0) 13 (32) 135 (343) 393 (10.0) 472 (12.0) 15 (39) 162 (412) 7
