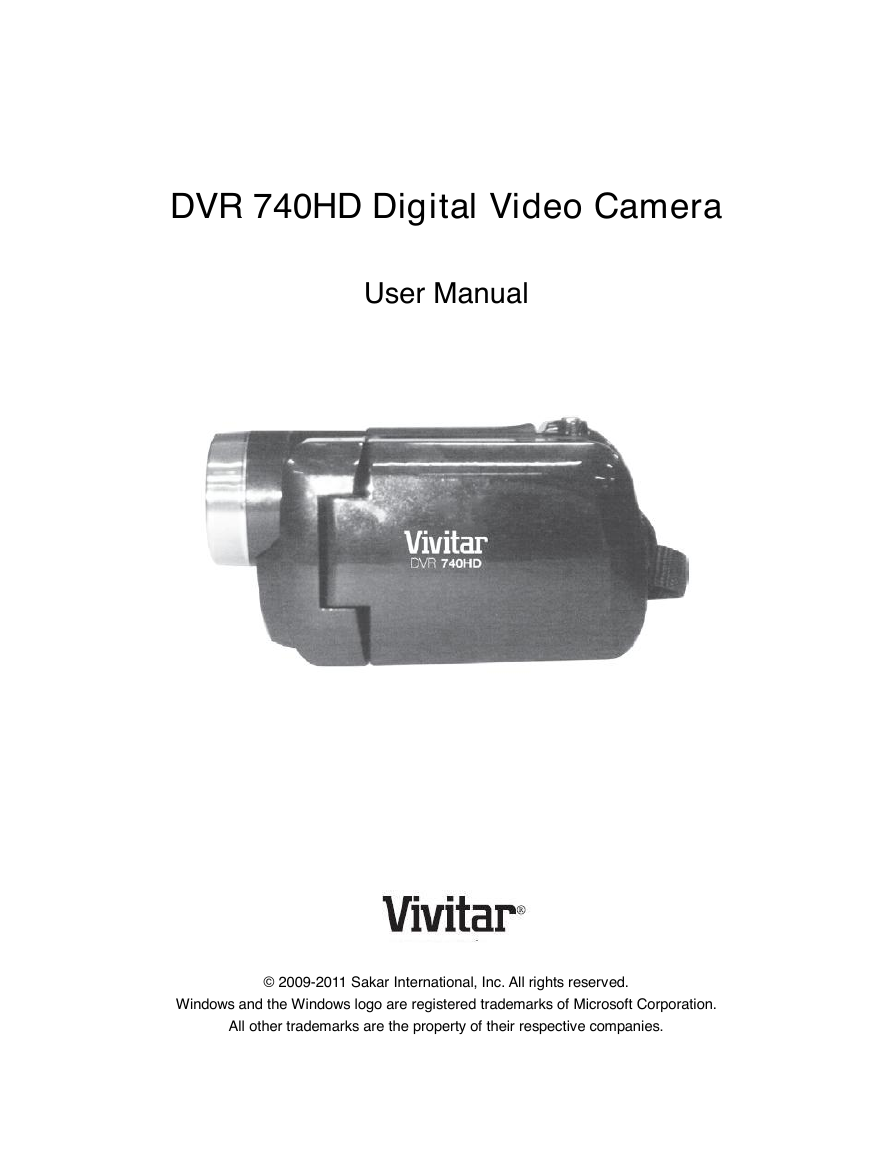

DVR 740HD Digital Video Camera User Manual © 2009-2011 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

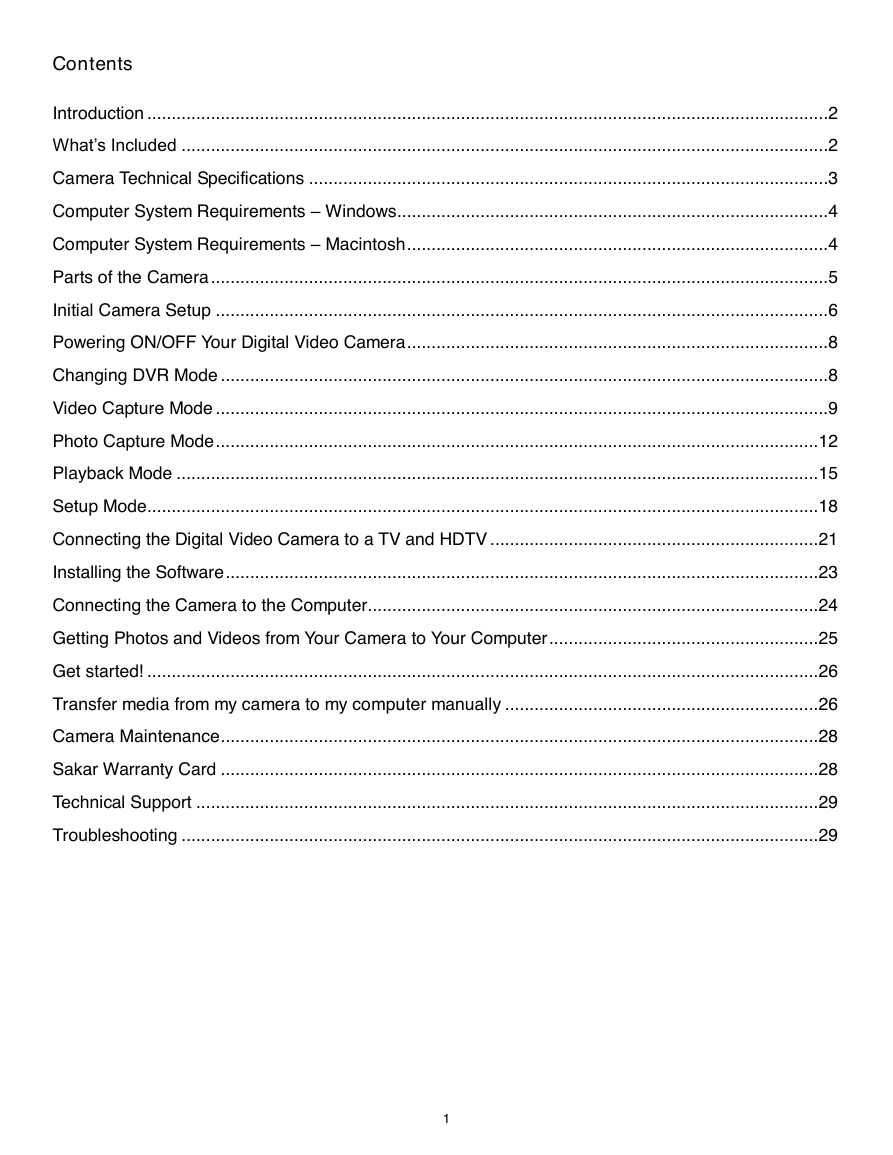

Contents Introduction ...........................................................................................................................................2 What‟s Included ....................................................................................................................................2 Camera Technical Specifications ..........................................................................................................3 Computer System Requirements – Windows ........................................................................................4 Computer System Requirements – Macintosh ......................................................................................4 Parts of the Camera ..............................................................................................................................5 Initial Camera Setup .............................................................................................................................6 Powering ON/OFF Your Digital Video Camera ......................................................................................8 Changing DVR Mode ............................................................................................................................8 Video Capture Mode .............................................................................................................................9 Photo Capture Mode ...........................................................................................................................12 Playback Mode ...................................................................................................................................15 Setup Mode.........................................................................................................................................18 Connecting the Digital Video Camera to a TV and HDTV ...................................................................21 Installing the Software .........................................................................................................................23 Connecting the Camera to the Computer............................................................................................24 Getting Photos and Videos from Your Camera to Your Computer .......................................................25 Get started! .........................................................................................................................................26 Transfer media from my camera to my computer manually ................................................................26 Camera Maintenance ..........................................................................................................................28 Sakar Warranty Card ..........................................................................................................................28 Technical Support ...............................................................................................................................29 Troubleshooting ..................................................................................................................................29 1

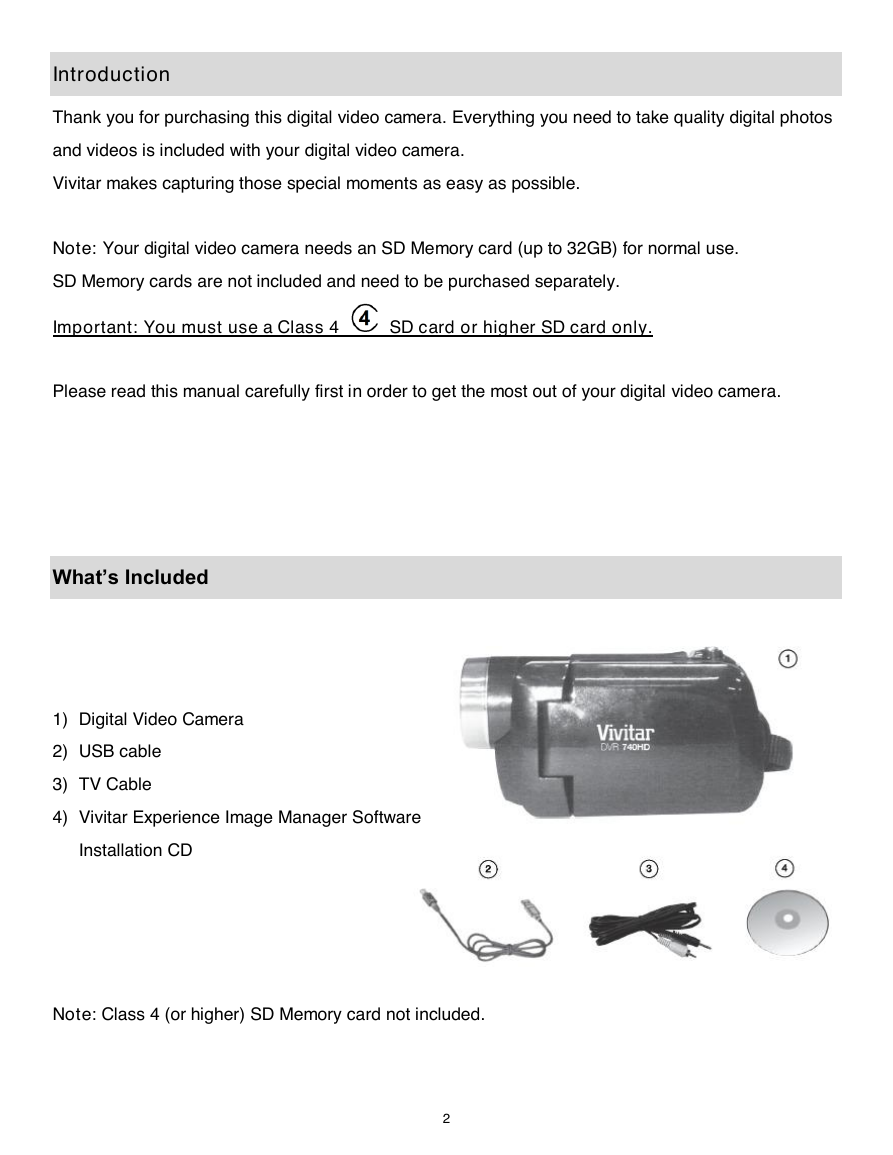

Introduction Thank you for purchasing this digital video camera. Everything you need to take quality digital photos and videos is included with your digital video camera. Vivitar makes capturing those special moments as easy as possible. Note: Your digital video camera needs an SD Memory card (up to 32GB) for normal use. SD Memory cards are not included and need to be purchased separately. Important: You must use a Class 4 SD card or higher SD card only. Please read this manual carefully first in order to get the most out of your digital video camera. What‟s Included 1) Digital Video Camera 2) USB cable 3) TV Cable 4) Vivitar Experience Image Manager Software Installation CD Note: Class 4 (or higher) SD Memory card not included. 2

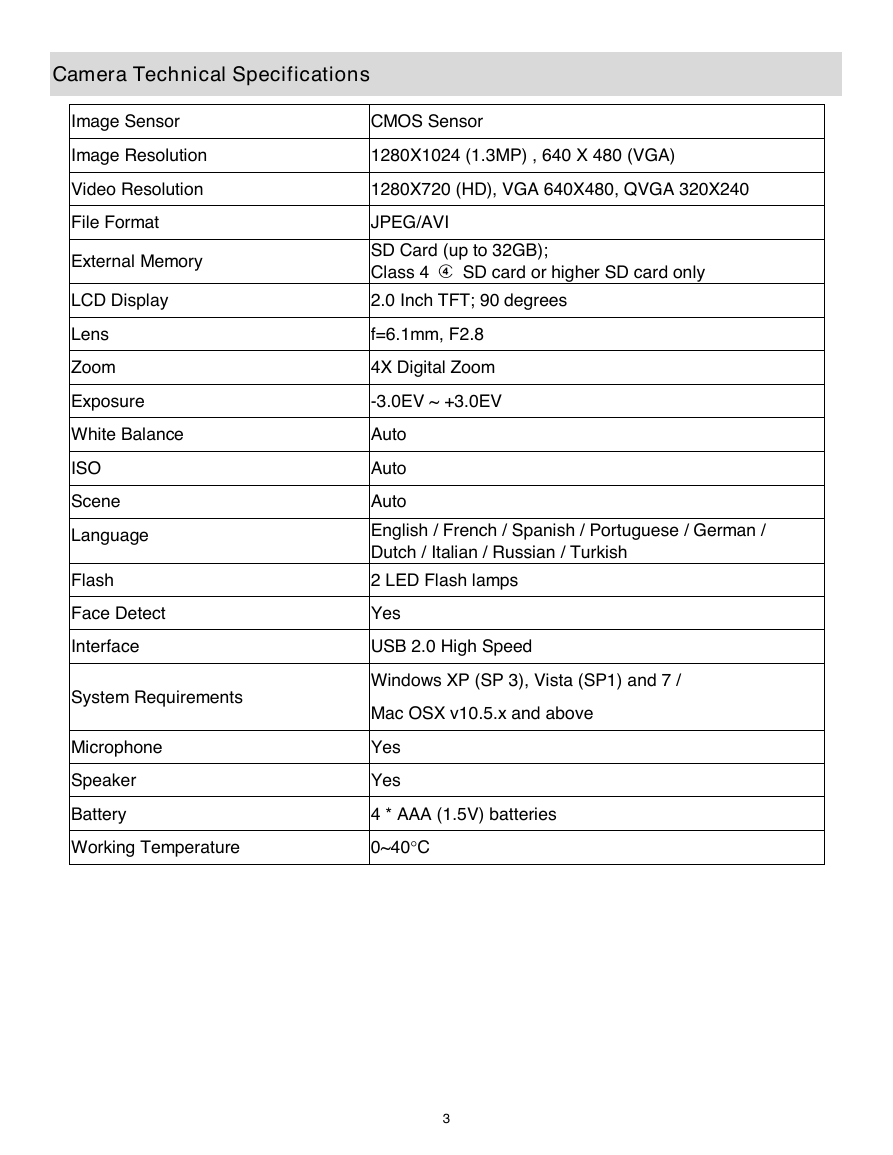

Camera Technical Specifications Image Sensor Image Resolution Video Resolution File Format External Memory CMOS Sensor 1280X1024 (1.3MP) , 640 X 480 (VGA) 1280X720 (HD), VGA 640X480, QVGA 320X240 JPEG/AVI SD Card (up to 32GB); Class 4 SD card or higher SD card only LCD Display 2.0 Inch TFT; 90 degrees Lens Zoom Exposure White Balance ISO Scene Language Flash Face Detect Interface f=6.1mm, F2.8 4X Digital Zoom -3.0EV ~ +3.0EV Auto Auto Auto English / French / Spanish / Portuguese / German / Dutch / Italian / Russian / Turkish 2 LED Flash lamps Yes USB 2.0 High Speed System Requirements Windows XP (SP 3), Vista (SP1) and 7 / Mac OSX v10.5.x and above Microphone Speaker Battery Yes Yes 4 * AAA (1.5V) batteries Working Temperature 0~40C 3

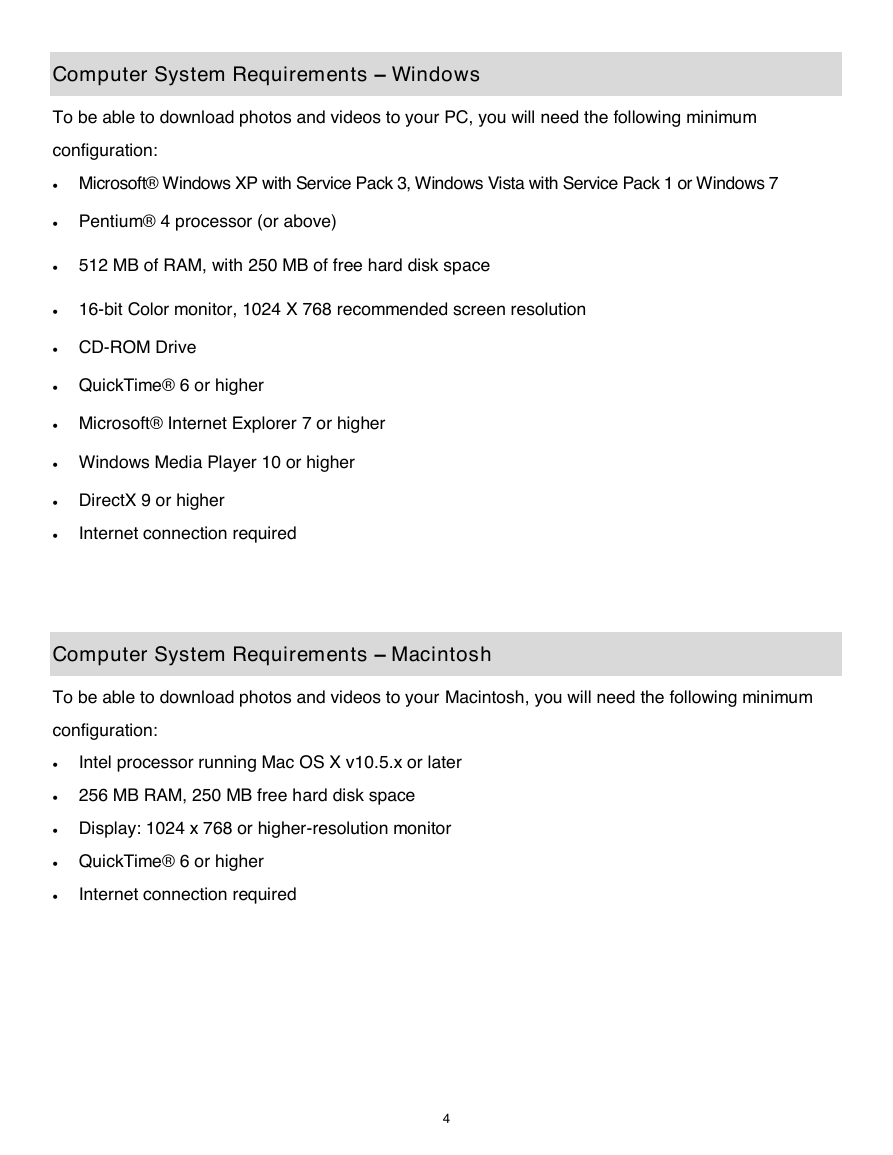

Computer System Requirements – Windows To be able to download photos and videos to your PC, you will need the following minimum configuration:  Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7  Pentium® 4 processor (or above)   512 MB of RAM, with 250 MB of free hard disk space   16-bit Color monitor, 1024 X 768 recommended screen resolution   CD-ROM Drive  QuickTime® 6 or higher   Microsoft® Internet Explorer 7 or higher  Windows Media Player 10 or higher   DirectX 9 or higher Internet connection required  Computer System Requirements – Macintosh To be able to download photos and videos to your Macintosh, you will need the following minimum configuration:  Intel processor running Mac OS X v10.5.x or later  256 MB RAM, 250 MB free hard disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime® 6 or higher  Internet connection required 4

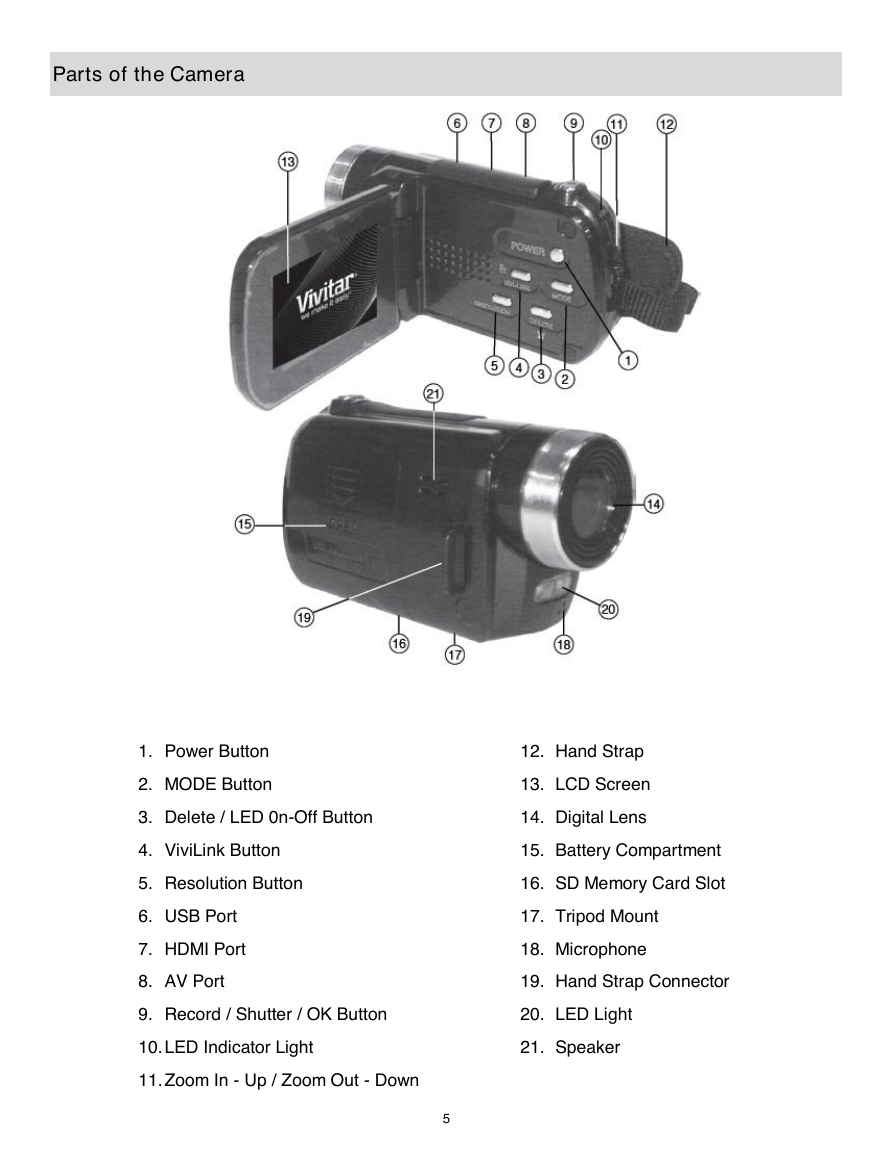

Parts of the Camera 1. Power Button 2. MODE Button 3. Delete / LED 0n-Off Button 4. ViviLink Button 5. Resolution Button 6. USB Port 7. HDMI Port 8. AV Port 12. Hand Strap 13. LCD Screen 14. Digital Lens 15. Battery Compartment 16. SD Memory Card Slot 17. Tripod Mount 18. Microphone 19. Hand Strap Connector 9. Record / Shutter / OK Button 20. LED Light 10. LED Indicator Light 21. Speaker 11. Zoom In - Up / Zoom Out - Down 5

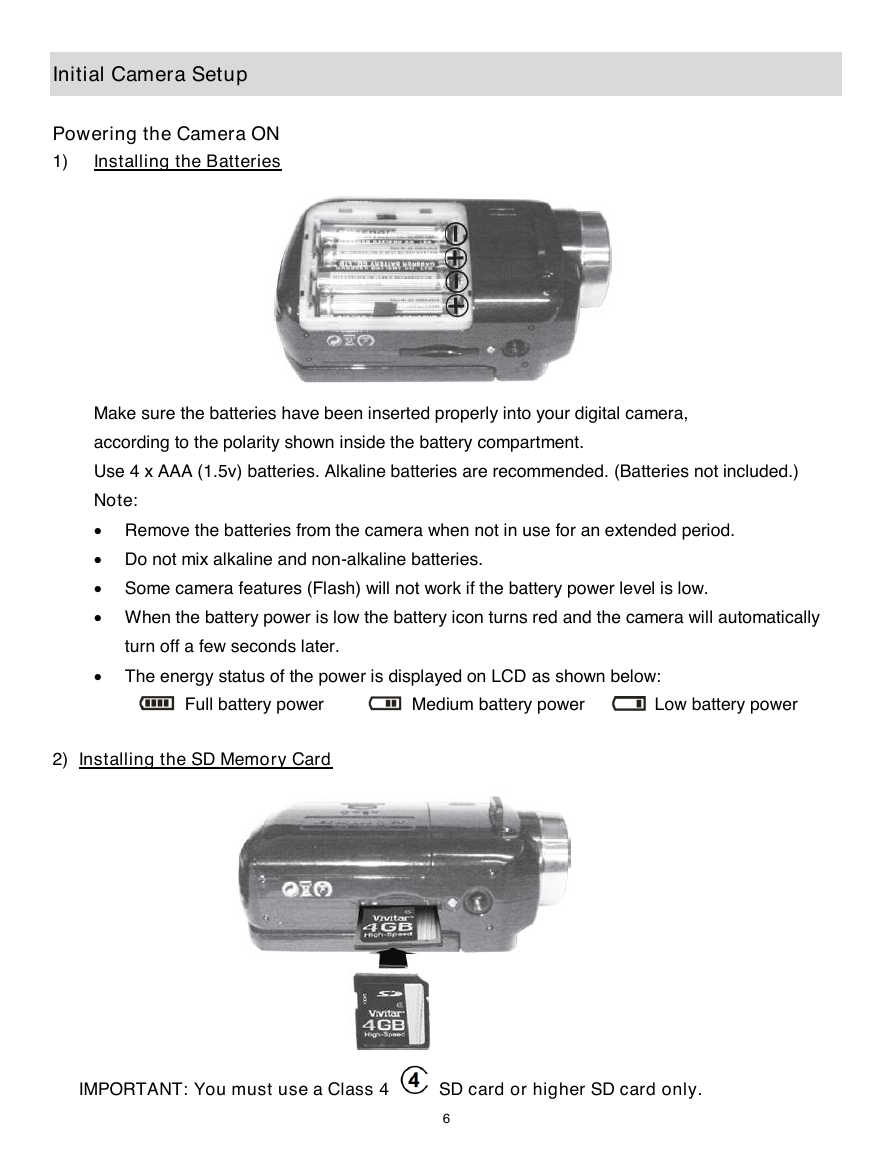

Initial Camera Setup Powering the Camera ON 1) Installing the Batteries Make sure the batteries have been inserted properly into your digital camera, according to the polarity shown inside the battery compartment. Use 4 x AAA (1.5v) batteries. Alkaline batteries are recommended. (Batteries not included.) Note:  Remove the batteries from the camera when not in use for an extended period.  Do not mix alkaline and non-alkaline batteries.  Some camera features (Flash) will not work if the battery power level is low.  When the battery power is low the battery icon turns red and the camera will automatically turn off a few seconds later.  The energy status of the power is displayed on LCD as shown below: Full battery power Medium battery power Low battery power 2) Installing the SD Memory Card IMPORTANT: You must use a Class 4 SD card or higher SD card only. 6

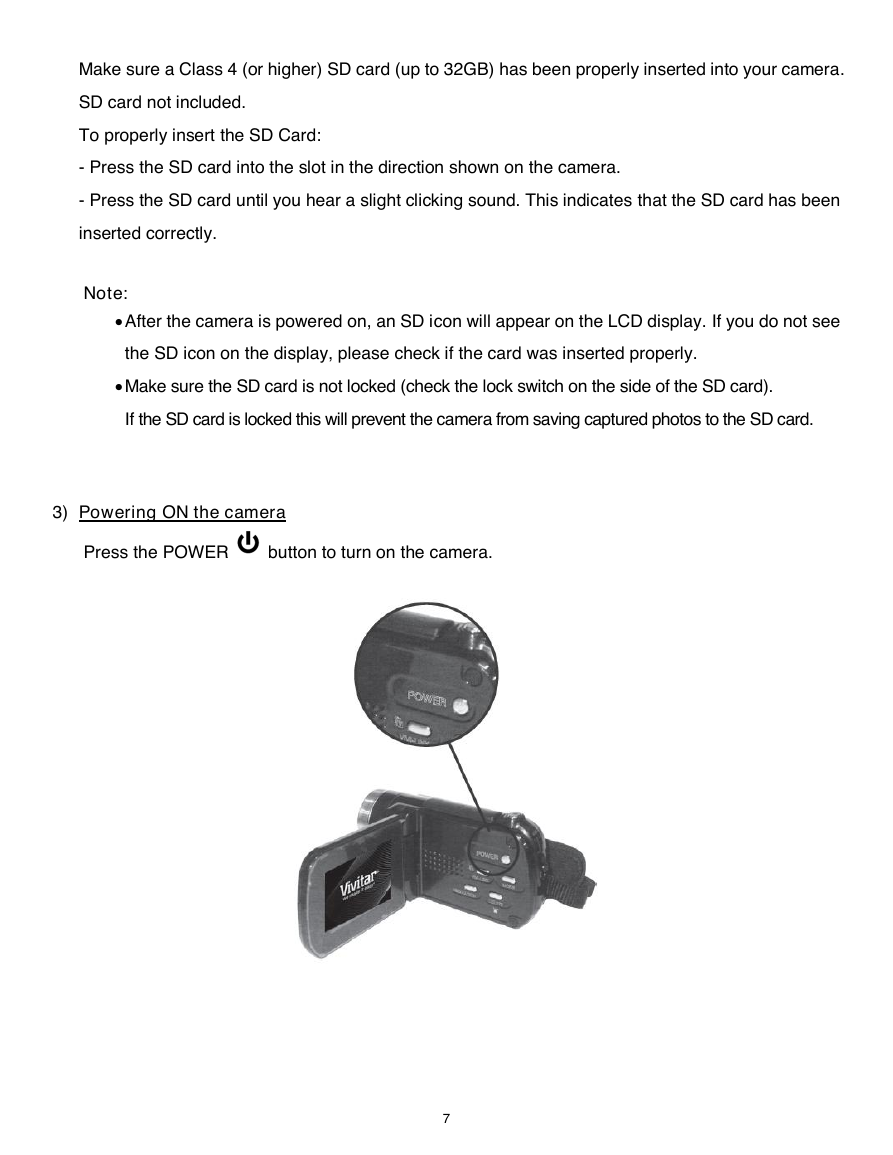

Make sure a Class 4 (or higher) SD card (up to 32GB) has been properly inserted into your camera. SD card not included. To properly insert the SD Card: - Press the SD card into the slot in the direction shown on the camera. - Press the SD card until you hear a slight clicking sound. This indicates that the SD card has been inserted correctly. Note:  After the camera is powered on, an SD icon will appear on the LCD display. If you do not see the SD icon on the display, please check if the card was inserted properly.  Make sure the SD card is not locked (check the lock switch on the side of the SD card). If the SD card is locked this will prevent the camera from saving captured photos to the SD card. 3) Powering ON the camera Press the POWER button to turn on the camera. 7
