DVR 426HDv2 Digital Camcorder with camera User Manual © 2009-2012 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

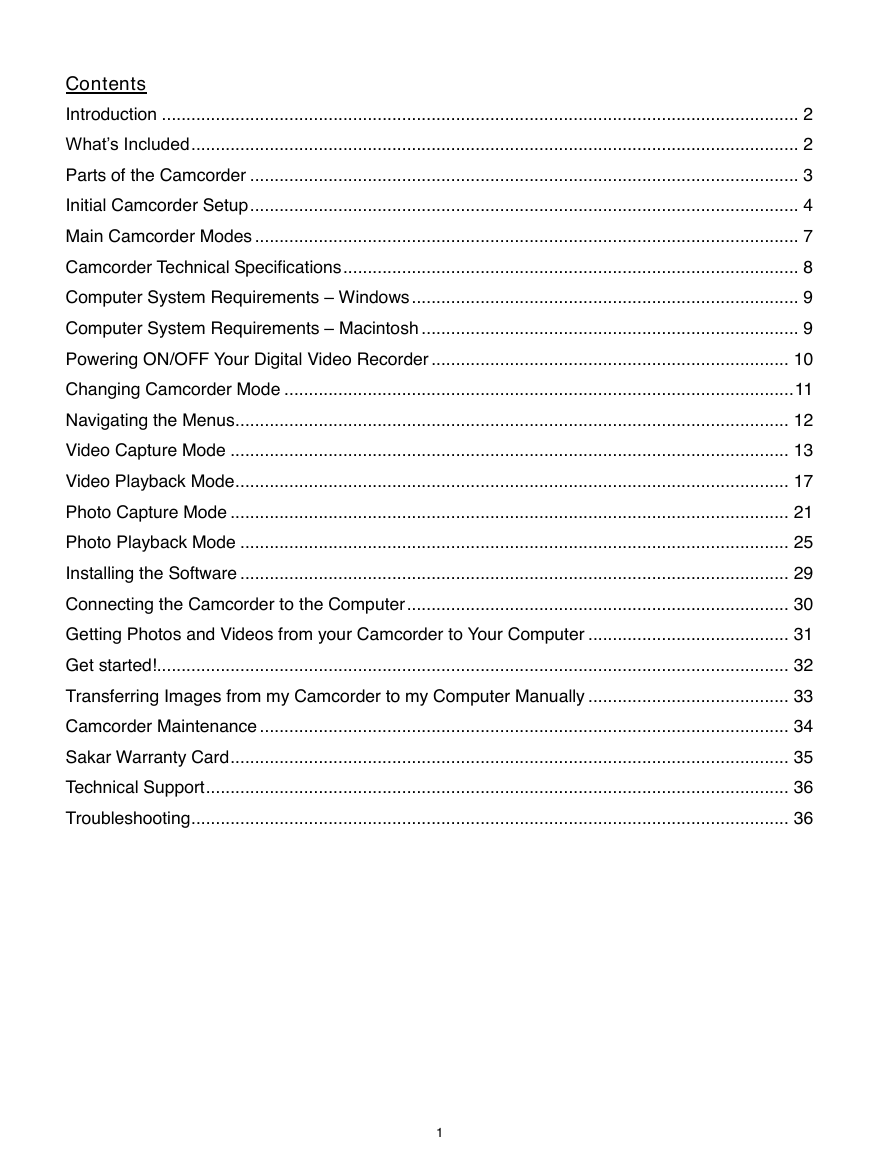

Contents Introduction .................................................................................................................................. 2 What’s Included ............................................................................................................................ 2 Parts of the Camcorder ................................................................................................................ 3 Initial Camcorder Setup ................................................................................................................ 4 Main Camcorder Modes ............................................................................................................... 7 Camcorder Technical Specifications ............................................................................................. 8 Computer System Requirements – Windows ............................................................................... 9 Computer System Requirements – Macintosh ............................................................................. 9 Powering ON/OFF Your Digital Video Recorder ......................................................................... 10 Changing Camcorder Mode ........................................................................................................ 11 Navigating the Menus ................................................................................................................. 12 Video Capture Mode .................................................................................................................. 13 Video Playback Mode ................................................................................................................. 17 Photo Capture Mode .................................................................................................................. 21 Photo Playback Mode ................................................................................................................ 25 Installing the Software ................................................................................................................ 29 Connecting the Camcorder to the Computer .............................................................................. 30 Getting Photos and Videos from your Camcorder to Your Computer ......................................... 31 Get started!................................................................................................................................. 32 Transferring Images from my Camcorder to my Computer Manually ......................................... 33 Camcorder Maintenance ............................................................................................................ 34 Sakar Warranty Card .................................................................................................................. 35 Technical Support ....................................................................................................................... 36 Troubleshooting .......................................................................................................................... 36 1

Introduction Thank you for purchasing this digital video recorder. Everything you need to take quality digital photos and videos is included with your digital video recorder. Vivitar makes capturing those special moments as easy as possible. Note: Your camcorder needs an SD Memory card (up to 16GB) for normal use. SD Memory cards are not included and need to be purchased separately. Please read this manual carefully first in order to get the most out of your digital video recorder. What’s Included 1. Digital Video Recorder (with Built-in USB Connector, not shown) 2. AV Cable 3. Vivitar Experience Image Manager software Installation CD 4. Wrist Strap Note: SD memory card and batteries not included. 2

Parts of the Camcorder 1. AV Out Port 12. Left / Resolution Button 2. Wrist Strap Connector 13. Shutter / OK Button 3. Tripod Mount 14. LCD Screen 4. USB Connector 15. Up / Zoom In Button 5. USB Lever 16. SD Memory Card Slot 6. LED Indicator Light 17. Power Button 7. Microphone 18. Delete Button 8. Lends 9. Speaker 19. Right/ViviLink Button 20. Down / Zoom Out Button 10. MODE Button 21. Battery Compartment 11. MENU Button 3

Initial Camcorder Setup Installing the Batteries Installing the Memory Card  Insert 3 X AAA (1.5V) batteries.  Alkaline batteries recommended (not included). Turning On the Camcorder  Make sure the camcorder is powered OFF.  Insert SD Memory card (up to 16GB) before use. Using the Camcorder 4

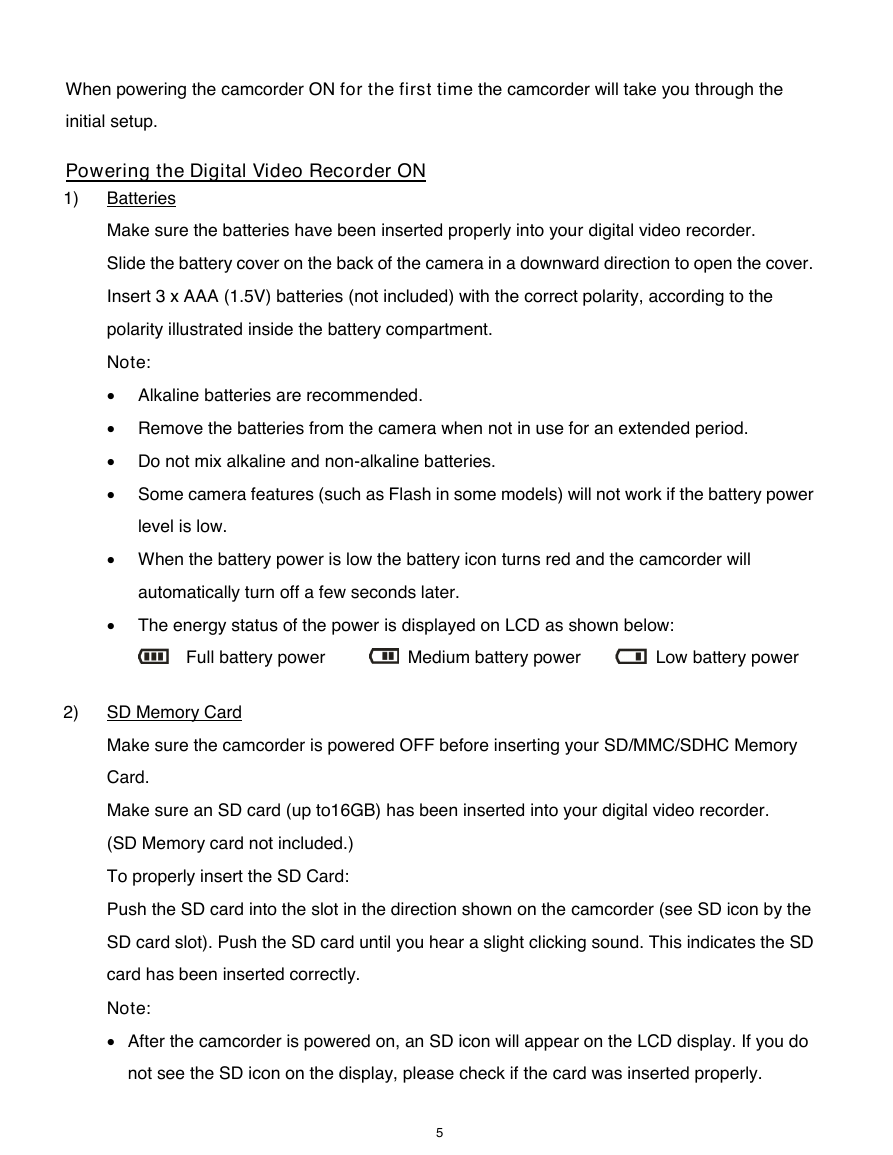

When powering the camcorder ON for the first time the camcorder will take you through the initial setup. Powering the Digital Video Recorder ON 1) Batteries Make sure the batteries have been inserted properly into your digital video recorder. Slide the battery cover on the back of the camera in a downward direction to open the cover. Insert 3 x AAA (1.5V) batteries (not included) with the correct polarity, according to the polarity illustrated inside the battery compartment. Note:  Alkaline batteries are recommended.  Remove the batteries from the camera when not in use for an extended period.  Do not mix alkaline and non-alkaline batteries.  Some camera features (such as Flash in some models) will not work if the battery power level is low.  When the battery power is low the battery icon turns red and the camcorder will automatically turn off a few seconds later.  The energy status of the power is displayed on LCD as shown below: Full battery power Medium battery power Low battery power 2) SD Memory Card Make sure the camcorder is powered OFF before inserting your SD/MMC/SDHC Memory Card. Make sure an SD card (up to16GB) has been inserted into your digital video recorder. (SD Memory card not included.) To properly insert the SD Card: Push the SD card into the slot in the direction shown on the camcorder (see SD icon by the SD card slot). Push the SD card until you hear a slight clicking sound. This indicates the SD card has been inserted correctly. Note:  After the camcorder is powered on, an SD icon will appear on the LCD display. If you do not see the SD icon on the display, please check if the card was inserted properly. 5

 Make sure the SD card is not locked (check the lock switch on the side of the SD card). If the SD card is locked this will prevent the camcorder from saving captured photos to the SD card. 3) Power On Press and hold the POWER button to turn on the camcorder. Setting the Camcorder Language You will first be prompted to select a language for the camcorder. The Language selection menu will appear. Select the language of your choice and press the Shutter/OK button to confirm the selection. Your digital video recorder is now ready to begin capturing videos and photos. 6

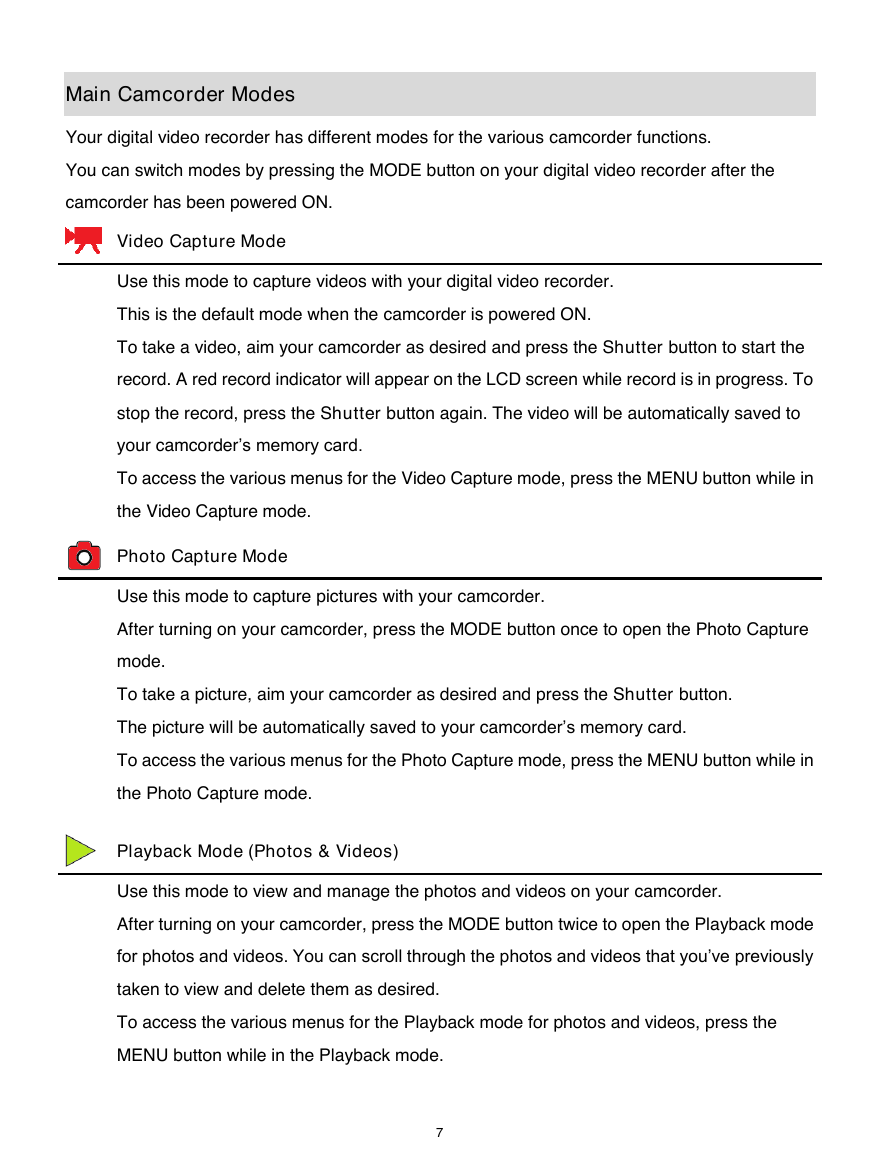

Main Camcorder Modes Your digital video recorder has different modes for the various camcorder functions. You can switch modes by pressing the MODE button on your digital video recorder after the camcorder has been powered ON. Video Capture Mode Use this mode to capture videos with your digital video recorder. This is the default mode when the camcorder is powered ON. To take a video, aim your camcorder as desired and press the Shutter button to start the record. A red record indicator will appear on the LCD screen while record is in progress. To stop the record, press the Shutter button again. The video will be automatically saved to your camcorder’s memory card. To access the various menus for the Video Capture mode, press the MENU button while in the Video Capture mode. Photo Capture Mode Use this mode to capture pictures with your camcorder. After turning on your camcorder, press the MODE button once to open the Photo Capture mode. To take a picture, aim your camcorder as desired and press the Shutter button. The picture will be automatically saved to your camcorder’s memory card. To access the various menus for the Photo Capture mode, press the MENU button while in the Photo Capture mode. Playback Mode (Photos & Videos) Use this mode to view and manage the photos and videos on your camcorder. After turning on your camcorder, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you’ve previously taken to view and delete them as desired. To access the various menus for the Playback mode for photos and videos, press the MENU button while in the Playback mode. 7
