User's Manual User's Manual

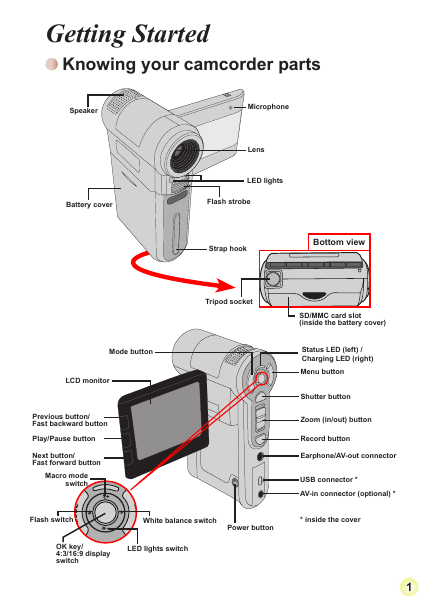

Getting Started Knowing your camcorder parts Speaker Microphone Lens LED lights Battery cover Flash strobe Strap hook Bottom view Tripod socket Mode button LCD monitor Previous button/ Fast backward button Play/Pause button Next button/ Fast forward button Macro mode switch SD/MMC card slot (inside the battery cover) Status LED (left) / Charging LED (right) Menu button Shutter button Zoom (in/out) button Record button Earphone/AV-out connector USB connector * AV-in connector (optional) * Flash switch White balance switch Power button * inside the cover OK key/ 4:3/6:9 display switch LED lights switch

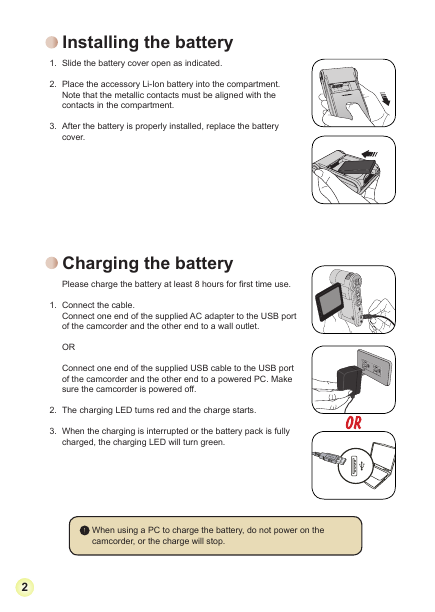

Installing the battery 1. Slide the battery cover open as indicated. 2. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment. 3. After the battery is properly installed, replace the battery cover. Charging the battery Please charge the battery at least 8 hours for first time use. 1. Connect the cable. Connect one end of the supplied AC adapter to the USB port of the camcorder and the other end to a wall outlet. OR Connect one end of the supplied USB cable to the USB port of the camcorder and the other end to a powered PC. Make sure the camcorder is powered off. 2. The charging LED turns red and the charge starts. 3. When the charging is interrupted or the battery pack is fully charged, the charging LED will turn green. When using a PC to charge the battery, do not power on the camcorder, or the charge will stop.

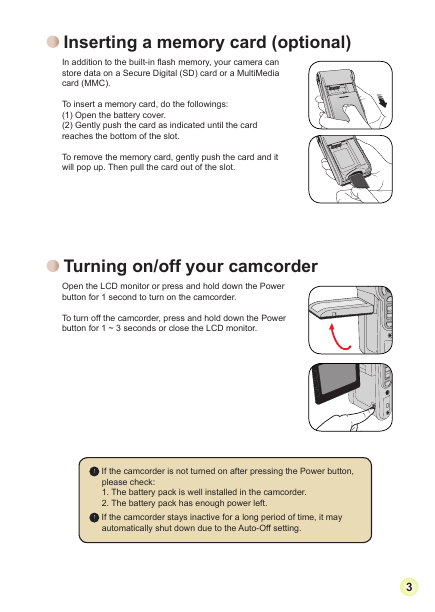

Inserting a memory card (optional) In addition to the built-in flash memory, your camera can store data on a Secure Digital (SD) card or a MultiMedia card (MMC). To insert a memory card, do the followings: (1) Open the battery cover. (2) Gently push the card as indicated until the card reaches the bottom of the slot. To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot. Turning on/off your camcorder Open the LCD monitor or press and hold down the Power button for 1 second to turn on the camcorder. To turn off the camcorder, press and hold down the Power button for 1 ~ 3 seconds or close the LCD monitor. If the camcorder is not turned on after pressing the Power button, please check: 1. The battery pack is well installed in the camcorder. 2. The battery pack has enough power left. If the camcorder stays inactive for a long period of time, it may automatically shut down due to the Auto-Off setting. 3

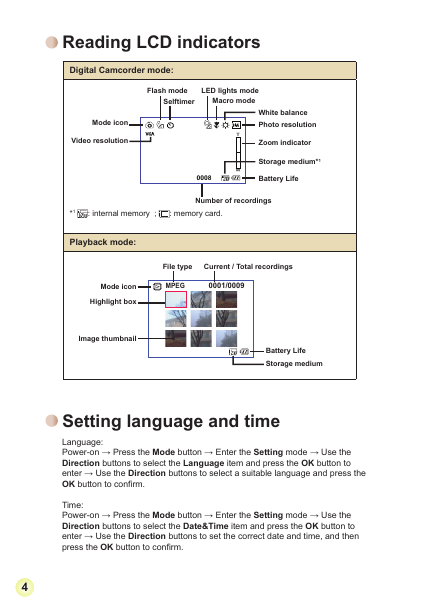

Reading LCD indicators Digital Camcorder mode: Flash mode Selftimer LED lights mode Macro mode Mode icon Video resolution White balance Photo resolution Zoom indicator Storage medium* 0008 Battery Life Number of recordings : internal memory ; : memory card. *1 Playback mode: Mode icon Highlight box Image thumbnail File type Current / Total recordings MPEG 0001/0009 Battery Life Storage medium Setting language and time Language: Power-on → Press the Mode button → Enter the Setting mode → Use the Direction buttons to select the Language item and press the OK button to enter → Use the Direction buttons to select a suitable language and press the OK button to confirm. Time: Power-on → Press the Mode button → Enter the Setting mode → Use the Direction buttons to select the Date&Time item and press the OK button to enter → Use the Direction buttons to set the correct date and time, and then press the OK button to confirm. 4

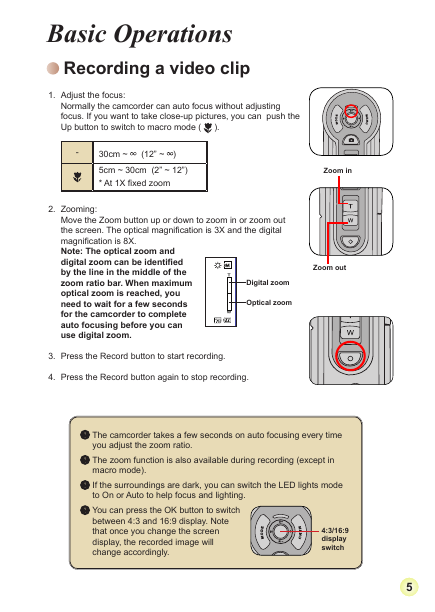

Basic Operations Recording a video clip 1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button to switch to macro mode ( ). - ) (12” ~ 30cm ~ 5cm ~ 30cm (2” ~ 12”) * At 1X fixed zoom 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The optical magnification is 3X and the digital magnification is 8X. Note: The optical zoom and digital zoom can be identified by the line in the middle of the zoom ratio bar. When maximum optical zoom is reached, you need to wait for a few seconds for the camcorder to complete auto focusing before you can use digital zoom. Digital zoom Optical zoom 0008 Zoom in Zoom out 3. Press the Record button to start recording. 4. Press the Record button again to stop recording. The camcorder takes a few seconds on auto focusing every time you adjust the zoom ratio. The zoom function is also available during recording (except in macro mode). If the surroundings are dark, you can switch the LED lights mode to On or Auto to help focus and lighting. You can press the OK button to switch between 4:3 and 16:9 display. Note that once you change the screen display, the recorded image will change accordingly. 4:3/6:9 display switch

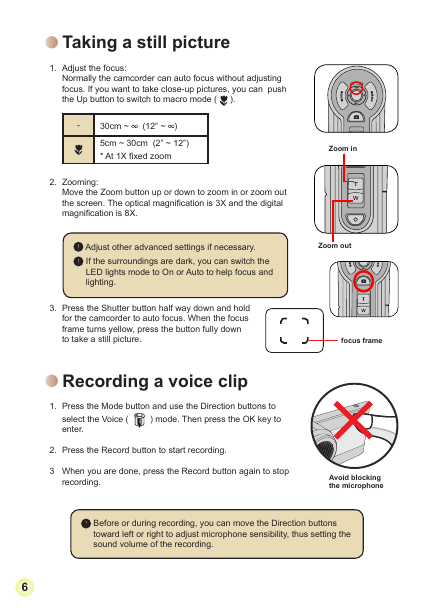

Taking a still picture 1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button to switch to macro mode ( ). - ) (12” ~ 30cm ~ 5cm ~ 30cm (2” ~ 12”) * At 1X fixed zoom 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The optical magnification is 3X and the digital magnification is 8X. Adjust other advanced settings if necessary. If the surroundings are dark, you can switch the LED lights mode to On or Auto to help focus and lighting. Zoom in Zoom out 3. Press the Shutter button half way down and hold for the camcorder to auto focus. When the focus frame turns yellow, press the button fully down to take a still picture. focus frame Recording a voice clip 1. Press the Mode button and use the Direction buttons to ) mode. Then press the OK key to select the Voice ( enter. 2. Press the Record button to start recording. 3 When you are done, press the Record button again to stop recording. Avoid blocking the microphone Before or during recording, you can move the Direction buttons toward left or right to adjust microphone sensibility, thus setting the sound volume of the recording. 6

Playing back your recordings 1. Press the Mode button and use the Direction buttons to select the Playback ( mode. Then press the OK key to enter. Or press the Play/Pause button ( the LCD monitor. ) ) below 2. Operations in playback mode: File type Index mode 0001/0009 MPEG Full-screen mode MPEG 0001/0009 How to... Action Shift between index mode and full-screen mode Shift between files In index mode, press the OK key to switch to full- screen mode. In full-screen mode, press the Menu button to switch to index mode. (When reviewing a picture, if you move the Direction buttons down when the zoom ratio is 1.0x, the screen will switch to index mode.) 1. In index mode: Use the Direction buttons to move the highlight box. 2. In full-screen mode: Use the Direction buttons to move left or right. Picture Zoom in/out Lock/Release zoom ratio Browse the enlarged picture Start playing Pause/Resume playing Use the Direction buttons to move up or down. When the zoom ratio is greater than 1.0x, press the OK key. When the zoom ratio is locked, use the Direction buttons to browse the picture. When selected (in full-screen mode), the file automatically starts playing. During playing/While paused, press the OK key. Adjust the volume level During playing, use the Direction buttons to move up or down. Video & Audio Stop playing Return to the preview screen Fast forward Fast backward Select the next file Select the previous file During playing, press the Menu button. Press the Shutter button. ) button. To stop, ) button. During playing, press the Next ( press the Play/Pause ( During playing, press the Previous ( stop, press the Play/Pause ( ) button. While paused/stopped, press the Next ( While paused/stopped, press the Previous ( button. ) button. To ) button. )
