FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 Future Technology Devices International Ltd. FT230X (USB to BASIC UART IC) The FT230X is a USB to serial UART interface with optimised pin count for smaller PCB designs and the following advanced features:  USB Battery Charger Detection. Allows for USB peripheral devices to detect the presence of a higher power source improved charging. to enable  Device supplied pre-programmed with unique  Single chip USB to asynchronous serial data USB serial number.    transfer interface. Entire USB protocol handled on the chip. No USB specific firmware programming required. integrated Fully byte multi-time- programmable (MTP) memory, storing device descriptors and CBUS I/O configuration. 2048 Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.  USB Power Configurations; supports bus- powered, self-powered and bus-powered with power switching   Integrated +3.3V level converter for USB I/O. True 3.3V CMOS drive output and TTL input; operates down to 1V8 with external pull ups. Tolerant of 5V input  Configurable I/O pin output drive strength; 4 mA (min) and 16 mA (max).  Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, and RS232) at TTL levels.    512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.  FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.  Configurable CBUS I/O pins. Integrated power-on-reset circuit. Fully integrated AVCC supply filtering - no external filtering required.  UART signal inversion option.  + 5V Single Supply Operation.   Internal 3V3/1V8 LDO regulators Low operating and USB suspend current; 8mA (active-typ) and 70uA (suspend-typ).  Transmit and receive LED drive signals.  UHCI/OHCI/EHCI host controller compatible.  UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity  Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.  USB 2.0 Full Speed compatible.  Extended operating temperature range; -40 to 85⁰C.  Available in compact Pb-free 16 pin SSOP and 16 pin QFN packages (both RoHS compliant). Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminary information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by the publication of this document. Future Technology Devices International Ltd, Unit 1, 2 Seaward Place, Centurion Business Park, Glasgow G41 1HH United Kingdom. Scotland Registered Company Number: SC136640 Copyright © 2015 Future Technology Devices International Limited 1
1 Typical Applications FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260  USB to RS232/RS422/RS485 Converters  USB Industrial Control  Upgrading Legacy Peripherals to USB  USB MP3 Player Interface  Utilising USB to add system modularity  USB FLASH Card Reader and Writers  Incorporate USB interface to enable PC transfers for development system communication  Set Top Box PC - USB interface  USB Digital Camera Interface  Cellular and Cordless Phone USB data transfer cables and interfaces  Interfacing MCU/PLD/FPGA based designs to add USB connectivity  USB Audio and Low Bandwidth Video data transfer  USB Smart Card Readers  USB Instrumentation 1.1 Driver Support  USB Hardware Modems  USB Wireless Modems  USB Bar Code Readers  USB dongle implementations for Software/ Hardware Encryption and Wireless Modules  Detection of dedicated charging port for battery charging at higher supply currents. Royalty free VIRTUAL COM PORT (VCP) DRIVERS for... Royalty free D2XX Direct Drivers (USB Drivers + DLL S/W Interface)  Windows 8 32,64-bit  Windows 7 32, 64-bit  Windows 8 32,64-bit  Windows 7 32,64-bit  Windows Vista and Vista 64-bit  Windows Vista and Vista 64-bit  Windows XP and XP 64-bit  Windows XP and XP 64-bit  Server 2003, XP and Server 2008  Server 2003, XP and Server 2008  Windows XP Embedded  Windows XP Embedded  Windows CE 4.2, 5.0 and 6.0  Windows CE 4.2, 5.0 and 6.0  Mac OS-X  Mac OS-X  Linux 3.2 and greater  Linux 2.6 and greater  Android  Android The drivers listed above are all available to download for free from FTDI website (www.ftdichip.com). Various 3rd party drivers are also available for other operating systems - see FTDI website (www.ftdichip.com) for details. For driver installation, please refer to http://www.ftdichip.com/Documents/InstallGuides.htm 1.2 Part Numbers Part Number FT230XQ-xxxx FT230XS-xxxx Package 16 Pin QFN 16 Pin SSOP Note: Packing codes for x is: - R: Taped and Reel, (SSOP is 3,000pcs per reel, QFN is 5,000pcs per reel). - U: Tube packing, 100pcs per tube (SSOP only) - T: Tray packing, 490pcs per tray (QFN only) For example: FT230XQ-R is 5,000pcs taped and reel packing Copyright © 2015 Future Technology Devices International Limited 2
1.3 USB Compliant FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 The FT230X is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID (TID) 40001463 (Rev D). Copyright © 2015 Future Technology Devices International Limited 3
2 FT230X Block Diagram FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 Figure 2.1 FT230X Block Diagram For a description of each function please refer to Section 4. Copyright © 2015 Future Technology Devices International Limited 4 3.3 Volt LDO Regulator1.8 Volt LDO RegulatorUSB Transceiver with Integrated 1.5k pullups and battery charge detectionUSB DPLLInternal 12MHz OscillatorX4 Clock MultiplierSerial Interface Engine(SIE)USBProtocol EngineUART FIFOControllerUART Controller with Programmable Signal InversionBaud Rate GeneratorReset GeneratorFIFO TX Buffer(512 bytes)FIFO RX Buffer(512 bytes)Internal MTP Memory48MHzGNDRESET#To USB Transceiver Cell3V3OUT48MHz3V3OUTVCCUSBDPUSBDM1V8 Internal Core SupplyTXDRXDRTS#CTS#CBUS0CBUS1CBUS2CBUS3
Table of Contents FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 1 Typical Applications ...................................................................... 2 1.1 Driver Support .................................................................................... 2 1.2 Part Numbers...................................................................................... 2 1.3 USB Compliant .................................................................................... 3 2 3 FT230X Block Diagram ................................................................. 4 Device Pin Out and Signal Description .......................................... 7 3.1 16-LD QFN Package ........................................................................... 7 3.1.1 QFN Package PinOut Description .................................................................................... 7 3.2 16-LD SSOP Package.......................................................................... 9 3.2.1 SSOP Package PinOut Description .................................................................................. 9 3.3 CBUS Signal Options ......................................................................... 11 4 Function Description................................................................... 13 4.1 Key Features ..................................................................................... 13 4.2 Functional Block Descriptions ........................................................... 13 5 Devices Characteristics and Ratings ........................................... 16 5.1 Absolute Maximum Ratings............................................................... 16 5.2 ESD and Latch-up Specifications ....................................................... 16 5.3 DC Characteristics............................................................................. 17 5.4 MTP Memory Reliability Characteristics ............................................ 21 5.5 Internal Clock Characteristics ........................................................... 21 6 USB Power Configurations .......................................................... 22 6.1 USB Bus Powered Configuration ...................................................... 22 6.2 Self Powered Configuration .............................................................. 23 6.3 USB Bus Powered with Power Switching Configuration .................... 24 7 Application Examples ................................................................. 25 7.1 USB to RS232 Converter ................................................................... 25 7.2 USB to RS485 Coverter ..................................................................... 26 7.3 USB to RS422 Converter ................................................................... 27 7.4 USB Battery Charging Detection ....................................................... 28 7.5 LED Interface .................................................................................... 31 8 Internal MTP Memory Configuration ........................................... 32 8.1 Default Values .................................................................................. 32 8.2 Methods of Programming the MTP Memory ....................................... 33 8.2.1 Programming the MTP memory over USB ...................................................................... 33 8.3 Memory Map ..................................................................................... 34 Copyright © 2015 Future Technology Devices International Limited 5
FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 9 Package Parameters ................................................................... 35 9.1 SSOP-16 Package Mechanical Dimensions ........................................ 35 9.2 SSOP-16 Package Markings .............................................................. 36 9.3 QFN-16 Package Mechanical Dimensions .......................................... 37 9.4 QFN-16 Package Markings ................................................................ 38 9.5 Solder Reflow Profile ........................................................................ 39 10 Contact Information ................................................................... 40 Appendix A – References ........................................................................... 41 Appendix B - List of Figures and Tables ..................................................... 42 Appendix C - Revision History .................................................................... 44 Copyright © 2015 Future Technology Devices International Limited 6

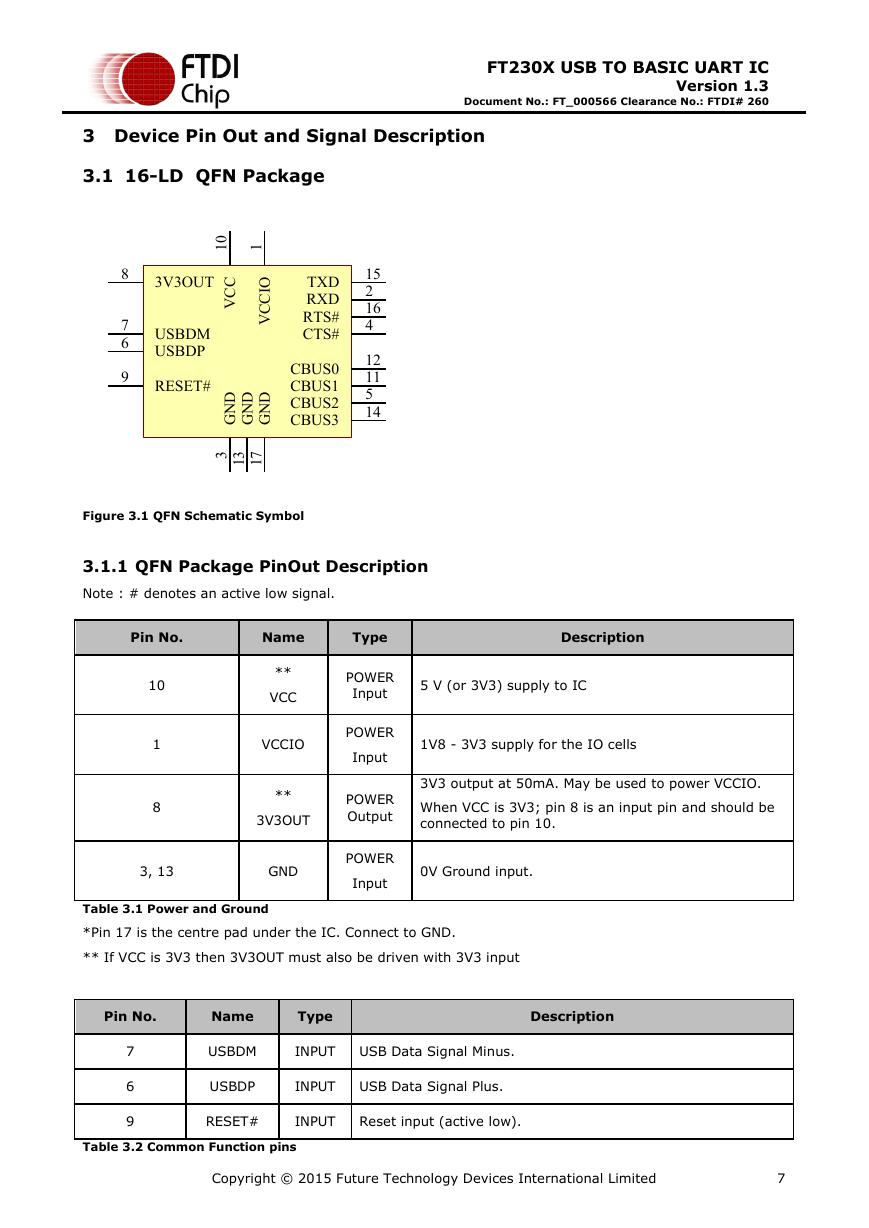

FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 3 Device Pin Out and Signal Description 3.1 16-LD QFN Package Figure 3.1 QFN Schematic Symbol 3.1.1 QFN Package PinOut Description Note : # denotes an active low signal. Pin No. Name Type Description 10 1 8 ** VCC VCCIO ** 3V3OUT 3, 13 GND Table 3.1 Power and Ground POWER Input POWER Input POWER Output POWER Input 5 V (or 3V3) supply to IC 1V8 - 3V3 supply for the IO cells 3V3 output at 50mA. May be used to power VCCIO. When VCC is 3V3; pin 8 is an input pin and should be connected to pin 10. 0V Ground input. *Pin 17 is the centre pad under the IC. Connect to GND. ** If VCC is 3V3 then 3V3OUT must also be driven with 3V3 input Pin No. Name Type Description 7 6 9 USBDM INPUT USB Data Signal Minus. USBDP INPUT USB Data Signal Plus. RESET# INPUT Reset input (active low). Table 3.2 Common Function pins Copyright © 2015 Future Technology Devices International Limited 7 VCCIO1GND3RTS#16CTS#4CBUS25USBDP6USBDM73V3OUT8RESET#9VCC10CBUS111CBUS012GND13TXD15RXD2CBUS314GND17
FT230X USB TO BASIC UART IC Version 1.3 Document No.: FT_000566 Clearance No.: FTDI# 260 Pin No. Name Type Description 15 TXD Output Transmit Asynchronous Data Output. 2 RXD Input Receiving Asynchronous Data Input. 16 RTS# Output Request to Send Control Output / Handshake Signal. 4 CTS# Input Clear To Send Control Input / Handshake Signal. 12 CBUS0 I/O Configurable CBUS I/O Pin. Function of this pin is configured in the device MTP memory. The default configuration is TXDEN. See CBUS Signal Options, Table 3.7. 11 CBUS1 I/O Configurable CBUS I/O Pin. Function of this pin is configured in the device MTP memory. The default configuration is RXLED#. See CBUS Signal Options, Table 3.7. 5 CBUS2 I/O Configurable CBUS I/O Pin. Function of this pin is configured in the device MTP memory. The default configuration is TXLED#. See CBUS Signal Options, Table 3.7. 14 CBUS3 I/O Configurable CBUS I/O Pin. Function of this pin is configured in the device MTP memory. The default configuration is SLEEP#. See CBUS Signal Options, Table 3.7. Table 3.3 UART Interface and CBUS Group (see note 1) Notes: 1. When used in Input Mode, the input pins are pulled to VCCIO via internal 75kΩ (approx) resistors. These pins can be programmed to gently pull low during USB suspend (PWREN# = “1”) by setting an option in the MTP memory. Copyright © 2015 Future Technology Devices International Limited 8
