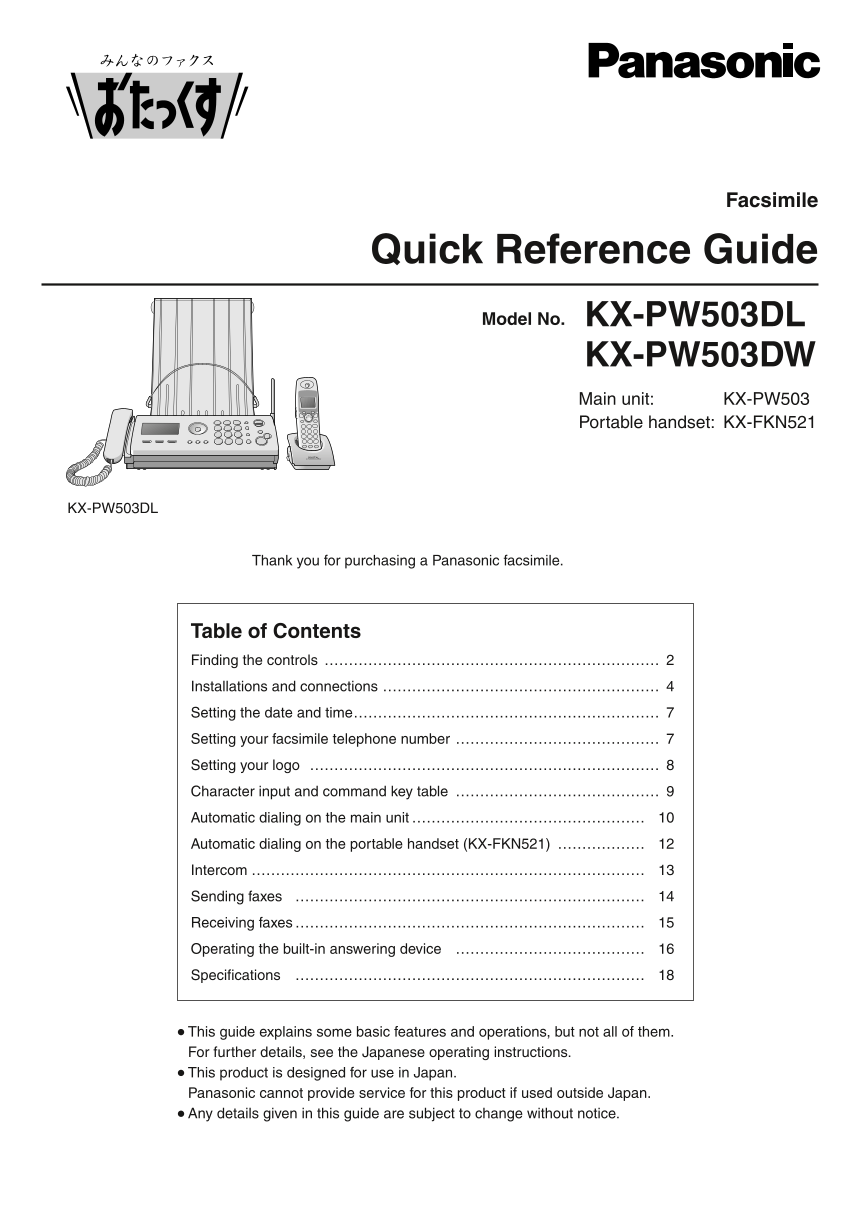

Facsimile Quick Reference Guide Model No. KX-PW503DL KX-PW503DW Main unit: KX-PW503 Portable handset: KX-FKN521 KX-PW503DL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls …………………………………………………………… 2 Installations and connections ………………………………………………… 4 Setting the date and time……………………………………………………… 7 Setting your facsimile telephone number …………………………………… 7 Setting your logo ……………………………………………………………… 8 Character input and command key table …………………………………… 9 Automatic dialing on the main unit ………………………………………… 10 Automatic dialing on the portable handset (KX-FKN521) ……………… 12 Intercom ……………………………………………………………………… 13 Sending faxes ……………………………………………………………… 14 Receiving faxes ……………………………………………………………… 15 Operating the built-in answering device ………………………………… 16 Specifications ……………………………………………………………… 18 l This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. l This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. l Any details given in this guide are subject to change without notice.

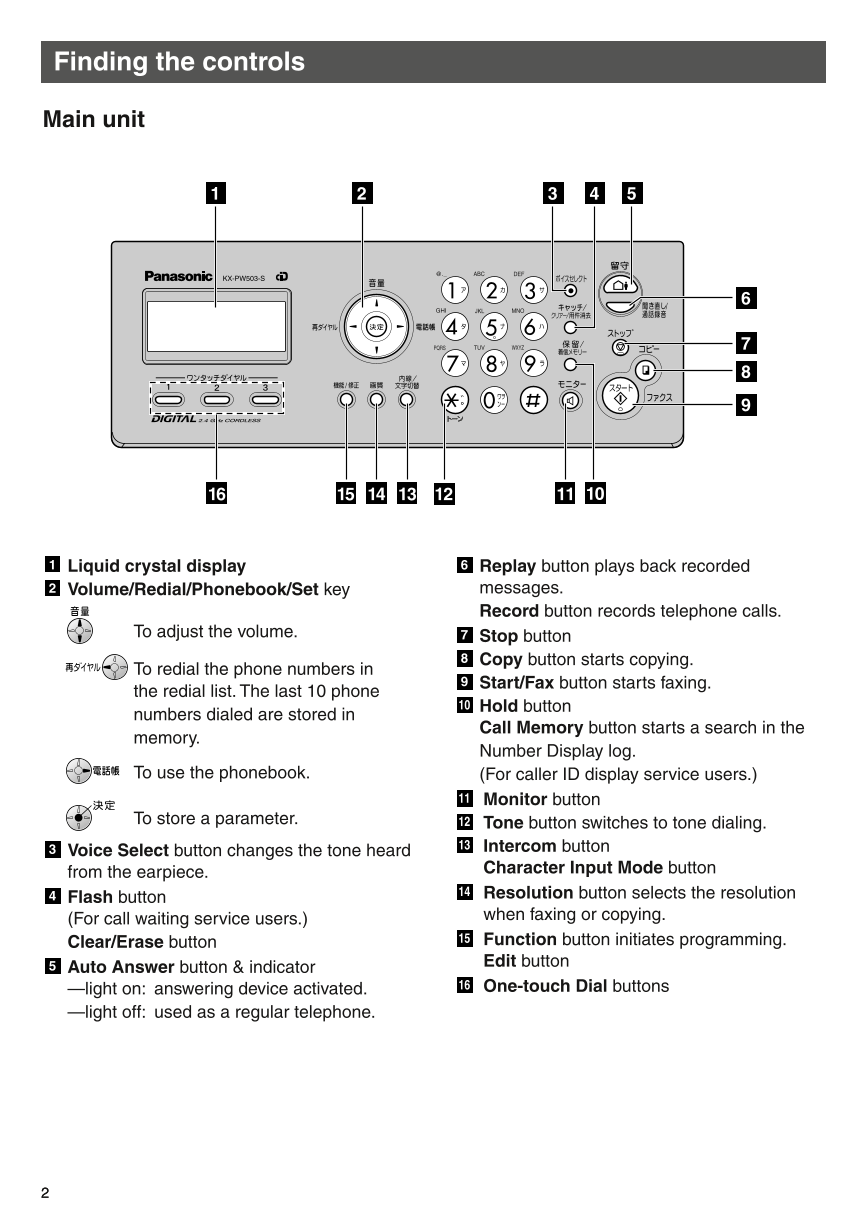

Finding the controls Main unit 1 2 3 4 5 6 7 8 9 16 15 14 13 12 11 10 1 Liquid crystal display 6 R eplay button plays back recorded 2 V olume/Redial/Phonebook/Set key messages. Record button records telephone calls. To adjust the volume. 7 Stop button 8 To redial the phone numbers in Copy button starts copying. 9 the redial list. The last 10 phone Start/Fax button starts faxing. 10 numbers dialed are stored in Hold button Call Memory button starts a search in the memory. Number Display log. To use the phonebook. (For caller ID display service users.) 11 Monitor button To store a parameter. 12 T one button switches to tone dialing. 3 V oice Select button changes the tone heard 13 Intercom button from the earpiece. Character Input Mode button 4 Flash button 14 R esolution button selects the resolution (For call waiting service users.) when faxing or copying. Clear/Erase button 15 Function button initiates programming. 5 A uto Answer button & indicator Edit button —light on: answering device activated. 16 O ne-touch Dial buttons —light off: used as a regular telephone. 2

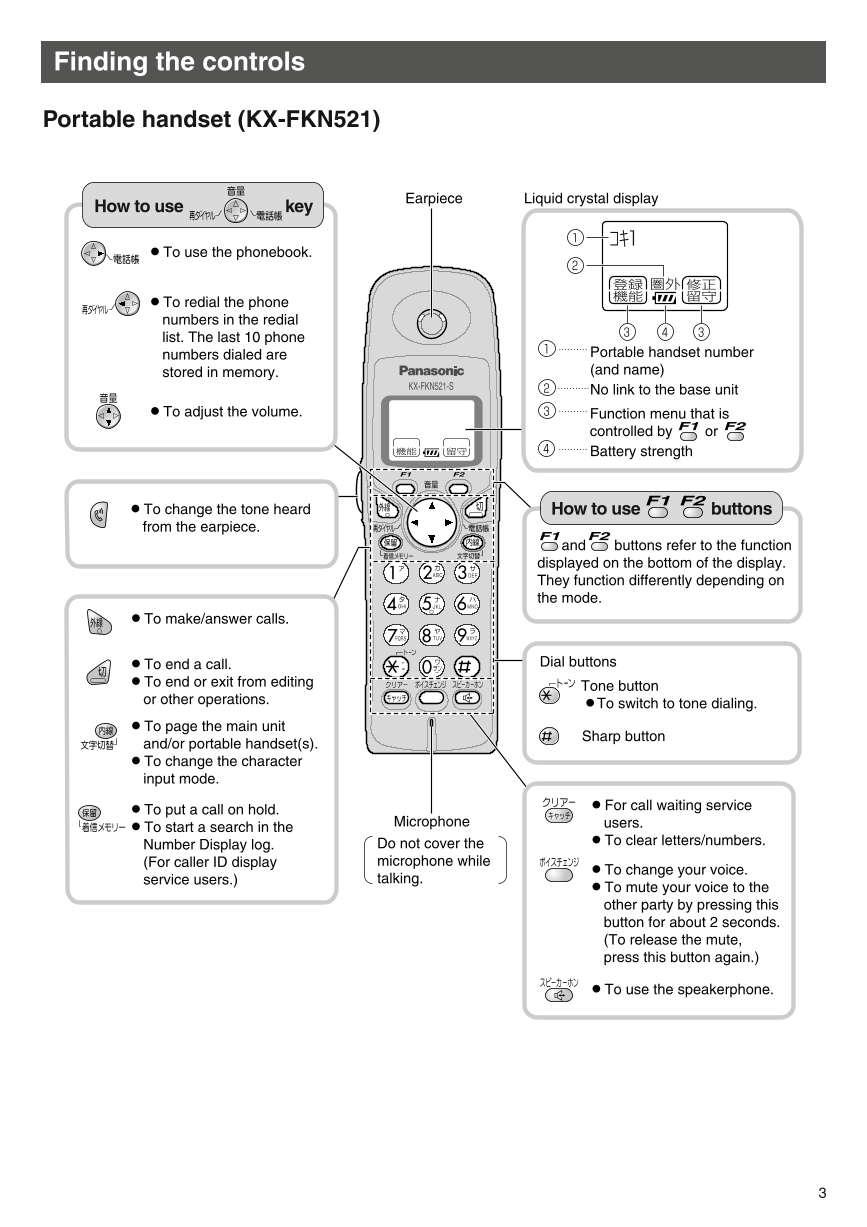

Finding the controls Portable handset (KX-FKN521) How to use key Earpiece Liquid crystal display ● To use the phonebook. ● To redial the phone numbers in the redial list. The last 10 phone numbers dialed are Portable handset number stored in memory. (and name) No link to the base unit ● To adjust the volume. Function menu that is controlled by or Battery strength ● To change the tone heard How to use buttons from the earpiece. and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. ● To make/answer calls. ● To end a call. Dial buttons ● To end or exit from editing Tone button or other operations. ● To switch to tone dialing. ● To page the main unit and/or portable handset(s). Sharp button ● To change the character input mode. ● To put a call on hold. ● For call waiting service ● To start a search in the Microphone users. Number Display log. Do not cover the ● To clear letters/numbers. (For caller ID display microphone while ● To change your voice. service users.) talking. ● To mute your voice to the other party by pressing this button for about 2 seconds. (To release the mute, press this button again.) ● To use the speakerphone. 3

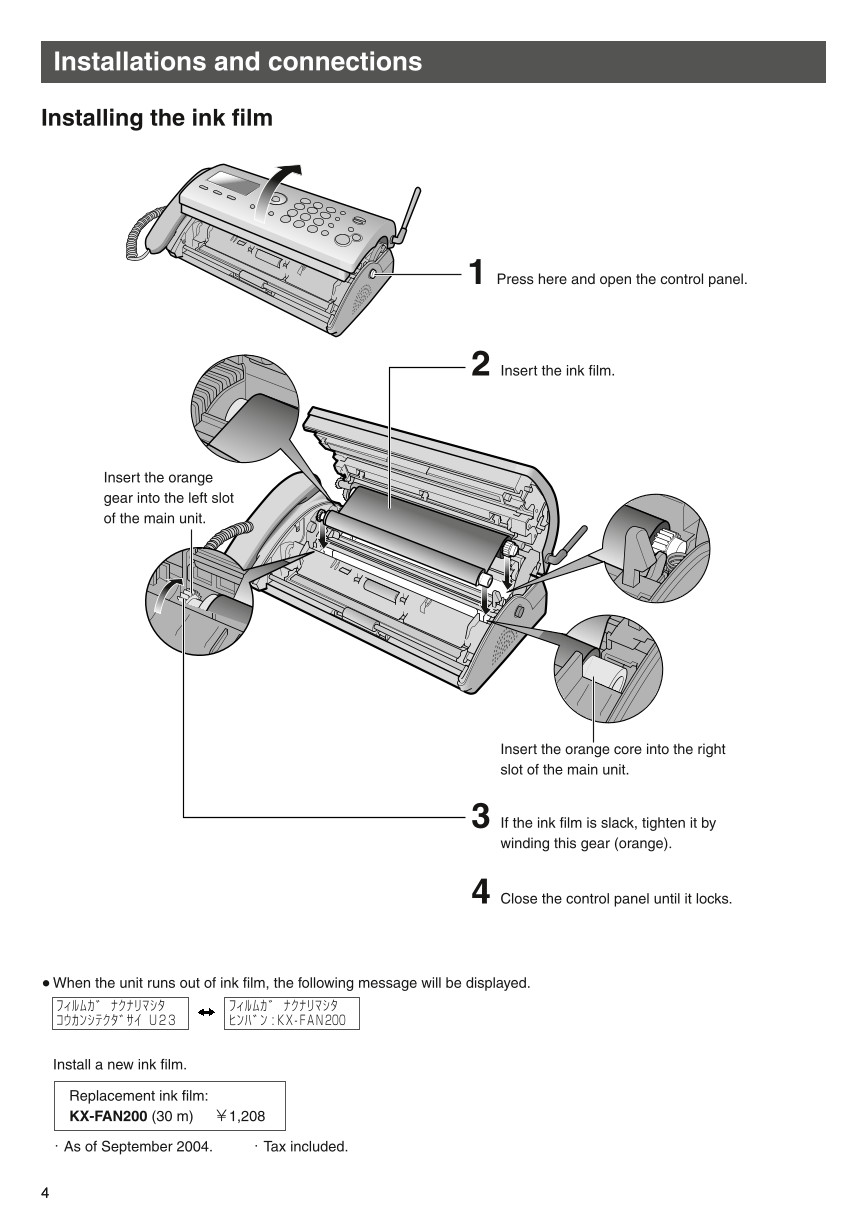

Installations and connections Installing the ink film 1 Press here and open the control panel. 2 Insert the ink film. Insert the orange gear into the left slot of the main unit. Insert the orange core into the right slot of the main unit. 3 If the ink film is slack, tighten it by winding this gear (orange). 4 Close the control panel until it locks. l When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU23 ﾋﾝﾊﾞﾝ : KX - FAN200 Install a new ink film. Replacement ink film: KX-FAN200 (30 m) ￥1,208 ・As of September 2004. ・Tax included. 4

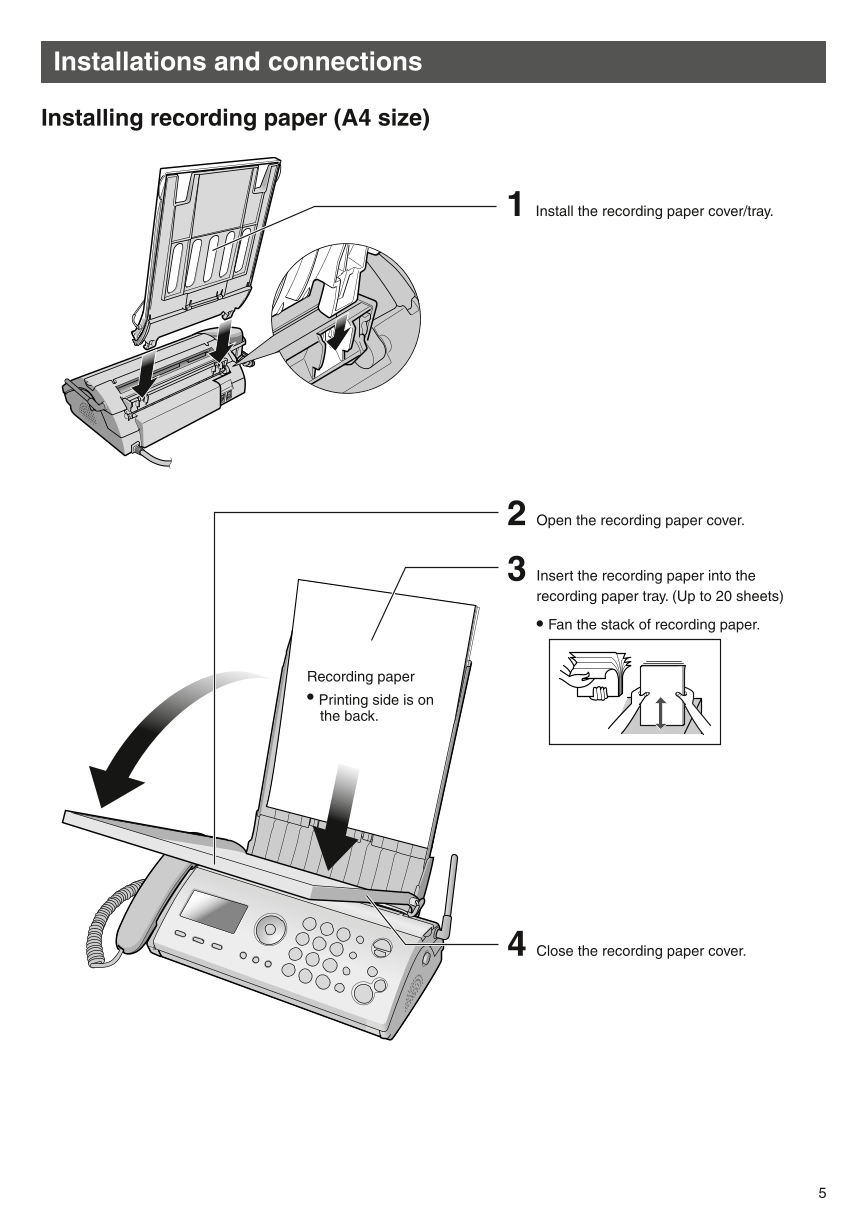

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper cover/tray. 2 Open the recording paper cover. 3 Insert the recording paper into the recording paper tray. (Up to 20 sheets) ● Fan the stack of recording paper. Recording paper ● Printing side is on the back. 4 Close the recording paper cover. 5

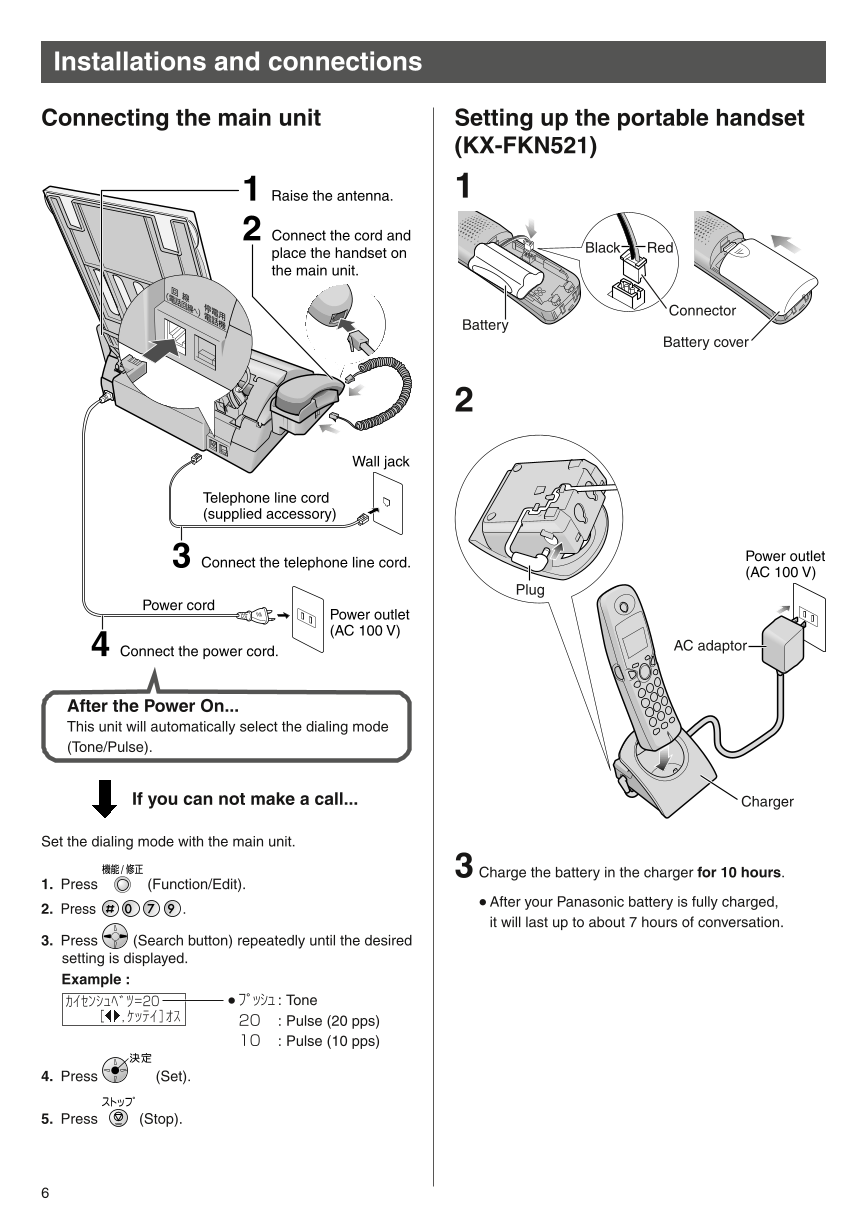

Installations and connections Connecting the main unit Setting up the portable handset (KX-FKN521) 1 Raise the antenna. 1 2 Connect the cord and place the handset on Black Red the main unit. Connector Battery Battery cover 2 Wall jack Telephone line cord (supplied accessory) 3 Connect the telephone line cord. Power outlet (AC 100 V) Plug Power cord Power outlet 4 (AC 100 V) Connect the power cord. AC adaptor After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). If you can not make a call... Charger Set the dialing mode with the main unit. 3 Charge the battery in the charger for 10 hours. 1. Press (Function/Edit). 2. l P ress . After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. 3. P ress (Search button) repeatedly until the desired setting is displayed. Example : ｶｲｾﾝｼｭﾍﾞﾂ＝20 l ﾌﾟｯｼｭ : Tone ［ , ｹｯﾃｲ］ｵｽ 20 : Pulse (20 pps) 10 : Pulse (10 pps) 4. Press (Set). 5. Press (Stop). 6

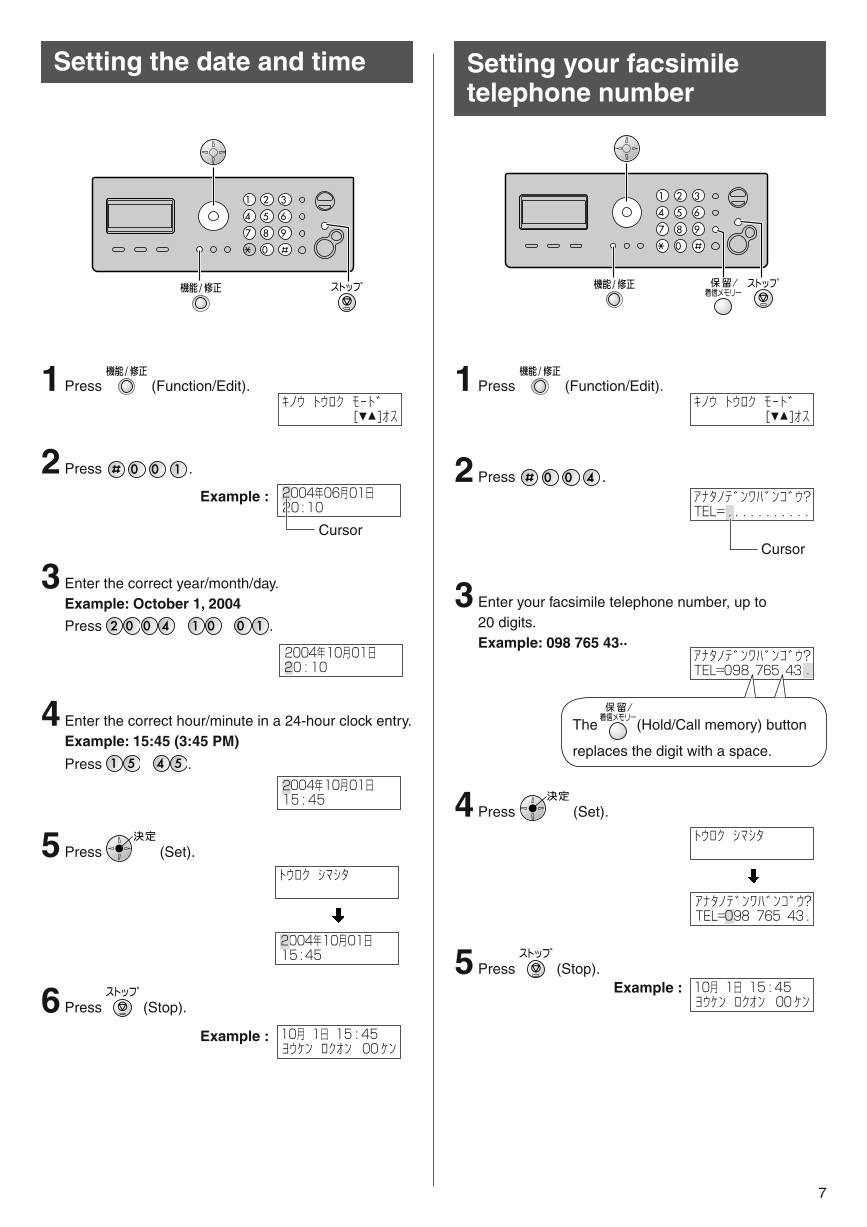

Setting the date and time Setting your facsimile telephone number 1 P ress (Function/Edit). 1 Press (Function/Edit). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽｸ [▼▲]ｵｽ 2 Press . 2 P ress . Example : 2004年06月01日ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? 20 : 10 TEL=．. ．．．．．．．．．． Cursor Cursor 3 E nter the correct year/month/day. Example: October 1, 2004 3 Enter your facsimile telephone number, up to Press . 20 digits. Example: 098 765 43·· 2004年10月01日ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? 20 : 10 TEL=0980765043 . 4 E nter the correct hour/minute in a 24-hour clock entry. The 　 (Hold/Call memory) button Example: 15:45 (3:45 PM) replaces the digit with a space. Press . 2004年10月01日 15 : 45 4 Press (Set). 5 ﾄｳﾛｸｱｼﾏｼﾀ P ress (Set). ﾄｳﾛｸｼﾏｼﾀｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=098 765 43． 2004年10月01日 15 : 45 5 Press (Stop). 6 Example : 10月 1日 15 : 45 Press (Stop). ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 7

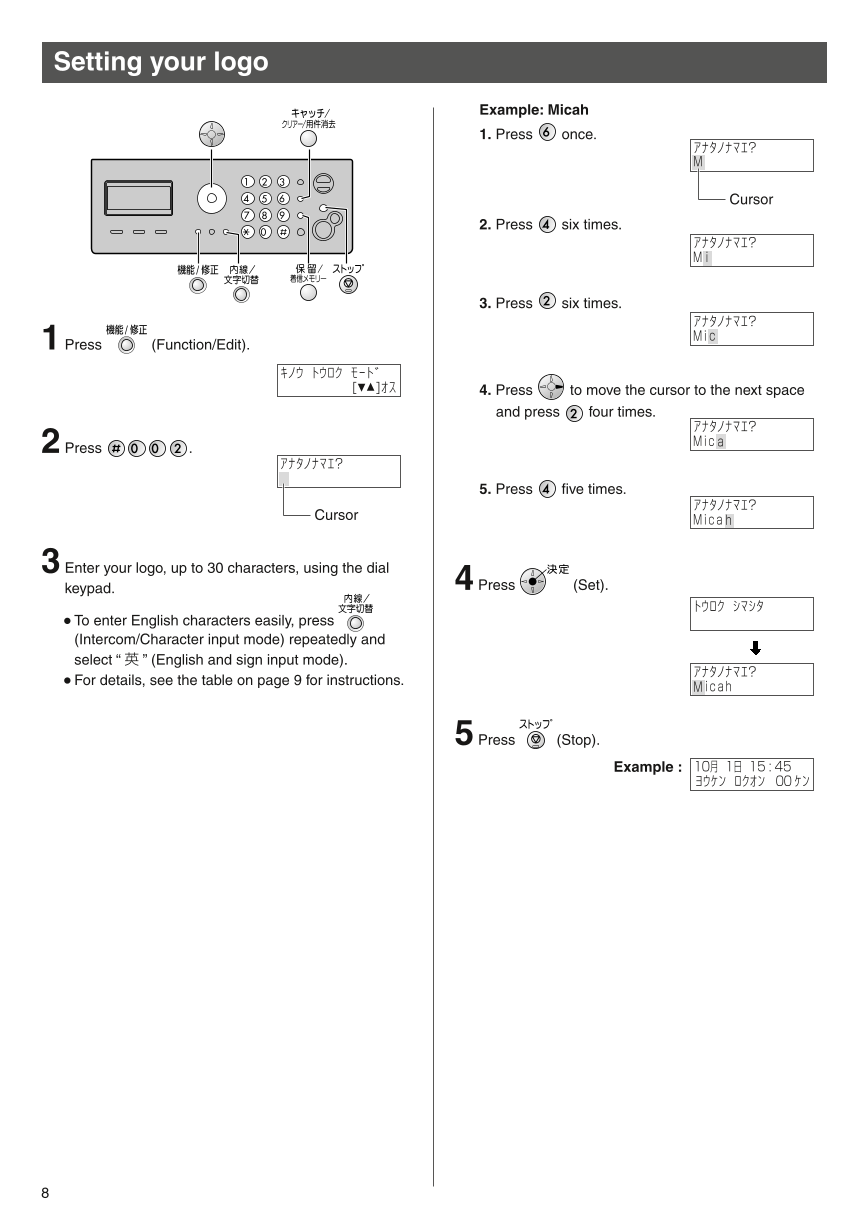

Setting your logo Example: Micah 1. Press once. ｱﾅﾀﾉﾅﾏｴ? M Cursor 2. Press six times. ｱﾅﾀﾉﾅﾏｴ? M ii 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? 1 Mic Press (Function/Edit). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽ 4. Press to move the cursor to the next space and press four times. ｱﾅﾀﾉﾅﾏｴ? 2 P ress . Mica ｱﾅﾀﾉﾅﾏｴ? 5. Press five times. ｱﾅﾀﾉﾅﾏｴ? Cursor Micah 3 Enter your logo, up to 30 characters, using the dial keypad. 4 P ress (Set). ﾄｳﾛｸｱｼﾏｼﾀ l To enter English characters easily, press (Intercom/Character input mode) repeatedly and select “ 英 ” (English and sign input mode). l For details, see the table on page 9 for instructions. ｱﾅﾀﾉﾅﾏｴ? M i cah 5 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 8
