Digital Camera
User Manual
020810

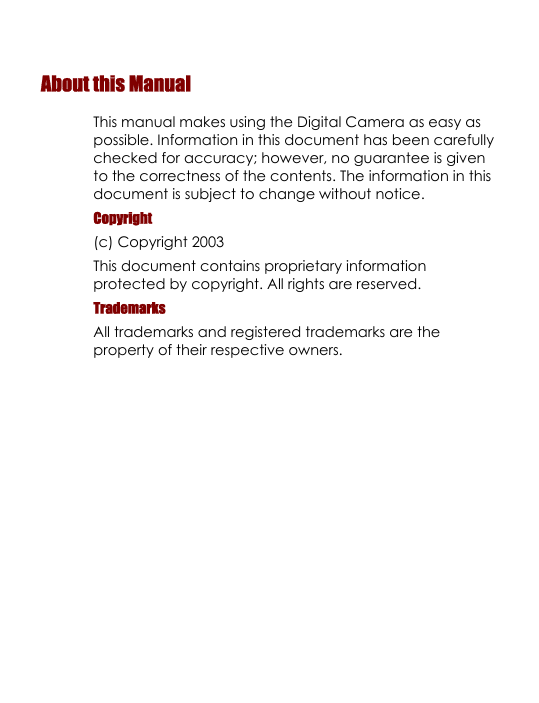

About this Manual
This manual makes using the Digital Camera as easy as
possible. Information in this document has been carefully
checked for accuracy; however, no guarantee is given
to the correctness of the contents. The information in this
document is subject to change without notice.
Copyright
(c) Copyright 2003
This document contains proprietary information
protected by copyright. All rights are reserved.
Trademarks
All trademarks and registered trademarks are the
property of their respective owners.
Table of Contents
Chapter 1 – Getting Started .............................................................. 1
Safety Information .................................................................. 2
Included Components .......................................................... 3
Camera Overview.................................................................. 4
Front View................................................................... 4
Back View................................................................... 6
Bottom View............................................................... 9
Installing the Memory Card ................................................ 10
Installing the Batteries .......................................................... 12
Choosing a Language ........................................................ 14
Setting the Time and Date .................................................. 16
Chapter 2 - Taking Pictures .............................................................. 20
Preparing the Camera ........................................................ 20
Selecting the Camera Mode ............................................. 21
Framing the Shot................................................................... 21
Zooming and Shooting ........................................................ 22
Turning off the Camera ....................................................... 22
Chapter 3 - Reviewing Your Pictures .............................................. 23
Switching to Playback Mode ............................................. 23
Full-Screen Review .................................................. 23
Thumbnail Review ................................................... 24
Chapter 4 - Connecting to a Computer ....................................... 25
Installing Software................................................................. 25
Making the Connection ...................................................... 28
Copying Photos to a PC...................................................... 28
Using as a PC Camera......................................................... 29
Chapter 5 - Mode / Operation Guide............................................ 31
Snapshot Mode .................................................................... 31
Video Mode .......................................................................... 32
Preset Mode .......................................................................... 33
Landscape ............................................................... 33
Portrait....................................................................... 34
Night Scene.............................................................. 34
Self-Timer................................................................... 34
Macro........................................................................ 35
Playback Mode .................................................................... 35
Setup Mode........................................................................... 36
Delete All .................................................................. 37
Format....................................................................... 37
Quality....................................................................... 38
Buzzer ........................................................................ 39
DPOF ......................................................................... 39
Date/Time................................................................. 40
Memory Type ........................................................... 40
Language................................................................. 42
Video Out................................................................. 42
ISO.............................................................................. 43
Opening.................................................................... 43
PC Camera Mode................................................................ 44
Chapter 6 - Using the LC Display..................................................... 45
LCD Icon Descriptions.......................................................... 46
Appendix 1 – Button Function Guide ............................................. 48
Appendix 2 – Troubleshooting Guide ............................................. 49

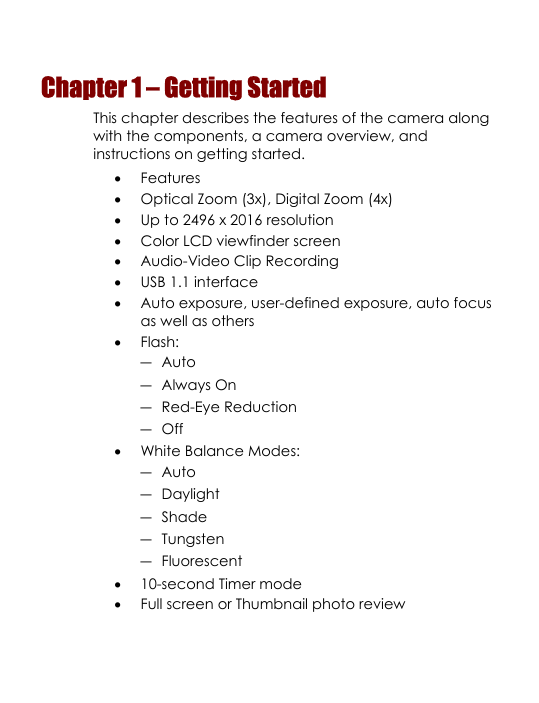

Chapter 1 – Getting Started
This chapter describes the features of the camera along
with the components, a camera overview, and
instructions on getting started.
Features
•
• Optical Zoom (3x), Digital Zoom (4x)
• Up to 2496 x 2016 resolution
• Color LCD viewfinder screen
• Audio-Video Clip Recording
• USB 1.1 interface
• Auto exposure, user-defined exposure, auto focus
•
as well as others
Flash:
― Auto
― Always On
― Red-Eye Reduction
― Off
• White Balance Modes:
― Auto
― Daylight
― Shade
― Tungsten
― Fluorescent
• 10-second Timer mode
•
Full screen or Thumbnail photo review
Digital Camera User’s Manual
Safety Information
• Do not look at the sun through the viewfinder. Viewing the sun
or other strong light source through the viewfinder could cause
permanent visual impairment.
• Do not disassemble the camera. Touching the product's
internal parts could result in injury. In the event of a malfunction
or if the camera is accidentally broken open, take the product
to an authorized service center for inspection.
• Avoid contact with liquid crystal. Should the LC display break,
care should be taken to avoid injury due to broken glass and
to prevent the liquid crystal from touching the skin or entering
the eyes or mouth.
• Do not use in the presence of flammable gas. Using electronic
equipment near flammable gas could result in explosion or fire.
• Observe proper precautions when handling batteries. The
camera uses only size AA alkaline batteries. Batteries may leak
or explode if handled improperly. Remove the batteries (and
the memory card) from the camera if you are going to store
the camera for extended periods of time. Ensure the camera is
turned off before inserting or removing batteries. Insert batteries
backwards correctly. Do not expose batteries to flame or
excessive heat. Do not immerse batteries in or expose to water.
Discontinue use immediately if you notice any changes in the
battery such as discoloration, deformation or leakage.
• Observe caution when operating the flash. Do not use the flash
close to anyone's eyes. This can cause temporary damage to
eyesight. Particular care should be observed when
photographing infants - keep the flash at a distance of at least
1 meter from infants' eyes.
2
Included Components
Included Components
Your digital camera comes equipped with the following
components. Please check to make sure all items are
included.
1. User's Manual on CD
2. Soft Carrying Case
3. Two (2) AA Alkaline Batteries
4. Video Cable
5. Quick Reference Guide
6. Digital Camera
7. Installation CD-ROM
8. USB Cable
3
Digital Camera User’s Manual

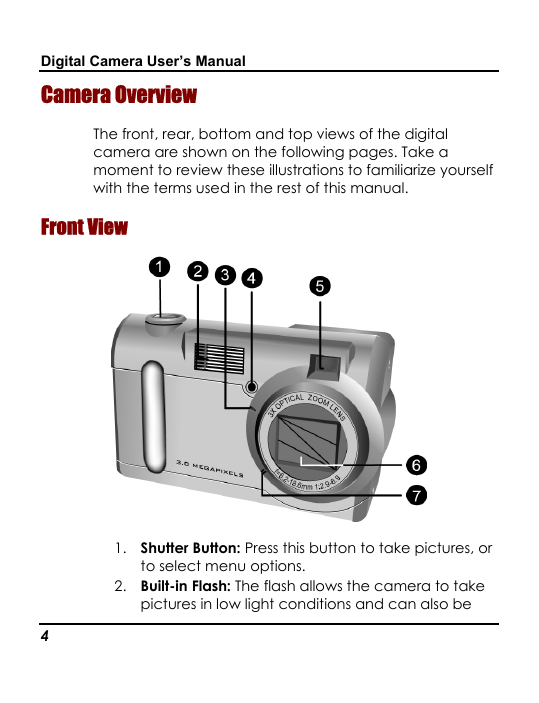

Camera Overview
The front, rear, bottom and top views of the digital
camera are shown on the following pages. Take a
moment to review these illustrations to familiarize yourself
with the terms used in the rest of this manual.
Front View
1. Shutter Button: Press this button to take pictures, or
to select menu options.
2. Built-in Flash: The flash allows the camera to take
pictures in low light conditions and can also be
4
