MT7603E DATASHEET FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL Version: Release date: Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. This document contains information that is proprietary to MediaTek Inc. 1.1 2014-07-100 Specifications are subject to change without notice. © 2014 MediaTek Inc. loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

M e d i a T e k C o n f i d e n t i a l A Confidential A MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. This document contains information that is proprietary to MediaTek Inc. MediaTek Confidential © 2014 MediaTek Inc. Page 2 of 18 loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

Initial Draft Fix typo Formal released Modify feature list Revision Date Author Description Confidential A 0.5 1.0 1.1 Update Preliminary Data 0.0 0.1 0.2 0.3 0.4 2014-07-10 AlexCC Lin 2014-04-10 AlexCC Lin 2014-06-08 AlexCC Lin 2012-09-14 AlexCC Lin 2013-10-01 AlexCC Lin 2013-10-09 AlexCC Lin 2014-04-07 AlexCC Lin 2013-09-28 AlexCC Lin Update thermal information Document Revision History Correct power-on-sequence timing Update theda Ja number MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Update Max junction temperature This document contains information that is proprietary to MediaTek Inc. MediaTek Confidential © 2014 MediaTek Inc. Page 3 of 18 loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

Table of Contents 1.2.1 Platform ................................................................................................................ 6 1.2.2 WLAN ................................................................................................................... 6 MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip Confidential A 1.4 Block Diagram .................................................................................................................... 7 1.3 Applications ........................................................................................................................ 7 1.2 Features ............................................................................................................................... 6 2 Product Descriptions ................................................................................................................... 8 1 System Overview .......................................................................................................................... 6 1.1 General Descriptions ......................................................................................................... 6 Table of Contents ................................................................................................................................... 4 Document Revision History ......................................................................................................................... 3 FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL 3 Electrical characteristics ........................................................................................................... 16 2.1 Pin Layout ............................................................................................................................. 8 2.2 PIN Description ................................................................................................................... 9 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. 2.3 Strapping option ................................................................................................................. 11 2.4 Power on sequence/reset ................................................................................................... 12 3.2 Recommended operating range ......................................................................................... 16 3.3 DC characteristics .............................................................................................................. 16 2.6 Ordering Information ........................................................................................................ 15 2.7 TOP Marking Information ................................................................................................. 15 2.5 Package information ........................................................................................................... 13 13 3.1 Absolute maximum rating ................................................................................................... 16 3.4 Thermal characteristics ...................................................................................................... 17 MediaTek Confidential © 2014 MediaTek Inc. Page 4 of 18 loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

Confidential A MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip Lists of Tables and Figures Table 1 Pin descriptions .................................................................................................................... 10 Table 2 Strapping option ................................................................................................................... 11 Table 4 Ordering information ............................................................................................................ 15 Table 5 Absolute maximum ratings ....................................................................................................... 16 Table 6 Recommended operating range ............................................................................................... 16 Table 7 DC description .......................................................................................................................... 16 Table 8 Thermal information .................................................................................................................. 17 Figure 1 MT7603E block diagram ........................................................................................................ 7 Figure 2 Top view of MT7603E QFN56 pin-out. ................................................................................. 8 Figure 3 Package outline drawing .................................................................................................... 14 Figure 4 Top marking ......................................................................................................................... 15 FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL MediaTek Confidential © 2014 MediaTek Inc. This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Page 5 of 18 loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

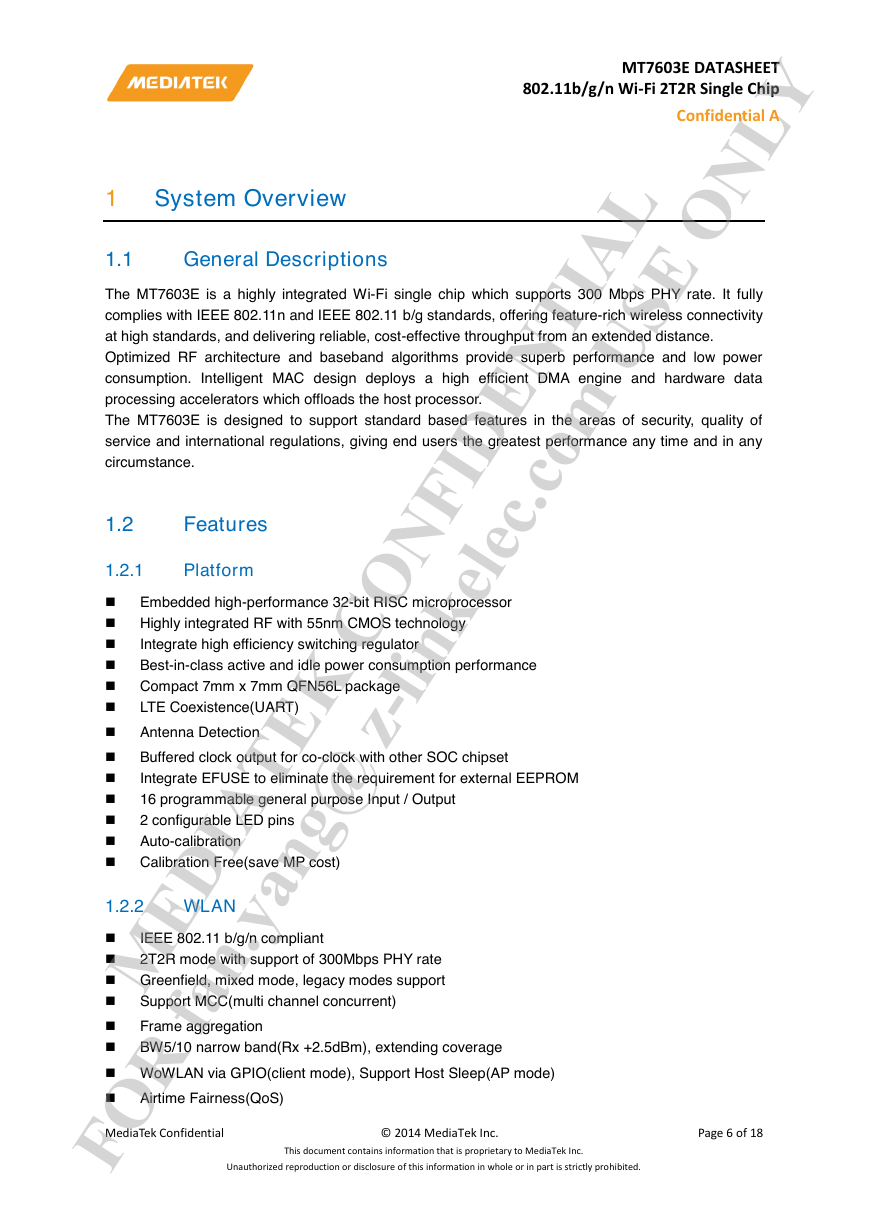

processing accelerators which offloads the host processor. circumstance. 1.2 Features 1.2.1 Platform 1 System Overview 1.1 General Descriptions at high standards, and delivering reliable, cost-effective throughput from an extended distance. service and international regulations, giving end users the greatest performance any time and in any Optimized RF architecture and baseband algorithms provide superb performance and low power The MT7603E is designed to support standard based features in the areas of security, quality of consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity The MT7603E is a highly integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL   Highly integrated RF with 55nm CMOS technology    Compact 7mm x 7mm QFN56L package        Calibration Free(save MP cost) IEEE 802.11 b/g/n compliant   2T2R mode with support of 300Mbps PHY rate  Greenfield, mixed mode, legacy modes support  Support MCC(multi channel concurrent)  WoWLAN via GPIO(client mode), Support Host Sleep(AP mode) Integrate EFUSE to eliminate the requirement for external EEPROM This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. MediaTek Confidential © 2014 MediaTek Inc. Page 6 of 18 LTE Coexistence(UART)  Antenna Detection 2 configurable LED pins Auto-calibration Frame aggregation   BW5/10 narrow band(Rx +2.5dBm), extending coverage Integrate high efficiency switching regulator Best-in-class active and idle power consumption performance Buffered clock output for co-clock with other SOC chipset 16 programmable general purpose Input / Output Embedded high-performance 32-bit RISC microprocessor Confidential A 1.2.2 WLAN  Airtime Fairness(QoS) loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT

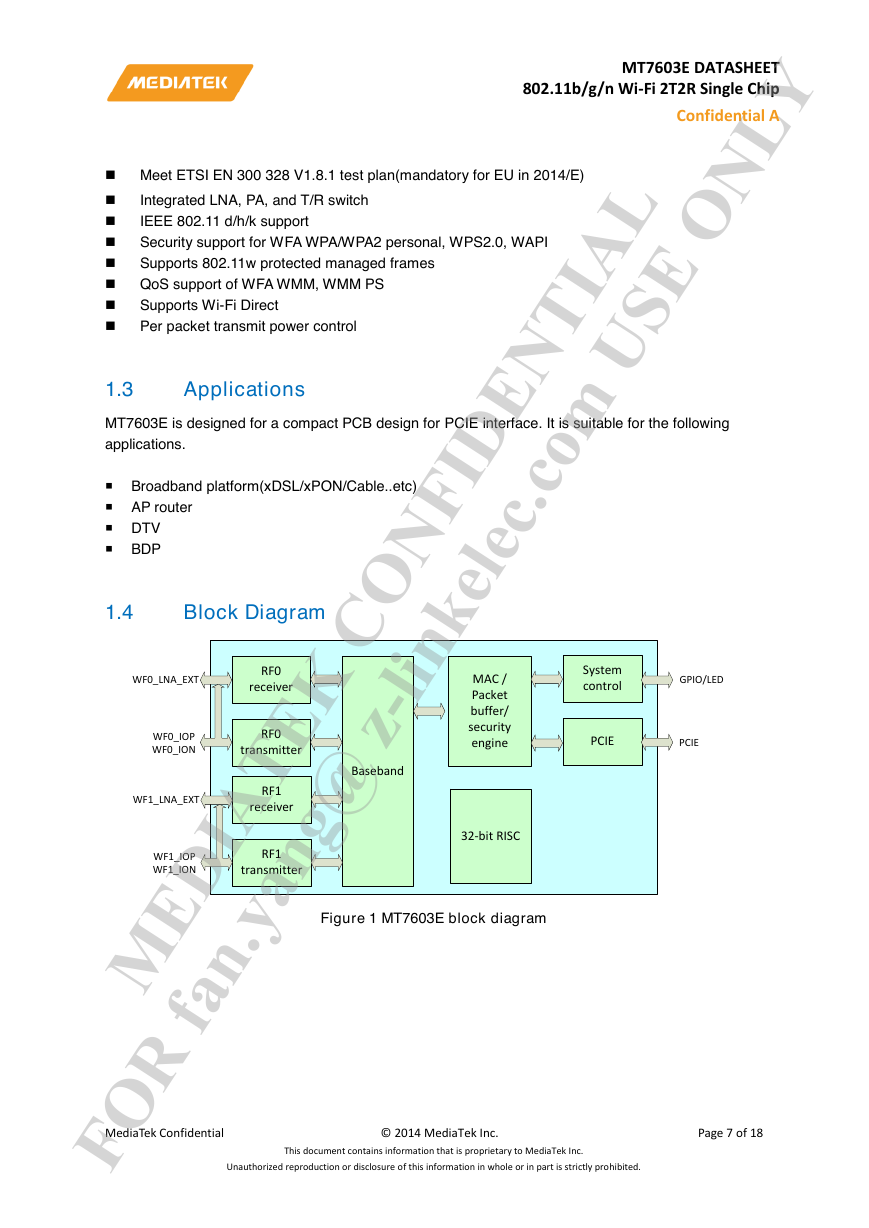

1.3 Applications applications. Supports Wi-Fi Direct Per packet transmit power control Integrated LNA, PA, and T/R switch IEEE 802.11 d/h/k support Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI MT7603E is designed for a compact PCB design for PCIE interface. It is suitable for the following MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip  Meet ETSI EN 300 328 V1.8.1 test plan(mandatory for EU in 2014/E)  Broadband platform(xDSL/xPON/Cable..etc)  AP router  DTV  BDP      QoS support of WFA WMM, WMM PS   FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL MediaTek Confidential © 2014 MediaTek Inc. This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Figure 1 MT7603E block diagram 1.4 Block Diagram Confidential A Page 7 of 18 Supports 802.11w protected managed frames loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT RF0receiverRF0transmitterBasebandMAC / Packet buffer/ security enginePCIESystem controlWF0_LNA_EXTWF0_IOPWF0_IONPCIEGPIO/LEDRF1receiverRF1transmitterWF1_LNA_EXTWF1_IOPWF1_ION32-bit RISC

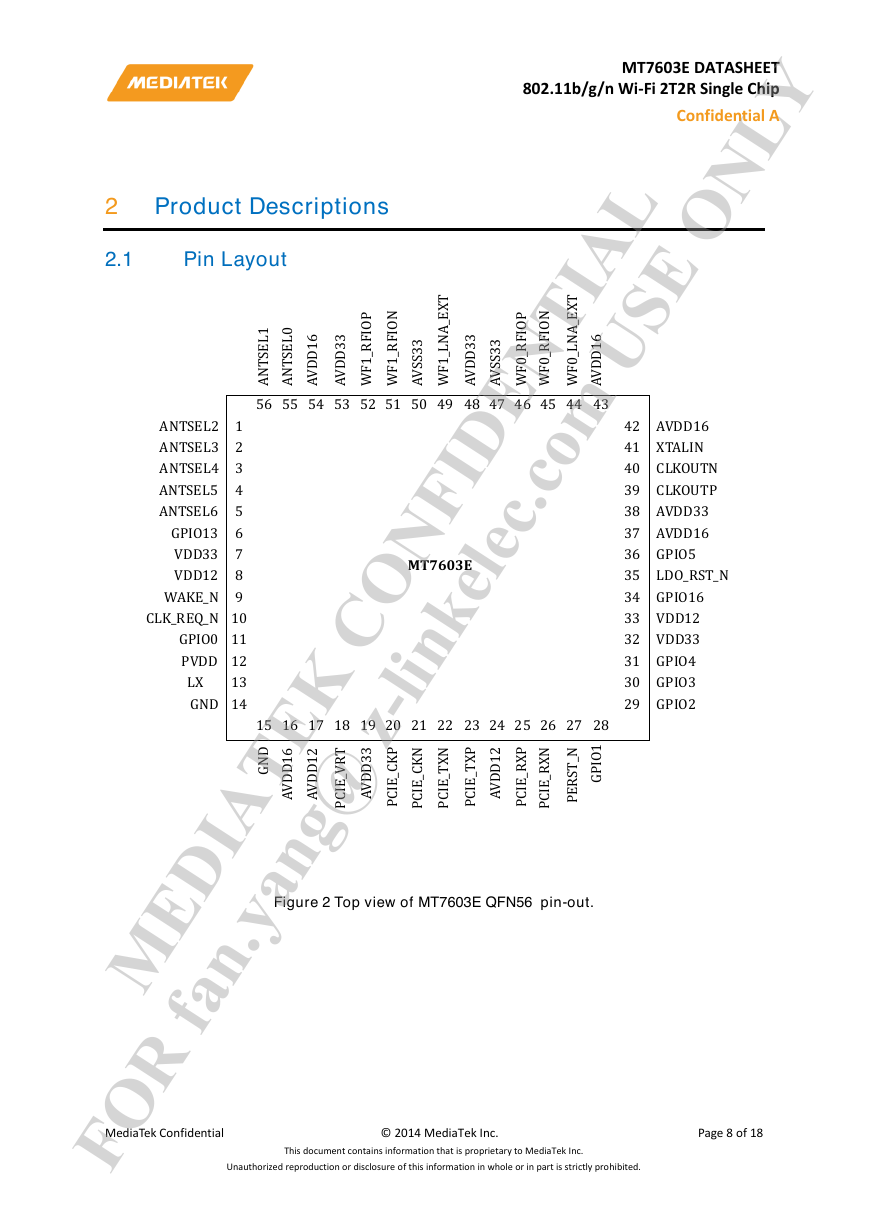

2.1 2 1 D D V A 0 L E S T N A 3 3 S S V A 6 1 D D V A 3 3 D D V A 3 3 D D V A 3 3 S S V A 1 L E S T N A P O I F R _ 0 F W P O I F R _ 1 F W N O I F R _ 0 F W N O I F R _ 1 F W T X E _ A N L _ 1 F W T X E _ A N L _ 0 F W Confidential A Pin Layout 6 1 D D V A 56 55 54 53 52 51 50 49 48 47 46 45 44 43 2 Product Descriptions MT7603E DATASHEET 802.11b/g/n Wi-Fi 2T2R Single Chip ANTSEL2 1 ANTSEL3 2 ANTSEL4 3 ANTSEL5 4 ANTSEL6 5 GPIO13 6 VDD33 7 VDD12 8 WAKE_N 9 CLK_REQ_N 10 GPIO0 11 PVDD 12 LX 13 GND 14 FOR fan.yang@ z-linkelec.com USE ONLY MEDIATEK CONFIDENTIAL 42 AVDD16 41 XTALIN 40 CLKOUTN 39 CLKOUTP 38 AVDD33 37 AVDD16 36 GPIO5 35 LDO_RST_N 34 GPIO16 33 VDD12 32 VDD33 31 GPIO4 30 GPIO3 29 GPIO2 Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Figure 2 Top view of MT7603E QFN56 pin-out. This document contains information that is proprietary to MediaTek Inc. MediaTek Confidential © 2014 MediaTek Inc. N K C _ E I C P N X R _ E I C P N X T _ E I C P P K C _ E I C P P X R _ E I C P P X T _ E I C P MT7603E N _ T S R E P 6 1 D D V A 2 1 D D V A 3 3 D D V A T R V _ E I C P D N G 1 O I P G loginid=fan.yang@z-linkelec.com,time=2014-07-28 12:15:57,ip=113.92.233.93,doctitle=MT7603E_Data_Sheet.pdf,company=Z-Link Limited 香港瑞聯電子_RLT Page 8 of 18
