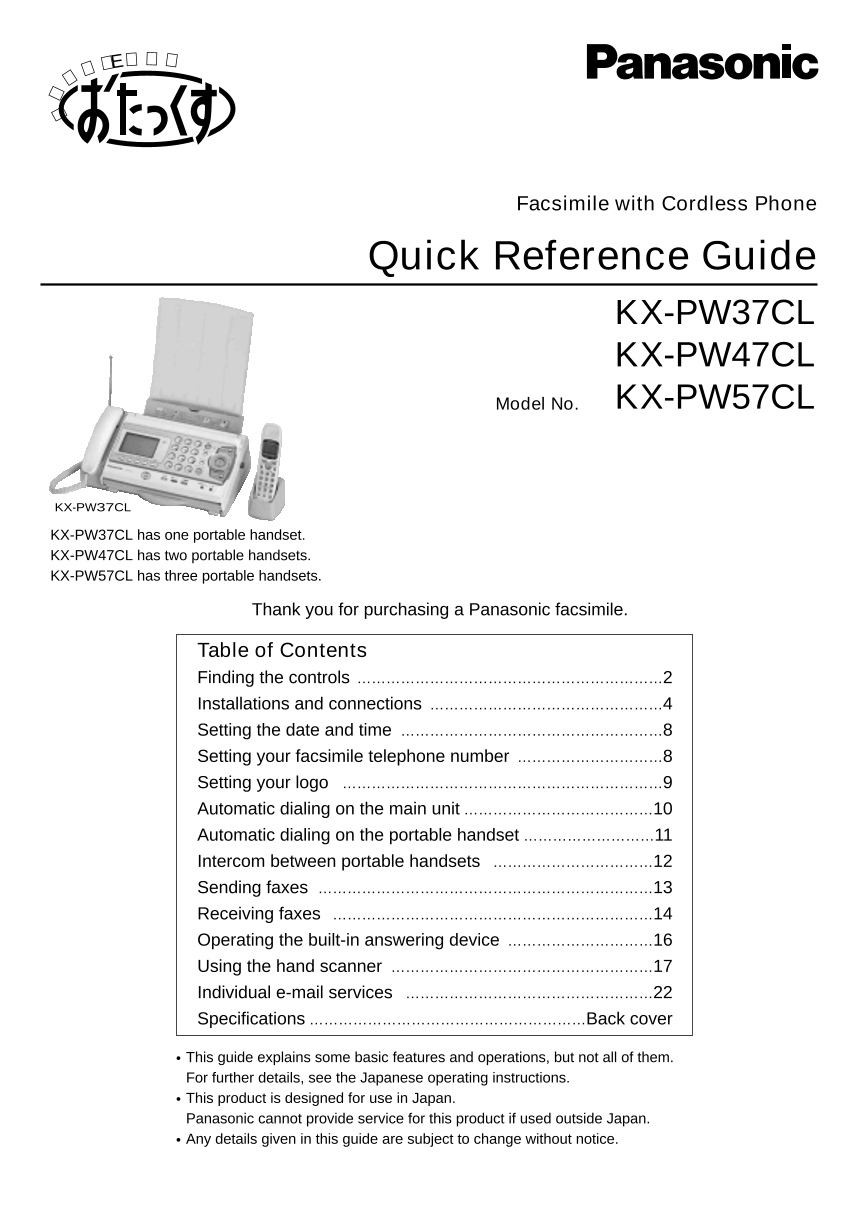

　Eメール　　 Facsimile with Cordless Phone Quick Reference Guide KX-PW37CL KX-PW47CL Model No. KX-PW57CL KX-PW37CL KX-PW37CL has one portable handset. KX-PW47CL has two portable handsets. KX-PW57CL has three portable handsets. Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ………………………………………………………2 Installations and connections …………………………………………4 Setting the date and time ………………………………………………8 Setting your facsimile telephone number …………………………8 Setting your logo …………………………………………………………9 Automatic dialing on the main unit …………………………………10 Automatic dialing on the portable handset ………………………11 Intercom between portable handsets ……………………………12 Sending faxes ……………………………………………………………13 Receiving faxes …………………………………………………………14 Operating the built-in answering device …………………………16 Using the hand scanner ………………………………………………17 Individual e-mail services ……………………………………………22 Specifications …………………………………………………Back cover ● This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. ● This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. ● Any details given in this guide are subject to change without notice. 　　

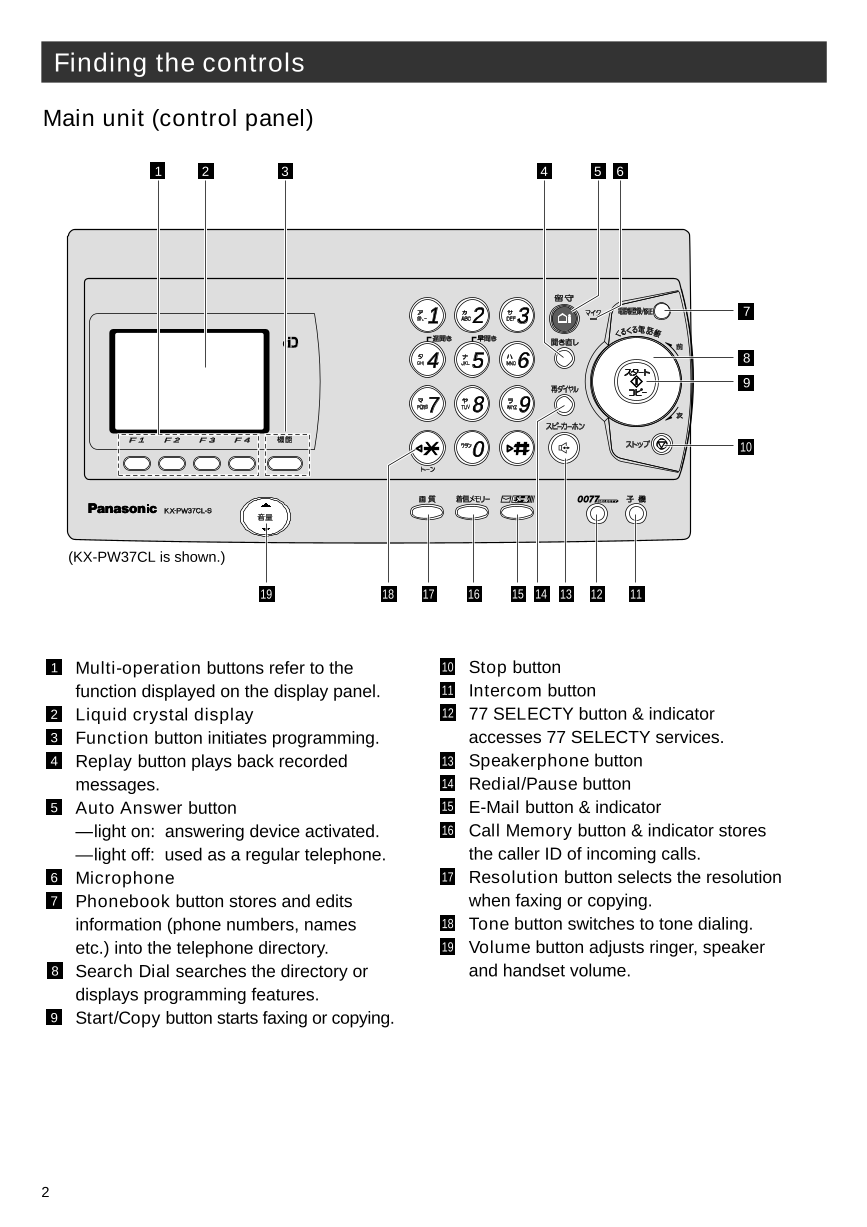

Finding the controls Main unit (control panel) 1 2 3 4 5 6 1 2 3 7 4 5 6 8 9 7 8 9 F 1 F 2 F 3 F 4 0 10 KX-PW37CL-S (KX-PW37CL is shown.) 19 18 17 16 15 14 13 12 11 1 Multi-operation buttons refer to the 10 Stop button function displayed on the display panel. 11 Intercom button 2 Liquid crystal display 12 77 SELECTY button & indicator 3 Function button initiates programming. accesses 77 SELECTY services. 4 Replay button plays back recorded 13 Speakerphone button messages. 14 Redial/Pause button 5 Auto Answer button 15 E-Mail button & indicator —light on: answering device activated. 16 Call Memory button & indicator stores —light off: used as a regular telephone. the caller ID of incoming calls. 6 Microphone 17 Resolution button selects the resolution 7 Phonebook button stores and edits when faxing or copying. information (phone numbers, names 18 Tone button switches to tone dialing. etc.) into the telephone directory. 19 Volume button adjusts ringer, speaker 8 Search Dial searches the directory or and handset volume. displays programming features. 9 Start/Copy button starts faxing or copying. 2

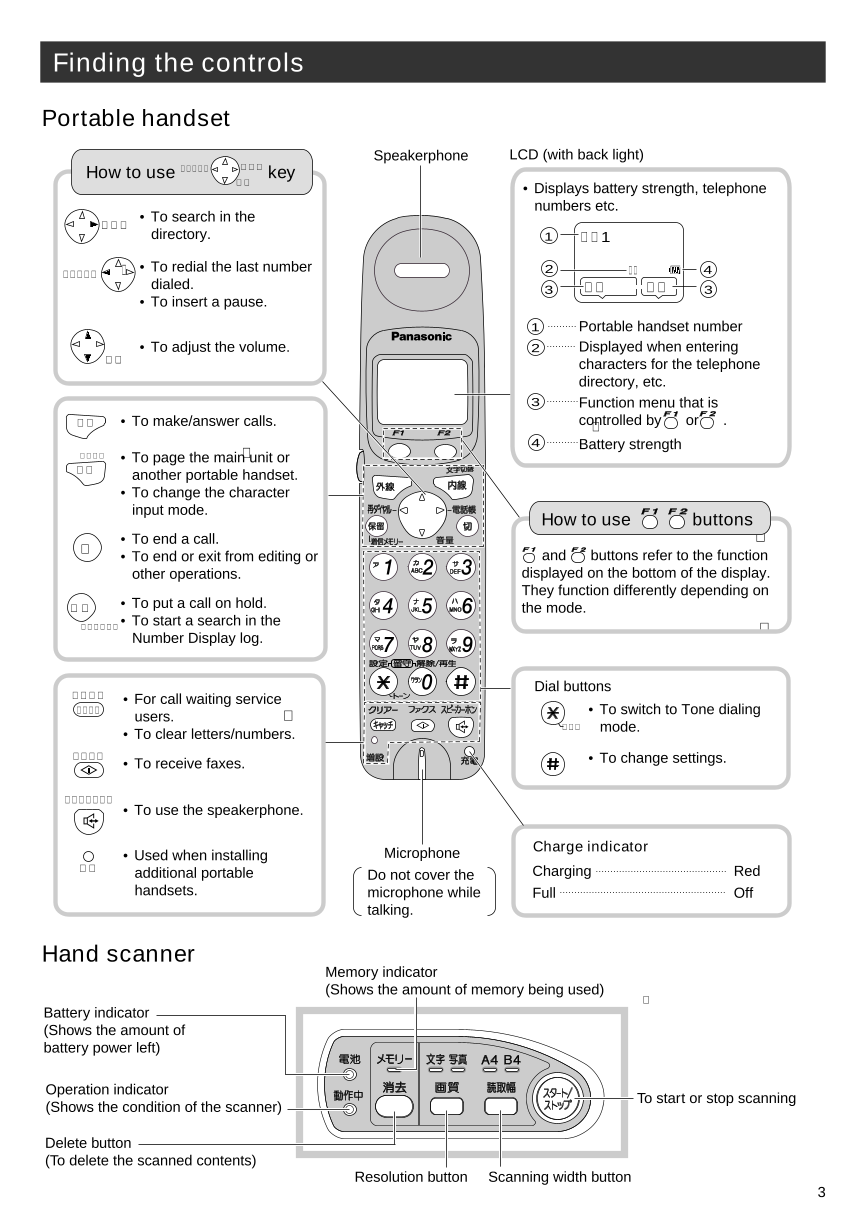

Finding the controls Portable handset Speakerphone LCD (with back light) How to use 再ダイヤル電話帳 key 音量 ● Displays battery strength, telephone numbers etc. ● To search in the 電話帳 directory. 1 ｺｷ 1 � ● To redial the last number 再ダイヤル 2 プライベートカナ 4 dialed. 3 登録機能 3 ● To insert a pause. 1 Portable handset number ● To adjust the volume. 2 Displayed when entering 音量 characters for the telephone directory, etc. 3 Function menu that is 外線 ● To make/answer calls. co�ntrolled by or . 4 Battery strength 文字切替 ● To page the main� unit or 内線 another portable handset. ● To change the character input mode. How to use buttons ● To end a call. � 切 ● To end or exit from editing or and buttons refer to the function other operations. displayed on the bottom of the display. They function differently depending on 保留 ● To put a call on hold. the mode. ● 着信メモリー To start a search in the � Number Display log. Dial buttons クリアー ● For call waiting service キャッチ users. � ● To switch to Tone dialing トーン ● To clear letters/numbers. mode. ファクス To receive faxes. ● ● To change settings. スピーカーホン ● To use the speakerphone. Microphone Charge indicator ● Used when installing 増設 additional portable Do not cover the Charging Red handsets. microphone while Full Off talking. Hand scanner Memory indicator (Shows the amount of memory being used) � Battery indicator (Shows the amount of battery power left) Operation indicator To start or stop scanning (Shows the condition of the scanner) Delete button (To delete the scanned contents) Resolution button Scanning width button 3

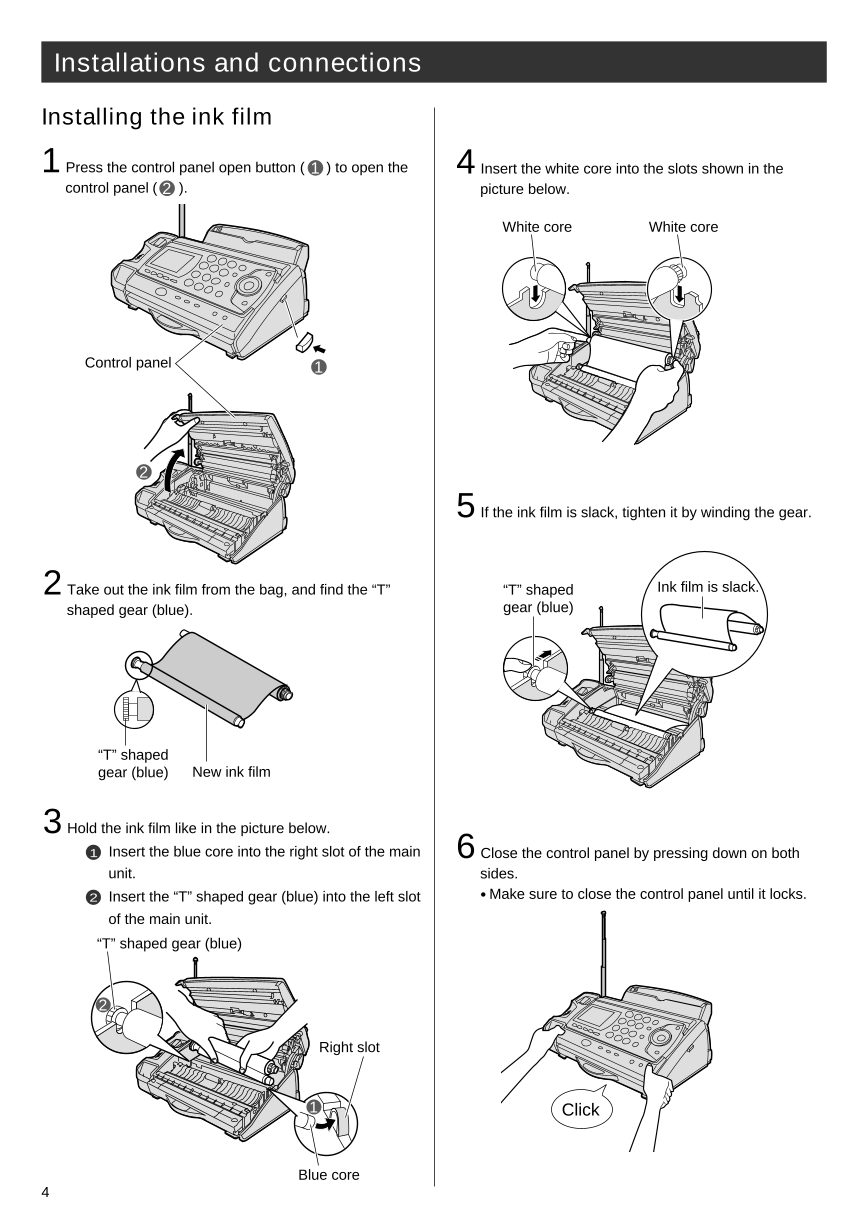

Installations and connections Installing the ink film 1 Press the control panel open button ( 1 ) to open the 4 Insert the white core into the slots shown in the control panel ( 2 ). picture below. White core White core Control panel 1 2 5 If the ink film is slack, tighten it by winding the gear. 2 Take out the ink film from the bag, and find the “T” “T” shaped Ink film is slack. shaped gear (blue). gear (blue) “T” shaped gear (blue) New ink film 3 Hold the ink film like in the picture below. 1 Insert the blue core into the right slot of the main 6 Close the control panel by pressing down on both unit. sides. 2 Insert the “T” shaped gear (blue) into the left slot ● Make sure to close the control panel until it locks. of the main unit. “T” shaped gear (blue) 2 Right slot 1 Click Blue core 4

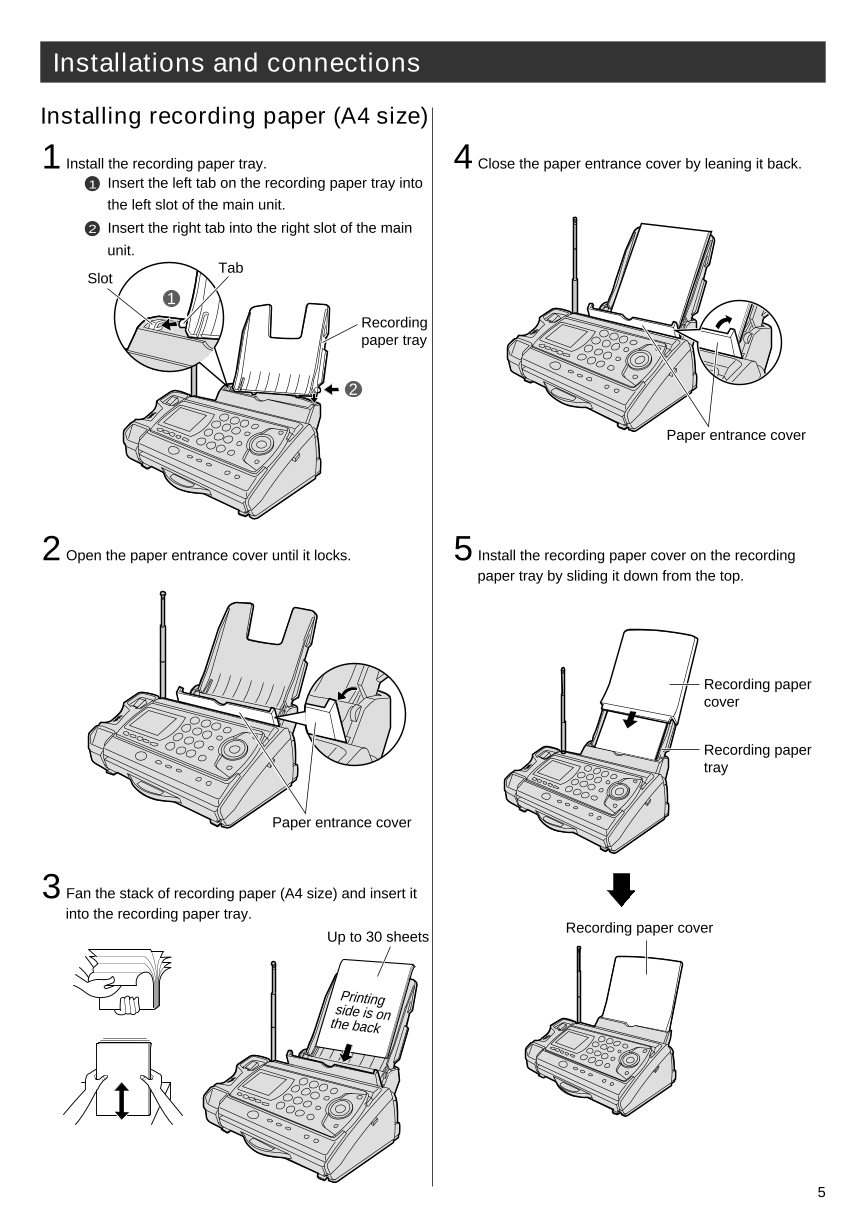

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper tray. 4 Close the paper entrance cover by leaning it back. 1 Insert the left tab on the recording paper tray into the left slot of the main unit. 2 Insert the right tab into the right slot of the main unit. Tab Slot 1 Recording paper tray 2 Paper entrance cover 2 Open the paper entrance cover until it locks. 5 Install the recording paper cover on the recording paper tray by sliding it down from the top. Recording paper cover Recording paper tray Paper entrance cover 3 Fan the stack of recording paper (A4 size) and insert it into the recording paper tray. Recording paper cover Up to 30 sheets Printing side is o t n h e back 5

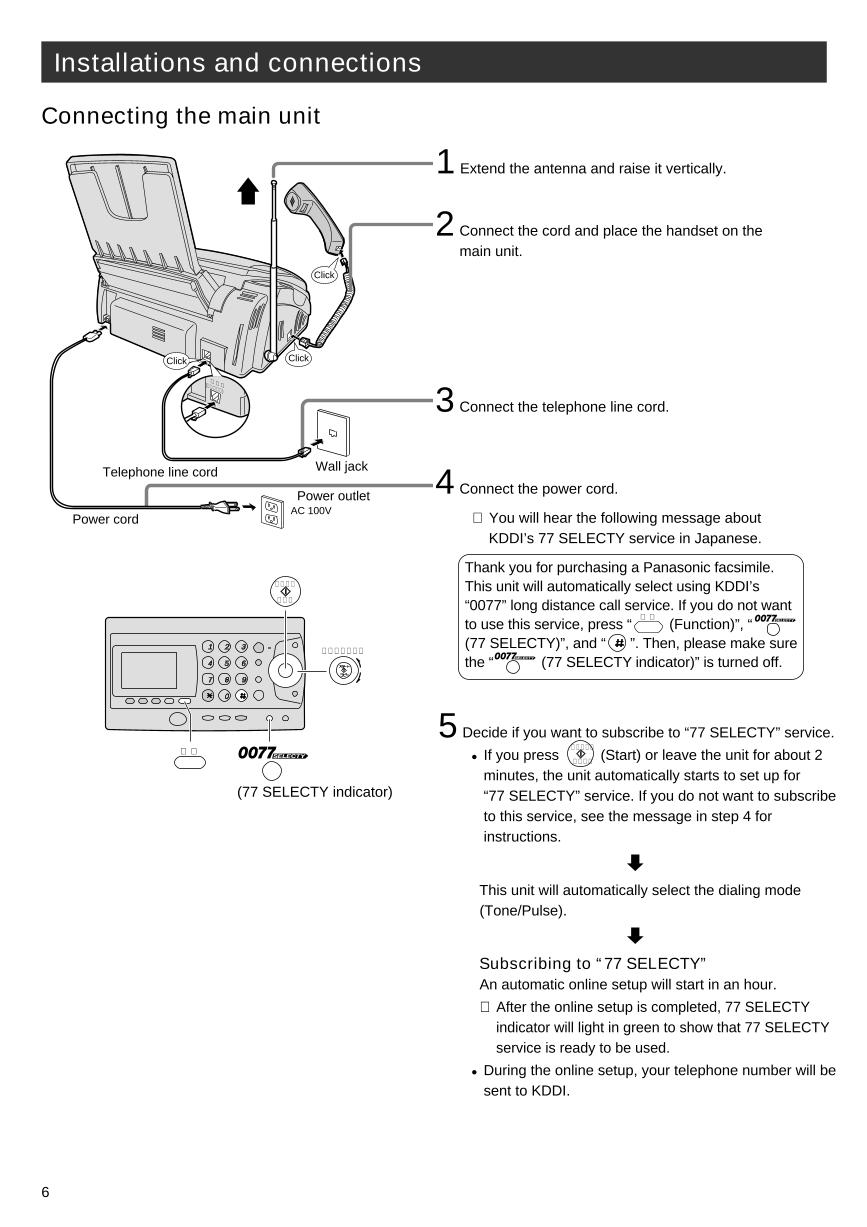

Installations and connections Connecting the main unit 1 Extend the antenna and raise it vertically. 2 Connect the cord and place the handset on the main unit. Click Click Click 回 (電線話回 �線へ) 3 Connect the telephone line cord. Telephone line cord Wall jack Power outlet 4 Connect the power cord. AC 100V Power cord ➡ You will hear the following message about KDDI’s 77 SELECTY service in Japanese. Thank you for purchasing a Panasonic facsimile. スタート This unit will automatically select using KDDI’s コピー “0077” long distance call service. If you do not want 機能 to use this service, press “ (Function)”, “ 1 2 3 (77 SELECTY)”, and “ ”. Then, please make sure くるくる電話帳 4 5 6 the “ (77 SELECTY indicator)” is turned off. 7 8 9 0 5 Decide if you want to subscribe to “77 SELECTY” service. 機能スタート� ● If you press コピー� (Start) or leave the unit for about 2 minutes, the unit automatically starts to set up for (77 SELECTY indicator) “77 SELECTY” service. If you do not want to subscribe to this service, see the message in step 4 for instructions. This unit will automatically select the dialing mode (Tone/Pulse). Subscribing to “77 SELECTY” An automatic online setup will start in an hour. ➡ After the online setup is completed, 77 SELECTY indicator will light in green to show that 77 SELECTY service is ready to be used. ●During the online setup, your telephone number will be sent to KDDI. 6

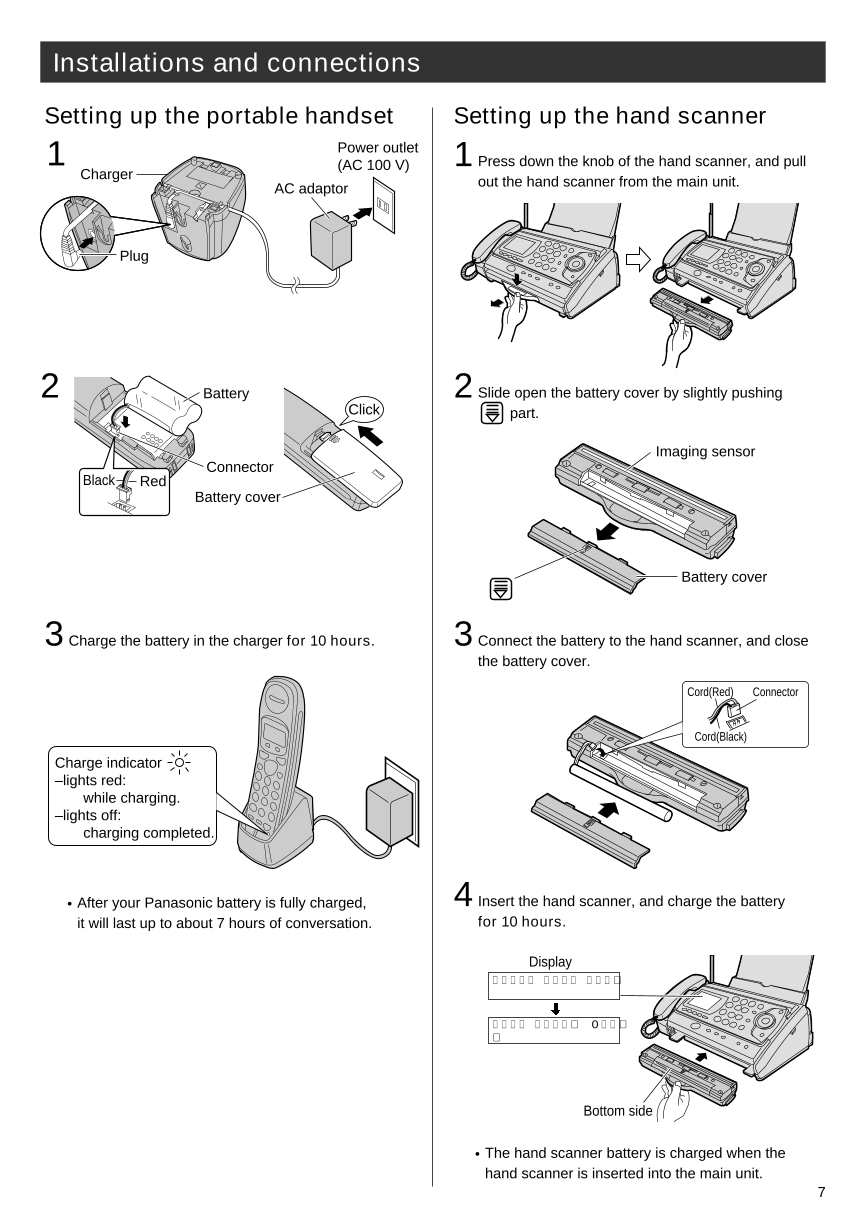

Installations and connections Setting up the portable handset Setting up the hand scanner 1 Power outlet (AC 100 V) 1 Press down the knob of the hand scanner, and pull Charger AC adaptor out the hand scanner from the main unit. Plug 2 Battery 2 Slide open the battery cover by slightly pushing Click part. Imaging sensor Connector Black Red Battery cover Battery cover 3 Charge the battery in the charger for 10 hours. 3 Connect the battery to the hand scanner, and close the battery cover. Cord(Red) Connector Cord(Black) Charge indicator –lights red: while charging. –lights off: charging completed. ● After your Panasonic battery is fully charged, 4 Insert the hand scanner, and charge the battery it will last up to about 7 hours of conversation. for 10 hours. Display ｽｷｬﾅｰｾｯﾃｲﾁｭｳ � ﾖﾐﾄﾘﾏｲｽｳ　 0 ﾏｲ � � Bottom side ● The hand scanner battery is charged when the hand scanner is inserted into the main unit. 7

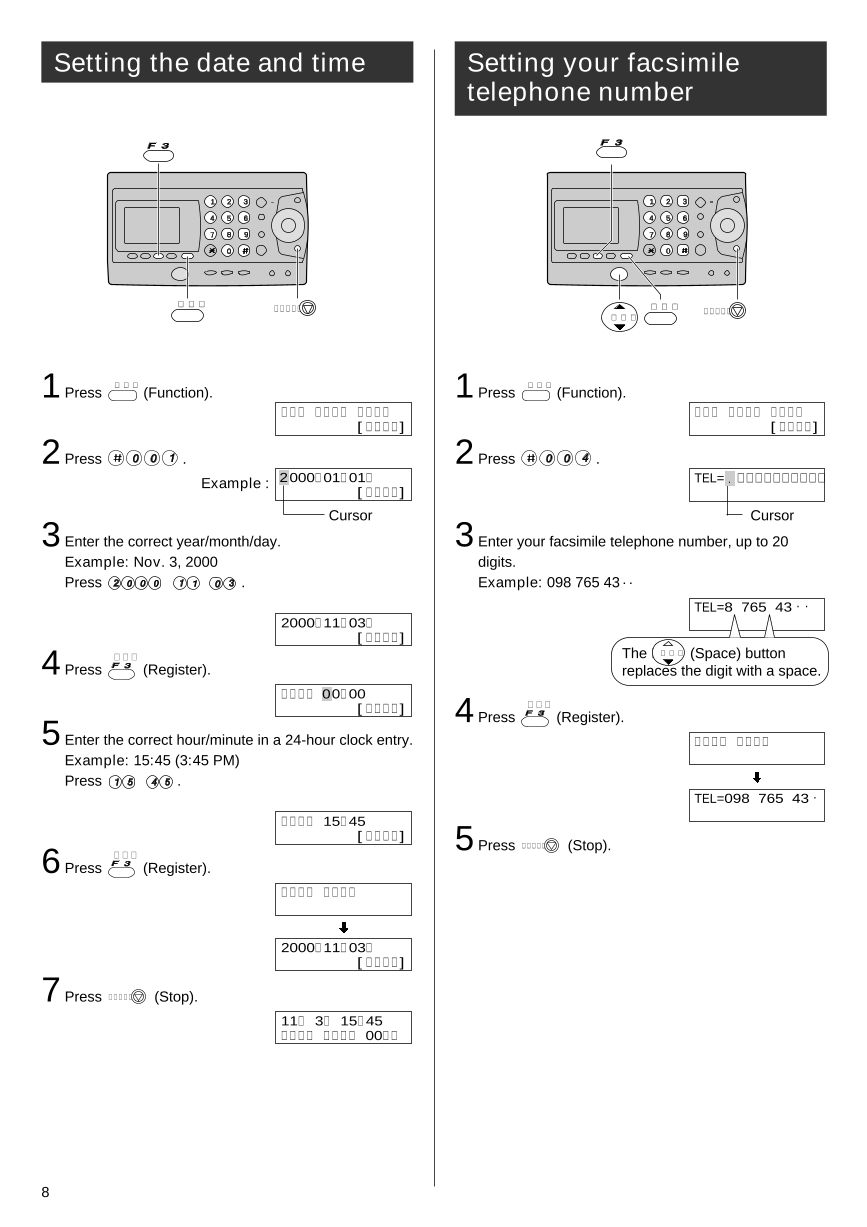

Setting the date and time Setting your facsimile telephone number 1 2 3 1 2 3 4 5 6 4 5 6 7 8 9 7 8 9 0 0 機能� ストップ� 機能� ストップ� 音量� 1 機能� 機能� Press (Function). 1 Press (Function). ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｱｱｱｱｱｱｱｱｱ [ ｸﾙｸﾙ ] ｱｱｱｱｱｱｱｱｱ [ ｸﾙｸﾙ ] 2 Press . 2 Press . Example : 2000年01月01日 TEL= ．. ．．．．．．．．．．ｱｱｱｱｱｱｱｱｱ [ ﾄｳﾛｸ ] Cursor Cursor 3 Enter the correct year/month/day. 3 Enter your facsimile telephone number, up to 20 Example: Nov. 3, 2000 digits. Press . Example: 098 765 43 · · TEL=80765043 . .. 2000年11月03日ｱｱｱｱｱｱｱｱｱ [ ﾄｳﾛｸ ] 4 登録� The 　音量 � (Space) button Press (Register). replaces the digit with a space. ｼﾞｺｸｱ00：00 ｱｱｱｱｱｱｱｱｱ [ ﾄｳﾛｸ ] 4 登録� Press (Register). 5 Enter the correct hour/minute in a 24-hour clock entry. ﾄｳﾛｸｱｼﾏｼﾀ Example: 15:45 (3:45 PM) Press . TEL=0980765043 . ｼﾞｺｸｱ15：45 ｱｱｱｱｱｱｱｱｱ [ ﾄｳﾛｸ ] 5 Press ストップ� (Stop). 6 登録� Press (Register). ﾄｳﾛｸｱｼﾏｼﾀ 2000年11月03日ｱｱｱｱｱｱｱｱｱ [ ﾄｳﾛｸ ] 7 Press ストップ� (Stop). 11月03日115：45 ﾖｳｹﾝｱﾛｸｵﾝｱ00ｹﾝ 8
