　　Eメール　 Facsimile with Digital Cordless Phone Quick Reference Guide Model No. KX-PW301DL KX-PW301DL KX-PW301DL has one portable handset. Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections…………………………………………………4 Setting the date and time ……………………………………………………8 Setting your facsimile telephone number……………………………………8 Setting your logo ………………………………………………………………9 Character input and command key table …………………………………10 Automatic dialing on the main unit …………………………………………11 Automatic dialing on the portable handset…………………………………12 Intercom between the main unit and portable handset …………………13 Sending faxes…………………………………………………………………14 Receiving faxes ………………………………………………………………15 Operating the built-in answering device……………………………………17 Using the hand scanner ……………………………………………………18 Individual e-mail services ……………………………………………………23 Connecting a computer………………………………………………………29 Connecting a BS digital tuner / Digital CS tuner …………………………30 Specifications …………………………………………………………………31 This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. Any details given in this guide are subject to change without notice. 　　

Finding the controls Main unit (control panel) 1 2 3 4 5 6 7 8 9 (KX-PW301DL is shown.) 10 11 12 13 14 15 16 17 18 11 Multi-operation buttons refer to the 9 Start/Copy button starts faxing or copying. function displayed on the display panel. 8 Stop button 3 Liquid crystal display 16 Intercom button 13 Function button initiates programming. 6 0077 SELECTY button & indicator 1 Replay button plays back recorded accesses 0077 SELECTY services. messages. / Record button records 17 Speakerphone button telephone calls. 12 Redial button 7 Auto Answer button 5 E-Mail button & indicator —light on: answering device activated. 4 Call Memory button & indicator stores —light off: used as a regular telephone. the caller ID of incoming calls. 2 Microphone 10 Resolution button selects the resolution 15 Store button stores information (phone when faxing or copying. numbers, names etc.) into the telephone 18 Tone button switches to tone dialing. directory. / Search button searches the telephone directory. 14 Search button searches the directory by pressing the up and down buttons. Volume button adjusts ringer, speaker and handset volume by pressing the up and down buttons. 2

Finding the controls Portable handset 音量� How to use 再ダイヤル� 電話帳�key 電話帳� ● To store/search in the directory. ● To redial the last number 再ダイヤル� � dialed. How to� view � Fixed antenna 音量� Indicates which directions the�再ダイヤル� 電話帳� 音量� ● To adjust the volume. key can be tilted. ● To change the character Speakerphone input mode. up down To view stored information: Phonebook: Press , then press . up and down Dialed numbers: Press , left right then press . left and right � 外 ● To make/answer calls. 線 � � F1 F2 F3 ● To page the main unit. How to use buttons 内線� � � � F1 F2 F3 � ● To end a call. 機能�着信メモリー� 留守� and and buttons refer to the 切 ● To end or exit from editing or function displayed on the bottom of the other operations. display. They function differently depending ● To turn on/off the power by on the mode. pressing for two seconds or longer. Dial buttons ファクス� ● To receive faxes. ● To switch to Tone dialing ● To insert a space. トーン� mode. スピーカーホン� � ● To use the speakerphone. 充電� � (Charge indicator) Charging� Red Full Off Microphone Do not cover the ● Used when installing microphone while 増設� additional portable handsets. talking. Hand scanner Memory indicator (Shows the amount of memory being used) � Battery indicator (Shows the amount of battery power left) To start or stop scanning Operation indicator (Shows the condition of the scanner) Scanning width button Resolution button Delete button (To delete the last page of scanned content) 3

Installations and connections Installing the ink film 1 4 Insert the white core into the slots shown in the Open the control panel. picture below. White core 1 Press here. Control panel 2 Open the control panel until it locks. 2 5 If the ink film is slack, tighten it by winding the “T” shaped gear. 2 “T” shaped gear (blue) Ink film Insert the ink film. is slack. 1 Find the “T” shaped gear (blue). Ink film 2 Insert the blue core into the right slot of the main unit. 3 Close the control panel until it locks. 3 Insert the “T” shaped gear (blue) into the left slot of the main unit. “T” shaped gear (blue) Right slot 33 Blue core 2 4

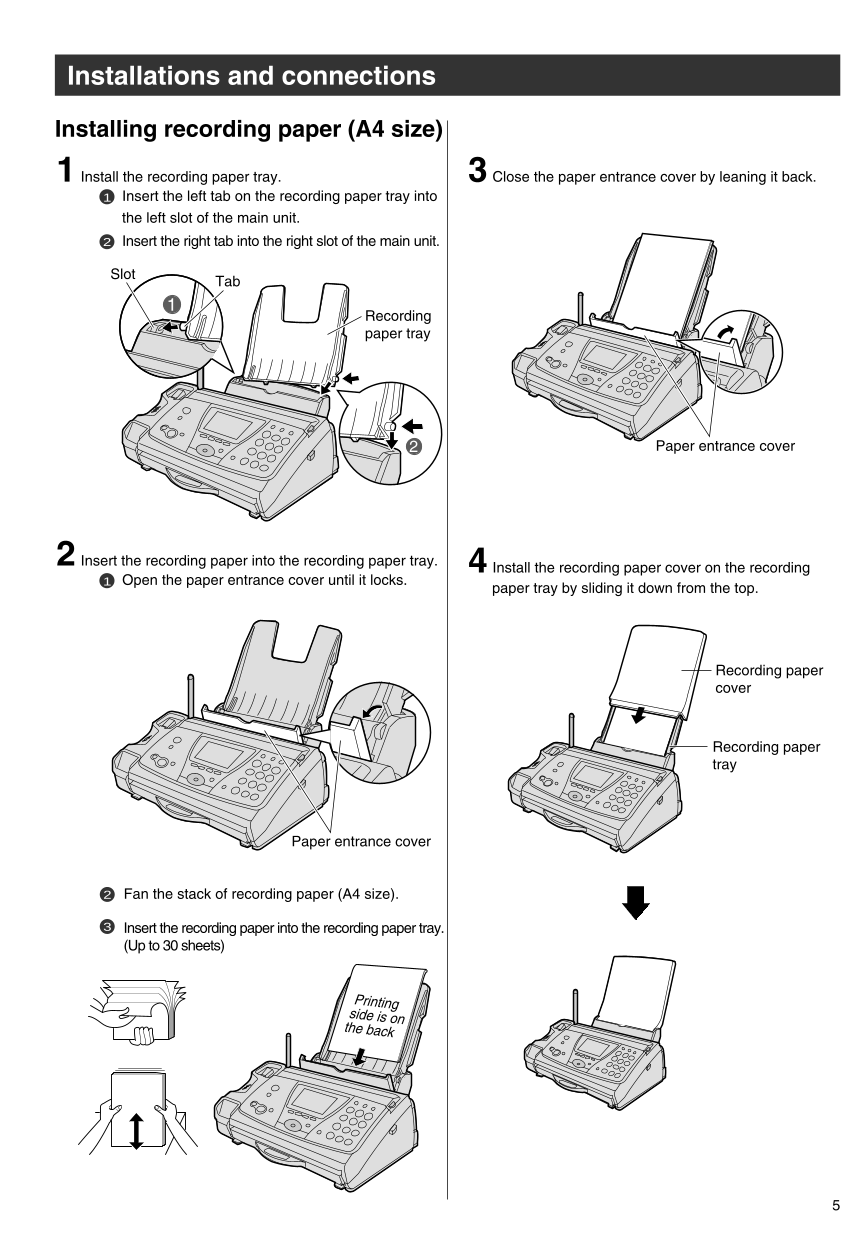

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper tray. 3 Close the paper entrance cover by leaning it back. 1 Insert the left tab on the recording paper tray into the left slot of the main unit. 2 Insert the right tab into the right slot of the main unit. Slot Tab 1 Recording paper tray 2 Paper entrance cover 2 Insert the recording paper into the recording paper tray. 4 Install the recording paper cover on the recording 1 Open the paper entrance cover until it locks. paper tray by sliding it down from the top. Recording paper cover Recording paper tray Paper entrance cover 2 Fan the stack of recording paper (A4 size). 3 Insert the recording paper into the recording paper tray. (Up to 30 sheets) Printing side is o t n h e back 5

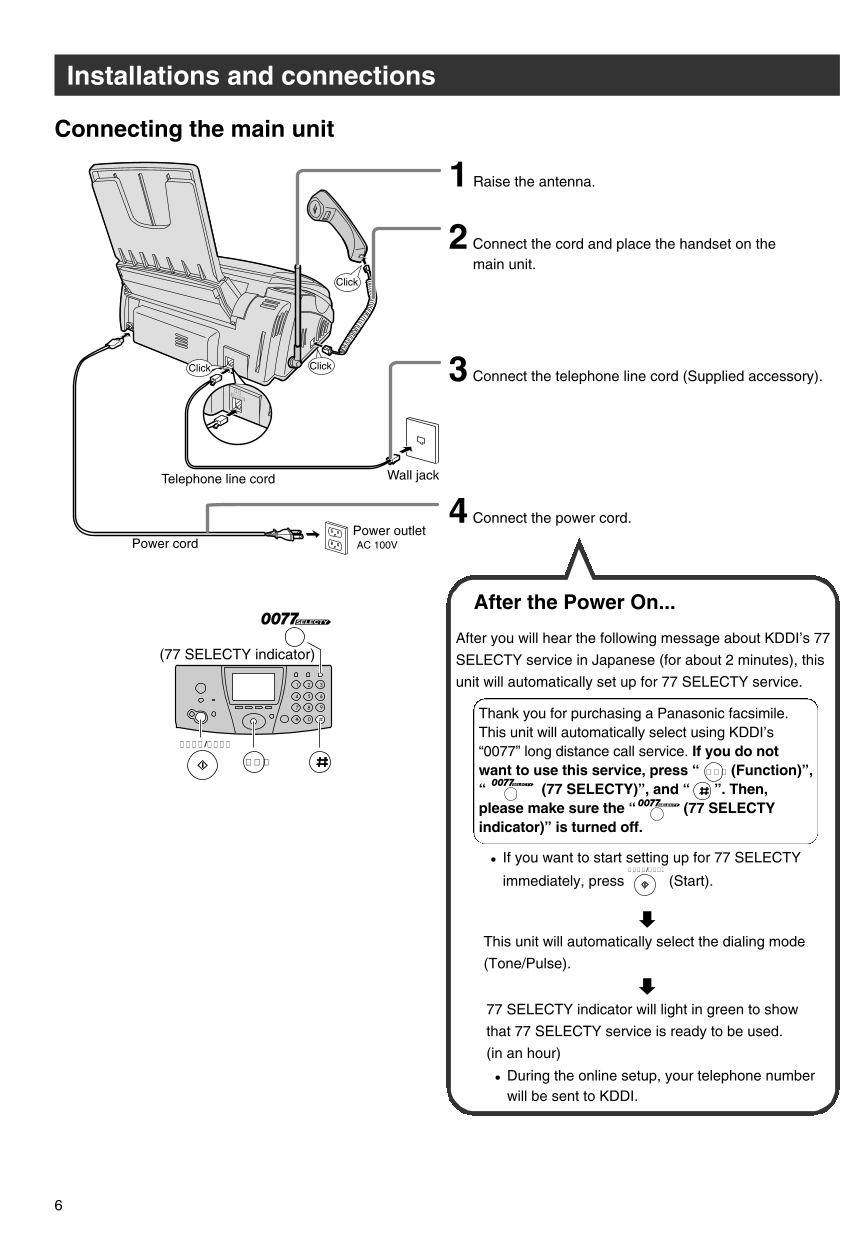

Installations and connections Connecting the main unit 1 Raise the antenna. 2 Connect the cord and place the handset on the main unit. Click Click Click 3 Connect the telephone line cord (Supplied accessory). 回 (電線話回線へ) Telephone line cord Wall jack 4 Connect the power cord. Power outlet Power cord AC 100V After the Power On... After you will hear the following message about KDDI’s 77 (77 SELECTY indicator) SELECTY service in Japanese (for about 2 minutes), this unit will automatically set up for 77 SELECTY service. Thank you for purchasing a Panasonic facsimile. This unit will automatically select using KDDI’s スタート/コピー� “0077” long distance call service. If you do not 機能� want to use this service, press “ 機能 � (Function)”, “ (77 SELECTY)”, and “ ”. Then, please make sure the “ (77 SELECTY indicator)” is turned off. ● If you want to start setting up for 77 SELECTY スタート/コピー� immediately, press (Start). This unit will automatically select the dialing mode (Tone/Pulse). 77 SELECTY indicator will light in green to show that 77 SELECTY service is ready to be used. (in an hour) ●During the online setup, your telephone number will be sent to KDDI. 6

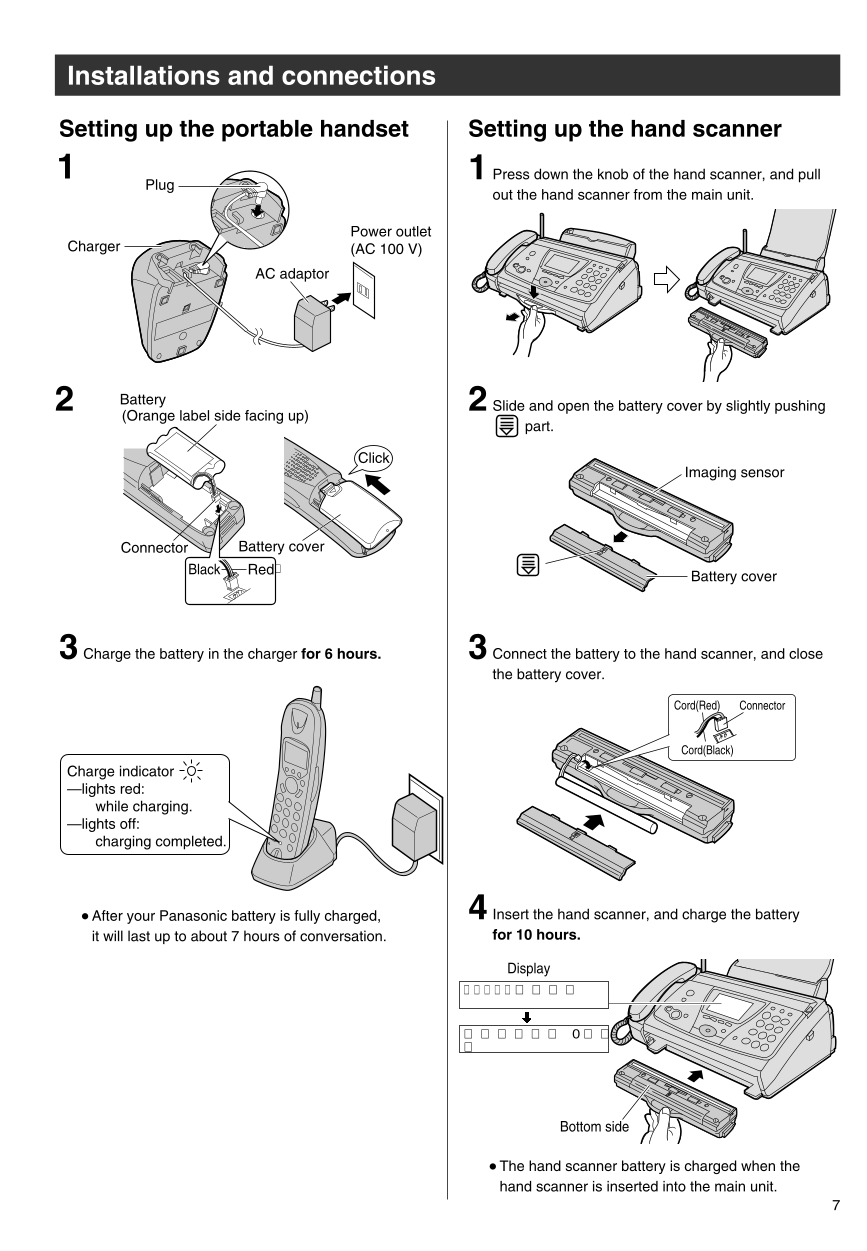

Installations and connections Setting up the portable handset Setting up the hand scanner 1 1 Press down the knob of the hand scanner, and pull Plug out the hand scanner from the main unit. Power outlet Charger (AC 100 V) AC adaptor 2 Battery 2 Slide and open the battery cover by slightly pushing (Orange label side facing up) part. Click Imaging sensor Connector Battery cover Black コRーeドd� (赤) Battery cover 3 Charge the battery in the charger for 6 hours. 3 Connect the battery to the hand scanner, and close the battery cover. Cord(Red) Connector Cord(Black) Charge indicator —lights red: while charging. —lights off: charging completed. After your Panasonic battery is fully charged, 4 Insert the hand scanner, and charge the battery it will last up to about 7 hours of conversation. for 10 hours. Display ｽｷｬﾅｰ設定中� 読取枚数　　 0枚 � � Bottom side The hand scanner battery is charged when the hand scanner is inserted into the main unit. 7

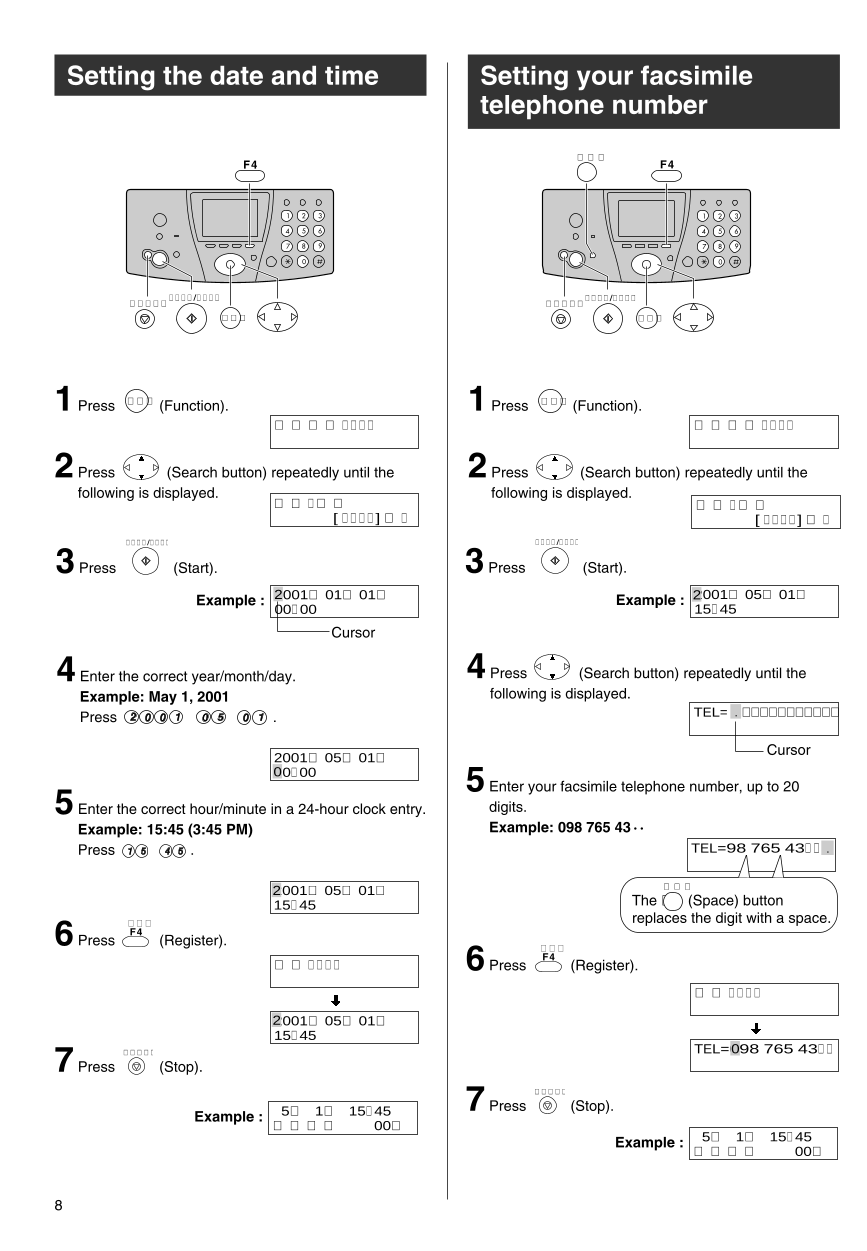

Setting the date and time Setting your facsimile telephone number 画質� F4 F4 スタート/コピー� スタート/コピー� ストップ� ストップ� 機能� 機能� 1 Press 機能� (Function). 1 Press 機能� (Function). 機能登録ﾓｰﾄﾞ機能登録ﾓｰﾄﾞ 2 Press (Search button) repeatedly until the 2 Press (Search button) repeatedly until the following is displayed. following is displayed. 最初の設定最初の設定ｱｱｱｱｱｱｱ [ ｽﾀｰﾄ ] 押すｱｱｱｱｱｱｱ [ ｽﾀｰﾄ ] 押すスタート/コピー� スタート/コピー� 3 Press (Start). 3 Press (Start). Example : 2001年 01月 01日 Example : 2001年 05月 01日 00：00 15：45 Cursor 4 Enter the correct year/month/day. 4 Press (Search button) repeatedly until the Example: May 1, 2001 following is displayed. Press 5 . TEL=.1. ．．．．．．．．．．． 2001年 05月 01日 Cursor 00：00 5 Enter your facsimile telephone number, up to 20 5 Enter the correct hour/minute in a 24-hour clock entry. digits. Example: 15:45 (3:45 PM) Example: 098 765 43 · · Press . TEL=98 765 43・・ . 2001年 05月 01日画質� 15：45 The 　 (Space) button 登録� replaces the digit with a space. 6 F4 Press (Register). 6 登録� F4 登録しました Press (Register). 登録しました 2001年 05月 01日 15：45 7 ストップ� TEL=098 765 43・・ Press (Stop). ストップ� 05月 01日 115：45 7 Press (Stop). Example : 用件録音ｱｱｱｱ00件 Example : 05月 01日 115：45 用件録音ｱｱｱｱ00件 8
