GO 2000-E (511682-00) 3/10/02 2:30 pm Page 1
ENGLISH

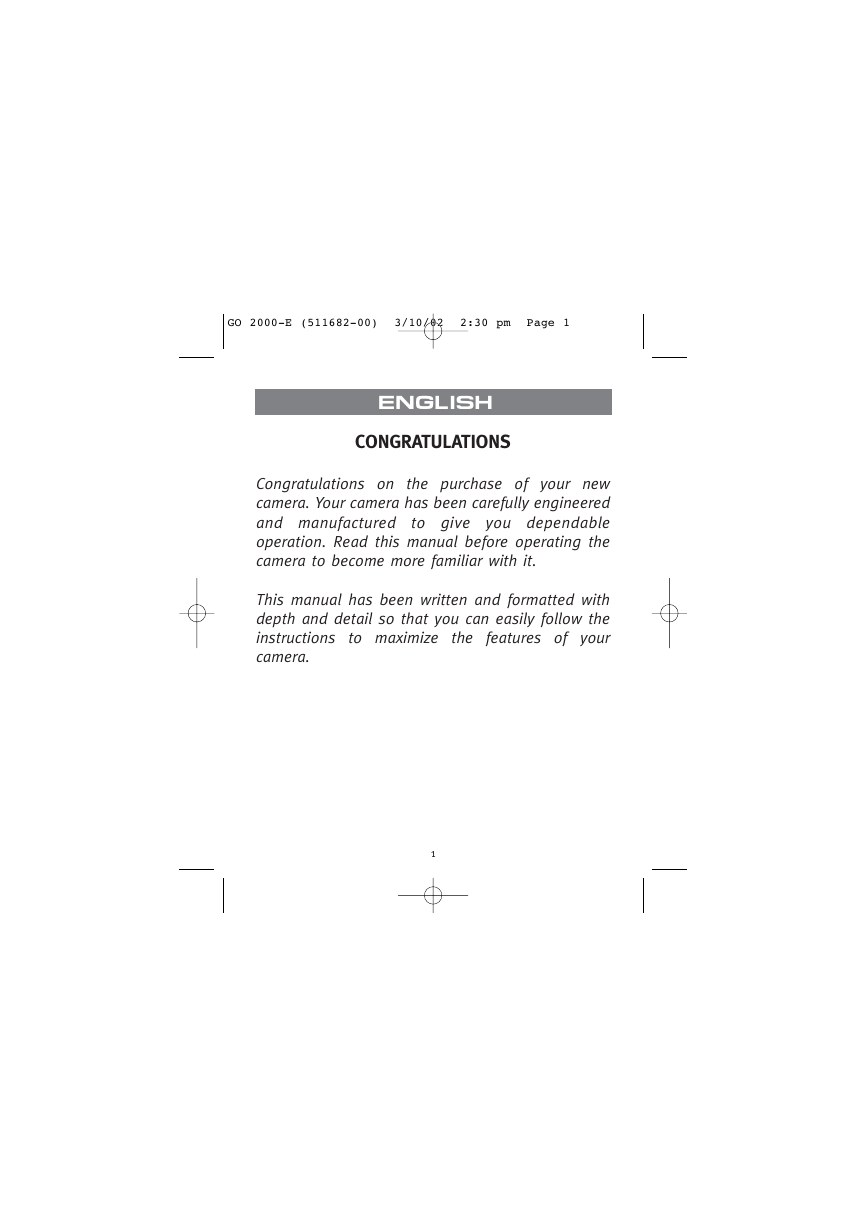

CONGRATULATIONS
Congratulations on the purchase of your new
camera. Your camera has been carefully engineered
and manufactured to give you dependable
operation. Read this manual before operating the
camera to become more familiar with it.
This manual has been written and formatted with
depth and detail so that you can easily follow the
instructions to maximize the features of your
camera.
1
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 2

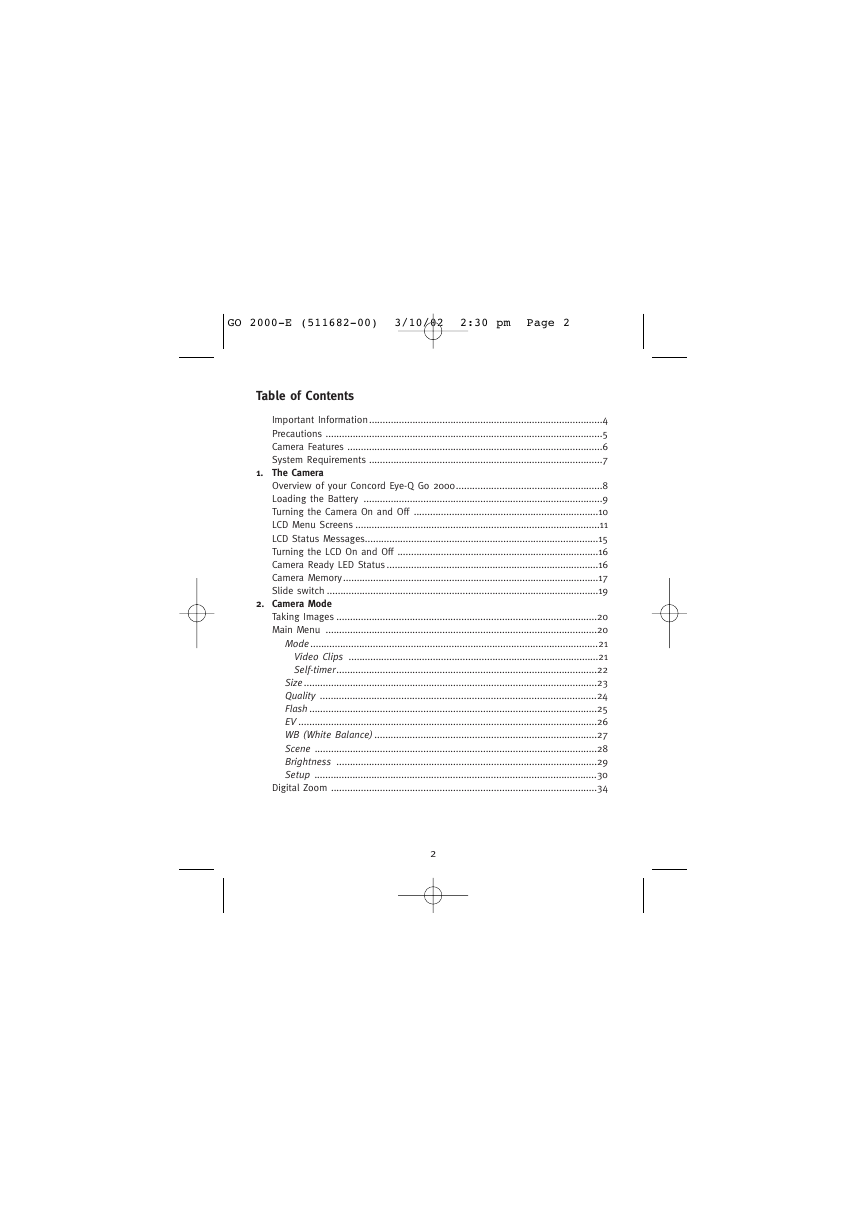

Table of Contents
Important Information......................................................................................4
Precautions ......................................................................................................5
Camera Features ..............................................................................................6
System Requirements ......................................................................................7
1. The Camera
Overview of your Concord Eye-Q Go 2000......................................................8
Loading the Battery ........................................................................................9
Turning the Camera On and Off ....................................................................10
LCD Menu Screens ..........................................................................................11
LCD Status Messages......................................................................................15
Turning the LCD On and Off ..........................................................................16
Camera Ready LED Status ..............................................................................16
Camera Memory..............................................................................................17
Slide switch ....................................................................................................19
2. Camera Mode
Taking Images ................................................................................................20
Main Menu ....................................................................................................20
Mode ..........................................................................................................21
Video Clips ............................................................................................21
Self-timer................................................................................................22
Size ............................................................................................................23
Quality ......................................................................................................24
Flash ..........................................................................................................25
EV ..............................................................................................................26
WB (White Balance) ..................................................................................27
Scene ........................................................................................................28
Brightness ................................................................................................29
Setup ........................................................................................................30
Digital Zoom ..................................................................................................34
2
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 3

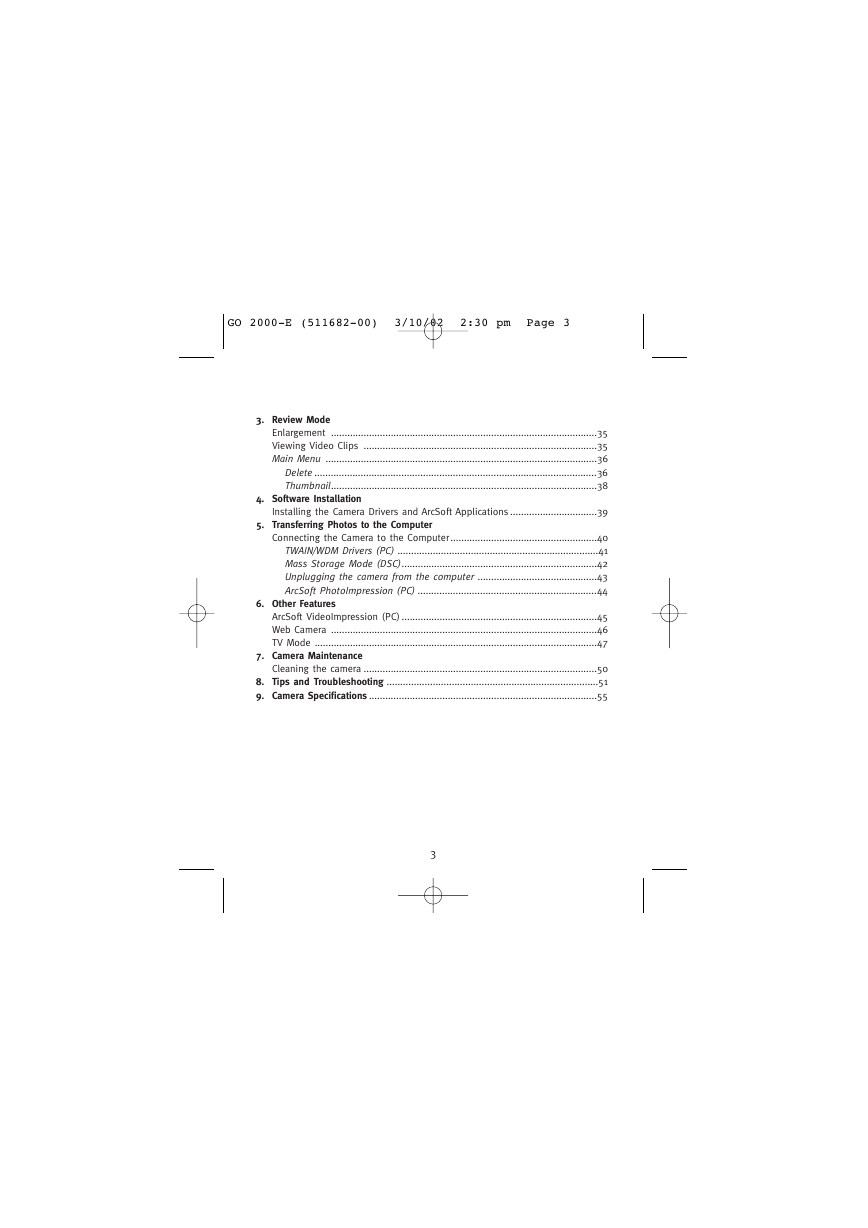

3. Review Mode
Enlargement ..................................................................................................35
Viewing Video Clips ......................................................................................35
Main Menu ....................................................................................................36
Delete ........................................................................................................36
Thumbnail..................................................................................................38
4. Software Installation
Installing the Camera Drivers and ArcSoft Applications ................................39
5. Transferring Photos to the Computer
Connecting the Camera to the Computer......................................................40
TWAIN/WDM Drivers (PC) ..........................................................................41
Mass Storage Mode (DSC)........................................................................42
Unplugging the camera from the computer ............................................43
ArcSoft PhotoImpression (PC) ..................................................................44
6. Other Features
ArcSoft VideoImpression (PC) ........................................................................45
Web Camera ..................................................................................................46
TV Mode ........................................................................................................47
7. Camera Maintenance
Cleaning the camera ......................................................................................50
8. Tips and Troubleshooting ..............................................................................51
9. Camera Specifications ....................................................................................55
3
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 4

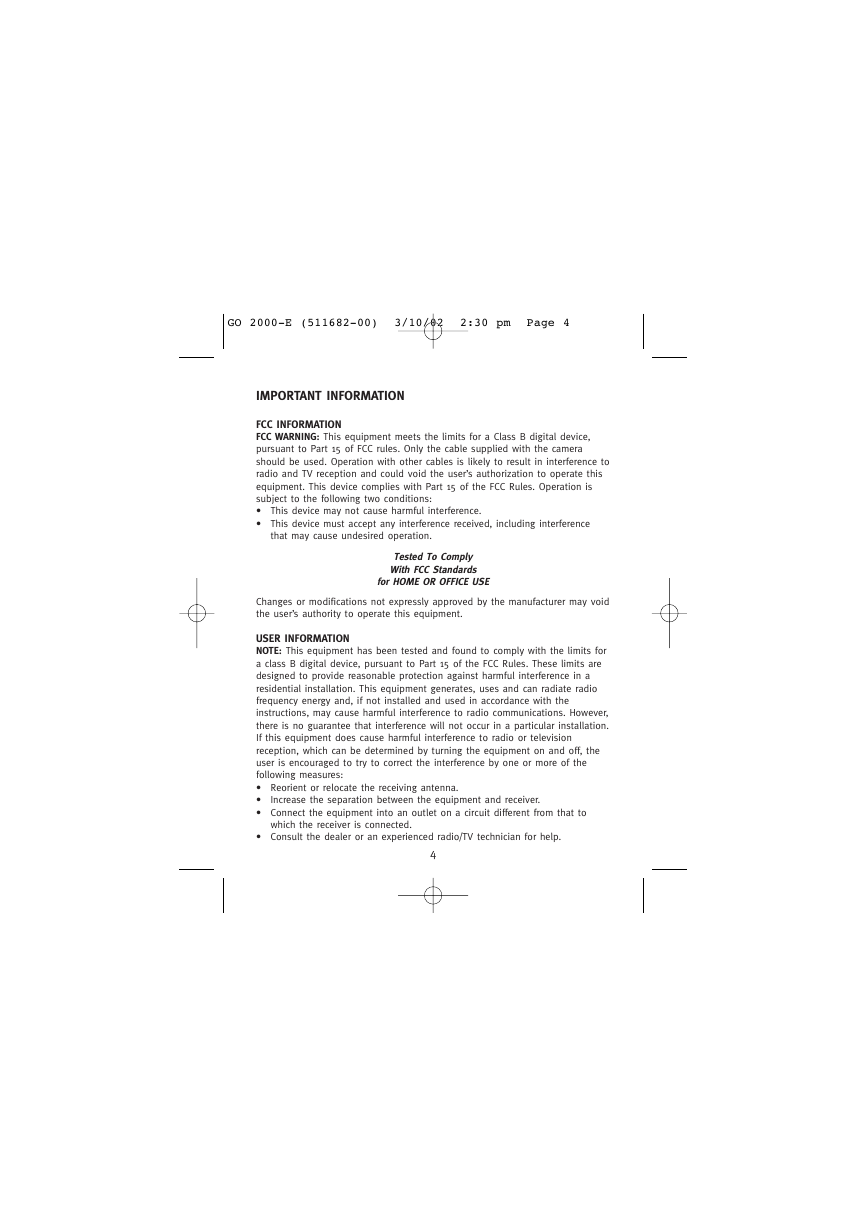

IMPORTANT INFORMATION
FCC INFORMATION
FCC WARNING: This equipment meets the limits for a Class B digital device,
pursuant to Part 15 of FCC rules. Only the cable supplied with the camera
should be used. Operation with other cables is likely to result in interference to
radio and TV reception and could void the user’s authorization to operate this
equipment. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
Tested To Comply
With FCC Standards
for HOME OR OFFICE USE
Changes or modifications not expressly approved by the manufacturer may void
the user’s authority to operate this equipment.
USER INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
4
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 5
VCCI INFORMATION
This is a Class B product, to be used in a domestic environment, based on the
Technical Requirement of the Voluntary Control Council for Interference (VCCI)
from Information Technology Equipment. If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference.
Please install and use the equipment according to this instruction manual.
PRECAUTIONS
Be sure to observe the following precautions when using the camera:
• Do not open the case of the camera or attempt your own repairs. Always
leave this service to authorized repair facilities.
• Keep the camera away from water and other liquids, and never let it get
wet. Never use outdoors when it is raining or snowing.
• Should foreign matter or water get into the unit, immediately turn the
power off and contact your local authorized service center.
• Physical damage and malfunction of this unit can cause the image data
stored in its memory to be deleted. Be sure to always keep backup copies
of data by transferring them to a personal computer.
• Under the environment with electrostatic discharge, the camera may
malfunction and require the user to reset the camera.
• Shielded cables must be used with this unit to ensure compliance with the
Class B FCC limits.
• Do not leave the camera in places subject to extremely high temperatures,
such as in a closed vehicle or in direct sunlight.
• Remove the battery when camera is not used for long periods of time.
• Use a 3V CR123 lithium battery only.
• Dispose of the battery in a manner that complies with applicable laws.
• Do not place the camera in unstable locations where the camera may fall
and be damaged.
• Do not press on the lens.
• Do not unplug the camera from the TV or computer while the camera is in
operation; otherwise, the memory may be corrupted.
• Do not turn the power off or open the battery compartment when the LED
is blinking or lit up; otherwise, the image may not be stored.
5
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 6

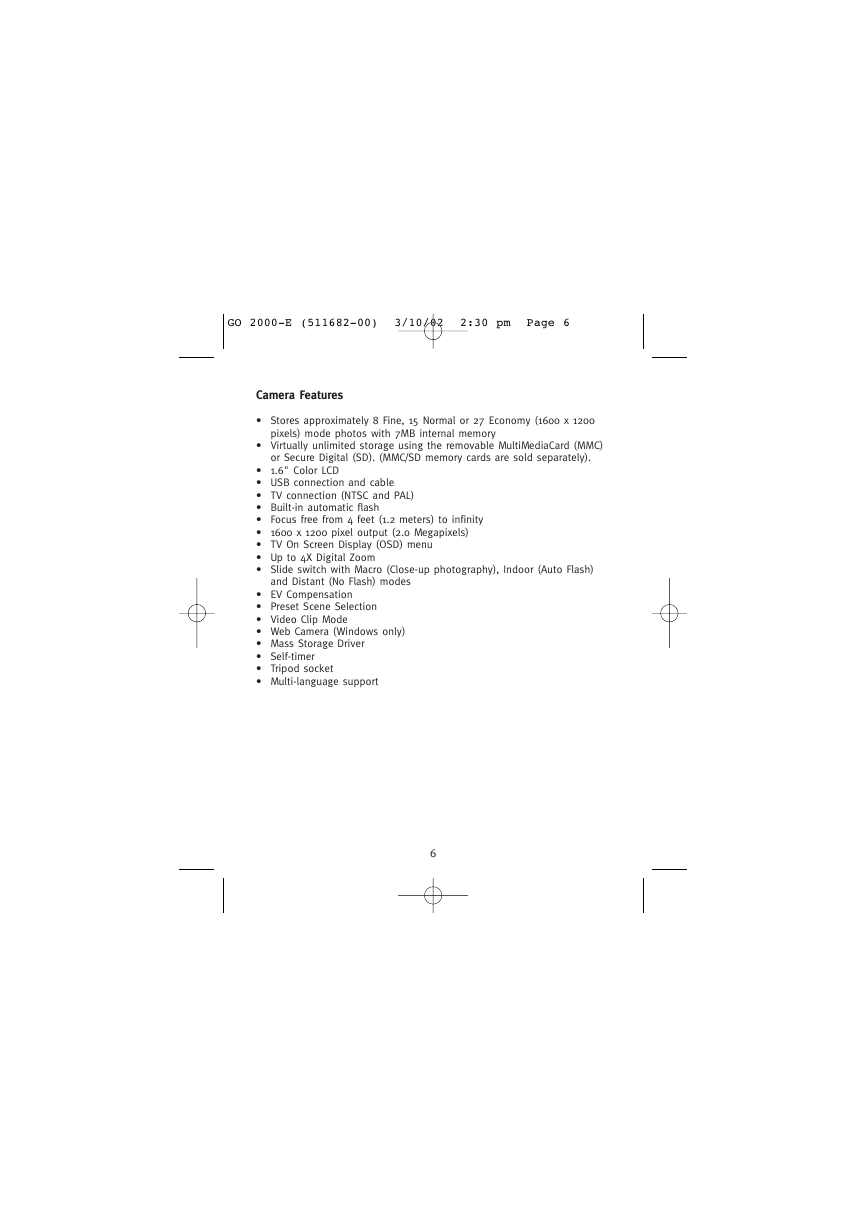

Camera Features
• Stores approximately 8 Fine, 15 Normal or 27 Economy (1600 x 1200
pixels) mode photos with 7MB internal memory
• Virtually unlimited storage using the removable MultiMediaCard (MMC)
or Secure Digital (SD). (MMC/SD memory cards are sold separately).
• 1.6" Color LCD
• USB connection and cable
• TV connection (NTSC and PAL)
• Built-in automatic flash
• Focus free from 4 feet (1.2 meters) to infinity
• 1600 x 1200 pixel output (2.0 Megapixels)
• TV On Screen Display (OSD) menu
• Up to 4X Digital Zoom
• Slide switch with Macro (Close-up photography), Indoor (Auto Flash)
and Distant (No Flash) modes
• EV Compensation
• Preset Scene Selection
• Video Clip Mode
• Web Camera (Windows only)
• Mass Storage Driver
• Self-timer
• Tripod socket
• Multi-language support
6
GO 2000-E (511682-00) 3/10/02 2:30 pm Page 7

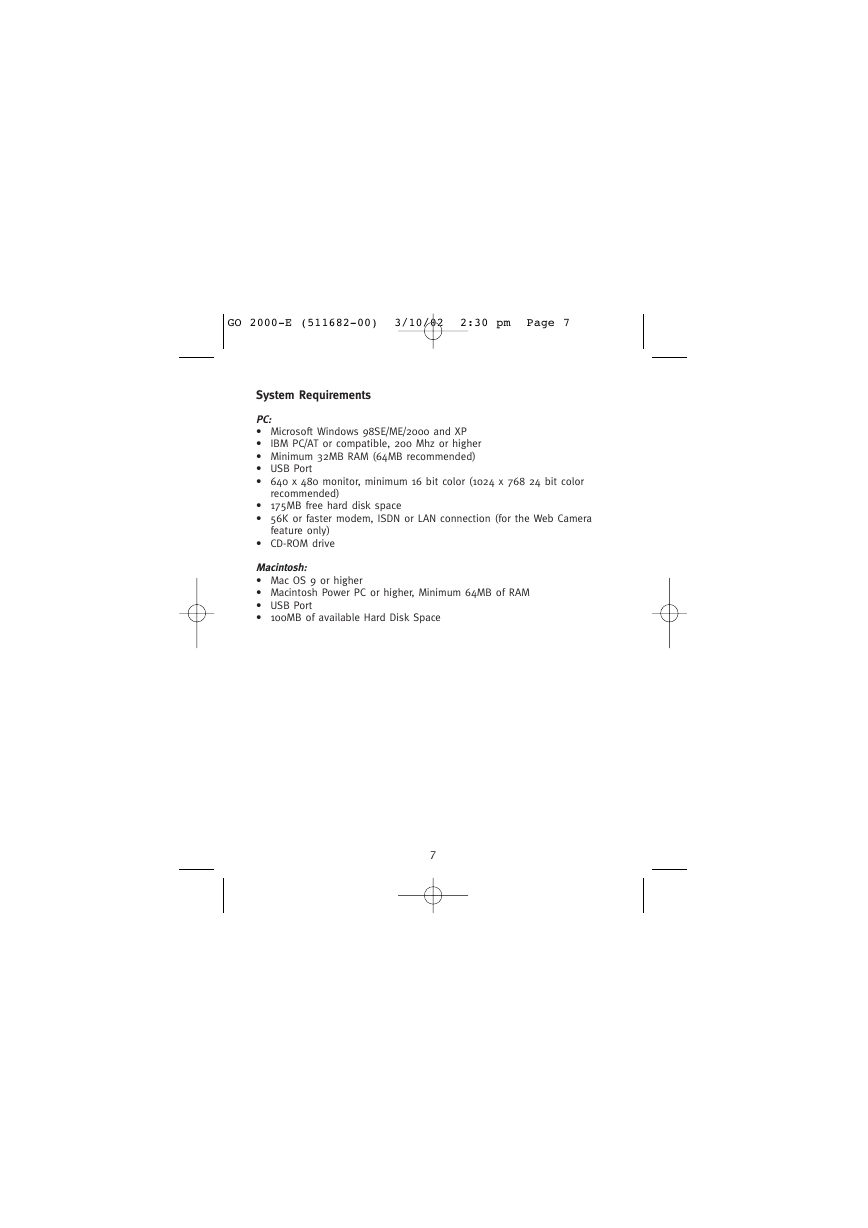

System Requirements
PC:
• Microsoft Windows 98SE/ME/2000 and XP
• IBM PC/AT or compatible, 200 Mhz or higher
• Minimum 32MB RAM (64MB recommended)
• USB Port
• 640 x 480 monitor, minimum 16 bit color (1024 x 768 24 bit color
recommended)
• 175MB free hard disk space
• 56K or faster modem, ISDN or LAN connection (for the Web Camera
feature only)
• CD-ROM drive
Macintosh:
• Mac OS 9 or higher
• Macintosh Power PC or higher, Minimum 64MB of RAM
• USB Port
• 100MB of available Hard Disk Space
7
