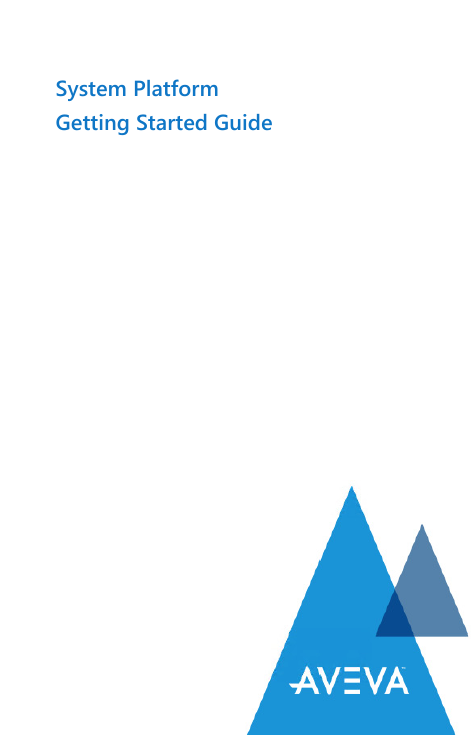

System Platform Getting Started Guide

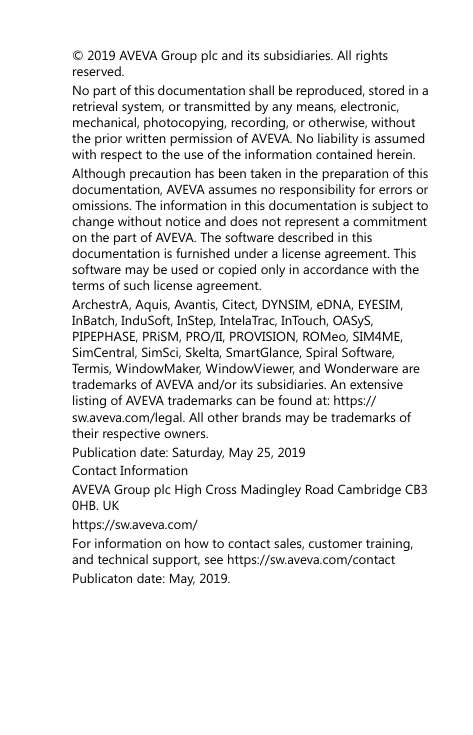

© 2019 AVEVA Group plc and its subsidiaries. All rights reserved. No part of this documentation shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AVEVA. No liability is assumed with respect to the use of the information contained herein. Although precaution has been taken in the preparation of this documentation, AVEVA assumes no responsibility for errors or omissions. The information in this documentation is subject to change without notice and does not represent a commitment on the part of AVEVA. The software described in this documentation is furnished under a license agreement. This software may be used or copied only in accordance with the terms of such license agreement. ArchestrA, Aquis, Avantis, Citect, DYNSIM, eDNA, EYESIM, InBatch, InduSoft, InStep, IntelaTrac, InTouch, OASyS, PIPEPHASE, PRiSM, PRO/II, PROVISION, ROMeo, SIM4ME, SimCentral, SimSci, Skelta, SmartGlance, Spiral Software, Termis, WindowMaker, WindowViewer, and Wonderware are trademarks of AVEVA and/or its subsidiaries. An extensive listing of AVEVA trademarks can be found at: https:// sw.aveva.com/legal. All other brands may be trademarks of their respective owners. Publication date: Saturday, May 25, 2019 Contact Information AVEVA Group plc High Cross Madingley Road Cambridge CB3 0HB. UK https://sw.aveva.com/ For information on how to contact sales, customer training, and technical support, see https://sw.aveva.com/contact Publicaton date: May, 2019.

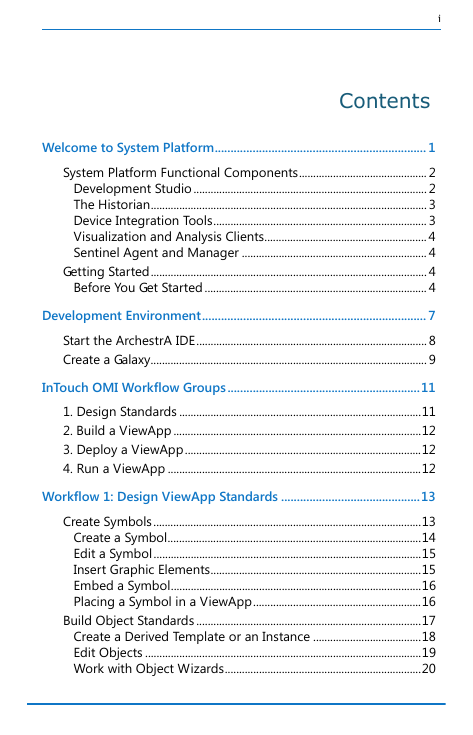

i Contents Welcome to System Platform................................................................... 1 System Platform Functional Components............................................. 2 Development Studio.................................................................................. 2 The Historian................................................................................................. 3 Device Integration Tools........................................................................... 3 Visualization and Analysis Clients......................................................... 4 Sentinel Agent and Manager ................................................................. 4 Getting Started................................................................................................. 4 Before You Get Started .............................................................................. 4 Development Environment....................................................................... 7 Start the ArchestrA IDE................................................................................. 8 Create a Galaxy................................................................................................. 9 InTouch OMI Workflow Groups.............................................................11 1. Design Standards .....................................................................................11 2. Build a ViewApp .......................................................................................12 3. Deploy a ViewApp...................................................................................12 4. Run a ViewApp .........................................................................................12 Workflow 1: Design ViewApp Standards ............................................13 Create Symbols..............................................................................................13 Create a Symbol.........................................................................................14 Edit a Symbol..............................................................................................15 Insert Graphic Elements..........................................................................15 Embed a Symbol........................................................................................16 Placing a Symbol in a ViewApp...........................................................16 Build Object Standards ...............................................................................17 Create a Derived Template or an Instance ......................................18 Edit Objects .................................................................................................19 Work with Object Wizards.....................................................................20

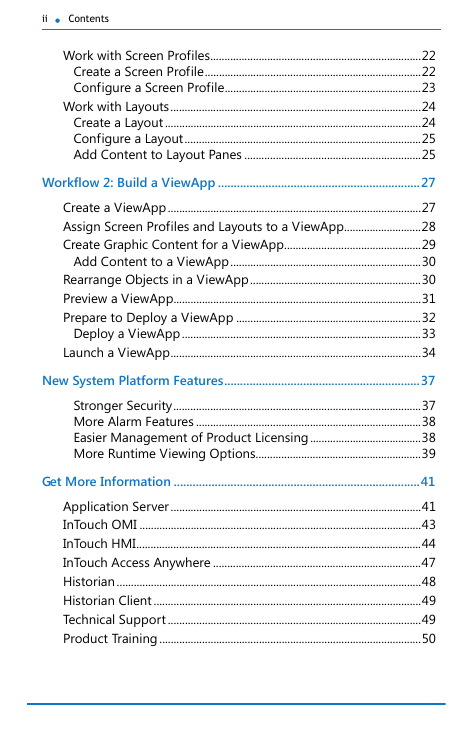

ii Contents Work with Screen Profiles..........................................................................22 Create a Screen Profile............................................................................22 Configure a Screen Profile.....................................................................23 Work with Layouts........................................................................................24 Create a Layout..........................................................................................24 Configure a Layout...................................................................................25 Add Content to Layout Panes ..............................................................25 Workflow 2: Build a ViewApp ................................................................27 Create a ViewApp.........................................................................................27 Assign Screen Profiles and Layouts to a ViewApp...........................28 Create Graphic Content for a ViewApp................................................29 Add Content to a ViewApp...................................................................30 Rearrange Objects in a ViewApp............................................................30 Preview a ViewApp.......................................................................................31 Prepare to Deploy a ViewApp .................................................................32 Deploy a ViewApp....................................................................................33 Launch a ViewApp........................................................................................34 New System Platform Features..............................................................37 Stronger Security.......................................................................................37 More Alarm Features ...............................................................................38 Easier Management of Product Licensing.......................................38 More Runtime Viewing Options..........................................................39 Get More Information ..............................................................................41 Application Server ........................................................................................41 InTouch OMI ...................................................................................................43 InTouch HMI....................................................................................................44 InTouch Access Anywhere .........................................................................47 Historian...........................................................................................................48 Historian Client ..............................................................................................49 Technical Support .........................................................................................49 Product Training ............................................................................................50

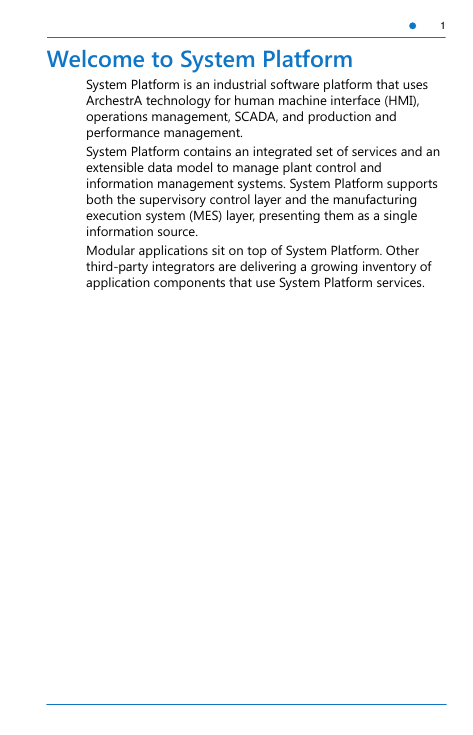

Welcome to System Platform  1 System Platform is an industrial software platform that uses ArchestrA technology for human machine interface (HMI), operations management, SCADA, and production and performance management. System Platform contains an integrated set of services and an extensible data model to manage plant control and information management systems. System Platform supports both the supervisory control layer and the manufacturing execution system (MES) layer, presenting them as a single information source. Modular applications sit on top of System Platform. Other third-party integrators are delivering a growing inventory of application components that use System Platform services.

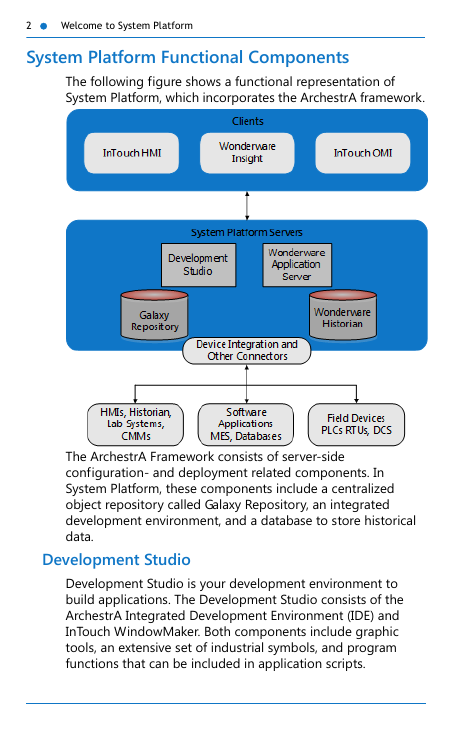

2 Welcome to System Platform System Platform Functional Components The following figure shows a functional representation of System Platform, which incorporates the ArchestrA framework. The ArchestrA Framework consists of server-side configuration- and deployment related components. In System Platform, these components include a centralized object repository called Galaxy Repository, an integrated development environment, and a database to store historical data. Development Studio Development Studio is your development environment to build applications. The Development Studio consists of the ArchestrA Integrated Development Environment (IDE) and InTouch WindowMaker. Both components include graphic tools, an extensive set of industrial symbols, and program functions that can be included in application scripts.

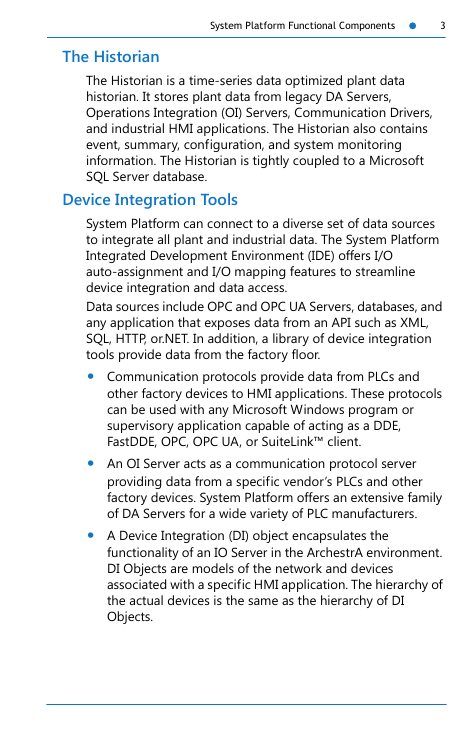

System Platform Functional Components 3 The Historian The Historian is a time-series data optimized plant data historian. It stores plant data from legacy DA Servers, Operations Integration (OI) Servers, Communication Drivers, and industrial HMI applications. The Historian also contains event, summary, configuration, and system monitoring information. The Historian is tightly coupled to a Microsoft SQL Server database. Device Integration Tools System Platform can connect to a diverse set of data sources to integrate all plant and industrial data. The System Platform Integrated Development Environment (IDE) offers I/O auto-assignment and I/O mapping features to streamline device integration and data access. Data sources include OPC and OPC UA Servers, databases, and any application that exposes data from an API such as XML, SQL, HTTP, or.NET. In addition, a library of device integration tools provide data from the factory floor. • Communication protocols provide data from PLCs and other factory devices to HMI applications. These protocols can be used with any Microsoft Windows program or supervisory application capable of acting as a DDE, FastDDE, OPC, OPC UA, or SuiteLink™ client. • An OI Server acts as a communication protocol server providing data from a specific vendor’s PLCs and other factory devices. System Platform offers an extensive family of DA Servers for a wide variety of PLC manufacturers. • A Device Integration (DI) object encapsulates the functionality of an IO Server in the ArchestrA environment. DI Objects are models of the network and devices associated with a specific HMI application. The hierarchy of the actual devices is the same as the hierarchy of DI Objects.

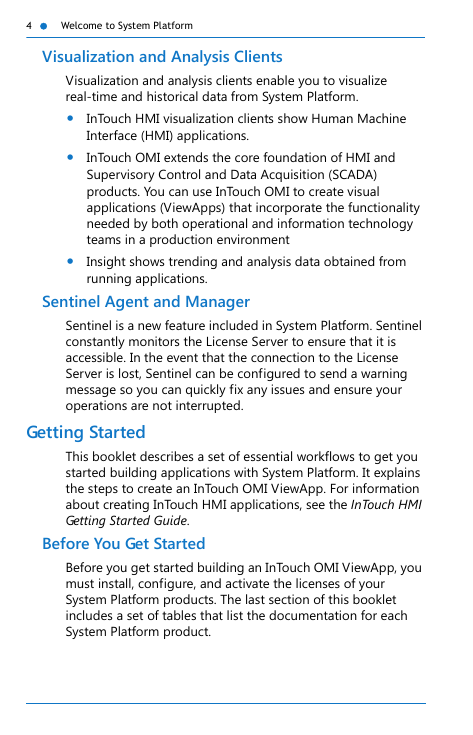

4 Welcome to System Platform Visualization and Analysis Clients Visualization and analysis clients enable you to visualize real-time and historical data from System Platform. • InTouch HMI visualization clients show Human Machine Interface (HMI) applications. • InTouch OMI extends the core foundation of HMI and Supervisory Control and Data Acquisition (SCADA) products. You can use InTouch OMI to create visual applications (ViewApps) that incorporate the functionality needed by both operational and information technology teams in a production environment • Insight shows trending and analysis data obtained from running applications. Sentinel Agent and Manager Sentinel is a new feature included in System Platform. Sentinel constantly monitors the License Server to ensure that it is accessible. In the event that the connection to the License Server is lost, Sentinel can be configured to send a warning message so you can quickly fix any issues and ensure your operations are not interrupted. Getting Started This booklet describes a set of essential workflows to get you started building applications with System Platform. It explains the steps to create an InTouch OMI ViewApp. For information about creating InTouch HMI applications, see the InTouch HMI Getting Started Guide. Before You Get Started Before you get started building an InTouch OMI ViewApp, you must install, configure, and activate the licenses of your System Platform products. The last section of this booklet includes a set of tables that list the documentation for each System Platform product.
