SONY索尼 GPS导航设备-NV-U53说明书.pdf

发布时间：2022-05-15 发布人：admin 分类：说明书资料大小：4.40M 资料格式：pdf 举报版权申诉

第1页 / 共194页

第2页 / 共194页

第3页 / 共194页

第4页 / 共194页

第5页 / 共194页

第6页 / 共194页

第7页 / 共194页

第8页 / 共194页

Warning

Location of controls

Turning the unit on/off

Performing initial setup

Receiving GPS signals

Basic Operations

Menu operation

Gesture Command operation

Keyboard operation

Route Searching

Setting the destination and starting guidance

Setting the destination in other ways

Guidance displays

System Settings

Bluetooth function (NV-U93T/U83 only)

Activating the Bluetooth function

Pairing and connecting this unit with a mobile phone

Connecting with a mobile phone from this unit

Making calls

Receiving calls

Using the Supplied Software

Contents

Connecting to your computer

Additional Information

Precautions

On Bluetooth communication (NV-U93T/U83 only)

About the “Memory Stick”

What is a “Memory Stick”?

Types of “Memory Stick Duo” that the system can use

Note on LCD panel

Maintenance

Cleaning

Fuse replacement

Notes on unit disposal

Specifications

Troubleshooting

Resetting the unit

Achtung

Lage und Funktion der Teile und Bedienelemente

Ein-/Ausschalten des Geräts

Ausführen der Grundkonfiguration

Empfangen von GPS-Signalen

Grundfunktionen

Arbeiten mit dem Menü

Gesture Command (Bedienung mit dem Finger)

Arbeiten mit der Tastatur

Routensuche

Festlegen des Ziels und Starten der Routenführung

Festlegen des Ziels auf andere Weise

Anzeigen für die Routenführung

Systemeinstellungen

Bluetooth-Funktion (nur NV-U93T/U83)

Aktivieren der Bluetooth- Funktion

Pairing und Herstellen einer Verbindung mit einem Mobiltelefon

Herstellen einer Verbindung zu einem Mobiltelefon von diesem Gerät aus

Tätigen von Anrufen

Entgegennehmen von Anrufen

Arbeiten mit der mitgelieferten Software

Inhalt

Anschließen an einen Computer

Weitere Informationen

Sicherheitsmaßnahmen

Informationen zur Bluetooth- Kommunikation (nur NV-U93T/U83)

Informationen zum „Memory Stick“

Was ist ein „Memory Stick“?

Für dieses System geeignete „Memory Stick Duo“-Typen

Hinweis zum LCD-Display

Wartung

Reinigung

Austauschen der Sicherung

Hinweise zur Entsorgung des Geräts

Technische Daten

Störungsbehebung

Zurücksetzen des Geräts

Avertissement

Emplacement des commandes

Mise sous/hors tension de l’appareil

Configuration initiale

Réception des signaux GPS

Opérations de base

Utilisation des menus

Fonction Gesture Command (commande gestuelle)

Utilisation du clavier

Recherche d’un itinéraire

Définition de la destination et démarrage du radioguidage

Définition de la destination par d’autres moyens

Ecrans de radioguidage

Réglages du système

Fonction Bluetooth (NV-U93T/U83 uniquement)

Activation de la fonction Bluetooth

Pairage et connexion de cet appareil à un téléphone mobile

Connexion à un téléphone mobile à partir de cet appareil

Appels

Réception d’appels

Utilisation du logiciel fourni

Contenu

Raccordement à votre ordinateur

Informations complémentaires

Précautions

Communication Bluetooth (NV-U93T/U83 uniquement)

A propos du « Memory Stick »

Qu’est-ce qu’un « Memory Stick » ?

Types de « Memory Stick Duo » compatibles

Remarque sur le panneau LCD

Entretien

Nettoyage

Remplacement du fusible

Remarques sur la mise au rebut de l’appareil

Spécifications

Dépannage

Réinitialisation de l’appareil

Waarschuwing

Bedieningselementen

Het apparaat in-/uitschakelen

Eerste installatie uitvoeren

GPS-signalen ontvangen

Algemene handelingen

Menubewerkingen

Gesture Command-bediening (bediening door middel van gebaren)

Bewerkingen met het toetsenbord

Routes zoeken

De bestemming instellen en de begeleiding starten

De bestemming op andere manieren instellen

Begeleidingsschermen

Systeeminstellingen

Bluetooth-functie (alleen NV-U93T/U83)

De Bluetooth-functie activeren

Dit apparaat koppelen en verbinden met een mobiele telefoon

Verbinding maken met een mobiele telefoon vanaf dit apparaat

Bellen

Gesprekken ontvangen

De bijgeleverde software gebruiken

Inhoud

Aansluiten op de computer

Aanvullende informatie

Voorzorgsmaatregelen

Bluetooth-communicatie (alleen NV-U93T/U83)

Informatie over de "Memory Stick"

Wat is een "Memory Stick"?

Typen "Memory Stick Duo" die door het systeem kunnen worden gebruikt

Opmerking over het LCD- scherm

Onderhoud

Reinigen

Zekeringen vervangen

Opmerkingen over het weggooien van het apparaat

Technische gegevens

Problemen oplossen

Het apparaat opnieuw instellen

Avvertenza

Posizione dei comandi

Accensione/spegnimento dell’unità

Impostazione iniziale

Ricezione dei segnali GPS

Operazioni di base

Operazioni di menu

Gesture Command (comando mediante tratto)

Operazioni mediante la tastiera

Ricerca del percorso

Impostazione della destinazione e avvio della guida

Altri metodi per impostare la destinazione

Schermate di guida

Impostazioni del sistema

Funzione Bluetooth (solo NV-U93T/U83)

Attivazione della funzione Bluetooth

Associazione e connessione dell’unità a un telefono cellulare

Connessione a un telefono cellulare a partire dall’unità

Come effettuare le chiamate

Ricezione di chiamate

Uso del software in dotazione

Contenuto

Collegamento al computer

Informazioni aggiuntive

Precauzioni

Informazioni sulla comunicazione Bluetooth (solo NV-U93T/U83)

Informazioni sulla “Memory Stick”

“Memory Stick”

Tipi di “Memory Stick Duo” supportati dal sistema

Nota sul pannello LCD

Manutenzione

Pulizia

Sostituzione del fusibile

Note sullo smaltimento dell’unità

Caratteristiche tecniche

Guida alla soluzione dei problemi

Azzeramento dell’unità

Advertencia

Encendido/apagado de la unidad

Ubicación de los controles

Configuración inicial

Recepción de señales GPS

Operaciones básicas

Funcionamiento del menú

Función Gesture Command (Operaciones gestuales)

Operaciones con el teclado

Búsqueda de rutas

Indicación del destino e inicio de las instrucciones

Otras formas de indicar el destino

Pantallas de instrucciones

Configuración del sistema

Función Bluetooth (únicamente el modelo NV-U93T/U83)

Activación de la función Bluetooth

Emparejamiento y conexión de la unidad con un teléfono móvil

Conexión con un teléfono móvil desde la unidad

Realización de llamadas

Recepción de llamadas

Utilización del software suministrado

Contenido

Conexión al ordenador

Información adicional

Precauciones

Comunicación Bluetooth (únicamente el modelo NV-U93T/ U83)

Acerca del “Memory Stick”

¿Qué es un “Memory Stick”?

Tipos de “Memory Stick Duo” que puede utilizar el sistema

Nota sobre el panel LCD

Mantenimiento

Limpieza

Sustitución del fusible

Notas sobre cómo deshacerse de la unidad

Especificaciones

Solución de problemas

Restauración de la unidad

Varning!

Kontrollernas placering

Slå på/stänga av enheten

Utföra initierande inställning

Ta emot GPS-signaler

Grundläggande hantering

Menyhantering

Gesture Command-kontroll (pekstyrning)

Åtgärder från tangentbordet

Ruttsökning

Ställa in resmål och startanvisningar

Andra sätt att ange resmålet

Anvisningsskärmar

Systeminställningar

Bluetooth-funktionen (endast NV-U93T/U83)

Aktivera Bluetooth-funktionen

Ihopparning och anslutning av den här enheten till en mobiltelefon

Ansluta till en mobiltelefon från den här enheten

Ringa upp

Ta emot samtal

Använda den medföljande programvaran

Innehåll

Ansluta till en dator

Ytterligare information

Försiktighetsåtgärder

Om Bluetooth-kommunikation (endast NV-U93T/U83)

Om ”Memory Stick”

Vad är ”Memory Stick”?

Det här systemet kan använda följande typer av ”Memory Stick Duo”

Angående LCD-skärmen

Underhåll

Rengöring

Byta säkring

Om kassering av enheten

Tekniska data

Felsökning

Återställa enheten

Aviso

Localização dos controlos

Ligar/Desligar o aparelho

Executar a configuração inicial

Receber os sinais GPS

Operações básicas

Utilização do menu

Funcionamento do Gesture Command (Comando por gestos)

Utilização do teclado

Procurar uma rota

Definir o destino e iniciar o guia de navegação

Outras maneiras de definir o destino

Ecrãs de orientação

Ajustes do sistema

Função Bluetooth (só nos modelos NV-U93T/U83)

Activar a função Bluetooth

Emparelhar e ligar o aparelho ao telemóvel

Ligar a um telemóvel a partir deste aparelho

Fazer chamadas

Receber chamadas

Utilizar o software fornecido

Conteúdo

Ligar ao computador

Informações adicionais

Precauções

Comunicação Bluetooth (só nos modelos NV-U93T/U83)

O “Memory Stick”

O que é um “Memory Stick”?

Tipos de “Memory Stick Duo” que o sistema pode utilizar

Nota sobre o LCD

Manutenção

Limpeza

Substituição do fusível

Notas sobre como deitar fora o aparelho

Características técnicas

Resolução de problemas

Reiniciar o aparelho

Customer Support Portal If you have any questions or for the latest support information on navigation, visit the website below: http://www.navu.sony-europe.com/support Bitte kreuzen Sie zunächst die genaue Modellbezeichnung in dem dafür vorgesehenen Feld an. Tragen Sie danach die Seriennummer (SERIAL NO.) in dem reservierten Feld ein. Sie finden diese auf einem Aufkleber, der auf dem Gerätegehäuse angebracht ist. Nehmen Sie den ausgefüllten Geräte-Pass anschließend unbedingt aus der Bedienungsanleitung heraus, falls Sie diese im Fahrzeug aufbewahren möchten. Bitte bewahren Sie den Geräte-Pass an einem sicheren Ort auf. Er kann im Falle eines Diebstahls zur ldentifikation lhres Eigentums dienen. caraudio Geräte-Pass Dieser Geräte-Pass dient als Eigentumsnachweis für Ihr caraudio-Gerät im Falle eines Diebstahls. Wir empfehlen, den Geräte-Pass nicht im Fahrzeug aufzubewahren, um Missbrauch zu verhindern. Modellbezeichnung sNV-U93T sNV-U83 sNV-U73T sNV-U53 Seriennummer (SERIAL NO.) Sony Corporation Printed in Thailand P e r s o n a l i N a v g a t i o n S y s t e m How to use this manual When reading this manual, keep the control layout illustration (on the rear of this page or the adjacent page) open for quick reference from any page. Hinweis zu dieser Bedienungsanleitung Wenn Sie diese Bedienungsanleitung lesen, klappen Sie die Abbildung mit den Bedienelementen (auf der Rückseite dieser Seite oder der Seite daneben) auf. So haben Sie sie beim Lesen immer im Blick. Uso del presente manuale Durante la consultazione del presente manuale, tenere aperte le illustrazioni di layout di controllo (nella parte posteriore di questa pagina o in quella adiacente) per una consultazione rapida in qualsiasi momento. Cómo utilizar este manual Cuando lea este manual, mantenga abierta la ilustración del diseño de control (en la parte posterior de esta página o en la página siguiente) para poder consultarla rápidamente desde cualquier página. Comment utiliser ce manuel Lorsque vous lisez ce manuel, gardez le rabat des illustrations des commandes (au verso de cette page ou sur la page adjacente) ouvert pour pouvoir vous y référer rapidement à partir de n’importe quelle page. Hur du använder den här bruksanvisningen När du läser den här bruksanvisningen bör du ha bilden över kontrollerna (på baksidan av den här sidan eller på nästa sida) öppen för snabb referens från sidan du är på. Deze handleiding gebruiken Wanneer u deze handleiding leest, houdt u de illustratie met onderdelen van het apparaat (aan de achterzijde van deze pagina of de tegenoverliggende pagina) geopend zodat u deze vanaf elke pagina snel kunt raadplegen. Como utilizar este manual Quando ler este manual, mantenha aberta a ilustração do esquema de controlo (no verso desta página ou a página adjacente), para possibilitar uma consulta rápida a partir de qualquer página. 3-275-816-11 (1) Quick Start Guide GB Anleitung zur schnellen Inbetriebnahme DE Guide de démarrage rapide FR Beknopte handleiding NL Guida rapida all’uso Guía de inicio rápido Snabbstartguide IT ES SE Guia de iniciação rápida PT Personal Navigation System Quick Start Guide NV-U93T NV-U83 NV-U73T NV-U53 © 2007 Sony Corporation

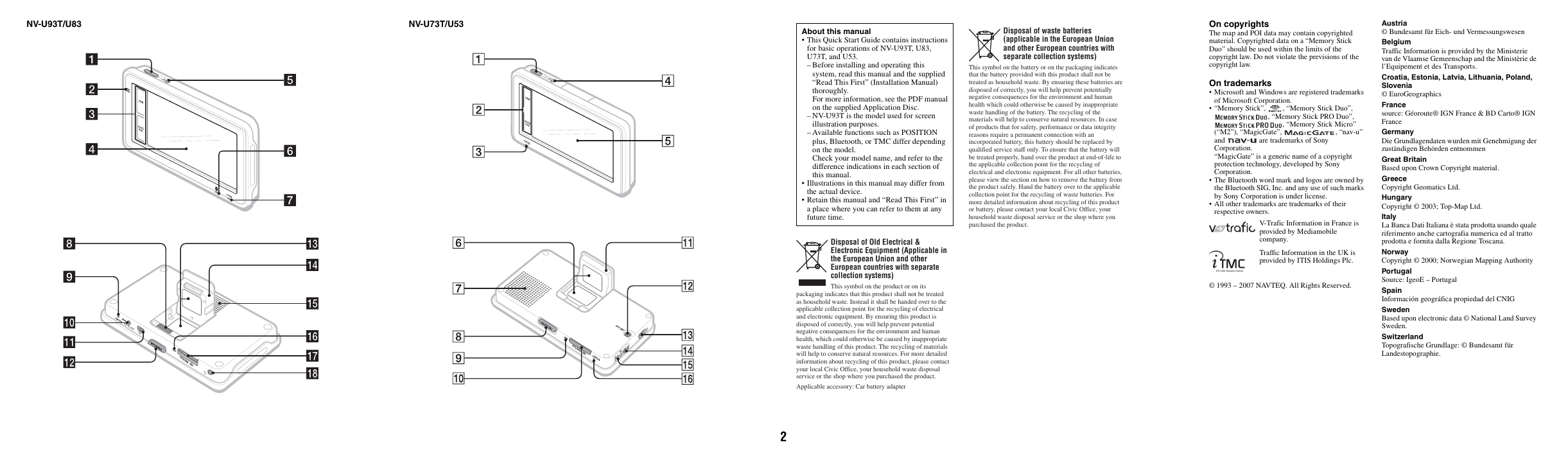

NV-U93T/U83 NV-U73T/U53 About this manual • This Quick Start Guide contains instructions for basic operations of NV-U93T, U83, U73T, and U53. – Before installing and operating this system, read this manual and the supplied “Read This First” (Installation Manual) thoroughly. For more information, see the PDF manual on the supplied Application Disc. – NV-U93T is the model used for screen illustration purposes. – Available functions such as POSITION plus, Bluetooth, or TMC differ depending on the model. Check your model name, and refer to the difference indications in each section of this manual. Illustrations in this manual may differ from the actual device. Retain this manual and “Read This First” in a place where you can refer to them at any future time. Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Applicable accessory: Car battery adapter 2 On copyrights The map and POI data may contain copyrighted material. Copyrighted data on a “Memory Stick Duo” should be used within the limits of the copyright law. Do not violate the previsions of the copyright law. On trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation. “Memory Stick”, , “Memory Stick Duo”, , “Memory Stick PRO Duo”, , “Memory Stick Micro” are trademarks of Sony (“M2”), “MagicGate”, and Corporation. “MagicGate” is a generic name of a copyright protection technology, developed by Sony Corporation. , “nav-u” The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. All other trademarks are trademarks of their respective owners. V-Trafic Information in France is provided by Mediamobile company. Traffic Information in the UK is provided by ITIS Holdings Plc. © 1993 – 2007 NAVTEQ. All Rights Reserved. Austria © Bundesamt für Eich- und Vermessungswesen Belgium Traffic Information is provided by the Ministerie van de Vlaamse Gemeenschap and the Ministèrie de l’Equipement et des Transports. Croatia, Estonia, Latvia, Lithuania, Poland, Slovenia © EuroGeographics France source: Géoroute® IGN France & BD Carto® IGN France Germany Die Grundlagendaten wurden mit Genehmigung der zuständigen Behörden entnommen Great Britain Based upon Crown Copyright material. Greece Copyright Geomatics Ltd. Hungary Copyright © 2003; Top-Map Ltd. Italy La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica ed al tratto prodotta e fornita dalla Regione Toscana. Norway Copyright © 2000; Norwegian Mapping Authority Portugal Source: IgeoE – Portugal Spain Información geográfica propiedad del CNIG Sweden Based upon electronic data © National Land Survey Sweden. Switzerland Topografische Grundlage: © Bundesamt für Landestopographie.

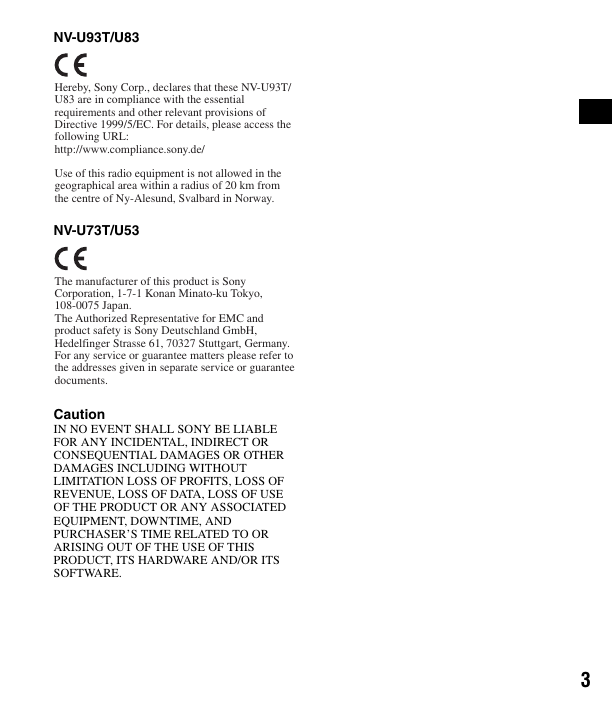

NV-U93T/U83 Hereby, Sony Corp., declares that these NV-U93T/ U83 are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of Ny-Alesund, Svalbard in Norway. NV-U73T/U53 The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents. Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. 3

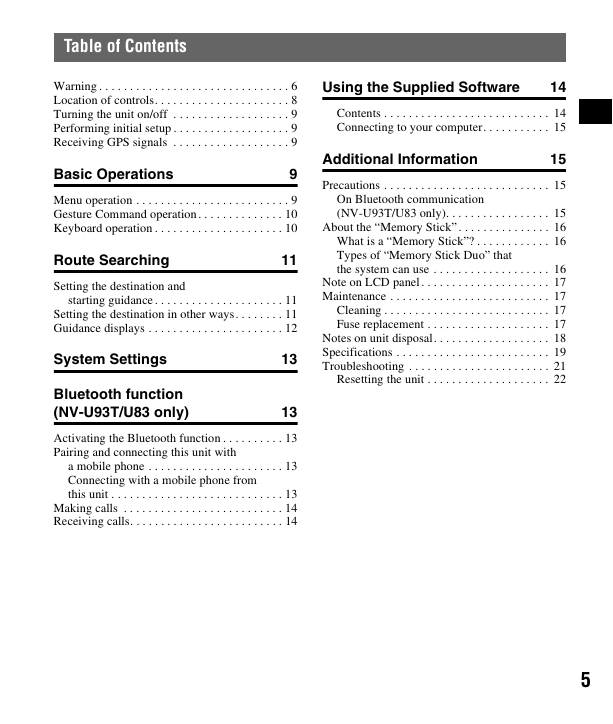

Using the Supplied Software 14 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Connecting to your computer. . . . . . . . . . . 15 Additional Information 15 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 On Bluetooth communication (NV-U93T/U83 only). . . . . . . . . . . . . . . . . 15 About the “Memory Stick” . . . . . . . . . . . . . . . 16 What is a “Memory Stick”? . . . . . . . . . . . . 16 Types of “Memory Stick Duo” that the system can use . . . . . . . . . . . . . . . . . . . 16 Note on LCD panel . . . . . . . . . . . . . . . . . . . . . 17 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Fuse replacement . . . . . . . . . . . . . . . . . . . . 17 Notes on unit disposal. . . . . . . . . . . . . . . . . . . 18 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 19 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 21 Resetting the unit . . . . . . . . . . . . . . . . . . . . 22 Table of Contents Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Location of controls. . . . . . . . . . . . . . . . . . . . . . 8 Turning the unit on/off . . . . . . . . . . . . . . . . . . . 9 Performing initial setup . . . . . . . . . . . . . . . . . . . 9 Receiving GPS signals . . . . . . . . . . . . . . . . . . . 9 Basic Operations 9 Menu operation . . . . . . . . . . . . . . . . . . . . . . . . . 9 Gesture Command operation . . . . . . . . . . . . . . 10 Keyboard operation . . . . . . . . . . . . . . . . . . . . . 10 Route Searching 11 Setting the destination and starting guidance . . . . . . . . . . . . . . . . . . . . . 11 Setting the destination in other ways. . . . . . . . 11 Guidance displays . . . . . . . . . . . . . . . . . . . . . . 12 System Settings Bluetooth function (NV-U93T/U83 only) 13 13 Activating the Bluetooth function . . . . . . . . . . 13 Pairing and connecting this unit with a mobile phone . . . . . . . . . . . . . . . . . . . . . . 13 Connecting with a mobile phone from this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Receiving calls. . . . . . . . . . . . . . . . . . . . . . . . . 14 5

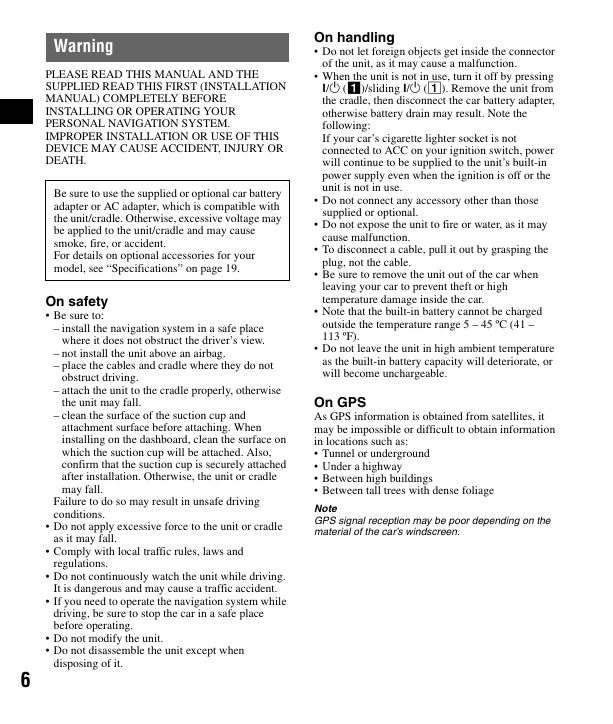

On handling Do not let foreign objects get inside the connector of the unit, as it may cause a malfunction. When the unit is not in use, turn it off by pressing ?/1 (1)/sliding ?/1 (1). Remove the unit from the cradle, then disconnect the car battery adapter, otherwise battery drain may result. Note the following: If your car’s cigarette lighter socket is not connected to ACC on your ignition switch, power will continue to be supplied to the unit’s built-in power supply even when the ignition is off or the unit is not in use. Do not connect any accessory other than those Do not expose the unit to fire or water, as it may To disconnect a cable, pull it out by grasping the supplied or optional. cause malfunction. plug, not the cable. Be sure to remove the unit out of the car when leaving your car to prevent theft or high temperature damage inside the car. Note that the built-in battery cannot be charged outside the temperature range 5 – 45 ºC (41 – 113 ºF). Do not leave the unit in high ambient temperature as the built-in battery capacity will deteriorate, or will become unchargeable. On GPS As GPS information is obtained from satellites, it may be impossible or difficult to obtain information in locations such as: Tunnel or underground Under a highway Between high buildings Between tall trees with dense foliage Note GPS signal reception may be poor depending on the material of the car’s windscreen. Warning PLEASE READ THIS MANUAL AND THE SUPPLIED READ THIS FIRST (INSTALLATION MANUAL) COMPLETELY BEFORE INSTALLING OR OPERATING YOUR PERSONAL NAVIGATION SYSTEM. IMPROPER INSTALLATION OR USE OF THIS DEVICE MAY CAUSE ACCIDENT, INJURY OR DEATH. Be sure to use the supplied or optional car battery adapter or AC adapter, which is compatible with the unit/cradle. Otherwise, excessive voltage may be applied to the unit/cradle and may cause smoke, fire, or accident. For details on optional accessories for your model, see “Specifications” on page 19. On safety Be sure to: – install the navigation system in a safe place where it does not obstruct the driver’s view. – not install the unit above an airbag. – place the cables and cradle where they do not – attach the unit to the cradle properly, otherwise obstruct driving. the unit may fall. – clean the surface of the suction cup and attachment surface before attaching. When installing on the dashboard, clean the surface on which the suction cup will be attached. Also, confirm that the suction cup is securely attached after installation. Otherwise, the unit or cradle may fall. Failure to do so may result in unsafe driving conditions. Do not apply excessive force to the unit or cradle Comply with local traffic rules, laws and as it may fall. regulations. Do not continuously watch the unit while driving. It is dangerous and may cause a traffic accident. If you need to operate the navigation system while driving, be sure to stop the car in a safe place before operating. Do not modify the unit. Do not disassemble the unit except when disposing of it. 6

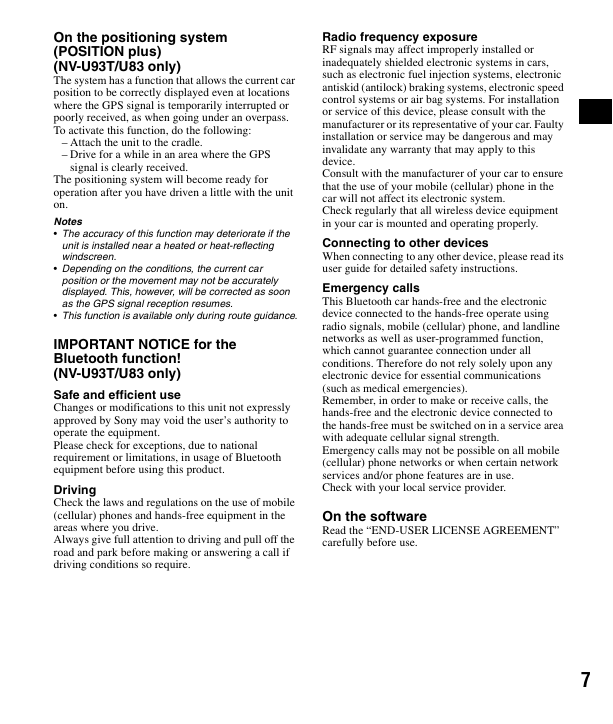

On the positioning system (POSITION plus) (NV-U93T/U83 only) The system has a function that allows the current car position to be correctly displayed even at locations where the GPS signal is temporarily interrupted or poorly received, as when going under an overpass. To activate this function, do the following: – Attach the unit to the cradle. – Drive for a while in an area where the GPS signal is clearly received. The positioning system will become ready for operation after you have driven a little with the unit on. Notes • The accuracy of this function may deteriorate if the unit is installed near a heated or heat-reflecting windscreen. Depending on the conditions, the current car position or the movement may not be accurately displayed. This, however, will be corrected as soon as the GPS signal reception resumes. This function is available only during route guidance. IMPORTANT NOTICE for the Bluetooth function! (NV-U93T/U83 only) Safe and efficient use Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product. Driving Check the laws and regulations on the use of mobile (cellular) phones and hands-free equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require. Radio frequency exposure RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your mobile (cellular) phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly. Connecting to other devices When connecting to any other device, please read its user guide for detailed safety instructions. Emergency calls This Bluetooth car hands-free and the electronic device connected to the hands-free operate using radio signals, mobile (cellular) phone, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). Remember, in order to make or receive calls, the hands-free and the electronic device connected to the hands-free must be switched on in a service area with adequate cellular signal strength. Emergency calls may not be possible on all mobile (cellular) phone networks or when certain network services and/or phone features are in use. Check with your local service provider. On the software Read the “END-USER LICENSE AGREEMENT” carefully before use. 7

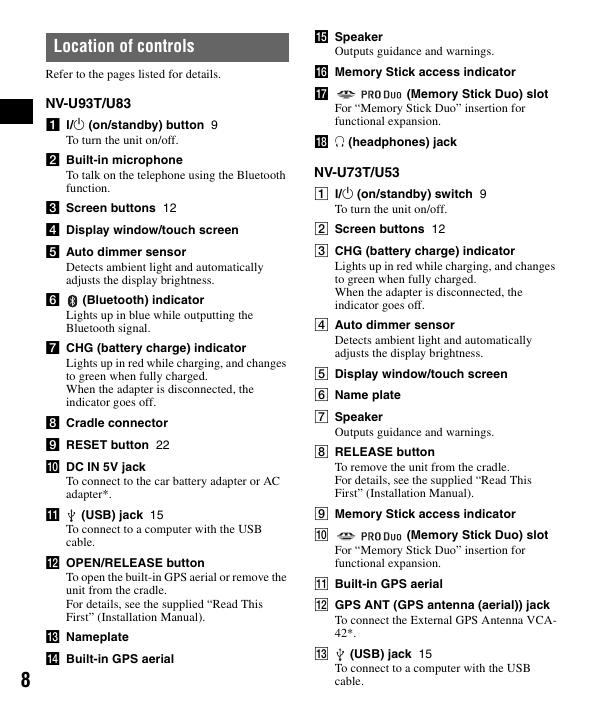

Location of controls Refer to the pages listed for details. NV-U93T/U83 a ?/1 (on/standby) button 9 To turn the unit on/off. b Built-in microphone To talk on the telephone using the Bluetooth function. c Screen buttons 12 d Display window/touch screen e Auto dimmer sensor Detects ambient light and automatically adjusts the display brightness. f (Bluetooth) indicator Lights up in blue while outputting the Bluetooth signal. g CHG (battery charge) indicator Lights up in red while charging, and changes to green when fully charged. When the adapter is disconnected, the indicator goes off. h Cradle connector i RESET button 22 j DC IN 5V jack To connect to the car battery adapter or AC adapter*. k (USB) jack 15 To connect to a computer with the USB cable. l OPEN/RELEASE button To open the built-in GPS aerial or remove the unit from the cradle. For details, see the supplied “Read This First” (Installation Manual). m Nameplate n Built-in GPS aerial 8 o Speaker Outputs guidance and warnings. p Memory Stick access indicator q (Memory Stick Duo) slot For “Memory Stick Duo” insertion for functional expansion. r i (headphones) jack NV-U73T/U53 A ?/1 (on/standby) switch 9 To turn the unit on/off. B Screen buttons 12 C CHG (battery charge) indicator Lights up in red while charging, and changes to green when fully charged. When the adapter is disconnected, the indicator goes off. D Auto dimmer sensor Detects ambient light and automatically adjusts the display brightness. E Display window/touch screen F Name plate G Speaker Outputs guidance and warnings. H RELEASE button To remove the unit from the cradle. For details, see the supplied “Read This First” (Installation Manual). I Memory Stick access indicator J (Memory Stick Duo) slot For “Memory Stick Duo” insertion for functional expansion. K Built-in GPS aerial L GPS ANT (GPS antenna (aerial)) jack To connect the External GPS Antenna VCA- 42*. M (USB) jack 15 To connect to a computer with the USB cable.
