松下投影机-PT-D10000E说明书.pdf
Operating Instructions
DLP® Based Projector
Commercial Use
Models No.
PT-D10000E
PT-DW10000E
Read these instructions completely before operating this unit.
TQBJ 0209

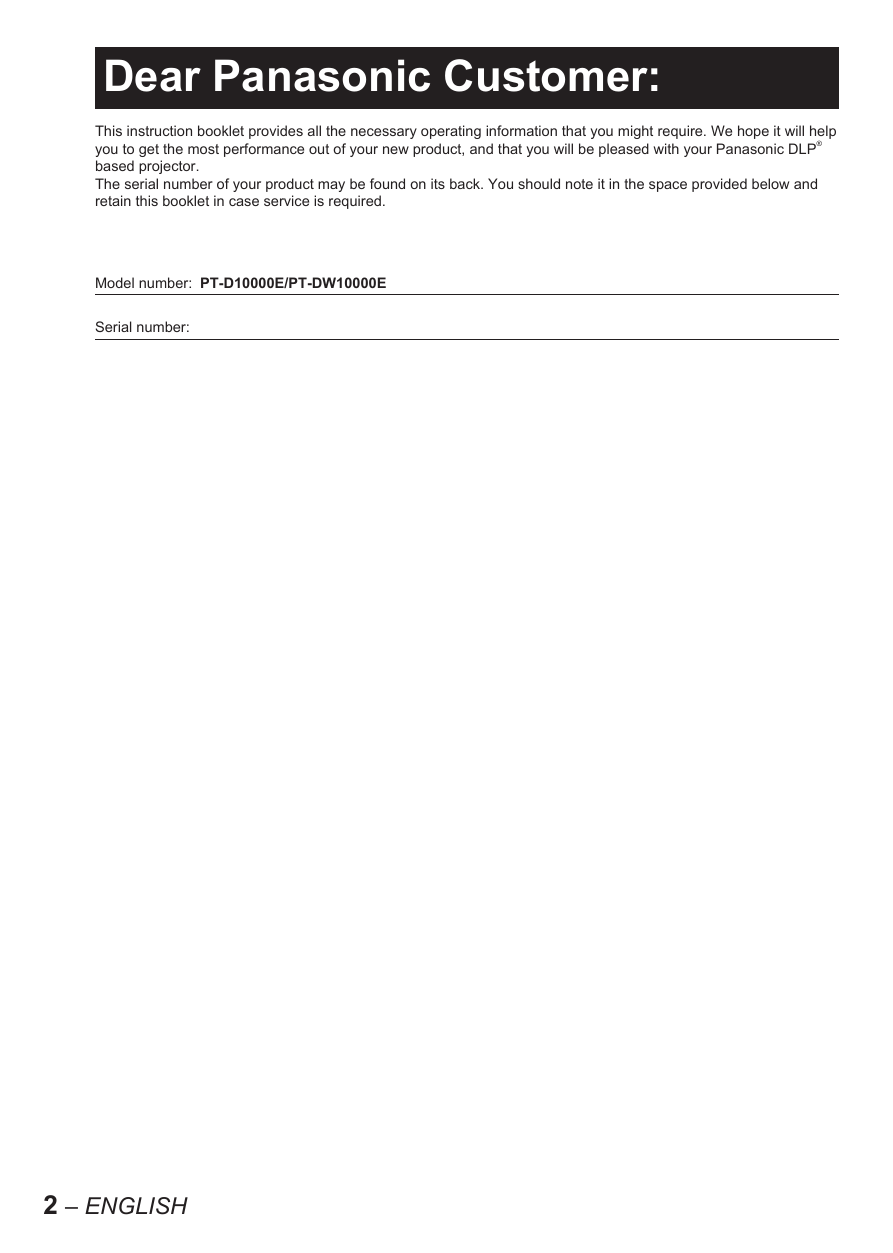

Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will help
you to get the most performance out of your new product, and that you will be pleased with your Panasonic DLP®
based projector.
The serial number of your product may be found on its back. You should note it in the space provided below and
retain this booklet in case service is required.
Model number: PT-D10000E/PT-DW10000E
Serial number:
– ENGLISH

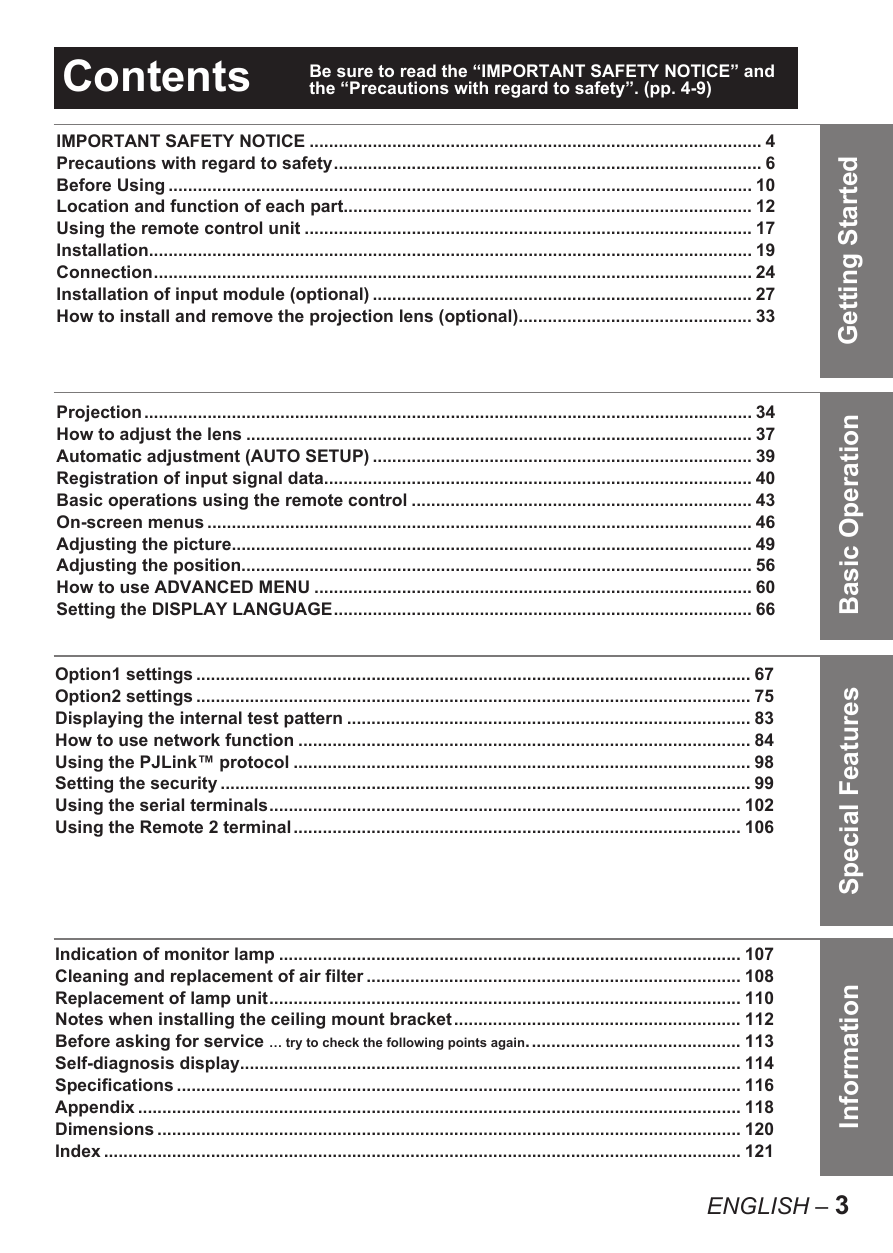

Contents
Be sure to read the “IMPORTANT SAFETY NOTICE” and
the “Precautions with regard to safety”. (pp. 4-9)
IMPORTANT SAFETY NOTICE ............................................................................................. 4
Precautions with regard to safety ........................................................................................ 6
Before Using ........................................................................................................................ 10
Location and function of each part .................................................................................... 1
Using the remote control unit ............................................................................................ 17
Installation ............................................................................................................................ 19
Connection ........................................................................................................................... 4
Installation of input module (optional) .............................................................................. 7
How to install and remove the projection lens (optional) ................................................
Projection ............................................................................................................................. 4
How to adjust the lens ........................................................................................................ 7
Automatic adjustment (AUTO SETUP) .............................................................................. 9
Registration of input signal data ........................................................................................ 40
Basic operations using the remote control ...................................................................... 4
On-screen menus ................................................................................................................ 46
Adjusting the picture ........................................................................................................... 49
Adjusting the position ......................................................................................................... 56
How to use ADVANCED MENU .......................................................................................... 60
Setting the DISPLAY LANGUAGE ...................................................................................... 66
Option1 settings .................................................................................................................. 67
Option settings .................................................................................................................. 75
Displaying the internal test pattern ................................................................................... 8
How to use network function ............................................................................................. 84
Using the PJLink™ protocol .............................................................................................. 98
Setting the security ............................................................................................................. 99
Using the serial terminals ................................................................................................. 10
Using the Remote terminal ............................................................................................ 106
Indication of monitor lamp ............................................................................................... 107
Cleaning and replacement of air filter ............................................................................. 108
Replacement of lamp unit ................................................................................................. 110
Notes when installing the ceiling mount bracket ........................................................... 11
Before asking for service … try to check the following points again. ........................................... 11
Self-diagnosis display....................................................................................................... 114
Specifications .................................................................................................................... 116
Appendix ............................................................................................................................ 118
Dimensions ........................................................................................................................ 10
Index ................................................................................................................................... 11
d
d
e
e
t
t
r
r
a
a
t
t
S
S
g
g
n
n
i
i
t
t
t
t
e
e
G
G
n
o
i
t
a
r
e
p
O
c
i
s
a
B
s
e
r
u
t
a
e
F
l
a
i
c
e
p
S
n
o
i
t
a
m
r
o
f
n
I
ENGLISH –

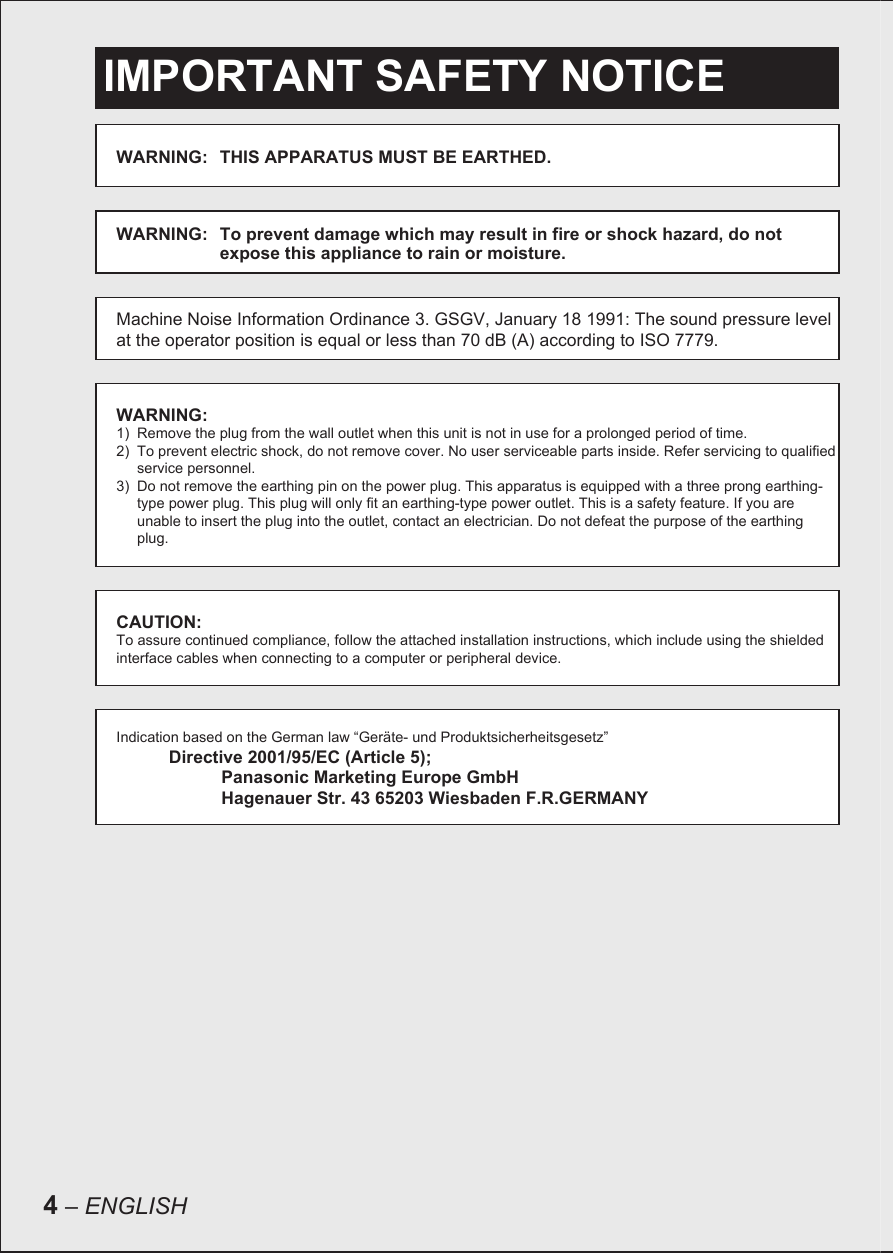

IMPORTANT SAFETY NOTICE
WARNING: THIS APPARATUS MUST BE EARTHED.
WARNING: To prevent damage which may result in fire or shock hazard, do not
expose this appliance to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18 1991: The sound pressure level
at the operator position is equal or less than 70 dB (A) according to ISO 7779.
WARNING:
1) Remove the plug from the wall outlet when this unit is not in use for a prolonged period of time.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three prong earthing-
type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing
plug.
CAUTION:
To assure continued compliance, follow the attached installation instructions, which include using the shielded
interface cables when connecting to a computer or peripheral device.
Indication based on the German law “Geräte- und Produktsicherheitsgesetz”
Directive 001/95/EC (Article 5);
Panasonic Marketing Europe GmbH
Hagenauer Str. 4 650 Wiesbaden F.R.GERMANY
4 – ENGLISH
IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a moulded three pin mains plug for your safety and
convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please
ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or
BSl to BS1362.
Check for the ASTA mark a or the BSl mark ` on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse
is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is
obtained. A replacement fuse cover can be purchased from an Authorized Service Centre.
If the fitted moulded plug is unsuitable for the socket outlet in your home, then the
fuse should be removed and the plug cut off and disposed of safely. There is a danger
of severe electrical shock if the cut off plug is inserted into any 1 amp socket.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: –THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: –The wires in this mains lead are coloured in accordance
with the following code: –
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in
the plug which is marked with the letter E or by the Earth symbol W or coloured GREEN
or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is
marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug which is
marked with the letter L or coloured RED.
FUSE
How to replace the fuse: Open the fuse compartment with
a screwdriver and replace the fuse.
ENGLISH – 5

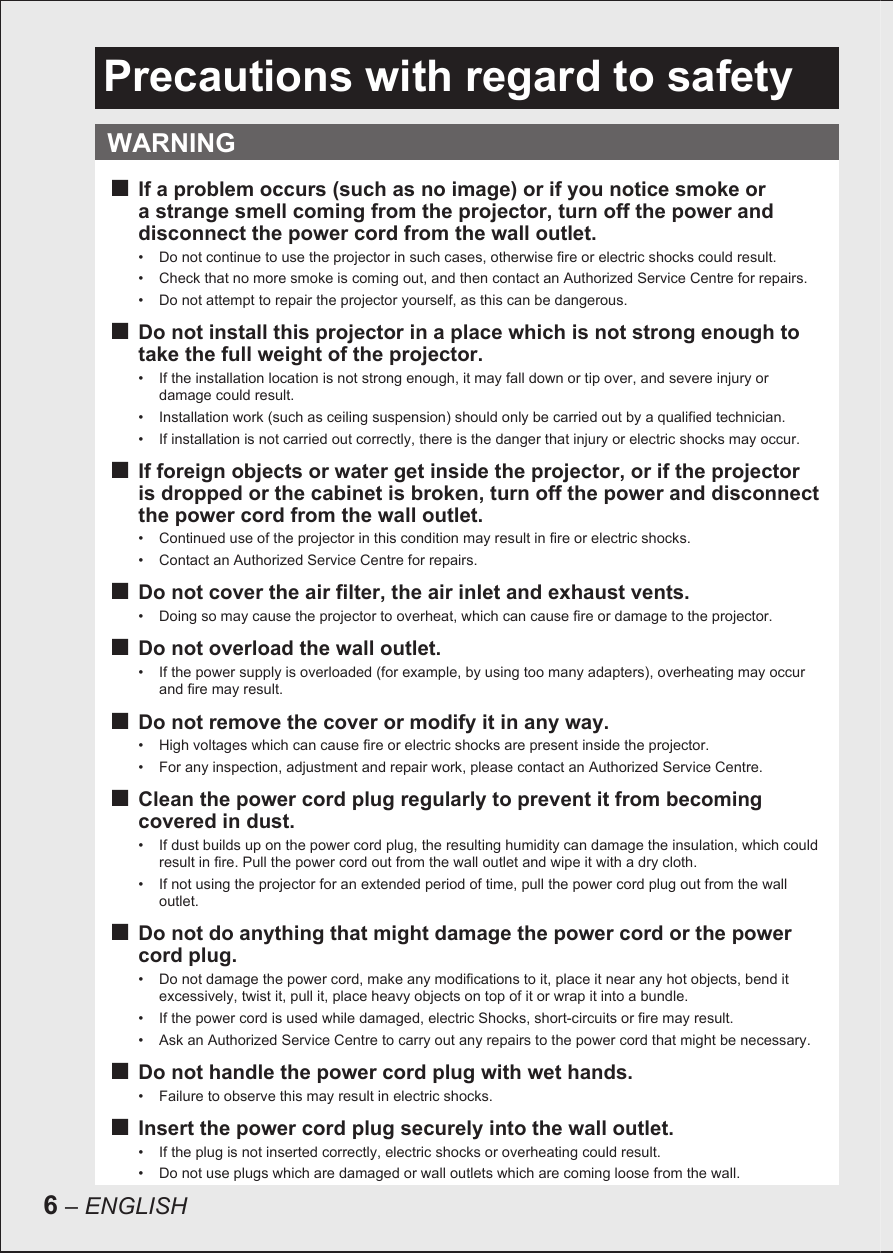

Precautions with regard to safety
WARNING
■
If a problem occurs (such as no image) or if you notice smoke or
a strange smell coming from the projector, turn off the power and
disconnect the power cord from the wall outlet.
• Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.
• Check that no more smoke is coming out, and then contact an Authorized Service Centre for repairs.
• Do not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
•
If the installation location is not strong enough, it may fall down or tip over, and severe injury or
damage could result.
•
Installation work (such as ceiling suspension) should only be carried out by a qualified technician.
•
If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector
is dropped or the cabinet is broken, turn off the power and disconnect
the power cord from the wall outlet.
• Continued use of the projector in this condition may result in fire or electric shocks.
• Contact an Authorized Service Centre for repairs.
Do not cover the air filter, the air inlet and exhaust vents.
• Doing so may cause the projector to overheat, which can cause fire or damage to the projector.
Do not overload the wall outlet.
•
If the power supply is overloaded (for example, by using too many adapters), overheating may occur
and fire may result.
■
■
■
■
■
■
■
■
■
Do not remove the cover or modify it in any way.
• High voltages which can cause fire or electric shocks are present inside the projector.
• For any inspection, adjustment and repair work, please contact an Authorized Service Centre.
Clean the power cord plug regularly to prevent it from becoming
covered in dust.
•
If dust builds up on the power cord plug, the resulting humidity can damage the insulation, which could
result in fire. Pull the power cord out from the wall outlet and wipe it with a dry cloth.
If not using the projector for an extended period of time, pull the power cord plug out from the wall
outlet.
•
Do not do anything that might damage the power cord or the power
cord plug.
• Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it
excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
If the power cord is used while damaged, electric Shocks, short-circuits or fire may result.
•
• Ask an Authorized Service Centre to carry out any repairs to the power cord that might be necessary.
Do not handle the power cord plug with wet hands.
• Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
If the plug is not inserted correctly, electric shocks or overheating could result.
•
• Do not use plugs which are damaged or wall outlets which are coming loose from the wall.
6 – ENGLISH
■
■
■
■
■
■
■
■
■
■
■
■

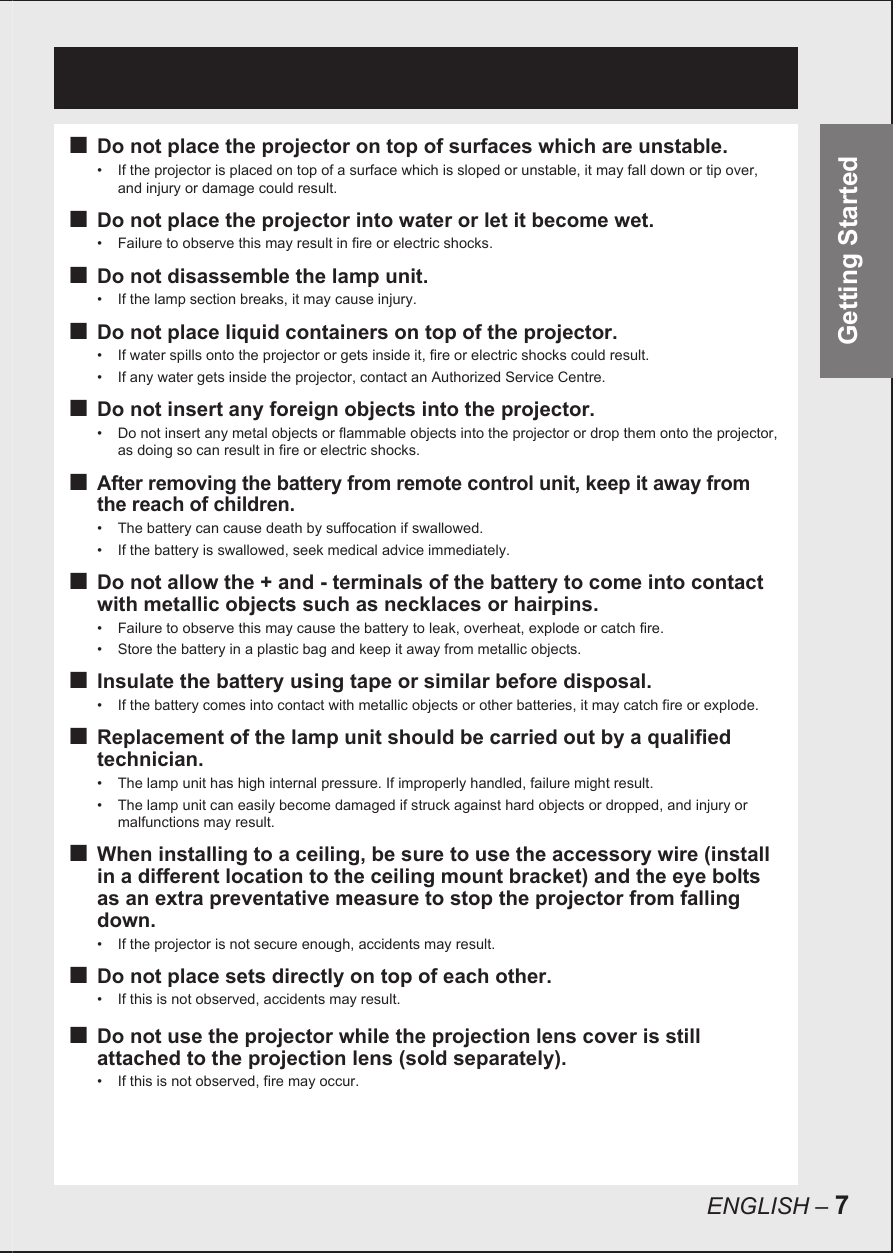

Do not place the projector on top of surfaces which are unstable.
•
If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over,
and injury or damage could result.
Do not place the projector into water or let it become wet.
• Failure to observe this may result in fire or electric shocks.
Do not disassemble the lamp unit.
•
If the lamp section breaks, it may cause injury.
Do not place liquid containers on top of the projector.
•
•
Do not insert any foreign objects into the projector.
• Do not insert any metal objects or flammable objects into the projector or drop them onto the projector,
If water spills onto the projector or gets inside it, fire or electric shocks could result.
If any water gets inside the projector, contact an Authorized Service Centre.
as doing so can result in fire or electric shocks.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
If the battery is swallowed, seek medical advice immediately.
After removing the battery from remote control unit, keep it away from
the reach of children.
• The battery can cause death by suffocation if swallowed.
•
Do not allow the + and - terminals of the battery to come into contact
with metallic objects such as necklaces or hairpins.
• Failure to observe this may cause the battery to leak, overheat, explode or catch fire.
• Store the battery in a plastic bag and keep it away from metallic objects.
Insulate the battery using tape or similar before disposal.
•
Replacement of the lamp unit should be carried out by a qualified
technician.
• The lamp unit has high internal pressure. If improperly handled, failure might result.
• The lamp unit can easily become damaged if struck against hard objects or dropped, and injury or
If the battery comes into contact with metallic objects or other batteries, it may catch fire or explode.
malfunctions may result.
If the projector is not secure enough, accidents may result.
When installing to a ceiling, be sure to use the accessory wire (install
in a different location to the ceiling mount bracket) and the eye bolts
as an extra preventative measure to stop the projector from falling
down.
•
Do not place sets directly on top of each other.
•
Do not use the projector while the projection lens cover is still
attached to the projection lens (sold separately).
•
If this is not observed, accidents may result.
If this is not observed, fire may occur.
ENGLISH – 7
Precautions with regard to safety (continued)
CAUTION
■
Do not set up the projector in humid or dusty places or in places
where the projector may come into contact with smoke or steam.
• Using the projector under such conditions may result in fire or electric shocks.
When disconnecting the power cord, hold the plug, not the cord.
•
If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious
electric shocks may result.
Always disconnect all cables before moving the projector.
• Moving the projector with cables still attached can damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the projector.
• Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage
or injury.
Do not short-circuit, heat or disassemble the battery or place it into
water or fire.
• Failure to observe this may cause the battery to overheat, leak, explode or catch fire, and burns or
other injury may result.
When inserting the battery, make sure the polarities (+ and -) are
correct.
•
If the battery is inserted incorrectly, it may explode or leak, and fire, injury or contamination of the
battery compartment and surrounding area may result.
Use only the specified battery.
•
If an incorrect battery is used, it may explode or leak, and fire, injury or contamination of the battery
compartment and surrounding area may result close to this port, otherwise burns or damage could
result.
Do not look into the lens while the projector is being used.
• Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your
eyes.
Do not bring your hands or other objects close to the air outlet port.
• Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot
withstand heat.
Do not use the old lamp unit.
• The lamp section may break.
Replacement of the lamp unit should only be carried out after it has
completely cooled off, otherwise burns may result.
Disconnect the power cord plug from the wall outlet as a safety
precaution before carrying out any cleaning.
• Electric shocks can result if this is not done.
■
■
■
■
■
■
■
■
■
■
■
8 – ENGLISH
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
