松下投影机-PT-D7700E说明书.pdf

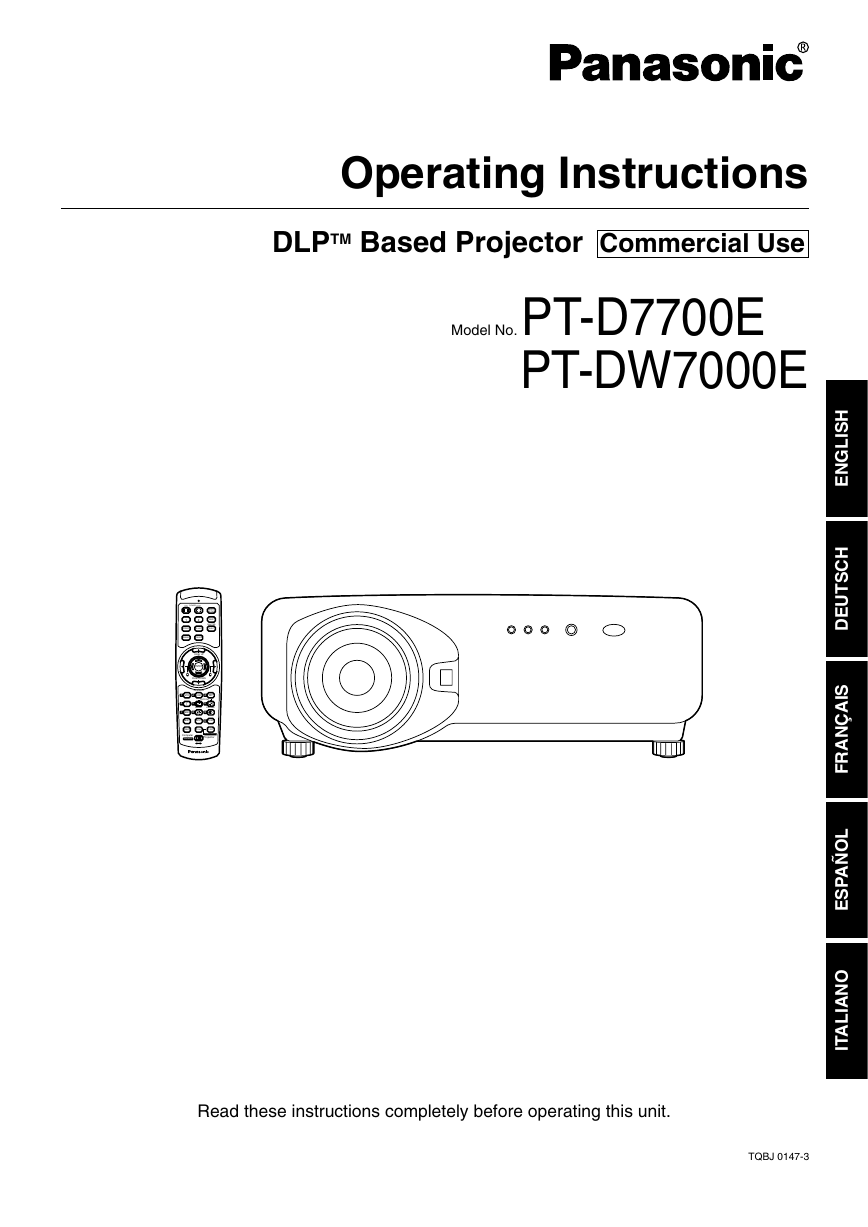

Operating Instructions
DLPTM Based Projector Commercial Use
Model No. PT-D7700E
PT-DW7000E
ON
POWER
OFF
RGB
1
RGB
2
AUTO
SETUP
AUX
SHUTTER
VIDEO
S-VIDEO
SHUT
MENU
FREEZE
PAGE UP
ENTER
PAGE DOWN
ON SCREEN
OSD
3
SYSTEM
SEL
D.ZOOM
6
BRIGHT
CONTRAST
1
4
7
STD
FUNC
1
LENS
2
5
8
9
0
USER
NEXT
ASPECT
LIGHT
ID ALL
ID SET
Computer
Numetric
LASER ON/OFF
Projector
Read these instructions completely before operating this unit.
TQBJ 0147-3
I
H
S
L
G
N
E
H
C
S
T
U
E
D
I
S
A
Ç
N
A
R
F
L
O
Ñ
A
P
S
E
O
N
A
L
A
T
I
I

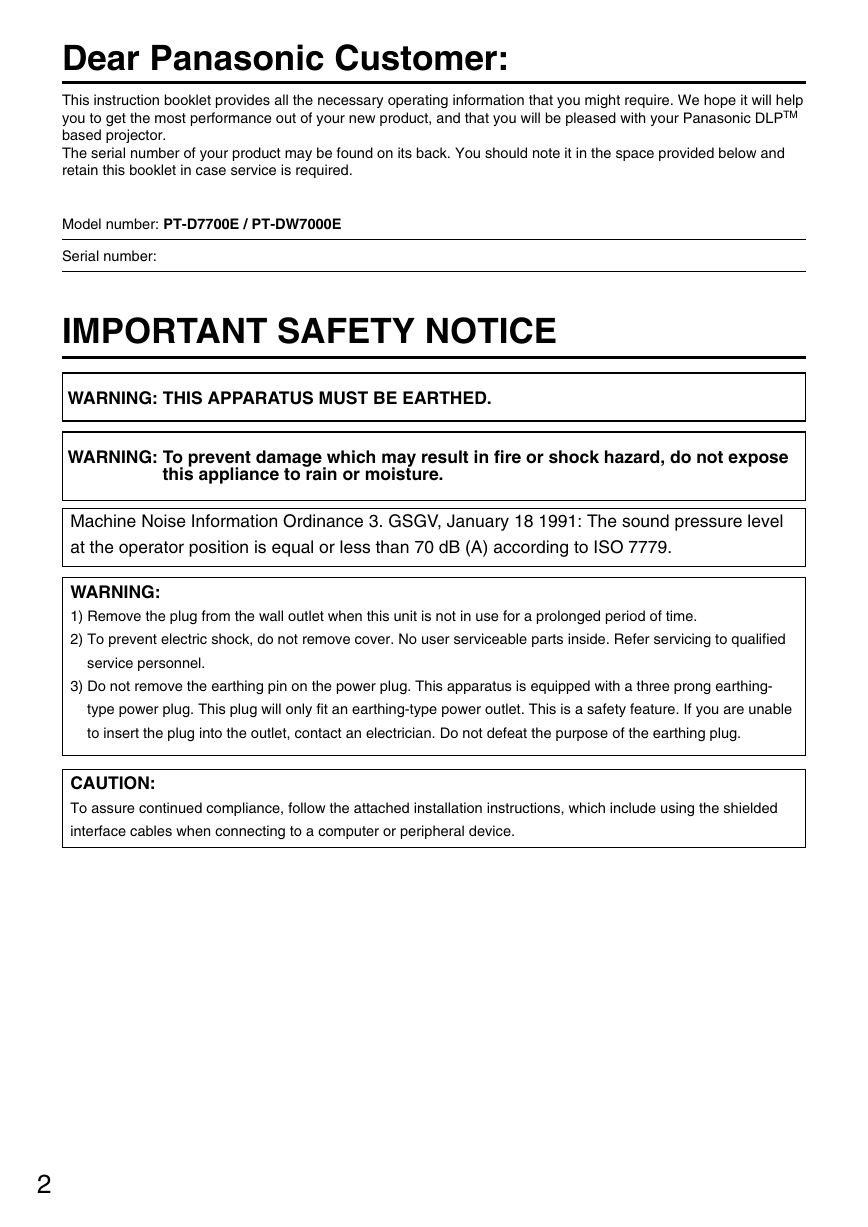

Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will help
you to get the most performance out of your new product, and that you will be pleased with your Panasonic DLPTM
based projector.
The serial number of your product may be found on its back. You should note it in the space provided below and
retain this booklet in case service is required.
Model number: PT-D7700E / PT-DW7000E
Serial number:
IMPORTANT SAFETY NOTICE
WARNING: THIS APPARATUS MUST BE EARTHED.
WARNING: To prevent damage which may result in fire or shock hazard, do not expose
this appliance to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18 1991: The sound pressure level
at the operator position is equal or less than 70 dB (A) according to ISO 7779.
WARNING:
1) Remove the plug from the wall outlet when this unit is not in use for a prolonged period of time.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three prong earthing-
type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable
to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.
CAUTION:
To assure continued compliance, follow the attached installation instructions, which include using the shielded
interface cables when connecting to a computer or peripheral device.
2

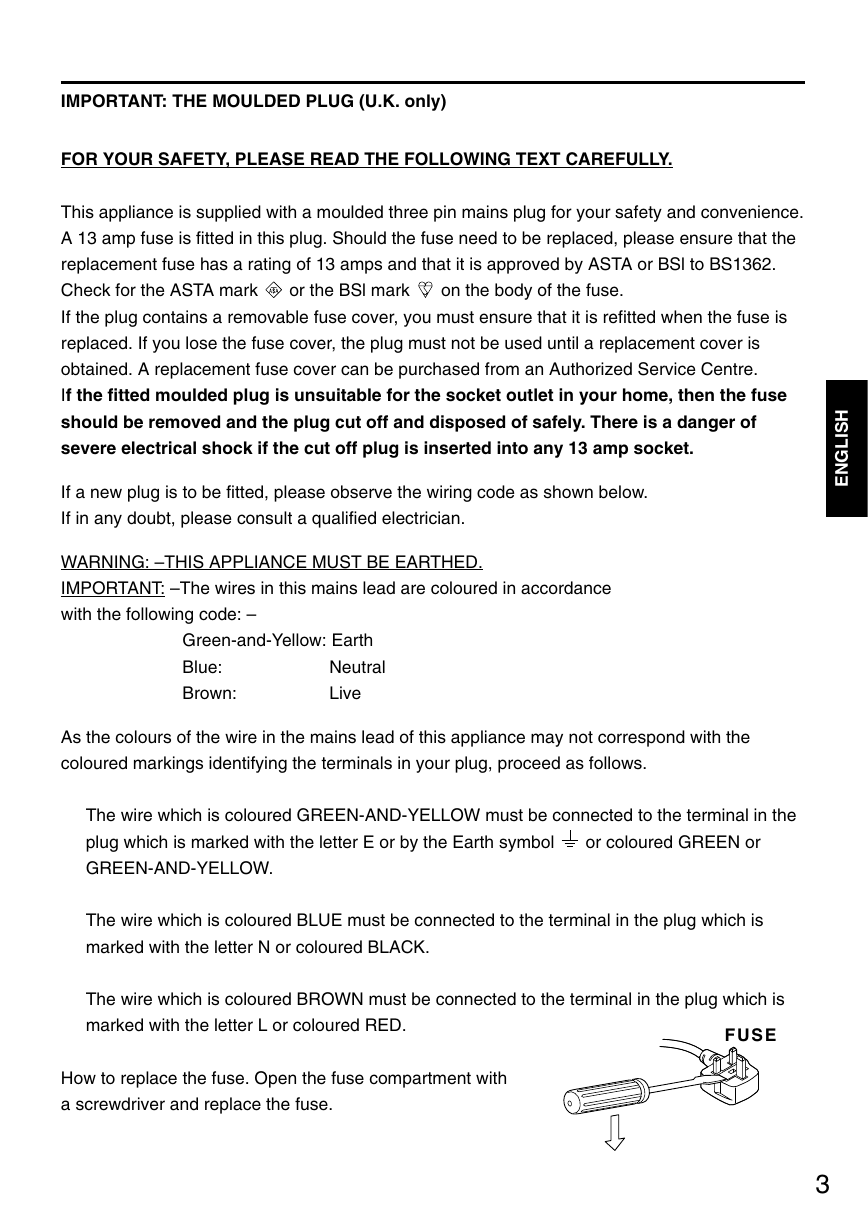

IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
or the BSl mark
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the
replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSl to BS1362.
Check for the ASTA mark
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is
replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is
obtained. A replacement fuse cover can be purchased from an Authorized Service Centre.
If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse
should be removed and the plug cut off and disposed of safely. There is a danger of
severe electrical shock if the cut off plug is inserted into any 13 amp socket.
on the body of the fuse.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: –THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: –The wires in this mains lead are coloured in accordance
with the following code: –
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the
plug which is marked with the letter E or by the Earth symbol
GREEN-AND-YELLOW.
or coloured GREEN or
The wire which is coloured BLUE must be connected to the terminal in the plug which is
marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug which is
marked with the letter L or coloured RED.
FUSE
How to replace the fuse. Open the fuse compartment with
a screwdriver and replace the fuse.
I
H
S
L
G
N
E
3

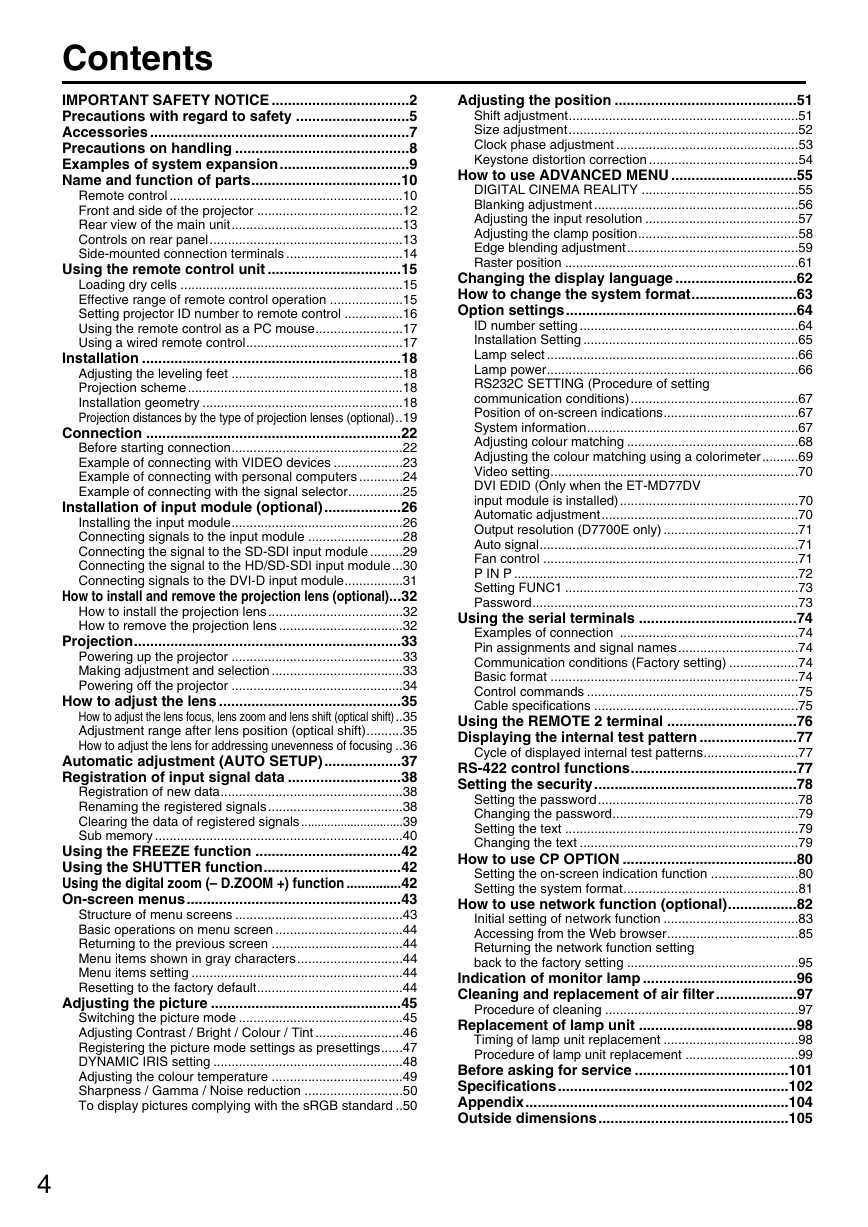

Contents
IMPORTANT SAFETY NOTICE ..................................2
Precautions with regard to safety ............................5
Accessories ................................................................7
Precautions on handling ...........................................8
Examples of system expansion................................9
Name and function of parts.....................................10
Remote control ................................................................10
Front and side of the projector ........................................12
Rear view of the main unit...............................................13
Controls on rear panel.....................................................13
Side-mounted connection terminals ................................14
Using the remote control unit .................................15
Loading dry cells .............................................................15
Effective range of remote control operation ....................15
Setting projector ID number to remote control ................16
Using the remote control as a PC mouse........................17
Using a wired remote control...........................................17
Installation ................................................................18
Adjusting the leveling feet ...............................................18
Projection scheme...........................................................18
Installation geometry .......................................................18
Projection distances by the type of projection lenses (optional)..19
Connection ...............................................................22
Before starting connection...............................................22
Example of connecting with VIDEO devices ...................23
Example of connecting with personal computers ............24
Example of connecting with the signal selector...............25
Installation of input module (optional)...................26
Installing the input module...............................................26
Connecting signals to the input module ..........................28
Connecting the signal to the SD-SDI input module .........29
Connecting the signal to the HD/SD-SDI input module...30
Connecting signals to the DVI-D input module................31
How to install and remove the projection lens (optional)...32
How to install the projection lens.....................................32
How to remove the projection lens ..................................32
Projection..................................................................33
Powering up the projector ...............................................33
Making adjustment and selection ....................................33
Powering off the projector ...............................................34
How to adjust the lens .............................................35
How to adjust the lens focus, lens zoom and lens shift (optical shift)..35
Adjustment range after lens position (optical shift)..........35
How to adjust the lens for addressing unevenness of focusing ..36
Automatic adjustment (AUTO SETUP)...................37
Registration of input signal data ............................38
Registration of new data..................................................38
Renaming the registered signals.....................................38
Clearing the data of registered signals ...............................39
Sub memory ....................................................................40
Using the FREEZE function ....................................42
Using the SHUTTER function..................................42
Using the digital zoom (– D.ZOOM +) function ...............42
On-screen menus.....................................................43
Structure of menu screens ..............................................43
Basic operations on menu screen ...................................44
Returning to the previous screen ....................................44
Menu items shown in gray characters.............................44
Menu items setting ..........................................................44
Resetting to the factory default........................................44
Adjusting the picture ...............................................45
Switching the picture mode .............................................45
Adjusting Contrast / Bright / Colour / Tint ........................46
Registering the picture mode settings as presettings......47
DYNAMIC IRIS setting ....................................................48
Adjusting the colour temperature ....................................49
Sharpness / Gamma / Noise reduction ...........................50
To display pictures complying with the sRGB standard ..50
4
Adjusting the position .............................................51
Shift adjustment...............................................................51
Size adjustment...............................................................52
Clock phase adjustment ..................................................53
Keystone distortion correction .........................................54
How to use ADVANCED MENU ...............................55
DIGITAL CINEMA REALITY ...........................................55
Blanking adjustment ........................................................56
Adjusting the input resolution ..........................................57
Adjusting the clamp position............................................58
Edge blending adjustment...............................................59
Raster position ................................................................61
Changing the display language ..............................62
How to change the system format..........................63
Option settings.........................................................64
ID number setting ............................................................64
Installation Setting ...........................................................65
Lamp select .....................................................................66
Lamp power.....................................................................66
RS232C SETTING (Procedure of setting
communication conditions)..............................................67
Position of on-screen indications.....................................67
System information..........................................................67
Adjusting colour matching ...............................................68
Adjusting the colour matching using a colorimeter..........69
Video setting....................................................................70
DVI EDID (Only when the ET-MD77DV
input module is installed).................................................70
Automatic adjustment......................................................70
Output resolution (D7700E only) .....................................71
Auto signal.......................................................................71
Fan control ......................................................................71
P IN P ..............................................................................72
Setting FUNC1 ................................................................73
Password.........................................................................73
Using the serial terminals .......................................74
Examples of connection .................................................74
Pin assignments and signal names.................................74
Communication conditions (Factory setting) ...................74
Basic format ....................................................................74
Control commands ..........................................................75
Cable specifications ........................................................75
Using the REMOTE 2 terminal ................................76
Displaying the internal test pattern ........................77
Cycle of displayed internal test patterns..........................77
RS-422 control functions.........................................77
Setting the security..................................................78
Setting the password.......................................................78
Changing the password...................................................79
Setting the text ................................................................79
Changing the text ............................................................79
How to use CP OPTION ...........................................80
Setting the on-screen indication function ........................80
Setting the system format................................................81
How to use network function (optional).................82
Initial setting of network function .....................................83
Accessing from the Web browser....................................85
Returning the network function setting
back to the factory setting ...............................................95
Indication of monitor lamp ......................................96
Cleaning and replacement of air filter....................97
Procedure of cleaning .....................................................97
Replacement of lamp unit .......................................98
Timing of lamp unit replacement .....................................98
Procedure of lamp unit replacement ...............................99
Before asking for service ......................................101
Specifications.........................................................102
Appendix.................................................................104
Outside dimensions...............................................105
Precautions with regard to safety
WARNING
If a problem occurs (such as no image) or if you notice smoke or a strange smell coming
from the projector, turn off the power and disconnect the power cord from the wall outlet.
• Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.
• Check that no more smoke is coming out, and then contact an Authorized Service Centre for repairs.
• Do not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to take the full weight
of the projector.
• If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could
result.
• Installation work (such as ceiling suspension) should only be carried out by a qualified technician.
• If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is dropped or the
cabinet is broken, turn off the power and disconnect the power cord from the wall outlet.
• Continued use of the projector in this condition may result in fire or electric shocks.
• Contact an Authorized Service Centre for repairs.
Do not cover the air filter, the air inlet and exhaust vents.
• Doing so may cause the projector to overheat, which can cause fire or damage to the projector.
Do not overload the wall outlet.
• If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire
I
H
S
L
G
N
E
may result.
Do not remove the cover or modify it in any way.
• High voltages which can cause fire or electric shocks are present inside the projector.
• For any inspection, adjustment and repair work, please contact an Authorized Service Centre.
Clean the power cord plug regularly to prevent it from becoming covered in dust.
• If dust builds up on the power cord plug, the resulting humidity can damage the insulation, which could result in
fire. Pull the power cord out from the wall outlet and wipe it with a dry cloth.
• If not using the projector for an extended period of time, pull the power cord plug out from the wall outlet.
Do not do anything that might damage the power cord or the power cord plug.
• Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively,
twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
• If the power cord is used while damaged, electric Shocks, short-circuits or fire may result.
• Ask an Authorized Service Centre to carry out any repairs to the power cord that might be necessary.
Do not handle the power cord plug with wet hands.
• Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
• If the plug is not inserted correctly, electric shocks or overheating could result.
• Do not use plugs which are damaged or wall outlets which are coming loose from the wall.
Do not place the projector on top of surfaces which are unstable.
• If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or
damage could result.
Do not place the projector into water or let it become wet.
• Failure to observe this may result in fire or electric shocks.
Do not disassemble the lamp unit.
• If the lamp section breaks, it may cause injury.
5
Precautions with regard to safety
Do not place liquid containers on top of the projector.
• If water spills onto the projector or gets inside it, fire or electric shocks could result.
• If any water gets inside the projector, contact an Authorized Service Centre.
Do not insert any foreign objects into the projector.
• Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing
so can result in fire or electric shocks.
After removing the battery from remote control unit, keep it away from the reach of children.
• The battery can cause death by suffocation if swallowed.
• If the battery is swallowed, seek medical advice immediately.
Do not allow the + and - terminals of the battery to come into contact with metallic
objects such as necklaces or hairpins.
• Failure to observe this may cause the battery to leak, overheat, explode or catch fire.
• Store the battery in a plastic bag and keep it away from metallic objects.
Insulate the battery using tape or similar before disposal.
• If the battery comes into contact with metallic objects or other batteries, it may catch fire or explode.
Replacement of the lamp unit should only be carried out by a qualified technician.
• The lamp unit has high internal pressure. If improperly handled, failure might result.
• The lamp unit can easily become damaged if struck against hard objects or dropped, and injury or malfunctions
may result.
Caution
Do not set up the projector in humid or dusty places or in places where the projector may
come into contact with smoke or steam.
• Using the projector under such conditions may result in fire or electric shocks.
When disconnecting the power cord, hold the plug, not the cord.
• If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious electric shocks
may result.
Always disconnect all cables before moving the projector.
• Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks
to occur.
Do not place any heavy objects on top of the projector.
• Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the battery or place it into water or fire.
• Failure to observe this may cause the battery to overheat, leak, explode or catch fire, and burns or other injury
may result.
When inserting the battery, make sure the polarities (+ and -) are correct.
• If the battery is inserted incorrectly, it may explode or leak, and fire, injury or contamination of the battery
compartment and surrounding area may result.
Use only the Specified battery.
• If an incorrect battery is used, it may explode or leak, and fire, injury or contamination of the battery
compartment and surrounding area may result close to this port, otherwise burns or damage could result.
6
Do not look into the lens while the projector is being used.
• Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.
Do not bring your hands or other objects close to the air outlet port.
• Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot withstand heat.
Do not use the old lamp unit.
• The lamp section may break.
Replacement of the lamp unit should only be carried out after it has completely cooled
off, otherwise burns may result.
Disconnect the power cord plug from the wall outlet as a safety precaution before
carrying out any cleaning.
• Electric shocks can result if this is not done.
Ask an Authorized Service Centre to clean inside the projector at least once a year.
• If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with
operation.
• It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your
nearest Authorized Service Centre to clean the projector when required. Please discuss with the Authorized
Service Centre regarding cleaning costs.
Do not reach for the openings beside the optical lens, during horizontal or vertical
movements of the lens there is a injury hazard.
An effort to keep our environment clean, Please bring the non repairable unit your Dealer
or a Recycling Company.
I
H
S
L
G
N
E
Accessories
Check that all of the accessories shown below have been included with your projector.
Remote control:
[N2QAGB000024 x 1]
Power cord:
for U.K.
[K2CT3FZ00003 x 1]
Wired cable for remote
control:
[15m, K1EA03NA0001 x 1]
Dry batteries for remote
control (AA):
ON
POWER
OFF
RGB
1
RGB
2
AUTO
SETUP
AUX
SHUTTER
VIDEO
S-VIDEO
SHUT
MENU
FREEZE
PAGE UP
ENTER
PAGE DOWN
ON SCREEN
1
4
7
STD
FUNC
1
LENS
2
5
8
OSD
3
SYSTEM
SEL
D.ZOOM
6
BRIGHT
CONTRAST
9
NEXT
ASPECT
0
USER
LIGHT
ID ALL
ID SET
Computer
Numetric
LASER ON/OFF
Projector
for Continental
[K2CM3FZ00003 x 1]
7
Precautions on handling
Precautions on transport
The projection lens is susceptible to vibrations and
impacts. Be sure to always remove the lens during
transport.
Precautions on installation
Be sure to observe the following precautions when
installing the product.
Avoid installing the product in a place
exposed to vibrations or impacts.
If the projector is installed in a place where
vibrations are transmitted from a source of
driving power and others or mounted in a car or
a vessel, vibrations or impacts may be
transmitted to the product to damage the internal
parts, causing failure. Install the product in a
place free from vibrations and impacts.
Do not install the projector near high-
voltage power lines or power sources.
The product may be exposed to interference if it
is installed in the vicinity of high-voltage electrical
power lines or power sources.
Do not place the projector on a vinyl
sheet or carpet.
If a vinyl sheet sucked up and blocks the air filter
intake port, the internal temperature of the
projector may increase, which triggers the
protection circuit, turning off the power.
Be sure to ask a specialized
technician when to install the
product to a ceiling.
If the product is to be installed hanging from the
ceiling, purchase an optional hanging attachment
(for high ceiling: Model No. ET-PKD75) (for low
ceiling: Model No. ET-PKD75S) and call a
specialized technician for installation.
Do not place the projector over 2 700 m
above sea level. When using it over 1 400
m above sea level, set the “Fan Control”,
described on page 71, to “HIGHLAND”.
Otherwise the life of the product may be
shortened.
Precautions on use
To view clear images:
• The audience cannot enjoy high-contrast and
clear images if outside light or the illumination
interferes the screen surface.Draw window
curtains or blinds, turn off the lightings near the
screen or take other proper measures.
• In rare cases, wafture can occur on the screen
affected by the warm air from the exhaust port
depending on the environment.
Do not touch the surface of the
projection lens with bare hand.
If fingerprints or stains are left on the projection
lens surface, they are magnified and projected
on the screen. Keep your hands away from the
lens. Cover the lens with the supplied lens cap
when the projector is not used.
Screen
If the screen has stains, flaws or discoloration,
clear images cannot be viewed. When handling
the screen, be careful not to apply volatile
substances or leave flaws or stains on the screen.
Lamp
A mercury lamp with high internal pressure is used
for the light source of this product. A high-pressure
mercury lamp has the following characteristics:
• It may burst with a loud sound or end its life
cycle by not illuminating because of given
impacts, flaws, or deterioration due to used
hours.
• The life cycle of a mercury lamp varies according
to the individual difference or conditions of use.
In particular, turning the power on and off
frequently and/or repeatedly will greatly affect
the life cycle.
• In rare cases, it may burst shortly after the first
lighting.
• The possibility of burst increases when the lamp
is used beyond the replacement time.
Disposal
To discard the product, call the dealer or a specialized
dealer.
Cleaning and maintenance
Be sure to remove the power cord plug from the receptacle before cleaning.
Use soft and dry cloth to clean the cabinet
If stains are hard to remove, use a cloth dampened with a kitchen detergent solution (neutral) and squeezed
to wipe the cabinet and finish with a dry cloth. If a chemical wipe is used, follow its instructions.
Do not clean the lens surface with fuzzy or dusty cloth.
If dust adheres to the lens, it will be magnified and projected on the screen.
Use a soft and clean cloth to wipe off dust.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
