operator's guide

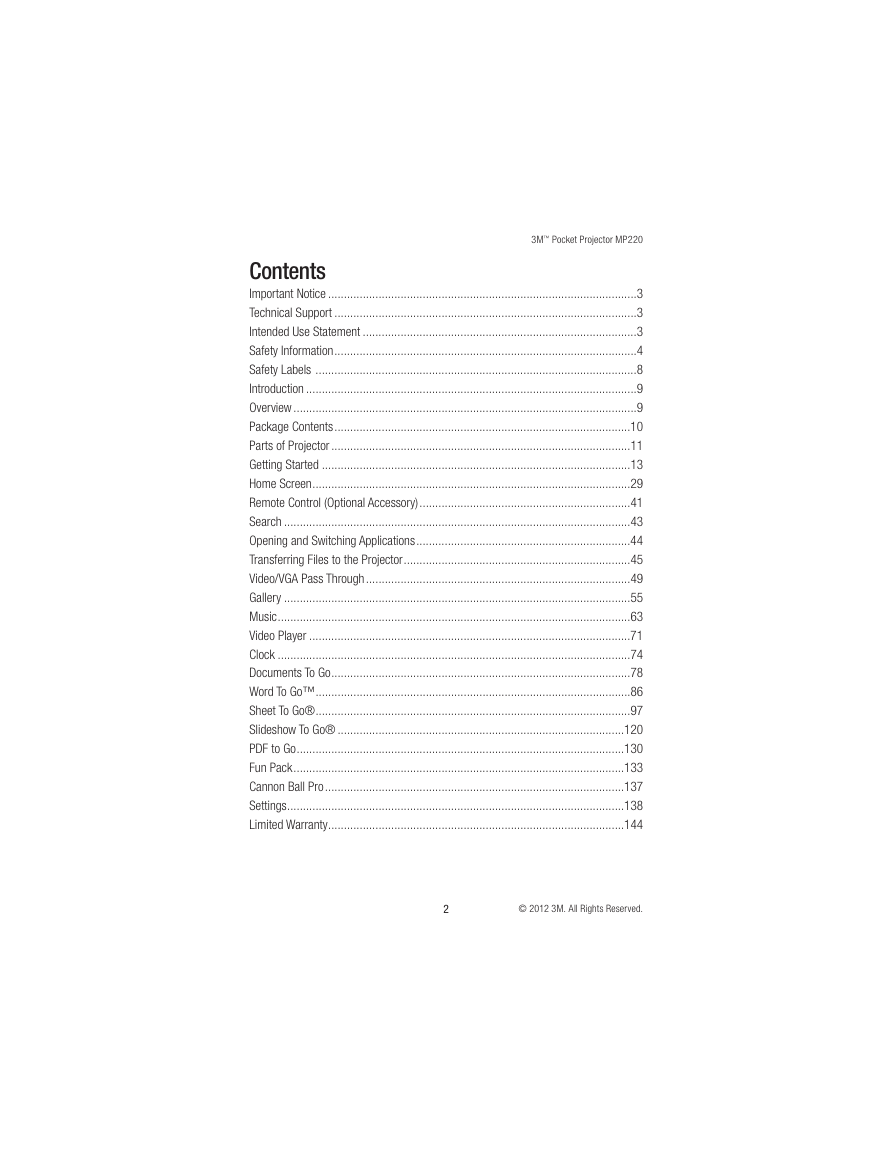

3M™ Pocket Projector MP220 Contents Important Notice ..................................................................................................3 Technical Support ................................................................................................3 Intended Use Statement .......................................................................................3 Safety Information................................................................................................4 Safety Labels ......................................................................................................8 Introduction .........................................................................................................9 Overview .............................................................................................................9 Package Contents..............................................................................................10 Parts of Projector ...............................................................................................11 Getting Started ..................................................................................................13 Home Screen.....................................................................................................29 Remote Control (Optional Accessory)...................................................................41 Search ..............................................................................................................43 Opening and Switching Applications....................................................................44 Transferring Files to the Projector........................................................................45 Video/VGA Pass Through....................................................................................49 Gallery ..............................................................................................................55 Music................................................................................................................63 Video Player ......................................................................................................71 Clock ................................................................................................................74 Documents To Go...............................................................................................78 Word To Go™....................................................................................................86 Sheet To Go®....................................................................................................97 Slideshow To Go® ...........................................................................................120 PDF to Go........................................................................................................130 Fun Pack.........................................................................................................133 Cannon Ball Pro...............................................................................................137 Settings...........................................................................................................138 Limited Warranty..............................................................................................144 2 © 2012 3M. All Rights Reserved.

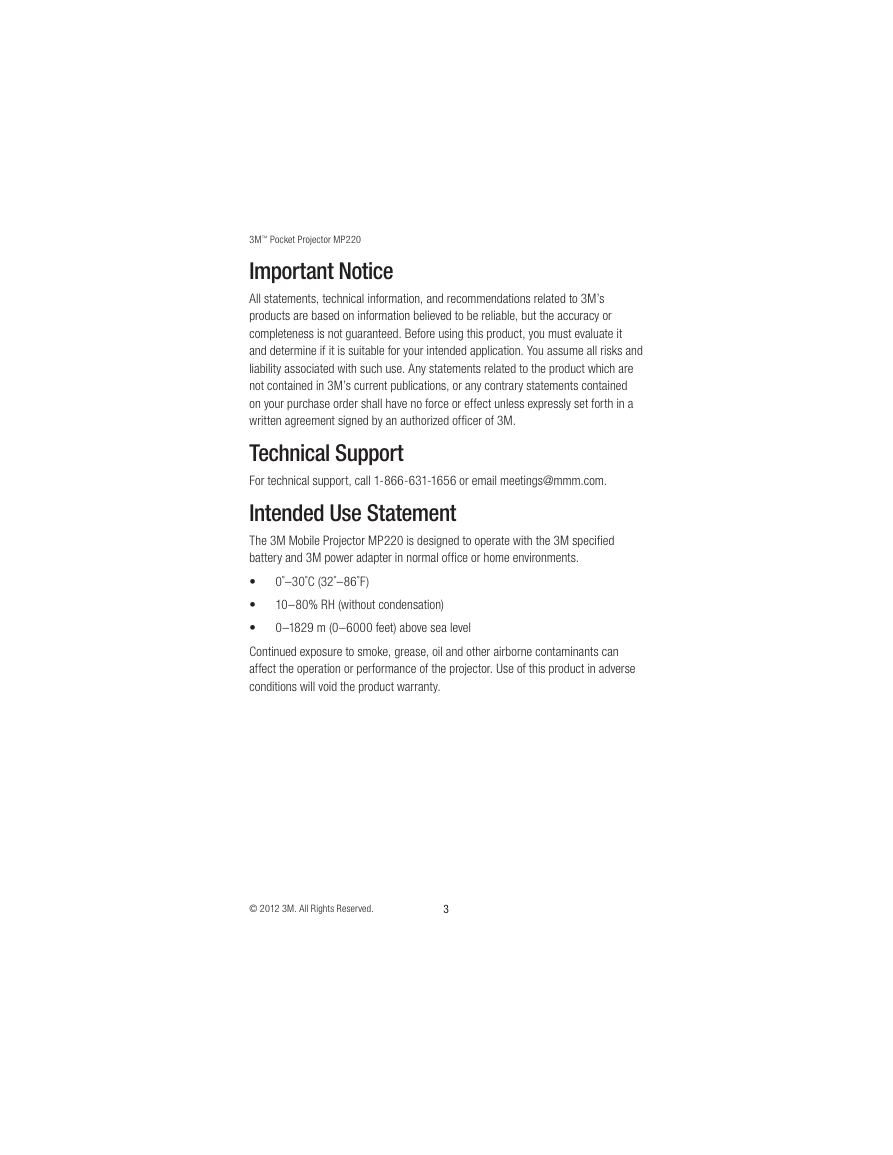

3M™ Pocket Projector MP220 Important Notice All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized ofﬁcer of 3M. Technical Support For technical support, call 1-866-631-1656 or email meetings@mmm.com. Intended Use Statement The 3M Mobile Projector MP220 is designed to operate with the 3M speciﬁed battery and 3M power adapter in normal ofﬁce or home environments. 0˚–30˚C (32˚–86˚F) 10–80% RH (without condensation) 0–1829 m (0–6000 feet) above sea level Continued exposure to smoke, grease, oil and other airborne contaminants can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty. © 2012 3M. All Rights Reserved. 3

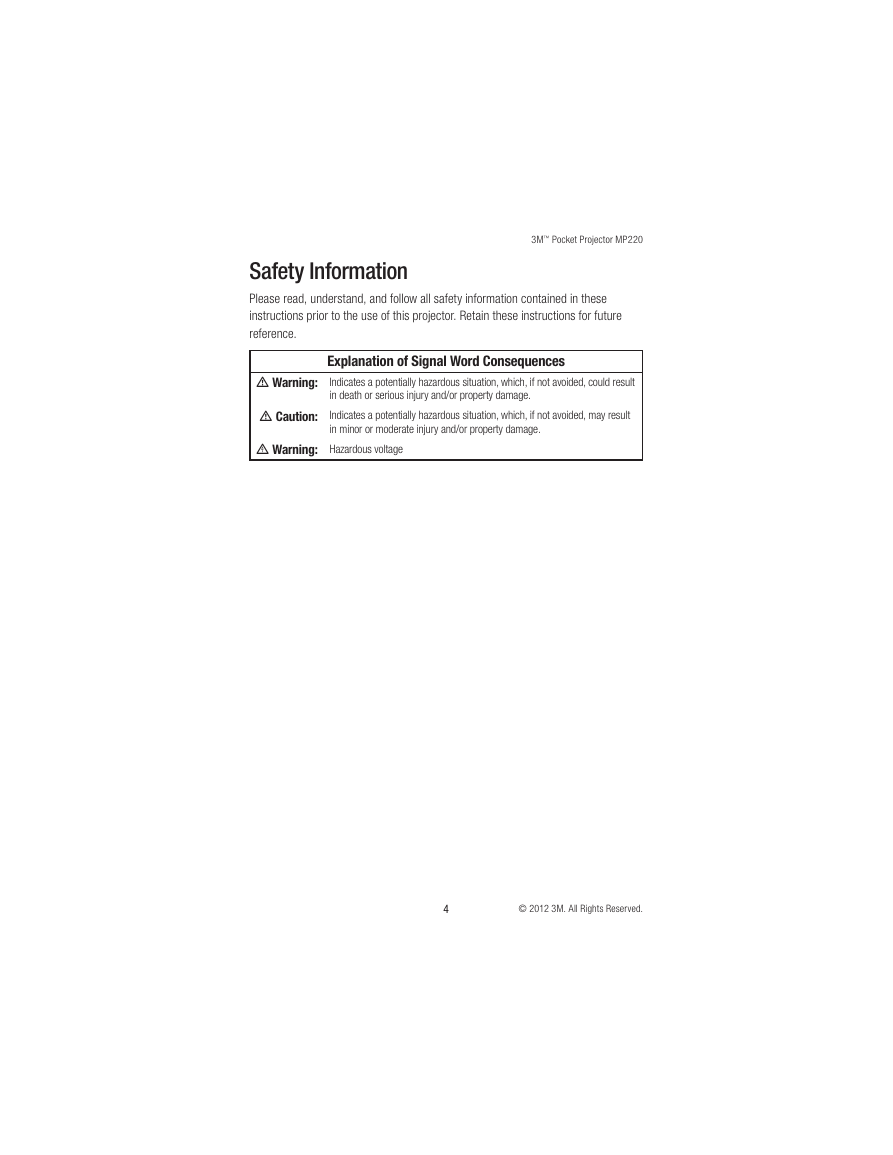

3M™ Pocket Projector MP220 Safety Information Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference. m Warning: m Caution: Explanation of Signal Word Consequences Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage. Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or property damage. c Warning: Hazardous voltage 4 © 2012 3M. All Rights Reserved.

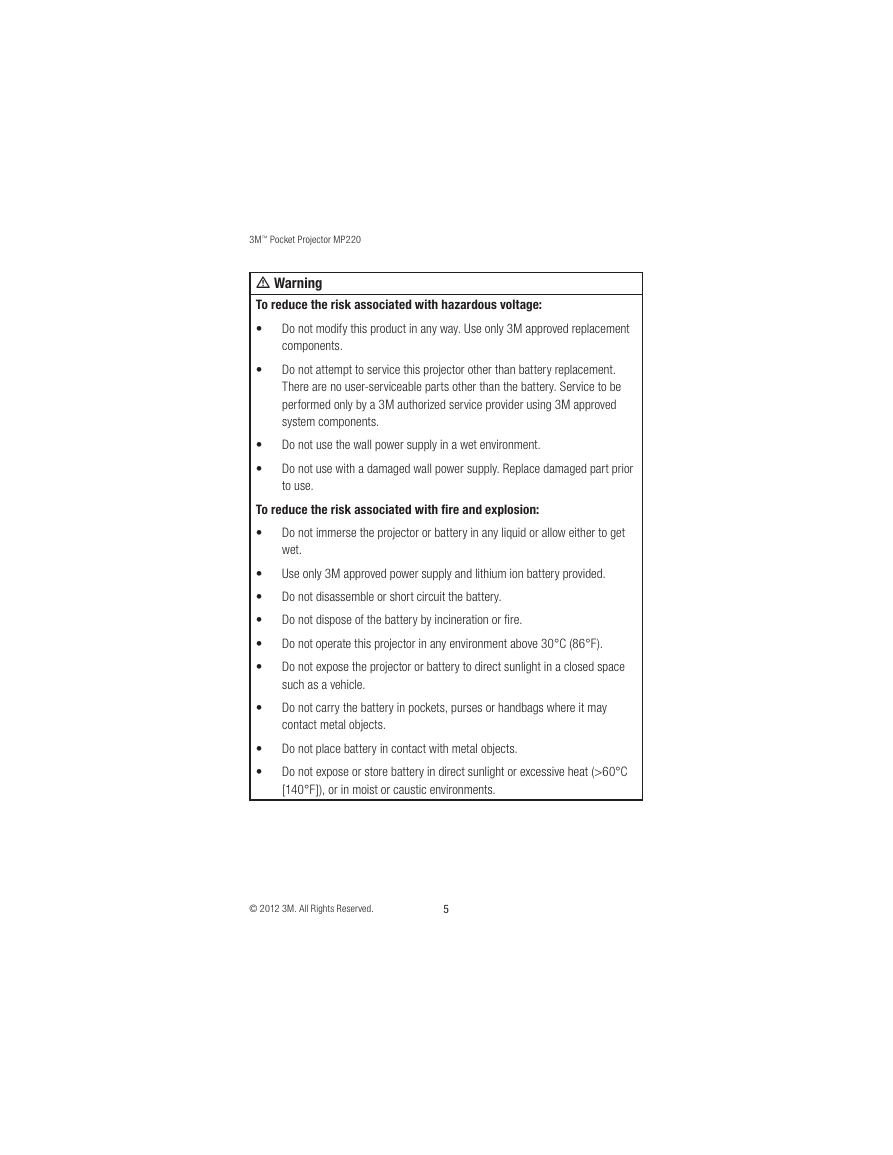

3M™ Pocket Projector MP220 m Warning To reduce the risk associated with hazardous voltage: Do not modify this product in any way. Use only 3M approved replacement components. Do not attempt to service this projector other than battery replacement. There are no user-serviceable parts other than the battery. Service to be performed only by a 3M authorized service provider using 3M approved system components. Do not use the wall power supply in a wet environment. Do not use with a damaged wall power supply. Replace damaged part prior to use. To reduce the risk associated with ﬁre and explosion: Do not immerse the projector or battery in any liquid or allow either to get wet. Use only 3M approved power supply and lithium ion battery provided. Do not disassemble or short circuit the battery. Do not dispose of the battery by incineration or ﬁre. Do not operate this projector in any environment above 30°C (86°F). Do not expose the projector or battery to direct sunlight in a closed space such as a vehicle. Do not carry the battery in pockets, purses or handbags where it may contact metal objects. Do not place battery in contact with metal objects. Do not expose or store battery in direct sunlight or excessive heat (>60°C [140°F]), or in moist or caustic environments. © 2012 3M. All Rights Reserved. 5

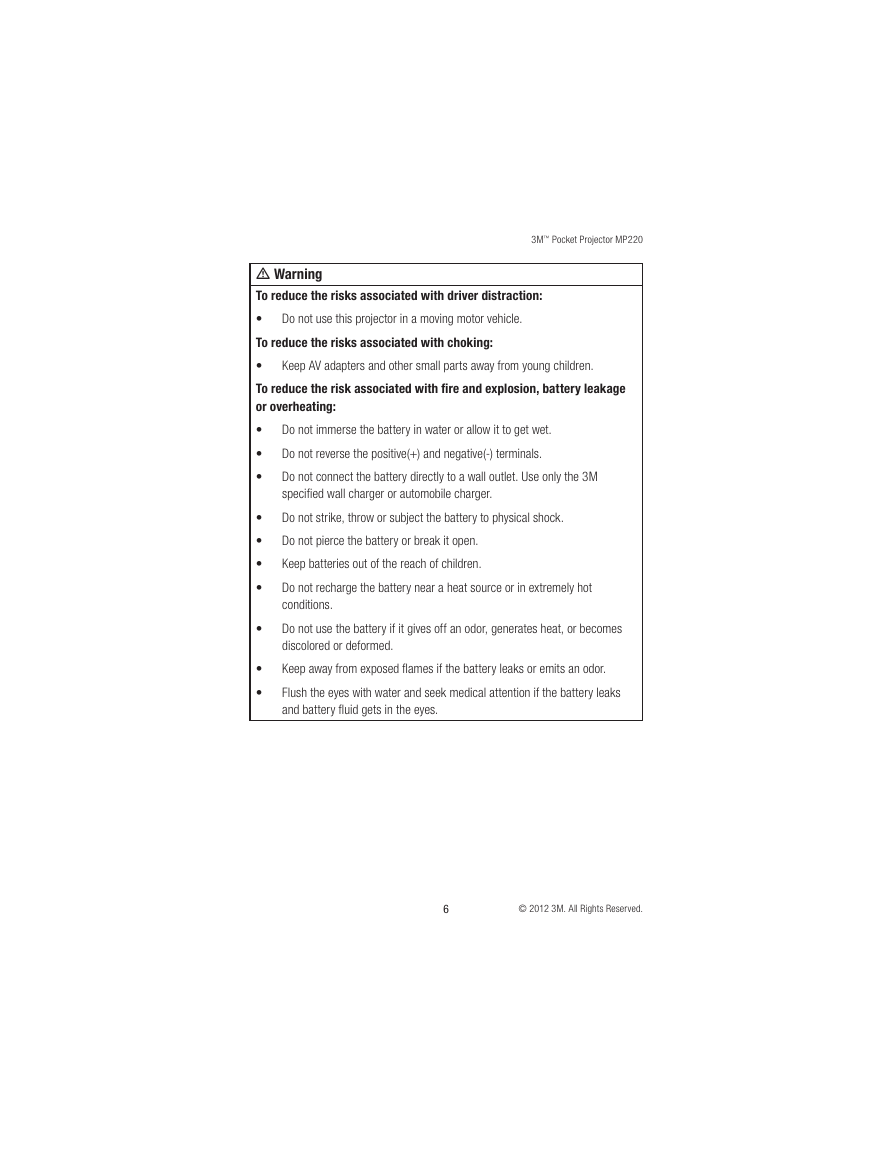

3M™ Pocket Projector MP220 m Warning To reduce the risks associated with driver distraction: Do not use this projector in a moving motor vehicle. To reduce the risks associated with choking: Keep AV adapters and other small parts away from young children. To reduce the risk associated with ﬁre and explosion, battery leakage or overheating: Do not immerse the battery in water or allow it to get wet. Do not reverse the positive(+) and negative(-) terminals. Do not connect the battery directly to a wall outlet. Use only the 3M speciﬁed wall charger or automobile charger. Do not strike, throw or subject the battery to physical shock. Do not pierce the battery or break it open. Keep batteries out of the reach of children. Do not recharge the battery near a heat source or in extremely hot conditions. Do not use the battery if it gives off an odor, generates heat, or becomes discolored or deformed. Keep away from exposed ﬂames if the battery leaks or emits an odor. Flush the eyes with water and seek medical attention if the battery leaks and battery ﬂuid gets in the eyes. 6 © 2012 3M. All Rights Reserved.

3M™ Pocket Projector MP220 m Caution To reduce the risks associated with hearing loss: Be sure to read earphone manufacturer's instructions with respect to volume level. User is responsible to set a safe volume level. To reduce the risk associated with environmental contamination: Dispose of all system components in accordance with applicable government regulations. To reduce the risks associated with LED bright light: Do not stare directly into the projector lens. To reduce the risks associated with tripping and falling: Position the charging cord and data cables so that they are not a tripping hazard. SAVE THESE INSTRUCTIONS © 2012 3M. All Rights Reserved. 7

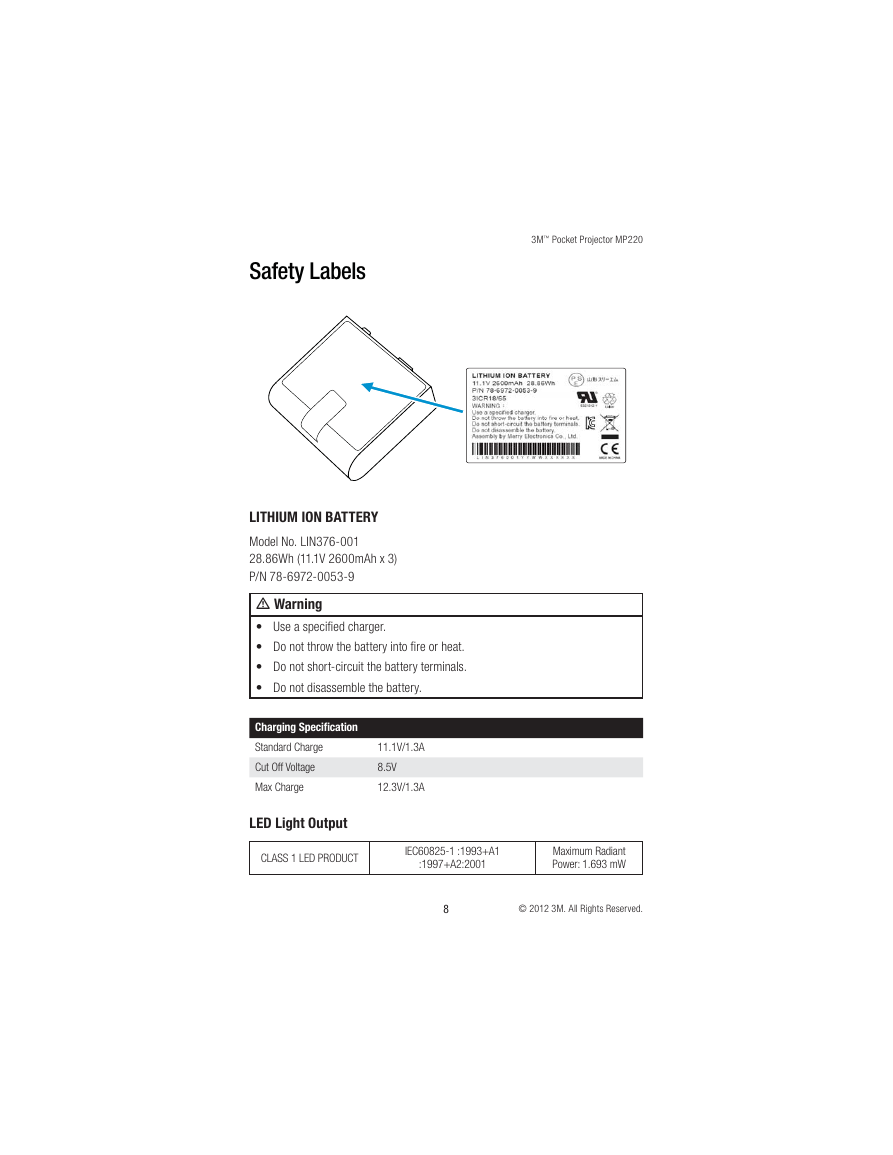

Safety Labels 3M™ Pocket Projector MP220 LITHIUM ION BATTERY Model No. LIN376-001 28.86Wh (11.1V 2600mAh x 3) P/N 78-6972-0053-9 m Warning Use a speciﬁed charger. Do not throw the battery into ﬁre or heat. Do not short-circuit the battery terminals. Do not disassemble the battery. Charging Speciﬁcation Standard Charge Cut Off Voltage Max Charge 11.1V/1.3A 8.5V 12.3V/1.3A LED Light Output CLASS 1 LED PRODUCT IEC60825-1 :1993+A1 :1997+A2:2001 Maximum Radiant Power: 1.693 mW 8 © 2012 3M. All Rights Reserved.
