User’s Manual

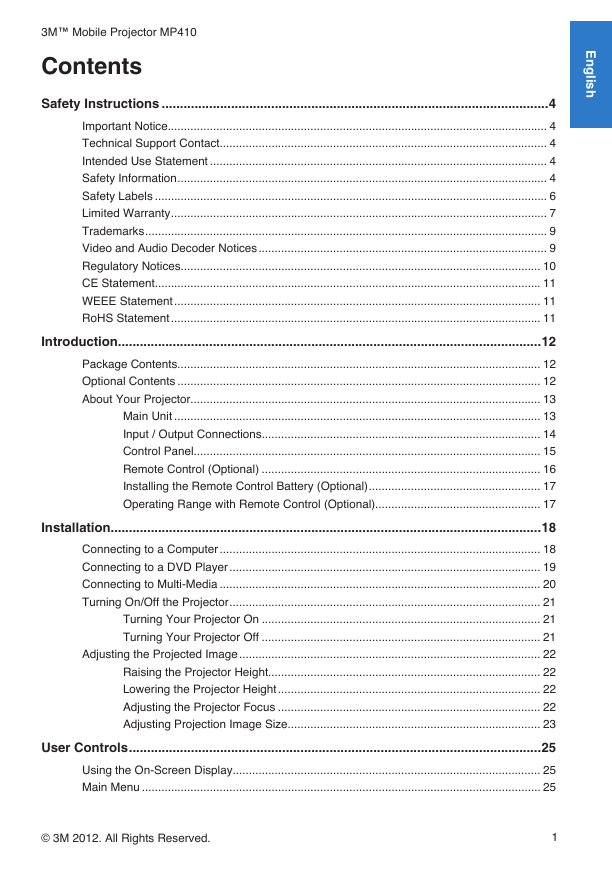

E n g l i s h 3M™ Mobile Projector MP410 Contents Safety Instructions ..........................................................................................................4 Important Notice..................................................................................................................... 4 Technical Support Contact..................................................................................................... 4 Intended Use Statement ........................................................................................................ 4 Safety Information .................................................................................................................. 4 Safety Labels ......................................................................................................................... 6 Limited Warranty .................................................................................................................... 7 Trademarks ............................................................................................................................ 9 Video and Audio Decoder Notices ......................................................................................... 9 Regulatory Notices............................................................................................................... 0 CE Statement....................................................................................................................... WEEE Statement ................................................................................................................. RoHS Statement .................................................................................................................. Introduction ....................................................................................................................12 Package Contents................................................................................................................ 2 Optional Contents ................................................................................................................ 2 About Your Projector............................................................................................................ 3 Main Unit ................................................................................................................. 3 Input / Output Connections...................................................................................... 4 Control Panel........................................................................................................... 5 Remote Control (Optional) ...................................................................................... 6 Installing the Remote Control Battery (Optional) ..................................................... 7 Operating Range with Remote Control (Optional)................................................... 7 Installation ......................................................................................................................18 Connecting to a Computer ................................................................................................... 8 Connecting to a DVD Player ................................................................................................ 9 Connecting to Multi-Media ................................................................................................... 20 Turning On/Off the Projector ................................................................................................ 2 Turning Your Projector On ...................................................................................... 2 Turning Your Projector Off ...................................................................................... 2 Adjusting the Projected Image ............................................................................................. 22 Raising the Projector Height.................................................................................... 22 Lowering the Projector Height ................................................................................. 22 Adjusting the Projector Focus ................................................................................. 22 Adjusting Projection Image Size.............................................................................. 23 User Controls .................................................................................................................25 Using the On-Screen Display............................................................................................... 25 Main Menu ........................................................................................................................... 25 © 3M 202. All Rights Reserved.

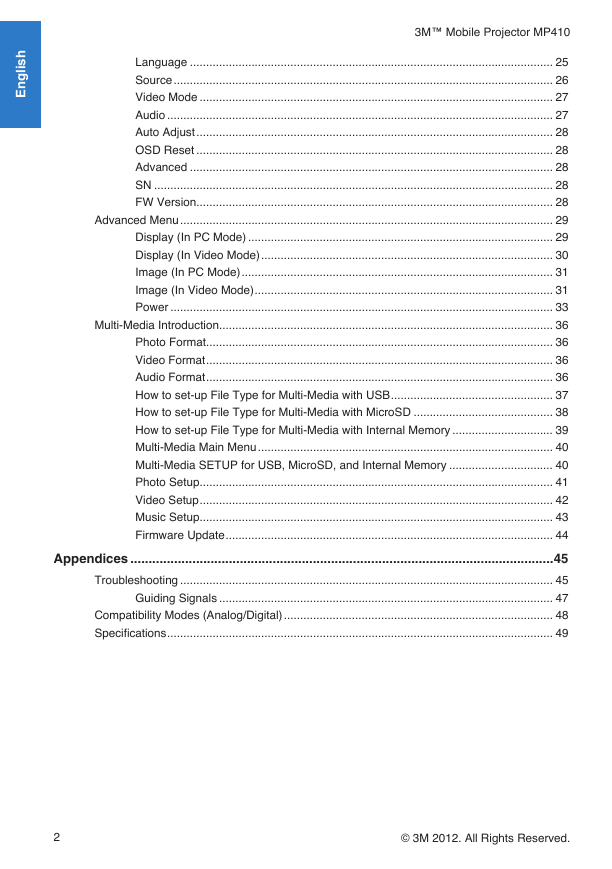

h s i l g n E 3M™ Mobile Projector MP410 Language ................................................................................................................ 25 Source ..................................................................................................................... 26 Video Mode ............................................................................................................. 27 Audio ....................................................................................................................... 27 Auto Adjust .............................................................................................................. 28 OSD Reset .............................................................................................................. 28 Advanced ................................................................................................................ 28 SN ........................................................................................................................... 28 FW Version .............................................................................................................. 28 Advanced Menu ................................................................................................................... 29 Display (In PC Mode) .............................................................................................. 29 Display (In Video Mode) .......................................................................................... 30 Image (In PC Mode) ................................................................................................ 3 Image (In Video Mode) ............................................................................................ 3 Power ...................................................................................................................... 33 Multi-Media Introduction....................................................................................................... 36 Photo Format........................................................................................................... 36 Video Format ........................................................................................................... 36 Audio Format ........................................................................................................... 36 How to set-up File Type for Multi-Media with USB .................................................. 37 How to set-up File Type for Multi-Media with MicroSD ........................................... 38 How to set-up File Type for Multi-Media with Internal Memory ............................... 39 Multi-Media Main Menu ........................................................................................... 40 Multi-Media SETUP for USB, MicroSD, and Internal Memory ................................ 40 Photo Setup............................................................................................................. 4 Video Setup ............................................................................................................. 42 Music Setup............................................................................................................. 43 Firmware Update ..................................................................................................... 44 Appendices ....................................................................................................................45 Troubleshooting ................................................................................................................... 45 Guiding Signals ....................................................................................................... 47 Compatibility Modes (Analog/Digital) ................................................................................... 48 Specifications ....................................................................................................................... 49 2 © 3M 202. All Rights Reserved.

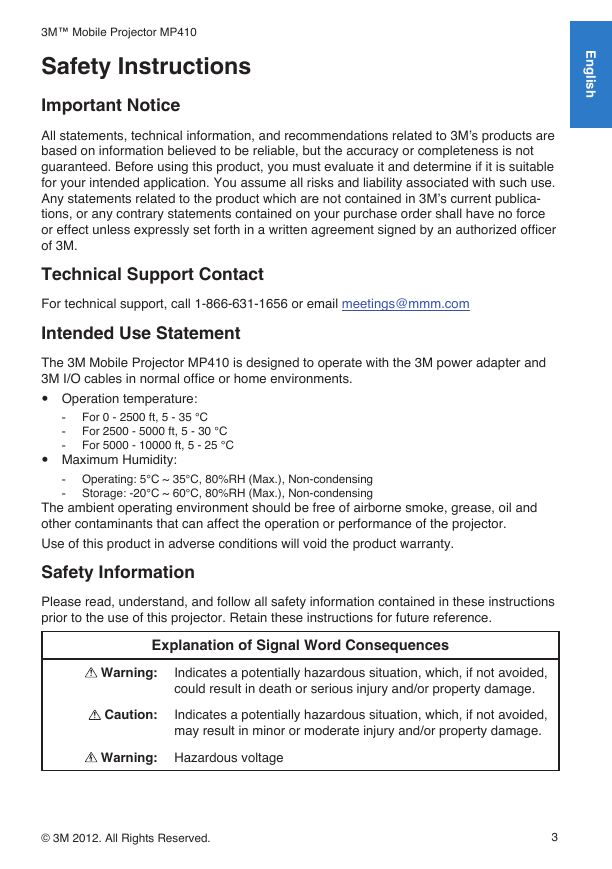

E n g l i s h 3M™ Mobile Projector MP410 Safety Instructions Important Notice All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publica- tions, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M. Technical Support Contact For technical support, call 1-866-631-1656 or email meetings@mmm.com Intended Use Statement The 3M Mobile Projector MP410 is designed to operate with the 3M power adapter and 3M I/O cables in normal office or home environments.  For 0 - 2500 ft, 5 - 35 °C For 2500 - 5000 ft, 5 - 30 °C For 5000 - 10000 ft, 5 - 25 °C Operation temperature: - - - Maximum Humidity: - -  Operating: 5°C ~ 35°C, 80%RH (Max.), Non-condensing Storage: -20°C ~ 60°C, 80%RH (Max.), Non-condensing The ambient operating environment should be free of airborne smoke, grease, oil and other contaminants that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty. Safety Information Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference. Explanation of Signal Word Consequences Warning: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage. Caution: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or property damage. Warning: Hazardous voltage © 3M 202. All Rights Reserved. 3

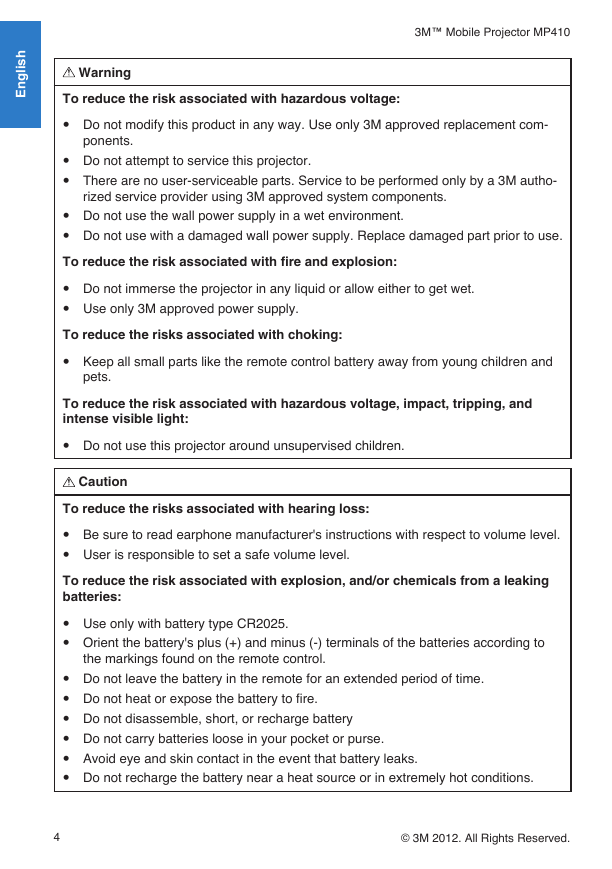

h s i l g n E 3M™ Mobile Projector MP410 Warning To reduce the risk associated with hazardous voltage:      Do not modify this product in any way. Use only 3M approved replacement com- ponents. Do not attempt to service this projector. There are no user-serviceable parts. Service to be performed only by a 3M autho- rized service provider using 3M approved system components. Do not use the wall power supply in a wet environment. Do not use with a damaged wall power supply. Replace damaged part prior to use. To reduce the risk associated with fire and explosion:   Do not immerse the projector in any liquid or allow either to get wet. Use only 3M approved power supply. To reduce the risks associated with choking:  Keep all small parts like the remote control battery away from young children and pets. To reduce the risk associated with hazardous voltage, impact, tripping, and intense visible light:  Do not use this projector around unsupervised children. Caution To reduce the risks associated with hearing loss:   Be sure to read earphone manufacturer's instructions with respect to volume level. User is responsible to set a safe volume level. To reduce the risk associated with explosion, and/or chemicals from a leaking batteries:         Use only with battery type CR2025. Orient the battery's plus (+) and minus (-) terminals of the batteries according to the markings found on the remote control. Do not leave the battery in the remote for an extended period of time. Do not heat or expose the battery to fire. Do not disassemble, short, or recharge battery Do not carry batteries loose in your pocket or purse. Avoid eye and skin contact in the event that battery leaks. Do not recharge the battery near a heat source or in extremely hot conditions. 4 © 3M 202. All Rights Reserved.

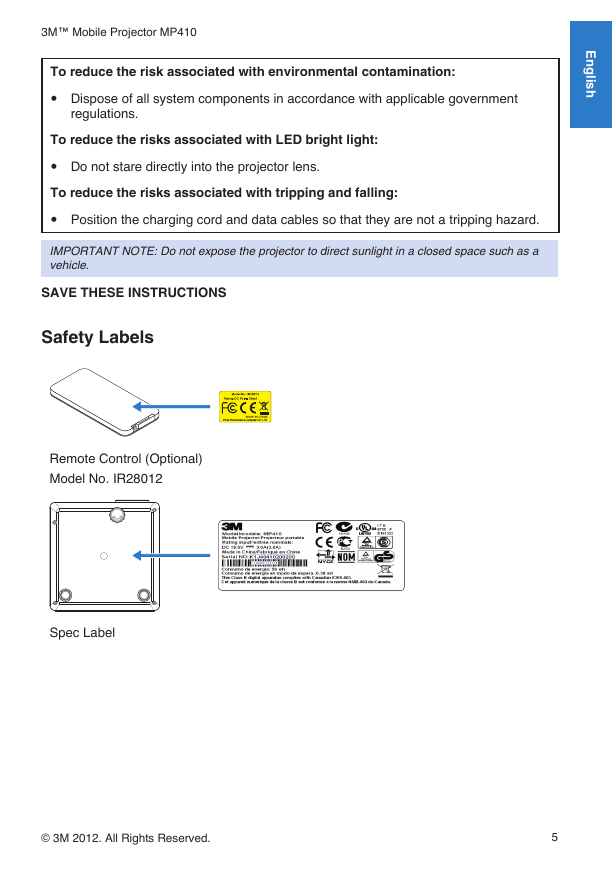

3M™ Mobile Projector MP410 To reduce the risk associated with environmental contamination:  Dispose of all system components in accordance with applicable government regulations. E n g l i s h To reduce the risks associated with LED bright light:  Do not stare directly into the projector lens. To reduce the risks associated with tripping and falling:  Position the charging cord and data cables so that they are not a tripping hazard. IMPORTANT NOTE: Do not expose the projector to direct sunlight in a closed space such as a vehicle. SAVE THESE INSTRUCTIONS Safety Labels H N A P A J C R 2025 V OLT S MnO2-LiCELL 3 Remote Control (Optional) Model No. IR28012 Spec Label © 3M 202. All Rights Reserved. 5

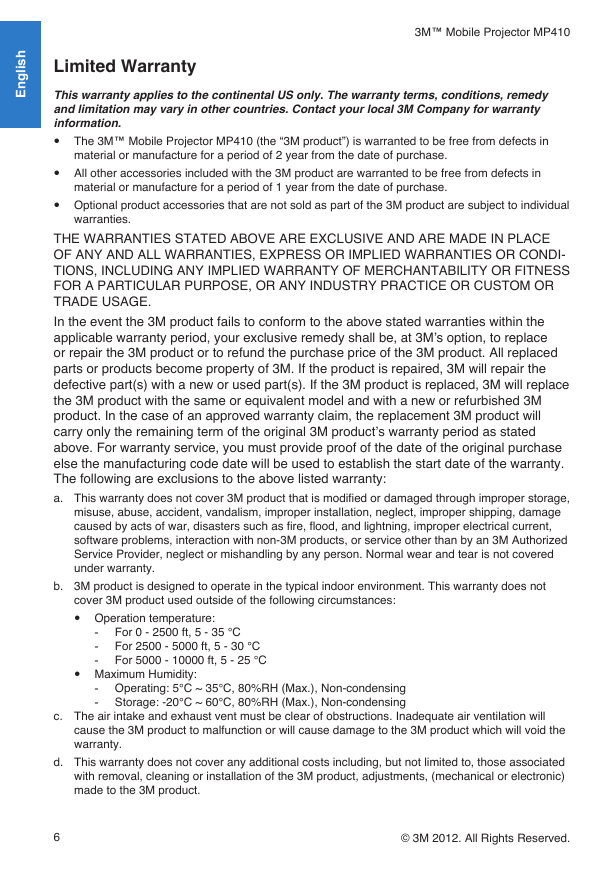

3M™ Mobile Projector MP410 h s i l g n E Limited Warranty This warranty applies to the continental US only. The warranty terms, conditions, remedy and limitation may vary in other countries. Contact your local 3M Company for warranty information.  The 3M™ Mobile Projector MP410 (the “3M product”) is warranted to be free from defects in material or manufacture for a period of 2 year from the date of purchase. All other accessories included with the 3M product are warranted to be free from defects in material or manufacture for a period of 1 year from the date of purchase. Optional product accessories that are not sold as part of the 3M product are subject to individual warranties.   THE WARRANTIES STATED ABOVE ARE EXCLUSIVE AND ARE MADE IN PLACE OF ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED WARRANTIES OR CONDI- TIONS, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY INDUSTRY PRACTICE OR CUSTOM OR TRADE USAGE. In the event the 3M product fails to conform to the above stated warranties within the applicable warranty period, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or to refund the purchase price of the 3M product. All replaced parts or products become property of 3M. If the product is repaired, 3M will repair the defective part(s) with a new or used part(s). If the 3M product is replaced, 3M will replace the 3M product with the same or equivalent model and with a new or refurbished 3M product. In the case of an approved warranty claim, the replacement 3M product will carry only the remaining term of the original 3M product’s warranty period as stated above. For warranty service, you must provide proof of the date of the original purchase else the manufacturing code date will be used to establish the start date of the warranty. The following are exclusions to the above listed warranty: a. This warranty does not cover 3M product that is modified or damaged through improper storage, misuse, abuse, accident, vandalism, improper installation, neglect, improper shipping, damage caused by acts of war, disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-3M products, or service other than by an 3M Authorized Service Provider, neglect or mishandling by any person. Normal wear and tear is not covered under warranty. 3M product is designed to operate in the typical indoor environment. This warranty does not cover 3M product used outside of the following circumstances:   b. c. d. 6 For 0 - 2500 ft, 5 - 35 °C For 2500 - 5000 ft, 5 - 30 °C For 5000 - 10000 ft, 5 - 25 °C Operation temperature: - - - Maximum Humidity: - - Operating: 5°C ~ 35°C, 80%RH (Max.), Non-condensing Storage: -20°C ~ 60°C, 80%RH (Max.), Non-condensing The air intake and exhaust vent must be clear of obstructions. Inadequate air ventilation will cause the 3M product to malfunction or will cause damage to the 3M product which will void the warranty. This warranty does not cover any additional costs including, but not limited to, those associated with removal, cleaning or installation of the 3M product, adjustments, (mechanical or electronic) made to the 3M product. © 3M 202. All Rights Reserved.

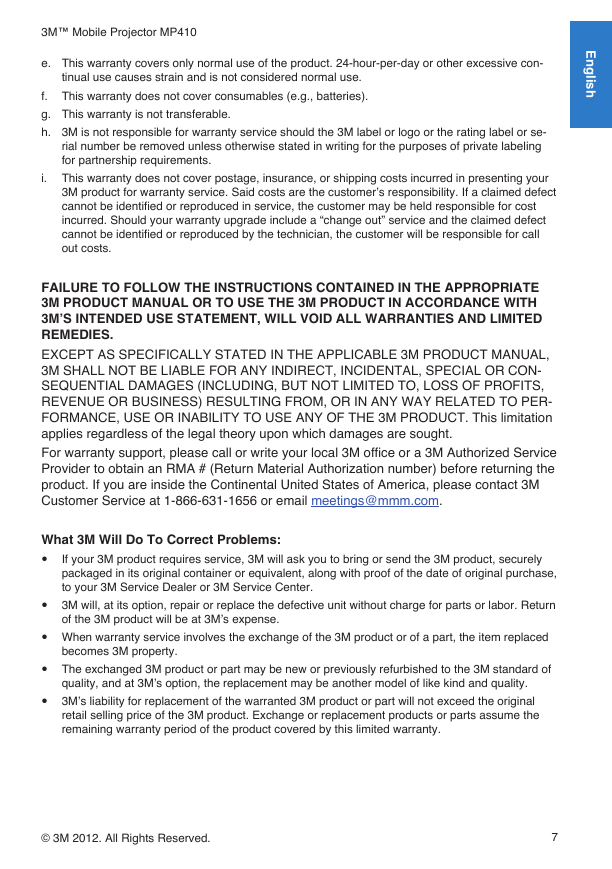

3M™ Mobile Projector MP410 e. f. g. h. i. This warranty covers only normal use of the product. 24-hour-per-day or other excessive con- tinual use causes strain and is not considered normal use. This warranty does not cover consumables (e.g., batteries). This warranty is not transferable. 3M is not responsible for warranty service should the 3M label or logo or the rating label or se- rial number be removed unless otherwise stated in writing for the purposes of private labeling for partnership requirements. This warranty does not cover postage, insurance, or shipping costs incurred in presenting your 3M product for warranty service. Said costs are the customer’s responsibility. If a claimed defect cannot be identified or reproduced in service, the customer may be held responsible for cost incurred. Should your warranty upgrade include a “change out” service and the claimed defect cannot be identified or reproduced by the technician, the customer will be responsible for call out costs. E n g l i s h FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THE APPROPRIATE 3M PRODUCT MANUAL OR TO USE THE 3M PRODUCT IN ACCORDANCE WITH 3M’S INTENDED USE STATEMENT, WILL VOID ALL WARRANTIES AND LIMITED REMEDIES. EXCEPT AS SPECIFICALLY STATED IN THE APPLICABLE 3M PRODUCT MANUAL, 3M SHALL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CON- SEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, REVENUE OR BUSINESS) RESULTING FROM, OR IN ANY WAY RELATED TO PER- FORMANCE, USE OR INABILITY TO USE ANY OF THE 3M PRODUCT. This limitation applies regardless of the legal theory upon which damages are sought. For warranty support, please call or write your local 3M office or a 3M Authorized Service Provider to obtain an RMA # (Return Material Authorization number) before returning the product. If you are inside the Continental United States of America, please contact 3M Customer Service at 1-866-631-1656 or email meetings@mmm.com. What 3M Will Do To Correct Problems:  If your 3M product requires service, 3M will ask you to bring or send the 3M product, securely packaged in its original container or equivalent, along with proof of the date of original purchase, to your 3M Service Dealer or 3M Service Center. 3M will, at its option, repair or replace the defective unit without charge for parts or labor. Return of the 3M product will be at 3M’s expense. When warranty service involves the exchange of the 3M product or of a part, the item replaced becomes 3M property. The exchanged 3M product or part may be new or previously refurbished to the 3M standard of quality, and at 3M’s option, the replacement may be another model of like kind and quality. 3M’s liability for replacement of the warranted 3M product or part will not exceed the original retail selling price of the 3M product. Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited warranty.     © 3M 202. All Rights Reserved. 7
