projector operator's guide

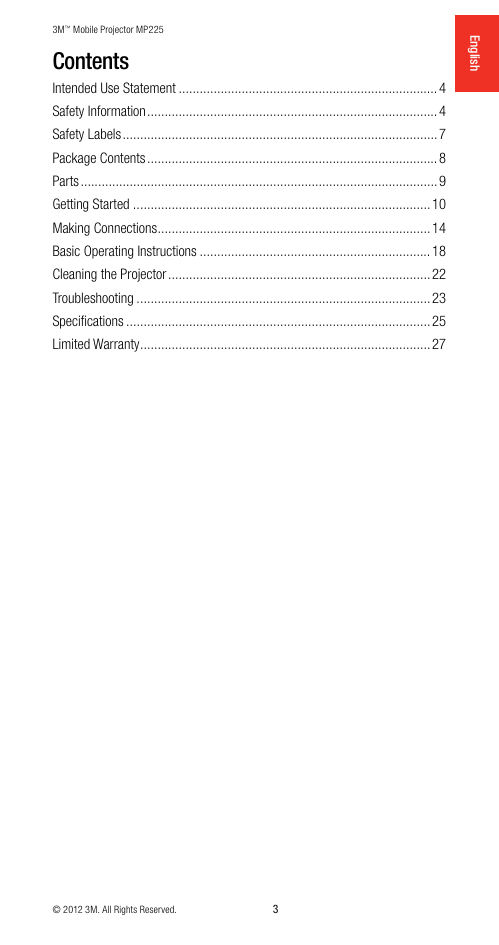

E n g l i s h 3M™ Mobile Projector MP225 Contents Intended Use Statement .......................................................................... 4 Safety Information ................................................................................... 4 Safety Labels .......................................................................................... 7 Package Contents ................................................................................... 8 Parts ...................................................................................................... 9 Getting Started ..................................................................................... 10 Making Connections .............................................................................. 14 Basic Operating Instructions .................................................................. 18 Cleaning the Projector ........................................................................... 22 Troubleshooting .................................................................................... 23 Specifications ....................................................................................... 25 Limited Warranty ................................................................................... 27 © 2012 3M. All Rights Reserved. 3

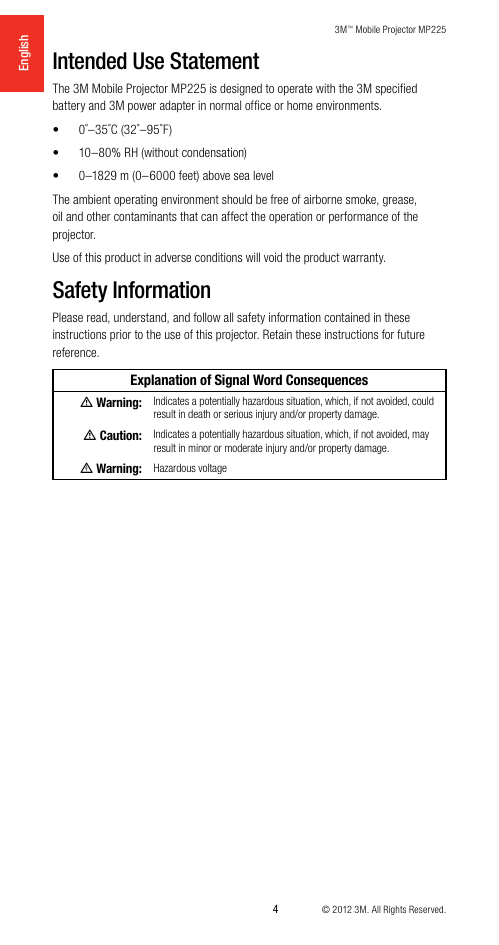

h s i l g n E 3M™ Mobile Projector MP225 Intended Use Statement The 3M Mobile Projector MP225 is designed to operate with the 3M specified battery and 3M power adapter in normal office or home environments. • • • 0˚–35˚C (32˚–95˚F) 10–80% RH (without condensation) 0–1829 m (0–6000 feet) above sea level The ambient operating environment should be free of airborne smoke, grease, oil and other contaminants that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty. Safety Information Please read, understand, and follow all safety information contained in these instructions prior to the use of this projector. Retain these instructions for future reference. Explanation of Signal Word Consequences m Warning: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage. m Caution: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury and/or property damage.  Warning: Hazardous voltage 4 © 2012 3M. All Rights Reserved.

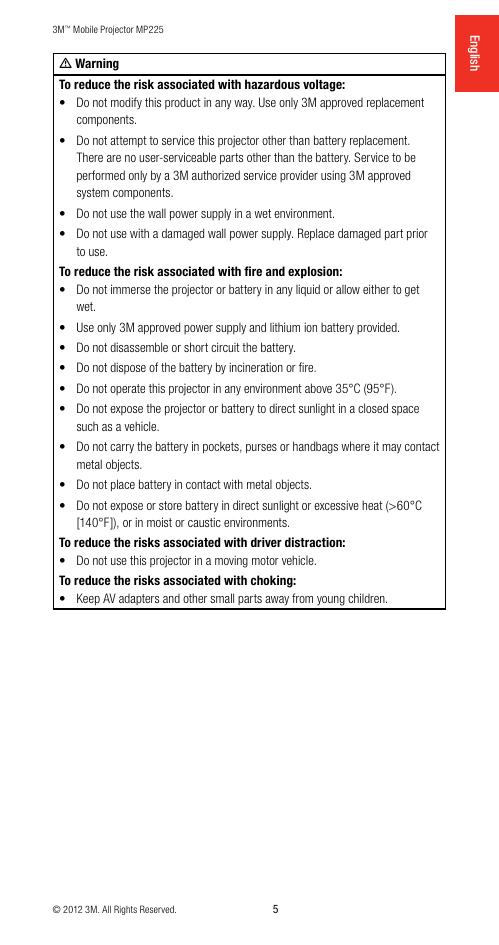

E n g l i s h 3M™ Mobile Projector MP225 m Warning To reduce the risk associated with hazardous voltage: • Do not modify this product in any way. Use only 3M approved replacement components. • Do not attempt to service this projector other than battery replacement. There are no user-serviceable parts other than the battery. Service to be performed only by a 3M authorized service provider using 3M approved system components. • Do not use the wall power supply in a wet environment. • Do not use with a damaged wall power supply. Replace damaged part prior to use. To reduce the risk associated with fire and explosion: • Do not immerse the projector or battery in any liquid or allow either to get wet. • Use only 3M approved power supply and lithium ion battery provided. • Do not disassemble or short circuit the battery. • Do not dispose of the battery by incineration or fire. • Do not operate this projector in any environment above 35°C (95°F). • Do not expose the projector or battery to direct sunlight in a closed space such as a vehicle. • Do not carry the battery in pockets, purses or handbags where it may contact metal objects. • Do not place battery in contact with metal objects. • Do not expose or store battery in direct sunlight or excessive heat (>60°C [140°F]), or in moist or caustic environments. To reduce the risks associated with driver distraction: • Do not use this projector in a moving motor vehicle. To reduce the risks associated with choking: • Keep AV adapters and other small parts away from young children. © 2012 3M. All Rights Reserved. 5

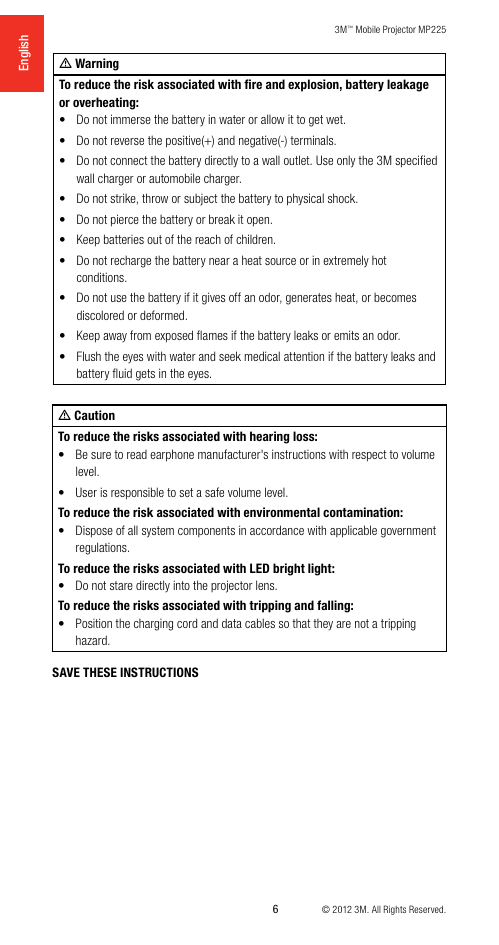

h s i l g n E 3M™ Mobile Projector MP225 m Warning To reduce the risk associated with fire and explosion, battery leakage or overheating: • Do not immerse the battery in water or allow it to get wet. • Do not reverse the positive(+) and negative(-) terminals. • Do not connect the battery directly to a wall outlet. Use only the 3M specified wall charger or automobile charger. • Do not strike, throw or subject the battery to physical shock. • Do not pierce the battery or break it open. • Keep batteries out of the reach of children. • Do not recharge the battery near a heat source or in extremely hot conditions. • Do not use the battery if it gives off an odor, generates heat, or becomes discolored or deformed. • Keep away from exposed flames if the battery leaks or emits an odor. • Flush the eyes with water and seek medical attention if the battery leaks and battery fluid gets in the eyes. m Caution To reduce the risks associated with hearing loss: • Be sure to read earphone manufacturer's instructions with respect to volume level. • User is responsible to set a safe volume level. To reduce the risk associated with environmental contamination: • Dispose of all system components in accordance with applicable government regulations. To reduce the risks associated with LED bright light: • Do not stare directly into the projector lens. To reduce the risks associated with tripping and falling: • Position the charging cord and data cables so that they are not a tripping hazard. SAVE THESE INSTRUCTIONS 6 © 2012 3M. All Rights Reserved.

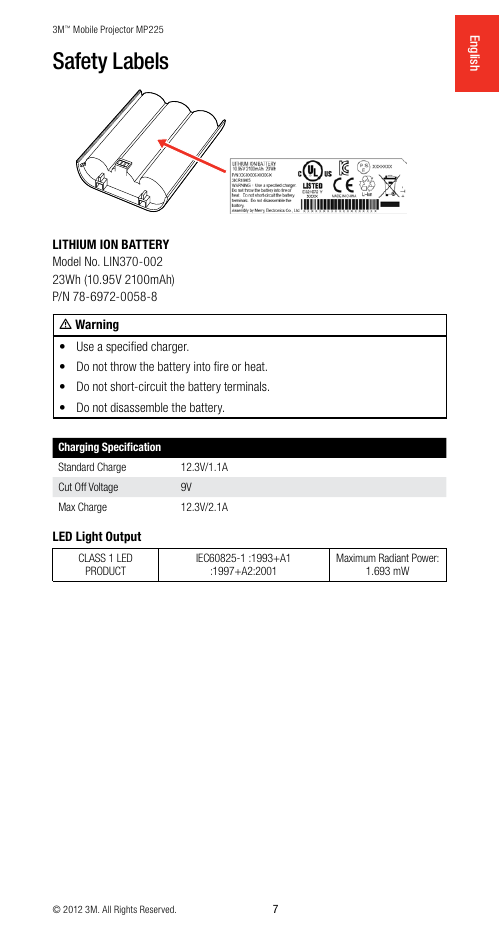

3M™ Mobile Projector MP225 Safety Labels E n g l i s h LITHIUM ION BATTERY Model No. LIN370-002 23Wh (10.95V 2100mAh) P/N 78-6972-0058-8 m Warning • Use a specified charger. • Do not throw the battery into fire or heat. • Do not short-circuit the battery terminals. • Do not disassemble the battery. Charging Specification Standard Charge Cut Off Voltage Max Charge 12.3V/1.1A 9V 12.3V/2.1A LED Light Output CLASS 1 LED PRODUCT IEC60825-1 :1993+A1 :1997+A2:2001 Maximum Radiant Power: 1.693 mW © 2012 3M. All Rights Reserved. 7

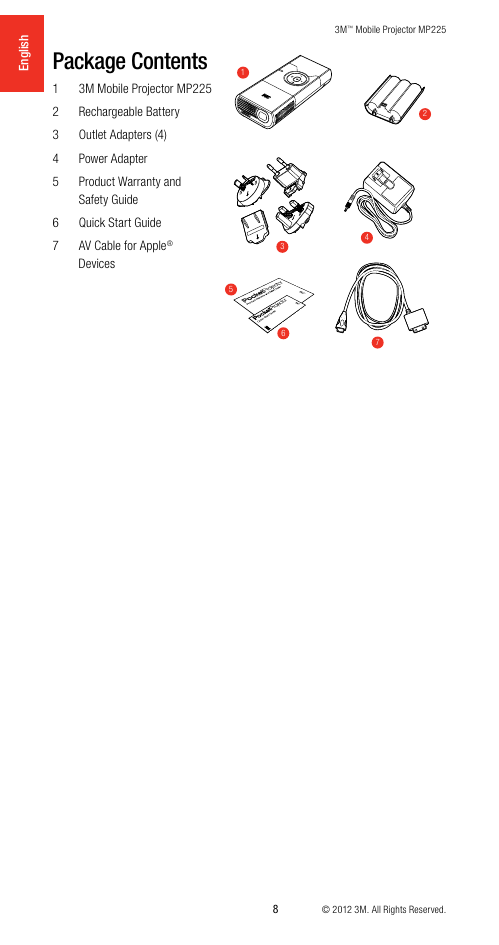

h s i l g n E Package Contents 3M Mobile Projector MP225 1 1 3M™ Mobile Projector MP225 2 2 3 4 5 6 7 Rechargeable Battery Outlet Adapters (4) Power Adapter Product Warranty and Safety Guide Quick Start Guide AV Cable for Apple® Devices 5 3 6 4 7 8 © 2012 3M. All Rights Reserved.
