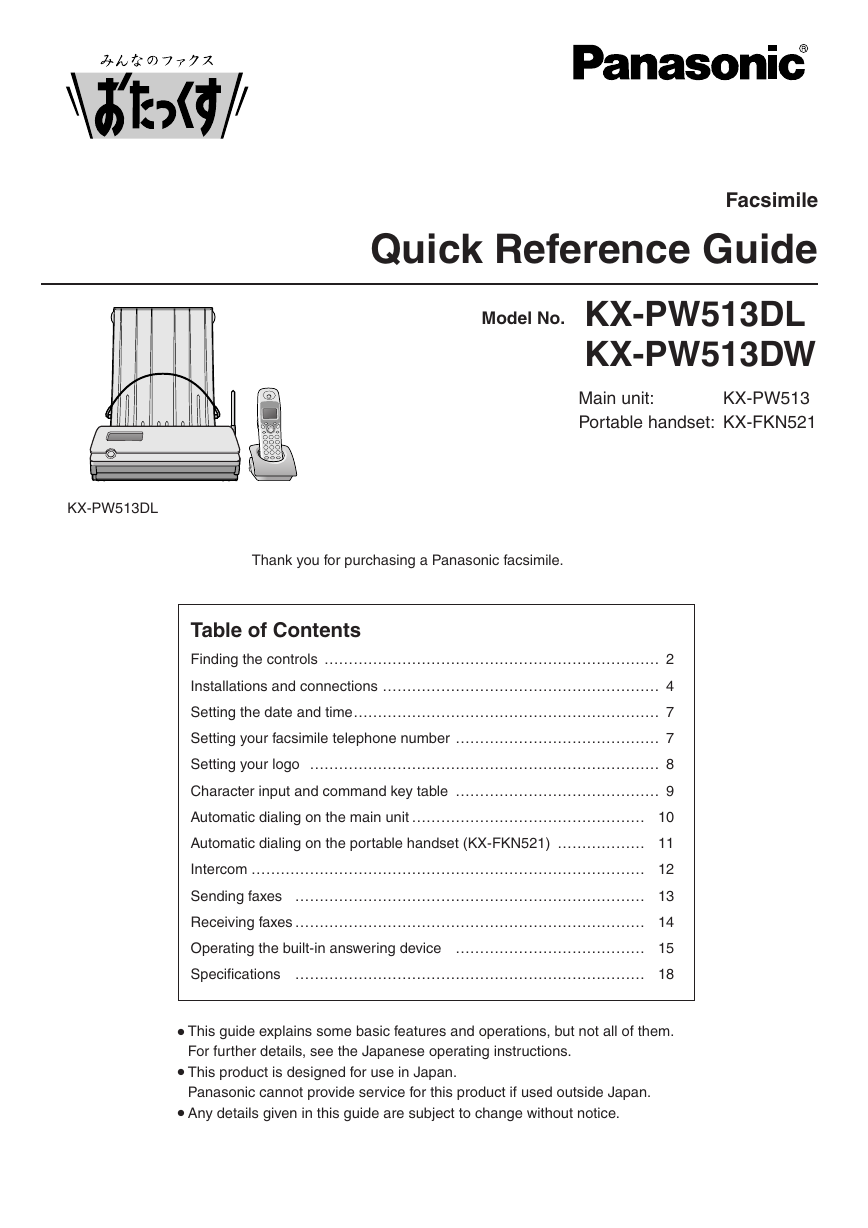

Facsimile Quick Reference Guide Model No. KX-PW513DL KX-PW513DW Main unit: Portable handset: KX-PW513 KX-FKN521 KX-PW513DL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls …………………………………………………………… 2 Installations and connections ………………………………………………… 4 Setting the date and time……………………………………………………… 7 Setting your facsimile telephone number …………………………………… 7 Setting your logo ……………………………………………………………… 8 Character input and command key table …………………………………… 9 Automatic dialing on the main unit ………………………………………… 10 Automatic dialing on the portable handset (KX-FKN521) ……………… 11 Intercom ……………………………………………………………………… 12 Sending faxes ……………………………………………………………… 13 Receiving faxes ……………………………………………………………… 14 Operating the built-in answering device ………………………………… 15 Specifications ……………………………………………………………… 18 l This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. l This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. l Any details given in this guide are subject to change without notice.

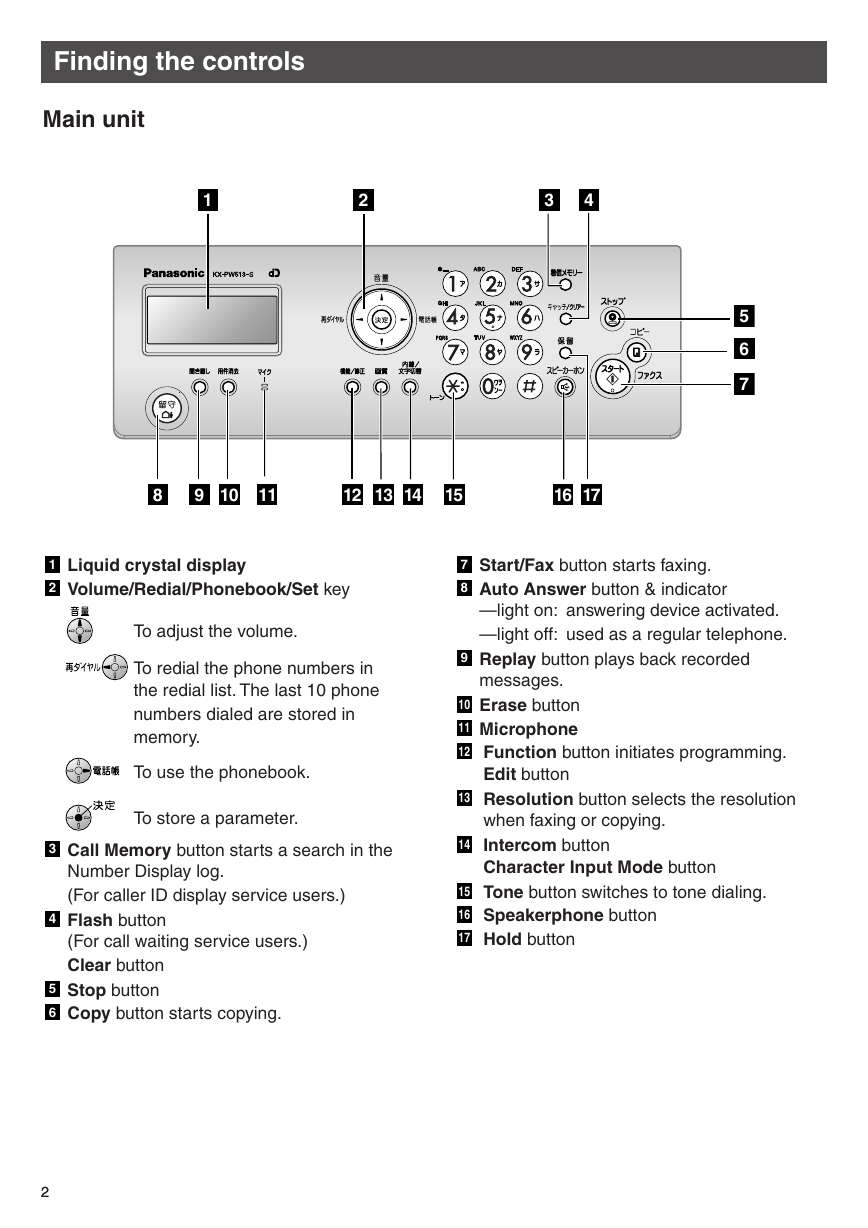

Finding the controls Main unit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 Liquid crystal display 2 Volume/Redial/Phonebook/Set key To adjust the volume. To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. To use the phonebook. To store a parameter. 3 Call Memory button starts a search in the Number Display log. (For caller ID display service users.) 4 Flash button (For call waiting service users.) Clear button 5 Stop button 6 Copy button starts copying. 7 Start/Fax button starts faxing. 8 Auto Answer button & indicator —light on: answering device activated. —light off: used as a regular telephone. 9 Replay button plays back recorded messages. 10 Erase button 11 Microphone 12 Function button initiates programming. Edit button 13 Resolution button selects the resolution when faxing or copying. 14 Intercom button Character Input Mode button 15 Tone button switches to tone dialing. 16 Speakerphone button 17 Hold button 22

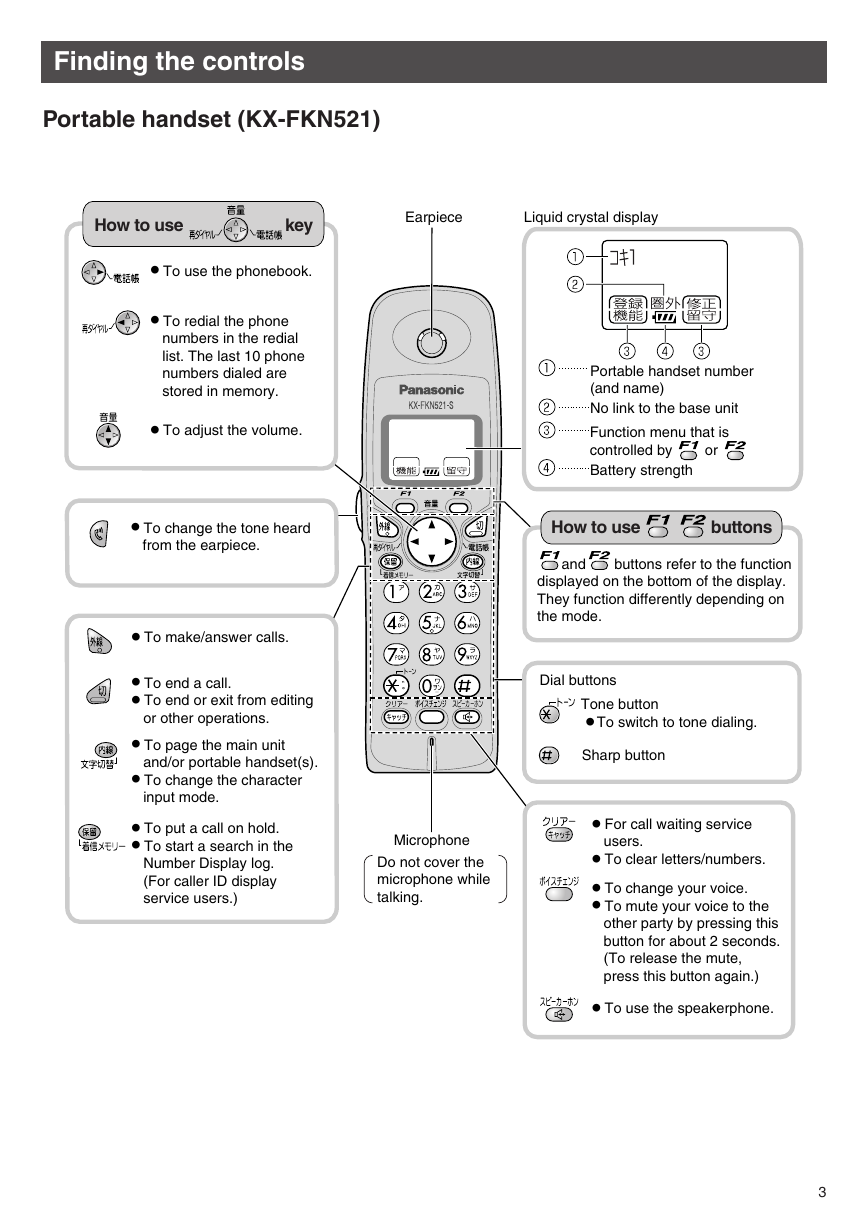

Finding the controls Portable handset (KX-FKN521) How to use key Earpiece Liquid crystal display ● To use the phonebook. ● To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. ● To adjust the volume. ● To change the tone heard from the earpiece. ● To make/answer calls. ● To end a call. ● To end or exit from editing or other operations. ● To page the main unit and/or portable handset(s). ● To change the character input mode. ● To put a call on hold. ● To start a search in the Number Display log. (For caller ID display service users.) Microphone Do not cover the microphone while talking. Portable handset number (and name) No link to the base unit Function menu that is controlled by or Battery strength How to use buttons and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. Dial buttons Tone button ● To switch to tone dialing. Sharp button ● For call waiting service users. ● To clear letters/numbers. ● To change your voice. ● To mute your voice to the other party by pressing this button for about 2 seconds. (To release the mute, press this button again.) ● To use the speakerphone. 3

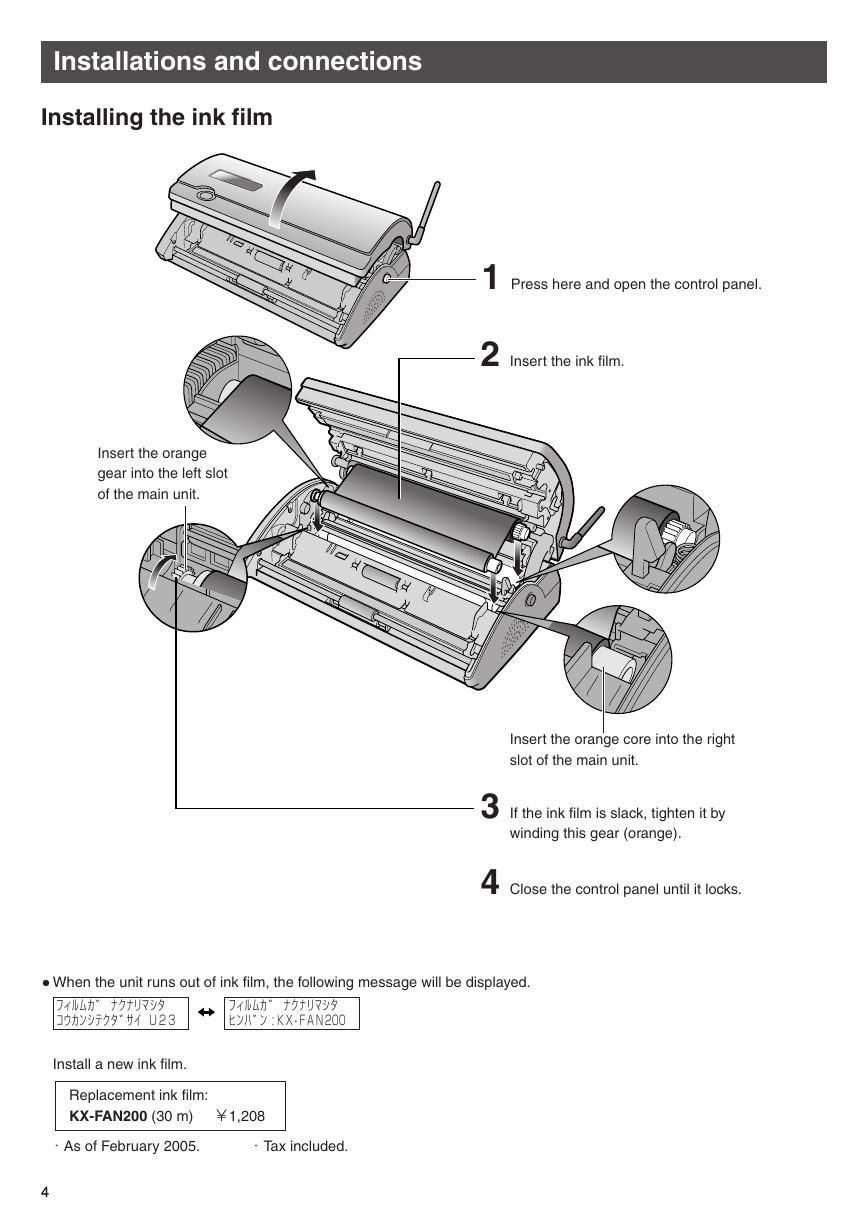

Installations and connections Installing the ink film Insert the orange gear into the left slot of the main unit. 1 Press here and open the control panel. 2 Insert the ink film. Insert the orange core into the right slot of the main unit. 3 If the ink film is slack, tighten it by winding this gear (orange). 4 Close the control panel until it locks. l When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU23 ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾋﾝﾊﾞﾝ : KX- FAN200 Install a new ink film. Replacement ink film: KX-FAN200 (30 m) ￥1,208 ・As of February 2005. ・Tax included. 44

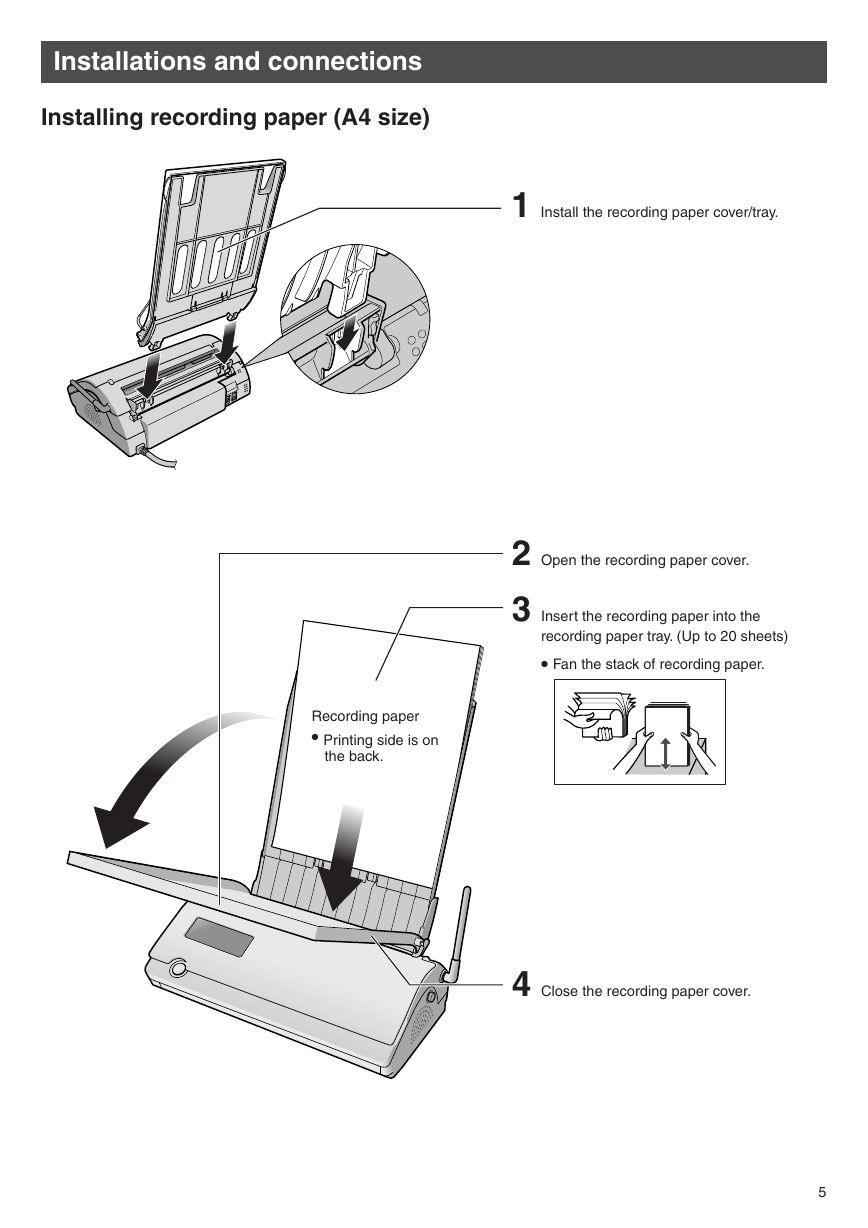

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper cover/tray. 2 Open the recording paper cover. 3 Insert the recording paper into the recording paper tray. (Up to 20 sheets) ● Fan the stack of recording paper. Recording paper ● Printing side is on the back. 4 Close the recording paper cover. 5

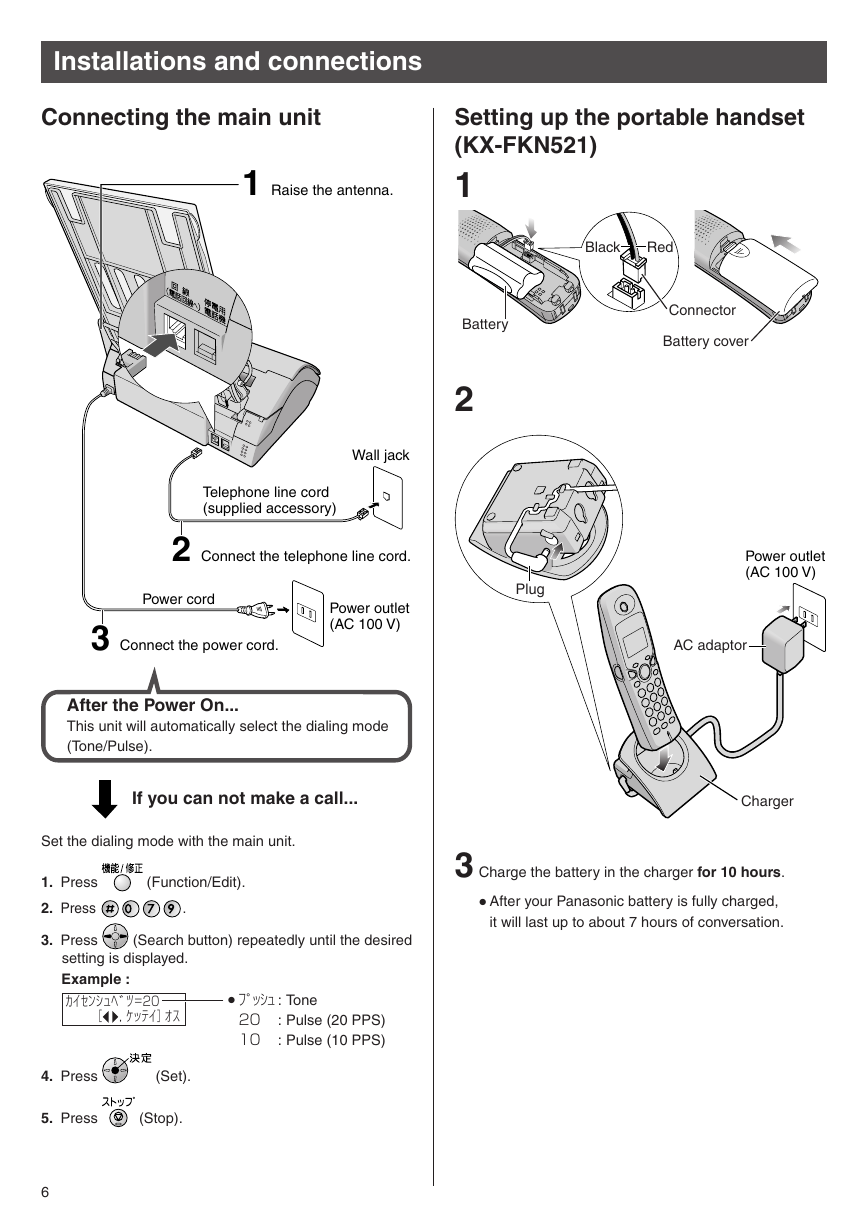

Installations and connections Connecting the main unit 1 Raise the antenna. Setting up the portable handset (KX-FKN521) 1 Black Red Connector Battery cover Battery 2 Wall jack Telephone line cord (supplied accessory) 2 Connect the telephone line cord. Power cord 3 Connect the power cord. Power outlet (AC 100 V) Plug After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). Power outlet (AC 100 V) AC adaptor If you can not make a call... Charger Set the dialing mode with the main unit. 1. Press 2. Press (Function/Edit). . 3. Press (Search button) repeatedly until the desired 3 Charge the battery in the charger for 10 hours. l After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. l ﾌﾟｯｼｭ : Tone 20 10 : Pulse (20 PPS) : Pulse (10 PPS) setting is displayed. Example : ｶｲｾﾝｼｭﾍﾞﾂ＝20 ［ , ｹｯﾃｲ］ｵｽ 4. Press (Set). 5. Press (Stop). 6

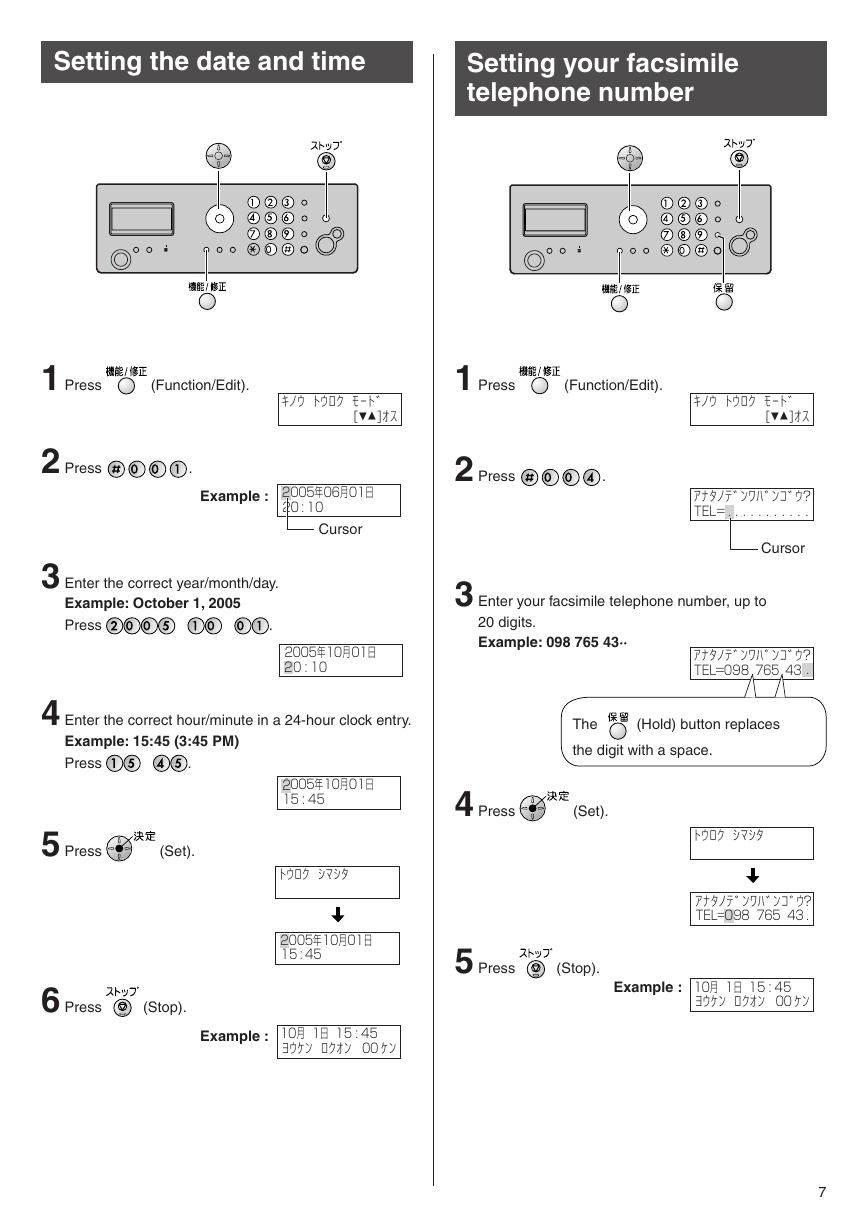

Setting the date and time Setting your facsimile telephone number 1 Press 2 Press (Function/Edit). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽ . Example : 2005年06月01日 2 20 : 10 Cursor 1 Press 2 Press (Function/Edit). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽ . ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=．．．．．．．．．．． . Cursor 3 Enter the correct year/month/day. Example: October 1, 2005 Press . 2005年10月01日 2 20 : 10 3 Enter your facsimile telephone number, up to 20 digits. Example: 098 765 43·· ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? . TEL=0980765043 4 Enter the correct hour/minute in a 24-hour clock entry. Example: 15:45 (3:45 PM) Press . 5 Press (Set). 2005年10月01日 2 15 : 45 ﾄｳﾛｸｼﾏｼﾀ 2 2005年10月01日 15 : 45 6 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ The 　 (Hold) button replaces the digit with a space. 4 Press (Set). ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=098 765 43 ． 0 5 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 7

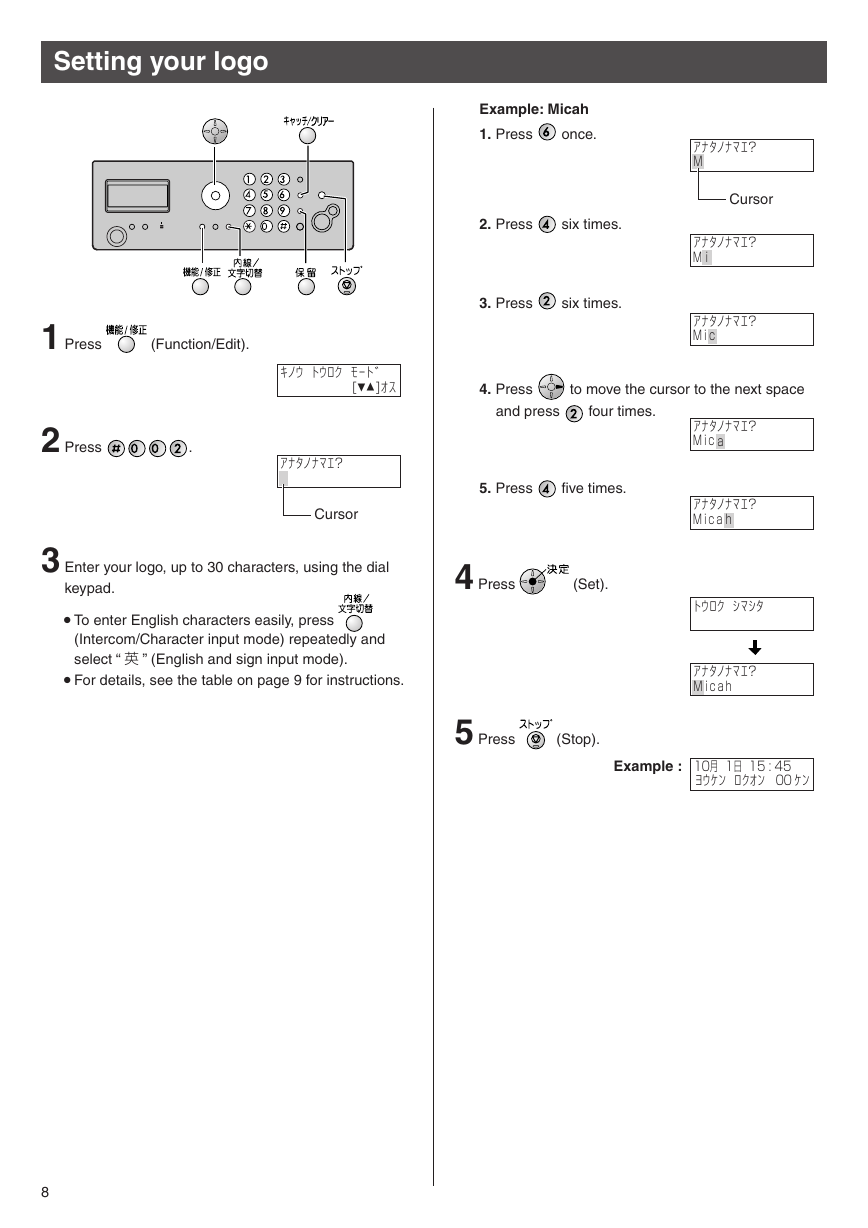

Setting your logo 1 Press (Function/Edit). 2 Press . Example: Micah 1. Press once. 2. Press six times. 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? MM Cursor ｱﾅﾀﾉﾅﾏｴ? Mii ｱﾅﾀﾉﾅﾏｴ? Micc ｷﾉｳﾄｳﾛｸﾓｰﾄﾞｸ [▼▲]ｵｽ 4. Press to move the cursor to the next space and press four times. 5. Press five times. ｱﾅﾀﾉﾅﾏｴ? Cursor ｱﾅﾀﾉﾅﾏｴ? Micaa ｱﾅﾀﾉﾅﾏｴ? Micahh ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾅﾏｴ? Micah M 3 Enter your logo, up to 30 characters, using the dial keypad. 4 Press (Set). l To enter English characters easily, press (Intercom/Character input mode) repeatedly and select “ 英 ” (English and sign input mode). l For details, see the table on page 9 for instructions. 5 Press (Stop). Example : 10月 1日 15 : 45 ﾖｳｹﾝﾛｸｵﾝ 00 ｹﾝ 8
