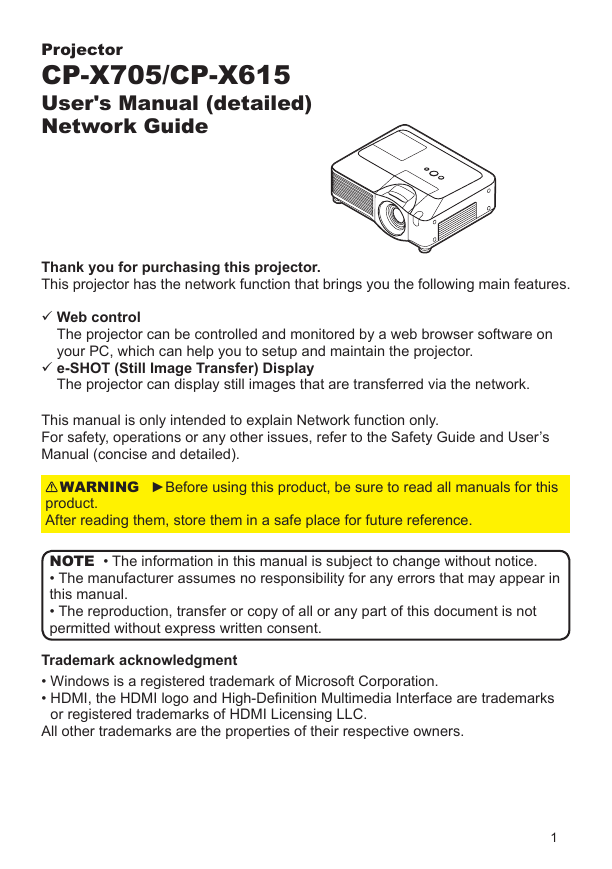

Projector CP-X705/CP-X615 User's Manual (detailed) Network Guide Thank you for purchasing this projector. This projector has the network function that brings you the following main features. ü Web control The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector. ü e-SHOT (Still Image Transfer) Display The projector can display still images that are transferred via the network. This manual is only intended to explain Network function only. For safety, operations or any other issues, refer to the Safety Guide and User’s Manual (concise and detailed). WARNING ►Before using this product, be sure to read all manuals for this product. After reading them, store them in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Windows is a registered trademark of Microsoft Corporation. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other trademarks are the properties of their respective owners.

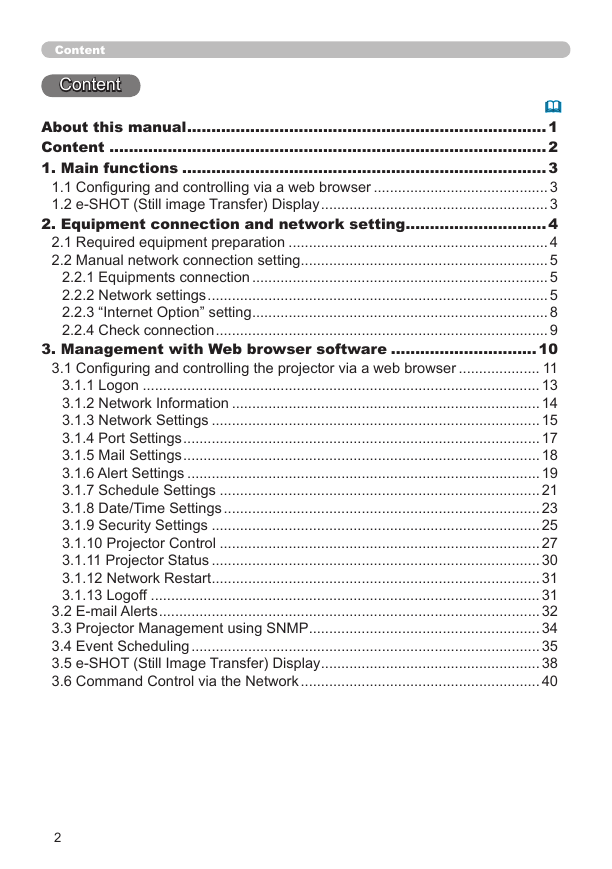

Content Content  About this manual ..........................................................................1 Content ..........................................................................................2 1. Main functions ...........................................................................3 1.1 Configuring and controlling via a web browser ........................................... 3 1.2 e-SHOT (Still image Transfer) Display ........................................................ 3 2. Equipment connection and network setting .............................4 2.1 Required equipment preparation ................................................................ 4 2.2 Manual network connection setting ............................................................. 5 .. Equipments connection ......................................................................... 5 2.2.2 Network settings .................................................................................... 5 2.2.3 “Internet Option” setting ......................................................................... 8 2.2.4 Check connection .................................................................................. 9 3. Management with Web browser software ..............................10 3.1 Configuring and controlling the projector via a web browser .................... 3.1.1 Logon .................................................................................................. 3 3.1.2 Network Information ............................................................................ 4 3.1.3 Network Settings ................................................................................. 5 3.1.4 Port Settings ........................................................................................7 3.1.5 Mail Settings ........................................................................................8 3.1.6 Alert Settings .......................................................................................9 3.1.7 Schedule Settings ............................................................................... 3.1.8 Date/Time Settings .............................................................................. 3 3.1.9 Security Settings ................................................................................. 5 3.1.10 Projector Control ............................................................................... 7 3.1.11 Projector Status ................................................................................. 30 3.1.12 Network Restart ................................................................................. 3 3.1.13 Logoff ................................................................................................ 3 3.2 E-mail Alerts ..............................................................................................3 3.3 Projector Management using SNMP ......................................................... 34 3.4 Event Scheduling ...................................................................................... 35 3.5 e-SHOT (Still Image Transfer) Display ...................................................... 38 3.6 Command Control via the Network ........................................................... 40

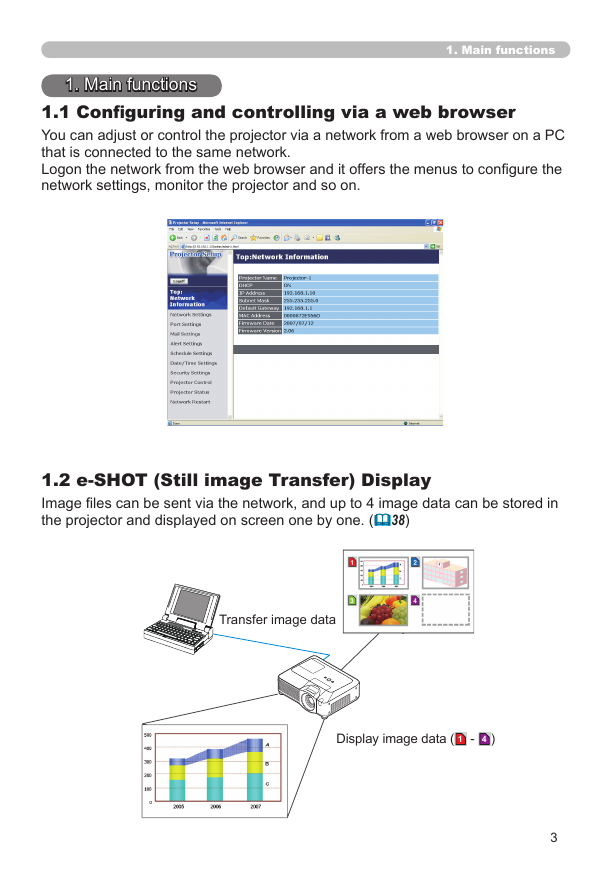

1. Main functions 1. Main functions 1.1 Configuring and controlling via a web browser You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network. Logon the network from the web browser and it offers the menus to configure the network settings, monitor the projector and so on. 1.2 e-SHOT (Still image Transfer) Display Image files can be sent via the network, and up to 4 image data can be stored in the projector and displayed on screen one by one. (38) Transfer image data Display image data ( 1 - 4 ) 3

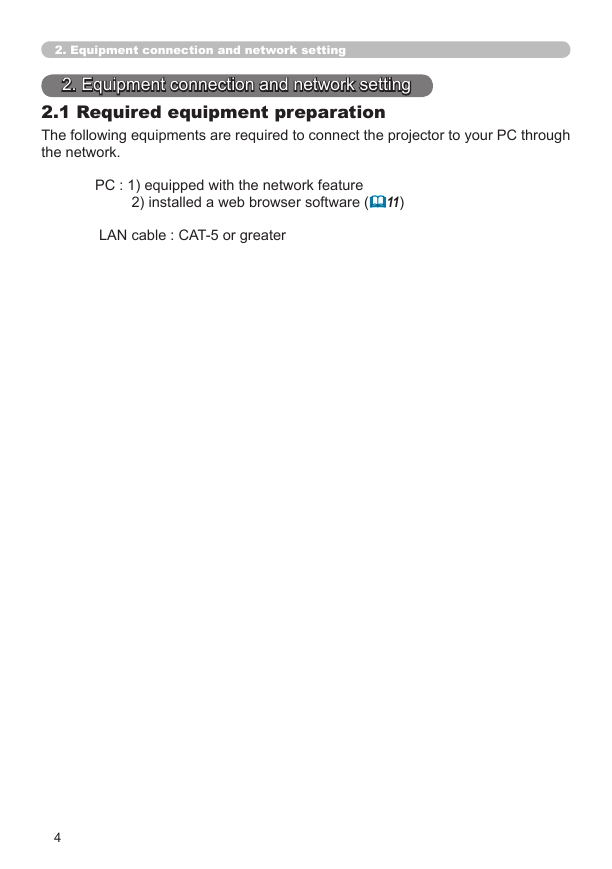

2. Equipment connection and network setting 2. Equipment connection and network setting 2.1 Required equipment preparation The following equipments are required to connect the projector to your PC through the network. PC : 1) equipped with the network feature 2) installed a web browser software (11) LAN cable : CAT-5 or greater 4

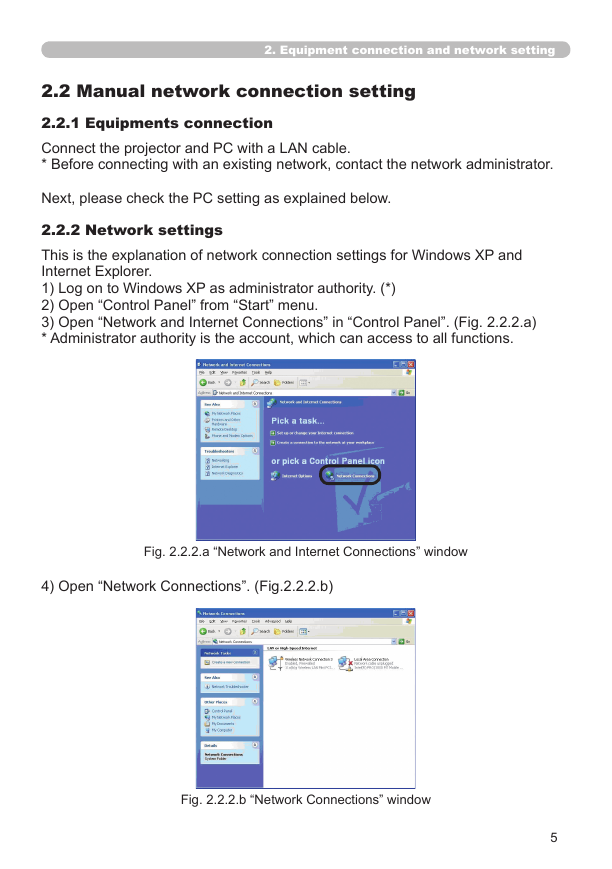

2. Equipment connection and network setting 2.2 Manual network connection setting 2.2.1 Equipments connection Connect the projector and PC with a LAN cable. * Before connecting with an existing network, contact the network administrator. Next, please check the PC setting as explained below. 2.2.2 Network settings This is the explanation of network connection settings for Windows XP and Internet Explorer. 1) Log on to Windows XP as administrator authority. (*) 2) Open “Control Panel” from “Start” menu. 3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.2.2.a) * Administrator authority is the account, which can access to all functions. Fig. 2.2.2.a “Network and Internet Connections” window 4) Open “Network Connections”. (Fig.2.2.2.b) Fig. 2.2.2.b “Network Connections” window 5

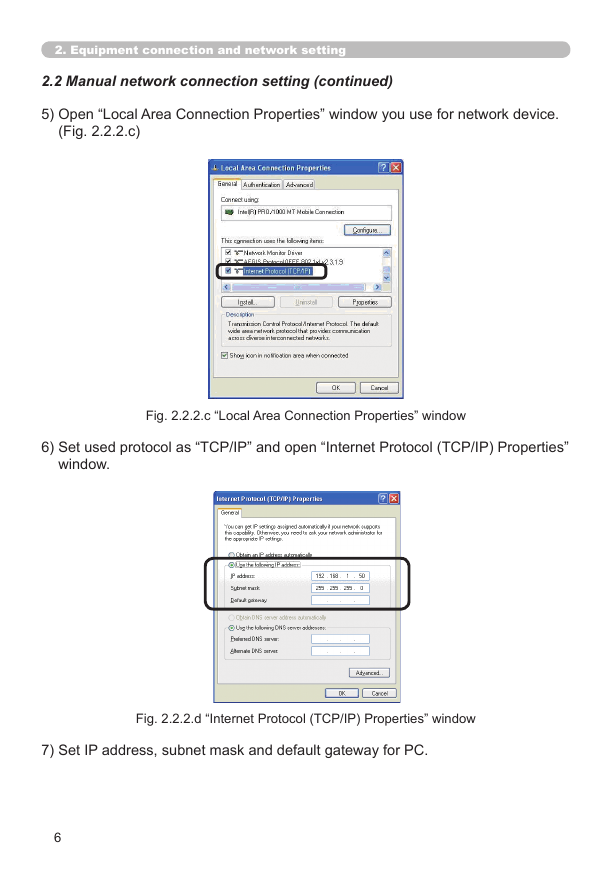

2. Equipment connection and network setting 2.2 Manual network connection setting (continued) 5) Open “Local Area Connection Properties” window you use for network device. (Fig. 2.2.2.c) Fig. 2.2.2.c “Local Area Connection Properties” window 6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties” window. Fig. 2.2.2.d “Internet Protocol (TCP/IP) Properties” window 7) Set IP address, subnet mask and default gateway for PC.

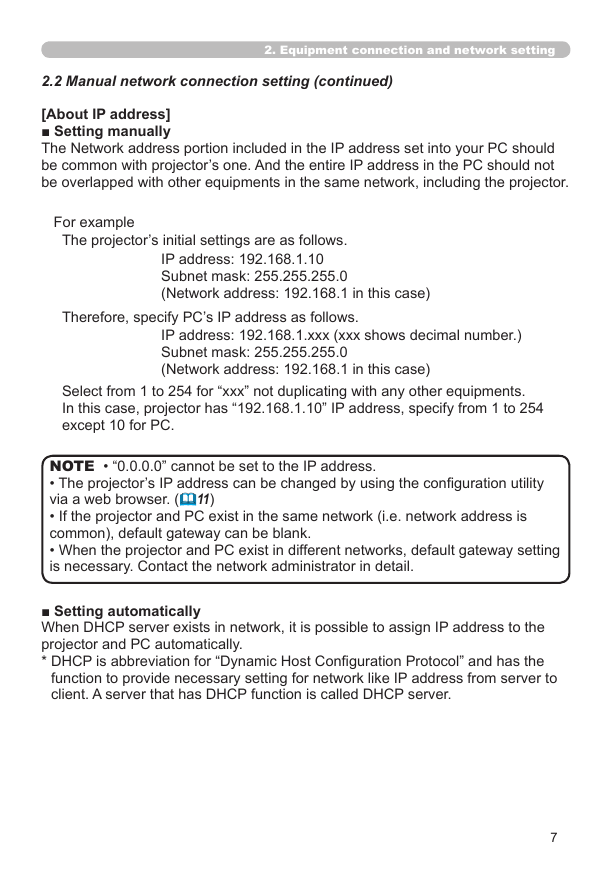

2. Equipment connection and network setting 2.2 Manual network connection setting (continued) [About IP address] ■ Setting manually The Network address portion included in the IP address set into your PC should be common with projector’s one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector. For example The projector’s initial settings are as follows. IP address: 192.168.1.10 Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case) Therefore, specify PC’s IP address as follows. IP address: 192.168.1.xxx (xxx shows decimal number.) Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case) Select from 1 to 254 for “xxx” not duplicating with any other equipments. In this case, projector has “192.168.1.10” IP address, specify from 1 to 254 except 10 for PC. • “0.0.0.0” cannot be set to the IP address. NOTE • The projector’s IP address can be changed by using the configuration utility via a web browser. (11) • If the projector and PC exist in the same network (i.e. network address is common), default gateway can be blank. • When the projector and PC exist in different networks, default gateway setting is necessary. Contact the network administrator in detail. ■ Setting automatically When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically. * DHCP is abbreviation for “Dynamic Host Configuration Protocol” and has the function to provide necessary setting for network like IP address from server to client. A server that has DHCP function is called DHCP server. 7

2. Equipment connection and network setting 2.2 Manual network connection setting (continued) 2.2.3 “Internet Option” setting 1) Click “Internet Options” in “Network and Internet Connections” window (Fig. 2.2.3.a) to open “Internet Properties” window. (Fig.2.2.3.b) Fig. 2.2.3.a “Network and Internet Connections” window Click Click Fig. 2.2.3.b “Internet Properties” window 2) Click “Connections” tab and then click [LAN Settings] button to open “Local Area Network (LAN) settings”. (Fig. 2.2.3.c) 8
