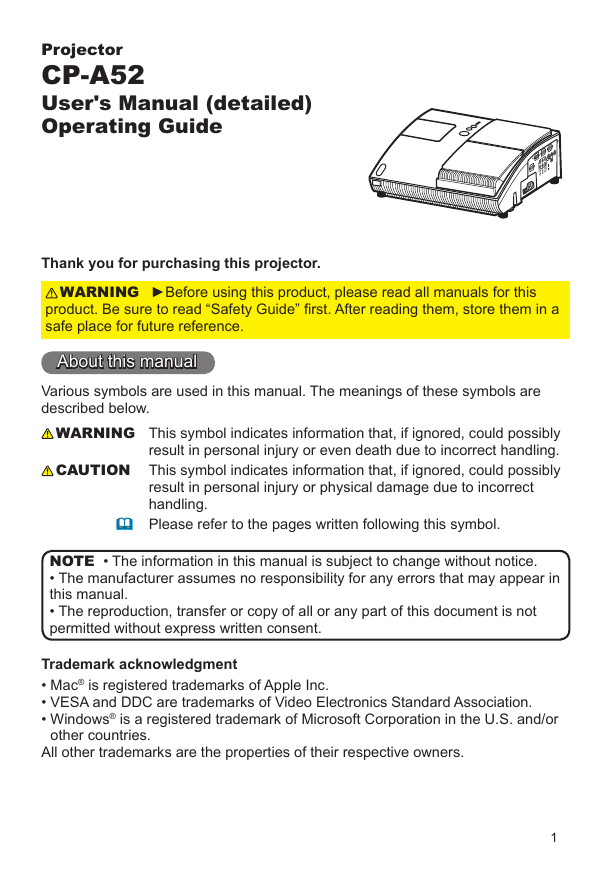

Projector CP-A52 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING CAUTION  This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. Please refer to the pages written following this symbol. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Mac® is registered trademarks of Apple Inc. • VESA and DDC are trademarks of Video Electronics Standard Association. • Windows® is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. All other trademarks are the properties of their respective owners. 1

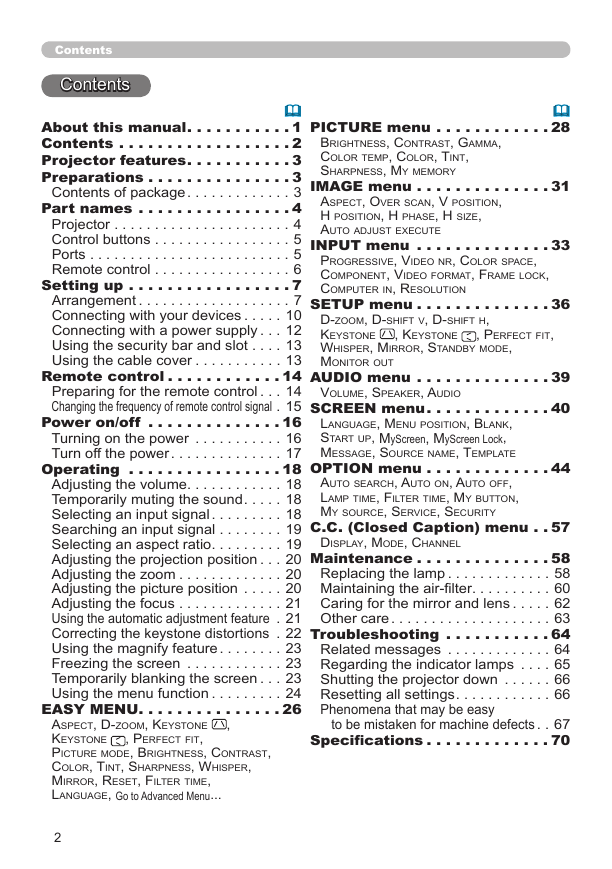

Contents Contents  About this manual . . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . . 3 Contents of package . . . . . . . . . . . . . 3 Part names . . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . . 4 Control buttons . . . . . . . . . . . . . . . . . 5 Ports . . . . . . . . . . . . . . . . . . . . . . . . . 5 Remote control . . . . . . . . . . . . . . . . . 6 Setting up . . . . . . . . . . . . . . . . . 7 Arrangement . . . . . . . . . . . . . . . . . . . 7 Connecting with your devices . . . . . 10 Connecting with a power supply . . . 12 Using the security bar and slot . . . . 13 Using the cable cover . . . . . . . . . . . 13 Remote control . . . . . . . . . . . . 14 Preparing for the remote control . . . 14 Changing the frequency of remote control signal . 15 Power on/off . . . . . . . . . . . . . . 16 Turning on the power . . . . . . . . . . . 16 Turn off the power . . . . . . . . . . . . . . 17 Operating . . . . . . . . . . . . . . . . 18 Adjusting the volume . . . . . . . . . . . . 18 Temporarily muting the sound . . . . . 18 Selecting an input signal . . . . . . . . . 18 Searching an input signal . . . . . . . . 19 Selecting an aspect ratio . . . . . . . . . 19 Adjusting the projection position . . . 20 Adjusting the zoom . . . . . . . . . . . . . 20 Adjusting the picture position . . . . . 20 Adjusting the focus . . . . . . . . . . . . . 21 Using the automatic adjustment feature . 21 Correcting the keystone distortions . 22 Using the magnify feature . . . . . . . . 23 Freezing the screen . . . . . . . . . . . . 23 Temporarily blanking the screen . . . 23 Using the menu function . . . . . . . . . 24 EASY MENU . . . . . . . . . . . . . . . 26 , Aspect, D-zoom, Keystone , perfect fit, Keystone picture moDe, Brightness, contrAst, color, tint, shArpness, Whisper, mirror, reset, filter time, lAnguAge, Go to Advanced Menu... 2  PICTURE menu . . . . . . . . . . . . 28 Brightness, contrAst, gAmmA, color temp, color, tint, shArpness, my memory IMAGE menu . . . . . . . . . . . . . . 31 Aspect, over scAn, v position, h position, h phAse, h size, Auto ADjust execute INPUT menu . . . . . . . . . . . . . . 33 progressive, viDeo nr, color spAce, component, viDeo formAt, frAme locK, computer in, resolution SETUP menu . . . . . . . . . . . . . . 36 D-zoom, D-shift v, D-shift h, Keystone Whisper, mirror, stAnDBy moDe, monitor out , Keystone , perfect fit, AUDIO menu . . . . . . . . . . . . . . 39 volume, speAKer, AuDio SCREEN menu . . . . . . . . . . . . . 40 lAnguAge, menu position, BlAnK, stArt up, MyScreen, MyScreen Lock, messAge, source nAme, templAte OPTION menu . . . . . . . . . . . . . 44 Auto seArch, Auto on, Auto off, lAmp time, filter time, my Button, my source, service, security C .C . (Closed Caption) menu . . 57 DisplAy, moDe, chAnnel Maintenance . . . . . . . . . . . . . . 58 Replacing the lamp . . . . . . . . . . . . . 58 Maintaining the air-filter . . . . . . . . . . 60 Caring for the mirror and lens . . . . . 62 Other care . . . . . . . . . . . . . . . . . . . . 63 Troubleshooting . . . . . . . . . . . 64 Related messages . . . . . . . . . . . . . 64 Regarding the indicator lamps . . . . 65 Shutting the projector down . . . . . . 66 Resetting all settings . . . . . . . . . . . . 66 Phenomena that may be easy to be mistaken for machine defects . . 67 Specifications . . . . . . . . . . . . . 70

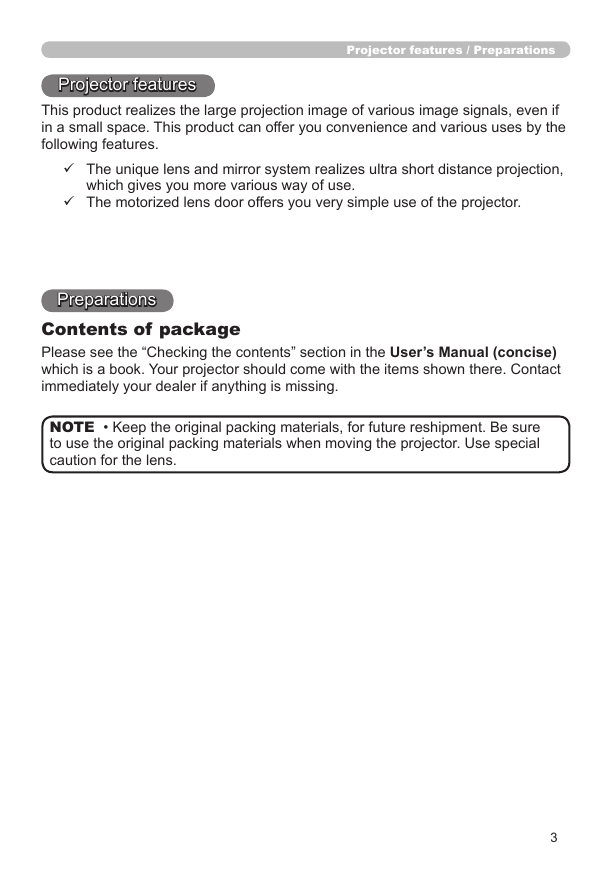

Projector features / Preparations Projector features This product realizes the large projection image of various image signals, even if in a small space. This product can offer you convenience and various uses by the following features. ü The unique lens and mirror system realizes ultra short distance projection, which gives you more various way of use. ü The motorized lens door offers you very simple use of the projector. Preparations Contents of package Please see the “Checking the contents” section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing. NOTE • Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens. 3

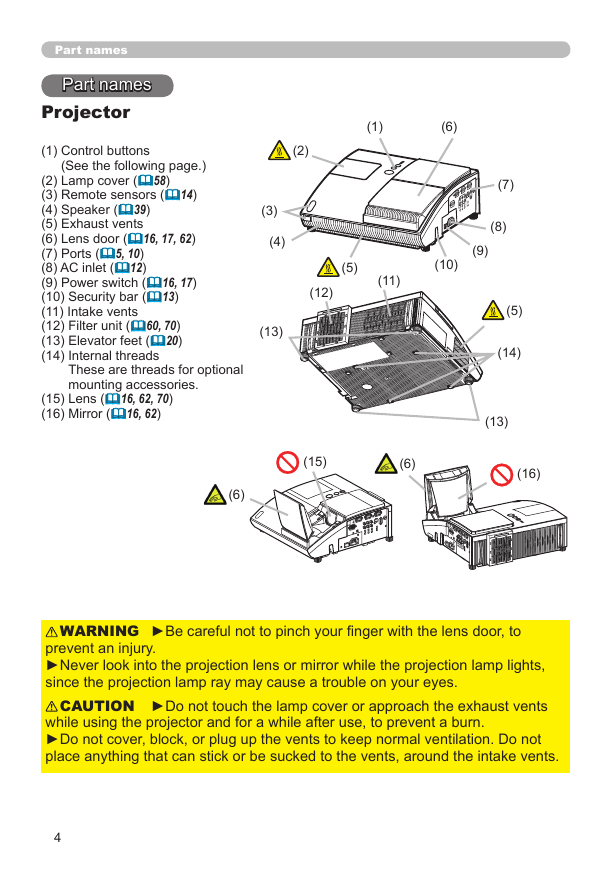

Part names Part names Projector (1) Control buttons (See the following page.) (2) Lamp cover (58) (3) Remote sensors (14) (4) Speaker (39) (5) Exhaust vents (6) Lens door (16, 17, 62) (7) Ports (5, 10) (8) AC inlet (12) (9) Power switch (16, 17) (10) Security bar (13) (11) Intake vents (12) Filter unit (60, 70) (13) Elevator feet (20) (14) Internal threads These are threads for optional mounting accessories. (15) Lens (16, 62, 70) (16) Mirror (16, 62) (1) (6) (2) (3) (4) (13) (5) (11) (12) (7) (8) (9) (10) (5) (14) (13) (15) (6) (16) (6) WARNING ►Be careful not to pinch your fi nger with the lens door, to prevent an injury. ►Never look into the projection lens or mirror while the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes. CAUTION ►Do not touch the lamp cover or approach the exhaust vents while using the projector and for a while after use, to prevent a burn. ►Do not cover, block, or plug up the vents to keep normal ventilation. Do not place anything that can stick or be sucked to the vents, around the intake vents. 4

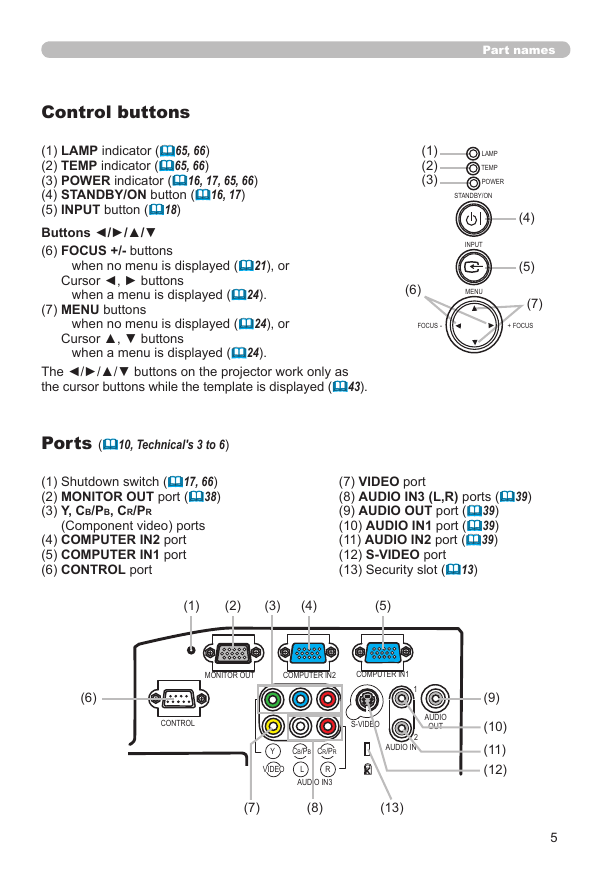

Control buttons (1) LAMP indicator (65, 66) (2) TEMP indicator (65, 66) (3) POWER indicator (16, 17, 65, 66) (4) STANDBY/ON button (16, 17) (5) INPUT button (18) Buttons ◄/►/▲/▼ (6) FOCUS +/- buttons when no menu is displayed (21), or Cursor ◄, ► buttons when a menu is displayed (24). (7) MENU buttons when no menu is displayed (24), or Cursor ▲, ▼ buttons when a menu is displayed (24). Part names (1) (2) (3) LAMP TEMP POWER STANDBY/ON INPUT MENU (6) (4) (5) (7) FOCUS - + FOCUS The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the template is displayed (43). Ports (10, Technical's 3 to 6) (1) Shutdown switch (17, 66) (2) MONITOR OUT port (38) (3) Y, CB/PB, CR/PR (Component video) ports (4) COMPUTER IN2 port (5) COMPUTER IN1 port (6) CONTROL port (7) VIDEO port (8) AUDIO IN3 (L,R) ports (39) (9) AUDIO OUT port (39) (10) AUDIO IN1 port (39) (11) AUDIO IN2 port (39) (12) S-VIDEO port (13) Security slot (13) (1) (2) (3) (4) (5) (6) CONTROL MONITOR OUT COMPUTER IN2 COMPUTER IN1 1 AUDIO OUT S-VIDEO 2 AUDIO IN (9) (10) (11) (12) Y CB/PB CR/PR VIDEO L R AUDIO IN3 (7) (8) (13) 5

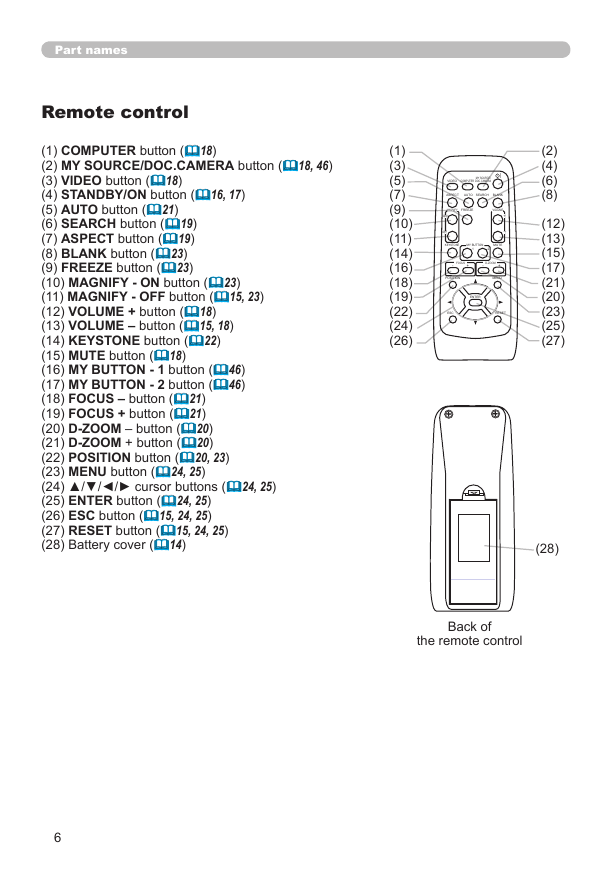

Part names Remote control (1) COMPUTER button (18) (2) MY SOURCE/DOC.CAMERA button (18, 46) (3) VIDEO button (18) (4) STANDBY/ON button (16, 17) (5) AUTO button (21) (6) SEARCH button (19) (7) ASPECT button (19) (8) BLANK button (23) (9) FREEZE button (23) (10) MAGNIFY - ON button (23) (11) MAGNIFY - OFF button (15, 23) (12) VOLUME + button (18) (13) VOLUME – button (15, 18) (14) KEYSTONE button (22) (15) MUTE button (18) (16) MY BUTTON - 1 button (46) (17) MY BUTTON - 2 button (46) (18) FOCUS – button (21) (19) FOCUS + button (21) (20) D-ZOOM – button (20) (21) D-ZOOM + button (20) (22) POSITION button (20, 23) (23) MENU button (24, 25) (24) ▲/▼/◄/► cursor buttons (24, 25) (25) ENTER button (24, 25) (26) ESC button (15, 24, 25) (27) RESET button (15, 24, 25) (28) Battery cover (14) (1) (3) (5) (7) (9) (10) (11) (14) (16) (18) (19) (22) (24) (26) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE VOLUME ON OFF KEYSTONE MY BUTTON 1 2 MUTE FOCUS D-ZOOM - + - + POSITION MENU ENTER ESC RESET (2) (4) (6) (8) (12) (13) (15) (17) (21) (20) (23) (25) (27) (28) Back of the remote control 6

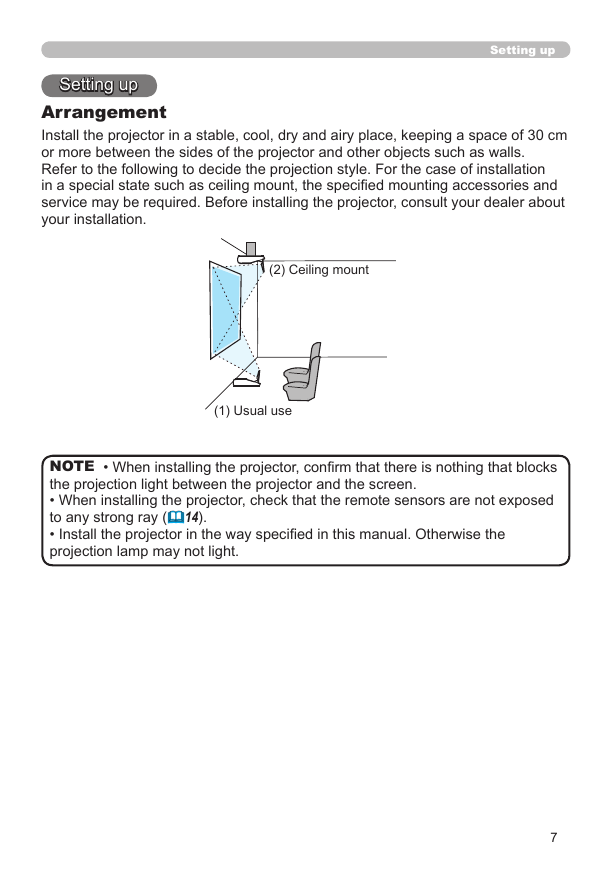

Setting up Setting up Arrangement Install the projector in a stable, cool, dry and airy place, keeping a space of 30 cm or more between the sides of the projector and other objects such as walls. Refer to the following to decide the projection style. For the case of installation in a special state such as ceiling mount, the specified mounting accessories and service may be required. Before installing the projector, consult your dealer about your installation. (2) Ceiling mount (1) Usual use • When installing the projector, confirm that there is nothing that blocks NOTE the projection light between the projector and the screen. • When installing the projector, check that the remote sensors are not exposed to any strong ray (14). • Install the projector in the way specified in this manual. Otherwise the projection lamp may not light. 7

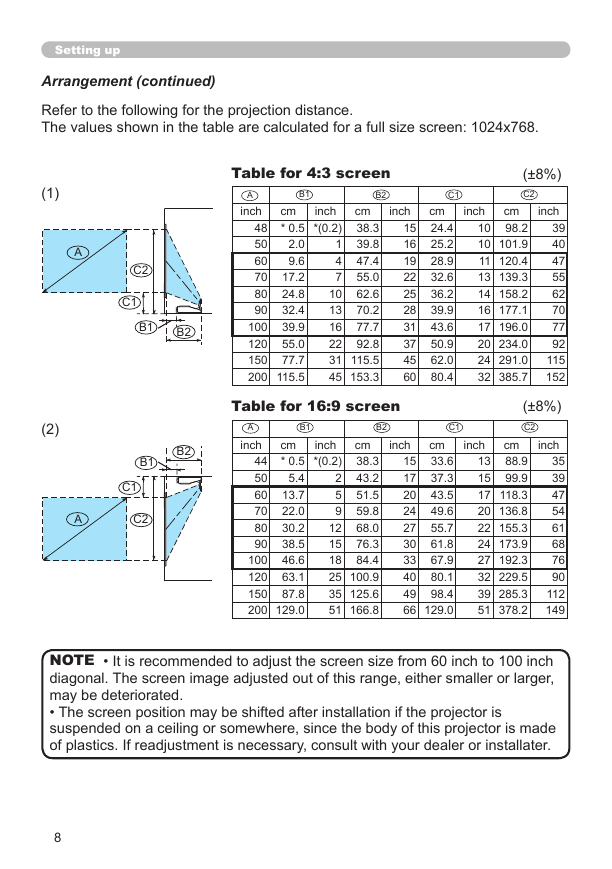

Setting up Arrangement (continued) Refer to the following for the projection distance. The values shown in the table are calculated for a full size screen: 1024x768. (1) A C2 C1 B1 B2 (2) B2 B1 C1 A C2 Table for 4:3 screen B2 B1 A inch 48 2.0 50 9.6 60 17.2 70 24.8 80 32.4 90 39.9 100 55.0 120 150 77.7 200 115.5 cm inch cm inch * 0.5 *(0.2) 15 38.3 1 16 39.8 4 47.4 19 7 22 55.0 10 25 62.6 13 28 70.2 31 16 77.7 22 92.8 37 45 31 115.5 45 153.3 60 Table for 16:9 screen A inch B1 B2 C1 cm inch * 0.5 *(0.2) 44 50 5.4 60 13.7 70 22.0 80 30.2 90 38.5 100 46.6 120 63.1 150 87.8 200 129.0 cm inch 38.3 2 43.2 5 51.5 9 59.8 12 68.0 15 76.3 18 84.4 25 100.9 35 125.6 51 166.8 15 33.6 17 37.3 20 43.5 24 49.6 27 55.7 30 61.8 33 67.9 40 80.1 49 98.4 66 129.0 C1 (±8%) C2 cm inch cm inch 39 10 24.4 98.2 40 10 101.9 25.2 28.9 11 120.4 47 55 13 139.3 32.6 62 14 158.2 36.2 70 16 177.1 39.9 77 17 196.0 43.6 50.9 20 234.0 92 115 24 291.0 62.0 80.4 32 385.7 152 cm inch cm inch (±8%) C2 13 88.9 15 99.9 17 118.3 20 136.8 22 155.3 24 173.9 27 192.3 32 229.5 39 285.3 51 378.2 35 39 47 54 61 68 76 90 112 149 NOTE • It is recommended to adjust the screen size from 60 inch to 100 inch diagonal. The screen image adjusted out of this range, either smaller or larger, may be deteriorated. • The screen position may be shifted after installation if the projector is suspended on a ceiling or somewhere, since the body of this projector is made of plastics. If readjustment is necessary, consult with your dealer or installater. 8
